USER MANUAL Bovella 55 DUO+ Klarstein

QR code image containing encoded data, no visible human-readable text

INHALT

Technische Daten 3

Diagram of a refrigerator interior with numbered labels pointing to different compartments

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Produktdatenblatt

Model placed on the Union market from 01/06/2024.

EPREL registration number: 1996866

https://eprel.ec.europa.eu/qr/1996866

Supplier: Chal-Tec GmbH (Authorised representative)

Website:

Customer care service:

Name: Customer service

Website: https://www.elektronik-star.de/lnfo/Impressum/

Email: [e-mail]

Phone: [phone]

Address:

Wallstraße 16

10179 berlin

Deutschland

Dear Customer,

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

QR code image containing encoded data, no visible human-readable text

CONTENTS

Technical Data 21

Safety Instructions 22

Installation 25

Product Overview 26

Operation 27

Wine Storage 28

Maintenance and Cleaning 31

Troubleshooting 32

Wiring diagramme 33

Disposal Considerations 34

Manufacturer & Importer (UK) 34

TECHNICAL DATA

Item number 10046242
Power supply	220-240 V ~ 50 Hz
Capacity 55 bottles / 150 litres
Weight 43.5 kg
Measurements 510 x 482 x 1262 mm
Refrigerant/weight R600a

SAFETY INSTRUCTIONS

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- Children should be supervised to ensure that they do not play with the appliance.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• To avoid a hazard due to instability of the appliance, it must be fixed in accordance with the instructions.

- When positioning the appliance, ensure the supply cord is not trapped or damaged.

- Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

- Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

- Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

- Do not damage the refrigerant circuit.

- Do not use electrical appliances inside the drink storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

- This appliance is intended to be used in household and similar applications such as

– staff kitchen areas in shops, offices and other working environments;
- farm houses and by clients in hotels, motels and other residential type environments;
- bed and breakfast type environments;
- catering and similar non-retail applications.

- Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

To avoid contamination of drinks, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with drink and accessible drainage systems.
• Clean water tanks if they have not been used for 24 h; flush the water system connected to a water supply if water has not been drawn for 5 days.
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

Note: This unit contains the refrigerant Isobutane (R600a), a natural gas that has high environmental compatibility, but is flammable. Although it is flammable, it does not damage the ozone layer or increase the greenhouse effect. The use of this refrigerant results in a slightly higher noise level of the unit. In addition to the compressor noise, you can hear the flow of refrigerant. This is unavoidable and has no negative effect on the performance of the device. Be careful during transport to avoid damage to the refrigerant circuit. Refrigerant leaks can irritate the eyes.

WARNING

When using, during maintenance and when disposing of the appliance, pay attention to the left symbol located on the back or on the compressor of the appliance. This symbol warns you of possible fires. There are flammable substances in the refrigerant lines and in the compressor. Keep the appliance away from sources of fire during use, maintenance and disposal.

Special notes on correct use

• This device is intended exclusively for the storage of wine.
• This appliance is not intended for use as a built-in appliance unless explicitly stated in the instructions.
• This appliance is not suitable for freezing food.
• The racks were preset to allow the most efficient use of energy.

Note: It is recommended to set the temperature to 12 °C . If the temperature is set too high, the wine may spoil. If the temperature is set too low, the power consumption could increase.

Special notes on the shelves

• The shelves have been preset to allow the most efficient use of energy.
• Only use the shelves provided by the manufacturer.
• Never block the holes in the shelves or use any other types of shelves that have not been approved by the manufacturer, which may cause poor cooling or increase energy consumption.
• We recommend that you use the shelves as shown so that the energy is used as efficiently as possible.

Notes on ambient temperature

Install this unit in a location where the ambient temperature corresponds to the climate class indicated on the unit's rating plate.

SN	Extended temperate	This cooling unit is intended for use at ambient temperatures of 10-32 °C.
N	Temperate	This cooling unit is intended for use at ambient temperatures of 16-32 °C.
ST	Subtropical	This cooling unit is intended for use at ambient temperatures of 16-38 °C.
T	Tropical	This cooling unit is intended for use at ambient temperatures of 16-43 °C.

The ambient temperature influences the internal temperature of the wine refrigerator. For optimal operation of the wine refrigerator, we recommend an ambient temperature of 23 °C to 25 °C .

INSTALLATION

Location

The location you have selected for your wine cellar should:

• be unencumbered and well ventilated;
• be well away from any heat source and direct sunlight;
  • not be too damp (laundry, pantry, bathroom etc.);
  • have a flat floor;
  • have a standard and reliable electricity supply
  • have a surge protector fitted to the electrical outlet;
• Away from the microwave oven. Certain microwave ovens do not have wave interference shield. When placed within 1 meter vicinity of the wine cabinet, they may affect the operation of the wine cabinet.

Placing in cold or hot temperature conditions may cause cellar's temperatures fluctuating, and it will not reach the ideal one.

Installation

• Unpack and remove all of the protection and adhesive strips from the packaging around and inside the wine cellar.
• The wine cellar must be positioned such that the plug is accessible. Release the power cord. Move your wine cellar to its final location. The wine cellar should be installed in a suitable place where the compressor will not be subject to physical contact.
• Wine cellar must be levelled before loading your wines. Your wine cellar is equipped with 4 adjustable feet to facilitate easy levelling. The cooler recommends that you tighten the back feet to the maximum and adjust the front feet to level the wine cellar.

PRODUCT OVERVIEW

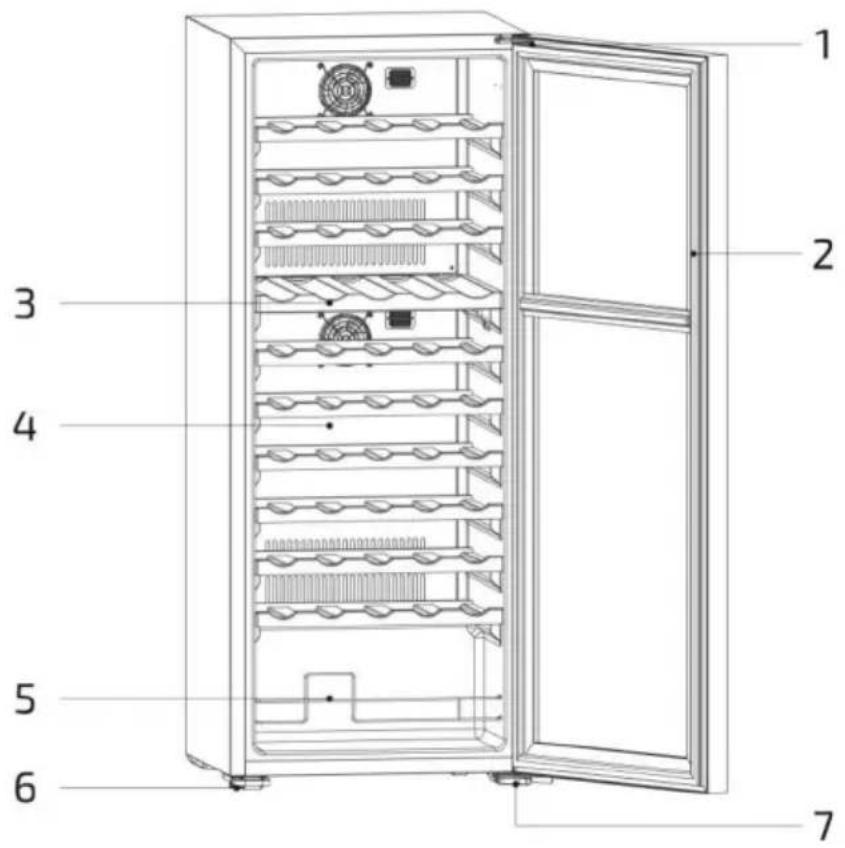

Technical diagram of a refrigerator with numbered labels pointing to the interior structure.

1 Upper hinge
2 Door gasket
3 Partitions
4 Shelves

5 Display shelves
6 Adjust foot
7 Bottom hinge

OPERATION

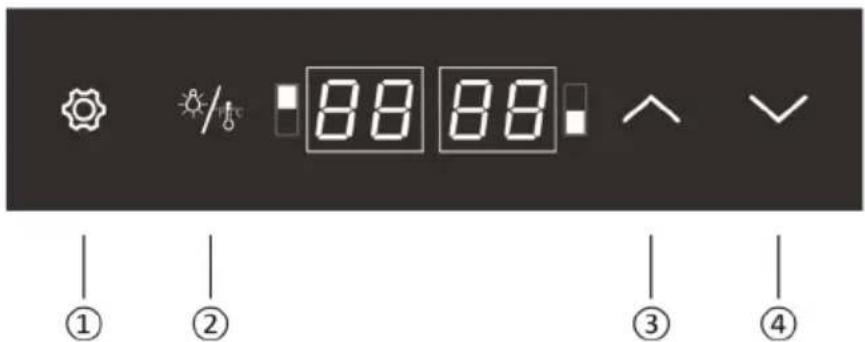

88 88 ① ② ③ ④

Key functions

1	Unlock key: short press to switch the upper/lower compartmentms setting state; long press for 2 seconds to unlock
2	Light/CF key: short press to turn on or of.Long press to switch between Fahrenheit and Celsius
3	Add key: temperature setting
4	Minus key: temperature setting

Automatic locking function

When all the key no operation for 20 seconds, the key will be locked automatically. After locking, the plus and minus keys cannot be operated. The unlock key and light / CF key operate normally.

Auto light off function

When all the key no operation for 10 minutes, the lamp will turn off automatically Adjustable range

Adjustable range:

Upper zone: lowest value: 5 °C/41 °F; maximum value: 18 °C / 64 °F)

Lower zone: lowest value: 5 °C / 41 °F/Maximum value: 18°C / 64°F

Display range: temperature display range of control panel: 0-37 °C (32-99 °F)

Forced defrosting function: When the compressor works for 12 hours, the compressor will stop working for 30 minutes

Memory function: The control board is re-energized after each power-off, the temperature setting value. The Fahrenheit/Celsius state will be the same as before the power-off. The length of power-off time is not limited.

WINE STORAGE

• The wine cooler is recommended to be designed at 12^ .
• The shelves placed in factory mode is the most efficient use of energy for the refrigerating appliances.

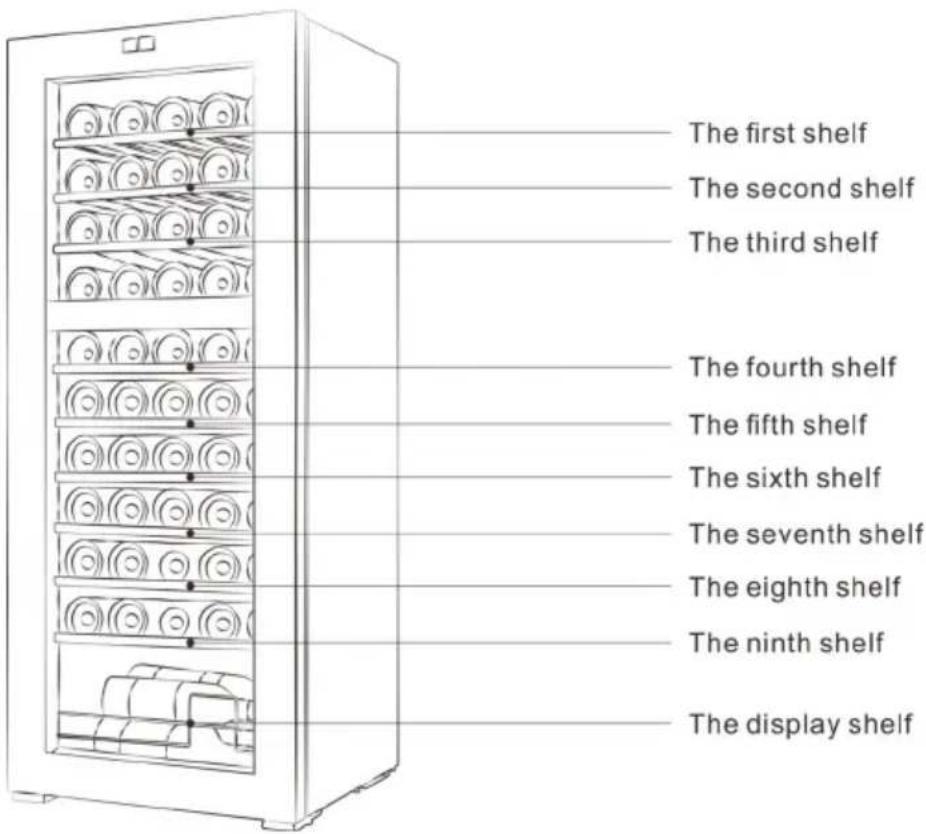

• The following combination of shelves is recommended for energy to be used as efficiently as possible by the refrigeration unit.

There are 9 shelves and 1 display shelf in total

The first shelf The second shelf The third shelf The fourth shelf The fifth shelf The sixth shelf The seventh shelf The eighth shelf The ninth shelf The display shelf

• When the surrounding temperature is 25 °C and the wine fridge has no bottle loaded, it will take around 30 minutes to increase the wine cooler's temperature from 5°C to 12°C. Under the same circumstance, it will take around one hour to decrease the wine cooler's temperature from 12°C to 5°C. The less the temperature span is, the less time it will take.
• The setting temperature of upper zone should be lower than the setting temperature of lower zone.
• The wine cooler is recommended to be designed at 12 °C. The energy consumption is 0.425 kWh/24h. If the setting temperature is higher than 12°C, the energy consumption will be lower. If the setting temperature is lower than 12°C, the energy consumption will be higher.
• When the compressor works for 12 hours, the compressor will stop and defrost for 30 minutes.

Wine serving temperature chart

All wines mature at the same temperature, which is a co n stant temperature set between 1 1 °C to 14 °C.

The chart below indicates the best temperature for drinking various types of wine.

Wine Style °C °F
Champagne NV, Sparkling, Spumante	6	43
Dry White Semillon, Sauvignon, Blanc	8	46
Champagne Vintage	10 50
Dry White Chardonnay	10 50
Dry White Gewürztraminer, Riesling, Pinot grigio	10 50
Sweet White Sauternes, Barsac, Montbazillac, Ice Wine, Late Harvest	10 50
Beaujolais	13 55
Sweet White Vintage: Sauternes etc	14 57
White Vintage Chardonnay	14 57
Red Pinot Noir	16 61
Red Grenache, Syrah	16 61
Red Vintage Pinot Noir	18 65
Cabernet & Merlot: French, Australian, New Zealand, Chilean, Italian, Spanish, Californian, Argentinean...	20 68
Vintage Bordeaux ...	Room temp. not exceeding 20°C /68 °F

Tips

• Store the wine 1 or 2^ cooler than the recommended drinking temperature as it warms up a little when poured into the glass.
  • Full-bodied reds should be opened for 2-3 hours before drinking to allow the wine to breathe and develop its aroma.

Important information about temperature

Your unit has been designed to guarantee optimum conditions for storing and/or serving your wines. Fine wines require long and gentle developments and need specific conditions in which to reach their full potential.

All wines mature at the same temperature, which is a constant temperature set between 11 °C to 14 °C. Only the temperature of "dégustation" (wine appreciation) varies according to the type of wines (see the Wine Serving Temperature Chart as above). This being said and as it is for natural cellars used by wine producers for long period of storage, it is not the exact temperature that is important, but its consistency. In other words, as long as the temperature of your wine cellar is constant (between 11 °C to 14 °C, or 52 °F to 57 °F) your wines will be stored under perfect conditions.

Not all wines will improve over the years. Some should be consumed at an early stage (2 to 3 years) while others have tremendous ageing capability (50 years and over). All wins have a peak in maturity. Check with your wine merchant to get the relevant information.

At too high a temperature (over 22 °C) wine matures too quickly, which prevents the aromas from developing further. Wine cannot mature fully at too low a temperature (below 5 °C).

Fluctuations in temperature put wine under stress and interrupt the maturing process. It is therefore very important to maintain a constant temperature.

MAINTENANCE AND CLEANING

WARNING

Risk of electric shock

Failure to unplug the appliance during service and cleaning could result in electrical shock or other personal injury.

Cleaning

• Disconnect the appliance before cleaning.
• Clean the appliance with soft cloth or sponge by water.
• Do not use organic solvents, alkaline detergent, boiling water, washing powder or acid liquid etc.
• Do not flush the compartment of the appliance.
• Clean regularly surfaces that can come in contact with accessible drainage systems.

Power cut

Most power cuts could be resolved within a short time. To protect your wines during a power cut, avoid opening the door as much as possible. During very long power cuts, take the necessary measures to protect your wine.

Out of service for long time

Remove all bottles from the appliance, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

If the appliance is disconnected or if there is a power cut, you must wait at least five minutes before re-starting.

Moving the appliance

• Cut off the power supply and unplug the appliance.
• Remove all bottles from the appliance.
• When moving the appliance, do not lean the appliance over 45 °C.

TROUBLESHOOTING

Problem Solution
The appliance makes lots of noise.	Please adjust the front foot, keep the appliance levelling.Please keep the appliance a bit space from walls.
Liquid flowing sound inside the cabinet.	It is normal because of the refrigerant working inside.
The appliance does not start.	Make sure the appliance is connected to the power properly.Make sure switch on the power.The compressor re-starts after 5 minutes for a power cut.
Compressor runs continuously.	If no cold is being produced, call theafter-sale service.
Door does not seal tightly. After	long time use, the door seal might get stiff & distorted partially.1. Heat the door seal with hot-wind blower or hot towel.2. Once the door seal gets softened and close the door.
The appliance does not cool sufficiently.	Please adjust temperature setting.Keep the appliance away from sunlight or heat.Please do not open the door frequently if there is no need.
Unpleasant smells inside cabinet.	A little bit plastic smell for newly-buy appliance is normal and will disappear after a short time.Clean the compartment and ventilate it for a few hours.
Condensate on the glass door.	Please do not open the door frequently or for a long time.Please do not set the temperature too low.High ambient temperature and humidity cause condensate.
The light is not working. Check	the power supply first.Call the retailer's after-sale service if the light is broken.

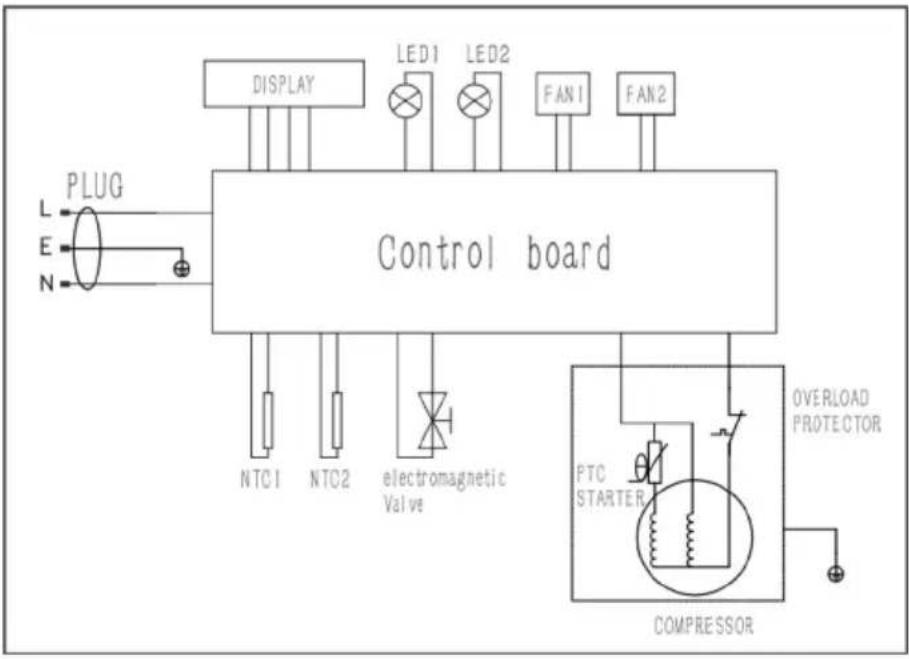

WIRING DIAGRAMME

WARNING

Risk of electric shock

Do not open the electrical parts of this unit. Repairs should only be carried out by qualified service personnel.

DISPOSAL CONSIDERATIONS

Symbol of a trash bin with crossed lines indicating no waste, and a solid rectangle below (no text or labels)

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Product Information Sheet

COMMISSION DELEGATED REGULATION (EU) 2019/2016 with regard to energy labelling of refrigerating appliances

Supplier's name or trade mark: Klarstein

Supplier's address: Customer service, Wallstraße 16, 10179 berlin, DE

Model identifier: 10046243

Type of refrigerating appliance:

Low-noise appliance: No Design type: freestanding

Wine storage appliance: Yes Other refrigerating appliance: No

General product parameters:

Parameter Value Parameter Value

Overall dimensions (millimetre)	Height 1 265	Total volume (dm3 or l) 150
	Width 510
	Depth 485

EEI 162 Energy efficiency class G

Airborne acoustical noise emissions (dB(A) re 1 pW) 39 Airborne acoustical noise emission class

Annual energy consumption (kWh/a) 139 Climate class: temperate

Minimum ambient temperature (°C), for which the refrigerating appliance is suitable 16 Maximum ambient temperature (°C), for which the refrigerating appliance is suitable

Winter setting No

Compartment Parameters:

Compartment type		Compartment parameters and values
		Compartment Volume (dm3 or l)	Recommended temperature setting for optimised food storage (oC)These settings shall not contradict the storage conditions set out in Annex IV, Table 3	Freezing capacity (kg/24h)	Defrosting type (auto-defrost=A, manual defrost=M)
Pantry	No	-	-	-	-

Wine storage Yes 150,0	12 - A
Cellar No - - - -
Fresh food No - - - -
Chill No - - - -
0-star or ice-making No - - - -
1-star No - - - -
2-star No - - - -
3-star No - - - -
4-star No - - - -
2-star section No - - - -
Variable temperature compartment	- - - -
For wine storage appliances
Number of standard wine bottles		55
Light source parameters:
Type of light source		-
Energy efficiency class		-
Minimum duration of the guarantee offered by the manufacturer: 24 months
Additional information:
Weblink to the supplier's website, where the information in point 4 of Annex II of Commission Regulation (EU) 2019/2019 is found: https://www.klarstein.de/

Model placed on the Union market from 01/06/2024.

EPREL registration number: 1996866

https://eprel.ec.europa.eu/qr/1996866

Supplier: Chal-Tec GmbH (Authorised representative)

Website:

Customer care service:

Name: Customer service

Website: https://www.elektronik-star.de/lnfo/Impressum/

Email: [e-mail]

Phone: [phone]

Address:

Wallstraße 16

10179 berlin

Germany

Cher client, chère cliente,

QR code image containing encoded data, no visible human-readable text

SOMMAIRE

Fiche technique 37

Symbol of a trash bin crossed with a diagonal line, no text or labels present

Berlin Brands Group UK Ltd

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

QR code image containing encoded data, no visible human-readable text

INDICE

Dati tecnici 53

Diagram of a refrigerator interior with numbered labels pointing to different compartments

Symbol of a trash bin crossed with a diagonal line, no text or labels present

PRODUTTORE E IMPORTATORE (UK)

Produttore:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlino, Germania.

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

QR code image containing encoded data, no visible human-readable text

CONTENIDO

Datos técnicos 69

Diagram of a refrigerator interior with numbered labels pointing to different compartments

1 Bisagra superior

Symbol of a trash bin crossed with a diagonal line, no text or labels present

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

Reino Unido

KLARSTEIN
