USER MANUAL Partytime Klarstein

COOKINGCO COOKINGCO KINGCOOKING KINGCOOKING COOKINGCO KINGCOOKING KINGCOOKING KINGCOOKING

KLARSTEIN

www.klarstein.com

QR code image containing encoded data, no visible human-readable text

INHALTSVERZEICHNIS

Control panel interface with battery, switch, alarm, and function icons

Technical line drawing of a mechanical housing or enclosure with mounting holes and internal grid pattern (no text or symbols)

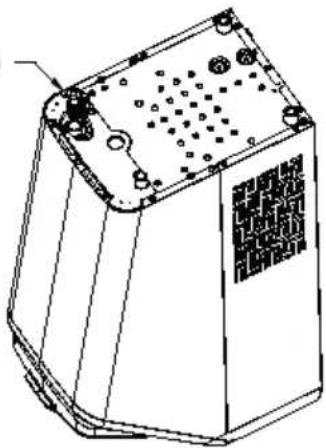

Ablassstopfen

Technical line drawing of a mechanical housing or enclosure with mounting holes and internal grid pattern (no text or symbols)

Symbol of a trash bin crossed out by a diagonal line, with no text or labels present.

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Dear Customer,

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

QR code image containing encoded data, no visible human-readable text

CONTENT

Safety Instructions 18

Device Overview 20

Control Panel, Indicators and Buttons 21

Installation 22

Commissioning and Operation 22

Cleaning and Care 24

Troubleshooting 26

Disposal Considerations 28

Manufacturer & Importer (UK) 28

TECHNICAL DATA

Item number 10035294, 10035295
Power supply 220-240 V~ 50 Hz
Power consumption (watts) 145 W
Climate class ST/SN/N/T
Protection class I
Refrigerant R600a/25 g
Design Pressure (over pressure)	Maximum: 20 bar (290 Psig), Minimum: 9,5 bar (138 Psig)
Foaming agent C	_5H_10

SAFETY INSTRUCTIONS

• Check that the mains voltage corresponds to the rating of the appliance before operating.
• Use handles or knobs when moving. Place on a flat stable surface for use. Do not use outdoors.
• Do not use near or in the immediate vicinity of a bath or swimming pool or any source of liquid.
• Unplug from socket outlet when not in use.
  • To protect against electric shock, do not immerse cord or plug in water or any other liquid.
• The use of accessory attachments not recommended by the appliance manufacturer, may cause injury.
• Do not locate this appliance immediately below a socket outlet.
• Do not allow cord to overhang the counter top where it can be easily pulled by children.
• Do not overfill as this may cause a hazard. Ensure lid is closed when in operation.
• To remove plug from outlet, do not pull on supply cord. Grasp plug firmly and pull to remove.
• Do not use this appliance for anything else other than its intended use. No liability can be accepted for any damage caused by non-compliance with these instructions or any other improper use or mishandling.
  • This appliance is for household use only.
• This appliance is not intended to be operated by means of an external timer or separate remote control system.
  • This appliance is not intended to be immersed in water.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
• Please according to local regulations regarding disposal of the appliance for its flammable blowing gas.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• Fill with potable water only.
• This device may be only used by children 8 years old or older and persons with limited physical, sensory and mental capabilities and / or lack of experience and knowledge, provided that they have been instructed in use of the device by a responsible person who understands the associated risks.

This appliance contains the coolant isobutane (R600a), a natural gas which is environmentally friendly. Although it is flammable, it does not damage the ozone layer and does not increase the greenhouse effect. The use of this coolant has, however, led to a slight increase in the noise level of the appliance. In addition to the noise of the compressor, you might be able to hear the coolant flowing around the system. This is unavoidable, and does not have any adverse effect on the performance of the appliance. Care must be taken during the transportation and setting up of the appliance that no parts of the cooling system are damaged. Leaking coolant can damage the eyes.

WARNING

Danger from fire/flammable materials. Please observe the local regulations for the disposal of units with flammable refrigerants and gases.

• Keep ventilation openings in the unit housing free of obstacles.
• Do not damage the refrigerant circuit.
• Do not use any mechanical devices or other means to accelerate the defrosting process or the ice recovery process.
• Do not use other types of electrical appliances inside the ice cube machine.

Special Notes

• When positioning the unit, make sure that the power cord is not pinched or damaged.
• Make sure that there are no multiple sockets or power supplies on the back of the unit.

To avoid contamination of food, please follow the instructions below:

• Regularly clean surfaces that may come into contact with food. Clean the water drain regularly.
• If the appliance contains a water tank, clean it if it has not been used for 48 hours. Rinse the tank if no water has been removed for 5 days.

WARNING

When using, servicing and disposing of the unit, pay attention to the left symbol on the rear of the unit or on the compressor. This symbol warns of possible fires. There are flammable substances in the refrigerant lines and in the compressor. Keep the appliance away from sources of fire during use, maintenance and disposal.

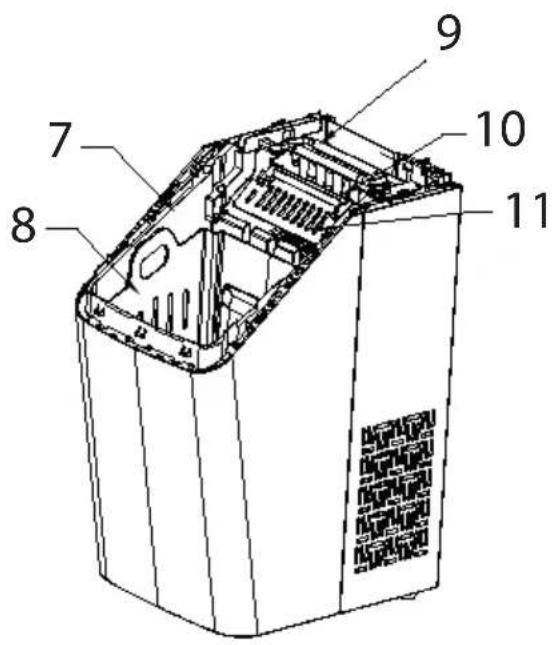

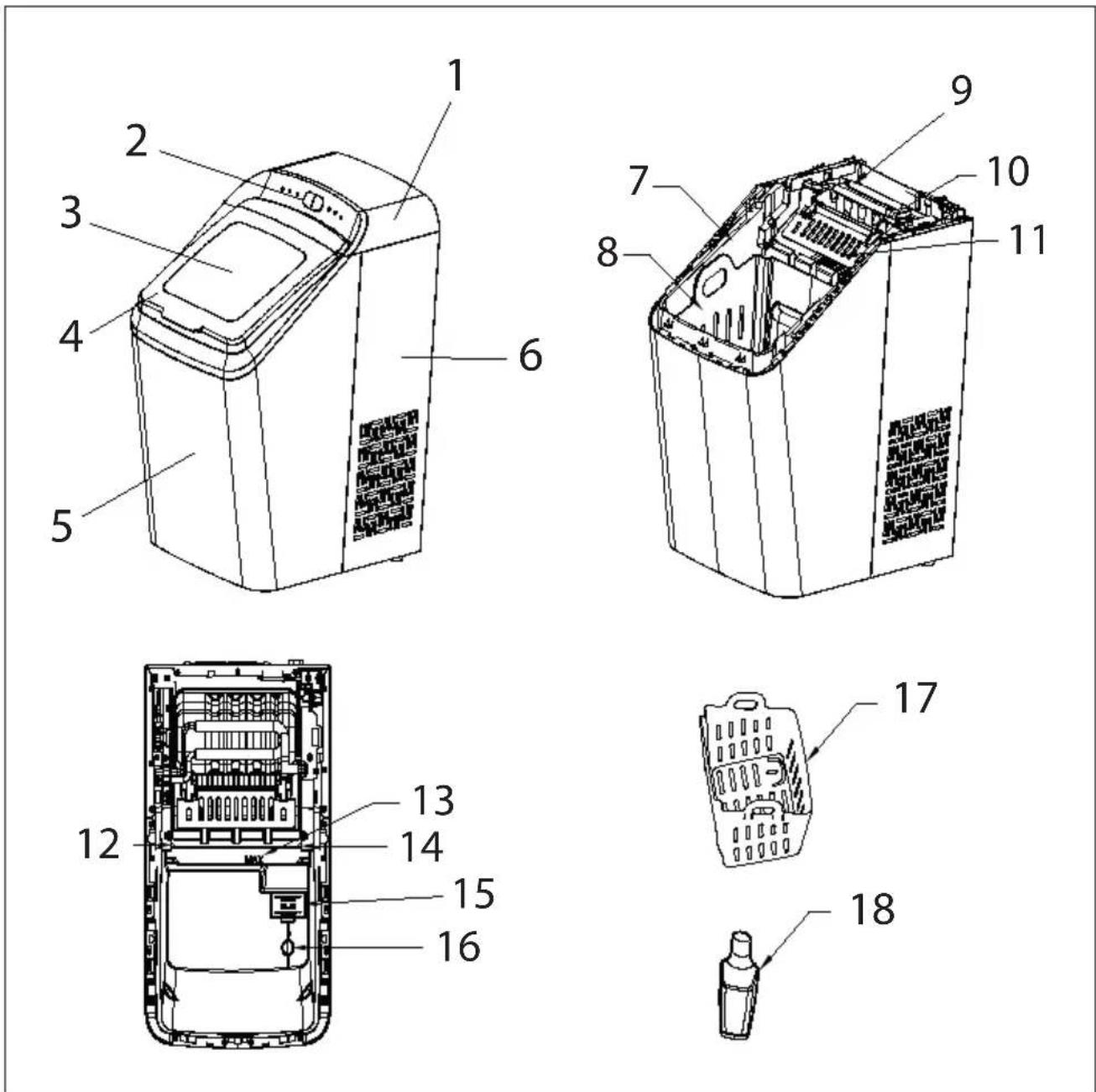

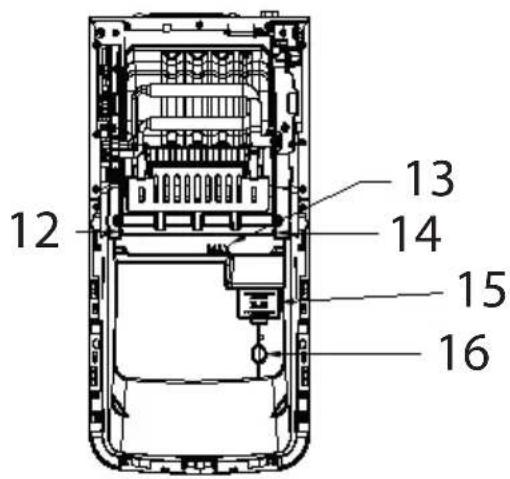

DEVICE OVERVIEW

1	Top lid	7	Water reservoir	13	“MAX” water level
2	Control panel	8	Ice basket	14	Infrared light emitting diode
3	Viewing window	9	Evaporator	15	Filter
4	Front cover	10	Ice tray	16	Drain plug

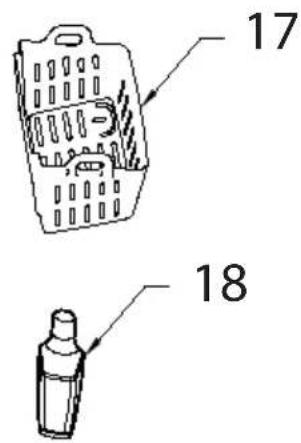

5	Front housing	11	Ice shovel	17	Ice basket
6	Back housing	12	Infrared light receiving diode	18	Ice scoop

CONTROL PANEL, INDICATORS AND BUTTONS

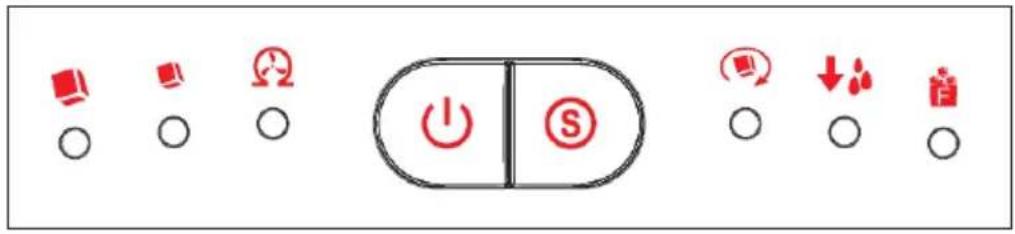

Control Panel

Electrical control panel with power, switch, and warning icons labeled in Chinese

Indicators and Button Functions

Indicators and Buttons Functions
	Large ice cubes (indicator):The indicator lights in green when you select large ice.
[ZHAO]
[WY04]	Small ice cubes (indicator):The indicator lights in green when you select small ice.
[YC0Y]	Cleaning (indicator):The indicator lights in green when the appliance needs to be cleaned.
	Start/Stop (button):Start or stop the appliance.
	Size selection (button):Select the desired ice cube size (large or small).
[TWXY]	Ice making (indicator):The indicator lights in green when making ice.
[35TT]	Water reservoir empty (indicator):The indicator lights in red when there is a lack of water in the water reservoir.
[H8ZA]
[4Y50]	Ice basket full (indicator):The indicator lights in red when the ice basket is full.

INSTALLATION

1. Unpack the appliance, then check and make sure that all the accessories including ice basket and ice scoop etc. are complete. Contact customer service if accessories are missing.
2. Please ensure the ice cube maker is level and on a stable table or platform to avoid malfunction.
3. The incline angle of the ice cube maker cabinet should not exceed 45^ during transportation or use. Do not turn the ice cube maker upside down. Doing so could cause the compressor or refrigerating system to operate incorrectly. Please allow time for the fluids in the compressor to settle after the ice cube maker is moved or transported. Before using the ice cube maker for the first time, please wait for 2 hours after the appliance has been leveled and positioned in the proper place.
4. The appliance must be placed on a dry and level surface with sufficient ventilation, far from heat sources such as ovens, heaters and corrosive gases. Keep a minimum distance of 20 cm to all sides of the ice cube maker to ensure proper ventilation.
5. Do not fill the water reservoir with hot water. This may damage the ice cube maker. It is best to fill the water reservoir with water of room temperature or lower.
6. Do not use the appliance at a very cold environment (lower than 5 °C).
7. Clean the appliance before use (see section "Cleaning and Care").

COMMISSIONING AND OPERATION

1. Ensure that the drain plug at the bottom of water reservoir is closed well.
2. Plug the ice cube maker into the wall outlet, the "Ice making" indicator 📄 blinks.

Note: If the appliance has been moved, allow the ice cube maker to rest for 30 minutes before plugging the power plug into the wall outlet.

1. Open the top lid and remove the ice basket.

2. Fill the water reservoir with potable water only.

Note: Do not fill above the MAX water level mark.

1. Replace the ice basket and close the top lid.
2. Press the Size selection button to select the ice size. If small ice cubes are selected, the "Small ice cubes" indicator lights up. When large ice cubes are selected, the "Large ice cubes" indicator lights up.
3. Press the Start/Stop button and the ice making indicator lights solidly.

4. The ice-making cycle will last approximately 7-15 minutes, depending on the ambient temperature and water temperature.

5. The ice-making cycle starts with water being pumped into the ice tray situated below the evaporator. Over the next 7-15 minutes ice forms on the evaporator. Once this has completed, the ice tray will tilt backwards and the remaining water in the ice tray is drained back into the water reservoir. The ice cubes are then dropped from the evaporator and pushed forward into the ice basket by the ice shovel. The ice tray will automatically move back into position under the evaporator and start the next cycle.

6. The "Ice basket full" indicator lights up when the ice basket is full land then the ice cube maker will stop the ice-making cycle automatically. Gently remove the ice cubes from the ice basket with the ice scoop. About 5 seconds later, the ice cube maker will restart its ice making function automatically.

7. The "Water reservoir empty" indicator ↓ will light up when the water reservoir is lack of water and the ice-making cycle will stop automatically. At that time, remove the ice basket and add water to the water reservoir, and then press the Start/Stop button (again to restart the ice-making cycle.

8. When you have got your desired amount of ice, stop the ice making cycle by pressing the Start/Stop button and unplug the appliance from the wall outlet.

9. Open the top lid, remove the ice cubes with the ice scoop and place them in the freezer.

Note: The ice cubes will last in the ice cube maker for up to an 18-hour period, depending on the ambient temperature.

1. Allow the ice cube maker to wall up to room temperature.

2. Suggest replacing the water at least once a week. Please empty the water reservoir if the ice cube maker is not used for a long time.

CLEANING AND CARE

To keep your ice tasting fresh and your ice cube maker looking great, we recommend cleaning your ice cube maker at least once per week.

1. Stop the ice-making cycle by pressing the Start/Stop button ⏻. Unplug the ice cube maker from the wall outlet and allow it to warm up to room temperature.
2. If residual water is found in the ice tray, gently push the ice tray back so that all water drains into the water reservoir.
3. Move the appliance forward to a place 60 mm away from the working table so that the drain plug becomes accessible. Open the drain plug to drain out excess water into a bowl, bucket or sink (see figure 1, 2 and 3).
4. Replace the drain plug. Check and make sure that the drain plug is properly fitted and the water reservoir is closed well. Fill the water reservoir with clean water. Press the Size selection button until the "Cleaning" indicator flashes. Then press the Start/Stop button, the pump will start to pump water and will keep running for 6 minutes. It will enter into standby condition after running for 6 minutes. Finally, open the drain plug and empty the water into a bowl, bucket or sink.
5. Remove the ice basket.
6. Clean the ice cube maker interior with a soft cloth soaked with warm water and vinegar, then rinse with clean water and then drain all the water.
7. Replace the drain plug well in position. Wash the ice basket and ice scoop in warm soapy water, rinse with clean water and and dry them.
8. Clean the exterior of the ice cube maker with a soft damp cloth. Use a mild dishwashing soap, if necessary.

Note: Do not use organic solvent, boiled water, detergent, strong acid and strong alkali etc. for cleaning.

1. Please empty the water reservoir and dry it for storage if the ice cube maker is not used for a long time.

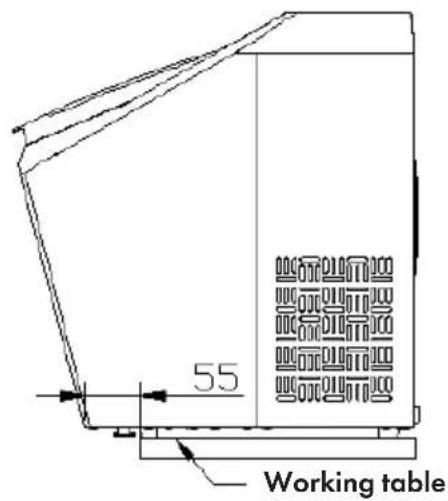

Figure 1

55 Working table

Figure 2 Figure 3

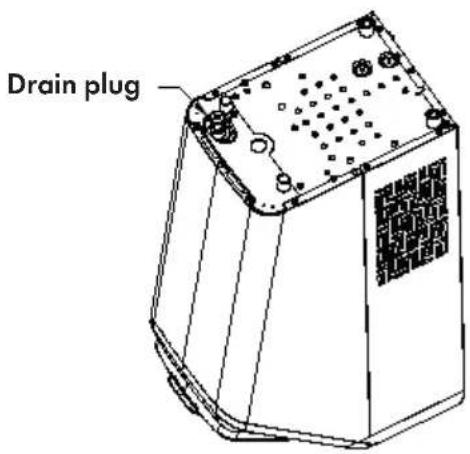

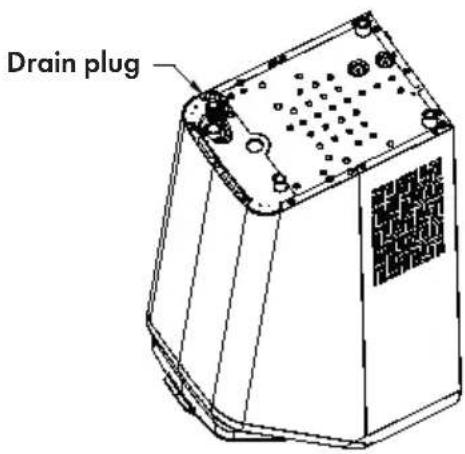

Drain plug

Drain plug

TROUBLESHOOTING

Problem Possible Cause Solution
The “Water reservoir empty” indicator turns on.	Low water level or lack of water.	Stop making ice, refill water and then press the Start/Stop button ⏻.
	The water screen at the bottom of the water reservoir is blocked.	Clean the appliance.
	Pump malfunction. Contact customer service.
The “Ice basket full” indicator lights up.	The ice basket is full and the infrared light is blocked by the ice.	Remove the ice from the ice basket.
	The infrared light emitting diode and the infrared light receiving diode do not work.	Wipe up the foreign objects on the infrared light emitting diode and the infrared light receiving diode and restart the ice cube maker.
		Contact customer service if the infrared light emitting diode and the infrared light receiving diode still do not work after wiping up the foreign objects on them and restarting the ice cube maker.
The “Ice basket full” indicator blinks.	The ice shovel is blocked. Remove the ice that is blocking the ice shovel.
			Contact customer service if no ice is blocking the ice shovel and the indicator blinks.
The ice cube maker stops working.	The ice tray is not in the right position.	Remove the ice in the ice tray and press the Start/Stop button to restart the appliance.
		Contact customer service if the appliance still does not work after restart.
The ice basket is full but the “Ice basket full” indicator does not illuminate.	The “ice full” condition can not be detected as the infrared light module is interfered by the sunlight.	Unplug the appliance and move it to a place which is not exposed to the sunlight, then plug the appliance and activate it again.
The ice cubes clump together.	Making ice takes too much time.	Stop making ice and restart the ice-making cycle after the ice has melted.
	The water in the water reservoir has a too low temperature.	Fill the water reservoir with water ranges between 8 °C and 25 °C.
The ice-making cycle seems normal but no ice is produced.	The ambient temperature or water temperature is too high.	Start the ice-making cycle at an environment with an ambient temperature less than 32°C and fill the water reservoir with some cold water.
	The refrigerating system leaks.	Contact customer service.
	The refrigerant system is blocked.	Contact customer service.
Poor ice-making result.	Poor heat dissipation. Keep a minimum distance of 20 cm to all sides of the appliance to ensure proper ventilation.
	The water temperature is too high.	Fill the water reservoir with water ranges between 8 °C and 28 °C.
	The ambient temperature is too high.	Operate the ice cube maker at an environment with an ambient temperature between 10 °C and 32 °C.

DISPOSAL CONSIDERATIONS

Symbol of a trash bin crossed out by a diagonal line, with no text or labels present.

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Chère cliente, cher client,

QR code image containing encoded data, no visible human-readable text

SOMMAIRE

Technical diagram of a mobile device with numbered parts labeled 1 through 6

Technical diagram of a device with numbered parts labeled 7, 8, 9, 10, and 11

12 13 14 15 16

17 18

Control panel interface with icons for power, switch, alarm, and alarm buttons

Technical line drawing of a mechanical housing or enclosure with mounting holes and internal components (no text or symbols)

Bouchon de vidange

Technical line drawing of a mechanical housing or enclosure with mounting holes and internal grid pattern (no text or symbols)

IDENTIFICATION ET RÉSOLUTION DES PROBLÈMES

Symbol of a trash bin crossed with a diagonal line, no text or labels present

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Estimado cliente:

QR code image containing encoded data, no visible human-readable text

CONTENIDO

Control panel interface with icons for power, switch, alarm, and warning symbols

Technical line drawing of a mechanical housing or enclosure with mounting holes and internal components (no text or symbols)

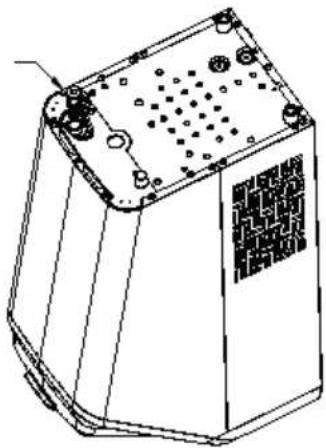

Tapón de drenaje

Technical line drawing of a mechanical housing or enclosure with mounting holes and internal grid pattern (no text or symbols)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Gentile Cliente,

QR code image containing encoded data, no visible human-readable text

INDICE

Control panel interface with icons for power, switch, alarm, and warning symbols

Technical line drawing of a mechanical housing or enclosure with mounting holes and internal components (no text or symbols)

Tappo di scarico

Technical line drawing of a mechanical housing or enclosure with mounting holes and internal grid pattern (no text or symbols)

Symbol of a trash bin crossed out by a diagonal line, with no text or labels present.

PRODUTTORE E IMPORTATORE (UK)

Produttore:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlino, Germania.

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

KLARSTEIN
