Product Type	Ice Maker
Brand	Klarstein
Model	10028270
Power Supply	220-240 V, 50/60 Hz
Power	150 W
Weight	7.2 kg
Water Reservoir Capacity	Not specified, fill to recommended level
Ice Production	Approximately 12 kg per 24 hours (estimate)
Production Cycle	Approximately 7-15 minutes depending on conditions
LED Indicators	ADD WATER, ICE FULL
Automatic Shut-off Function	Yes, when the ice basket is full
Material	Plastic and stainless steel
Cleaning	Water-vinegar solution, do not use chemicals
Maintenance	Regularly clean the water circuit and evaporator
Safety	Do not expose to rain, do not use defective outlets
Included Accessories	Ice scoop, ice container, silicone plug
Repairability	Do not repair yourself, contact a professional
Positioning	Flat and dry surface, away from heat and sunlight
Intended Use	Ice cube making only

Frequently Asked Questions - 10028270 Klarstein

What to do if the ADD WATER light turns on?

The water reservoir is low. Turn off the appliance, fill the reservoir with fresh water, then turn it back on after 3 minutes. If the problem persists, briefly remove the silicone plug to purge air from the pump.

Why is the machine not producing ice?

Several possible causes: lack of water (ADD WATER light), full basket (ICE FULL light), or technical issue. First check the lights. If none are lit, there may be a refrigerant leak or faulty compressor; contact customer service.

What does the ICE FULL light mean?

The ice container is full. Remove the ice, turn off the appliance, then turn it back on after 3 minutes. Production will resume automatically.

Ice cubes are too large or stuck together, what to do?

This can happen if ice from the previous cycle remains in the reservoir. Remove all ice from the reservoir and container. If the problem persists, slightly adjust the position of the evaporator.

How to clean the ice maker?

Unplug the appliance and remove the ice. Clean the interior, container, reservoir, and evaporator with a diluted water and vinegar solution. Rinse thoroughly. Do not use chemicals or solvents.

What type of water should I use?

Always use fresh tap water. Do not use distilled water or water that has been standing for more than 24 hours. Fresh water ensures good quality ice cubes.

Why is the compressor making a strange noise?

This may be due to insufficient voltage. Ensure the appliance is plugged into an outlet providing adequate voltage (220-240 V). If the noise persists, consult a professional.

Can I use the appliance outdoors?

No, the appliance should not be exposed to rain. Use it only indoors, on a flat, dry surface, away from heat sources and direct sunlight.

How to start the machine after a long period of inactivity?

Let the appliance rest for 2 hours on a flat surface before first use. For restarts after a stop, air in the pump may block circulation. Press the START button again or briefly remove the silicone plug.

What to do if both ADD WATER and ICE FULL lights turn on at the same time?

This means the ice container is full. Remove the ice, turn off the appliance and turn it back on after 3 minutes. The lights will go out.

USER MANUAL 10028270 Klarstein

Row of white icons representing kitchen appliances including blender, kettle, air conditioner, fan, and TV (no text or symbols)

Exterior view of a modern ice cream maker with a label 'KLARSTEIN' on the front panel (no other text or symbols visible)

Vor dem Gebrauch

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid injury and damages. Any failure caused by ignoring the mentioned items and cautions mentioned in the instructions are not covered by our warranty and any liability.

Contents

Technical Data 7

Security Instructions....7

Product Overview 9

Operation 9

Troubleshooting 10

Cleaning and Care 11

Disposal Considerations 11

Declaration of Conformity 12

Technical Data

Item number 10020108	10028270
Voltage 220-240 V 50/60 Hz
Power consumption 150 W
Weight 7.2 kg

Security Instructions

Intended use

• This appliance serves the making of ice cream / sorbet.
• It is solely designed for this purpose and may be used only for this purpose. It must be used only the way described in the instructin manual.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Children should be supervised and not play with this appliance.

To reduce the risk of fire, electrical shock and damage:

• Do not expose the appliance to rain.
• Use only recommended accessories.
• Do not repair the device yourself. Turn to qualified personnel.

Power cord / power adapter

• Make sure that the voltage or your power supply corresponds to rated voltage of this appliance.
• insert the power plug completely into the socket.
• Do not pull on the power cord, do not bend it and do not place heavy object on it.
• Do not touch the power cord with wet hands.
• When disconnecting, grab the power plug on its body.
• Do not use a damaged power plug oder a damaged socket.

Appliance

• Do not place sources with open fire, (e.g. burning candles) on the appliance.
• Clean the liquid cycle periodically. Use a solution of vinegar and water during operation.

Positioning

• Place the device on a dry, level, water-resistant and heat-resistant surface.
• Look for a place where the children cannot touch the hot surface of the appliance.
• The socket must be easily accessible to be able to quickly separate the appliance in case of emergency.
• Install and position the appliance in the shelf, built-in cupboard or any other narrow space. Ensure a good air circulation for the appliance.
• Do not place the appliance on an amplifier or other devices that could become hot. The heat can damage the appliance.
• Do not expose the appliance to direct sunlight, high temperatures, high humidity or excessive vibrations.

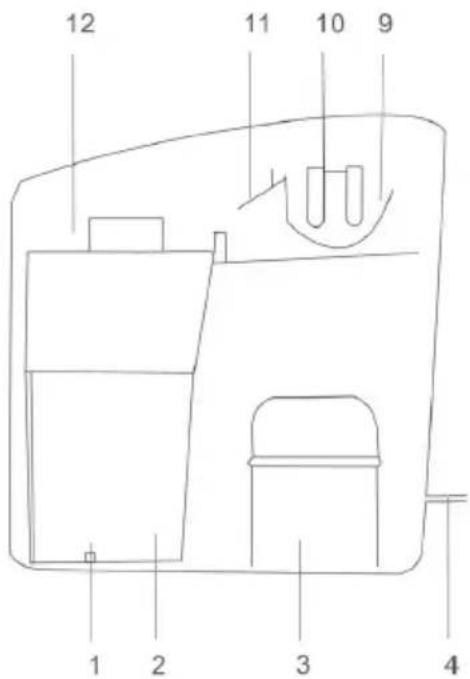

Product Overview

1 Silicon stopper
2 Water tank
3 Compressor
4 Plug and power cord
5 Front lid
6 View window
7 Back front cover
8 Control Panel
9 Water tray
10 Evaporator
11 Ice shovel
12 Ice basket

Operation

Control panel

ON/OFF Press it to turn unit on or off.
LED ADD WATER	This light will come on with a long noise, DI' noise. You will need to add water and press the ,STOP' then the ,START' button to restart the ice maker.
LED ICE FULL	This light will come on with a ,DI, DI' noise when the ice has reached the maximum capacity of the storage cabinet. Press ON/OFF button to restart the lee maker after some of the ice has been taken away.

Before use

• Before using the lee maker for the first time, please wait 2 hours after positioning it, and keep the front lid open for at least 2 hours.
• Destilled water is not allowed to be used on this unit.
• Do not use this appliance with water that stood for longer than 24 hours.

Operation

1. Open the lid and fill the water reservoir with water. Make sure the water level in the water reservoir is not over the lee collecting tray.
2. Connect to the power.
3. Press ON/OFF button to turn unit on. The ice maker begins to work.
4. If indicator ICE FULL is in red with ,DI DI' noise, please take out the ice with the scoop.
5. Press ON/OFF button to stop the machine. Remove the plug

Notes:

• If no water is pumped up to the water tray over two cycles but the water in water tank is enough, then please move the unit ahead a little, then remove the silicon stopper, and let several drops water runs out.
  • Note: When the ice collecting tray is full please remove the ice immediately, Do not allow the ice collecting
• tray to overfill.

Troubleshooting

Problem Possible Cause Suggested	Solutions
The compressor works abnormally with a buzzing noise.Water shortage indicator light is on.	The voltage is lower than recommended.There is no water.The pump is full of air. Remove the silicon stopper and let several drops of water run out.	Stop the ice maker an do not restart until the voltage is normal.Press the STOP button, fill in water, wait 3 minutes and press the start button to restart. When the water has reached the fill line the ice maker will restart automatically.
Indicator lights on display are not on.The ice is made too large and with pieces sticking together.	Blown fuse / no power. Replace fuse / Turn power on.Ice of previous cycles left in the water tray.The evaporator is too low. Shift the evaporator a little.	Stop the unit right away, restart the unit till the ice in water tray melt down.
No ice is made. There is no refrigerant	in the compressor.	Call for service.
	Compressor is broken down, fan motor is broken.
The lights of ice full and deficient come at in the same time.	Water tray is blocked is blocked by ice cube.	Clar the ice cube under the ice shovel. Pull out the plug and insert it again. Then press the „ON/OFF“ button, two minutes later the machine will restart automatically:
Machine keeps running, but the water is warmer than the nominal water.	The magnetic valve is broken. Replace the magnetic valve.

Cleaning and Care

• Clean the inner liner, ice collecting tray, water box, ice shovel and evaporator frequently. When cleaning, unplug the unit and remove the ice cubes. Use a diluted solution of water and vinegar to clean the inside and the outside surface of the ice maker. Do not spray the ice maker with chemicals or diluted agents such as acids, gasoline or oil. Rinse thoroughly before starting.
• Do not use mechanical devices to accelerate the defrosting process.
• If the icemaker is reused after a long time, the water pump may not pump sufficient water due to an air block, the deficient water indicator turns on in this case. To correct this press the START button again, then the icemaker will work normally.
• To ensure the cleanliness of the ice cubes, water in the water reservoir should be replaced every 24 hours.
• If the compressor stops for any reason such as water shortage, too much ice, power off, etc. Do not start the system right away, wait 3 minutes, and then re-start the ice maker.
• Always use fresh water before starting ice production either at initial installation or after a long shut-off period.

Disposal Considerations

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

Declaration of Conformity

Producer: Chal-Tec GmbH, Wallstraße 16, 10179 Berlin.

This product is conform to the following European Directives:

2014/30/EU (EMC)

2014/35/EU (LVD)

2011/65/EU (RoHS)
