Metropolitan - Ice Maker Klarstein - Free user manual and instructions

Product type	Ice maker
Brand	Klarstein
Model	Metropolitan
Reference	10031881
Power supply	220-240 V ~ 50 Hz
Ice production	12 kg / 24 h
Water tank capacity	2.15 L
Ice bucket capacity	700 g
Ice cube sizes	3 (small, medium, large)
Control types	Push buttons with LED indicators
Empty tank indicator	Yes
Full bucket indicator	Yes
Automatic stop	Yes
Refrigerant	R600a (isobutane)
Recommended cleaning	Water and diluted vinegar
Usage	Indoor only
Installation type	Freestanding on worktop
Country of manufacture	Germany (headquarters)

Frequently Asked Questions - Metropolitan Klarstein

What to do if the appliance does not produce ice cubes?

Check that the water tank is filled and the ice bucket is not full. Make sure the appliance is turned on. If the problem persists, check the refrigerant level or contact a professional.

How to choose the size of ice cubes?

Press the MODE button to cycle through sizes: S (small), M (medium), L (large). The default size is M.

Why does the tank indicator light up even though there is water?

This may indicate an ice cube blocking the sensor or air in the pump. Open the water drain to release some water, or remove any ice cube from the tank.

How to clean the ice maker?

Unplug the appliance. Use a diluted solution of water and vinegar to clean the interior and exterior. Rinse with a clean damp cloth. Do not use chemical products.

What to do if the ice bucket is full?

The corresponding indicator lights up and the appliance stops. Remove the ice cubes with the scoop and replace the bucket. The appliance will resume automatically.

The appliance makes noise, is this normal?

A slight noise from the compressor and refrigerant flow is normal. If the noise is unusually loud, check that the appliance is on a level surface and that the voltage is correct.

Can I use tap water?

It is recommended to use spring water or filtered water to avoid limescale. Tap water can be used but may reduce the appliance's lifespan.

How to start ice production after filling water?

Fill the tank, plug in the appliance, select the ice cube size with MODE, then press ON/OFF.

What to do if the ice cubes are stuck together?

This may be due to an unsuitable size or residual ice in the chamber. Turn off the appliance, wait for the ice to melt, or choose a smaller size (M or S).

How to maintain the appliance during prolonged non-use?

Empty the tank and ice bucket, clean the interior, leave the door open to prevent mold. Store the appliance in a dry place.

USER MANUAL Metropolitan Klarstein

INHALTSVERZEICHNIS

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

Dear Customer,

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENT

Safety Instructions 15

Product Description 17

Operation 18

Cleaning and Care 19

Troubleshooting 20

Disposal Considerations 22

Manufacturer & Importer (UK) 22

TECHNICAL DATA

Item number 10031881
Power supply 220-240 V ~ 50 Hz
Ice making capacity 12 kg / 24 h
Water tank capacity 2.15 liters
Ice storage 700 g

SAFETY INSTRUCTIONS

• Check that the mains voltage corresponds to the rating of the appliance before operating.
• Use handles or knobs when moving. Place on a flat stable surface for use. Do not use outdoors.
• Do not use near or in the immediate vicinity of a bath or swimming pool or any source of liquid.
• Unplug from socket outlet when not in use.
  • To protect against electric shock, do not immerse cord or plug in water or any other liquid.
• The use of accessory attachments not recommended by the appliance manufacturer, may cause injury.
• Do not locate this appliance immediately below a socket outlet.
• Do not allow cord to overhang the counter top where it can be easily pulled by children.
• Do not use this appliance for anything else other than its intended use.
• Do not overfill as this may cause a hazard. Ensure lid is closed when in operation
• To remove plug from outlet, do not pull on supply cord. Grasp plug firmly and pull to remove.
• No liability can be accepted for any damage caused by non compliance with these instructions or any other improper use or mishandling. This appliance is for household use only
• This appliance is not intended to be operated by means of an external timer or separate remote control system.
  • This appliance is not intended to be immersed in water.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
• Please according to local regulations regarding disposal of the appliance for its flammable blowing gas.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• Fill with potable water only.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

This appliance contains the coolant isobutane (R600a), a natural gas which is environmentally friendly. Although it is flammable, it does not damage the ozone layer and does not increase the greenhouse effect. The use of this coolant has, however, led to a slight increase in the noise level of the appliance. In addition to the noise of the compressor, you might be able to hear the coolant flowing around the system. This is unavoidable, and does not have any adverse effect on the performance of the appliance. Care must be taken during the transportation and setting up of the appliance that no parts of the cooling system are damaged. Leaking coolant can damage the eyes.

WARNING

Danger from fi re/fl ammable materials. Please observe the local regulations for the disposal of units with fl ammable refrigerants and gases.

• Keep ventilation openings in the unit housing free of obstacles.
• Do not damage the refrigerant circuit.
• Do not use any mechanical devices or other means to accelerate the defrosting process or the ice recovery process.
• Do not use other types of electrical appliances inside the ice cube machine.

Special Notes

• When positioning the unit, make sure that the power cord is not pinched or damaged.
• Make sure that there are no multiple sockets or power supplies on the back of the unit.

To avoid contamination of food, please follow the instructions below:

• Regularly clean surfaces that may come into contact with food. Clean the water drain regularly.
• If the appliance contains a water tank, clean it if it has not been used for 48 hours. Rinse the tank if no water has been removed for 5 days.

WARNING

When using, servicing and disposing of the unit, pay attention to the left symbol on the rear of the unit or on the compressor. This symbol warns of possible fires. There are flammable substances in the refrigerant lines and in the compressor. Keep the appliance away from sources of fire during use, maintenance and disposal.

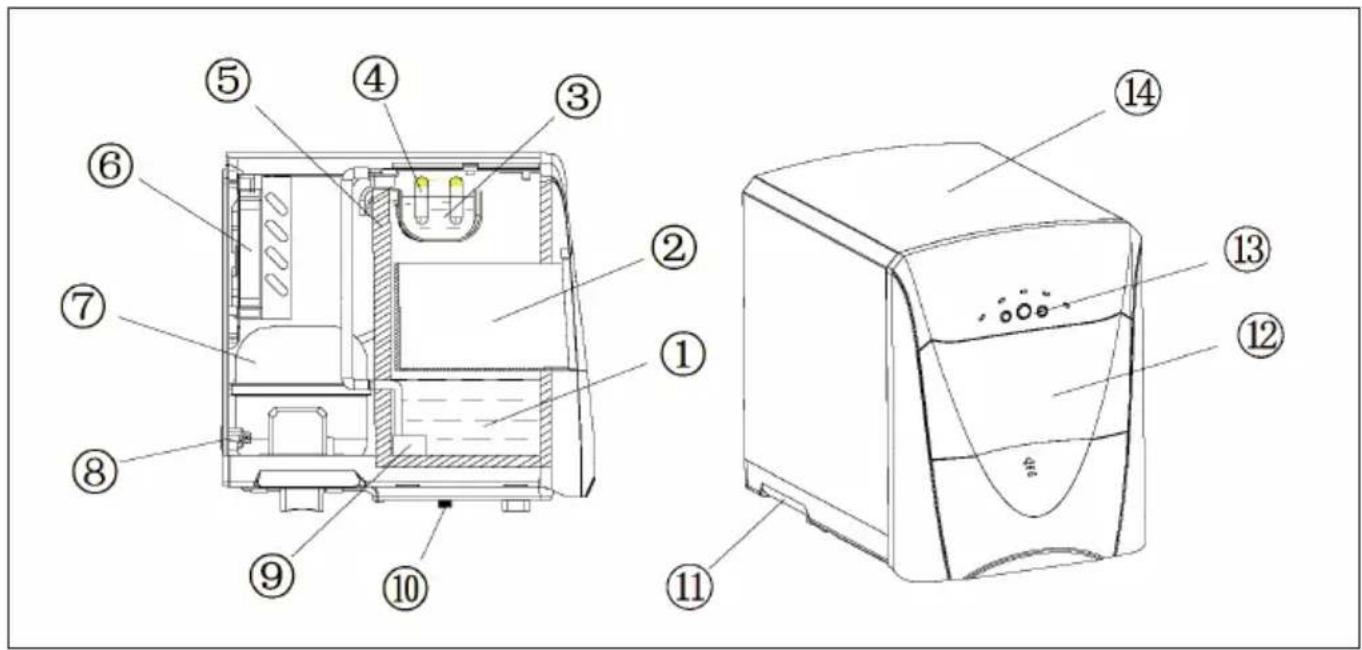

PRODUCT DESCRIPTION

1 water tank 8 socket
2 ice storage box 9 water pump motor
3 water tray 10 drain outlet
4 evaporator 11 handle grip
5 insulation layer 12 ice basket door
6 fan motor 13 front panel
7 compressor 14 shell

OPERATION

Before first Use

• During transportation, the incline angle of the cabinet should not be over 45^ . Do not turn the ice maker upside down. As this may damage the compressor and sealed system.
• Remove all packing material and carefully check your ice maker to ensure it is in good condition and that there is no damage to the ice maker or power cord and plug.
• The ice maker should be placed horizontally on a level surface. To ensure proper ventilation for your ice maker allow 150 mm of space at the top, the back and on each side. Do not install the ice maker near an oven, radiator, or any other heat source.
• Before using the ice maker for the first time, please wait 2 hours after positioning it, and keep the front lid open for at least 2 hours
• Ensure that the voltage indicated on the ice maker corresponds with the voltage in your home.
• Pure water is not allowed to be used on this unit, spring water is recommended.

Control Panel and Buttons

ON/OFF	Press it to turn unit on.
ON/OFF	Press it to turn unit off.
MODE	Ice size selection,The default setting is medium
L	Big size indicator,when this light is on, indicating that the unit is making big size ice cubes
M	Medium size indicator,when this light is on, indicating that the unit is making medium size ice cubes
S	Small size indicator,when this light is on, indicating that the unit is making big small ice cubes
	Ice full indicator,when the Ice Storage basket is full, the indicator will light up,unit stops and enter into the standby status.
	Lack of water indicator, if the water volume is too low, this indicator will be on. The ice maker will stop working automatically.

Operation

1 Open the lid and fill the water reservoir with water. Note: Make sure the water level in the water reservoir is not over the ice collecting tray.
2 Connect to the power.
3 Select desired ice cube size by pressing button MODE.

NOTE: Please select the small size when the ambient temperature is below 15 °C . If the ambient temperature is higher than 30 °C , large ice cube sizes are recommended.

4 Press ON/OFF button to turn unit on. The ice maker begins to work. Note: For the first three cycles, the ice may be small and irregular in size.
5 If indicator LACK OF WATER lights up, then take out the basket, then add water as per step 1, then press ON/OFF, at last press ON/OFF again to restart the ice maker.

Note: If no water is pumped up to the water tray over two cycles but the water in water tank is enough, then please open the drain cap, and let several drops water runs out.

6 If indicator ICE FULL lights up, please take out the ice with the scoop.

NOTE: When the ice collecting tray is full please remove the ice immediately. Do not allow the ice collecting tray to overfill.

7 Press ON/OFF button to stop the machine.

CLEANING AND CARE

• Clean the inner liner, ice collection tray, water box, ice scoop and evaporator regularly. When cleaning, disconnect the power plug and remove the ice cubes. Use a diluted solution of water and vinegar to clean the inside and outside surface of the ice maker. Do not spray the ice maker with chemicals, acids, gasoline or oil. Wipe it with clear water and a clean cloth.
• Keep the ventilation openings in the unit housing clear of obstructions. Do not use mechanical devices or other means to speed up the defrosting process.
• Always use fresh water before starting ice production. This applies both to the initial installation and after an extended period of downtime.

TROUBLESHOOTING

1 Please note, if a power failure occurs due to disconnection of the power cord, or the off power button has been pushed off during an ice making cycle, small ice chips may formed and lodge in the automatic shovel causing it to jam. If this occurs, the ice chips may be removed by disconnecting the power cord and gently pushing the shovel to the rear of the cabinet and removing the ice chips, then restarting.
2 Please restart the ice maker by pressing Stop and then Start. If the ice shovel does not push the ice into the ice collector after the formed ice drops from the evaporator finger while at the same time the M light is on, check to see if the water tray is horizontal or balanced. If not then adjust by pressing the ice shovel lightly with your finger. Then re-start the ice maker.

Problem Possible Cause Suggested Solution
The compressor works abnormally with a Buzzing noise.	The voltage is lower than recommended.	Stop the ice maker and do not restart until the voltage is normal.
Water shortage indicator light is on.	There is no water. Press	the stop button, fill with water, wait 3 minutes and press the start button to restart. When the water has reached the fill line the ice maker will restart automatically.
	The pump is full of air.	Open the drain cap, and let several drops water runs out.
Indicator lights on display are not on.	Blown fuse/ No power.	Replace fuse / Turn power on
The Ice made is too large and with pieces sticking together.	Wrong ice size is selected.	Select the M or S ice size.
	Ice of previous cycles left in the water tray.	Stop the unit right away, restart the unit till the ice in water tray melt down.
	The evaporator is too low.	Shift the evaporator a little.
Conditions for Ice making Cycle are right but no ice is made.	There is no refrigerant in the compressor. Compressor is broken down. Fan motor is broken.	Call for service.
The lights of ice full and deficient come at in the same time.	Water tray is blocked by ice cube.	Clear the ice cube under the ice shovel pull out the plug and insert It again then press the "START" button, two minutes later the machine will restart automatically.
Ice full indicator light on but with less ice in the basket	Room temperature is too low.	Take out the ice basket and put it back until the light is off, and restart the machine.
	The sensor was broken.	Please ask for a technician to repair.
Lack of water indicator is on but water tank has a lot of water	The sensor was broken.	Please ask for a technician to repair.
Power light is off when switching on.	Blown fuse/ No power.	Replace fuse / Turn power on

DISPOSAL CONSIDERATIONS

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom
