On-The-Rocks - Ice Maker Klarstein - Free user manual and instructions

Product type	Ice maker
Brand	Klarstein
Model	On-The-Rocks
Dimensions (L x W x H)	25 x 30 x 35 cm
Net weight	7.5 kg
Power supply	220-240 V, 50-60 Hz
Power	150 W
Ice production (per 24h)	12 kg
Water tank capacity	2.2 L
Ice basket capacity	800 g
Average production cycle	8 to 10 minutes
Ice cube type	Bullet-shaped ice cubes (round)
Number of ice cube sizes	2 (small and large)
Cooling system	Compressor
Self-cleaning function	Yes
LED display	Water level and full basket indicator
Housing material	Stainless steel / ABS plastic
Noise level	Approximately 45 dB
Maintenance and cleaning	Self-cleaning cycle recommended every 2 weeks; removable basket
Safety	Automatic shut-off when basket full or water level low
Spare parts and repairability	Parts available via Klarstein after-sales service

Frequently Asked Questions - On-The-Rocks Klarstein

How long does it take to produce the first ice cubes?

The first cycle takes about 8 to 10 minutes after startup, depending on ambient temperature and water temperature.

How to clean the ice machine?

Use the built-in self-cleaning function: fill the tank with water and a little white vinegar (or a special product), then start the cycle. Then rinse with clean water.

Why does the machine stop and show a red light?

The red light usually indicates that the ice basket is full or the water level is too low. Empty the basket or fill the tank.

What is the maximum water tank capacity?

The tank has a capacity of 2.2 liters, which allows it to produce about 1 kg of ice continuously.

Can I use tap water?

Yes, but for best results and to avoid limescale, it is recommended to use filtered or demineralized water.

How to choose the ice cube size?

Press the Select button to switch between small and large sizes. The corresponding indicator lights up.

The machine produces ice cubes that stick together, what to do?

This can happen if the machine is not level. Make sure it is stable and horizontal. Also check that the basket is not too full.

Can I leave the machine on continuously?

Yes, the machine is designed for continuous operation. It automatically stops when the basket is full and restarts after the ice is removed.

What is the power consumption?

The power is 150 W, which corresponds to a consumption of about 0.15 kWh per hour of operation.

Where can I find spare parts?

Contact the Klarstein after-sales service or visit their website to order parts such as the basket, filter, or pump.

USER MANUAL On-The-Rocks Klarstein

INHALTSVERZEICHNIS

POWER

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Dear Customer,

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the items and cautions mentioned in the instruction manual is not covered by our warranty and any liability. Scan the QR code to get access to the latest user manual and other information about the product

CONTENT

Safety Instructions 16

Product Overview 18

Control Panel and Operation 19

Cleaning and Maintenance 21

Troubleshooting 22

Disposal Considerations 23

Manufacturer & Importer (UK) 23

TECHNICAL DATA

Item number 10031372
Power supply 220-240 V ~ 50 Hz
Power consumption 120 W
Daily ice output 12 kg / 24 h
Water reservoir capacity 2.1 L
Ice storage capacity 600 g

SAFETY INSTRUCTIONS

• Check that the mains voltage corresponds to the rating of the appliance before operating.
• Use handles or knobs when moving. Place on a flat stable surface for use. Do not use outdoors.
• Do not use near or in the immediate vicinity of a bath or swimming pool or any source of liquid.
• Unplug from socket outlet when not in use.
  • To protect against electric shock, do not immerse cord or plug in water or any other liquid.
• The use of accessory attachments not recommended by the appliance manufacturer, may cause injury.
• Do not locate this appliance immediately below a socket outlet.
• Do not allow cord to overhang the counter top where it can be easily pulled by children.
• Do not use this appliance for anything else other than its intended use.
• Do not overfill as this may cause a hazard. Ensure lid is closed when in operation
• To remove plug from outlet, do not pull on supply cord. Grasp plug firmly and pull to remove.
• No liability can be accepted for any damage caused by non compliance with these instructions or any other improper use or mishandling. This appliance is for household use only
• This appliance is not intended to be operated by means of an external timer or separate remote control system.
  • This appliance is not intended to be immersed in water.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
• Please according to local regulations regarding disposal of the appliance for its flammable blowing gas.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• Fill with potable water only.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

This appliance contains the coolant isobutane (R600a), a natural gas which is environmentally friendly. Although it is flammable, it does not damage the ozone layer and does not increase the greenhouse effect. The use of this coolant has, however, led to a slight increase in the noise level of the appliance. In addition to the noise of the compressor, you might be able to hear the coolant flowing around the system. This is unavoidable, and does not have any adverse effect on the performance of the appliance. Care must be taken during the transportation and setting up of the appliance that no parts of the cooling system are damaged. Leaking coolant can damage the eyes.

WARNING

Danger from fi re/fl ammable materials. Please observe the local regulations for the disposal of units with fl ammable refrigerants and gases.

• Keep ventilation openings in the unit housing free of obstacles.
• Do not damage the refrigerant circuit.
• Do not use any mechanical devices or other means to accelerate the defrosting process or the ice recovery process.
• Do not use other types of electrical appliances inside the ice cube machine.

Special Notes

• When positioning the unit, make sure that the power cord is not pinched or damaged.
• Make sure that there are no multiple sockets or power supplies on the back of the unit.

To avoid contamination of food, please follow the instructions below:

• Regularly clean surfaces that may come into contact with food. Clean the water drain regularly.
• If the appliance contains a water tank, clean it if it has not been used for 48 hours. Rinse the tank if no water has been removed for 5 days.

WARNING

When using, servicing and disposing of the unit, pay attention to the left symbol on the rear of the unit or on the compressor. This symbol warns of possible fires. There are flammable substances in the refrigerant lines and in the compressor. Keep the appliance away from sources of fire during use, maintenance and disposal.

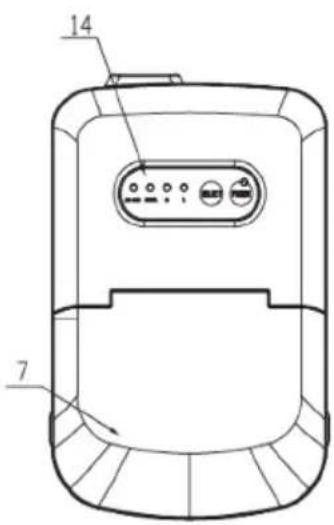

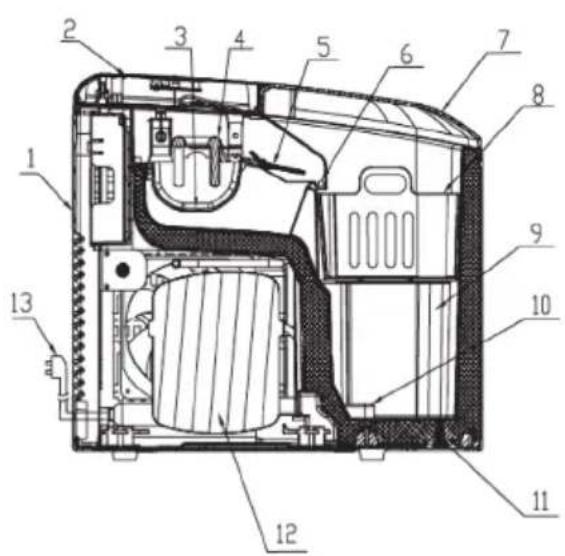

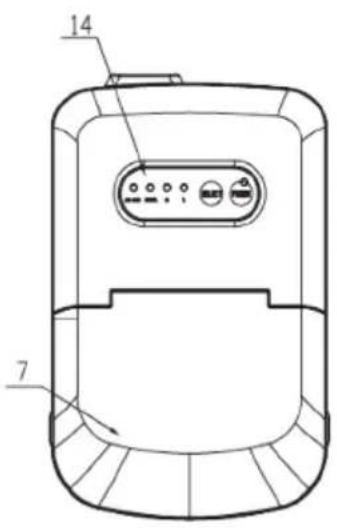

PRODUCT OVERVIEW

1	Rear Cover	8	Ice Basket
2	Top Cover	9	Water Reservoir
3	Water Tray	10	Filter
4	Evaporator	11	Water Drain Plug
5	Ice Shovel	12	Compressor
6	Ice-Bin-Full Sensor	13	Power Cord
7	Transparent lid	14	Control panel

POWER

The indicator of POWER will flash after plugged in, and then the machine enters standby state. It will start to work by pressing POWER button, accompanying indicator lighting. During operation, pressing this button, the machine will return to standby state.

SELECT

This button is for selecting the size of ice. The default setting is large ice, if the small one is needed, pressing this button is available. When you select the desired size, corresponding indicator of S (small) or L (large) will be on.

Press and hold „SELECT“ button for 3 seconds to activate pipeline self-clean process, which takes „pump water in for 30 seconds---water tank run to drain out water” as a circle, and this circle will run for 5 times. Flas- hing of indicators of „S“ and „L“ will take place in turn until self-clean process is over and the machine enters standby mode. Take away the plastic plug to drain water and then whole process is finished.

ADD WATER

When the indicator of this button turns to red, it means insufficient water to water reservoir, you need to add enough water and press POWER button to restart the machine.

ICE FULL

When the ice reach to the max storage capacity, the indicator of this button will flash, and the machine will stop working. What you need to do is pouring out the ice, if the position of ice is lower than the position of ice bin full sensor, the machine will restart automatically.

Operation

1. Plug out, and clean the water reservoir by adding water, then take plastic plug away to drain out the water from water reservoir.
2. Reinstall the plastic plug, and add appropriate clean water. After connecting the power supply well, press and hold "SELECT" button for 3 seconds to activate pipeline self-clean process. After cleaning, drain out the water by taking plastic plug away.
3. Open the lid and take out the ice basket to add appropriate water into water reservoir. Note: The water poured into water reservoir should be lower than the water reservoir's MAX position. When water volume goes beyond the max, please open the bottom water drain plug to drain the spare water out. Then close the transparent lid.
4. Select the desired ice size, the default size of machine is large one. Note: Please select the (S) when ambient temperature is below 15^ C. When the ambient temperature is higher than 30^ C, Large ice cube sizes are recommended.

Note: For the first three cycles, the ice may be small and irregular in size. Note: When the ice collecting tray is full please remove the ice immediately, Do not allow the ice collecting tray to overfill.

CLEANING AND MAINTENANCE

1 Clean the inner liner, ice collection tray, water reservoir, ice scoop and evaporator regularly. When cleaning, unplug the appliance and remove the ice cubes. Use a diluted solution of water and vinegar to clean the interior and exterior surfaces of the ice maker. Do not spray the ice maker with chemicals or diluted agents such as acids, gasoline or oil. Dry the unit thoroughly before operating it.

2 Keep the ventilation openings in the unit housing clear of obstructions. Do not use mechanical devices or other means to accelerate the defrosting process.

3 If you use the unit again after it has been idle for a while, it may not be able to pump up enough water. In this case, simply press the start/stop button again to restart the ice machine.

4 To ensure the cleanliness of the ice, change the water in the water tank at least once a day. If you do not use the machine for a long time, please drain the water and clean the machine.

5 If the compressor does not work due to lack of water, full ice or power failure, it will start up for 3 minutes after restarting.

6 Always use fresh water before starting ice production, either during initial installation or after a long period of inactivity.

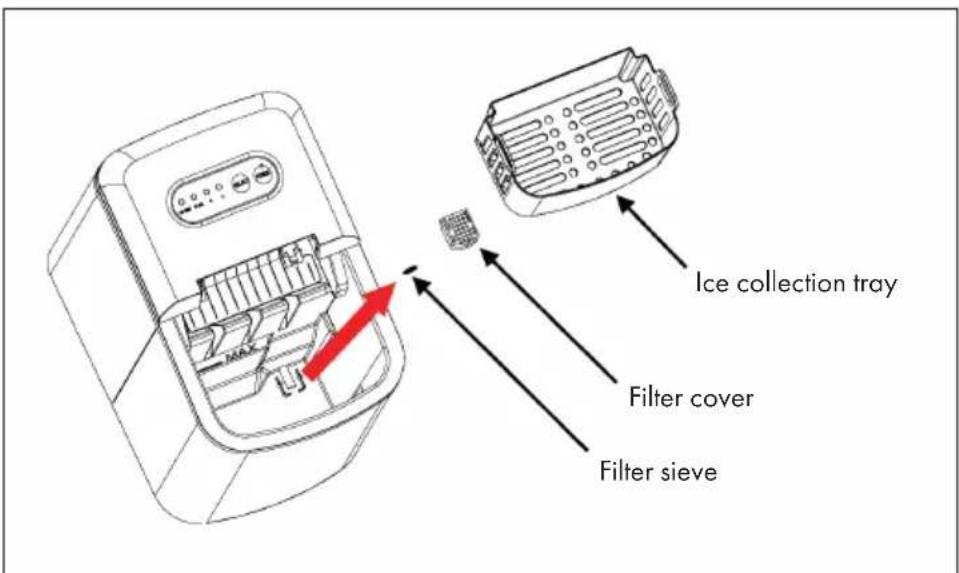

7 The filter screen in the water tank must be removed and cleaned regularly to prevent debris from clogging the water inlet. Proceed as shown in the figure below. Remove the ice collection tray, the filter cover and the filter sieve from the water tank one after the other, clean the filter cover and the filter sieve with clean water and then reinsert them.

TROUBLESHOOTING

Please note, if a power failure occurs due to disconnection of the power cord, or the power button has been pushed off during an ice making cycle, small ice chips may formed and lodge in the automatic shovel causing it to jam. If this occurs, the ice chips may be removed by disconnecting the power cord and gently pushing the shovel to the rear of the cabinet and removing the ice chips, then restarting.

Please check if the water reservoir is flat when the ice shovel can not remove the ice to ice basket. If not, please push the ice shovel gently by finger, then press POWER button to restart.

Problem Possible Cause Suggested Solutions
The compressor works abnormally with a Buzzing Noise.	The voltage is lower than recommended.	Stop the Ice maker and do not restart until the voltage is normal.
Water shortage indicator light is on.	There is no water. Add to some water until it reaches MAX position.
	The pump is full of air. Press POWER button to restart.
Indicator lights on display are not on.	Blown fuse/ No power. Replace fuse / Turn power on.
The Ice made is too large and with pieces sticking together.	Water temperature is too low.	Select small size.
	.Ice of previous cycles left in the water tray.	Take out the ice under the standby state.
All indicators twinkle simultaneously.	Water tray is blocked by ice cube.	Unplug the power to take out the ice which blocking the tray, then plug the power and press the POWER button, the machine will restart 3mins later.

DISPOSAL CONSIDERATIONS

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom
