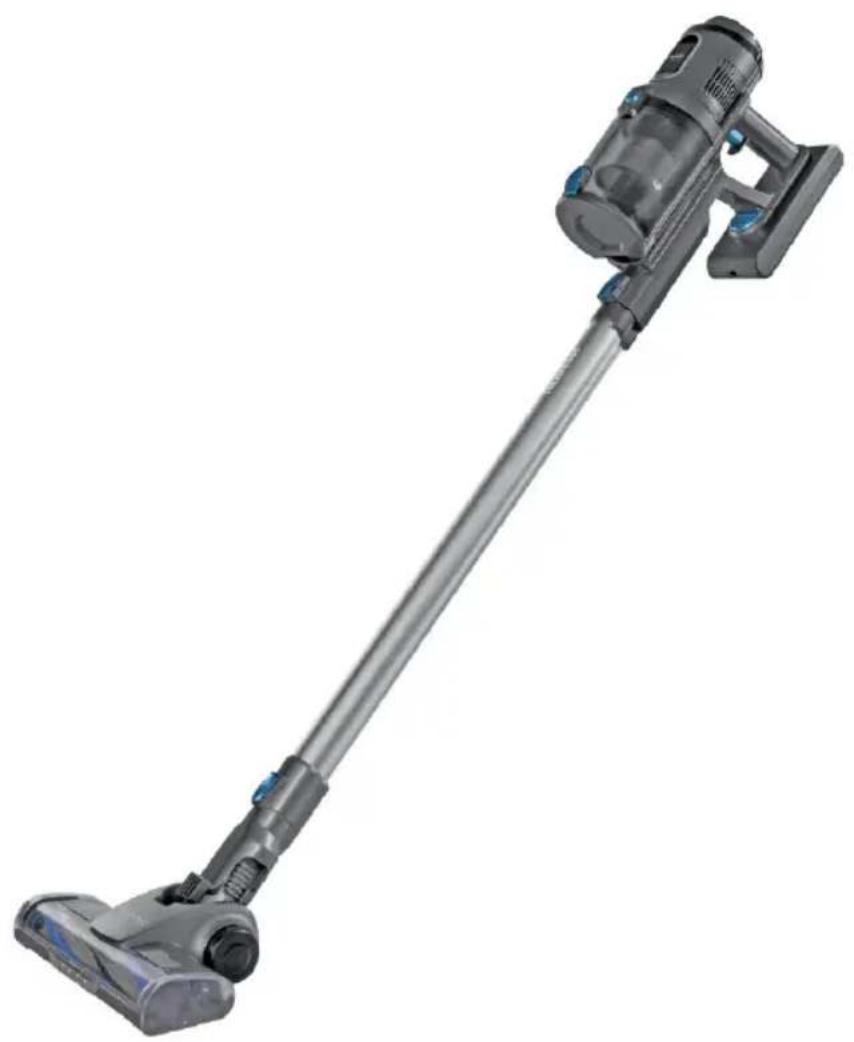

USER MANUAL Pureno Trim 100 TECHNISAT

Rechargeable vacuum cleaner

TechniSat

DE

EN

FR

IT

NL

PL

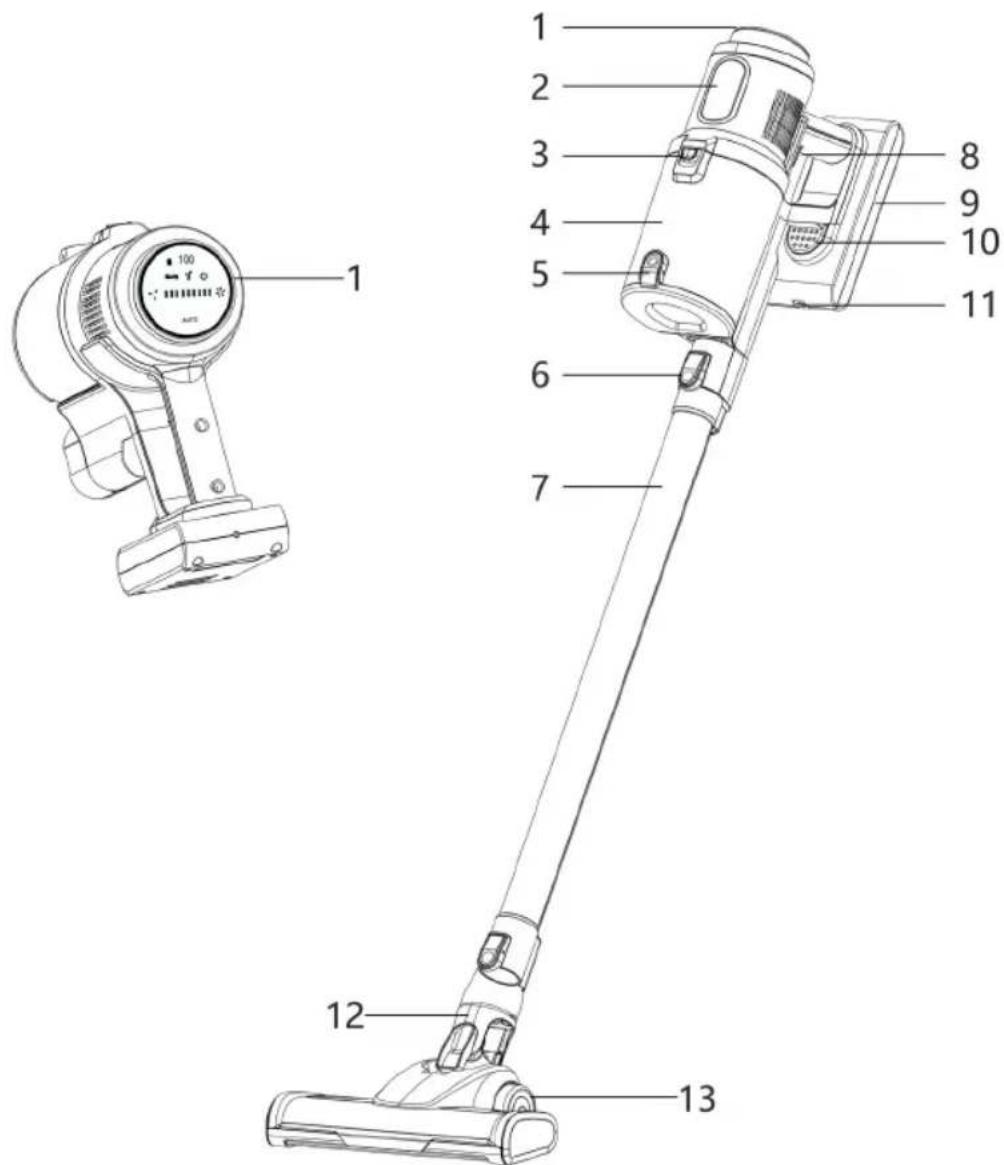

1 Touch Display
2 Model Name
3 Dust Holder Release
4 Dust Holder
5 Dust Holder Quick Emptying
6 Motor Unit Release Button
7 Aluminium Suction Tube
8 Operating Switch (Vacuum On/Off)
9 Rechargeable Battery
10 Rechargeable Battery Release
11 Rechargeable Battery Charging Connector
12 LED Motorised Brush

13

Wheels

2 Index

1 Illustrations 24
2 Index 25
3 Preface 26

4 Safety instructions. 26

4.1 Signs and symbols used 26
4.2 Intended use 27
4.3 Using the product safely 28
4.4 Legal notices 31
4.5 Service information 31

5 Description of the VIOLA VC6 32

5.1 Scope of supply 32
5.2 Operating element 33
5.2.1 Description 33

6 Assembling the VIOLA VC6 34
6.1 Attaching / detaching the LED motorised brush and aluminium suction tube....34
6.2 Attaching / detaching the 2-in-1 combination nozzle and crevice tool.....34
6.3 Detaching /attaching the dust holder 34
7 First use. 35
7.1 Charging the battery 35

8 Usage 36
8.1 Emptying the dust holder 37
9 Cleaning and storing 38
9.1 Cleaning the dust holder, HEPA filter and dust filter 38
9.1.1 Assembly 39
9.2 Cleaning the motor unit, aluminium suction tube and nozzles.. 39
9.3 Cleaning the LED motorised brush 39
9.4 Storage 39
10 Troubleshooting 39
11 Technical data 41

3 Preface

Dear Customer,

Thank you for choosing a TechniSat vacuum cleaner.

This instruction manual is intended to help you get to know the extensive functions that your new device offers and to make the best use of them. It will help you to use the product as intended and safely. It is intended for anyone installing, operating, cleaning or disposing of the device.

Store the instruction manual in a safe place for later use.

A current version of the instruction manual can be found in the download area for your product on the TechniSat website at www.technisat.de.

We hope you enjoy using your

TechniSat device!

Your

TechniSat Team

4 Safety instructions

4.1 Signs and symbols used

In this instruction manual:

Indicates a safety instruction which can lead to serious injuries or death if not observed. Note the following signal words:

DANGER - Severe injury with fatal consequences

WARNING - Severe injury, possibly with fatal consequences

CAUTION - Injury

Indicates important information which you absolutely should observe in order to avoid problems with the device, loss or misuse of data or unwanted operation. It also describes additional functions of your device.

Beware of electrical voltage. Follow all safety information to prevent an electric shock. Do not open the device under any circumstances.

General points:

Indoor use - Devices with this symbol are only suitable for indoor use.

Protection class II - Electrical devices of protection class II are electrical devices with continuous double and/or reinforced insulation and no connection options for a protective conductor. The housing of an electrical appliance of protection class II enclosed using insulation material may partially or completely form the additional or reinforced insulation.

Your device bears the CE symbol and complies with all requisite EU standards.

Electronic devices/ batteries must not be disposed of with household waste, but must be disposed of properly, in accordance with Directive 2012/19 / EU of the European Parliament and of the Council dated 04 July 2012 on Old Electrical and Electronic Equipment. Please return this device to the designated public collection point for disposal at the end of its service life. Before disposing of the device, the rechargeable battery must be removed and disposed of separately. In the interest of environmental protection, batteries and rechargeable batteries must not be disposed of with normal household waste, but must be taken to appropriate collection points.

Take note of all information and safety instructions in this instruction manual. Keep the instruction manual in a safe place for future reference.

The power supply unit in your device corresponds to energy efficiency class VI.

This symbol indicates the polarity of the DC voltage at the mains adapter DC connector.

Switch symbol for direct current.

4.2 Intended use

This device is intended for vacuuming up normal household dust.

Never vacuum up the following items:

• liquids or wet substances (e.g. wet carpet shampoo)
• glowing embers, cigarette butts, matches etc.
• flammable or combustible substances
• very fine dust (e.g. concrete dust), ash or toner
• sharp, hard objects, e.g. large pieces of glass.

The device has been designed for private use and not for commercial use. Use the device only as described in this instruction manual. Any other use is considered improper.

4.3 Using the product safely

Please observe the following instructions to minimise any safety hazards, prevent damage to the device, and help protect the environment.

Please read all the safety instructions carefully and store them for future reference. Always follow all the warnings and instructions in this instruction manual and on the rear of the device.

DANGER!

Risk of electric shock!

• Only charge and store in enclosed spaces.

• Do not use in rooms with high humidity.

• If the device falls into water while connected to the mains, disconnect the power supply immediately. Only then pull the device out of the water!
• Never touch the device or the connecting cable with wet hands when these components are connected to the mains.
• Never vacuum up liquids. Do not let any liquids get into the dust holder.
• Keep the motor unit away from moisture or dampness!
• If the device is to be used as a hand-held vacuum for cleaning a car, make sure that it is not exposed to rain or moisture.

WARNING

Risk of injury!

• Risk of suffocation! Keep children and animals away from the packaging material.

• Risk of strangulation! Ensure that the connection cable is always out of reach of small children and animals.

• Risk of chemical burns! If the battery has leaked, prevent the skin, eyes and mucous membranes from contacting the battery acid. In case of contact with battery acid, rinse the affected areas immediately with plenty of clean water and seek medical help immediately.
• Risk of suction! Keep animals, hair, jewellery, loose clothing, fingers and all other body parts away from the nozzles of the device. They could get sucked in. If the vacuum does suck such things in, switch the device off immediately.
• Risk of tripping over! Ensure that the connecting cable does not pose a tripping hazard.

WARNING

Fire hazard from rechargeable batteries!

• The battery must not be dismantled, thrown onto a fire, exposed to high temperatures above 40^ , immersed in liquids or short-circuited. The battery could ignite or explode.
• Ensure that the motor unit and the rechargeable battery do not get wet.
• Do not use the device if liquid has penetrated it. The battery could ignite or explode.
• Do not cover the device or the power supply unit during charging to prevent it from catching fire. Do not insert anything into the ventilation openings of the device and make sure that they are not blocked.
• If the battery leaks, remove it from the device immediately. Clean the contacts before inserting a new battery.
• Check the battery regularly for damage or deformation. A damaged/deformed battery must not be used.

Observe all of the following instructions on the intended use of the device and to prevent device defects and personal injury.

• This device can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or a lack of experience and/or knowledge if they have been given supervision or instruction concerning use of the device in a safe way and they understand the risks involved.
• Children must not play with the device.
• Cleaning and user maintenance must not be carried out by children unless they are more than 8 years old and are supervised.
• Children younger than 8 and animals must be kept away from the device and the connecting cable.
• The device must always be disconnected from the mains before assembly, disassembly or cleaning.
• Never immerse the device or the connecting cable in water or other liquids and ensure that they cannot fall into water or get wet.
• Charge the battery using the supplied mains adapter only.

• Do not use the supplied mains adapter to charge other devices.

• In the interest of your own safety, check the device for damage before each use. Use the device only if it is undamaged! If the device or the connecting cable are damaged, they must be replaced by the manufacturer, customer service or a similarly qualified person (e.g. a specialist workshop) in order to avoid hazards.

Risk of material damage

• Ensure that the mains cable is not crushed, bent or laid over sharp edges and does not come into contact with hot surfaces.
• Do not wind the mains cable around the device or the mains adapter.
• Use the device if it has been fully and correctly assembled. The dust holder and the filters must be inserted and be undamaged! Damage to the motor could occur if dirt were to get inside the motor unit.
• Unplug the mains adapter if a fault occurs during charging or before a thunderstorm.
• The device must be switched off when the mains adapter is unplugged from, or plugged into, a socket. Always pull on the mains adapter and never on the mains cable to disconnect the device from the mains!
• Do not use the device if it is still connected to the mains adapter.
• Never pull or carry the device by the mains cable.
• Keep the device away from heat, naked flames, extreme temperatures, prolonged humidity, moisture and knocks.
• Use original accessories only so as not to impair operation of the device and to prevent potential damage. The LEDs are not replaceable.

4.4 Legal notices

TechniSat is not liable for damage caused by external influences, wear and tear or improper use, unauthorised repairs, modifications or accidents.

Subject to change for amendments and printing errors. Version 12/21
Duplication and reproduction only with the publisher's approval. You can find the current version of the manual in PDF format in the download area of the TechniSat homepage at www.technisat.com.

VIOLA VC6 and TechniSat are registered trademarks of

This product is quality-tested and comes with the statutory warranty period of 24 months from the date of purchase. Please keep your receipt as proof of purchase. In the event of warranty claims, please contact the product dealer.

For questions and information, or if there is a problem with this device, please contact our technical hotline:

Mon. - Fri. 8:00 am - 6:00 pm at tel.:

[phone].

Repair orders can also be placed directly online at

www.technisat.de/reparatur.

The illustrations used in this instruction manual may differ from the actual device. If you have any questions about the device or spare parts/accessories, please contact customer service.

If the device needs to be sent to us for any reason, please use only the following address:

39418 Stassfurt, Germany

Names of the companies, institutions or brands mentioned are trademarks or registered trademarks of their respective owners.

5 Description of the VIOLA VC6

5.1 Scope of supply

Before starting up, please check that everything has been delivered:

1 x VIOLA VC6 motor unit
1 x Aluminium suction tube
1 x Motorised brush LED
1 x Crevice tool
1 x 2-in-1 combination nozzle
1 x Rechargeable battery
1 x Mains adapter
1 x Wall bracket
2 x HEPA 13 filters

Description of accessories:

The LED motorised brush is suitable for both carpets and hard floors. It has a rotating microfibre roller and is therefore particularly suitable for delicate surfaces. The LEDs illuminate dark areas for even more thorough cleaning.

The 2-in-1 combination nozzle combines a small crevice tool and brush nozzle. Press the release button on the brush attachment and push it up at the same time to turn the crevice nozzle into a brush nozzle. The brush attachment must engage audibly:

• The crevice tool is suitable for upholstery, cleaning car interiors and all nooks and crannies.
• The brush nozzle is used for vacuuming upholstery and textiles and for removing dust from delicate objects such as picture frames, lampshades, keyboards, books, etc.

The long crevice tool is suitable for hard-to-reach places such as corners, grooves or niches.

The aluminium suction tube ensures better accessibility to ceilings, corners, cupboard surfaces and, in combination with the LED motorised brush, for floor cleaning.

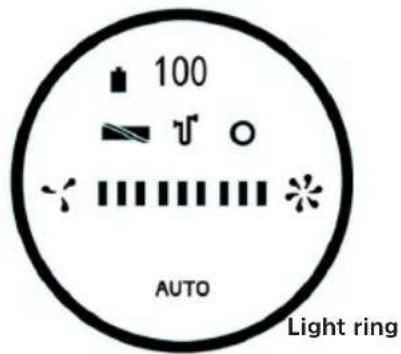

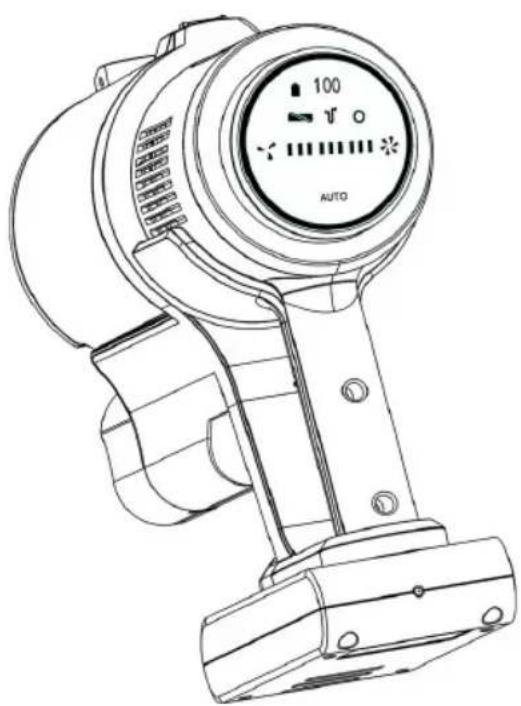

5.2 Operating elements

Battery charge status
Brush blocked
Suction blockage
Sensor error display
Suction strength low
Suction strength high
AUTO Automatic suction strength

5.2.1 Description

Battery charge status - Symbol flashes when charge status is less than 10% .

Brush blocked - Flashes red when the brush is blocked.

Suction blockage -Flashes red when the suction tube is blocked.

Sensor error display - Suction strength control (Auto) is not functioning.

Suction strength low - Low suction strength (Eco), low motor noise

Suction strength high - High suction strength, loud motor noise

AUTO Auto suction strength control - The suction strength is controlled automatically (depending on contamination). The light ring indicates the strength level: Green = low, to red = high.

6.1 Attaching / detaching the LED motorised brush and aluminium suction tube

Attaching:

The aluminium suction tube (7) is plugged directly into the suction opening in the motor unit. It must engage audibly. Attach the LED motorised brush (12) to the aluminium suction tube in the same way.

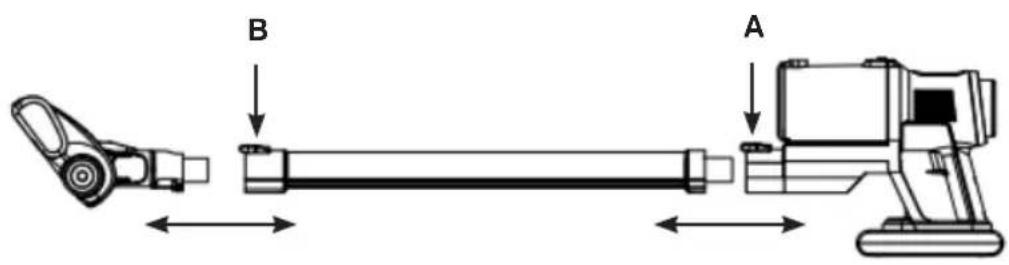

Detaching:

Press the release button (A) on the motor unit or on the aluminium suction tube (B) and pull the LED motorised brush or the aluminium suction tube out at the same time.

Motor unit Aluminium suction tubeFlock

6.2 Attaching/detaching the 2-in-1 combination nozzle and crevice tool

Attaching:

Insert the desired nozzle into the suction opening in the motor unit or the aluminium suction tube (7). Make sure that the catch on the nozzle is pointing towards the respective release button. The nozzle must engage audibly.

Detaching:

Press the release button (A) above the suction opening or on the aluminium suction tube (B) and pull the nozzle out at the same time.

6.3 Detaching / attaching the dust holder

Detaching:

Push the release button (3) on the dust holder (4) and remove it upwards.

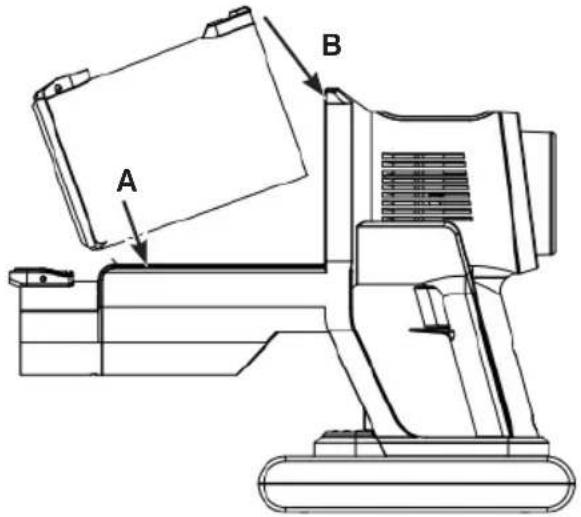

Attaching:

Insert the dust holder into the motor unit from above. Make sure that the catch on the dust holder fits into the corresponding recess in the motor unit (A). The dust container must engage audibly (B).

7 First use

Please note the following points before using the device for the first time:

Remove any films, stickers or transport protection from the device. Never remove the type plate or any warning labels!

Charge the battery.
Set up the storage holder.

7.1 Charging the battery

Before using for the first time, fully charge the battery to reach the maximum charge capacity. If the battery is discharged during use, it should be fully recharged before next use.

Connect the power supply only to a properly installed socket that complies with the technical specifications of the device. The socket must also be easily accessible after connection so that the mains connection can be disconnected quickly.

Before inserting the battery, check that the contacts are clean, and clean them if necessary.

The battery can be charged separately, when connected to the motor unit or when in the storage holder. The storage holder has a slot for the mains adapter DC connector.

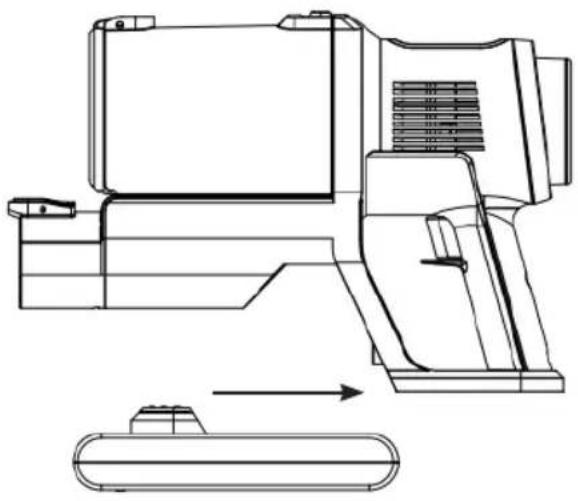

Connect the battery (9) to the motor unit by pushing the battery onto the motor unit until it engages audibly.

Insert the mains adapter plug (DC connection) into the connection socket (11) on the battery and then plug the mains adapter into the socket. The charging indicator light on the battery flashes red and the battery status display on the touch display shows the charging status in %. The battery is charging.

If the charging indicator lights green or if the battery status indicator is at 100, the battery is fully charged.

First disconnect the mains adapter from the mains, then disconnect the DC connector from the battery.

The charging electronics in the battery have overheating protection that protects the battery from defects. If you try to charge the battery after a long period of continuous use (battery power is at 0 - 10 %), the charging process may start only after a delay.

To remove the battery from the motor unit, first press the release button (10) on the battery and simultaneously pull the battery forwards off the motor unit.

8 Usage

i Make sure that there are no large, sharp objects on the surface to be cleaned.
Take note of the MAX mark on the dust holder. If the mark is reached during use, empty the dust holder. Empty and clean the dust holder after each use. The filters must also be cleaned regularly to avoid overloading the motor.

Switch the device off after each area has been cleaned. This will significantly increase the operating time per battery charge. Recharge the battery after use.

Select the accessories as required and attach them to the device.
Switch the device on by pressing the operating switch (8) once. The device immediately starts the suction process. The touch display (1) lights up.
If necessary, the suction strength can be changed manually via the touch display by touching the "Suction strength" field. The intelligent suction control can also be set by touching the AUTO symbol.
Move the device over the area to be cleaned.
If you want to switch the device off again, press the control switch once more.

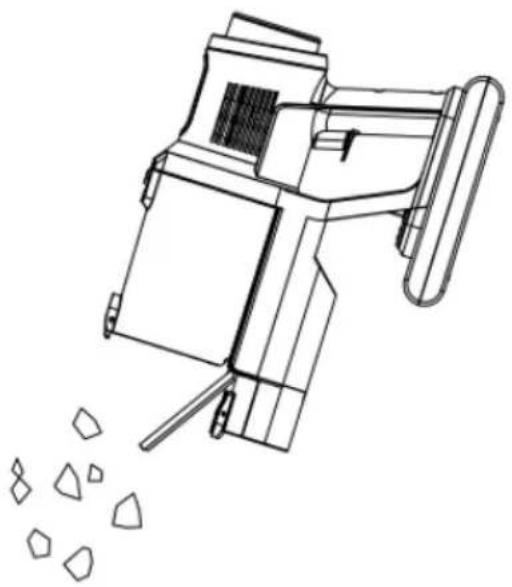

8.1 Emptying the dust holder

Remove the dust holder from the motor unit to facilitate emptying.

Hold the dust holder over an open bin. The distance to the bin should be as small as possible so that the dust is not dispersed into the surroundings.
Press the emptying button (5) on the dust holder. The lid of the dust holder opens and the dirt falls out.
Press the lid onto the dust holder to close it. The tab must engage audibly.

9 Cleaning and storing

Do not immerse the HEPA filter in water or rinse it under running water, to avoid damage. It is not suitable for cleaning in a washing machine, dishwasher or tumble dryer.

The dust filter is not suitable for cleaning in a washing machine, dishwasher or tumble dryer! Air dry only, never use a hair dryer.

Do not use any aggressive or abrasive cleaning agents to clean the housing. They can damage the surfaces.

9.1 Cleaning the dust holder, HEPA filter and dust filter

Remove the dust holder from the motor unit.

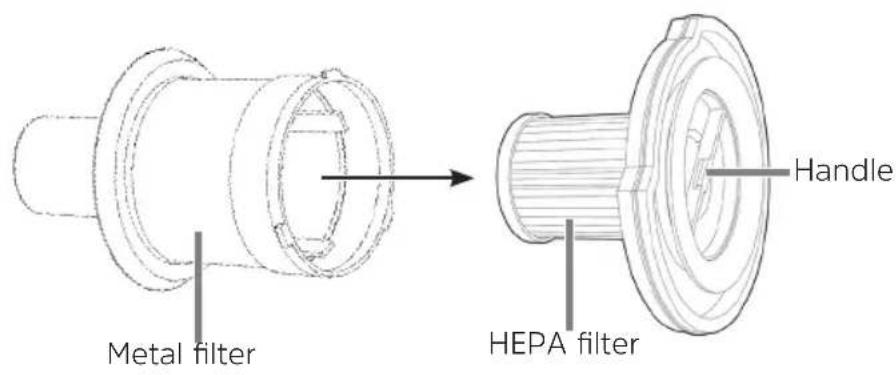

Pull the filter unit out of the dust holder by the handle.
The pre-filter (metal filter) and the HEPA filter it inside are connected with a bayonet lock. Turn the HEPA filter anticlockwise to separate it from the prefilter and pull it out.

Knock out all parts and clean with a soft brush as necessary.

The pre-filter can also be rinsed in clean water.

Do not clean the HEPA filter in water!

Wipe the dust holder out with a damp cloth if necessary.

Allow all parts to air dry completely before reassembly. Never assemble wet or damp components or attach them to the motor unit!

9.1.1 Assembly

Place the pre-filter on the HEPA filter so that the catch is in the recess provided. Turn the dust filter clockwise until it is firmly seated.
Insert the pre-filter and HEPA filter into the dust holder. The dust filter must be seated correctly in the dust holder; it must not protrude from the top.
Reinsert the dust holder in the motor unit.

9.2 Cleaning the motor unit, aluminium suction tube and nozzles

Wipe the motor unit, the aluminium suction pipe and the nozzles with a damp, soft cloth as necessary. Dry with a soft cloth.
Regularly remove hair and lint from the nozzles and brushes.

9.3 Cleaning the LED motorised brush

For easier cleaning, the roller can be removed from the LED motorised brush:

On the right side of the LED motorised brush, slide the lock (lock symbols) to the open lock position and remove the retaining bracket.
Pull out the roller and remove contaminants.
Insert the roller in the reverse order, insert the retaining bracket and press down until it engages audibly.

9.4 Storage

Store the device in a cool, dry place away from direct sunlight and out of reach of children and animals.
For storage, hang the device in the wall bracket with the suction opening pointing downwards.
The 2-in-1 combination nozzle and crevice tool can be attached to the side of the wall bracket for easy and space-saving storage.

If the device is not to be used for an extended period of time, remove the battery from the motor unit and charge the battery before next use.

10 Troubleshooting

If the device does not work properly, check if you can solve the problem yourself. If the steps below do not solve the problem, contact customer service ("4.5 Service information" on page 31).

WARNING

Risk of injury!

Do not attempt to repair an electrical device yourself.

In the event of defects, always contact the service department ("4.5 Service information" on page 31).

Problem Possible	cause Solution
The device only operates slowly or does not start.	The battery is flat. Charge the battery.
The battery is not charging.	Lower voltage at 0-10 % and 90-100 % to protect the battery.	Battery protective circuit.
The suction power is too weak.	The battery is too weak.	Charge the battery.
	The dust holder is overfilled.	Empty the dust holder.
	The filters are contaminated.	Clean the filters.
	The suction opening is blocked.	Switch off the device and remove the blockage.
	Particles that are too large or heavy can stick to the carpet.	Remove these foreign bodies by hand.
Dust is escaping from the device during vacuuming.	The dust holder or filter are not seated correctly.	Correct the position of the dust holder and filter. Ensure that the dust holder is closed.
	The filters are contaminated.	Clean the filters.
	The filters are worn out or damaged.	Replace the filters.
The charging light does not come on when the device is connected to the mains.	The mains adapter (A) is not inserted correctly into the socket or the DC connector is not inserted correctly into the battery connection socket (F).	Correct the positioning.
	The socket is defective.	Try using a different socket.
Strange smell The device	is being used for the first time.	An unusual smell is normal the first time the device is used. It will disappear over time.

11 Technical data

Device

Model VIOLA VC6
Voltage supply 28.8 V, 2,500 mAh
Power rating 300 W
Battery charging time Up to 360 minutes
Operating time Up to 60 mins (when power levels and accessories are used)
HEPA filter H13

Technical data for supplied power cable

Manufacturer TechniSat Digital GmbH, Julius-Saxler-Strasse 3, D-54550 Daun, Germany
Model number TYGSDC3600500
Input voltage AC 100 - 240 V
Input AC frequency 50/60 Hz
Output voltage DC 36.0 V
Output current	0.5 A
Output power rating	18.0 W
Average efficiency during operation	85 %
Efficiency under low load (10 %)	73.5 %
Power consumption under zero load	0.06 W
