USER MANUAL 15 Ultra Photography Kit Xiaomi

Xiaomi 15 Ultra Photography Kit

User Manual

(With Warranty Card)

Product overview

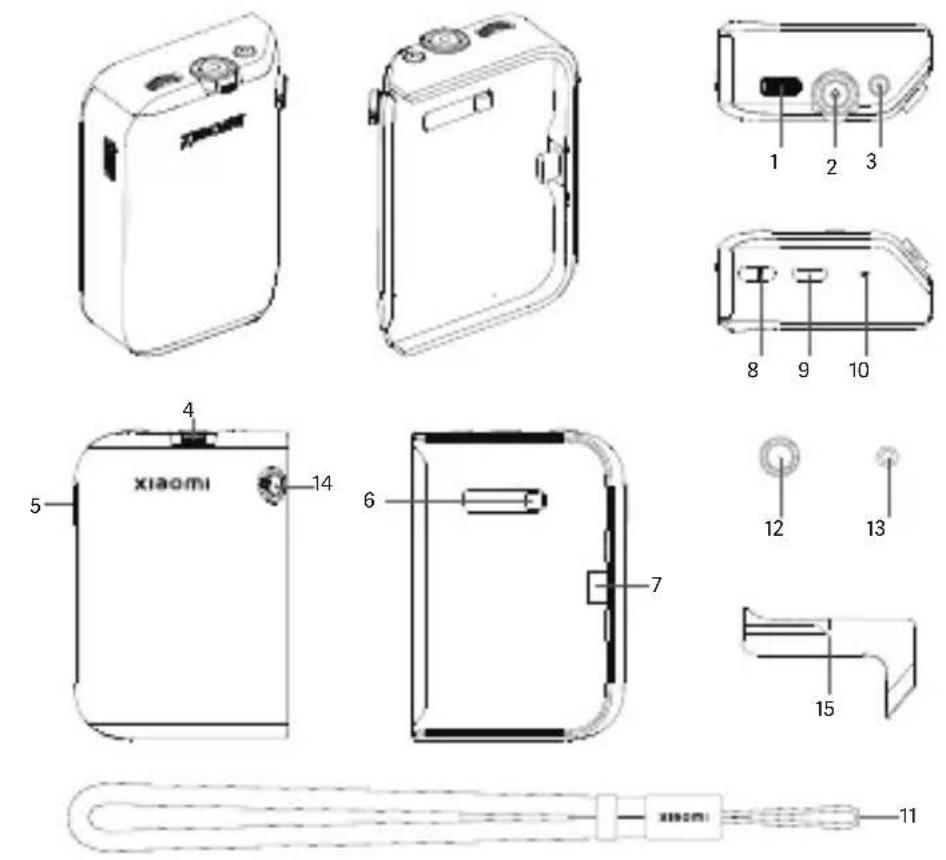

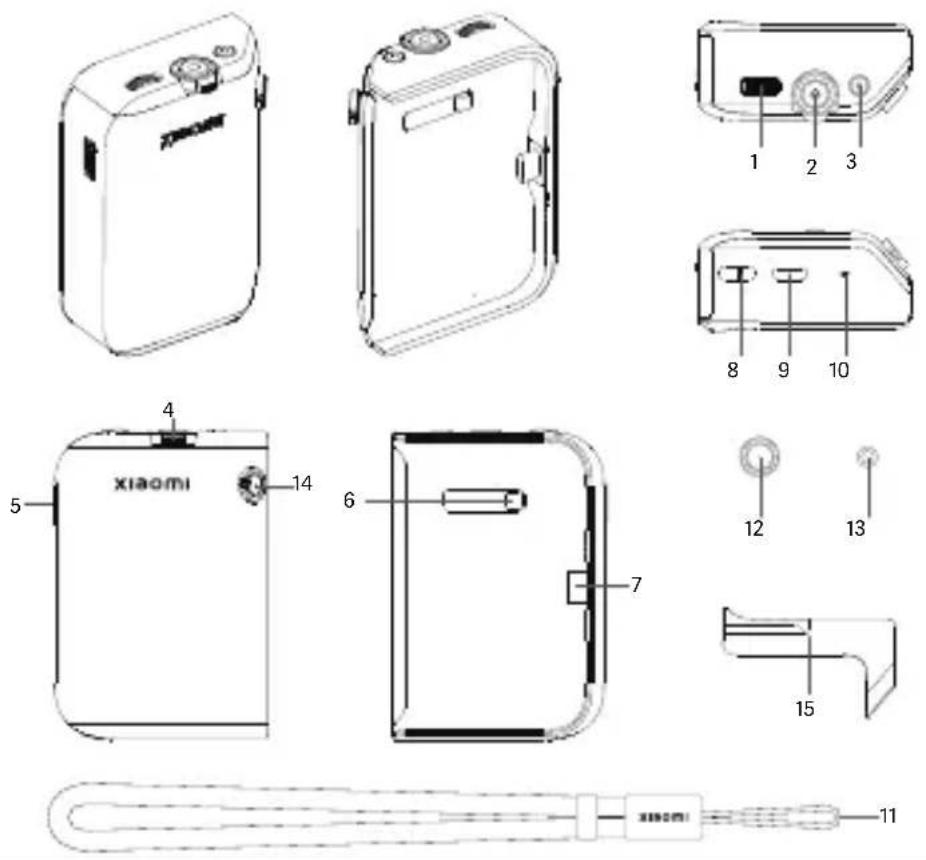

Xiaomi 15 Ultra Photography Grip (With Hand Strap)
1 C	stom Dial 2 Shutter Button		3 Recording Button 4 Zoom	Lever
5 Lock/Release Switch 6 Grip Latch 7 Type-C Port 8 Hand Strap Eyelet
9 Ty	pe-C Charging Port	10	Indicator Light 11 Hand	Strap 12 Detachable Shutter			Button*2
13 R	ubber Ring*2 14 Quick release Screw 15 Detachable Thumb Support

1 2

Front oblique view of adapter ring

Back oblique view of adapter ring

67mm Filter Adapter Ring:
1	Adaptor ring threads
2	Adapter ring mounting alignment point
3	Adapter ring snap-in position

Front oblique view of decorative ring

Back oblique view of decorative ring

Decorative Ring:

1 Decorative ring mounting alignment point

2 Decorative ring snap-in position

Diagram of a smartphone camera with labeled parts (no text or symbols present)

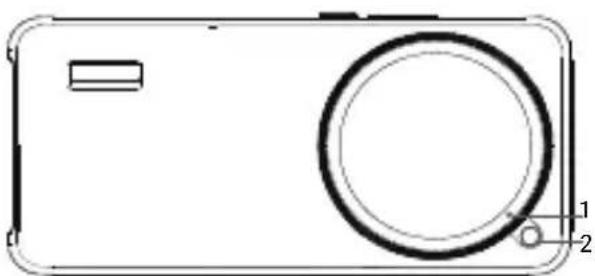

Xiaomi 15 Ultra Official Protective Case
1 Adapter ring/decorative ring mounting snap-in slot alignment point	2 Protective case quick detach button

Installation / Disassembly

Installation instructions for Xiaomi 15 Ultra Photography Grip

1. Official Xiaomi 15 Ultra protective case is attached to the phone.

1. Confirm that the camera grip switch is in released position (no red sign).

Diagram of a smartphone with directional arrows indicating movement or orientation (no text or symbols)

1. Push the camera grip along the bottom of the case.

Line drawing of a rectangular electronic device casing (no text or symbols)

1. When the grip is fully attached to the case, flip the switch to the side near the back of the phone to lock in position (red sign revealed).

Simple rectangular outline with rounded corners and a small black square on top (no text or symbols)

1. Ensure the product is securely installed before use.

Blank white rounded rectangle with black outline (no text or symbols)

1. The phone will display a successful connection prompt after successful installation.

Disassembly instructions for Xiaomi 15 Ultra Photography Grip

Line drawing of a rectangular electronic device with a flat top and side connectors (no text or symbols)

1. Toggle the switch close to the screen side of the phone to release the latch (red sign disappeared).

Technical line drawing of a rectangular electronic device (no text or symbols)

1. Pull out the camera grip slowly along the bottom sides of the case.

Note: Xiaomi camera grip needs to be used with the official Xiaomi 15 Ultra protective case.

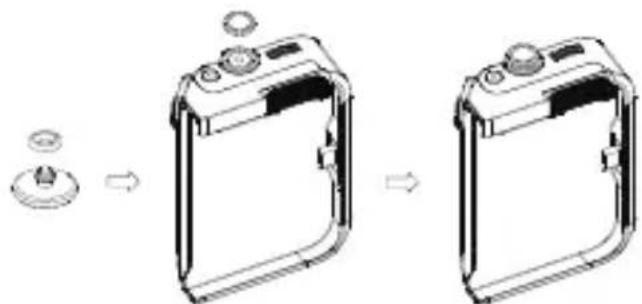

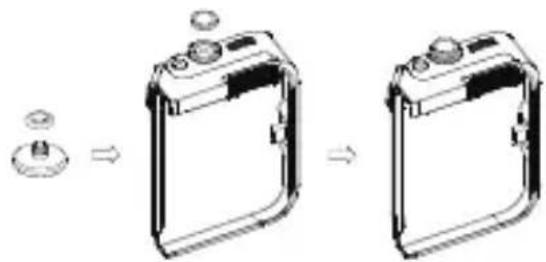

Installation and disassembly instructions for Detachable Shutter Button

Diagram showing a device's internal components before and after assembly, with no visible text or symbols.

1. Attach the rubber ring to the detachable shutter button.

2. Align the detachable shutter button with the pre-drilled screw hole on the shutter key.

3. Rotate the detachable shutter button clockwise until securely fastened to complete the installation.

To remove the shutter button, follow the steps in reverse order to complete the removal.

Installation and disassembly instructions for Detachable Thumb Support

Line drawing of a white industrial water heater with control panel and side-mounted unit (no text or symbols)

Line drawing of a white rectangular appliance with a lid and control knob (no text or symbols)

1. Flip up the quick-release screw lifting ring.

Line drawing of a rectangular industrial container with a side panel and lid (no text or symbols)

Line drawing of a portable electronic device with a handle and control panel (no text or symbols)

1. Lift the ring gently and rotate it counterclockwise until the screw is fully disengaged from the grip.

2. Install the thumb support as shown (aligning the thumb support hole with the screw hole).

Line drawing of a cylindrical device with a handle and control panel (no text or symbols)

Line drawing of a portable water heater with control panel and side arm (no text or symbols)

1. Align the quick-release screw with the thumb support hole.

2. Rotate the quick-release screw clockwise until securely fastened.

Line drawing of a portable water heater with control panel and buttons (no text or symbols)

Line drawing of a portable washing machine (no text or symbols visible)

1. Rotate the lifting ring back to a flat position. 7. Installation complete.

To remove the detachable thumb support, follow the steps in reverse order to complete the removal.

Installation instructions for Decorative Ring

Note: The decorative ring needs to be used with the official Xiaomi 15 Ultra protective case.

Technical line drawing of a mechanical component with a circular housing and rectangular base (no text or symbols)

Isometric line drawing of a rectangular electronic device with a circular lens (no text or symbols)

1. Align the ring alignment point with the case alignment point.

2. Align the positioning points, press down gently and turn clockwise to secure tightly.

Isometric line drawing of a rectangular electronic device with a circular lens (no text or symbols)

1. Installation is successful when the alignment point is rotated to the release button. There will be a "clicking" sensation when it is installed in place. After installation, you may check if it is in place by rotating it counter-clockwise.

Disassembly instructions for Decorative Ring

Isometric line drawing of a rectangular electronic device with a circular lens (no text or symbols)

Line drawing of a rectangular electronic device with a circular lens (no text or symbols)

1. Press and hold the release button and twist the decorative ring counter-clockwise.

2. Rotate the decorative ring alignment point to the position shown in the illustration to remove it.

Technical line drawing of a mechanical component with a circular ring and rectangular base (no text or symbols)

1. Remove the decorative ring.

Installation instructions for Adapter Ring

Note: The 67mm filter adapter ring is required to be used with Xiaomi 15 Ultra official protective case (filters need to be purchased separately. It can be used with camera filters with a 67mm thread).

Technical line drawing of a mechanical component with two circular rings (no text or symbols)

Line drawing of a rectangular electronic device with a circular lens (no text or symbols)

1. Align the 67mm filter adapter ring alignment point with the protective case alignment point.

2. Once the alignment points are aligned, rotate in a clockwise direction to tighten.

Isometric line drawing of a rectangular device with a circular ring on top (no text or symbols)

1. Installation is successful when the alignment point is rotated to the release button.

There will be a "clicking" sensation when it is installed in place. After installation, you may check if it is in place by rotating it counter-clockwise.

Once the installation is confirmed in place, the generic (threaded port) 67mm camera filters can be adapted (filters need to be purchased separately).

Disassembly instructions for Adapter Ring

Note: If the filter and the adapter ring are installed too tightly, the filter and the adapter ring may be removed together. In this case, the filter and the adapter ring can be separated by placing the filter and the adapter ring on the protective case (the position of step 2 in the illustration) and turning it counter-clockwise.

Isometric line drawing of a rectangular electronic device with a circular ring on top (no text or symbols)

Isometric line drawing of a rectangular electronic device with a circular top and base (no text or symbols)

1. Press and hold the release button and twist the 67mm filter adapter ring counter-clockwise.

2. Rotate the decorative ring alignment point to the position shown in the illustration to remove it.

Technical line drawing of a rectangular device with two circular rings on top (no text or symbols)

1. Remove the 67mm filter adapter ring.

Product features

Connection & Pairing

Once the grip and phone are installed in place, the grip and phone will be automatically connected and paired. When the connection is successful, the phone will display a successful connection prompt.

Charging function

• You can also use any third-party charger that complies with USB2.0 or higher protocol standards and also meets the requirements of the International Information Technology Equipment Safety Standard (IEC 60950), Audio/video, Information and Communication Technology Equipment Standard (IEC 62368-1) and the related laws and regulations of your country or region.
• The maximum voltage shall not exceed [5V] and the maximum current shall not exceed [3A].
• Using other chargers that do not meet the above requirements to charge this product may damage the product itself and your personal or property safety.
• When the grip is connected to the phone

- Emergency Charging: By default, the grip will automatically charge the phone when the battery level drops to 20% or below. To change the automatic charging threshold, go to Settings - Camera grip, and select a different battery level. To start charging immediately after attaching the grip, go to Settings - Camera grip, and change the power source mode from "Emergency" to "Always".

- Quick Switch: Users can customize and add the "Charge via grip" quick switch in the pull-down status bar. When enabled, the grip will begin charging the phone; when disabled, charging will stop.

- Connecting the charging cable when the grip is not connected to the phone

- Using a Xiaomi power adapter (15W and above) will charge the grip at up to 15W. The indicator light is red during charging and will turn green when fully charged.

- Connecting the charging cable when the grip is connected to the phone

- Using a Xiaomi power adapter (90W and above) will prioritize charging the phone at up to 90W. When the phone is fully charged, it will automatically switch to charging the grip (12.5W Max). The indicator light is red during charging and will turn green when fully charged.

Camera Features

Shutter button

- When not entering the Camera App

• Press and hold to enter default camera/street photography mode.
• You can set it in system Settings - Camera Grip - Quick launch; if you select Start Camera, press and hold to enter Default Camera; if you select Start Camera and Take Photo, press and hold to enter Street Photography Mode.
• When in Camera App - take a photo/video
  • Half-Press - Lock the current focus area
  • One click - take a photo (start/end recording for video mode)
• Press and hold - continuous shooting (effective only when Camera settings - Professional camera grip - Shutter button- Burst is selected)
• When in camera Album
• Press halfway down - return to the Photo/Video screen of the camera

Zoom lever

- When in Camera App - take a photo/video

• Single toggle left/right - continuous zoom/Quickly switch between different focal lengths
• By default, a single press toggles the focal length, while holding down the switch enables continuous zoom. You can set the zoom to continuous zoom or quickly switch between different focal lengths in Camera settings - Professional camera grip - Zoom lever

Recording button

- When in Camera App - take a photo/video

• One click - quick start video recording
- The default setting is to quickly switch to video recording mode and start recording, you can change to other functions according to the usage requirements in the Camera settings - Professional camera grip - Video button.

Custom dial

- When in Camera App - take a photo/video

• Toggle left/right - adjust the currently set camera parameters
• The default setting is EV, which can be changed to other functions according to the usage requirements in Camera settings - Professional camera grip - Customize dial
• When in Album
• Toggle left/right - scroll to previous/next photo

Status Indicator Light

Charging scenario

• In charging: solid red
• Fully charged: solid green

Non-charging scenario

When not connected to a phone: press and hold the shutter button

• When grip power level is >20%, it lights up in solid green and goes out after 5s
• When grip power level is ≤ 20% , it lights up in solid red and goes out after 5s

When it is connected to a phone:

• When grip power level is >20% , it lights up in solid green and goes out after 5s
• When grip power level is ≤ 20% , it lights up in solid red and goes out after 5s

Power indicator widget

Widget can be added to the Home screen - select the Security - select Battery - Add to Home screen, which can show the current battery level of the grip

Sleep and wake-up

• Power on: the grip will automatically power on after connecting to the phone and start charging the phone.
  • Power off: the grip will automatically power off after disconnecting from the phone.

Firmware upgrade

You may check if a new firmware version is currently available in system Settings - Camera grip - Firmware updates. You can click to upgrade if a new version exists.

Precautions

- The locking force of the camera grip latch is mainly to secure the phone case and grip, DO NOT pull the camera grip forcefully in the locked state to prevent damage to the device.

- After installation of the camera grip on your phone, the microphone jack and speaker at the bottom will be covered, which may affect the functions of call, recording, music playback, audio zoom, etc. It is recommended that you remove the camera grip when using the functions of the above mentioned scenarios.

- The camera grip is mainly designed for photo/video recording scenarios, in scenarios other than photo/video recording (e.g. game, call, etc.) it is recommended to detach the camera grip.

- The wireless charging function is not available for your phone after the installation of the camera grip, please remove the grip when you need to charge your phone by wirelessly.

- Xiaomi Professional Photography Grip can only be used with the Xiaomi 15 Ultra official protective case, please refer to the official product site for subsequent compatible models.

- All functions of Xiaomi Professional Photography Grip are only effective within Xiaomi Camera APP, and cannot be used with three-party camera APP.

- Xiaomi Professional Photography Grip has OTA upgrade function, no notice will be given for the new or changed functions added or changed by OTA, but the changes will be updated to the latest version of the manual.

- After installing the grip, you will not be able to transfer files between the computer and phone via the grip's Type-C connector, use OTG (including but not limited to a thumb drive, game controller, OTG network card, etc.), or connect a wired headset (including digital/analogue headset). Remove the grip to use the above functions.

- When the grip is at low battery or high temperature, the charging power to the mobile phone will drop. When the phone is used under heavy load, charging it using a grip that is at low battery or high temperature may result in lower battery level of the phone.

- The wireless charging function will be unavailable when the 67mm filter adapter ring is installed. It is recommended to remove the 67mm filter adapter ring for wireless charging.

- The adapter ring can be used with 67mm camera filters. Due to the fact that the height of filters of different brands, manufacturers or functions may vary, cases of blocking the field of view of the ultra-wide-angle lens may occur when used with this product.

- Installation of the filter will block the flash of the phone. Please do not turn on the flash when the filter is installed to avoid reflecting the flash light between the lenses and affecting normal shooting.

- Different lens materials of different filters may affect the picture quality. Try to choose filter products with reliable quality.

- Different lens materials of different filters may affect the laser focus function of the phone. It is recommended to turn off the auto macro function when using filters.

- The adapter ring may deteriorate and loosen over time, replace with a new decorative/adapter ring if this occurs.

- The 67mm filter adapter ring is required to be used with Xiaomi 15 Ultra official protective case (filters need to be purchased separately. It can be used with camera filters with a 67mm thread).

Important Safety Information

Before using and operating this device, please read and follow the following precautions to ensure that the device performs optimally and is used correctly and safely.

• Please use the device within the temperature range of 0^ 35^ , and store the device within the temperature range of -20^ 45^ . Malfunction of the device may be caused when the ambient temperature is too high or too low.
• To avoid interference from radio waves, always keep the device at least 15 centimeters away from implanted medical devices (e.g., pacemakers, cochlear implants, hearing aids, etc.) when in use, and consult the manufacturer for restrictions on this device.
• This device and its accessories may contain small parts. Keep the device and its accessories out of the reach of children to prevent children from choking and other risks caused by swallowing of small parts.
• Do not disassemble or alter the battery, insert foreign objects, or immerse it in water or other liquids, as this may cause battery leakage, overheating, fire or explosion.
• Do not drop, hit, crush or puncture the battery. Avoid exposing the battery to large external pressures that can cause internal short circuits and overheating. Do not continue to use the battery if it appears to be severely inflated.
• Do not place the device and the battery close to open flames and heating devices where high
  temperatures may be generated, e.g. candle, stove fire, sunlight, microwave, warmer, oven, etc.
• Do not expose the device and accessories to rain or moisture, which may cause danger of fire or electric shock.
• Do not try to repair the device yourself. If any part of the device does not work properly, consult Xiaomi after-sales service in time, or bring your device to Xiaomi official after-sales service outlets for inspection and repair.
• Connect other devices according to their instruction manuals. Do not connect incompatible devices to this device.
• Use accessories approved by the manufacturer and compatible with this device model. Use of other types of accessories may violate the warranty terms of this device and may cause safety incidents.
• This product contains a non-removable built-in battery, it is strictly prohibited to disassemble this product yourself. Do not attempt to replace the battery yourself to avoid battery breakage or other dangers.
• Please use Xiaomi-approved adapters only. Do not disassemble, puncture, crush, tear or burn the battery.
• Keep small cells and batteries which are considered swallowable out of the reach of children. Swallowing may lead to burns, perforation of soft tissue, and death. Severe burns can occur within 2H of ingestion. In case of ingestion of a cell or battery, seek medical assistance promptly.

EU Regulations

Declaration of Conformity

Compatibility Directive 2014/30/EU. The full text of the EU declaration of conformity is available at the following internet address: www.mi.com/en/certification

WEEE

Special precautions must be taken to safely dispose of this product. This marking indicates that this product may not be discarded with other household waste in the EU. To prevent harm to the environment or human health from inappropriate waste disposal, and to promote sustainable reuse of material resources, please recycle responsibly. To safely recycle your device, please use return and collection systems or contact the retailer where the device was originally purchased.

Disclaimer

This user guide is published by Xiaomi or its local affiliated company. Improvements and changes to this user guide necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by Xiaomi at any time and without notice. Such changes will, however, be incorporated into new editions of the user guide (please see details at www.mi.com/global/support/user-guide). All illustrations are for reference purposes only and may not accurately depict the actual device.

Specifications

Battery Capacity: 2000mAh(typ)/1950mAh(min)

Model: 25017PSB6S

2501 indicates that this product will be launched after 202501.

Brand: Xiaomi

Compatible Model: Xiaomi 15 Ultra

Input: 5V==3A Max

Output: 5V==1A Max

Charging Interface: Type-C

Connection: Type-C connection

Product Name: Smartphone Camera Grip

Battery Type: Lithium Ion Polymer Battery

Made in China

WARRANTY NOTICE

As a Xiaomi consumer, you benefit under certain conditions from additional warranties. Xiaomi offers specific consumer warranty benefits which are in addition to, and not instead of, any legal warranties provided by your national consumer law. The duration and conditions related to the legal warranties are provided by respective local laws. For more information about the consumer warranty benefits, please refer to Xiaomi's official website https://www.mi.com/global/support/warranty. Except as prohibited by laws or otherwise promised by Xiaomi, the after-sales services shall be limited to the country or region of the original purchase. Under the consumer warranty, to the fullest extent permitted by law, Xiaomi will, at its discretion, repair, replace or refund your product. Normal wear and tear, force majeure, abuse or damage caused by the user's negligence or fault are not warranted. The contact person for the after-sale service may be any person in Xiaomi's authorized service network, Xiaomi's authorized distributors or the final vendor who sold the products to you. If in doubt please contact the relevant person as Xiaomi may identify.

The present warranties do not apply in Hong Kong and Taiwan.

Products which were not duly imported and/or were not duly manufactured by Xiaomi and/or were not duly acquired from Xiaomi or a Xiaomi's official seller are not covered by the present warranties. As per applicable law you may benefit from warranties from the non-official retailer who sold the product. Therefore, Xiaomi invites you to contact the retailer from whom you purchased the product.

Manufacturer's Authorized EU Representative for Products Exported to the EU:

Xiaomi Technology Netherlands B.V

Address: Prinses Beatrixlaan 582, 2595BM, The Hague, The Netherlands

[e-mail]

Manufacturer's Authorized UK Representative for Products Exported to the UK:

Xiaomi Technology UK Limited

Address: Davidson House, Forbury Square, Reading, Berkshire RG1 3EU

[e-mail]

Manufacturer: Xiaomi Communications Co., Ltd.

Manufacturer postal address:

019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District, Beijing, China, 100085

[e-mail]

Line drawing of a portable air conditioner unit (no text or symbols)

Line drawing of a rectangular device with buttons and a handle (no text or symbols)

xiaomi 5 4 14

6 7

12 13 15

Pure diagram of a cable or connector with no text, numbers, or symbols

Simple line drawing of a rounded rectangular object with a circular hole and two labeled points (1 and 2) on its side (no text or symbols beyond labels)

Simple line drawing of a handheld device with a circular lens and rectangular button (no text or symbols)

Line drawing of a smartphone with no text or symbols

Line drawing of a rectangular electronic device casing (no text or symbols)

Simple rectangular outline with rounded corners and a small black square on the top right corner (no text or symbols)

Blank white rectangular outline with rounded corners (no text or symbols)

Illustration of a rectangular electronic device with a flat top and side connectors (no text or symbols)

Simple line drawing of a rectangular object with a rounded top and side connectors (no text or symbols)

Diagram showing a device with two parts and an arrow indicating transformation (no text or symbols)

Line drawing of a white industrial water heater with control panel and side-mounted unit (no text or symbols)

Line drawing of a white rectangular appliance with a lid and control knob (no text or symbols)

Line drawing of a rectangular industrial container with a side-mounted lid and base (no text or symbols)

Line drawing of a portable electronic device with a handle and control panel (no text or symbols)

Line drawing of a cylindrical device with a handle and control panel (no text or symbols)

Line drawing of a portable water heater with control panel and side arm (no text or symbols)

Line drawing of a portable water heater with control panel and buttons (no text or symbols)

Line drawing of a portable water heater with control panel and buttons (no text or symbols)

Technical line drawing of a mechanical component with a circular housing and rectangular base (no text or symbols)

Isometric line drawing of a rectangular electronic device with a circular lens (no text or symbols)

Isometric line drawing of a rectangular electronic device with a circular top and base (no text or symbols)

Isometric line drawing of a rectangular electronic device with a circular lens (no text or symbols)

Line drawing of a rectangular electronic device with a circular lens (no text or symbols)

Technical line drawing of a mechanical component with a circular housing and rectangular base (no text or symbols)

Technical line drawing of a mechanical component with two circular features (no text or symbols)

Isometric line drawing of a rectangular device with a circular ring on top (no text or symbols)

Isometric line drawing of a rectangular electronic device with a circular ring on top (no text or symbols)

Isometric line drawing of a rectangular electronic device with a circular top and base (no text or symbols)

Line drawing of a rectangular electronic device with a circular ring on top (no text or symbols)

Isometric line drawing of a rectangular device with two circular rings on top (no text or symbols)

Diagram of a rectangular device with a circular lens and two labeled parts (1 and 2), no text or symbols present.

Diagram of a smartphone with left and right side indicators (no text or symbols)

Line drawing of a rectangular electronic device casing (no text or symbols)

Simple rectangular outline with rounded corners and a small black square on top (no text or symbols)

Blank white rounded rectangle with black outline (no text or symbols)

Simple line drawing of a rectangular device with a handle and lid (no text or symbols)

Technical line drawing of a mechanical component or housing (no text or symbols)

Diagram showing a device with a circular component before and after assembly, no text or symbols present

Line drawing of a white industrial water heater with control panel and side-mounted unit (no text or symbols)

Line drawing of a white rectangular appliance with a lid and control knob (no text or symbols)

Line drawing of a rectangular industrial container with a side-mounted lid and base (no text or symbols)

Line drawing of a portable electronic device with a handle and control panel (no text or symbols)

Line drawing of a cylindrical device with a handle and control panel (no text or symbols)

Line drawing of a portable water heater with control panel and side arm (no text or symbols)

Line drawing of a portable water heater with control panel and buttons (no text or symbols)

Line drawing of a portable water heater with control panel and buttons (no text or symbols)

Technical line drawing of a mechanical component with a circular housing and rectangular base (no text or symbols)

Isometric line drawing of a rectangular electronic device with a circular lens (no text or symbols)

Isometric line drawing of a rectangular electronic device with a circular lens (no text or symbols)

Isometric line drawing of a rectangular electronic device with a circular lens (no text or symbols)

Line drawing of a rectangular electronic device with a circular lens (no text or symbols)

Technical line drawing of a mechanical component with a circular housing and base plate (no text or symbols)

Technical line drawing of a mechanical component with two circular features (no text or symbols)

Line drawing of a rectangular electronic device with a circular ring on top (no text or symbols)

Isometric line drawing of a rectangular device with a circular ring on top (no text or symbols)

Isometric line drawing of a rectangular device with a circular ring on top (no text or symbols)

Isometric line drawing of a rectangular electronic device with a circular ring (no text or symbols)

Technical line drawing of a rectangular device with two circular rings on top (no text or symbols)

Diagram of a rectangular device with a circular lens and two labeled points (1 and 2), no text or symbols present.

Simple line drawing of a handheld device with a circular lens and rectangular button (no text or symbols)

Line drawing of a smartphone with no text or symbols

Line drawing of a rectangular electronic device casing (no text or symbols)

Simple rectangular outline with rounded corners and a small black square on top (no text or symbols)

Blank white rectangular outline with rounded corners (no text or symbols)

Simple line drawing of a rectangular device with a handle and lid (no text or symbols)

Line drawing of a rectangular electronic device with a handle and top panel (no text or symbols)

Diagram showing a device with two parts and an arrow indicating transformation (no text or symbols)

Line drawing of a white industrial water heater with control panel and side-mounted unit (no text or symbols)

Line drawing of a white rectangular device with a lid and button, no text or symbols present.

Line drawing of a rectangular industrial container with a side-mounted lid and base (no text or symbols)

Line drawing of a portable electronic device with a handle and control panel (no text or symbols)

Line drawing of a cylindrical device with a handle and control panel (no text or symbols)

Line drawing of a portable water heater with control panel and side arm (no text or symbols)

Line drawing of a portable water heater with control panel and buttons (no text or symbols)

Line drawing of a portable water heater with control panel and buttons (no text or symbols)

Technical line drawing of a mechanical component with a circular ring and rectangular base (no text or symbols)

Isometric line drawing of a rectangular electronic device with a circular lens (no text or symbols)

Isometric line drawing of a rectangular electronic device with a circular lens (no text or symbols)

Isometric line drawing of a rectangular electronic device with a circular lens (no text or symbols)

Line drawing of a rectangular electronic device with a circular lens (no text or symbols)

Technical line drawing of a mechanical component with two circular features (no text or symbols)

Technical line drawing of a mechanical component with two circular features (no text or symbols)

Isometric line drawing of a rectangular electronic device with a circular ring (no text or symbols)

Isometric line drawing of a rectangular device with a circular ring on top (no text or symbols)

Isometric line drawing of a rectangular device with a circular ring on top (no text or symbols)

Line drawing of a rectangular electronic device with a circular lens (no text or symbols)

Technical line drawing of a rectangular device with two circular components on top (no text or symbols)

RACCOLTA DIFFERENZIATA

019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District, Beijing, China, 100085

[e-mail]

Line drawing of a portable electronic device with a control panel and buttons (no text or symbols)

Line drawing of a rectangular electronic device with buttons and a lid (no text or symbols)

1 2 3

xiaomi 4 5 14

6 7

X8000 11

Simple line drawing of a rectangular device with a circular lens and two labeled points (1 and 2), no text or symbols present.

Simple line drawing of a handheld device with a circular lens and rectangular body (no text or symbols)

Line drawing of a smartphone with no text or symbols

Line drawing of a rectangular electronic device with a flat top and side connectors (no text or symbols)

Simple rectangular outline with rounded corners and a small black square on the top right corner (no text or symbols)

Blank white rectangular outline with rounded corners (no text or symbols)

Illustration of a rectangular electronic device casing (no text or symbols visible)

Line drawing of a rectangular electronic device with a handle and top panel (no text or symbols)

Diagram showing two views of a device with a lid and adjustment knob, no text or symbols present

Line drawing of a white cylindrical device with a control panel and circular button (no text or symbols)

Line drawing of a white rectangular appliance with a lid and control knob (no text or symbols)

Line drawing of a white cylindrical water heater with a lid and side-mounted button (no text or symbols)

Line drawing of a portable electronic device with a handle and control panel (no text or symbols)

Line drawing of a cylindrical device with a handle and control panel (no text or symbols)

Line drawing of a portable water heater with control panel and side arm (no text or symbols)

Line drawing of a portable water heater with control panel and buttons (no text or symbols)

Line drawing of a portable washing machine (no text or symbols visible)

Technical line drawing of a mechanical component with a circular housing and rectangular base (no text or symbols)

Isometric line drawing of a rectangular electronic device with a circular lens (no text or symbols)

Isometric line drawing of a rectangular electronic device with a circular top and base (no text or symbols)

Isometric line drawing of a rectangular electronic device with a circular lens (no text or symbols)

Line drawing of a rectangular electronic device with a circular lens (no text or symbols)

Technical line drawing of a mechanical component with a circular ring and rectangular base (no text or symbols)

Technical line drawing of a rectangular device with two circular components on top (no text or symbols)

Isometric line drawing of a rectangular device with a circular ring on top (no text or symbols)

Isometric line drawing of a rectangular electronic device with a circular top and base (no text or symbols)

Isometric line drawing of a rectangular electronic component with a circular hole (no text or symbols)

Isometric line drawing of a rectangular device with a circular ring on top (no text or symbols)

Technical line drawing of a rectangular device with two circular rings on top (no text or symbols)

Simple line drawing of a rectangular device with a circular lens and two labeled points (1 and 2) on its side (no text or symbols beyond labels)

Simple line drawing of a handheld device with a circular lens and rectangular button (no text or symbols)

Line drawing of a smartphone camera with no text or symbols

Line drawing of a rectangular electronic device casing (no text or symbols)

Simple rectangular outline with rounded corners and a small black square on top (no text or symbols)

Blank white rounded rectangle with black outline (no text or symbols)

Simple line drawing of a rectangular device with a handle and connectors (no text or symbols)

Technical line drawing of a rectangular mechanical component (no text or symbols)

Diagram showing a device with two views and a small circular component, no text or symbols present

Line drawing of a white industrial water heater with control panel and side-mounted unit (no text or symbols)

Line drawing of a white rectangular appliance with a lid and control knob (no text or symbols)

Line drawing of a rectangular industrial container with a side-mounted lid and base (no text or symbols)

Line drawing of a portable electronic device with a handle and control panel (no text or symbols)

Line drawing of a cylindrical device with a handle and control panel (no text or symbols)

Line drawing of a portable water heater with control panel and side arm (no text or symbols)

Line drawing of a portable water heater with control panel and buttons (no text or symbols)

Line drawing of a portable washing machine (no text or symbols visible)

Technical line drawing of a mechanical component with a circular housing and rectangular base (no text or symbols)

Isometric line drawing of a rectangular electronic device with a circular lens (no text or symbols)

Isometric line drawing of a rectangular electronic device with a circular lens (no text or symbols)

Technical line drawing of a rectangular electronic device with a circular lens (no text or symbols)

Line drawing of a rectangular electronic device with a circular lens (no text or symbols)

Technical line drawing of a mechanical component with a circular ring and rectangular base (no text or symbols)

Technical line drawing of a rectangular device with two circular components on top (no text or symbols)

Isometric line drawing of a rectangular electronic device with a circular ring (no text or symbols)

Simple line drawing of a rectangular device with a circular ring on top (no text or symbols)

Isometric line drawing of a rectangular device with a circular ring on top (no text or symbols)

Isometric line drawing of a rectangular electronic device with a circular lens (no text or symbols)

Technical line drawing of a rectangular device with two circular rings on top (no text or symbols)

Line drawing of a portable electronic device with a control panel and buttons (no text or symbols)

Line drawing of a rectangular electronic device with buttons and a lid (no text or symbols)

1 2 3

xiaomi 4 5 14

6 7

11

Simple line drawing of a camera lens with no text or symbols

Line drawing of a smartphone with no text or symbols

Line drawing of a rectangular electronic device with a flat top and side connectors (no text or symbols)

Simple rectangular outline with rounded corners and a small black square on the top right corner (no text or symbols)

Blank white rectangular outline with no text, numbers, or symbols

Simple line drawing of a rectangular device with a handle and lid (no text or symbols)

Technical line drawing of a mechanical component or housing (no text or symbols)

Diagram showing two views of a device with a knob and lid, illustrating the process (no text or symbols present)

Line drawing of a white cylindrical device with a control knob and label 'Xiao001' (no other text or symbols)

Line drawing of a white rectangular appliance with a lid and control knob (no text or symbols)

Line drawing of a rectangular industrial container with a lid and side-mounted knob (no text or symbols)

Line drawing of a portable electronic device with a handle and control panel (no text or symbols)

Line drawing of a portable water heater with control panel and lid (no text or symbols)

Line drawing of a portable water heater with control panel and door (no text or symbols)

Line drawing of a portable water heater with control panel and buttons (no text or symbols)

Line drawing of a portable washing machine (no text or symbols visible)

Technical line drawing of a mechanical component with a circular housing and rectangular base (no text or symbols)

Isometric line drawing of a rectangular electronic device with a circular button (no text or symbols)

Isometric line drawing of a rectangular electronic device with a circular button on top (no text or symbols)

Isometric line drawing of a rectangular electronic device with a circular lens (no text or symbols)

Line drawing of a rectangular electronic device with a circular lens (no text or symbols)

Technical line drawing of a mechanical component with a circular ring and rectangular base (no text or symbols)

Technical line drawing of a mechanical component with two circular features (no text or symbols)

Isometric line drawing of a rectangular electronic device with a circular ring (no text or symbols)

Isometric line drawing of a rectangular electronic device with a circular button (no text or symbols)

Isometric line drawing of a rectangular electronic device with a circular ring (no text or symbols)

Simple line drawing of a rectangular electronic device with a circular button on top (no text or symbols)

Simple line drawing of a rectangular device with two circular rings on top (no text or symbols)

019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District, Beijing, China, 100085

[e-mail]

Přehled produktu

Diagram of a camera with labeled parts (no text or symbols present)

Line drawing of a smartphone camera with no text or symbols

Line drawing of a rectangular electronic device casing (no text or symbols)

Simple rectangular outline with rounded corners and a small black square on the top right corner (no text or symbols)

Blank white rounded rectangle with black outline (no text or symbols)

Illustration of a rectangular electronic device with a flat top and side connectors (no text or symbols)

Technical line drawing of a rectangular electronic component or device (no text or symbols)

Diagram showing a device with two views and a small component, no text or symbols present

Line drawing of a white cylindrical device with a control knob and label 'Xiao001' (no other text or symbols)

Line drawing of a white rectangular appliance with a lid and control knob (no text or symbols)

Line drawing of a rectangular industrial vessel with a lid and base (no text or symbols)

Line drawing of a portable electronic device with a handle and control panel (no text or symbols)

Line drawing of a cylindrical device with a handle and control panel (no text or symbols)

Line drawing of a portable water heater with control panel and side arm (no text or symbols)

Line drawing of a portable water heater with control panel and buttons (no text or symbols)

Line drawing of a portable washing machine (no text or symbols visible)

Technical line drawing of a mechanical component with a circular housing and rectangular base (no text or symbols)

Isometric line drawing of a rectangular electronic device with a circular lens (no text or symbols)

Isometric line drawing of a rectangular electronic device with a circular top and base (no text or symbols)

Isometric line drawing of a rectangular electronic device with a circular lens (no text or symbols)

Line drawing of a rectangular electronic device with a circular lens (no text or symbols)

Technical line drawing of a mechanical component with a circular ring and rectangular base (no text or symbols)

Technical line drawing of a rectangular device with two circular components, no text or symbols present

Isometric line drawing of a rectangular device with a circular ring on top (no text or symbols)

Isometric line drawing of a rectangular device with a circular ring on top (no text or symbols)

Simple line drawing of a rectangular device with a circular ring on top (no text or symbols)

Isometric line drawing of a rectangular device with a circular ring on top (no text or symbols)

Technical line drawing of a mechanical component with two circular features (no text or symbols)

Line drawing of a portable electronic device with a control panel and buttons (no text or symbols)

Line drawing of a rectangular electronic device with buttons and a lid (no text or symbols)

1 2 3

xiaomi 5 4 14

6 7

X8024 11

Simple line drawing of a rectangular device with a circular lens and two labeled points (1 and 2) on its sides (no text or symbols beyond labels)

Line drawing of a smartphone with left and right side indicators (no text or symbols)

Line drawing of a rectangular electronic device casing (no text or symbols)

Simple rectangular outline with rounded corners and a small black square on top (no text or symbols)

Blank white rectangular image with rounded corners (no text or symbols)

Illustration of a rectangular electronic device with a flat top and side connectors (no text or symbols)

Line drawing of a rectangular electronic device with a handle and top panel (no text or symbols)

Diagram showing two views of a device with a lid and buttons, illustrating the process (no text or symbols present)

Line drawing of a white cylindrical device with a control knob and label 'Xiao001' (no other text or symbols)

Line drawing of a white rectangular appliance with a lid and control knob (no text or symbols)

Line drawing of a white cylindrical water heater with a lid and side-mounted button (no text or symbols)

Line drawing of a portable electronic device with a handle and control panel (no text or symbols)

Line drawing of a cylindrical device with a handle and control panel (no text or symbols)

Line drawing of a portable water heater with control panel and side arm (no text or symbols)

Line drawing of a portable water heater with control panel and buttons (no text or symbols)

Line drawing of a portable washing machine (no text or symbols visible)

Technical line drawing of a mechanical component with a circular ring and rectangular base (no text or symbols)

Isometric line drawing of a rectangular electronic device with a circular lens (no text or symbols)

Isometric line drawing of a rectangular electronic device with a circular top and base (no text or symbols)

Isometric line drawing of a rectangular electronic device with a circular lens (no text or symbols)

Line drawing of a rectangular electronic device with a circular lens (no text or symbols)

Technical line drawing of a mechanical component with a circular ring and rectangular base (no text or symbols)

Technical line drawing of a mechanical component with two circular features (no text or symbols)

Isometric line drawing of a rectangular electronic device with a circular lens (no text or symbols)

Isometric line drawing of a rectangular device with a circular ring on top (no text or symbols)

Isometric line drawing of a rectangular device with a circular ring on top (no text or symbols)

Line drawing of a rectangular electronic device with a circular button and mounting bracket (no text or symbols)

Technical line drawing of a rectangular device with two circular components on top (no text or symbols)

Line drawing of a portable electronic device with a control panel and buttons (no text or symbols)

Line drawing of a rectangular electronic device with buttons and a lid (no text or symbols)

1 2 3

xiaomi 5 4 14

6 7

11

Diagram of a camera with labeled parts (no text or symbols present)

Simple line drawing of a handheld device with a circular lens and rectangular button (no text or symbols)

Line drawing of a smartphone with left and right side indicators (no text or symbols)

Line drawing of a rectangular electronic device casing (no text or symbols)

Simple rectangular outline with rounded corners and a small black square on top (no text or symbols)

Blank white rectangular image with rounded corners (no text or symbols)

Simple line drawing of a rectangular electronic device (no text or symbols)

Technical line drawing of a rectangular electronic component or housing (no text or symbols)

Diagram showing two views of a device with a lid and adjustment knob, no text or symbols present

Line drawing of a white cylindrical device with a control panel and circular button (no text or symbols)

Line drawing of a white industrial appliance with a lid and base (no text or symbols)

Line drawing of a rectangular industrial container with a side-mounted lid and base (no text or symbols)

Line drawing of a portable electronic device with a handle and control panel (no text or symbols)

Line drawing of a cylindrical device with a handle and control panel (no text or symbols)

Line drawing of a portable water heater with control panel and side arm (no text or symbols)

Line drawing of a portable water heater with control panel and buttons (no text or symbols)

Line drawing of a portable washing machine (no text or symbols visible)

Technical line drawing of a mechanical component with a circular ring and rectangular base (no text or symbols)

Isometric line drawing of a rectangular electronic device with a circular lens (no text or symbols)

Isometric line drawing of a rectangular electronic device with a circular top and base (no text or symbols)

Isometric line drawing of a rectangular electronic device with a circular lens (no text or symbols)

Line drawing of a rectangular electronic device with a circular lens (no text or symbols)

Technical line drawing of a mechanical component with a circular ring and rectangular base (no text or symbols)

Technical line drawing of a smartphone with two circular rings on top (no text or symbols)

Line drawing of a rectangular electronic device with a circular lens (no text or symbols)

Isometric line drawing of a rectangular device with a circular ring on top (no text or symbols)

Isometric line drawing of a rectangular electronic device with a circular ring (no text or symbols)

Isometric line drawing of a rectangular device with a circular ring on top (no text or symbols)

Technical line drawing of a mechanical component with two circular features (no text or symbols)

Simple line drawing of a rectangular device with a circular lens and two labeled points (1 and 2), no text or symbols present.

Line drawing of a smartphone with no text or symbols

Line drawing of a rectangular electronic device casing (no text or symbols)

Simple rectangular outline with rounded corners and a small black square on top (no text or symbols)

Blank white rounded rectangle with black outline (no text or symbols)

Illustration of a rectangular electronic device with a flat top and side connectors (no text or symbols)

Technical line drawing of a rectangular electronic component or device (no text or symbols)

Diagram showing a device with two views and a small component, no text or symbols present

Line drawing of a white industrial water heater with control panel and side-mounted unit (no text or symbols)

Line drawing of a white industrial water heater with control panel and side-mounted unit (no text or symbols)

Line drawing of a rectangular industrial container with a side-mounted lid and base (no text or symbols)

Line drawing of a portable electronic device with a handle and control panel (no text or symbols)

Line drawing of a cylindrical device with a handle and control panel (no text or symbols)

Line drawing of a portable water heater with control panel and side arm (no text or symbols)

Line drawing of a portable water heater with control panel and buttons (no text or symbols)

Line drawing of a portable washing machine (no text or symbols visible)

Technical line drawing of a mechanical component with a circular housing and rectangular base (no text or symbols)

Isometric line drawing of a rectangular electronic device with a circular lens (no text or symbols)

Isometric line drawing of a rectangular electronic device with a circular lens (no text or symbols)

Isometric line drawing of a rectangular electronic device with a circular lens (no text or symbols)

Line drawing of a rectangular electronic device with a circular lens (no text or symbols)

Technical line drawing of a mechanical component with a circular ring and rectangular base (no text or symbols)

Technical line drawing of a mechanical component with two circular features (no text or symbols)

Line drawing of a rectangular electronic device with a circular lens (no text or symbols)

Isometric line drawing of a rectangular electronic device with a circular ring (no text or symbols)

Isometric line drawing of a rectangular electronic device with a circular button (no text or symbols)

Line drawing of a rectangular electronic device with a circular lens (no text or symbols)

Technical line drawing of a mechanical component with two circular features (no text or symbols)

Simple line drawing of a rectangular device with a circular lens and two labeled points (1 and 2) on its side (no text or symbols beyond labels)

Xiaomi 15 Ultra službena zaštitna kutija
1 To	čka za uklapanje utora za postavljanje prstena adaptera/ukrasnog prstena	2 Gumb za brzo odvajanje zaštitne kutije

Instalacija / Rasklapanje

Upute za instalaciju za Xiaomi 15 Ultra Fotografsku ručku

Simple line drawing of a handheld device with a circular lens and rectangular button (no text or symbols)

Technical line drawing of a rectangular electronic device with no visible text or symbols

Line drawing of a rectangular electronic device casing (no text or symbols)

1. Pogurnite ručku za kameru duž dna kutije. 4. Kad je ručka u potpunosti pričvršćena uz kutiju, prebacite sklopku na stranu u blizini stražnjeg dijela telefona da bi se zaključala u tom položaju (otkriven crveni znak).

Simple rectangular outline with rounded corners and a small black square on the top right corner (no text or symbols)

1. Osigurajte se da proizvod bude čvrsto postavljen prije uporabe.

Blank white rounded rectangle with black outline (no text or symbols)

Simple line drawing of a rectangular device with a handle and lid (no text or symbols)

1. Prevucite sklopku u blizinu strane zaslona telefona kako biste otpustili jezičak (crveni znak nestaje).

Simple line drawing of a rectangular object with a rounded top and side connectors (no text or symbols)

1. Polako izvucite ručku za kameru duž donjih strana kutije.

Napomena: Xiaomi ručka za kameru treba se rabiti sa službenom Xiaomi 15 Ultra zaštitnom kutijom.

Upute za instalaciju i rasklapanje za uklonjivu tipku za blendu

Diagram showing a device with a lid and two arrows indicating transformation or assembly (no text or symbols present)

Line drawing of a rectangular electronic device with a circular button and label (no readable text or symbols)

Line drawing of a white industrial water heater with control panel and side-mounted unit (no text or symbols)

1. Rasklopite prsten za podizanje na ključu za odvijanje na brzo otpuštanje.

Line drawing of a rectangular industrial container with a side-mounted lid and base (no text or symbols)

Line drawing of a portable electronic device with a handle and control panel (no text or symbols)

Line drawing of a cylindrical device with a handle and control panel (no text or symbols)

Line drawing of a portable water heater with control panel and side arm (no text or symbols)

Line drawing of a portable water heater with control panel and buttons (no text or symbols)

Line drawing of a portable water heater with control panel and buttons (no text or symbols)

1. Zarotirajte prsten za podizanje natrag u ravni položaj.

2. Instalacija dovršena.

Technical line drawing of a mechanical component with a circular ring and rectangular base (no text or symbols)

Isometric line drawing of a rectangular electronic device with a circular lens (no text or symbols)

Isometric line drawing of a rectangular electronic device with a circular lens (no text or symbols)

Isometric line drawing of a rectangular electronic device with a circular lens (no text or symbols)

Line drawing of a rectangular electronic device with a circular lens (no text or symbols)

Technical line drawing of a mechanical component with a circular ring and rectangular base (no text or symbols)

1. Uklonite ukrasni prsten.

Upute za instalaciju za prsten adaptera

Napomena: Zahtjev je da se prsten adaptera za filtar od 67mm rabi sa Xiaomi 15 Ultra službenom zaštitnom kutijom (filtri se trebaju kupiti odvojeno. On se mže rabiti sa filtrima za kameru sa navojem od 67 mm).

Technical line drawing of a mechanical component with two circular rings (no text or symbols)

Isometric line drawing of a rectangular electronic device with a circular lens (no text or symbols)

Isometric line drawing of a rectangular device with a circular ring on top (no text or symbols)

Isometric line drawing of a rectangular electronic device with a circular button on top (no text or symbols)

Isometric line drawing of a rectangular electronic device with a circular ring (no text or symbols)

Simple line drawing of a rectangular device with two circular rings on top (no text or symbols)

1. Uklonite prsten adaptera za filtar od 67 mm.

Značajke proizvoda

Diagram of a rectangular device with a circular lens and two labeled parts (1 and 2), no text or symbols present.

Xiaomi 15 Ultra zvanična zaštitna kutija
1Tačka za poravnavanje utora za uklapanje kod postavljanja prstena adaptera/dekorativnog prstena		2Taster za brzo odvajanje zaštitne kutije

Instalacija / rasklapanje

Uputstva za instalaciju za Xiaomi 15 Ultra Ručku za fotografisanje

1. Zvanična Xiaomi 15 Ultra zaštitna kutija pričvršćena je za telefon.

1. Potvrdite da je prekidač ručke za kameru u otpuštenoj poziciji (bez crvene oznake).

Diagram of a smartphone with left and right side indicators (no text or symbols)

1. Pogurajte ručku za kameru lagano duž dna kutije.

Line drawing of a rectangular electronic device casing (no text or symbols)

1. Kada je ručka u potpunosti pričvršćena za kutiju, prebacite prekidač na stranu blizu zadnjeg dijela telefona da biste je blokirali u toj poziciji (otkriva se crvena oznaka).

Simple rectangular outline with rounded corners and a small black square on top (no text or symbols)

1. Pobrinite se da proizvod bude čvrsto postavljen pre upotrebe.

Blank white rectangular outline with rounded corners (no text or symbols)

1. Telefon će prikazivati poruku o uspešnoj konekciji nakon uspešne instalacije.

Uputstva za rasklapanje za Xiaomi 15 Ultra Ručku za fotografisanje

Simple line drawing of a rectangular device with a handle and lid (no text or symbols)

1. Prevucite prekidač blizu strane sa ekranom telefona da biste otpustili jezičak (nestaje crvena oznaka).

Simple line drawing of a rectangular object with a curved top and side profile (no text or symbols)

1. Povucite ručku za kameru lagan duž strana na dnu kutije.

Diagram showing a device with two parts and an arrow indicating transformation (no text or symbols)

1. Prikačite gumeni prsten na odvojivi taster blende.
2. Poravnajte odvojivi taster blende sa unapred izbušenom rupom sa navojima u tasteru blende.
3. Zarotirajte odvojivi taster blende u smeru kazaljke na časovniku dok ne bude dobro učvršćen da završite sa instalacijom.
   Kod uklanjanja tastera blende, sledite korake obrnutim redom da završite sa uklanjanjem.

Uputstva za instalaciju i rasklapanje za odvojivi podupirač za palac

Line drawing of a rectangular electronic device with a circular button and label (no readable text or symbols)

Line drawing of a white industrial water heater with control panel and side-mounted unit (no text or symbols)

Line drawing of a rectangular industrial container with a lid and side-mounted knob (no text or symbols)

Line drawing of a portable electronic device with a handle and control panel (no text or symbols)

1. Lagano podignite prsten i rotirajte ga u smeru suprotnom od kazaljke na časovniku dok se vijak u potpunosti ne otpusti sa ručke.

2. Postavite podupirač za palac kako je prikazano (uz poravnavanje rupe za postavljanje sa rupom sa navojem).

Line drawing of a cylindrical device with a handle and control panel (no text or symbols)

Line drawing of a portable water heater with control panel and side arm (no text or symbols)

1. Poravnajte vijak za brzo otpuštanje sa rupom za podupirač za palac.

2. Zarotirajte vijak za brzo otpuštanje u smeru kazaljke na časovniku dok ne bude dobro učvršćen.

Line drawing of a portable water heater with control panel and buttons (no text or symbols)

Line drawing of a portable washing machine (no text or symbols visible)

1. Zarotirajte prsten za podizanje nazad u ravnu poziciju.

2. Instalacija gotova.

Technical line drawing of a mechanical component with a circular ring and rectangular base (no text or symbols)

Isometric line drawing of a rectangular electronic device with a circular lens (no text or symbols)

1. Poravnajte tačke za pozicioniranje, lagano pritisnite prema dole i čvrsto zategnite u pravcu kazaljke na časovniku.

Isometric line drawing of a rectangular electronic device with a circular lens (no text or symbols)

Isometric line drawing of a rectangular electronic device with a circular lens (no text or symbols)

1. Pritisnite i držite taster za otpuštanje i zakrenite dekorativni prsten u smeru suprotnom od smera kazaljke na časovniku.

Line drawing of a rectangular electronic device with a circular lens (no text or symbols)

1. Zarotirajte tačku za poravnavanje dekorativnog prstena u poziciju prikazanu na ilustraciji da biste ga uklonili.

Technical line drawing of a mechanical component with a circular housing and rectangular base (no text or symbols)

1. Uklonite dekorativni prsten.

Upustva za instalaciju prstena adaptera

Napomena: Prsten adaptera za filter 67 mm obavezno je koristiti sa Xiaomi 15 Ultra zvaničnom zaštitnom kutijom (filteri treba da se kupe odvojeno. On se može koristiti sa filterima za kamere sa navojem od 67 mm).

Technical line drawing of a rectangular device with two circular components, no text or symbols present

1. Poravnajte tačku za poravnavanje prstena adaptera za filter od 67 mm sa tačkom za poravnavanje kutije.

Line drawing of a rectangular electronic device with a circular button on top (no text or symbols)

1. Kada su tačke za poravnavanje poravnate, zarotirajte u smeru kazaljke na časovniku i tako zategnite.

Isometric line drawing of a rectangular electronic device with a circular ring (no text or symbols)

Isometric line drawing of a rectangular electronic device with a circular button on top (no text or symbols)

1. Pritisnite i držite taster za otpuštanje i zakrenite prsten adaptera za filter od 67 mm u smeru suprotnom od smera kazaljke na časovniku.

Line drawing of a rectangular electronic device with a circular ring on top (no text or symbols)

1. Zarotirajte tačku za poravnavanje dekorativnog prstena u poziciju prikazanu na ilustraciji da biste ga uklonili.

Technical line drawing of a mechanical component with two circular features (no text or symbols)

1. Uklonite prsten adaptera za filter od 67 mm.

Odlike proizvoda

Konekcija i uparivanje

Line drawing of a portable electronic device with a control panel and indicator lights (no text or symbols)

Line drawing of a rectangular electronic device with buttons and a lid (no text or symbols)

1 2 3

xiaomi 5 4 14

6 7

11

Simple line drawing of a rectangular device with a circular lens and two labeled points (1 and 2), no text or symbols present.

Line drawing of a rectangular electronic device with no visible text or symbols

Line drawing of a rectangular electronic device casing (no text or symbols)

Simple rectangular outline with rounded corners and a small black square on top (no text or symbols)

Blank white rounded rectangle with black outline (no text or symbols)

Simple line drawing of a rectangular device with a handle and lid (no text or symbols)

Simple line drawing of a rectangular device with a handle and top panel (no text or symbols)

Diagram showing a device with two parts and an arrow indicating transformation (no text or symbols)

Line drawing of a white industrial water heater with control knob and side-mounted fan (no text or symbols)

Line drawing of a white rectangular appliance with a lid and side ports (no text or symbols)

Line drawing of a rectangular industrial container with a side-mounted knob (no text or symbols)

Line drawing of a portable electronic device with a handle and control panel (no text or symbols)

Line drawing of a cylindrical device with a lid and control panel (no text or symbols)

Line drawing of a portable water heater with control panel and buttons (no text or symbols)

Line drawing of a portable water heater with two buttons and a label (no text or symbols on the device itself)

Line drawing of a portable washing machine (no text or symbols visible)

Technical line drawing of a mechanical component with a circular ring and rectangular base (no text or symbols)

Isometric line drawing of a rectangular electronic device with a circular lens (no text or symbols)

Isometric line drawing of a rectangular electronic device with a circular lens (no text or symbols)

Isometric line drawing of a rectangular electronic device with a circular lens (no text or symbols)

Isometric line drawing of a rectangular electronic device with a circular lens (no text or symbols)

Technical line drawing of a mechanical component with a circular ring and rectangular base (no text or symbols)

Technical line drawing of a rectangular device with two circular rings on top (no text or symbols)

Line drawing of a rectangular electronic device with a circular button on top (no text or symbols)

Isometric line drawing of a rectangular device with a circular ring on top (no text or symbols)

Isometric line drawing of a rectangular device with a circular ring on top (no text or symbols)

Isometric line drawing of a rectangular electronic device with a circular ring (no text or symbols)

Technical line drawing of a rectangular device with two circular rings on top (no text or symbols)

Simple line drawing of a camera lens with no text or symbols

Casing pelindung resmi Xiaomi 15 Ultra
1 Titik penyelarasan slot snap-in dudukan cincin adaptor/cincin dekoratif	2 Tombol pelepas cepat casing pelindung

Line drawing of a rectangular electronic device with no visible text or symbols

Line drawing of a rectangular electronic device with a flat top and side connectors (no text or symbols)

Simple rectangular outline with rounded corners and a small black square on top (no text or symbols)

Blank white rectangular outline with rounded corners (no text or symbols)

Simple line drawing of a rectangular device with a handle and lid (no text or symbols)

Line drawing of a rectangular electronic component or device (no text or symbols)

Diagram showing a device with a lid and two views of its front panel, illustrating the process from left to right (no text or symbols present)

Line drawing of a rectangular electronic device with a circular button and label (no readable text or symbols)

Line drawing of a white industrial water heater with control panel and side-mounted unit (no text or symbols)

Line drawing of a rectangular industrial container with a lid and side-mounted knob (no text or symbols)

Line drawing of a portable electronic device with a handle and control panel (no text or symbols)

Line drawing of a cylindrical device with a handle and control panel (no text or symbols)

Line drawing of a portable water heater with control panel and door (no text or symbols)

Line drawing of a portable water heater with control panel and buttons (no text or symbols)

Line drawing of a portable washing machine (no text or symbols visible)

Technical line drawing of a mechanical component with a circular ring and rectangular base (no text or symbols)

Isometric line drawing of a rectangular electronic device with a circular lens (no text or symbols)

Isometric line drawing of a rectangular electronic device with a circular top and base (no text or symbols)

Isometric line drawing of a rectangular electronic device with a circular top and base (no text or symbols)

Line drawing of a rectangular electronic device with a circular lens (no text or symbols)

Technical line drawing of a mechanical component with a circular ring and rectangular base (no text or symbols)

1. Lepaskan cincin dekoratif.

Technical line drawing of a rectangular device with two circular rings on top (no text or symbols)

Technical line drawing of a rectangular electronic device with a circular button (no text or symbols)

Isometric line drawing of a rectangular electronic device with a circular ring on top (no text or symbols)

1. Pemasangan berhasil ketika titik penyelarasan diputar ke tombol pelepasan.

Isometric line drawing of a rectangular electronic device with a circular top and side slot (no text or symbols)

Line drawing of a rectangular electronic device with a circular ring on top (no text or symbols)

Technical line drawing of a rectangular device with two circular components on top (no text or symbols)

1. Lepaskan cincin adaptor filter 67 mm.

Fitur produk

Xiaomi Communications Co., Ltd.

Alamat :

019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District, Beijing, China, 100085

[e-mail]

Diimpor Oleh:

PT Xiaomi Communications Indonesia

Alamat :

One Pacific Place Suite 9-H,I,J,K JI. Jenderal Sudirman Kav.52-53 Lot 3&5, Jakarta Selatan 12190, Indonesia

© Xiaomi Inc. Semua Hak Dilindungi Undang-Undang.

Line drawing of a portable electronic device with a small screen and buttons (no text or symbols)

Line drawing of a rectangular electronic device with ports and a lid (no text or symbols)

xiaomi 5 4 14

6 7

10000 11

Simple line drawing of a rounded rectangular object with a circular hole and two labeled points (1 and 2) on its side (no text or symbols beyond labels)

Line drawing of a rectangular electronic device with no visible text or symbols

Line drawing of a rectangular electronic device casing (no text or symbols)

Simple rectangular outline with rounded corners and a small black square on top (no text or symbols)

Blank white rounded rectangle with black outline (no text or symbols)

Simple line drawing of a rectangular device with a handle and lid (no text or symbols)

Line drawing of a rectangular electronic component or device (no text or symbols)

Diagram showing a device with two parts and an arrow indicating transformation (no text or symbols)

Line drawing of a white industrial water heater with control panel and side-mounted unit (no text or symbols)

Line drawing of a white rectangular device with a circular button and label 'XIAOYI' on the front face (no other text or symbols)

Line drawing of a rectangular industrial container with a side-mounted lid and base (no text or symbols)

Line drawing of a portable electronic device with a handle and control panel (no text or symbols)

Line drawing of a cylindrical device with a handle and control panel (no text or symbols)

Line drawing of a portable water heater with control panel and side arm (no text or symbols)

Line drawing of a portable water heater with control panel and buttons (no text or symbols)

Line drawing of a portable water heater with control panel and buttons (no text or symbols)

Technical line drawing of a mechanical component with a circular housing and base plate (no text or symbols)

Isometric line drawing of a rectangular electronic device with a circular lens (no text or symbols)

Isometric line drawing of a rectangular electronic device with a circular top and base (no text or symbols)

Isometric line drawing of a rectangular electronic device with a circular lens (no text or symbols)

Line drawing of a rectangular electronic device with a circular lens (no text or symbols)

Technical line drawing of a mechanical component with a circular ring and rectangular base (no text or symbols)

3.장식 링을 제거합니다.

어댑터 링 설치 안내

Simple line drawing of a rectangular device with two circular rings on top (no text or symbols)

Line drawing of a rectangular electronic device with a circular button on top (no text or symbols)

Isometric line drawing of a rectangular device with a circular ring on top (no text or symbols)

Isometric line drawing of a rectangular device with a circular ring on top (no text or symbols)

Isometric line drawing of a rectangular electronic device with a circular top and base (no text or symbols)

Technical line drawing of a mechanical component with two circular features (no text or symbols)

Line drawing of a rectangular electronic device with a circular lens (no text or symbols)

Technical line drawing of a smartphone with a magnifying glass on top (no text or symbols)

Isometric line drawing of a rectangular electronic device with a circular lens (no text or symbols)

Line drawing of a rectangular electronic device with a circular lens (no text or symbols)

Isometric line drawing of a rectangular electronic device with a circular lens (no text or symbols)

Technical line drawing of a smartphone with a circular ring on top (no text or symbols)

Simple line drawing of a rectangular device with a circular ring on top (no text or symbols)

Technical line drawing of a smartphone with two circular rings on top (no text or symbols)

Isometric line drawing of a rectangular device with a circular ring on top (no text or symbols)

Isometric line drawing of a rectangular device with a circular ring on top (no text or symbols)

Simple line drawing of a rectangular electronic device with a circular ring on top (no text or symbols)

Technical line drawing of a smartphone with two circular rings on top (no text or symbols)

Line drawing of a cylindrical container with a lid and label (no readable text or symbols)

Line drawing of a portable water heater with control panel and lid (no text or symbols)

Line drawing of a portable water heater with handle and control panel (no text or symbols)

Line drawing of a rectangular electronic device with a lid and base (no text or symbols)

Line drawing of a portable water heater with control panel and buttons (no text or symbols)

Line drawing of a white cylindrical device with a lid and control panel (no text or symbols)

1. Statusir berafil del Environnement des lois de la Produzione

Line drawing of a cylindrical device with a handle and control panel (no text or symbols)

Line drawing of a cylindrical container with two ports and a label 'XINGTAI' on the side (no other text or symbols)

Simple line drawing of a handheld device with a circular lens and rectangular button (no text or symbols)

Line drawing of a rectangular electronic device with a flat top and side connectors (no text or symbols)

Diagram of a smartphone camera showing lens, screen, and frame (no text or symbols)

Blank white rounded rectangle outline with no text or symbols

Simple rectangular outline with rounded corners and a small black tab on top (no text or symbols)

Line drawing of a rectangular electronic device with a small screen and lens (no text or symbols)

Line drawing of a rectangular electronic device with a flat body and side connectors (no text or symbols)

Diagram showing a device with two parts and an arrow indicating transformation (no text or symbols)

Simple line drawing of a rounded rectangular object with a circular hole and two labeled points (1 and 2) on its side (no text or symbols beyond labels)

Simple line drawing of a rectangular device with a circular lens and two labeled points (1 and 2) on its sides (no text or symbols beyond labels)

Simple line drawing of a handheld device with a circular lens and rectangular button (no text or symbols)

Line drawing of a smartphone with left and right side indicators (no text or symbols)

Line drawing of a rectangular electronic device with a flat top and side connectors (no text or symbols)

Simple rectangular outline with rounded corners and a small black square on top (no text or symbols)

Blank white rectangle with rounded corners (no text or symbols)

Line drawing of a rectangular electronic device with a flat top and side connectors (no text or symbols)

Technical line drawing of a mechanical component or bracket (no text or symbols)

Diagram showing two views of a device with a lid and adjustment knob, no text or symbols present

Line drawing of a white industrial water heater with control panel and side-mounted unit (no text or symbols)

Line drawing of a white rectangular device with a circular button and label 'XIAOYI' on the front face (no other text or symbols)

Line drawing of a rectangular industrial container with a side-mounted lid and base (no text or symbols)

Line drawing of a portable electronic device with a handle and control panel (no text or symbols)

Line drawing of a cylindrical device with a lid and control panel (no text or symbols)

Line drawing of a portable water heater with control buttons and lid (no text or symbols)

Line drawing of a portable water heater with control panel and buttons (no text or symbols)

Line drawing of a portable washing machine (no text or symbols visible)

Technical line drawing of a mechanical component with a circular ring and rectangular base (no text or symbols)

Isometric line drawing of a rectangular electronic device with a circular lens (no text or symbols)

Isometric line drawing of a rectangular electronic device with a circular lens (no text or symbols)

Isometric line drawing of a rectangular electronic device with a circular lens (no text or symbols)

Line drawing of a rectangular electronic device with a circular lens (no text or symbols)

Technical line drawing of a mechanical component with a circular housing and rectangular base (no text or symbols)

Technical line drawing of a rectangular device with two circular rings on top (no text or symbols)

Isometric line drawing of a rectangular electronic device with a circular lens (no text or symbols)

Isometric line drawing of a rectangular electronic device with a circular ring on top (no text or symbols)

Technical line drawing of a rectangular electronic device with a circular lens (no text or symbols)

Simple line drawing of a rectangular device with a circular ring on top (no text or symbols)

Technical line drawing of a rectangular device with two circular rings on top (no text or symbols)

Fabricant: Xiaomi Communications Co., Ltd.

019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District, Beijing, China, 100085

[e-mail]
