Easy Fry Mega EY8558 - Deep fryer TEFAL - Free user manual and instructions

USER MANUAL Easy Fry Mega EY8558 TEFAL

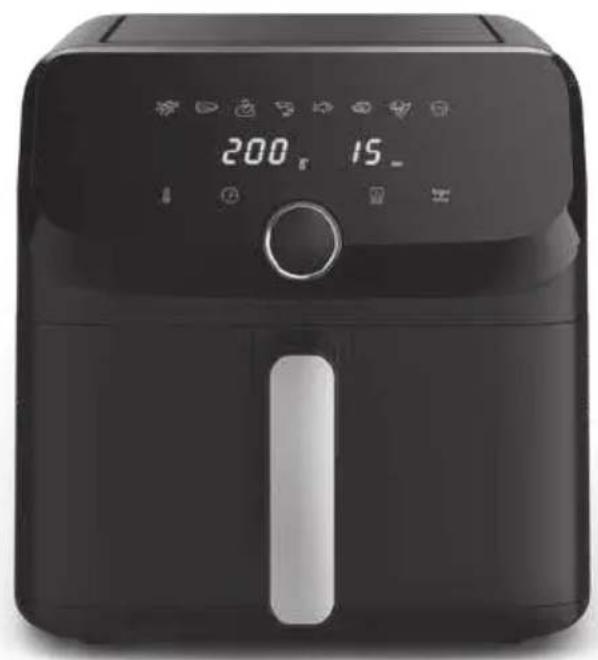

Black and silver air fryer with digital display showing 200°C and 15°C, no visible text or symbols on the device itself.

Black air fryer with digital display showing 200°C and 15°C, no visible text or symbols on the device itself.

QR code image containing encoded data, no visible human-readable text

Digital recipe book Livre de recettes digital Livro de receitas digital Digitales Kochbuch

EASY FRY™ MEGA

www.tefal.com www.moulinex.com

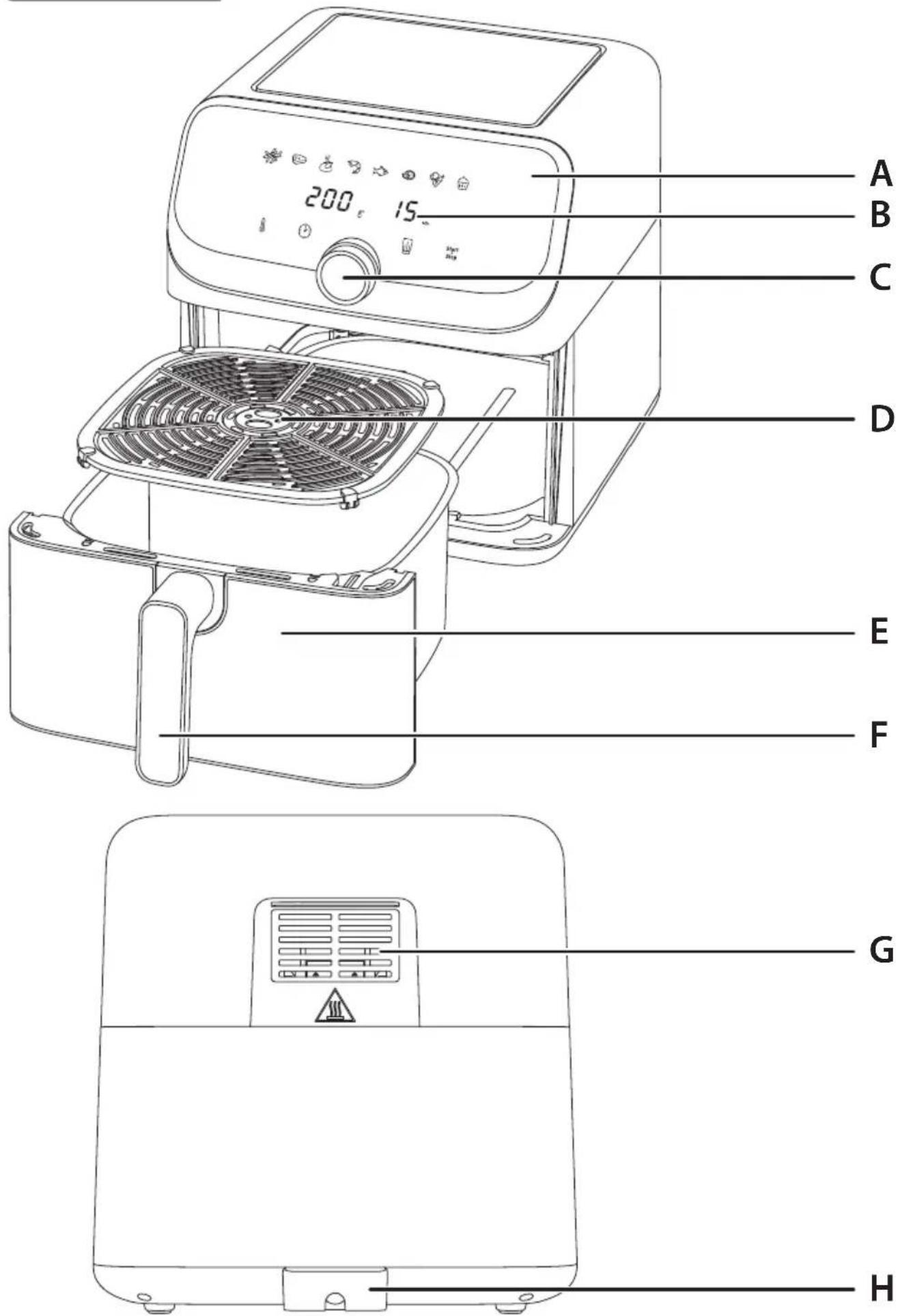

EXPLODED VIEW

A B C 200 °C 15 D E F G H

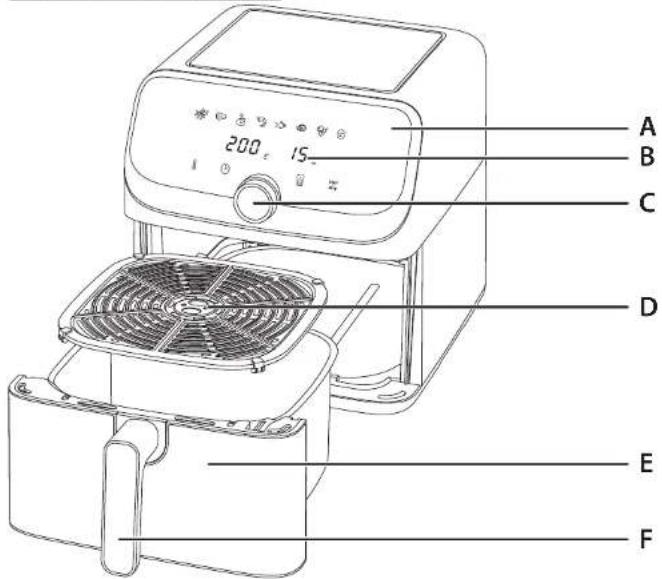

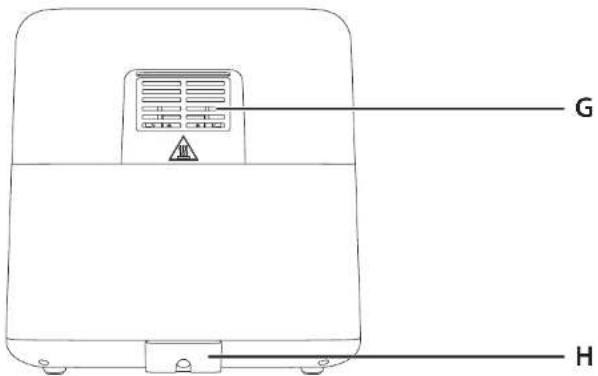

DESCRIPTION

A Digital touchscreen panel
B Timer/Temperature display
C Control knob with Start/Pause function
D Removable grid

E Basket
F Basket handle
G Air outlet
H Power cord

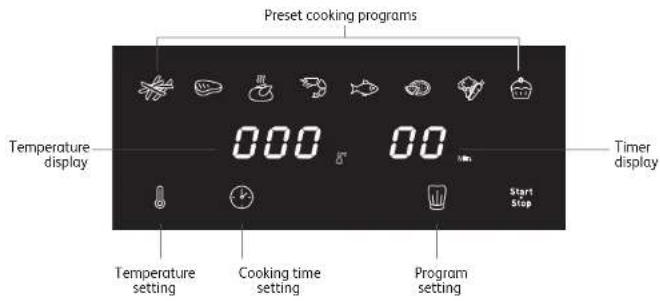

USER INTERFACE

Preset cooking programs Temperature display 000 00 Timer display Start Stop Temperature setting Cooking time setting Program setting

PRESET COOKING MODES

Fries
Meat
Chicken
Shrimp

Fish
Pizza
Vegetables
Dessert

BEFORE FIRST USE

1. Remove all packaging material.
2. Remove any stickers or labels from the appliance.
3. Thoroughly clean the basket and removable grid with hot water, some washing-up liquid and a non-abrasive sponge.

Note: The basket and the removable grid are dishwasher-safe.

1. Wipe the inside and outside of the appliance with a damp cloth.

Note: The appliance works by producing hot air. Do not fill the basket with oil or frying fat.

PREPARING FOR USE

1. Place the appliance on a flat, stable, heat-resistant work surface away from water splashes.
2. Do not fill the basket with oil or any other liquid.

Do not put anything on top of the appliance. This disrupts the airflow and affects the hot air frying result.

IMPORTANT: To prevent the appliance from overheating, do not place it in a corner or below a wall cupboard. A gap of at least 15cm should be left around the appliance to allow air to circulate.

USING THE APPLIANCE

1. Connect the power supply cord to an electrical socket, ensuring that the voltage matches the voltage indicated on the rating plate. Be careful when using the appliance.
2. Carefully pull the basket with its removable grid out of the appliance.
3. Place the food in the basket.

- Note: Never exceed the maximum amount indicated in the table (see section 'Cooking Guide'), as this could affect the quality of the end result.

1. Slide the basket back into the appliance.
2. Caution: Do not touch the basket during use and for some time after use, as it gets very hot. Only hold the basket by the handle.
3. Press Start to switch on the appliance. Display shows the default "Manual" program: 200°C / 15 minutes. The Start button will be flashing.
4. You may now select between the preset cooking mode or the manual settings.

a. If choosing preset cooking mode:

• Press the button. Fries mode will start flashing.
• Select the desired cooking mode by turning the control knob (these modes are described in detail in the 'Cooking guide' section).
• If you need to adjust the temperature: Press the button, then use the control knob to adjust the temperature. Control range – Min. 80°C, Max. 200°C. After your selection, the temperature will flash for 6 seconds and the temperature is set.
• If you need to adjust the timer: Press the ⏻ button, then use the control knob to adjust the time. Control range – Min. 1 minute, Max. Max. 60 minutes. After your selection, the timer will flash for 6 seconds and the timer is set.

b. If choosing manual settings:

- Press Start again to begin the cooking process with default "Manual" program (200°C / 15 minutes).

- If you need to adjust the temperature: Press the button, then use the control knob to adjust the temperature. Control range – Min. 80°C, Max. 200°C. After your selection, the temperature will flash for 6 seconds and the temperature is set. - If you need to adjust the timer: Press the button, then use the control knob to adjust the time. Control range – Min. 1 minute, Max. Max. 60 minutes. After your selection, the timer will flash for 6 seconds and the timer is set.

1. To return to the default "Manual" program, simply press the button again.
2. Confirm the cooking mode by pressing the Start Stop button. This will launch the cooking process. Cooking starts. The remaining cooking time is displayed on the screen.

3. Some food will require shaking halfway through the cooking time for optimal cooking results (see section 'Cooking guide'). To shake the food, press the center of the control knob or the ^Start button to pause the cooking process. Pull the basket out of the appliance by the handle and shake it. Slide the basket back into the appliance, then press the center of the control knob or the ^Start button again and cooking will resume.

4. Tip: You can set the timer to half of the cooking time, and when the timer sounds, shake the ingredients. Then set the timer again for the remaining cooking time.

5. Note: When basket is removed, the appliance goes into Pause mode. Basket needs to be returned to appliance within 10 minutes for cooking to resume. If basket is not returned to appliance within 10 minutes, the program, temperature, and time need to be reset.

6. Warning: If there is a lot of food, the basket can get heavy. When shaking, use both hands and oven mitt to avoid burning.

7. When you hear the timer sound, the cooking time set has finished. Pull the basket out of the appliance and place it on a heat-resistant surface.

8. Check if the food is ready.
   If the food is not ready yet, simply slide the basket back into the appliance and set the timer for a few extra minutes.

9. When the food is cooked, use a pair of non-metallic tongs (e.g., silicone tongs) to lift the food out of the basket. Excess oil from the food is collected in the bottom of the basket.

10. Caution: Never turn the basket upside-down, as the removable grid and hot oil could fall out.

11. After cooking, the basket, the grid, and the food are very hot. Handle with caution. Use both hands and oven mitt if the basket is too heavy.

12. Depending on the type of food cooked in the appliance, be careful as steam may escape from the basket.

13. When a batch of food is ready, the appliance is instantly ready for preparing another batch of food.

14. If you want to terminate cooking before the end of the program, press and hold the Start Stop button for 2 seconds to switch off the appliance.

COOKING GUIDE

The table below helps you to select the basic settings for the food you want to prepare. Note: The cooking times below are only a guide and may vary according to the variety and batch of ingredients used. Shape and brand may also affect results. Therefore, you may need to adjust the cooking time slightly.

	Quantity	Approx. time (min)	Temperature (°C)	Cooking mode	Shake*	Extra information
Potatoes & Fries
Frozen fries (10 x 10 mm standard thickness)	500 g - 1,5 kg 22 - 40 min 180°C			(casal)	Yes
Homemade French fries (8 x 8 mm)	900 g - 1,5 kg 28 - 37 min 180°C			(casal)	Yes Add 1 tbsp of oil
Roasted Potatoes 500 g - 1,7 kg 45 min 180°C				(casal)	Yes Add 1 tbsp of oil
Meat & Poultry
Steak	100 - 600 g (1 to 4 pcs)	12 min	180°C	(casal)
Roasted chicken	up to 2 kgs	45 - 60 min	200°C	(casal)
Chicken legs	500 g - 1,5 kg 40 min	200°C		(casal)
Chicken breasts	200 - 900 g	30 - 40 min	180°C	(casal)
Lamb chops	200 g - 1 kg (1 to 8 pcs)	33 min	200°C	(casal)
Sausages	300 g - 1 kg (4 to 15 pcs)	15 - 20 min	200°C	(casal)
Fish				(casal)
Salmon fillet	100 - 700 g (1 to 5 pcs)	12 - 18 min	160°C	(casal)
Shrimps	300 - 600 g (15 to 30 pcs)	6 - 14 min	190°C	(casal)	Yes
Snacks
Frozen chicken nuggets	300 - 700 g (15 to 25 pcs)	10 - 15 min	200°C	(casal)		Flip at mid-cooking
Frozen cheese sticks	400 - 700 g (5 to 10 pcs)	13 min	180°C	(casal)	Yes
Frozen onion rings	250 - 600 g (20 to 30 pcs)	5 - 7 min	200°C	(casal)	Yes
Fried spring rolls	250 - 350 g (8 to 20 pcs)	10 min	200°C	(casal)	Yes
Frozen pizza	200 - 500 g (one 24 cm pizza)	5 - 15 min	190°C	(casal)
Fresh pizza	200 - 500 g (one 24 cm pizza)	5 - 10 min	190°C	(casal)

	Quantity	Approx. time (min)	Temperature (°C)	Cooking mode	Shake*	Extra information
Vegetables
Zucchini	200 - 400 g	15 - 18 min	180°C
Cauliflower	300 - 600 g	14 - 16 min	180°C
Baking
Muffins	4 to 9 pcs	18 min	180°C			Use a baking tin/oven dish**
Cake	150 - 400 g	18 min	180°C

* Shake at least half way through cooking.

Tips: in order to improve the cooking result, do not hesitate to shake 2-3 times when cooking.

IMPORTANT: To avoid damaging your appliance, never exceed the maximum quantities of Ingredients and liquids indicated in the instruction manual and in the recipes.

"place the cake tin/oven dish in the bowl.

When you use mixtures that rise (such as with cake, quiche or muffins) the oven dish should not be filled more than halfway.

TIPS

• Smaller foods usually require a slightly shorter cooking time than larger size foods.
• Shaking smaller size foods halfway through the cooking time improves the end result and can help prevent uneven cooking.
• To make your potatoes extra crispy, try adding a small amount of oil before cooking and shake to evenly cover. We recommend 14ml of oil (1 tablespoon).
  • Snacks that can be cooked in an oven can also be cooked in the appliance.
• The optimal recommended quantity for cooking fries is 1 500 grams.
• Use ready-made puff and short crust pastry to make filled snacks quickly and easily.
• Place an oven dish in the appliance's basket if you want to bake a cake or quiche or if you want to fry delicate ingredients or filled ingredients. You can use an oven dish in silicon, stainless steel, aluminum, or terracotta.
• You can also use the appliance to reheat food. To reheat food, set the temperature to 160°C for up to 10 minutes. Cooking time could be adjusted depending on food quantity in order to fully reheat the food.

CLEANING

Clean the appliance after every use.

The basket and the grid have a non-stick coating. Do not use metal kitchen utensils or abrasive cleaning materials to clean them, as this may damage the non-stick coating.

1. Remove the mains plug from the wall socket and let the appliance cool down.

Note: Remove the basket to let the appliance cool down more quickly.

1. Wipe the outside of the appliance with a damp cloth.
2. Clean the basket and grid with hot water, some washing-up liquid and a non-abrasive sponge. You can use a degreasing liquid to remove any remaining dirt.

Note: The basket and the removable grid are dishwasher-safe.

Tip: If food debris/residue is stuck at the bottom of the basket and the grid, fill them with hot water and some washing-up liquid. Let the basket and the grid soak for approximately 10 minutes. Then rinse clean and dry.

1. Wipe inside of the appliance with hot water and a damp cloth.
2. Clean the heating element with a dry, cleaning brush to remove any food residues.
3. Do not immerse the appliance in water or any other liquid.

STORAGE

1. Unplug the appliance and let it cool down.
2. Make sure all parts are clean and dry.

GUARANTEE AND SERVICE

If you need service or information or if you have a problem, please visit the brand website or contact the brand Consumer Care Center in your country. You can find the phone number in the worldwide guarantee leaflet. If there is no Consumer Care Center in your country, go to your local brand dealer.

TROUBLESHOOTING

If you encounter problems with the appliance, visit the brand website for a list of frequently asked questions or contact the Consumer Care Center in your country.
