1 Safety instructions ....39
2 Cleaning and Maintenance ....40
3 Installation.... 41
4 Controlpanel and Display.... 41
5 Operation 42
6 Technical data....45
7 Warranty / Disposal / Technical change....46

ERP 48

1 Safety instructions

Please read before first commissioning the safety instructions carefully and observe the safety instructions to prevent damage due to misuse, improper operation, and improper environmental conditions to be avoided. Keep these for later reference.

Check the device after removing the packaging for damage. Do not put the unit in case of suspected corruption in operation and consult a specialist. The recyclable packaging material must not be stored or disposed accessible for young children, but must be disposed of properly.

This appliance is only for the purpose for which it was explicitly developed, ie be used for heating rooms. Any other use is regarded as improper and therefore dangerous. The supplier is not liable for damage to persons and / or property damage due to an improper or incorrect use.

Repairs to electrical appliances must only be carried out by trained personnel only. Improperly performed repairs and alterations to the equipment can have dangerous consequences for the user according to what the warranty will be rejected.

The use of all electrical equipment must be observed some fundamentally important rules:

• Do not touch the appliance with wet hands or feet.
• Do not expose the device to the weather.
• The appliance must not be used by children or infirm persons without supervision.
  • Pull the plug from the outlet when you no longer need it . not by pulling the power cable or the device to unplug it.
• Disconnect before carrying out any cleaning or maintenance operation, unplug the device. The air intake must be cleaned at least once a week.
• Do not use near a bathtub, shower, sink, or swimming pools
• Do not use any accessories or attachments that are not approved by the manufacturer.
• Do not insert objects into the interior of the device.
• Do not cover the appliance with objects.

The device must not be used under the following conditions:

• In areas with potentially explosive atmospheres.
  • In rooms with aggressive atmospheres.
• In rooms with high solvent concentration.
  • In areas with extremely high levels of dust.
• Disreputable operating conditions, it is recommended that the technical department of SONNENKÖNIG or dealer to contact. The use of an electric heater under the wrong conditions will invalidate the warranty!

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

2 Cleaning and Maintenance

EN 2.1 Cleaning

Always unplug your heater and let it cool down completely before cleaning. Never dip into water and never splash water on it. Clean the heater with a soft damp cloth. For glass models use a soft cloth and glass cleaner. Never use a wet cloth and make sure to dry the heater when clean with a dry cloth. Do not use any abrasive materials, solvents or harsh cleaning sponges as this could cause scratches or other irreparable damage. Before operating the heater again it must be completely dry.

2.2 Using/Working

Please note that the heater may discolour with use. This is due to airborne pollution and is not a fault. Do not cover your heater with a picture foil and do not paint or print the heater yourself. This might cause damage to the heating element and will void your warranty. If you notice any noise, smells, visible changes or exceptionally high temperatures please discontinue use and contact an authorized SONNENKÖNIG dealer.

20 cm 20 cm20 cm

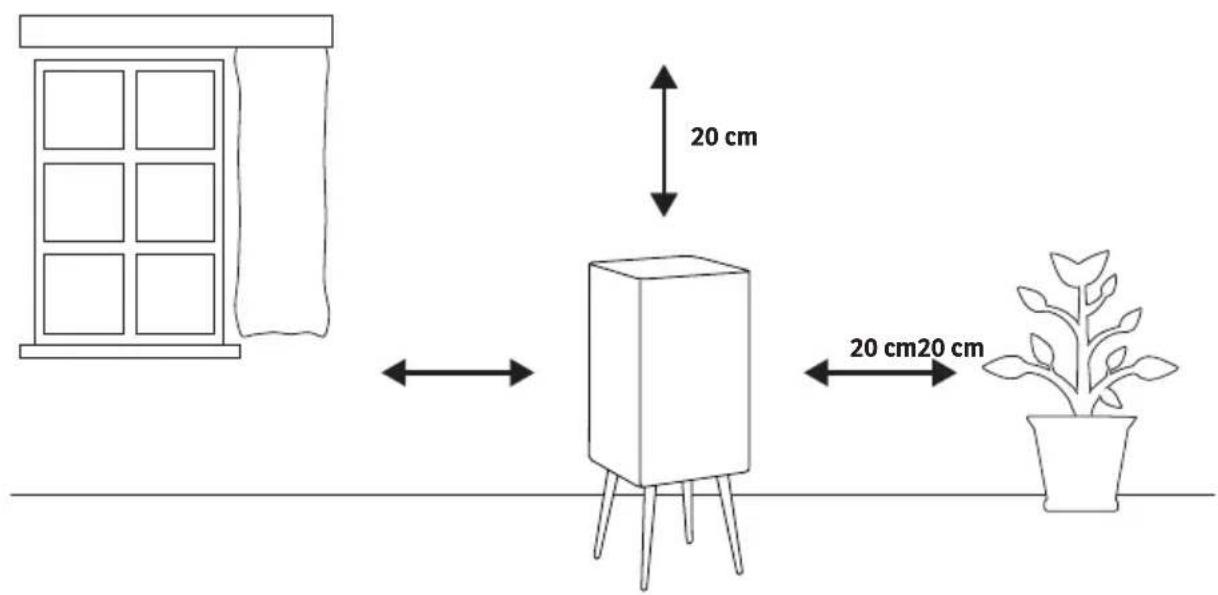

The heater must be at least 20 cm away from all objects, walls, the ceiling and the floor.

3 Installation

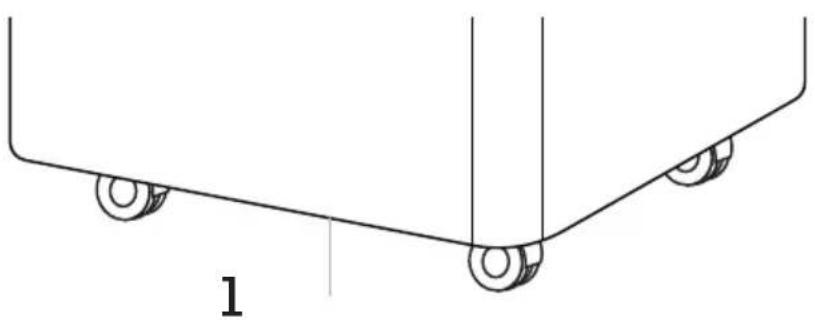

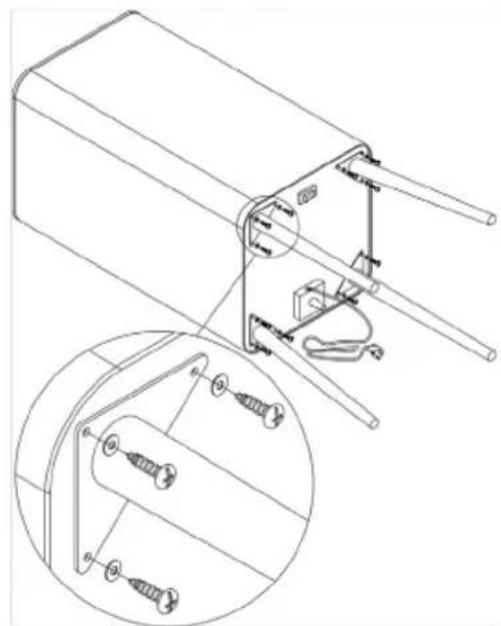

Warning: Do not use the unit unless feet are installed. Follow the instructions below.

EN

Technical line drawing of a mechanical clamp or bracket assembly with a magnified inset showing internal components (no text or symbols)

If you would like to fix the Tower permanently, use the Z shape bracket in the package. Fix one side to the bottom of the heater and the other side to the floor.

4 Controlpanel and Display

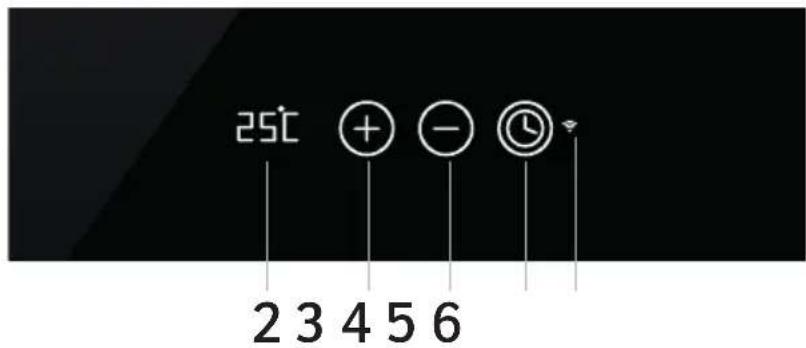

25°C 2 3 4 5 6

1. ON/OFF Button
2. Temperature Display
3. Plus-Button
4. Minus-Button
5. Timer
6. WIFI indicator

Simple line drawing of a vehicle chassis with wheels and a labeled component '1' (no text or symbols beyond label)

5 Operation

EN 5.1 General introduction of the control system

The ELEGANCE TOWER S has an integrated WiFi touchscreen control box, meaning there is no other additional thermostat needed to control the heater.

The panel can either be controlled manually using the manual control touch screen on the glass surface or be operated via smartphone. Once the heater has been connected to the APP, the smart phone will take the control together with the control box.

If your home internet is not working, it is still possible to operate the heater via touchscreen. Once the heater is re-connected to the WiFi, the heater will reconnect to the smart phone automatically.

5.2 WIFI function on/off

Long press button for 8 seconds to disable the WIFI connection and the WIFI sign on the screen will disappear, long press button for 8 seconds to turn it on again.

5.3 Manual countdown control

If you press the ON/OFF button, the current room temperature is displayed on the temperature display. Set the desired room temperature by pressing the or key.

5.4 Manual temperature control

To operate the countdown timer manually, press the button. The screen displays „1H“ after touching it once. The heating is now in countdown mode and switches off after 1 hour. Press again to change to „2H“, then to „3H“, etc. (up to 24 hours).

5.5 ON / OFF via touchscreen

Long the press the button for 3 seconds to turn on/off the heater via touchscreen

5.5 Thermostat

The built-in thermostat regularly measures the room temperature. When the set temperature is equal to or higher than the room temperature, the heating will turn off and only resume heating when the temperature drops again.

EN

5.6 Child lock

Press the and button together for 3 seconds to activate the child lock mode, the screen will show "CL". Press the and again to quit the child lock mode.

5.7 Open window detection

This heater has an open window detection function. By default, the function is off but you can activate this function after connecting your heater to the APP. When the function is on, the heater will monitor the heating system. in case there is a dramatic temperature decrease in a short time period, "OPE" will flash on the screen. The system will shut off the heater and after 30 minutes normal operation will start again. By pressing any button in between the heater will go back to normal operation.

5.8 Temperature calibration

Power on the heater, press and hold the button until the screen shows the temperature reading. Press and hold the Timer button for 5 seconds to enter the temperature calibration and edit the number by pressing the + or - button. (You can adjust between +5/-5 degrees).

5.9 Factory mode

If you have any issues during the operation (including wifi connection), please try the factory mode to reset your heater. Power on the heater and the temperature reading will display on the screen, press and hold the button for 5 seconds to reset the heater.

After the factory reset, the heater will clear all the previous temperature settings and operate under manual mode.

6 WIFI installation

EN WIFI Operation

Scan the QR code below to download the "Smart Remote King" APP or search "Smart Remote King" APP on APP store or Google play store to start the procedure to download the APP, open the APP and register with your phone number or Email address.

QR code image containing encoded data, no visible human-readable text

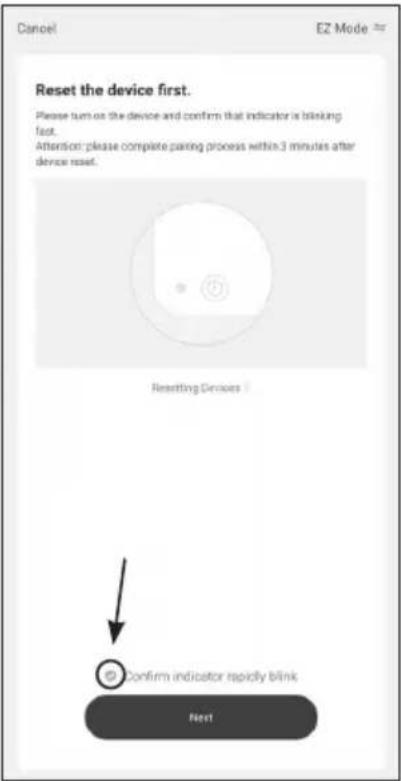

1. After you connect the device to the power supply and press the main switch, the WIFI symbol on the display will start flashing quickly. The WIFI module is now ready for normal connection mode.

2.3.

Black-and-white landscape photo of snow-capped mountains and a lake, with blooming flowers in the foreground (no text or symbols visible on the main scene)

My Home ... No devices Add Device Home Smart Me

Add Manually Auto Scan Electrician Smart alarm clock Shoe cabinet electronic Bread jump Lighting Large Home... Sleep Lamp Hooker Hooker (RLL) Small Home... Kitchen Appliances Hooker (2pikes) Hooker (other) Oil heater Security & Sensors Box/Window Curtail Curtail (2pikes) Exercise & Health Custom Motor (2pikes) Drying Back Electric Blanket Video Surveyance Gateway Control Warning Panel (RLL+AVF) Curtail (RLL) Curtail (other) Energy Entertainment Blue Colorant Carbon Mirror (Ball Check) (RLL) Industry & Agriculture... Pac Others Pet Source Pet Dress Funder Pet Ball Tissue

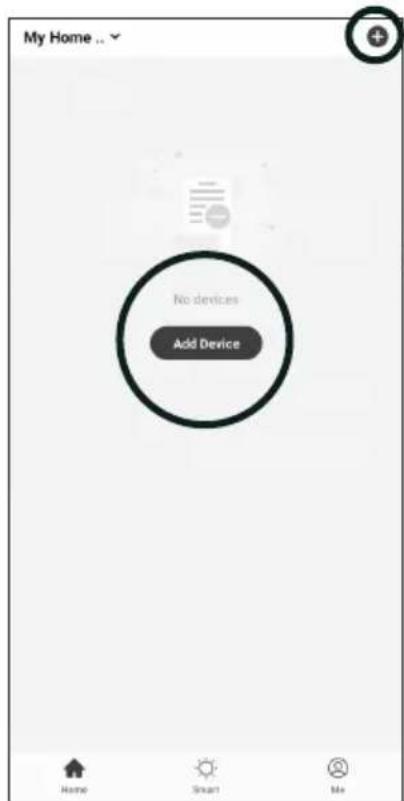

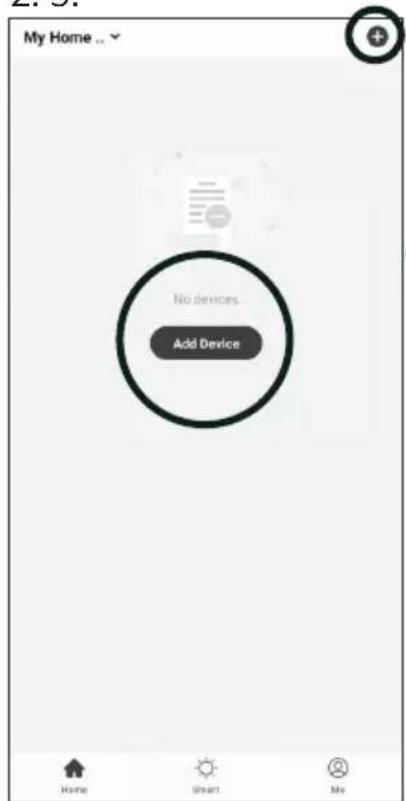

1. press the + icon or the „Add Device“ button in your app

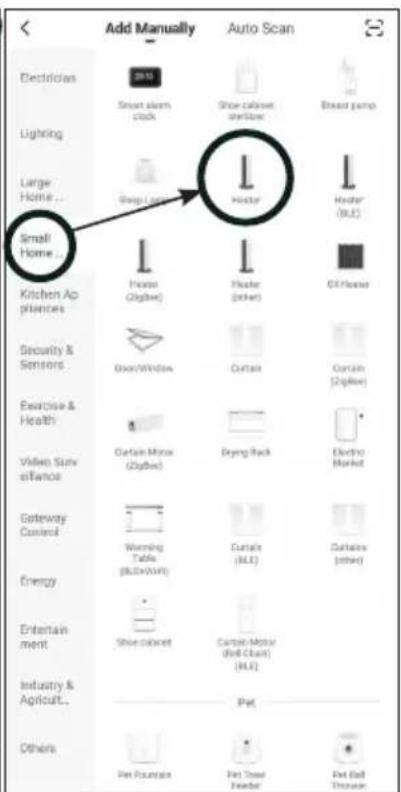

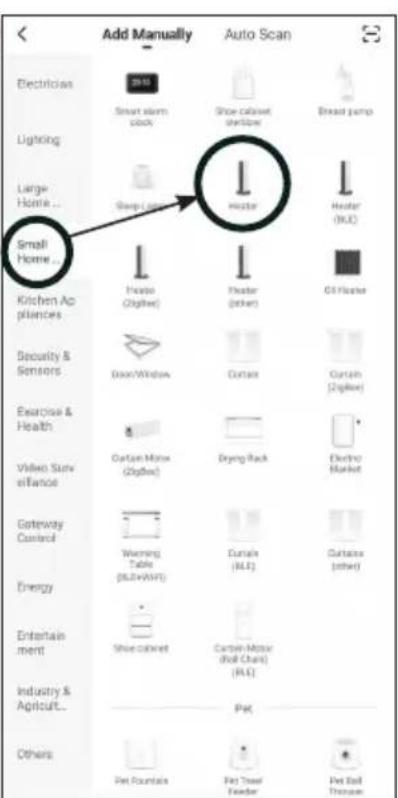

2. Select "Small Home Appliances first and then "Heater".

4.5.6.

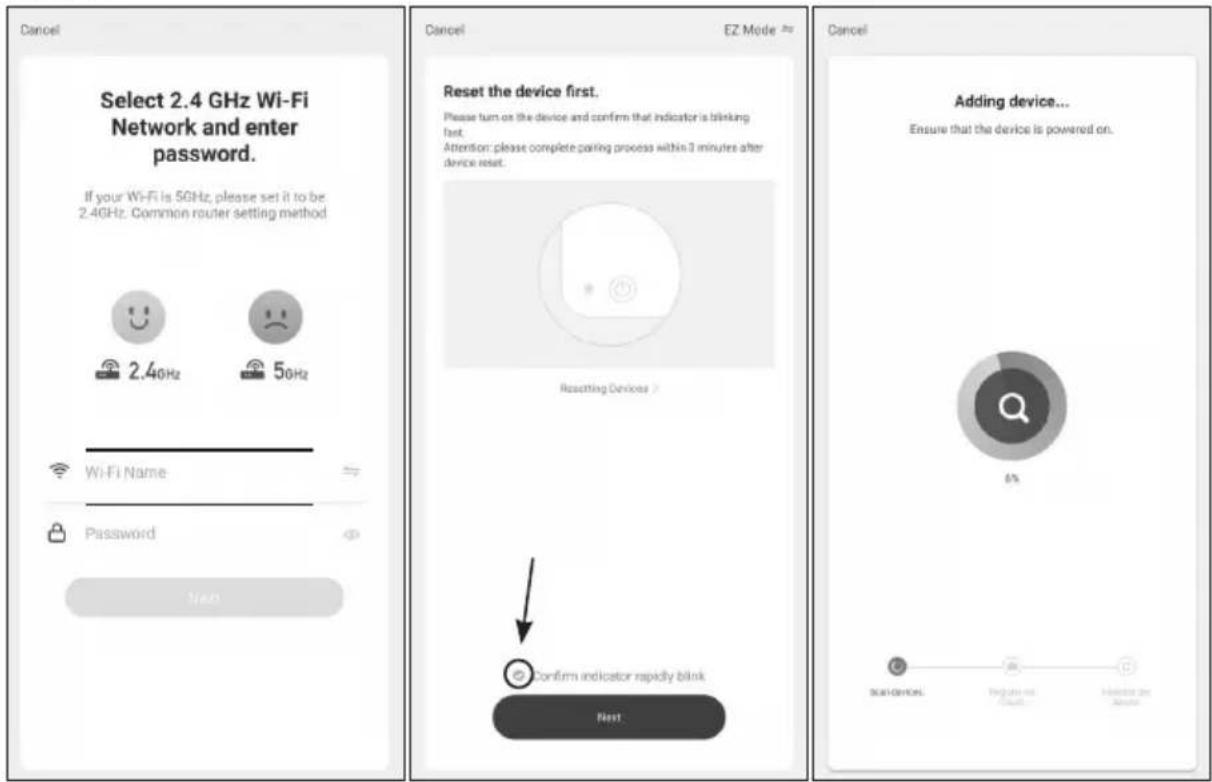

Cancel Select 2.4 GHz Wi-Fi Network and enter password. If your Wi-Fi is 5GHz, please set it to be 2.4GHz. Common router setting method 2.40Hz 50Hz Wi-Fi Name Password Next Cancel EZ Mode * Reset the device first. Please turn on the device and confirm that indicator is blinking fast. Attention: please complete pairing process within 3 minutes after device reset. Resetting Devices > Confirm indicator rapidly blink Next Cancel Adding device... Ensure that the device is powered on. Sub-Device1 Regular unit Control Addict or Adjust

1. Make sure that your smartphone is connected to the WIFI and then enter the security phrase or password of your WIFI router

2. Check again that the WIFI symbol on the display of the infrared tower heater flashes quickly and check the box before pressing again.

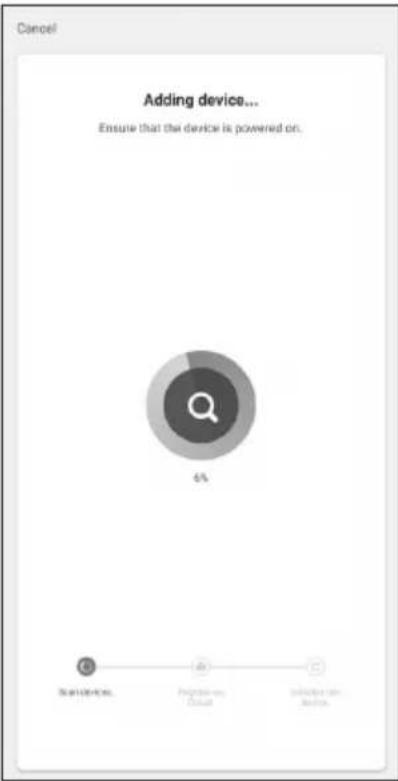

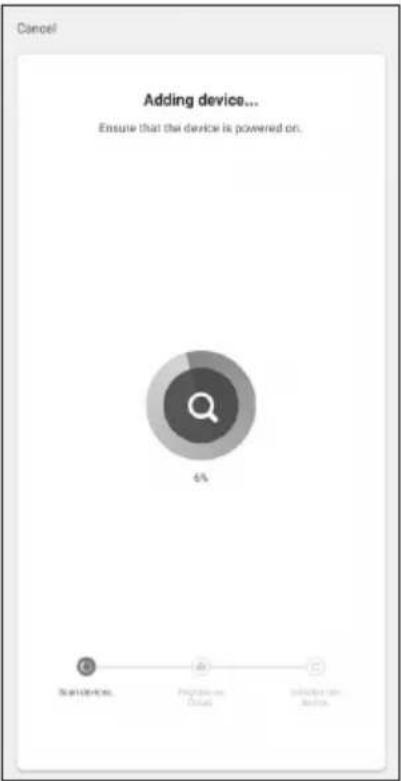

3. Wait until the connection status shows 100% . Give the device a name so you can assign it later.

Troubleshooting

If no connection could be established after the time has elapsed, switch off the device, switch it on again after some time, check the points mentioned below and try again.

- Is your device and smartphone near the router?

- Does your WIFI signal have the necessary 2.4 GHz frequency?

- Is your router already overloaded with other WIFI devices?

Set WIFI connection mode

You can select two connection modes during the Wifi setup. To switch between them, press the "-" button for 8 seconds.

7 Warranty / Disposal / Technical change

EN

Warranty

The Products are controlled just before delivery. If despite a lack of your product, try trustfully your seller. Please bring your receipt, as this is to be submitted for each warranty. The guarantee period is 24 months from date of purchase.

Disposal

The device must be disposed of properly. The device can be distributed free of charge for disposal at each dealer.

Technical changes

Reserving technical changes in technology and design

Caution – Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

CE Declaration of Conformity

This device complies with the following standards

EMC EN 55014-1:2021

EN 55014-2:2021

EN 61000-3-2:2019/A1:2021

EN 61000-3-3:2013/A2:2021

LVD EN 60335-1:2012/A15:2021

EN 60335-2-30:2009/A12:2020

EN 62233:2008

EMC 2014/30/EU

LVD 2014/35/EU

RoHS 2015/863/EU

RED 2014/53/EU

EN

MODEL: ELEGANCE TOWER S
Item Symbol Value Unit
HEAT OUTPUT
Nominal heat output P	nom	0.5 kW
Minimum heat output (indicative) P	min	0.0 kW
AUXILIARY ELECTRICITY CONSUMPTION
At nominal heat output el	max	0.5 kW
At minimum heat output el	min	0.0 kW
In standby mode el	SB	0.001 kW

Item Unit
Type of heat input, for electric storage local space heaters only (select one)
manual heat charge control, with integrated thermostat [no]
manual heat charge control with room and/or outdoor temperature feedback [no]
electronic heat charge control with room and/or outdoor temperature feedback [no]
fan assisted heat output [no]
Type of heat output/room temperature control (select one)
single stage heat output and no room temperature control	[no]
Two or more manual stages, no room temperature control	[no]
with mechanic thermostat room temperature control	[no]
with electronic room temperature control	[no]
electronic room temperature control plus day timer	[no]
electronic room temperature control plus week timer	[yes]

Other control options (multiple selections possible)
room temperature control, with presence detection	[no]
room temperature control, with open window detection	[no]
with distance control option	[yes]
with adaptive start control	[no]
with working time limitation	[no]
with black bulb sensor	[no]

DISPOSAL INSTRUCTIONS FOR THE ELECTRICAL PART OF THE PRODUCT

In accordance with Article 26 of the Decree-Law of 14 March 2014 implementing Directive 2012/19/EC and the Law of 31 March 2015 implementing Directive 2015/863/EC on the reduction of the use of hazardous substances in electrical and electronic equipment and on waste management.

The crossed-out dustbin symbol on the machine or packaging indicates that the waste generated at the end of its useful life must be collected separately from other waste. The user must therefore take the device to the appropriate collection points at the end of its service life. Sort electronic and electrical waste or send the purchase of new, equivalent devices back to the dealer in a one-to-one process. L'adeguata separate collection for subsequent commissioning of the equipment to be recycled, treatment and environmentally sound disposal, helps to avoid possible adverse effects on the environment and health and promote the reuse and/or recycling of the materials to which they belong. composed the equipment. Misuse of this product by the user will result in the application of the administrative penalties provided for in the applicable legislation. Batteries contained in the device must be disposed of separately in the appropriate containers for the collection of used batteries.

EN

DISPOSAL OF BATTERIES AND ACCUMULATORS

In accordance with Legislative Decree 188 of 20 November 2008 implementing Directive 2006/66/EC on batteries, accumulators and related waste, the symbol of the crossed-out waste bin on the battery indicates that it is prohibited to dispose of used batteries in household waste.

Batteries and batteries contain substances that are highly polluting for the environment. The user is obliged to dispose of used batteries at collection points in the municipality or in appropriate containers. The service is free. In this way, legal requirements will be respected and the environment will be protected. The symbols identifying hazardous materials that may be present in batteries and accumulators are as follows: Hg= Mercury, Cd= Cadmium, Pb= Lead.
