You have just purchased a BRANDT product and we thank you for your trust.

We designed and manufactured this product with you, your lifestyle and your needs in mind, in order to best meet your expectations. We have put into it our expertise, our spirit of innovation and all the passion which has driven us for over 60 years.

We make every effort to ensure our products better meet your requirements, and our Customer Relations Department is at your disposal and will be happy to hear any questions or suggestions you may have.

You may also visit our website www.brandt.com where you will find our latest innovations, as well as useful and complementary information.

BRANDT is happy to assist you in your daily life and hopes you will fully enjoy your purchase.

Important: Before switching on your appliance, please read this user guide carefully in order to familiarise yourself more quickly

with its operation.

EN-ENGLISH

This appliance has been designed exclusively for domestic use for washing linen.

RECOMMENLED LOADS:

• The maximum capacity of the appliance is 6,5kg .

SAFETY

The following instructions must be respected:

INSTALLATION :

• This appliance is designed to be used for domestic and similar applications such as:
• kitchen areas for staff in shops, offices and other professional premises;
  -farms;
• use by hotel, motel and other residential clients;
• B&B-type environments.
• The pressure of the water supply must be between 0.1 and 1 MPa (1 and 10 bars).
• Do not use an extension, adapter, multi SOCKET or a timer plug.
• The electrical installation must be able to withstand the maximum power indicated on the rating plate and the plug must be properly grounded.
• Once your appliance has been installed, the plug must remain accessible.
• Only use the hose and the new seals supplied with the appliance.
• If the power cord is damaged, have it changed by the After Sales Service or a qualified professional to avoid any risks.
• We recommend that the appliance is not placed onto a mat or carpet to avoid hampering the circulation of air at its base.
• If a problem occurs that you cannot solve (see page 23), do not attempt to repair the machine yourself. Call the reseller's or the manufacturer's technical service.

USE:

• This appliance may be used by children of 8 years or older and by persons with limited physical, sensorial or mental capacities or without experience or knowledge of it, provided that they are correctly supervised or if they are given instructions on the use of the appliance in complete safety if the risks incurred are understood.

Children should be supervised to ensure that they do not play with the appliance and prevent children of less than 3 years old from playing with it, unless they are constantly supervised.

• The device should not be cleaned or maintained by unsupervised children.
• Do not load linen that has been treated with stain removers, solvents or inflammable products -straight after they have been treated (risk of explosion)
• This washing machine is fitted with a safety device to prevent any spillage of water.
• At the end of the cycle, ensure the water tap is switched off and the appliance unplugged.

ENVIRONMENT

This washing machine has been designed to respect the environment.

PROTECTING THE ENVIRONMENT

The dose of washing product depends on how dirty the laundry is and the hardness of the water. Do not exceed the dose recommended by the manufacturer of the washing product.

This appliance's packaging material is recyclable. Help protect the environment by placing the packaging into the municipal containers provided for this purpose..

Your washing machine also contains many recyclable materials, it features this logo to remind you that used appliances must not be mixed with other waste.

The appliance must therefore be recycled in compliance with the European directive 2012/19/EU on used electrical and electronic equipment.

Contact your town hall or your retailer for the used appliance collection points closest to your home.

ENERGY SAVING

Only program a prewash when it is absolutely necessary. For linen that is not very or normally dirty, a low temperature program is sufficient.

1 - INSTALLATION

1.1 - UNPACKING (Diagram 1.1.2 to 1.1.4)

Allowing instructions must be respected :

• Remove the chocks from the lid and flaps of the drum and open and close the drum carefully.
• Lift the washing machine and remove the motor
  B chock and base A (Diagram 1.1.2).
• Remove the strip and place the stoppers in the holes (Diagram 1.1.3).
• Remove the 3 hose support clips, and place the stoppers in the 3 holes (very important) (Diagram 1.1.4).

1.2 - CONNECTION TO THE WATER SUPPLY (Diagram 1.2)

Connect the feed pipe with its new washers to the coupling on the rear of the washing machine and to a tap with a threaded 20x27 endpiece.

1.3 - DRAINING (Diagram 1.3)

Position the drain hose, fitted with the curved part,

±b ensuring that the instructions shown on the

diagram are respected and especially that the connection is not air-tight: air must pass freely between the drain hose and the drain to avoid used water from flowing back up the hose into the machine and bad smells being caused.

1.4 - LEVELING THE MACHINE (Diagram 1.4)

The appliance must be installed on a horizontal floor. If required, and if it is equipped with adjustable feet at the front of the appliance, stabilise your washing machine so that it is level. If it is fitted with retractable castors, it may be moved by pulling the lever underneath the appliance completely to the left.

1.5 - ELECTRICAL CONNECTION(Diagram 1.1.1)

Ensure that the indications on the data plate of the Appliance are respected.

1.6 - CLEANING BEFORE USE

Once installed, your washing machine must be cleaned by programming a cotton cycle at 90^ with nothing inside and with half a dose of washing powder.

2 - USE

RECOMMENDATIONS:

• Before inserting the linen, sort it by colour, how dirty it is and the type of textile. Empty all pockets, close zips, removes hooks from curtains, place Small items of underwear in a mesh bag.

• Remove any loose buttons, pins and clips.

• Knot belts, and ties for aprons, etc.

2.1 - LOADING YOUR WASHING Diagram 2.1)

Operate the handle of the lid and open the drum by pushing the button A.

Once the linen has been put in, ensure that the drum has been closed properly. Ensure the edge of the button is visible.

2.2 - WASHING PRODUCTS AND ADDITIVES (Diagram 2.2)

The product drawer has 4 compartments: prewash (powder), wash (powder or liquid), softener, bleach.

• Use detergents that are certified for domestic washing machines.
• Do not use liquid detergents with the pre-wash cycle and/or delayed start.
• Do not exceed the maximum level.

2.3 - CONSEQUENCES OF USING THE WRONG AMOUNT OF DETERGENT

Use the right amount of detergent based on the type and load of laundry. Too much detergent may prevent laundry from being properly rinsed, leaving behind traces of the product. On the other hand, not using enough detergent can mean that the laundry will not be correctly washed.

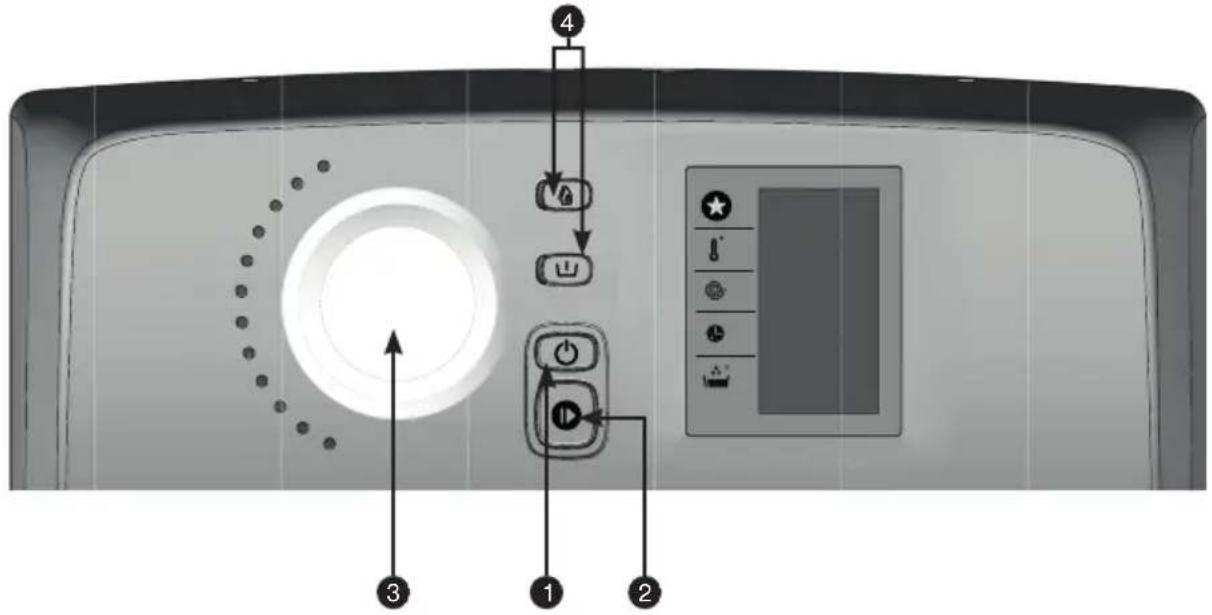

3.1 - THE CONTROL PANEL

1 On/Off
2 Start/Pause

3 Program selector
4 Options

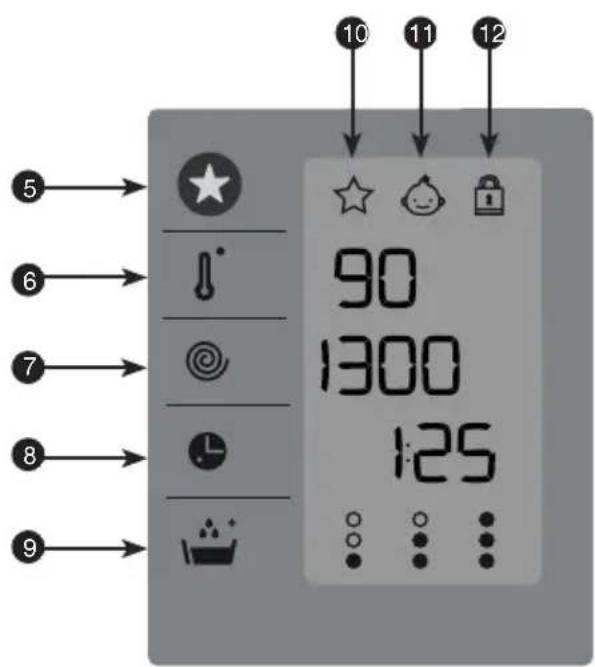

CLOSE-UP OF THE DISPLAY

5 Favorite
6 Selecting the temperature
7 Selecting the spin speed
Selection of delayed start
Selection of the rinse level
10 Favorite light
Child safety indicator light
12 Door lock indicator light

3.2 - PROGRAMMING A WASH CYCLE

STARTING THE APPLIANCE

Press the "On/Off" button 1

The ECO 40-60 program is automatically selected when you turn on your washing machine.

Choose your washing program by turning the selector 3. The machine displays the temperature and spin speed best suited to the chosen program as well as the cycle time.

If you wish, you can change the temperature by pressing key ⑥ successively (Diagram 3.2.1).

Nota: For a cold wash, change the temperature to 0

Using key 7 you may:

• modify the spin speed (automatic limit for certain programs) (Diagram 3.2.2)

• choose drip dry (Diagram 3.2.3). The cycle will end by draining the washing machine and will not spin.

• or stop with the drum full (Diagram 3.2.4).

You can select any options using keys 4 and 9. The led corresponding to your selection switches on. A warning beep informs you of any options that are not compatible with your program.

Press «Start/Pause» 2 to start your program.

The door lock indicator 12 lights up (Diagram 3.2.5).

A few minutes after the cycle is launched, the duration is updated according to the quantity and type of laundry in the machine.

DELAYED START OF A PROGRAM

Select your program.

Press the «Delayed start» key to delay the start of your program hour by hour until you reach the time you want (max 24h).

Confirm your cycle selection by pressing the «Start/Pause» button 2.

In all cases, an animation materializes the waiting period preceding the start of the cycle.

Area of the display shows the time remaining until the start of the program via a countdown in hours, then in minutes during the last hour.

ADDING OR REMOVING AN ITEM DURING THE CYCLE (impossible during spin)

Press and hold the «Start/Pause» button 2 to interrupt the program.

The time remaining flashes and the door lock indicator 12 goes out.

Insert or remove the linen.

The time taken to unlock the door depends on the temperature inside the machine and can

last up to several minutes for safety reasons.

Press «Start/Pause» ② to restart the program.

The countdown resumes.

Note: If you have selected a delayed start, you can open the drum at any time before the wash program starts.

CANCELLING A PROGRAM

Press and hold the "On/Off" button 1.

All the lights go out.

You can do this at any time: during the cycle, programming or during a pause.

Note: In all cases, cancelling a program means that you have to re-program everything from the start again (see paragraph 3.2) and a partial emptying is carried out.

Information :

In the event of a power cut, the cycle will automatically restart from the point where it stopped, as soon as the power returns.

END OF THE WASHING CYCLE

The display shows "Stop" (Diagram 3.2.6) and the door lock indicator goes out. A beep indicates the end of the program.

You can program a new cycle without having to press the «On/Off» key 1.

This display is automatically switched off after a maximum of 5 minutes in order to save energy in standby mode.

Open the lid and remove the linen.

Certain models are equipped with a function that automatically places the drum opening at the top, at the end of the cycle, to facilitate access to the laundry.

This operation may take up to 3 minutes which adds onto the wash cycle time.

Press and hold the «On/Off» 1 button to switch off the washing machine.

CHILD SAFETY

Activate "Child safety" to lock your program by pressing button 4. Once this safety device is active, light corresponding to the symbol, comes on (Diagram 3.2.7).

Simultaneously press the same buttons again to switch off the «Child safety» function.

ECO 40-60 PROGRAM

This is used to wash moderately dirty cotton textiles with optimised energy and water use.

QUICK 39' PROGRAM

This program is used to wash a normal load of moderately dirty cotton or mixed linen in 39 minutes with a perfect result.

FLASH 25' PROGRAM

Washes a moderately dirty small cotton or mixed fabric load in only 25 minutes

Important : The amount of detergent used must be halved for this program.

HYGIENE PROGRAM

The Hygiene program can effectively wash masks and clothes thanks to a 30 minute washing phase at 65^ .

COTTON/SPONGE PROGRAM

Also recommended for bathrobes and towels.

MIXED PROGRAM

This program is ideal for a load of laundry comprising mixed fibres and resistant synthetics.

DELICATE/WOOL PROGRAM

This program is suitable for a load of laundry comprising delicate fibres. During the washing phase the laundry is cradled, as if washed by hand, then gently spun.

20°C PROGRAM

This is a low temperature wash program that is recommended for washing and protecting colours.

RINSE/SPIN PROGRAM

It allows only spinning with draining.

Important: In the case of rinsing followed by spinning alone, be careful to choose a spin speed suitable for the type of laundry put into the machine.

SHIRT PROGRAM

Program specially designed for washing in less than 40 minutes of 6 shirts normally dirty worn a day. The spin speed is adapted to limit wrinkling.

SPORTS PROGRAM

For technical textiles. Wash designed to preserve the elastic fibres contained in sportswear and not slacken them.

RINSE + OPTION

This key allows you to add one, two or three additional rinses to the normal cycle. This option is particularly recommended for people with sensitive skin and for very young children (Diagram 3.2.8).

PREWASH OPTION

The prewash allows a first bath to remove soil, sand, blood ... it then allows washing in clean water.

It is also necessary to introduce detergent (powder detergent only) in the pre-wash comment the detergent drawer (Diagram 2.2).

EASY IRONING OPTION

The washing speed and the spin speed are adapted in order to limit the wrinkling of the clothes and facilitate their ironing.

FAVORITE

With this function you can record your favorite program and recall it as soon as your appliance is switched on by simply pressing this button.

To save your favorite program: choose your program, your temperature, your spin and any options. Save the setting by pressing and holding button A beep will confirm that your settings have been saved.

DRIP DRY FUNCTION (10)

This function, for very delicate laundry, makes it possible to limit the spinning to 100 rpm and to go directly to emptying the washing machine.

FULL DRUM STOP FUNCTION (E=J)

This function enables you to remove the washing from your machine before the spin phase or to delay this phase with you washing remaining in water to prevent creasing.

When the machine has stopped with a full drum, the = icon flashes and the remaining time indicator shows "00:00" (Diagram 3.2.9).

Then:

If you want to drain and spin, select a spin speed suitable for the type of laundry using the button 7.

The cycle resumes automatically

Or, if you want to drain only using the button 7 select the "drip dry" function (spin speed "I 10").

The cycle resumes automatically

The program will stop automatically.

Programs table					山
Programs		Temperature (°C)	Maximum weight of dry clothes	Cycle duration (*)	Prewash	Rinse +	Easy ironing	Drip-dry	Full drum stop
	ECO 40 - 60	40 6,5 kg	1h30 - 3h23					●	●
	Cotton/Sponge	Cold - 90 6,5 kg	kg 1h50 - 2h30		●	●	●	●	●
	Mixed	Cold - 60 3 kg	1h20 - 1h50		●	●	●	●	●
Special programs
39	Quick 39'	Cold - 40 3 kg	39 min			●		●	●
25	Flash 25'	Cold - 40 2,5 kg	25 min					●	●
	Hygiene	60 4 kg	2h00			●		●	●
	Shirts	Cold - 40 1,5 kg	37 min			●	●	●	●
	Sports	Cold - 40 2,5 kg	1h20 - 1h30		●	●	●	●	●
	Delicate/Wool	Cold - 40 1,5 kg	30 - 40 min			●		●	●
	20°C	20 4 kg	2h00		●	●	●	●	●
Additional programs
	Rinse	-	-	18 min				●	●
	Spin --			10 min				●

(*) Cycle times are provided as an average, «without options». They may vary depending on the load, water temperature and options selected: for example, you need to add 16 minutes for the «Rinse +» option on the Cotton/Sponge cycle, or up to 3 minutes if your model is equipped with the «Posistop» function.

You washing machine can automatically optimise the length of the wash cycle and the water and energy consumption of every wash.

- Adjustment to the quantity of laundry:

Washing 1kg of laundry is not the same as washing a full load, which is the reason why your washing machine is equipped with sensors that detect the quantity of laundry in the drum and automatically calculate the right levels of water and energy required to produce a perfect wash.

- Adjustment to the hardness of the water:

The hardness of the water in your mains supply affects the wash and rinse performances of your appliance, which is the reason why your washing machine automatically adapts the tumble time and the number of rinses to produce a perfect result.

The water hardness is adjusted when you use your washing machine for the first time (see special insert).

- Adjustment to the type of textile:

Cotton shirts and cashmere pullovers do not demand the same wash, which is the reason why your washing machine adapts its tumble speed to each type of textile.

4 - REGULAR CARE

4.1 - AVOIDING BAD SMELLS

Respect the installation instructions for the drain hose described in paragraph 1.3, leave the lid open after the cycle has finished. Complete an empty cycle with a washing agent at 60^ or 90^ once a month.

4.2 - PRODUCT DRAWER (Diagram 4.1)

• Release the drawer by pressing the Bumps A, pull it towards you. Remove the siphon B, separate the drawer C from the trim D.
  Rinse everything under the tap.
• Refit all of the parts of the drawer, then fit it back under the lid of the machine.

4.3 - EXTRACTING FOREIGN BODIES FROM THE FILTERS AND REGULARLY CHECKING THEM

Checking the filters is recommended once a year to ensure that the washing machine functions correctly. To do this,

• Unplug your washing machine
• Close the water tap.

WATER INLET FILTER

• Unscrew the water inlet hose from the tap; check the filter at the end of the hose. Remove any detritus; clean the filter with a brush if necessary. Screw the water inlet hose back onto the tap.

PUMP FILTER (Diagram. 4.2)

• Unlock part A at the bottom of the drum by pressing a pencil into hole B while pushing to the right.
• Remove any small objects that may have fallen between the drum and the tank.
• Turn the drum forwards.
• Remove the pump filter, remove any objects that may be present, and rinse in water
• Reposition parts C and A;
• Push part A to the left until it clicks into place.

After you have finished checking:

• Open the water tap.
• Reconnect your washing machine.

4.4 - OUTSIDE PANELS

Do not use abrasive products or scourers. Use liquidsoap. Dry with a soft cloth.

4.5 - LIMESCALE PREVENTION

If the water in your region is particularly hard, using a washing machine de-scaling product is recommended.

Regularly check the drum for scale. If necessary, run a wash cycle with the drum empty and a de-scaling product, referring to the instructions on the product packaging.

Incidents may arise when using your washing machine:

If the screen shows one of the following errors and an alarm beeps, before calling Customer Service:

5.1

check whether:

• The water tap is open.

5.2

check whether:

• The lid is not closed correctly.
• The drump is block

5.3

check whether:

• The pump filter is clogged; clean the filter (paragraph 4.3).

If any other anomaly than those shown above is displayed, contact the After-Sales Service indicating the code to make it easier for them.

Any attempt by the user or a non-professional to repair the appliance could endanger the user's safety and will terminate the appliance's warranty.

Here are a few points to check:

Problems: Causes / Remedies:
The washing machine will not start:	- The appliance is not plugged in or there is a power cut. - You haven't pressed the «Start/Pause» button 2. - You have programed a delayed start. - See problems 5.1 and 5.2
The linen is not or not sufficiently spun:	- You have selected a program without spin drying or with limited spin drying. - The spin safety system has detected poor distribution of the washing in the drum : unfold the linen and program another spin cycle. - Check the height of the curved drain part H (Diagram 1.3).
A puddle of water forms on the floor:	First remove the plug from the socket and turn off the water supply. - Check that the seals G are fitted and the connectors are tightened (Diagram 1.2). - Check the curved part is positioned correctly H (Diagram 1.3).
Strong vibrations when spin drying:	- The washing machine has not been released correctly (Diagram 1.1.3). - The floor is not level (paragraph 1.4).
The machine does not drain:	- You have programmed «Full drum stop». - The drain hose is bent or squashed (Diagram 1.3). - See problem 5.3.
The lid does not open :	- The program has not yet finished. - Wait until the temperature inside the machine drops.
The drum is blocked :	If you have access, check that a small item of linen is not trapped between the drum and the tank, by removing part A from the bottom of the drum (Diagram 4.2). - See problem 5.2.
The drum doors open very slowly (on machines fitted with gently opening doors) :	- Your machine has not operated for a long time. - It is located in too cold a position. - Detergent residue (powder) is blocking the hinges. - in all cases, everything returns to normal after the doors have opened initially.
At the end of the program the display is off:	- In order to save energy the display automatically turns off after 5 minutes maximum after the end of your program. A simple press of any button brings your display back into operation

6 - INFORMATION CONCERNING THE EU REGULATIONS 2019/2023

Additional product information is provided below in accordance with the EU 2019/2023 regulation. The reason: obligatory compliance with energy saving directives applicable to all devices sold in the EU.

PRODUCT INFORMATION

PROGRAM FOR TESTING IN ACCORDANCE WITH THE DELEGATED REGULATION (EU) NO. 2019/2014

• ECO 40-60 program - without options - max. spin

The ECO 40-60 program is suitable for washing moderately dirty cotton textiles labelled washable at 40^ or 60^ , in the same cycle. This program is used to test compliance with the EU ecodesign legislation.

Programs	Charge	Program Duration	Energy consumption	Water consumption	Maximum temperature	Residual humidity rate	Spin speed
	(kg) (h:min) (kWh/cycle) (l/cycle) (°C)			(%) (rpm)
ECO 40-60	6,5 3h23 0,865 50 40	51 1100/1200*
	3,25 2h39 0,310 36 25	52					1100/1200*
	1,5 2h10 0,270 30 30	57 1100/1200*
20 °C	4 2h00 0,200 45 20	50 1100/1200*
Hygiene	4 2h00 1,050 40 60	55 1100/1200*
Mixed 40°C	3 1h30 0,470 48 40 60						1000
Quick 39'	3 0h39 0,430 45 40	55 1100/1200*
Cotton/Sponge 90°C	6,5 2h30 1,400 55 80	50 1100/1200*

(*) Depending on model.

Values provided for programs other than the ECO 40-60 program are simple guidelines. They may vary depending on the appliance's conditions of use and environment.

The actual wash temperature may differ from the indicated program temperature for reasons related to energy saving.

The most efficient programs in terms of energy and water consumption are usually the programs that run at low temperatures over a longer period.

Energy and water can be saved by loading the washing machine to the maximum capacity indicated by the manufacturer for each program.

Noise and residual humidity levels are affected by the spin speed: the faster the machine spins during the spin cycle, the louder the noise and the lower the residual humidity level.

6 - INFORMATION CONCERNING THE EU REGULATIONS 2019/2023 (continued)

Visit the dedicated website https://eprel.ec.europa.eu/ to access information concerning your model and its related energy labelling which is stored in the product database in accordance with the (EU) 2019/2016 regulation.

Find the reference of your appliance on the website by entering the service reference shown on the ID plate on your appliance.

Another way to access this information is to flash the QR code found on your product's energy label.

WASHING YOUR CLOTHES CORRECTLY

Care labels on items of clothing specify appropriate detergents, temperatures and settings.

Type of cloth Program Detergent
White cotton laundry	Cotton Temp. ≤ 90°C Detergent with a bleaching product
Coloured linen or cotton laundry	Cotton Temp. ≤ 60°C Detergent for coloured laundry without a bleaching product
Synthetic items	Mixed Temp. ≤ 60°C Colour/delicate detergent
Delicate fabrics	Delicate-wool Temp. ≤ 30°C Detergent for delicate laundry
Wool	Delicate-wool Temp. ≤ 30°C Detergent for woollen items

INTERVENTIONS / EXPORT CONSUMER RELATIONS

Any work on your appliance must be carried out by a qualified professional who is a dealer of the brand. When you call, so that we can handle your case efficiently, make sure you have the full references of your appliance (commercial reference, service reference, serial number). This information is on the ID plate (Diagram 1.1.1).

Original parts:

The European Regulation (EU) 2019-2019 states that spare parts must be available, especially for the appliance user, for a minimum period of 10 years under the terms set out in the above regulation.

During maintenance work, request that only certified genuine replacement parts are used.

For information:

www.brandt.com

or contact your seller directly.

PROGRAMM 20^

PROGRAMMA COTONE/SPUGNA

PROGRAMMA 20^

PROGRAM 20^

PROGRAM 20^

PROGRAM 20^

INFORMACIE O PRODUKTE

PROGRAM PRE SKUŠKY PODLA DELEGOVANÉHO NARIADENIA (EU) C. 2019/2014
