USER MANUAL HAMTB56IWCS HAIER

UserInstructions EN HOBS

4 Safety informations
9 Product introduction
10 Before starting
13 Operation of product
21 Cooking guidelines
22 Care and cleaning
23 Failure display and inspection
25 Disposal & declaration of conformity
26 Installation

WELCOME

Thank you for choosing our product. To ensure your safety and get the best results, please read this manual carefully, including the safety instructions, and keep it for future reference. Before installing the hob, note the serial number, which you might need for repairs. Check for any damage during transportation and consult a technician if you're unsure before using it. Keep packaging materials away from children.

NOTE: Please note that the hob's accessories may vary depending on the model you purchased.

1.1 GENERAL WARNINGS

• Read these instructions carefully before installing or using this appliance.
• WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.
• NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.
• WARNING: Danger of fire: do not store items on the cooking surfaces.
• WARNING: Use only hob guards designed by the manufacturer of the cooking appliance or indicated by the manufacturer of the appliance in the instructions for use as suitable or hob guards incorporated in the appliance. The use of inappropriate guards can cause accidents.

1.1.1 Use Limitations

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazard involved.

• Children shall not play with the appliance.

- Cleaning and user maintenance shall not be made by children without supervision.

- This appliance complies with electromagnetic safety standards. However, persons with cardiac pacemakers or other electrical implants (such as insulin pumps) must consult with their doctor or implant manufacturer before using this appliance to make sure that their implants will not be affected by the electromagnetic field. Failure to follow this advice may result in death.

1.1.2. Use in Accordance With The Intended Use

- This appliance is intended to be used in household and similar applications such as:

- staff kitchen areas in shops, offices and other working environments;

- farm houses;

- by clients in hotels, motels and other residential type environments;

- bed and breakfast type environments.

- Never use your appliance as a work or storage surface.

- Never use your appliance for warming or heating the room.

1.2. INSTALLATION

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

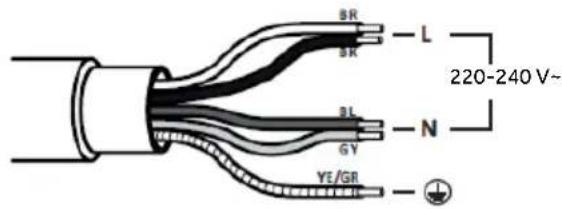

- Connection to a good earth wiring system is essential and mandatory.

- This appliance is to be properly installed and earthed only by a suitably qualified person.

- Disconnect the appliance from the mains electricity supply before carrying out any work or maintenance on it in order to avoid a hazard, which could result in injury or cuts.

- Please make this information available to the person responsible for installing the appliance as it could reduce your installation costs.

- Failure to install the appliance correctly could invalidate any warranty or liability claims.

1.3 ELECTRICAL WARNINGS

• This appliance should be connected to a circuit which incorporates an isolating switch providing full disconnection from the power supply for all poles under overvoltage category III conditions. Means for disconnection must be in accordance with the writing rules.
- WARNING: in order to avoid any danger caused by the accidental resetting of the thermal interruption device, the appliance should not be powered by an external switching device, such as a timer, or be connected to a circuit that is regularly switched on and off.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.
• Alterations to the domestic wiring system must only be made by a qualified electrician.
- Failure to follow this advice may result in electrical shock or death.

1.4 USE & MANTEINANCE

• WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.
• WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire.
• CAUTION: The cooking process has to be supervised. A short term cooking process has to be supervised continuously.
• Disconnect the appliance from the mains electricity supply before carrying out any work or maintenance on it.
• No combustible material or products should be placed on this appliance at any time.

• Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot.
  • A steam cleaner is not to be used.

• Do not use a steam cleaner to clean your cooktop.

• Do not store items on the cooking surfaces.
• Do not let your body, clothing or any item other than suitable cookware contact the Induction glass until the surface is cool.
• Handles of saucepans may be hot to touch. Check saucepan handles do not overhang other cooking zones that are on. Keep handles out of reach of children. Failure to follow this advice could result in burns and scalds.

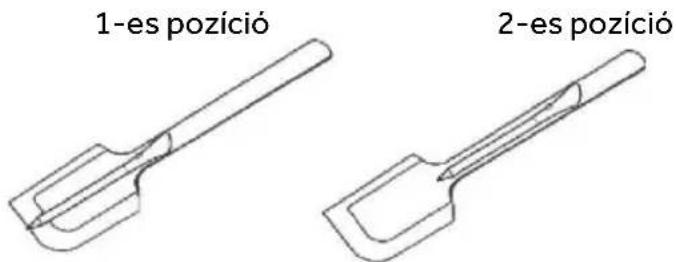

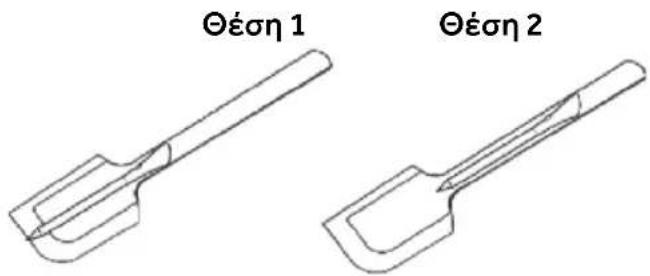

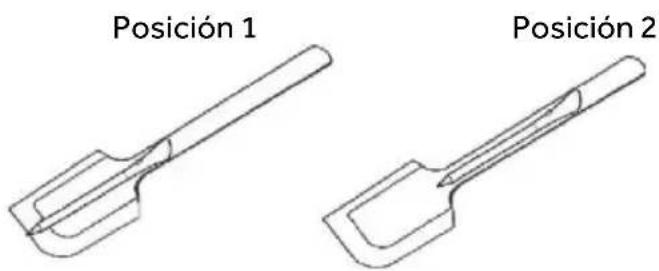

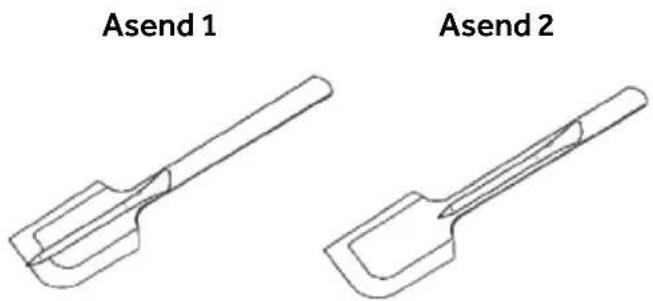

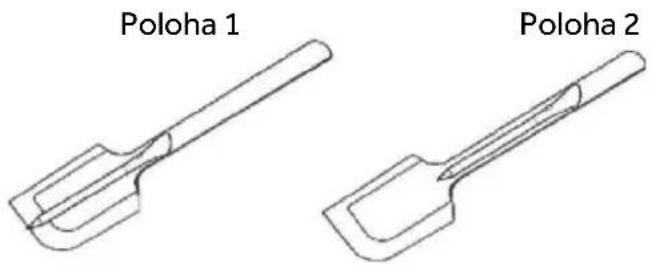

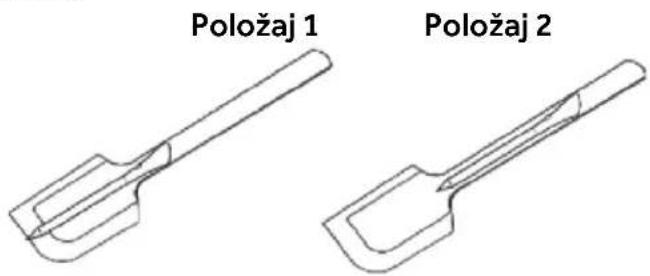

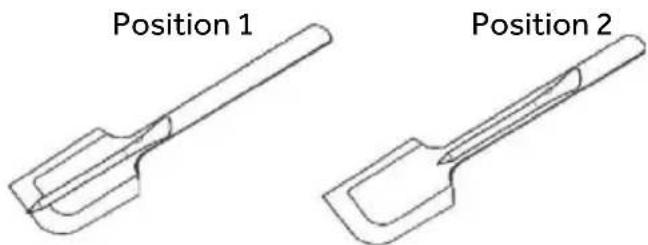

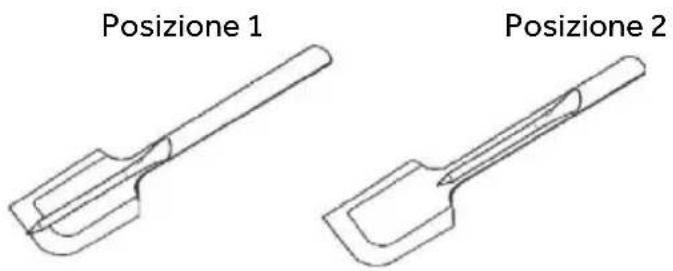

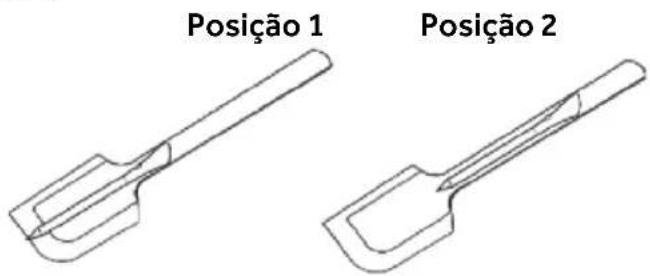

• The razor-sharp blade of a cooktop scraper is exposed when the safety cover is retracted. Use with extreme care and always store safely and out of reach of children. Failure to use caution could result in injury or cuts.
• Do not place or leave any magnetisable objects (e.g. credit cards, memory cards) or electronic devices (e.g. computers, MP3 players) near the appliance, as they may be affected by its electromagnetic field.
• Do not repair or replace any part of the appliance unless specifically recommended in the manual. All other servicing should be done by a qualified technician.
• Do not place or drop heavy objects on your cooktop.
• Do not use pans with jagged edges or drag pans across the Induction glass surface as this can scratch the glass.
• Do not use scourers or any other harsh abrasive cleaning agents to clean your cooktop, as these can scratch the Induction glass.
• Do not use adapters for cooking vessels.
• WARNING: when one or more cooking zone shut down, the presence of residual heat is indicated by a visual signal on the corresponding zone display, by way of the H symbol. When this symbol is active, be careful not to touch the hob, or there is a risk of burns.

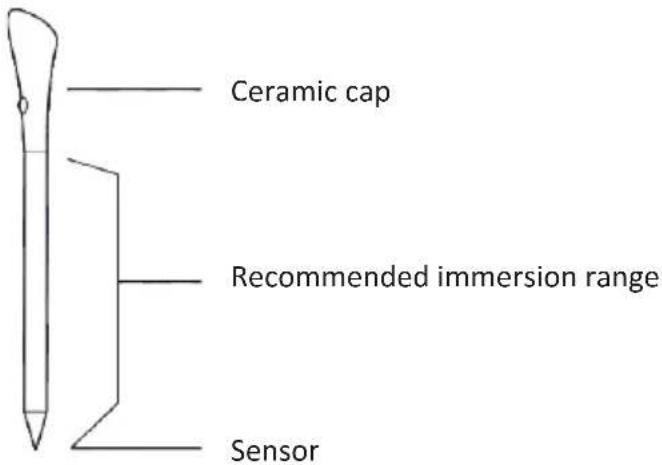

1.5 WARNINGS Wireless Temperature Probe (available depending on the model)

This product is exclusive for hobs appliances. It should only be used as described in this User Manual.

• DO NOT TOUCH Preci Prob WITH BARE HANDS JUST AFTER COOKING. Always wear oven gloves to remove Preci Probe from the food after cooking.
• It is required to FULLY INSERT Preci Probe metal bar properly into the food until the BLACK ceramic EDGE of it during cooking.

insert Preci Probe in the food up to here

Simple line drawing of a pointed object with an arrow pointing downward (no text or symbols)

• Do not use Heat Feel Sensor in a microwave oven.
• Heat Feel Sensor can be cleaned and washed but do not immerse it long in water.
• This product is not intended for use by persons with ages 12 and under.
• The supplier will not be liable for any damage of Heat Feel Sensor due to misuse of the device.
• Clean the Heat Feel Sensor before the use.
• Probe can work in this range of temperature: 10^ to an internal maximum temperature of 100^ of the metal part. Ceramic part can reach 350^ .
• If the Heat Feel Sensor temperature exceeds 100°C, cooking will stop and the Heat Feel Sensor must be removed from the oven as soon as possible, wearing gloves, to avoid damage to the probe.

2. PRODUCT INTRODUCTION

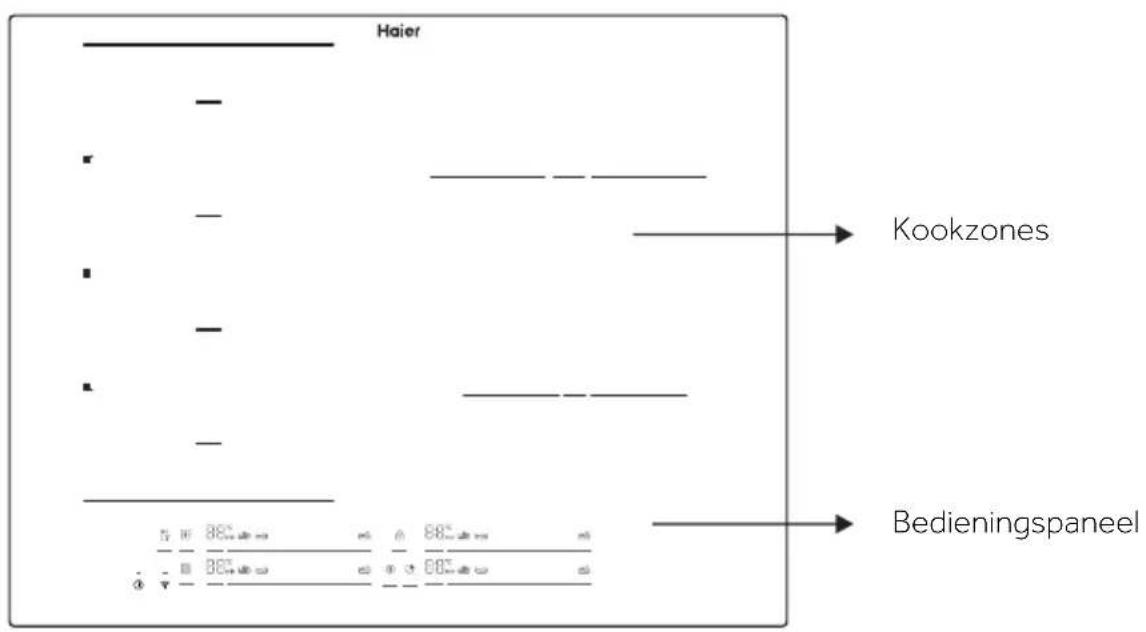

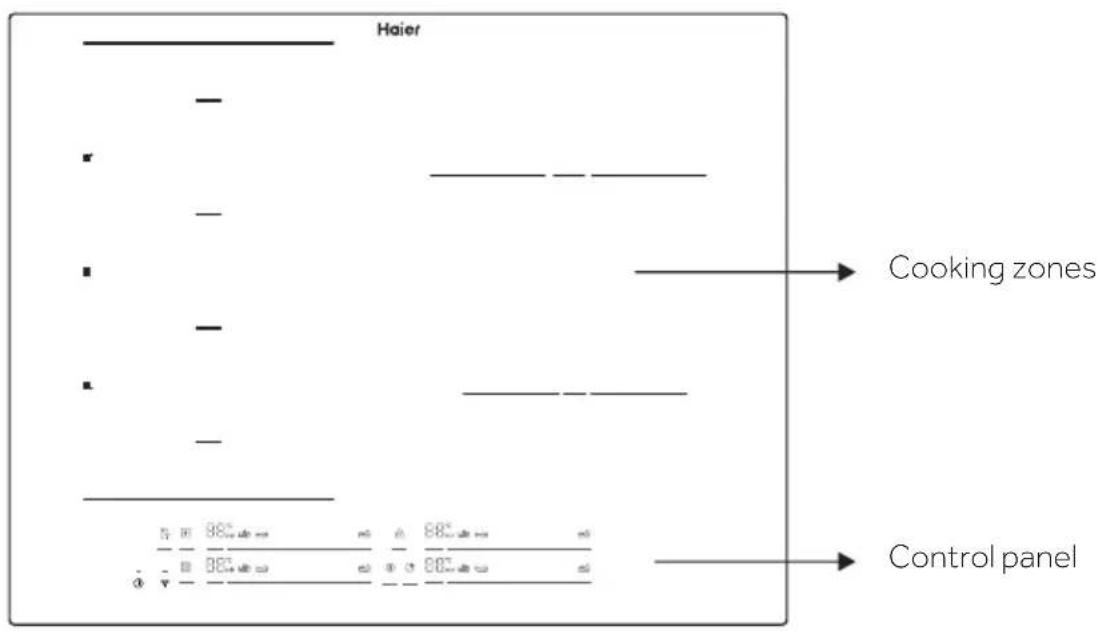

2.1 TOP VIEW OF THE PRODUCT

Haier Cooking zones Control panel

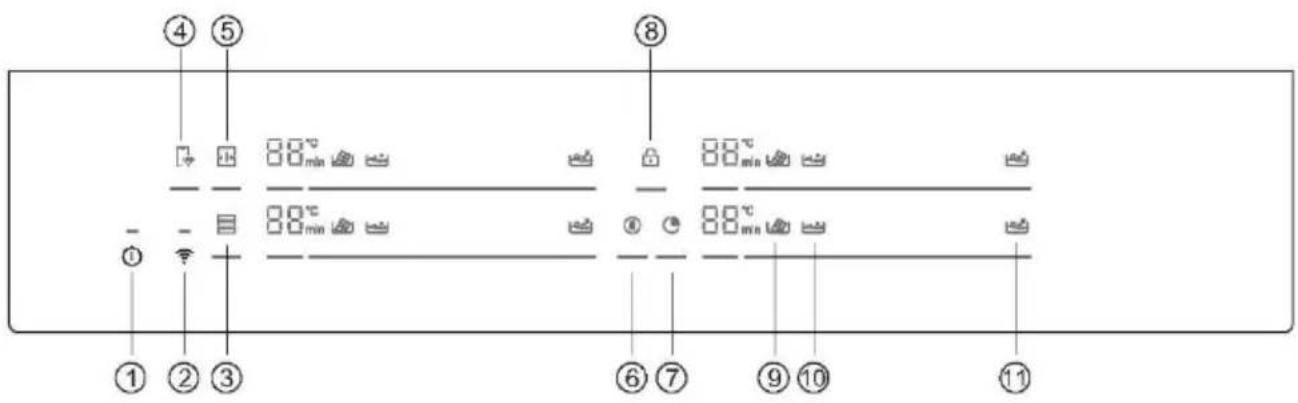

2.2. CONTROL PANEL

④ ⑤ 8 0 min 0 min 0 min ① - - ① 2 ③ ⑥ ⑦ ⑨ ⑩ ⑪

1. ON/OFF
2. WIFI
3. Varycook

4. Remote Control

5. Full Zone

6. Pause
7. Timer

8. Child lock

9. Melting
   10.Simmering
   11.Boiling

3. BEFORE STARTING

3.1 GENERAL INFORMATION

Before you begin, is important to know: all functions of this hob are designed in order to comply with the most stringent safety regulations.

For this reason:

• Some functions will be activated, or will be automatically deactivated in absence of pots on the burners or when they are not correctly positioned.
• In other cases, functions will be automatically deactivated after a few seconds when it requires more than one step (e.g. "SWITCHING ON/OFF THE HOB" without "SELECT THE COOKING ZONE").
• In case of longtime use, the appliance may not immediately shut down, even with all the cooking zones off, because it is in the cooling phase; the H symbol appears on the cooking zone display until it is cooled.

Safe activation: the product is activated with the presence of pots on the cooking zone. The heating process does not start or is interrupted if there are no pots or if these are removed.

Pot detector: after the hob is switched on, the product automatically detects the presence of pots on the cooking zones, even before activating them.

Safety shut down: for safety reasons, each cooking zone has a maximum operating time, which depends on the maximum power level set (p.13).

3.2. POWER MANAGEMENT

When product is first used, the hob is set to maximum reachable power. Different power limits can be chosen according with home main supply system by using power management function.

How to set the power management

It is possible to set a maximum power absorption level for the Induction hob, choosing up to different power ranges.

Induction hobs are able to limit themselves automatically in order to work at lower power level, to avoid the risk of overloading.

To enter Power Management Function:

• Turn on the hob, then press at the same time 📄 and Ⓐ.
• The timer indicator will show "P8" which means power level 8. The default mode is on 7.4 kW.

To switch to another level

• Scroll left and right the slider to change the power management level.
• There are 8 power levels, from "P1" to "P8". The timer indicator will show one of them:

P1 P2	P3 P4	P5 P6	P7 P8
2kW	2,5kW	3kW	3,5kW	4,5kW	5,5kW	6,8kW	7,4kW

Confirmation and Exit Power Management Function

For confirmation, turn off the hob. The power level will be saved automatically. Selected value is permanently stored and remains even after power down of the main supply. To change the power level repeat the operations described above.

NOTE: depending on the power management selection, some power levels and functions of the cooking zones could be automatically limited not to exceed the selected value. In particular, in case of a power management level set less than 4,5kw, Boost function, Varycook and some cooking preparations with the app, could not be selected.

In particular last power level selection can be refused/adjusted according with the available amount of residual power from the previous setting.

3.3. CHOOSING THE RIGHT COOKWARE

3.3.1. Characteristics of the cookware

Use only pots with the induction symbol.

- Only pots with a perfectly flat bottom. Otherwise, the following situations may occur:

• No pot detection;
• Low performance;
• Unwanted noise.

- Only pots with a smooth base, to avoid scratching the hob surface;

Simple line drawing of a frying pan with a handle and checkmark icon (no text or symbols)

NOTE: avoid as much as possible moving pot operations on the glass surface just to minimize scratches.

Magnet test

Induction cooking uses magnetism to generate heat; pots must therefore contain iron. If you already have a cookware you can check if the material is magnetic by using a magnet. Pots are suitable if they are magnetically attracted by the magnet.

Cookwares made from the following materials are not suitable: pure stainless steel, aluminum or copper without a magnetic base, glass, wood, porcelain, ceramic, earthenware.

3.3.2 Higher quality cookwares

All cookwares with the induction symbol are generally accepted. Depending on the type of bottom, however, the behavior may vary in particular last power level selection can be refused/adjusted according with the available amount of residual power from the previous setting.

When using large cookware with a smaller ferromagnetic element,

only the ferromagnetic element heats up. Consequently, heat might not be uniformly distributed.

Two 3D-rendered objects: a fan-shaped grid on the left and a circular object on the right, both without any text or symbols.

3.3.3. Dimension & placement

Always use the cooking zone that best matches the bottom diameter of the pan. Place the pot making sure it is well centered in the cooking area.

NOTE: it's recommended not to use pans that exceed the perimeter of the cooking zone.

For the correct working of the hob, it's necessary to use pots with the bottom diameter inside the range described in the following table.

	min.	90 mm	160 mm	160 mm	140 mm	90 mm
	max.	180 mm	220 mm	200x380 mm	210 mm	150 mm

NOTE: by using a cookware smaller than the minimum required, it could not be detected. While using one bigger than the maximum required, malfunctions or low performances may occur.

ATTENTION: do not put the pot on/near the control panel during cooking or cooling down.

4. OPERATION OF PRODUCT

4.1 HOW THE PRODUCT WORKS

SWITCHING ON/OFF THE HOB

To switch on/off the hob, press and hold for a while. A dedicated sound will indicate the status of the appliance.

0.0°C 0.0mm 0.0°C 0.0mm

0.0°C 0.0 min 8.0°C 0.0 min

SELECT THE COOKING ZONE AND SET THE POWER

The hob can automatically detect the pot once it is placed on the cooking zone by lighting the related zone indicator. There will not be a power level activation at this stage.

Zone can be selected by pressing the zone indicator.

The power can be set:

Sliding the finger on the slider;

Pressing directly on the right level.

00°C min

VS □ □ °C □ □ min ←

User can change power level during cooking, repeating the same process.

The digits will show the power level set: each cooking zone has a different number of power levels that goes from 1 (min) to 14 (max). Each level has an automatic shut down that could vary from 1h to 8h.

Power level	1 2 3 4 5 6 7 8 9 10 11 12	13 14
Time (h)	8 8 5 4 3 3 2 2 2 2 2 2 2 1

BOOST FUNCTION: it is also possible to choose the rapid heating by pressing the slider in correspondence of the 15.

• The function can be used in any cooking zone;
• After 10 minutes, the boost function automatically switches to level 14.

ATTENTION: after switching on the cooktop or after ending all cookings, if then any power level is set within one minute, the hob switches off.

If the display shows ✕, this means that:

• The pot is not positioned in the selected cooking zone;
• The pan is not correctly positioned/not placed at all on the hob;
• Pot isn't suitable for the induction;
- Dimensions of the pot are smaller than minimum pot diameter requested in the selected zone (p.12).
- If suitable pot is not placed within 1 minute cooking zone switches off.

H: once this symbol appears on the digits means that the cooking zone is still hot. When the surface is cooled down to a safe temperature the symbols disappears.

PAUSE

All the hobs can be put in pause by pressing the related key instead of being shut off.

To activate this function press . All the zone indicators will show and cooking is stopped. To deactivate press and previous power settings will be restored.

WARNING: When entering Pause mode, all the controls except the ON/OFF control are disabled. In this way the induction hob can always be turned off with the ON/OFF control in case of emergency.

TIMER

To select timer for one zone, press ⏻ and select the zone. On the digit display appears and, by scrolling the slider left and right, it's possible to adjust the desired timing.

When time is elapsed, the selected cooking zone will be switched off. Timer count until 60 min.

A maximum of four timers can be set at the same time one for each zone.

KEY LOCK

Hob can be locked by pressing to prevent unattended use.

When the appliance is locked, all the controls except the ON/OFF button are disabled.

To activate/deactivate the function press and hold for a while.

These functions can be activated after zone selection:

MELTING

Function used mainly for melting chocolates. After few minutes, when chocolate begins to melt, move to level 1 to keep it liquid without exceeding the ideal temperature.

SIMMERING

Function used for creams, sauce or generic low temperature liquid.

BOILING

Function used for water boiling and boil maintenance.

NOTE: any time cooking related to each function can be adjusted by selecting different power levels close to the suggested one

FULL ZONE

The Full zone is a cooking area that is a combination of more cooking zones in front and rear positions by creating a unique vertical zone. The Full zone, when activated, is controlled with one power level only.

To activate the function press ☐1. Only the upper digits will show feedbacks. The lower digits are switched off.

To deactivate long press the zone selector ☐.

Pots shall be placed as indicated in the picture on page 12.

VARYCOOK ZONE

This function is used to pre-set fixed power levels in three different areas according with the position of the pot: high (l.14), medium (l.10), low (l.1).

• If the pot is on the front of Varycook zone, the power level is set to 1;
• If the pot is on the middle of Varycook zone, the power level is set to 1.10;
• If the pot is on the rear of Varycook zone, the power level is set to 1.14.

To activate the function long press the zone selector ☐. Only the upper digits will show feedbacks. The lower digits are switched off.

To deactivate long press the zone selector.

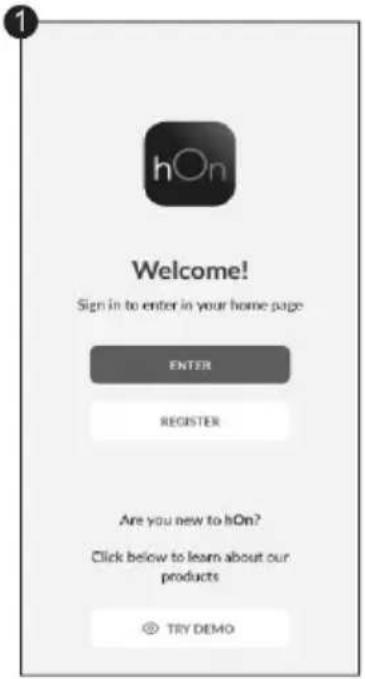

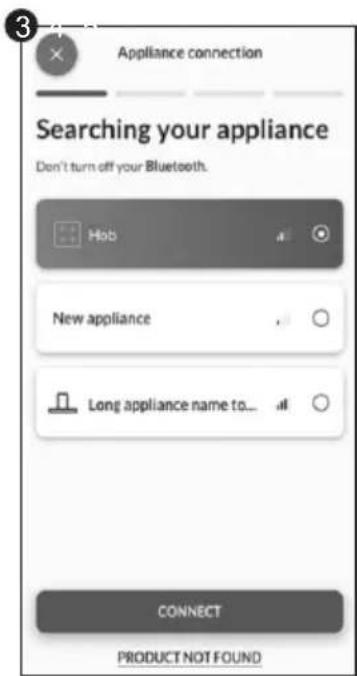

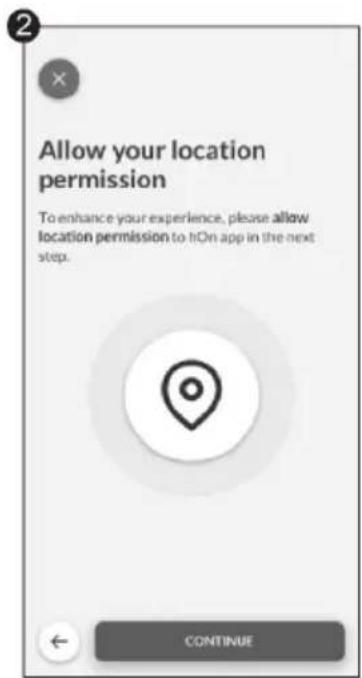

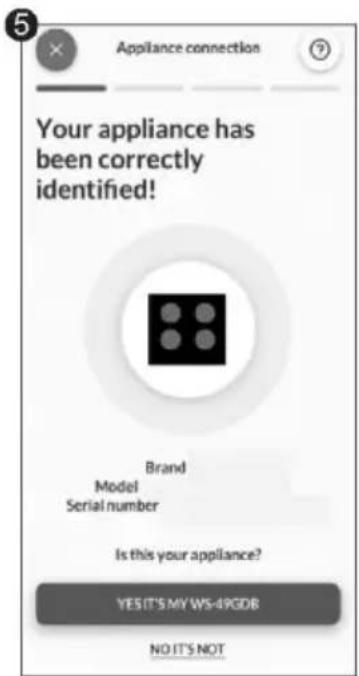

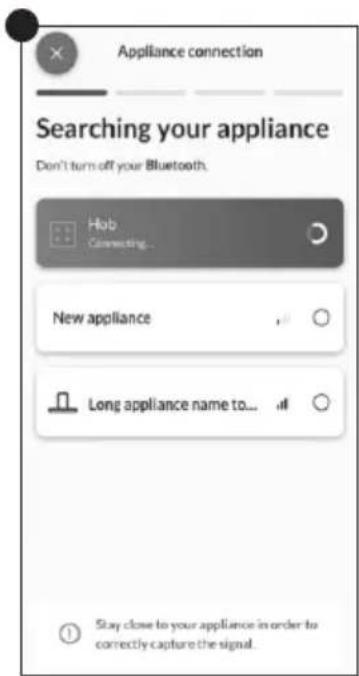

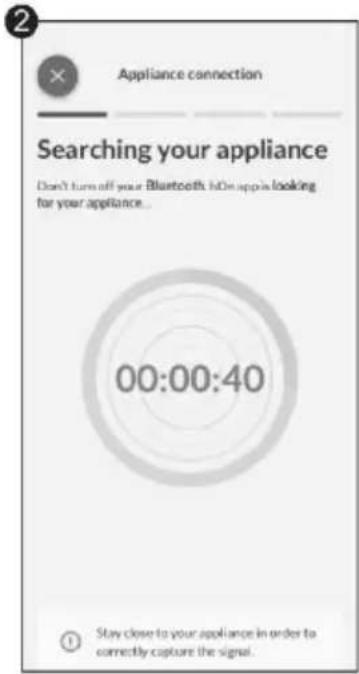

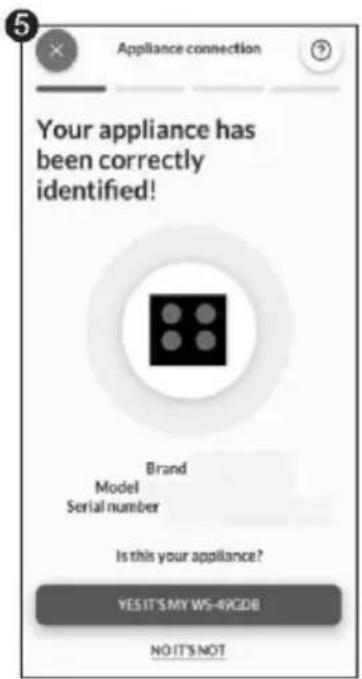

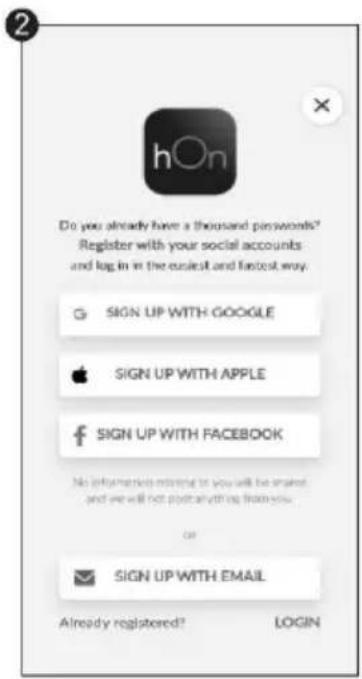

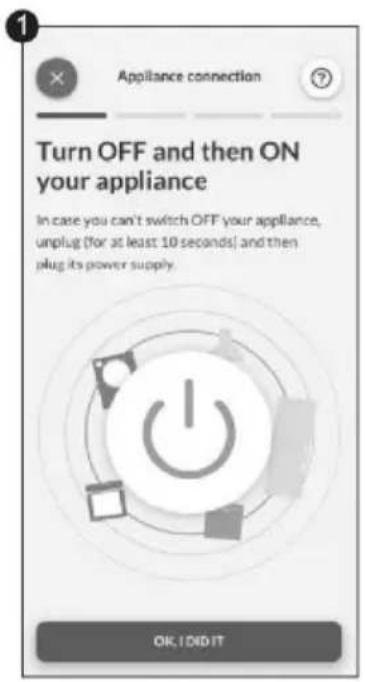

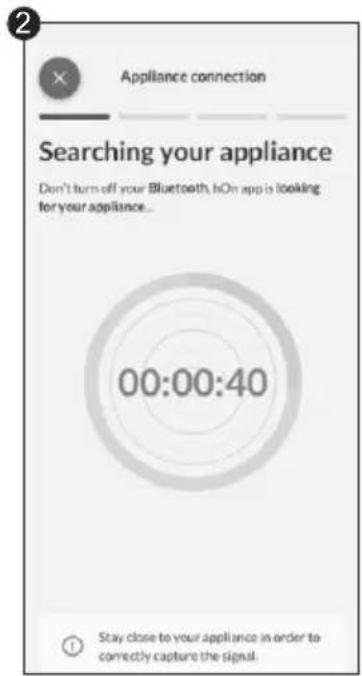

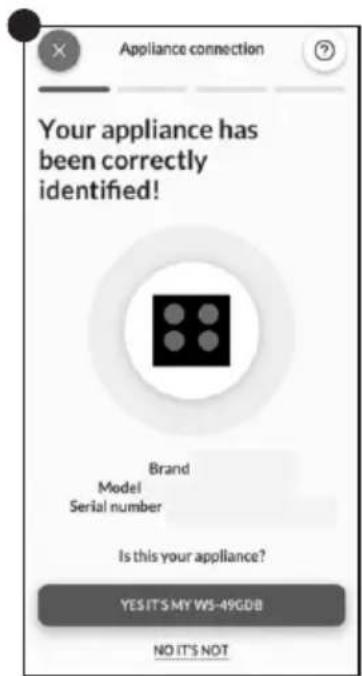

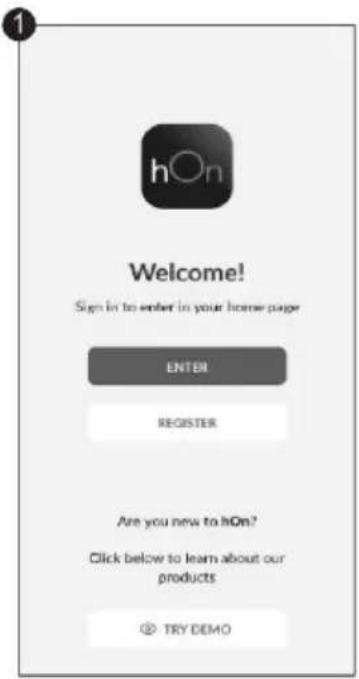

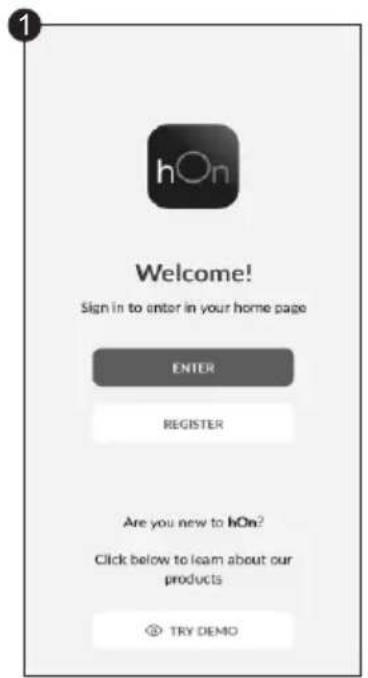

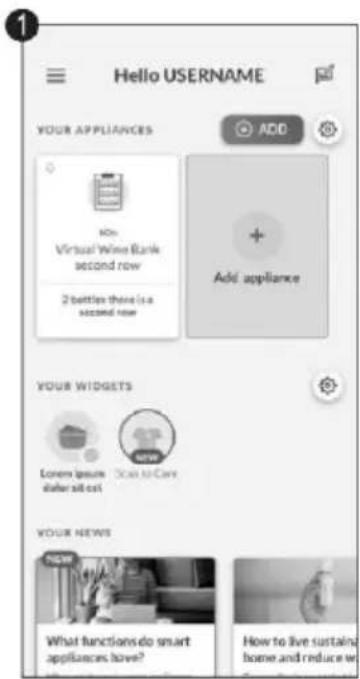

4.2. CONNECT TO hOn APP

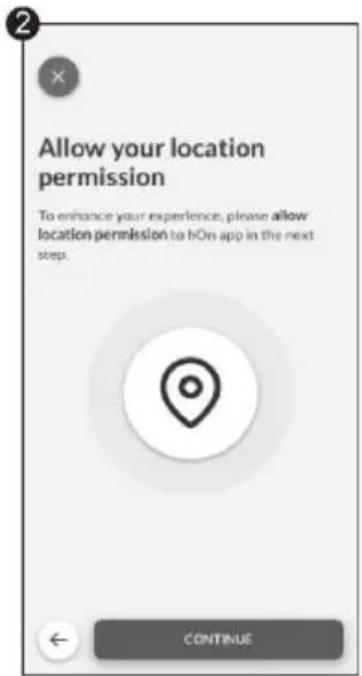

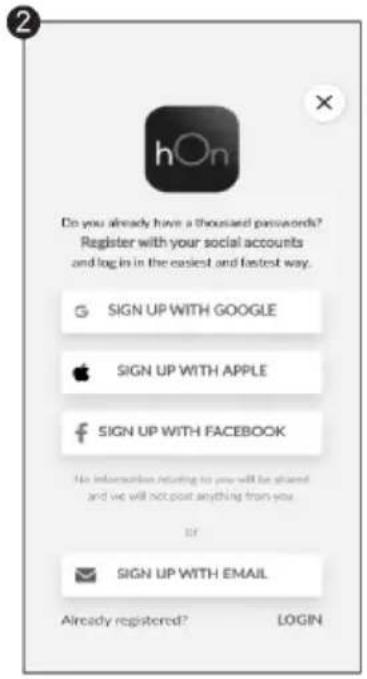

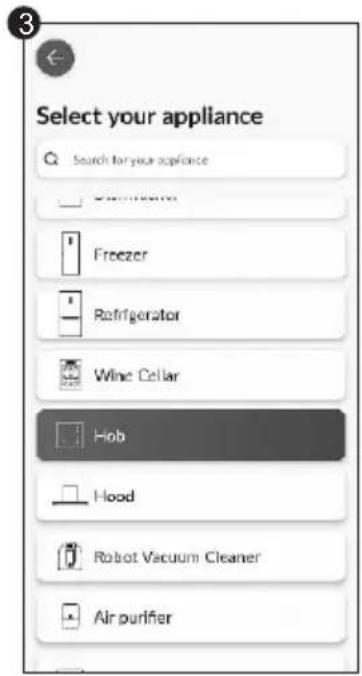

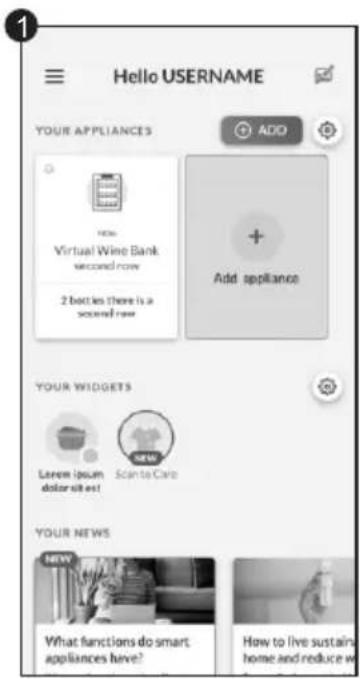

Your appliance may be connected to your home wireless network and operated remotely using the app. Connect your appliance to ensure it stays up to date with the latest software and features.

NOTE

• Once the hob is turned on, the WIFI icons blinks for 30 minutes. During this period it's possible to enroll the product.
  • Ensure your home Wi-Fi network is turned on.
  • You will be given step by step guidance on both your appliance and mobile device.
  • It may take up to 10 minutes to connect your hob.
• For further guidance and troubleshooting, please refer to the app.

Download hOn App on your smartphone.

QR code image containing encoded data, no visible human-readable text

New User Registration

1 hOn Welcome! Sign in to enter in your home page ENTER REGISTER Are you new to hOn? Click below to learn about our products TRY DEMO

Click on "Register"

Do you already have a thousand passwords? Register with your social accounts and log in in the context and fastest way. SIGN UP WITH GOOGLE SIGN UP WITH APPLE SIGN UP WITH FACEBOOK No information relating to you will be closed and we will not post anything then you OR SIGN UP WITH EMAIL Already registered? LOGIN

You can register through social accounts or sign up with your personal email

Quick Pair Enrollment

Hello USERNAME YOUR APPLIANCES ADD + Add appliance YOUR WIDGETS Lavem (poum dolor sit es! NEW Scanta Care YOUR NEWS NEW What functions do smart appliances have? How to live sustain home and reduce w

Select "Add appliance"

Allow your location permission To enhance your experience, please allow location permission to hOn app in the next step. CONTINUE

Allow your location permission

Select your appliance Search for your appliance Freezer Refrigerator Wine Cellar Hob Hood Robot Vacuum Cleaner Air purifier

Select Hob from the appliance category

Quick Pair Enrollment

1 Appliance connection Turn OFF and then ON your appliance In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply. OK, I DID IT

Turn on your appliance; if it is already on, turn it off and on again

Appliance connection Searching your appliance Don't turn off your Bluetooth, hOn app is looking for your appliance... 00:00:40 Stay close to your appliance in order to correctly capture the signal.

After turning on, the hOn app will start searching for your home appliance

Appliance connection Searching your appliance Don't turn off your Bluetooth. Hob New appliance Long appliance name to... CONNECT PRODUCT NOT FOUND

Select your home appliance, tap on "connect" and wait a few seconds

Appliance connection Searching your appliance Don't turn off your Bluetooth. Hob Connecting... New appliance Long appliance name to... Stay close to your appliance in order to correctly capture the signal.

Your appliance has been correctly identified! Brand Model Serial number Is this your appliance? YES IT'S MY WS-49GDB NO IT'S NOT

Your Hob will be found and you can display and set functions/recipes through hOn

Choose from the hOn App recipes menu or special programs menu. Follow step by step the indications on the App and when you have finished send the parameters to the hob that will cook for you.

When the hob receives the command from the app, the hob will beep for 2 times and blink for one second to indicate that the instructions have been received.

To start the recipe, press the "My Chef" button.

If you want to get out of " My Chef " function press 3 sec.

*Cooking results may vary due to used cookware.

WIRELESS PARAMETERS

Technology	Wi-Fi	Bluetooth
Standard	IEEE 802.11b/g/n	Bluetooth v4.2, BR / EDR, BLE
Frequency Band (s) [MHZ]	2401÷2483	2402÷2480
Maximum Power [mW]	100	10

Hereby, Candy Hoover Group Srl declares that the radio equipment is in compliance with Directive 2014/53/EU and with the relevant statutory requirements for the UK market. The full text of the declaration of conformity is available at the following internet address: www.candy-group.com

PRECI PROBE MODEL Et180 WIRELESS PARAMETERS:

Technology	Bluetooth
Standard	Bluetooth v4.0 BLE
Frequency Band (s) [MHZ]	2400÷2480
Maximum Power [mW]	2.5 -(4dBm)

4.3 ACCESSORIES

4.3.1. PRECI PROBE & LADLE-Intelligent Wireless Food Thermometer (available depending on the model)

Thank you for purchasing Haier Preci Probe. Please note it works only with Haier induction hob and before using it please read the following instruction and safety notes included in the user manual.

Introduction: Preci Probe is a wireless food thermometer that gives home chefs real-time status inside the food to avoid undercook or overcook disasters and ensuring the perfect result every time. It connects directly to the product. Details and the real-time status of the food can be read from your phone, giving you the best result at your fingertips. For further information on pairing and use tips, please refer to the instructions below.

Ceramic cap Recommended immersion range Sensor

CHARGE THE PRECIPROBE BEFORE USING:

• Put Preci Probe into the charger and close the cover;
- Connect the charger to a USB power source, such as USB adapter or USB socket of PC/notebook with the USB cable. The charger may not be working properly with power bank because of its auto switch-off function;
- LED of the charger will turn on and is flashing during charging. It will turn off when Preci Probe is fully charged.

PAIR THE PRECI PROBE WITH THE INDUCTION HOB:

• Make sure the hob is turned on and your Preci Probe is fully charged;
- Go on the hOn APP from your portable device;
- Go to the Recipes section and choose a recipe that uses Preci Probe;
- Once you start the recipe by pushing the "Cook with me [?" button on the appliance, the Preci Probe will connect automatically;
• The applists all available probes that can be selected for the recipe;
- ThehobdisplaywillindicatethenameoftheselectedPreciProbe(ex "1A");
• Now follow the instructions from the hOn APP;
- When using the app if the probe is under 20% of charge the Timer display will indicate "CH".

LADLE

Use the ladle with the probe to stir food during your cooking.

• Clean the ladle before the first use.
• Do not use the ladle on an open flame.
• Do not cut the ladle.
• Do not put the ladle in direct contact with the hot accessible parts of the hob.
  • Tolerated temperature +220°C

Simple line drawing of a spatula or plunger (no text or symbols)

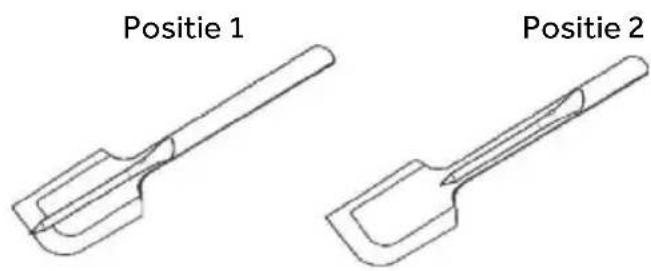

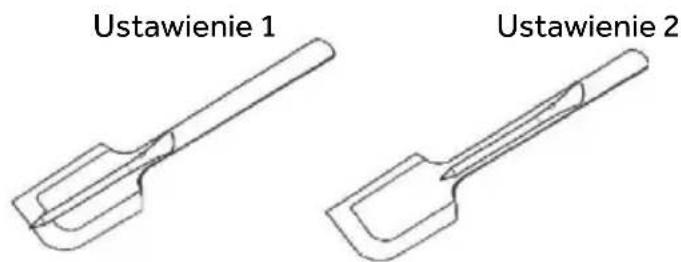

Position 1
Position 2

Two technical line drawings of a mechanical tool or tool with curved surfaces (no text or symbols)

4.4. COOKING PREPARATIONS WITH THE APP

Preci Probe as thermometer

Set in the hOn App the target temperature you want to reach, insert the Preci Probe inside the food or with its accessory inside liquids and you will see the temperature raising from the app until reaching the target temperature.

It will help you to accurately maintain the temperature for all kind of food. You cannot use it when the Assisted Cooking function operates.

Assisted Cooking: "Cook with me" function

Choose from the hOn App recipes or special programs, follow step by step the preparation and then the hob will automatically set the parameters for the chosen cooking method.

Sous Vide

Type of cooking in which the food is placed in a vacuum bag and cooked in a low temperature water bath.

The food prepared in this way will be more juicy and tender and will keep the nutritional properties intact, making it healthier and tastier.

Go on the hOn App select the category of food, select this type of cooking, insert the bas with the food in the pot with water and the induction hob will set the correct cooking temperature for a perfect result.

Grill

Select the category of food from the hOn App, select this type of cooking and the induction hob will automatically bring the grill to the correct temperature in a predetermined time.

Simmering

The simmering function is ideal for cooking sauces, stews, braised dishes and all preparations with an average long cooking time.

The automatic function you find on the hOn App will gently bring the food to a slightly boiling temperature, keeping it for all the duration of cooking.

Steaming

With the steaming function you can steam food such as vegetables, meat or fish in pots equipped with a steamer basket. Steam cooking is faster than boiling, as it is not immersed in a liquid it disperses less nutrients contained in the food and preserves its vitamin content, improving its taste and structure which will be more compact and pleasant.

If necessary, contact the authorized service center.

5.1 POWER TABLE

POWER LEVEL	TYPE OF COOKING SUGGESTED USE
14/15 BOOSTER	Fast Heating, Booster	Ideal for stir-frying, searing, bringing soup to the boil, boiling water
11-13	Frying, Grilling, Keep Boiling	Ideal for starting cooking, sautéing, cooking pasta, deep frying, grilling
5-10	Stewing, Cooking	Ideal for preheat stewing, keep gentle boiling, cooking, long & continuos frying (rice, roast, pancakes*)
3-4	Simmering, Keep Warm, Slow Cooking	Ideal for slow cooking recipes, gentle simmering, cream sauces and liquid
1-2	Melting, Keep Liquid, Defrosting	Delicate warming for small amounts of food, slow warming, melting & keep liquid chocolate**
OFF	-	-

*Continuous frying pancake at level 5-6.
**Melting Level 2, when begins to melt, move to level 1 to keep liquid.

5.2. COOKING TABLE

FOOD CATEGORY	RECIPE	Preheat		Cooking
		Heating Phase	Power Level Power Level
Pasta & rice	Pasta	Heating Water	14 - 15 6 - 11
	Rice Pudding	Heating Milk	13 - 15 6 - 8
	Boiled Rice	Heating Water	14 - 15	6 - 8
	Risotto	Stir-frying & Roasting	13 - 15	6 - 8
Meat	Roast Meat	Stir-frying & Roasting	10 - 13	6 - 11
	Grilled Steak	Preheat Grill	10 - 13	10 - 13
	Sausages & Hamburger	Preheat Grill	10 - 11	10 - 13
	Chicken Pieces	Preheat Pan	10 - 11	6 - 10
	Breaded Steak	Preheat Pan	6 - 11	10 - 13
Fish	Grilled Fish	Preheat Grill	10 - 13	8 - 10
	Fillet Fish	Stir-frying	10 - 13	8 - 10
	Shrimps & Prawns	Stir-frying	10 - 13 10 - 13
Vegetables & legumes	Fresh Frying Potatoes	Heating Oil*	14	11 - 14
	Frozen Frying Potatoes	Heating Oil*	14	11 - 14
	Grilled vegetables	Preheat Grill	6 - 11	10 - 13
	Peppers, Zucchini & Eggplant	Preheat Pan	6 - 11	10 - 13
Eggs & Egg products	Hard Boiled Eggs	Heating Water	14 - 15 6 - 8
	Fried Eggs	Stir-frying	10 - 13	8 - 10
	Pancakes	Preheat Pan	6 - 11	5 - 7
Sauces, Creams & Dessert	Tomato Sauces	Heating Sauces	4 - 6 2 - 4
	Melted Cheese	Melting	6 - 11	2 - 5
	Cream & Custard	Heating Cream	4 - 6 2 - 4
	Melted Chocolate	Melting	1 - 2 1
	Butter	Melting	1 - 3 1 - 3

6.1 GENERAL RECOMMENDATIONS

Regular cleaning can extend the lifecycle of your appliance.

• Clean the hob after each use;
• Always use cookware with a clean base;
• Scratches on the surface have no effect on how the operates;
• Use a special cleaner suitable for the surface of the hob;
• Use a special scraper for the glass.

6.2. CLEANING THE HOB

Before procedure with the cleaning, make sure that the cooking zones are turned off. Always remember to follow the recommended cleaning instructions and avoid using abrasive products that could damage the surface of the cooktop.

a) FATTYSOIL

This procedure is recommended for these kinds of scenarios; splatters caused by frying or grilling meat.

• Let the hob cooldown.
- Absorb any excess liquid around the pot with kitchen paper, then remove the pot.
- Clean the cooking surface with a cloth and detergent solution.
- If necessary, clean the hob a second time using hot water and cleaner for induction hob glasses.

b) SUGARYSOIL

This procedure is recommended for foods that, due to their high sugar content, need to be promptly removed to prevent damage to the hob surface (syrups, jams, or preserves).

• When the hob is still warm, absorb any excess liquid around the pot with kitchen paper, then remove the pot.
• If necessary, we recommend using a scraper at an acute angle to remove any remaining residue.
• Clean the cooking surface with a detergent solution and dry it with the kitchen paper.
• If necessary, clean the hob a second time using hot water and cleaner for induction hob glasses.

c) STARCHY SOIL

This cleaning procedure is recommended for these kinds of foods: pasta, rice and potatoes.

• Absorb any excess liquid around the pot with kitchen paper, then remove the pot.
  • Let the hob cooldown.
• Use a damp cloth to moisten any starch residues. Allow it to sit for a couple of minutes.
• Clean the cooking surface with a cloth and detergent solution.
  • After cleaning, wipe the hob dry with a soft cloth.
• If necessary, clean the hob a second time using hot water and cleaner for induction hob glasses.

NOTE: Please consider these instructions also for; water rings, limescale rings, fat stains.

d) SHINY METALLIC DISCOLORATION

Use a solution of water with vinegar and clean the glass surface with a cloth.

7. FAILURE DISPLAY & INSPECTION

7.1 TROUBLESHOOTING

Problem	Possible causes	What to do
The induction hob cannot be turned on.	No power.	Make sure the induction hob is connected to the power supply. Check whether there is a power outage in your home or area. If the problem persists, call a qualified technician.
The touch controls are unresponsive.	The controls are locked.	Unlock the controls by checking the section 'How product works'.
The touch controls are difficult to operate.	There might be water residue on the controls, or you might not be applying the correct pressure to the buttons.	Make sure the touch control area is dry and use the right pression when touching the controls.
The glass is being scratched.	Rough-edged cookware. Unsuitable, abrasive scourer or cleaning products being used.	Use cookware with flat and smooth bases. See 'Choosing the right cookware' and "Care and cleaning" sections.
Some pans make crackling or clicking noises.	This may be caused by the construction of your cookware (layers of different metals vibrating differently).	This is normal for cookware and does not indicate a fault.
The induction hob makes a low humming noise when used on a high heat setting.	This is caused by the technology of induction cooking.	This is normal, but the noise should quieten down or disappear completely when you decrease the heat setting.
Fan noise coming from the induction hob.	A cooling fan built into your induction hob has come on to prevent the electronics from overheating. It may continue to run even after you've turned the induction hob off.	This is normal and needs no action. Do not switch the power to the induction hob off at the wall while the fan is running.
Pans do not become hot and "U" appears in the dis play.	The induction hob cannot detect the pan because it is not suitable for induction cooking. The induction hob cannot detect the pan because it is too small for the cooking zone or not properly centred on it.	Use cookware suitable for induction cooking. See section 'Choosing the right cookware'. Centre the pan and make sure that its base matches the size of the cooking zone.
The induction hob or a cooking zone has turned itself off unexpectedly, a tone sounds and an error code is displayed (typically alternating with one or two digits in the cooking timer display).	Technical fault.	Please note down the error letters and numbers, switch the power to the induction hob off at the wall, and contact a qualified technician.

7.1.2 ERROR CODES

ERROR CODE	RULE OF DISPLAY		ACTIONS
E0			Call ASA
	Front left
E1			Call ASA
	Front left
E2			Call ASA
	Front left		Perform manual configuration via user manual
E3			Call ASA
			Call ASA
	Front left		Call ASA
E4	Left	Right	Call ASA
			Call ASA
			Call ASA
			Check mains voltage via user manual, if ok call ASA
			Check mains voltage via user manual, if ok call ASA
			Check mains phase signal and frequency, if ok call ASA
			Check mains cable & differential thermostat, if ok call ASA
E5			Wait for cooldown, clean and/or remove foreign bodies
	Front left		Call ASA
E6	Cz4	Cz1	Call ASA
	Cz3 Cz2		Check installation requirements via user manual, if ok call ASA
E7	Cz4	Cz1	Call ASA
			Call ASA
	Cz3 Cz2		Call ASA
E8	Cz4	Cz1	Check installation requirements via user manual, if ok call ASA
			Check installation requirements via user manual, if ok call ASA
	Cz3 Cz2
E9			Perform manual configuration via user manual
	Front left		Call ASA

*ASA = Service Center

8.ENVIRONMENTAL PROTECTION & DISPOSAL

8.1 SAVING AND RESPECTING THE ENVIRONMENT

Recommendations for best results;

Use pots and pans with a bottom diameter equal to that of the cooking zone;

Use only pots and pans with flat bottoms;

Where possible, keep the lid on pots during cooking;

Cook vegetables, potatoes, etc. with a minimal amount of water to reduce cooking time;

Use a pressure cooker as it further reduces the energy registered company.

consumption and cooking time.

Place the pot in the center of the cooking zone outlined of the hob.

8.2 WASTE MANAGEMENT AND

ENVIRONMENTAL PROTECTION

This appliance is labelled in accordance with European

Directive 2012/19/EU

regarding electric and electronic appliances (WEEE). The WEEE

contain both polluting substances

(that can have a negative effect on the environment) and base

elements (that can be reused).

c es on

It is important that the WEEE undergo specific treatments to correctly remove and dispose of the pollutants and recover all the materials. Individuals can play an important role in ensuring that the WEEE do not become an environmental problem; it is essential to follow a few basic rules:

• The WEEE should not be treated as domestic waste;
• The WEEE should be taken to dedicated collection areas managed by the town council or a

e-registered company.

In my countries, domestic collections may be available for large WEEEs. When you buy a new appliance, the old one can be returned to the vendor who must accept it free of charge as a one off, as long as the appliance is of an equivalent type and has he same function as the purchased appliance.

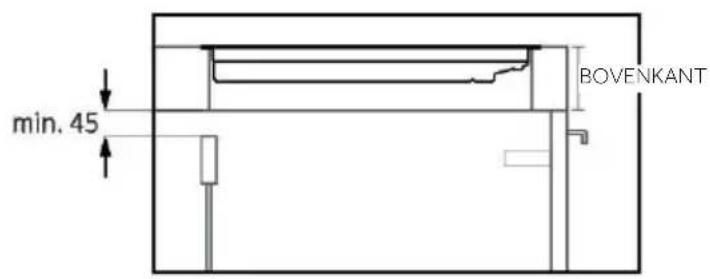

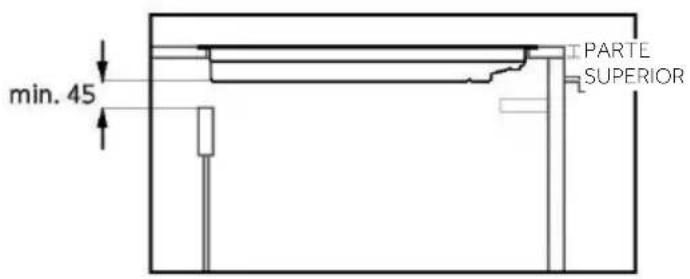

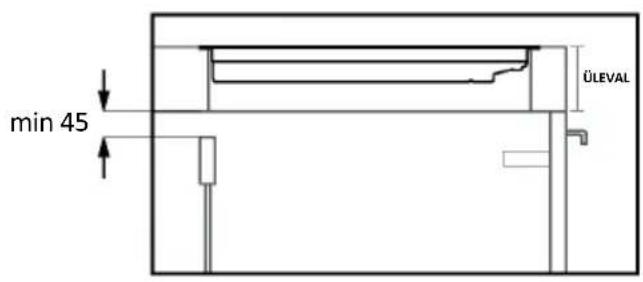

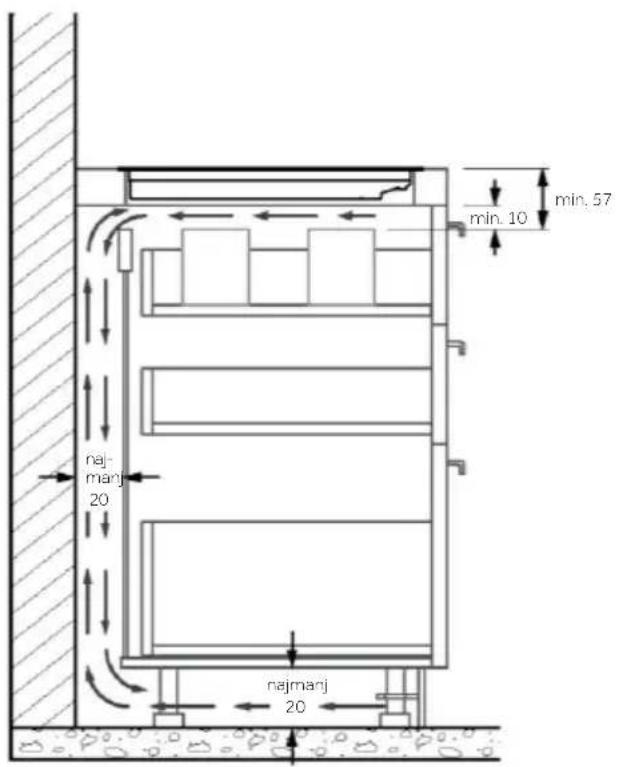

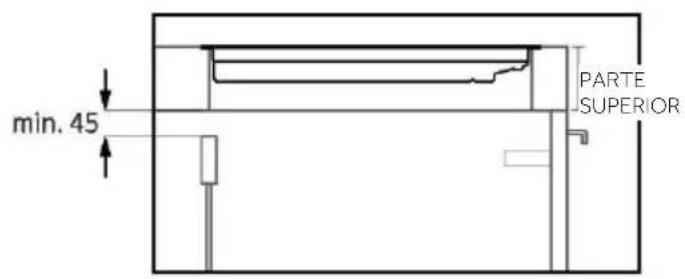

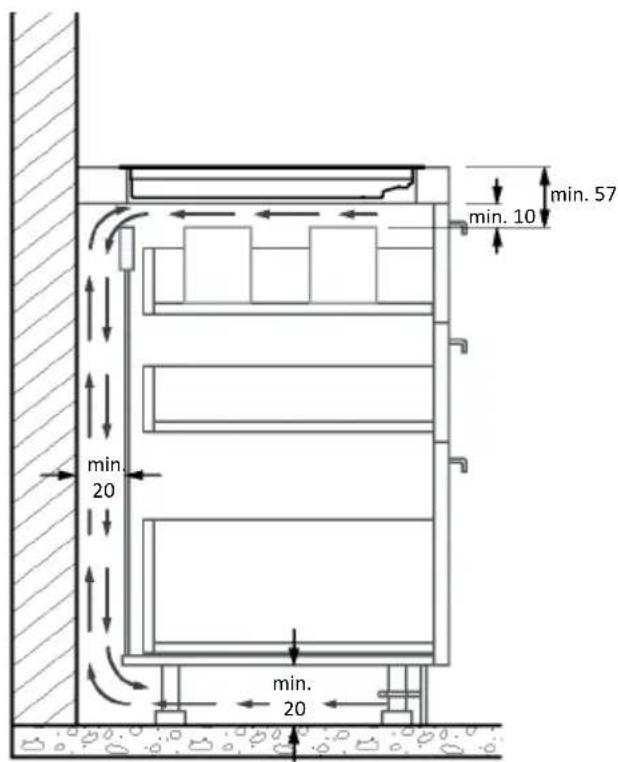

9. INSTALLATION

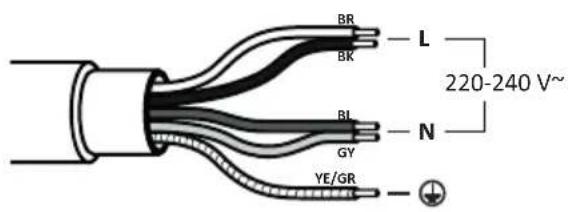

Electrical installation

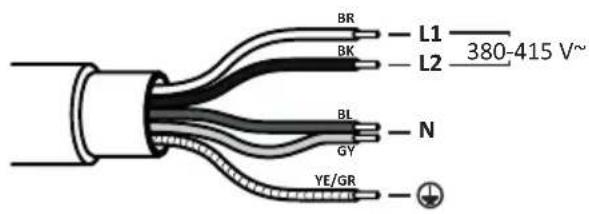

Power supply cable: The device is equipped with a power supply cable that must be connected to the domestic power grid. Identify the various connection options based on the type of domestic power supply from the corresponding diagram. The data plate also indicates the allowable connection voltage for this device and its corresponding power consumption.

220-240V/380-415V 2N\~ 220-240V

BR L1 —— L2 —— 380-415 V~ BK BL N GY YE/GR

BR L BK 220-240 V~ BL N GY YE/GR

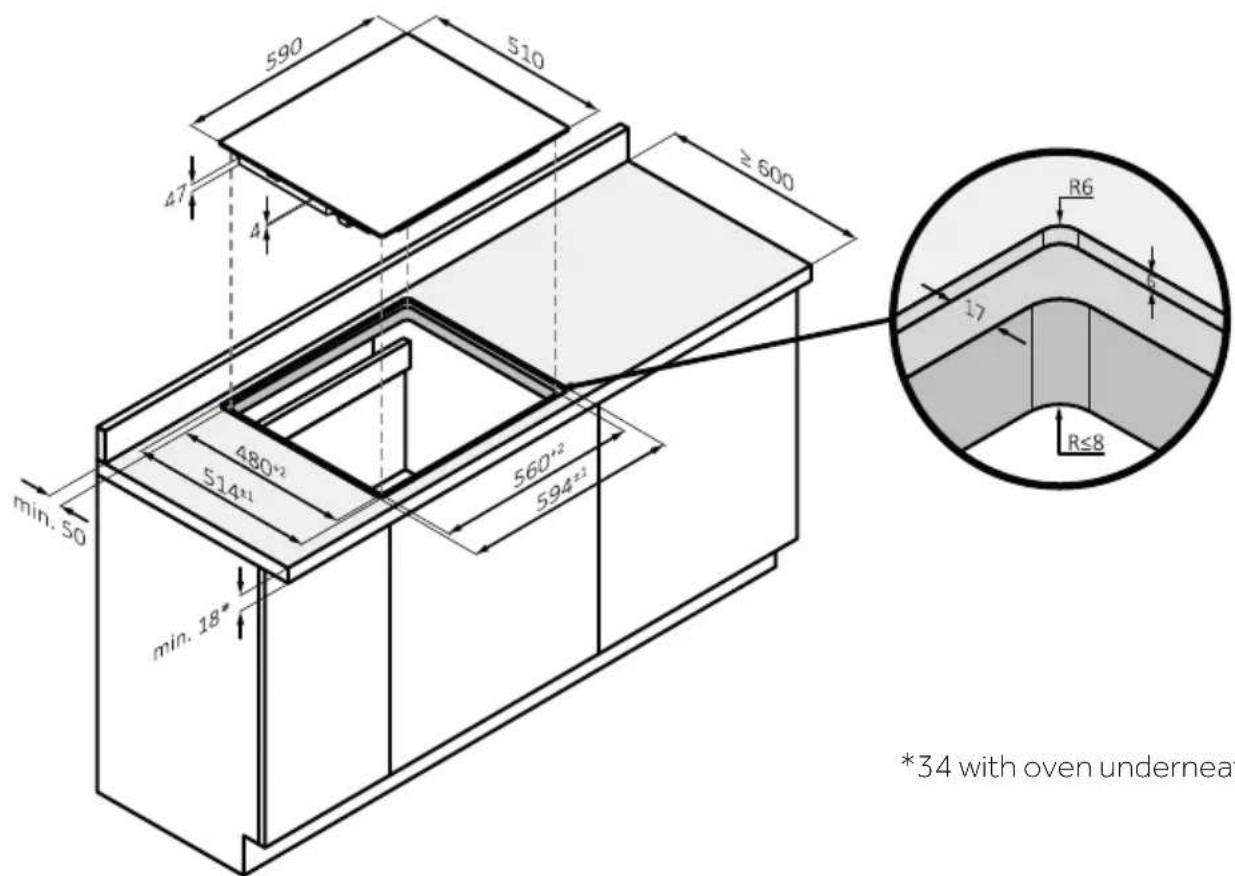

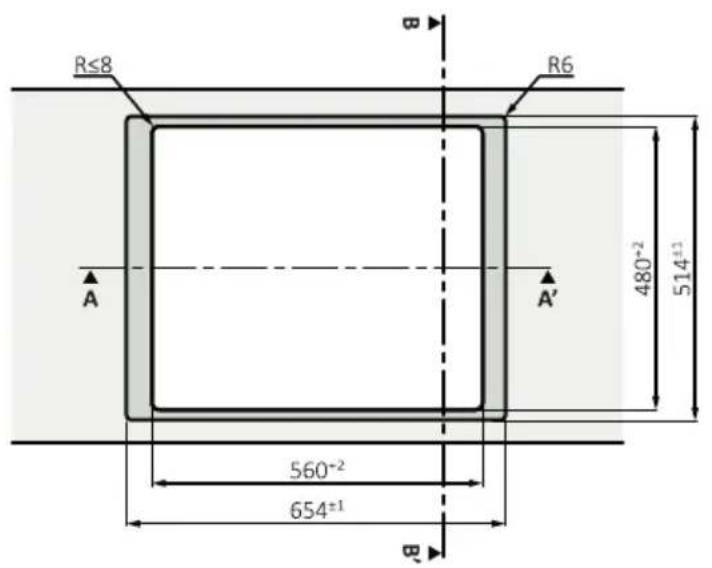

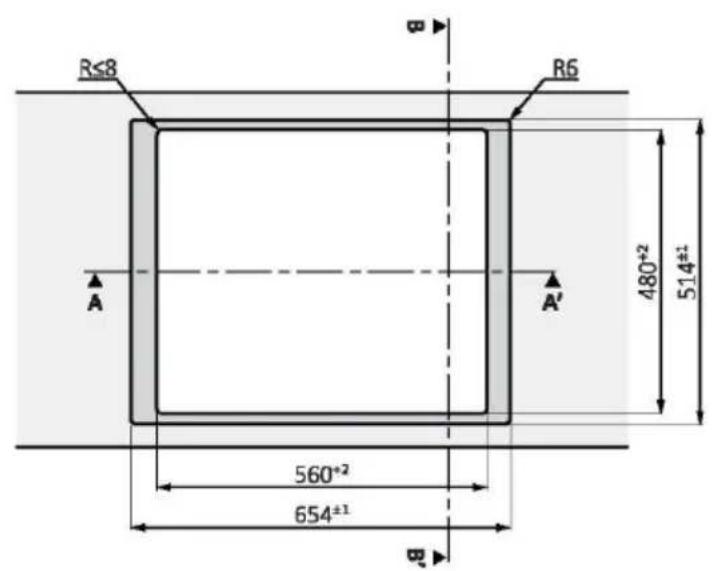

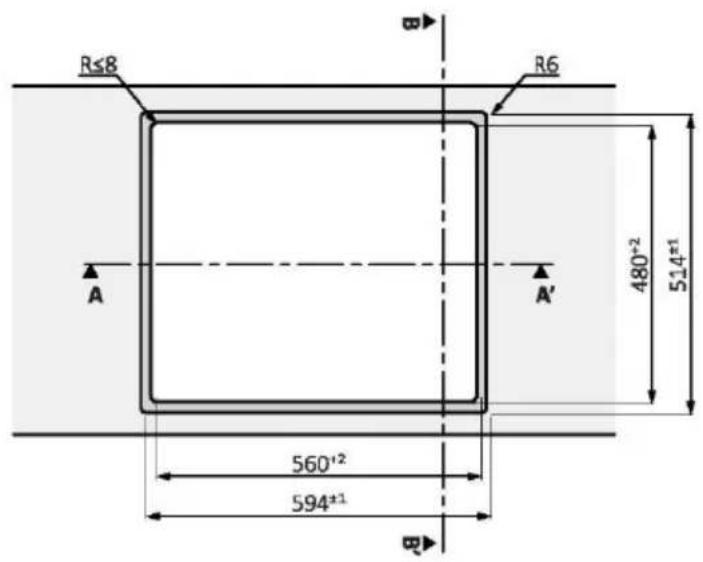

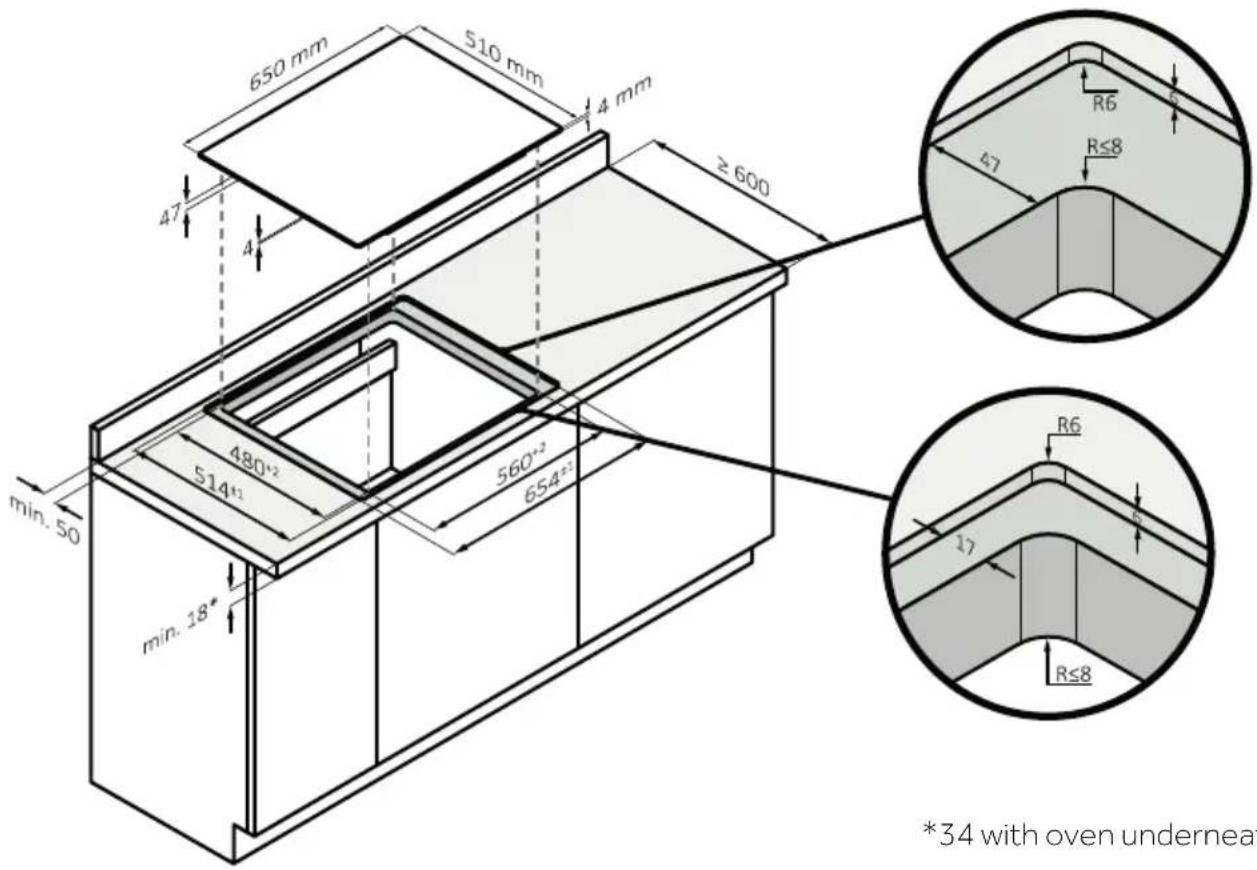

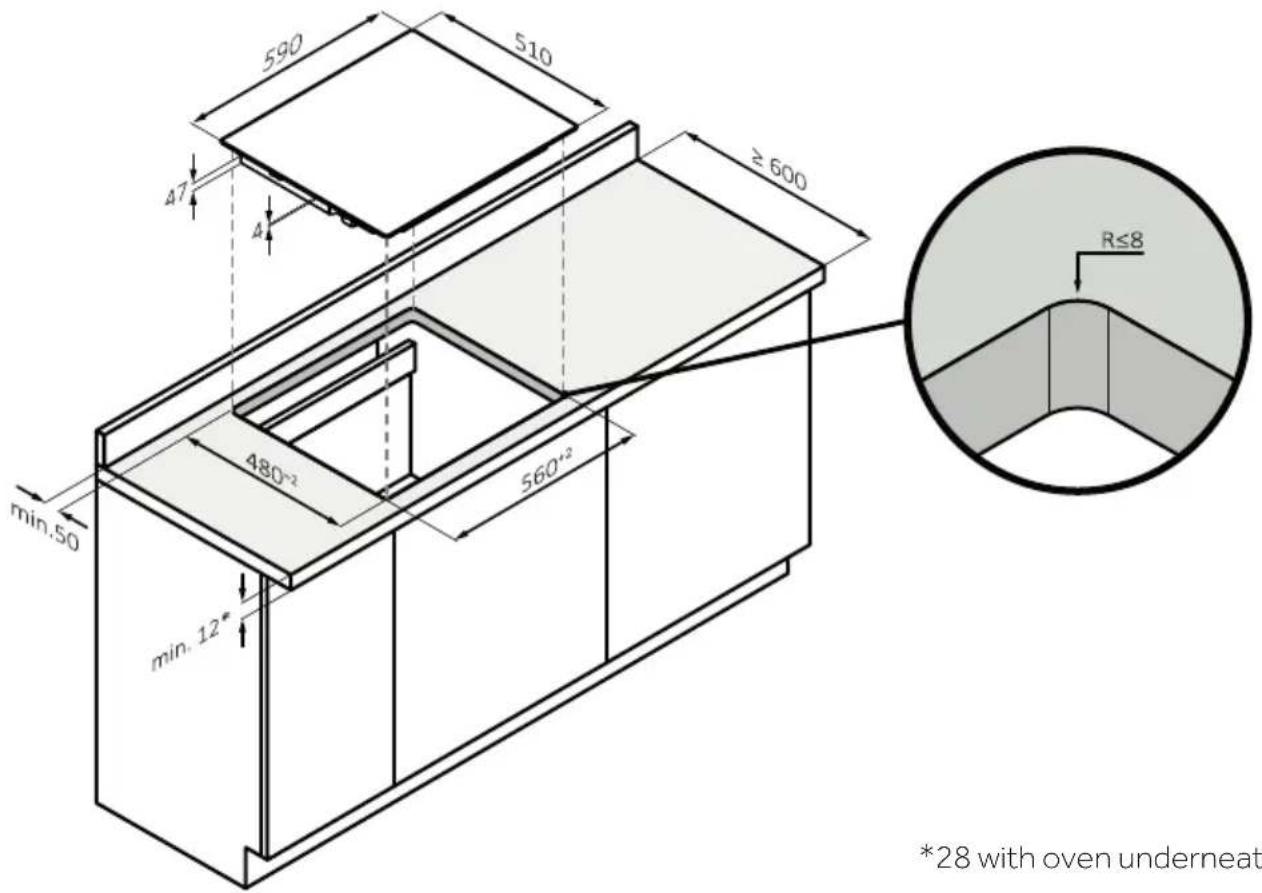

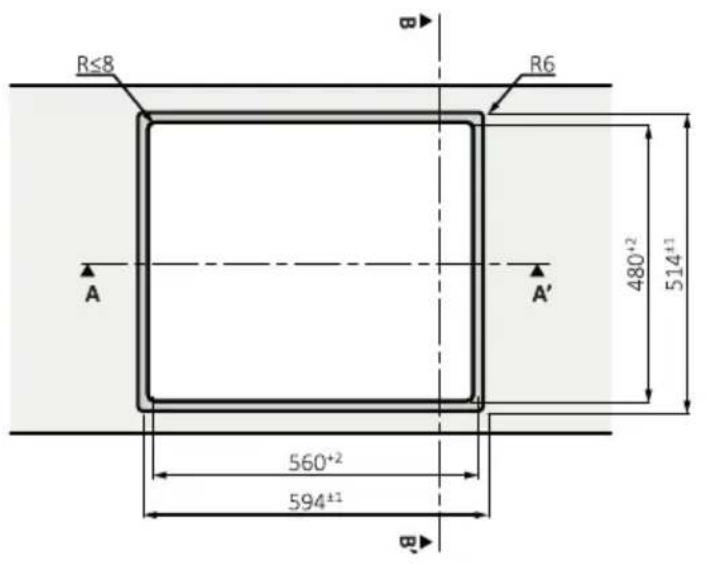

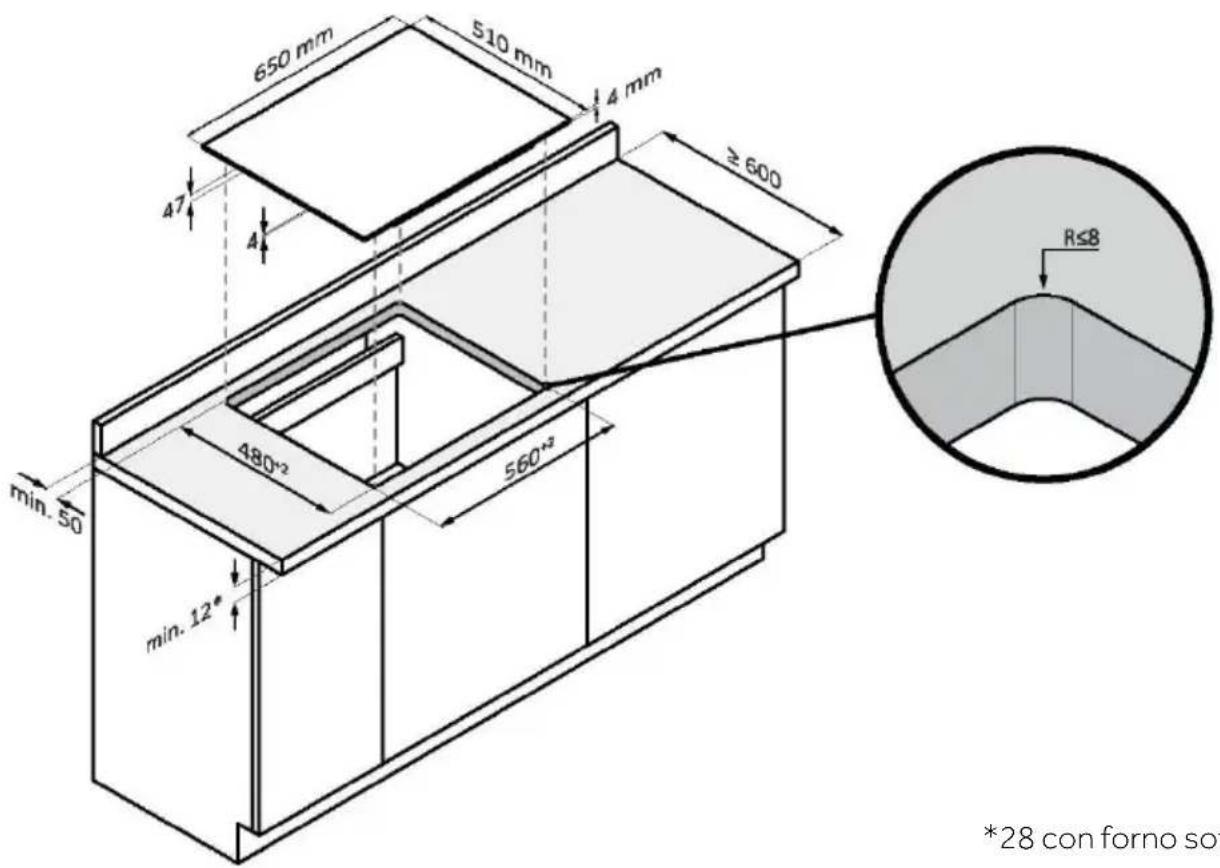

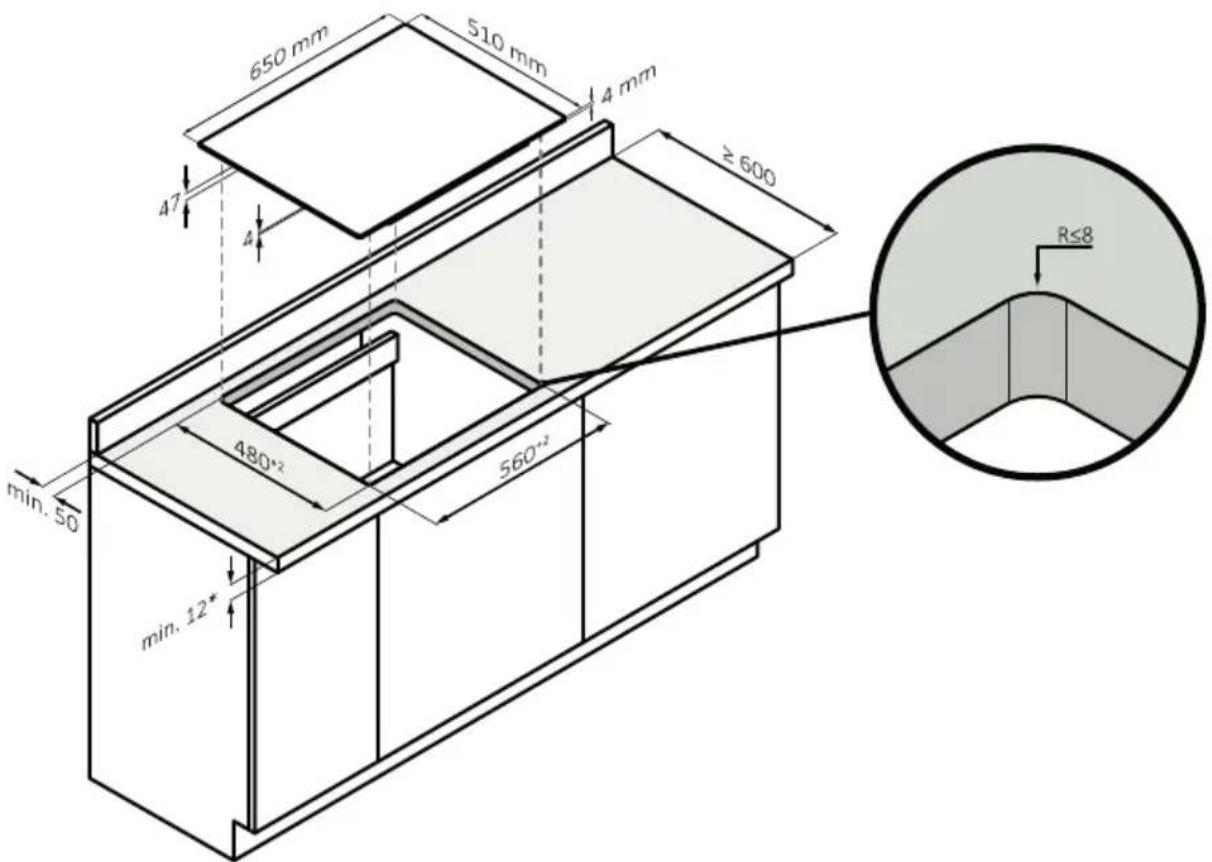

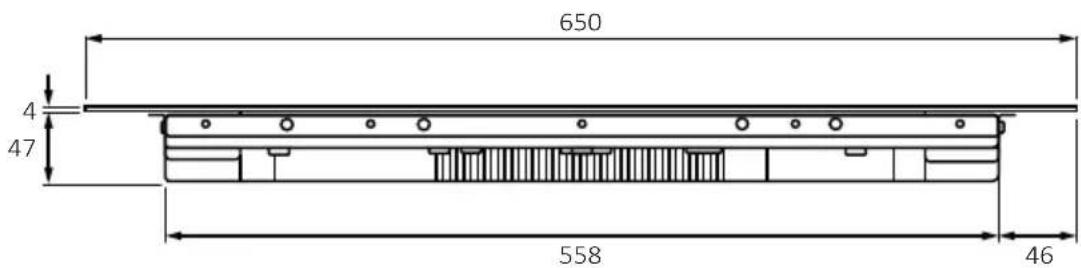

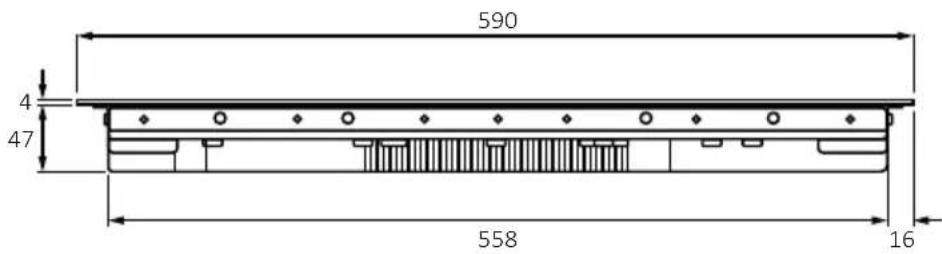

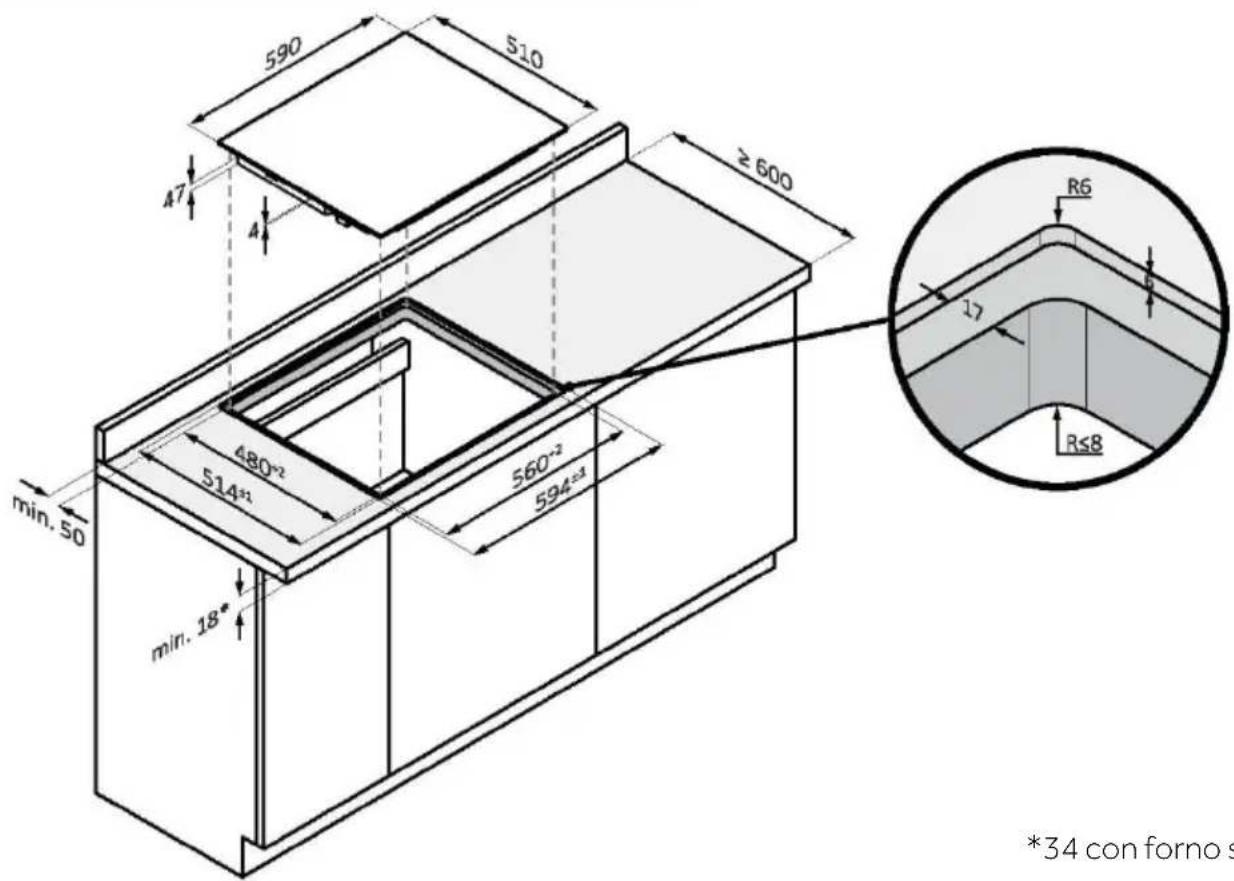

HOB 60-65 cm

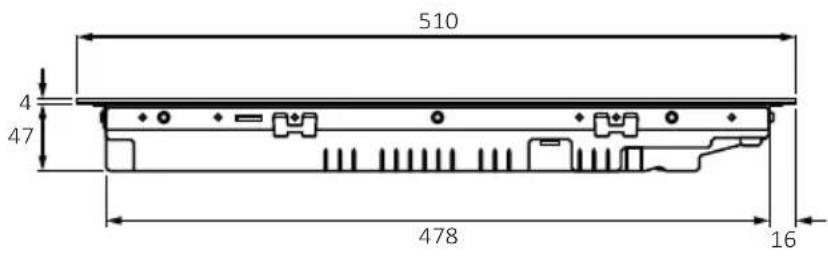

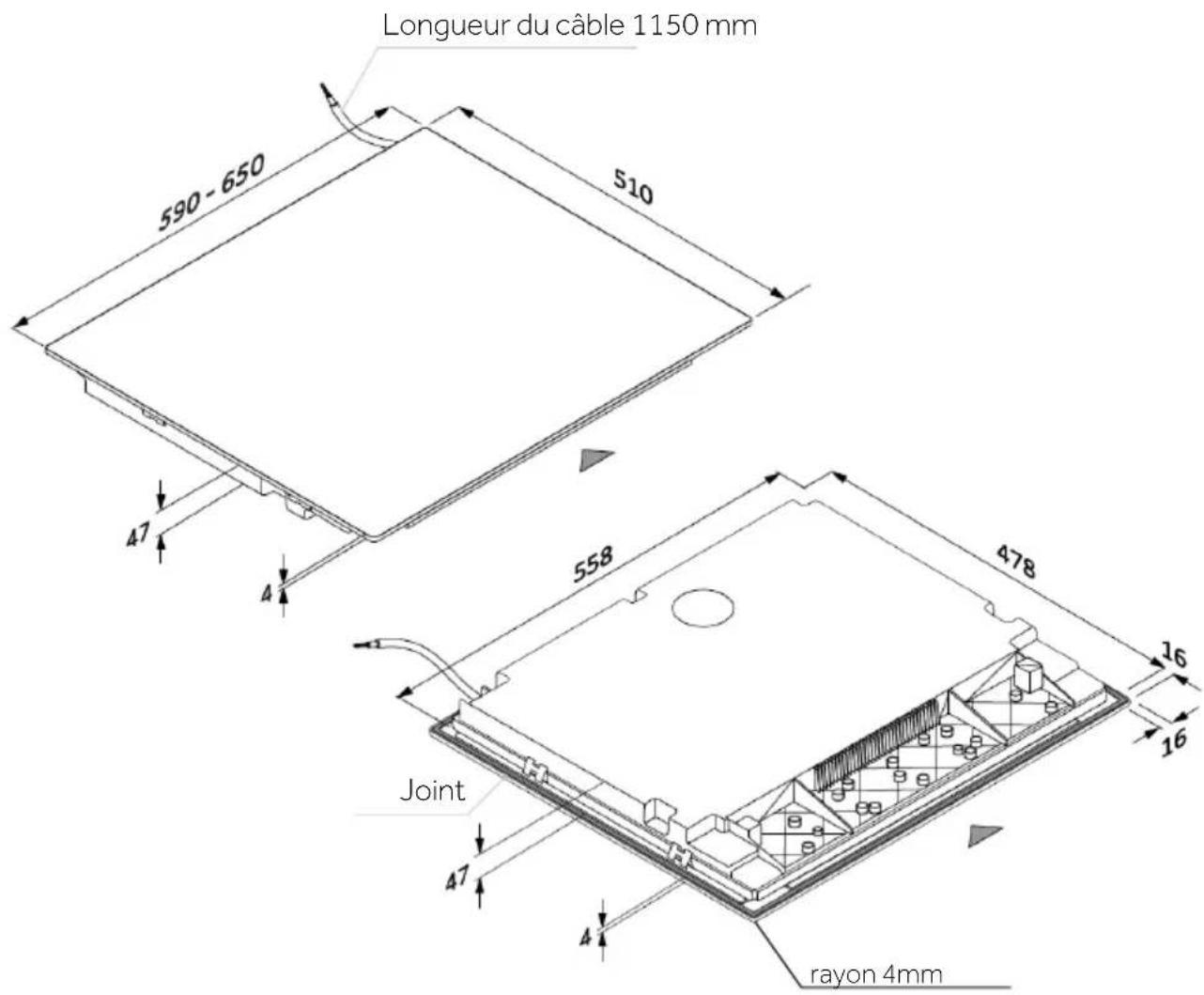

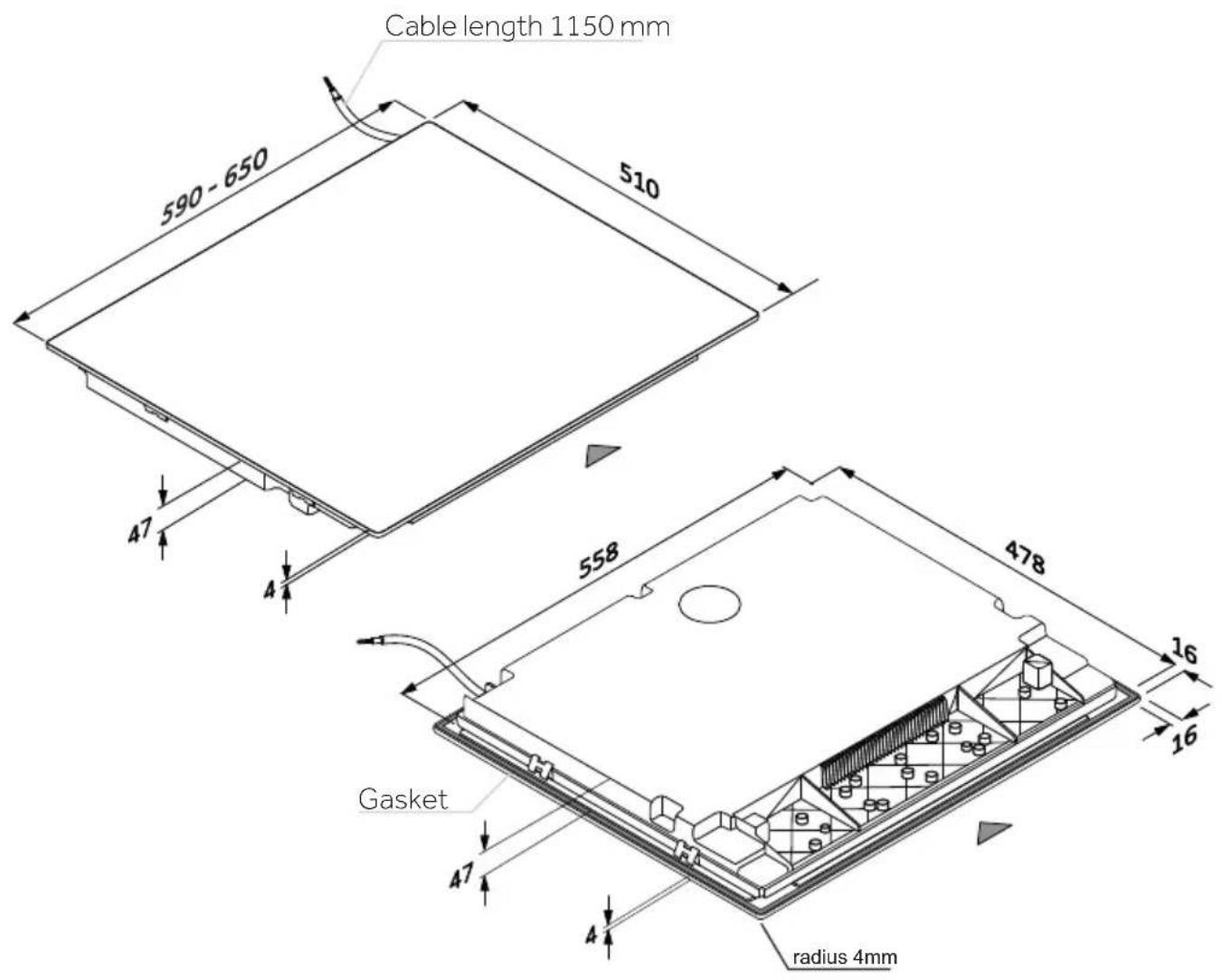

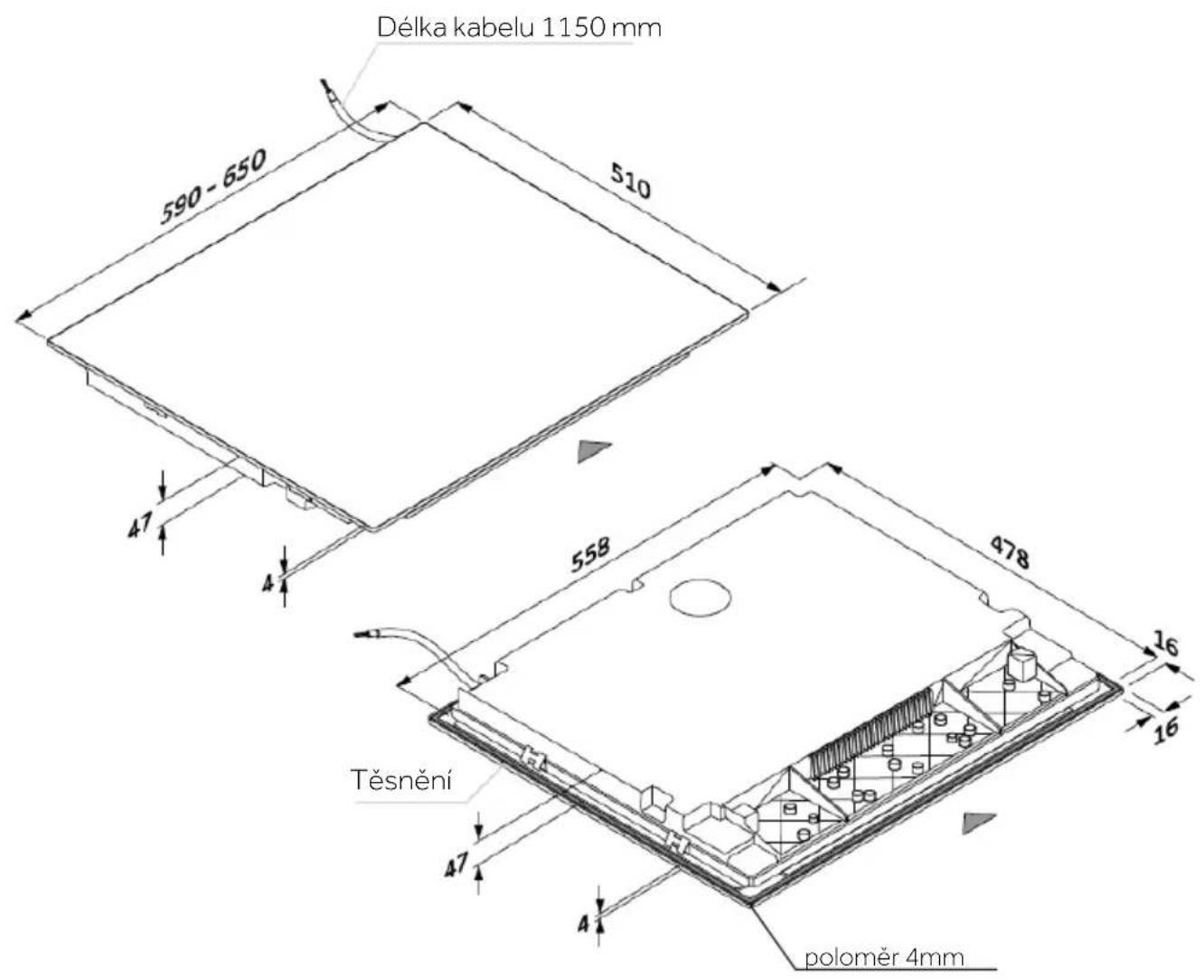

Cable length 1150 mm 590 - 650 510 47 4 558 478 Gasket 47 4 radius 4mm 16 16

Tools

Simple line drawing of a diamond-shaped object with a small protrusion at the bottom (no text or symbols)

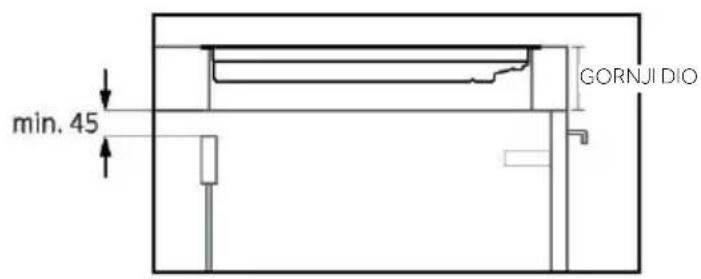

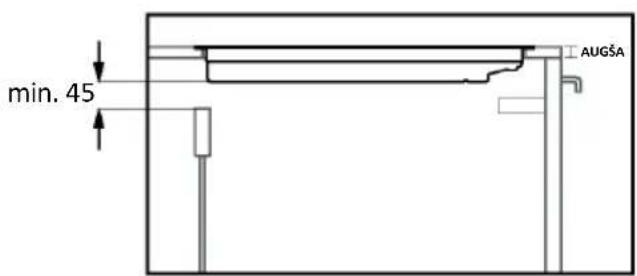

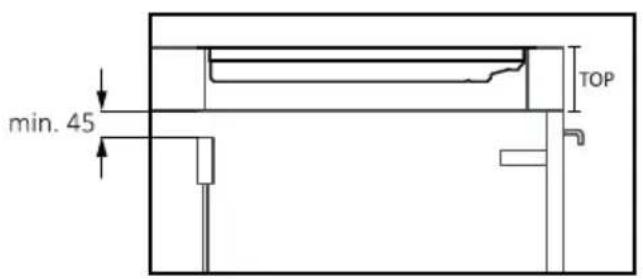

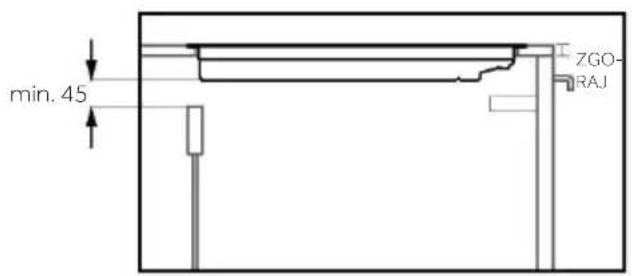

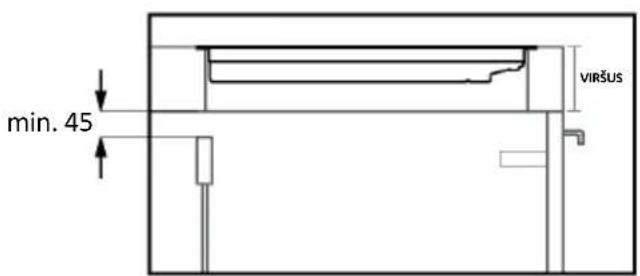

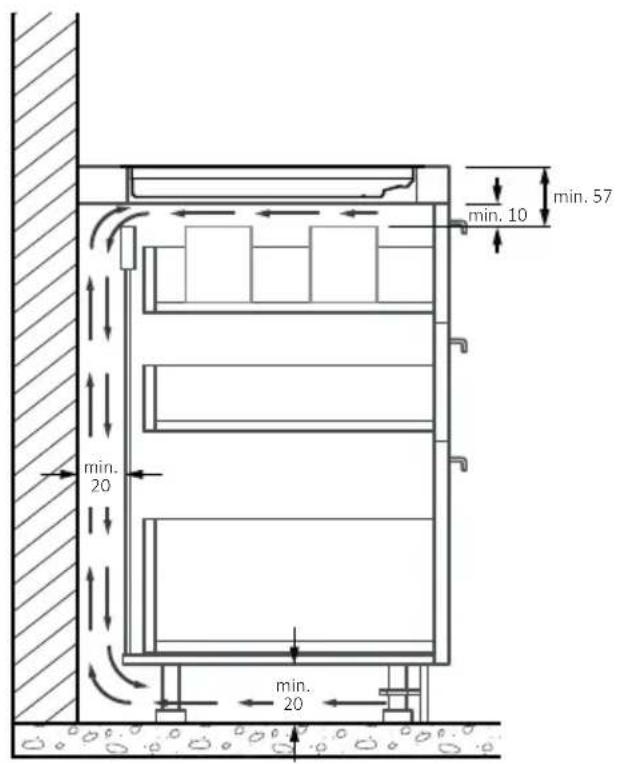

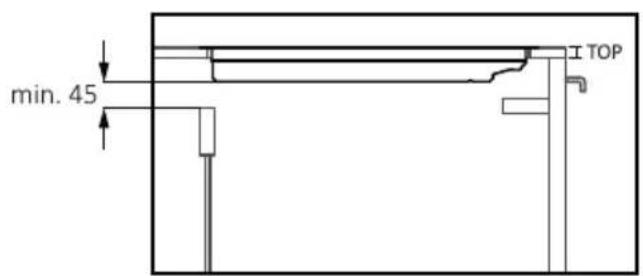

SECTIONS - WIDTH 60 and 65

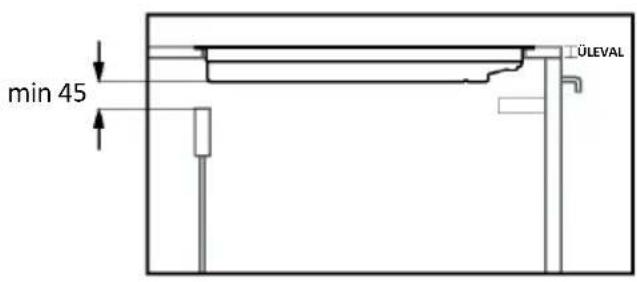

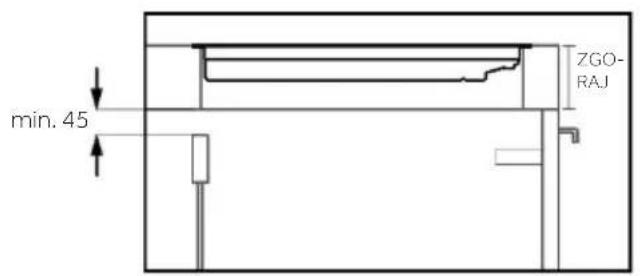

min. 45 TOP

min. 45 TOP

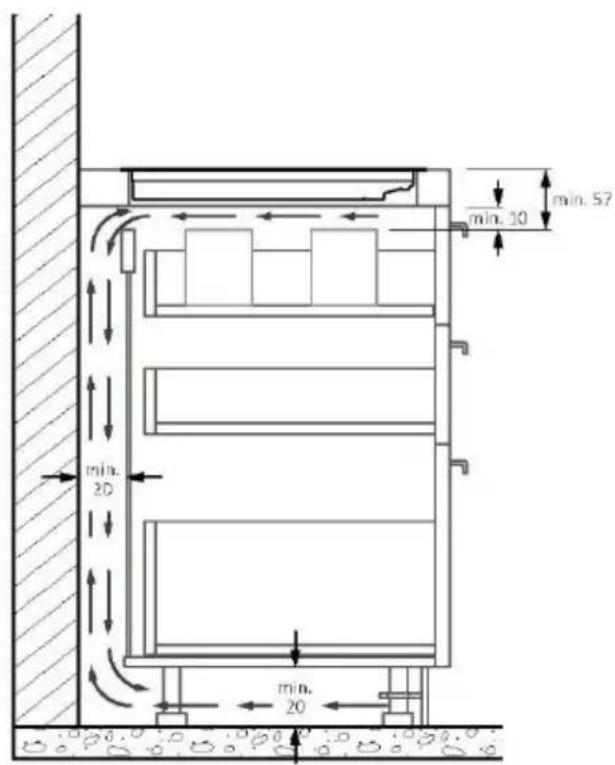

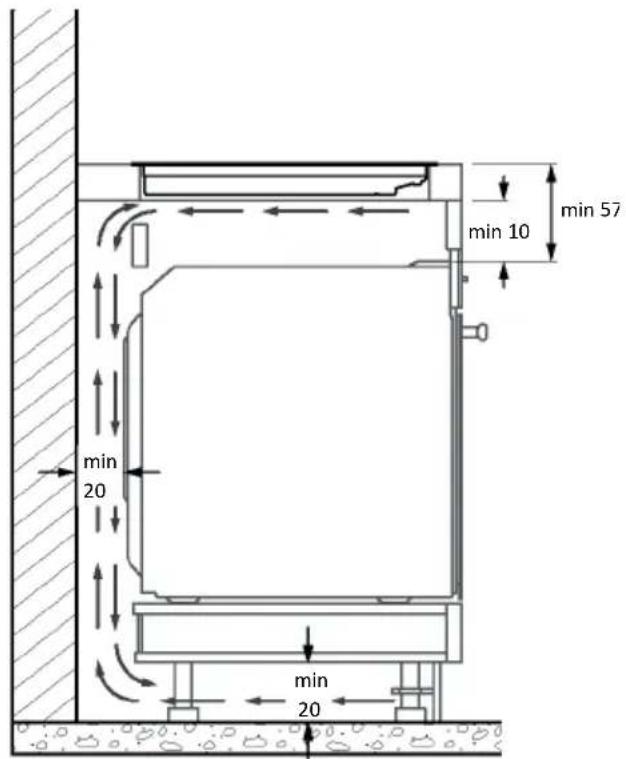

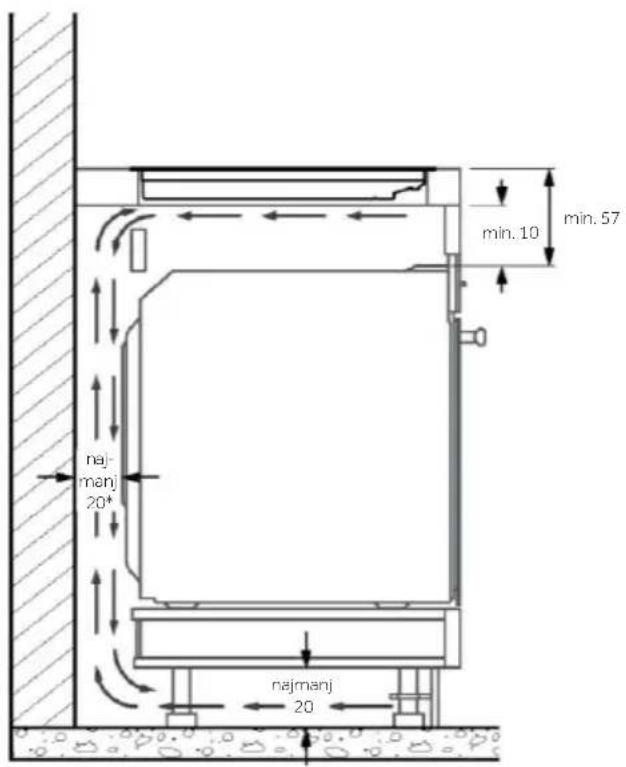

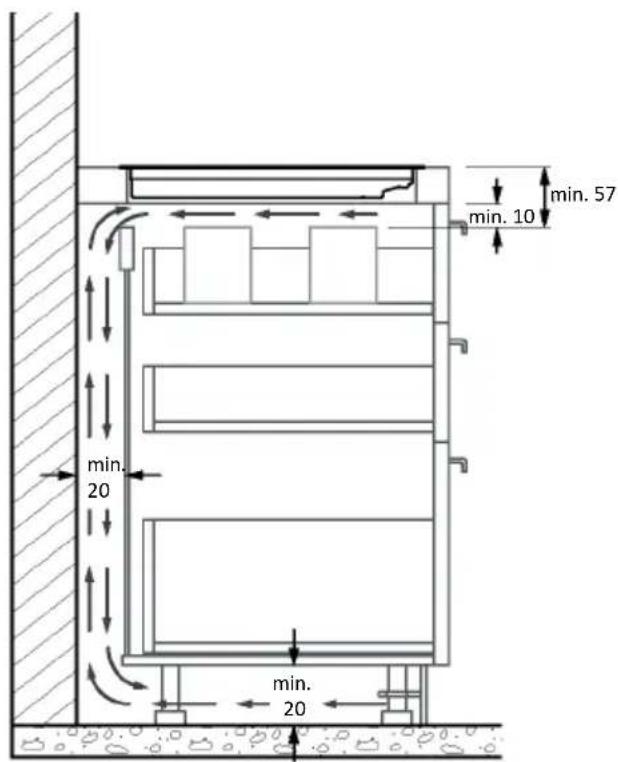

*For proper operation of the appliance, ensure proper airflow beneath the cooktop according to the intallation guidelines.

510 4 47 478 16

Side view

590 4 47 558 16

Frontal view

HOB 65 cm

510 4 47 478 16

Side view

650 4 47 558 46

Frontal view

590 510 ≥ 600 47 4 min.50 480-2 560-2 min. 12" R≤8 *28 with oven underneath

*28 with oven underneath

FLUSH BUILT-IN MEASUREMENTS OF 60

590 510 ≥ 600 47 4 480*2 514*1 560*2 594*2 min. 50 min. 18" R6 17 R≤8 *34 with oven underneath

*34 with oven underneath

R≤8 R6 A A' 480+2 514±1 560+2 594±1 B

590 560*2 594±1

Section AA'

510 480+2 514±1

Section BB'

STANDARD BUILT-IN MEASUREMENTS 65 TOP

650 mm 510 mm 4 mm ≥ 600 47 4 min. 50 480°² 560°² min. 12° R≤8

*28 with oven underneath

650 mm 510 mm 4 mm ≥ 600 47 4 min. 50 min. 18* 480*2 514*1 560*2 654*2 R6 R≤8 47 R≤8 R6 17 R≤8 *34 with oven underneath

*34 with oven underneath

FLUSH RECESSING MEASUREMENTS OF 65

R≤8 R6 A A' 480+2 514±2 560-2 654±1 B

top view

650 560*2 654±1

Section AA'

510 480°² 514±1

Section BB'

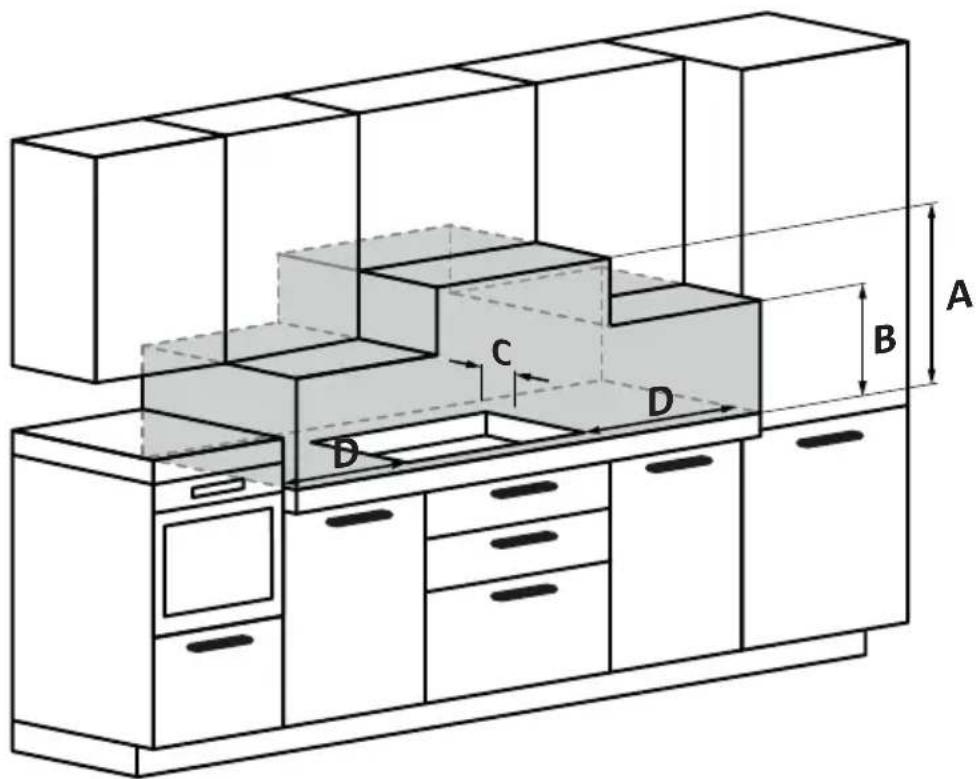

A B C D D

A: We recommend a distance of at least 650mm, but it is preferable to consult the hood user manual;

B: Consider providing a functional space for handling kitchen tools and any steam and condensation produced during food preparation;

C: 35 mm from the recessed hole to the backrest/backrest panel;

D: 35 mm from adjacent furniture (for 60 cm hob);

D: 55 mm from adjacent furniture (for 65 cm hob).

Simple line drawing of a frying pan with a feather quill, no text or symbols present

Two 3D-rendered objects: a circular fan with radial blades and a flat oval, both without any text or symbols.

QR code image containing encoded data, no visible human-readable text

GET IN ON

Google Play

DOWNLOAD ON THE

App Store

EXPLORE IT ON

App Store

1 hOn Welcome! Sign in to enter in your home page ENTER REGISTER Are you new to hOn? Click below to learn about our products © TRY DEMO

Haga clic en "Registrarse".

Do you already have a thousand passwords? Register with your social accounts and log in in the easiest and fastest way. SIGN UP WITH GOOGLE SIGN UP WITH APPLE SIGN UP WITH FACEBOOK No information referring to you will be emails and we will not post anything from you. OR SIGN UP WITH EMAIL Already registered? LOGIN

Hello USERNAME YOUR APPLIANCES Add + Add appliance YOUR WIDGETS Lorem ipsum darker sit out Stop to Care YOUR NEWS What functions do smart appliances have? How to live sustain home and reduce w

Allow your location permission To enhance your experience, please allow location permission to hOn app in the next step. CONTINUE

Select your appliance search for your appliance Freezer Refrigerator Wing Cellar Hob Hood Robust Vacuum Cleaner Air purifier

1 Appliance connection Turn OFF and then ON your appliance In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply. OK, I DID IT

Appliance connection Searching your appliance Don't turn off your Bluetooth. I/O app is looking for your appliance... 00:00:40 ① Stay close to your appliance in order to correctly capture the signal.

Appliance connection Searching your appliance Don't turn off your Bluetooth. Hub New appliance Long appliance name to... CONNECT PRODUCT NOT FOUND

Appliance connection Searching your appliance Don't turn off your Bluetooth. Hob Connecting... New appliance Long appliance name to... Stay close to your appliance in order to correctly capture the signal.

Appliance connection Your appliance has been correctly identified! Brand Model Serial number Is this your appliance? YES IT'S MY WS-49CDB NO IT'S NOT

Simple line drawing of a spatula (no text or symbols)

Simple line drawing of a trash bin with two crossed lines indicating no waste or discharge (no text or symbols)

Simple line drawing of a diamond-shaped object with a small protrusion at the bottom (no text or symbols)

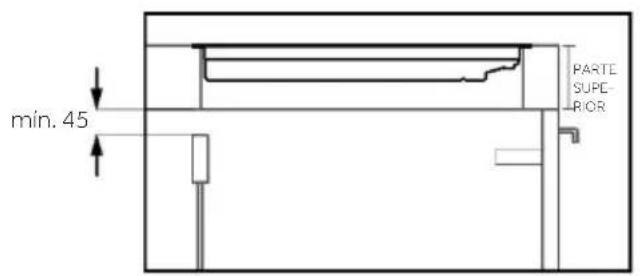

SECCIONES - ANCHO 60 y 65

min. 45 PARTE SUPERIOR

min. 45 PARTE SUPERIOR

Technical diagram of a multi-level kitchen or storage unit with labeled dimensions A, B, C, D and internal compartments.

Simple line drawing of a pointed tool with an arrow indicating downward motion (no text or symbols)

Simple line drawing of a frying pan with a checkmark icon (no text or symbols)

Two 3D-rendered objects: a fan-shaped grid on the left and a circular object on the right, both without any text or symbols.

QR code image containing encoded data, no visible human-readable text

GET IN ON Google Play

DOWNLOAD ON THE App Store

EXPLORE IT ON App Store

1 hOn Welcome! Sign in to enter in your home page ENTER REGISTER Are you new to hOn? Click below to learn about our products © TRY DEMO

Fare clic su "Registrati"

Do you already have a thousand passwords? Register with your social accounts and log in in the easiest and fastest way. SIGN UP WITH GOOGLE SIGN UP WITH APPLE SIGN UP WITH FACEBOOK No information referring to you will be issued and we will not post anything from you. OR SIGN UP WITH EMAIL Already registered? LOGIN

Hello USERNAME YOUR APPLIANCES Add Virtual Wine Bank second row 2 better there is a second row Add appliance YOUR WIDGETS Lorem ipsum dollar all cost Don't Canv YOUR NEWS What functions do smart appliances have? How to live sustain home and reduce w

Allow your location permission To enhance your experience, please allow location permission to hOn app in the next step. CONTINUE

Select your appliance search for your appliance Freezer Refrigerator Wing Cellar Hob Hood Robust Vacuum Cleaner Air purifier

1 Appliance connection Turn OFF and then ON your appliance In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply. OK, I DID IT

Appliance connection Searching your appliance Don't turn off your Bluetooth. I/O app is looking for your appliance... 00:00:40 ① Stay close to your appliance in order to correctly capture the signal.

Appliance connection Searching your appliance Don't turn off your Bluetooth. Hub New appliance Long appliance name to... CONNECT PRODUCT NOT FOUND

Appliance connection Searching your appliance Don't turn off your Bluetooth. Hob Connecting... New appliance Long appliance name to... Stay close to your appliance in order to correctly capture the signal.

Appliance connection Your appliance has been correctly identified! Brand Model Serial number Is this your appliance? YES IT'S MY WS-49CDB NO IT'S NOT

CONNETTIVITÀ WIRELESS

Tecnologia Wi-Fi Bluetooth
Standard IEEE 802.11b/g/n Bluetooth v4.2, BR/EDR, BLE
Bande di frequenza (s) [MHz] 2401÷2483 2402÷2480
Potenza massima (mW) 100 10

Simple line drawing of a spatula (no text or symbols)

Simple line drawing of a trash bin with two crossed lines indicating no waste or prohibition (no text or symbols)

SR L1 380-415 V BK L2 BL N GY YE/GR

220-240 V

BR L 220-240 V~ BR N BL GY YE/GR

Simple line drawing of a diamond-shaped object with a small protrusion at the bottom (no text or symbols)

MISURE INCASSO A FILO DA 60

590 510 ≥ 600 A7 A 480°2 514°1 560°2 594°3 min. 50 min. 18° *34 con forno s RG L7 Rs8

*34 con forno sotto

R≤8 A R6 480°² 514±1 560°² 594±1 B

590 560+2 594±1

Sezione AA'

510 480+2 514±1

Sezione BB'

MISURE STANDARD PIANO SUPERIORE DA INCASSO DA 65

MISURE INCASSO A FILO DA 65

R≤8 R6 A A' 480±2 514±1 560±2 654±1 B

vista superiore

650 560+2 654±1

Sezione AA'

510 480+2 514±1

Sezione BB'

Technical diagram of a multi-level kitchen or storage unit with labeled dimensions A, B, C, D and internal compartments.

Simple line drawing of a pointed tool with an arrow indicating downward motion (no text or symbols)

Simple line drawing of a frying pan with a checkmark icon (no text or symbols)

Two 3D-rendered objects: a circular fan with radial blades and a flat circular plate, both without any text or symbols.

QR code image containing encoded data, no visible human-readable text

GET IN ON Google Play

DOWNLOAD ON THE App Store

EXPLORE IT ON App Store

1 hOn Welcome! Sign in to enter in your home page ENTER REGISTER Are you new to hOn? Click below to learn about our products © TRY DEMO

Do you already have a thousand passwords? Register with your social accounts and log in the easiest and fastest way. SIGN UP WITH GOOGLE SIGN UP WITH APPLE SIGN UP WITH FACEBOOK No information relating to you will be shared and we will not post anything from you. OR SIGN UP WITH EMAIL Already registered? LOGIN

Hello USERNAME YOUR APPLIANCES Add Virtual Wine Bank second row 2 better there is a second time + Add appliance YOUR WIDGETS Lowers space door street NEW YOUR NEWS What functions do smart appliances have? How to live sustain home and reduce wi

Allow your location permission To enhance your experience, please allow location permission to HOn app in the next step. CONTINUE

Select your appliance search for your appliance Freezer Refrigerator Wine Cellar Hob Hood Robot Vacuum Cleaner Air purifier

1 Appliance connection Turn OFF and then ON your appliance In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply. OK I DID IT

Appliance connection Searching your appliance Don't turn off your Bluetooth. HOn app is looking for your appliance... 00:00:40 ① Stay close to your appliance in order to correctly capture the signal

Appliance connection Searching your appliance Don't turn off your Bluetooth. Hob New appliance Long appliance name to... CONNECT PRODUCT NOT FOUND

Appliance connection Searching your appliance Don't turn off your Bluetooth. Hub Connecting... New appliance Long appliance name to... Stay close to your appliance in order to correctly capture the signal.

Your appliance has been correctly identified! Brand Model Serial number Is this your appliance? YES IT'S MY WS-49GDB NO IT'S NOT

Simple line drawing of a spatula (no text or symbols)

Position n° 1

Two technical line drawings of a mechanical tool or tool with no visible text or symbols

Position n° 2

4.4. PRÉPARATIONS CULINAIRES AVEC L'APPLICATION

Simple line drawing of a trash bin with two crossed lines indicating no waste or prohibition (no text or symbols)

FR FR

9. INSTALLATION

BR L BK 220-240 V~ M N GY YE/CR

PLAQUE DE CUISSON 60-65 cm

Technical diagram of a kitchen cabinet with labeled dimensions A, B, C, D and internal compartments

Simple line drawing of a frying pan with a checkmark icon (no text or symbols)

Two technical diagrams showing a fan-like structure with internal grid pattern, one in black and one in gray, both without any text or symbols.

Two identical weather control panels showing temperature readings and alarm icons, likely from a climate simulation or weather simulation tool.

QR code image containing encoded data, no visible human-readable text

GET IN ON Google Play

DOWNLOAD ON THE App Store

EXPLORE IT ON App Store

1 hOn Welcome! Sign in to enter in your home page ENTER REGISTER Are you new to hOn? Click below to learn about our products © TRY DEMO

Do you already have a thousand passwords? Register with your social accounts and log in in the easiest and fastest way. SIGN UP WITH GOOGLE SIGN UP WITH APPLE SIGN UP WITH FACEBOOK No information referring to you will be signed and we will not post anything from you. OR SIGN UP WITH EMAIL Already registered? LOGIN

Hello USERNAME YOUR APPLIANCES Add Virtual Wine Bank second row 2 better there is a second row Add appliance YOUR WIDGETS Lorem ipsum dollar all cost Don't Canv YOUR NEWS What functions do smart appliances have? How to live sustain home and reduce w

Allow your location permission To enhance your experience, please allow location permission to hOn app in the next step. CONTINUE

Select your appliance search for your appliance Freezer Refrigerator Wing Cellar Hob Hood Robust Vacuum Cleaner Air purifier

1 Appliance connection Turn OFF and then ON your appliance In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply. OK, I DID IT

Appliance connection Searching your appliance Don't turn off your Bluetooth. I/O app is looking for your appliance... 00:00:40 ① Stay close to your appliance in order to correctly capture the signal.

Appliance connection Searching your appliance Don't turn off your Bluetooth. Hub New appliance Long appliance name to... CONNECT PRODUCT NOT FOUND

Appliance connection Searching your appliance Don't turn off your Bluetooth. Hob Connecting... New appliance Long appliance name to... Stay close to your appliance in order to correctly capture the signal.

Appliance connection Your appliance has been correctly identified! Brand Model Serial number Is this your appliance? YES IT'S MY WS-49CDB NO IT'S NOT

Simple line drawing of a spatula (no text or symbols)

Position 1 Position 2

Simple line drawing of a trash bin with two crossed lines indicating no waste or prohibition (no text or symbols)

SR L1 380-415 V~ SK L2 BL N GY YE/GR

220-240 V

BR L 220-240 V~ SK BL N GY YE/GR

KOCHFELD 60-65 cm

Simple line drawing of a diamond-shaped object with a small protrusion at the bottom (no text or symbols)

Technical diagram of a multi-level kitchen or storage unit with labeled dimensions A, B, C, D and internal compartments.

1.1. ALGEMENE WAARSCHUWINGEN

2. PRODUCTINTRODUCTIE

2.1. BOVENAANZICHT VAN HET PRODUCT

Haier Kookzones Bedieningspaneel

2.2. BEDIENINGSPANEEEL

① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪

3.2. VERMOGENSBEHEER

Simple line drawing of a frying pan with a handle and checkmark icon (no text or symbols)

Two technical diagrams showing a fan-like structure on the left and a circular component on the right, both without any text or symbols.

4. WERKING VAN HET PRODUCT

4.1. HOE HET PRODUCT WERKT

① DE KOOKPLAAT AAN-/UITZETTEN

Two identical control panel diagrams showing temperature and time settings with icons for lighting and alarm.

88 SELECTEER DE KOOKZONE EN STEL HET VERMOGEN IN

QR code image containing encoded data, no visible human-readable text

GET IN ON Google Play

DOWNLOAD ON THE App Store

EXPLORE IT ON App Store

1 hOn Welcome! Sign it to enter in your home page ENTER REGISTER Are you new to hOn? Click below to learn about our products © TRY DEMO

Do you already have a thousand passwords? Register with your social accounts and log in in the easiest and fastest way. SIGN UP WITH GOOGLE SIGN UP WITH APPLE SIGN UP WITH FACEBOOK No information referring to you will be email and we will not post anything from you. OR SIGN UP WITH EMAIL Already registered? LOGIN

Hello USERNAME YOUR APPLIANCES Add Virtual Wine Bank second row 2 better there is a second row Add appliance YOUR WIDGETS Lorem ipsum dollar all cost Don't Canv YOUR NEWS What functions do smart appliances have? How to live sustain home and reduce w

Allow your location permission To enhance your experience, please allow location permission to hOn app in the next step. CONTINUE

Select your appliance search for your appliance Freezer Refrigerator Wing Cellar Hob Hood Robust Vacuum Cleaner Air purifier

1 Appliance connection Turn OFF and then ON your appliance In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply. OK, I DID IT

Appliance connection Searching your appliance Don't turn off your Bluetooth. I/O app is looking for your appliance... 00:00:40 ① Stay close to your appliance in order to correctly capture the signal.

Appliance connection Searching your appliance Don't turn off your Bluetooth. Hub New appliance Long appliance name to... CONNECT PRODUCT NOT FOUND

Appliance connection Searching your appliance Don't turn off your Bluetooth. Hob Connecting... New appliance Long appliance name to... Stay close to your appliance in order to correctly capture the signal.

Appliance connection Your appliance has been correctly identified! Brand Model Serial number Is this your appliance? YES IT'S MY WS-49CDB NO IT'S NOT

Simple line drawing of a spatula (no text or symbols)

Positie 1 Positie 2

Simple line drawing of a trash bin with two crossed lines indicating no waste or discharge (no text or symbols)

Simple line drawing of a diamond-shaped object with a small protrusion at the bottom (no text or symbols)

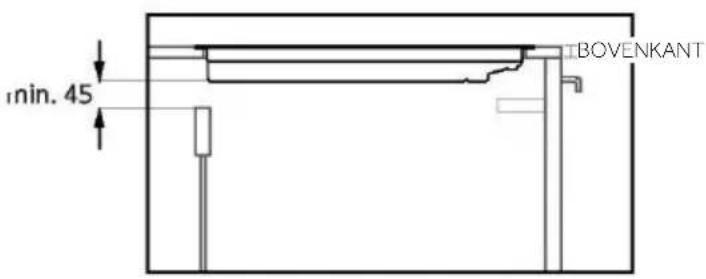

SECTIES – BREEDTE 60 en 65

min. 45 BOVENKANT

min. 45 IBOVENKANT

Technical diagram of a multi-level kitchen or storage unit with labeled dimensions A, B, C, D and internal compartments.

Simple line drawing of a pointed tool with an arrow indicating downward motion (no text or symbols)

Simple line drawing of a frying pan with a checkmark icon (no text or symbols)

Two technical diagrams showing a fan-like structure on the left and a circular component on the right, both without any text or symbols.

QR code image containing encoded data, no visible human-readable text

GET IN ON Google Play

DOWNLOAD ON THE App Store

EXPLORE IT ON App Store

1 hOn Welcome! Sign in to enter in your home page ENTER REGISTER Are you new to hOn? Click below to learn about our products © TRY DEMO

Do you already have a thousand passwords? Register with your social accounts and log in in the easiest and fastest way. SIGN UP WITH GOOGLE SIGN UP WITH APPLE SIGN UP WITH FACEBOOK No information relating to you will be shared and we will not post anything from you. SIGN UP WITH EMAIL Already registered? LOGIN

Hello USERNAME YOUR APPLIANCES ADD Virtual Wine Bank second now 2 better than is a second now Add appliance YOUR WIDGETS Lorem ipsum dater sit out See to Case YOUR NEWS What functions do smart appliances have? How to live sustain home and reduce w

Allow your location permission To enhance your experience, please allow location permission to iOn app in the next step. CONTINUE

Select your appliance search for your appliance Freezer Refrigerator Wine Cellar Hob Hood Robot Vacuum Cleaner Air purifier

1 Appliance connection Turn OFF and then ON your appliance In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply. OK, I DID IT

Appliance connection Searching your appliance Don't turn off your Bluetooth. t/On app is looking for your appliance... 00:00:40 ① Stay close to your appliance in order to correctly capture the signal.

Appliance connection Searching your appliance Don't turn off your Bluetooth. Hub New appliance Long appliance name to... CONNECT PRODUCT NOT FOUND

Appliance connection Searching your appliance Don't turn off your Bluetooth. Hob Connecting... New appliance Long appliance name to... Stay close to your appliance in order to correctly capture the signal.

Appliance connection Your appliance has been correctly identified! Brand Model Serial number Is this your appliance? YES IT'S MY WS-4XGDB NO IT'S NOT

Simple line drawing of a spatula (no text or symbols)

Simple line drawing of a trash bin with two crossed lines indicating no waste or discharge (no text or symbols)

Technical diagram of a multi-level kitchen or storage unit with labeled dimensions A, B, C, D and internal compartments.

Simple line drawing of a pointed tool with an arrow indicating downward motion (no text or symbols)

Simple line drawing of a frying pan with a handle and checkmark icon (no text or symbols)

Two 3D-rendered objects: a circular fan with radial blades and a flat oval plate, both without any text or symbols.

QR code image containing encoded data, no visible human-readable text

GET IN ON Google Play

DOWNLOAD ON THE App Store

EXPLORE IT ON App Store

1 hOn Welcome! Sign it to enter in your home page ENTER REGISTER Are you new to hOn? Click below to learn about our products © TRY DEMO

Do you already have a thousand passwords? Register with your social accounts and log in in the easiest and fastest way. SIGN UP WITH GOOGLE SIGN UP WITH APPLE SIGN UP WITH FACEBOOK No information referring to you will be email and we will not post anything from you. OR SIGN UP WITH EMAIL Already registered? LOGIN

Hello USERNAME YOUR APPLIANCES Add Virtual Wine Bank second row 2 better there is a second row Add appliance YOUR WIDGETS Lorem ipsum dollar all cost Don't Canv YOUR NEWS What functions do smart appliances have? How to live sustain home and reduce w

Allow your location permission To enhance your experience, please allow location permission to hOn app in the next step. CONTINUE

Select your appliance search for your appliance Freezer Refrigerator Wing Cellar Hob Hood Robust Vacuum Cleaner Air purifier

1 Appliance connection Turn OFF and then ON your appliance In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply. OK, I DID IT

Appliance connection Searching your appliance Don't turn off your Bluetooth, HCo app is looking for your appliance... 00:00:40 Stay close to your appliance in order to correctly capture the signal.

Appliance connection Searching your appliance Don't turn off your Bluetooth. Hub New appliance Long appliance name to... CONNECT PRODUCT NOT FOUND

Appliance connection Searching your appliance Don't turn off your Bluetooth. Hob Connecting... New appliance Long appliance name to... Stay close to your appliance in order to correctly capture the signal.

Appliance connection Your appliance has been correctly identified! Brand Model Serial number Is this your appliance? YES IT'S MY WS-49CDB NO IT'S NOT

Simple line drawing of a spatula (no text or symbols)

Poloha 1 Poloha 2

4.4. PŘÍPRAVA POKRMŮ POMOCÍ APLIKACE

Simple line drawing of a trash bin with two crossed lines indicating no waste or prohibition (no text or symbols)

SR L 220-240 V~ SR N BI GY YE/GR

VARNÁ DESKA 60–65 cm

Technical diagram of a multi-level kitchen or storage unit with labeled dimensions A, B, C, D and internal compartments.

Simple line drawing of a frying pan with a handle and checkmark icon (no text or symbols)

- Samo posude s glatkim dnom, kako bi se izbjeglo grebanje površine ploče za kuhanje;

Two 3D-rendered diagrams showing a fan-like structure on the left and a circular object on the right, both without any text or symbols.

QR code image containing encoded data, no visible human-readable text

GET IN ON Google Play

DOWNLOAD ON THE App Store

EXPLORE IT ON App Store

Registracija novog korisnika

1 hOn Welcome! Sign in to enter in your home page ENTER REGISTER Are you new to hOn? Click below to learn about our products © TRY DEMO

Kliknite na „Registriraj se“

Do you already have a thousand passwords? Register with your social accounts and log in in the easiest and fastest way. SIGN UP WITH GOOGLE SIGN UP WITH APPLE SIGN UP WITH FACEBOOK No information referring to you will be issued and we will not post anything from you. OR SIGN UP WITH EMAIL Already registered? LOGIN

Možete se registrirati putem računa društvenih mreža ili se registrirati adresom osobne e-pošte

Brza registracija za uparivanje

Hello USERNAME YOUR APPLIANCES Add Virtual Wine Bank second row 2 better there is a second row Add appliance YOUR WIDGETS Lorem ipsum dollar all cost Don't Canv YOUR NEWS What functions do smart appliances have? How to live sustain home and reduce w

Allow your location permission To enhance your experience, please allow location permission to hOn app in the next step. CONTINUE

Dopustite dozvolu za pristup lokaciji

Select your appliance search for your appliance Freezer Refrigerator Wing Cellar Hob Hood Robust Vacuum Cleaner Air purifier

Odaberite ploču za kuhanje iz kategorije uređaja

Brza registracija za uparivanje

1 Appliance connection Turn OFF and then ON your appliance In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply. OK, I DID IT

Appliance connection Searching your appliance Don't turn off your Bluetooth, HCo app is looking for your appliance... 00:00:40 Stay close to your appliance in order to correctly capture the signal.

Appliance connection Searching your appliance Don't turn off your Bluetooth. Hub New appliance Long appliance name to... CONNECT PRODUCT NOT FOUND

Appliance connection Searching your appliance Don't turn off your Bluetooth. Hob Connecting... New appliance Long appliance name to... Stay close to your appliance in order to correctly capture the signal.

Appliance connection Your appliance has been correctly identified! Brand Model Serial number Is this your appliance? YES IT'S MY WS-49CDB NO IT'S NOT

Simple line drawing of a spatula (no text or symbols)

Simple line drawing of a trash bin with diagonal lines crossing it, no text or symbols present.

Važno je posebno obraditi otpadnu električnu i elektroničku opremu da bi se ispravno uklonili i odložili onečišćivači i vratili svi materijali. Pojedinci mogu imati važnu ulogu u postizanju cilja da otpadna električna i elektronička oprema (OEEO) ne postane ekološki problem. Treba se pridržavati nekoliko osnovnih pravila:

Abstract geometric shape resembling a stylized letter 'F' or folded paper (no text or symbols)

Simple line drawing of a diamond-shaped object with no text or symbols

ODJELJCI - ŠIRINA 60 i 65

min. 45 GORNJI DIO

min. 45 GORNJI DIO

Technical diagram of a multi-level kitchen or storage unit with labeled dimensions A, B, C, D and internal compartments.

A: Preporučujemo udaljenost od najmanje 650 mm, ali poželjno je da pogledate korisnički priručnik nape;

Simple line drawing of a pointed tool with an arrow indicating downward motion (no text or symbols)

Simple line drawing of a frying pan with a checkmark icon (no text or symbols)

Two technical diagrams showing a fan-like structure with internal grid pattern and a circular component, no text or symbols present.

Two identical weather control panel icons showing temperature and humidity readings with Chinese labels.

88 VÁLASSZA KI A FÓZŐZÓNÁT, ÉS ÁLLÍTSA BE A TELJESÍTMÉNYT

QR code image containing encoded data, no visible human-readable text

GET IN ON Google Play

DOWNLOAD ON THE App Store

EXPLORE IT ON App Store

1 hOn Welcome! Sign in to enter in your home page ENTER REGISTER Are you new to hOn? Click below to learn about our products © TRY DEMO

Do you already have a thousand passwords? Register with your social accounts and log in in the easiest and fastest way. SIGN UP WITH GOOGLE SIGN UP WITH APPLE SIGN UP WITH FACEBOOK No information referring to you will be email and we will not post anything from you. OR SIGN UP WITH EMAIL Already registered? LOGIN

Hello USERNAME YOUR APPLIANCES Add Add appliance Hov Virtual Wine Bank second row 2 better there is a second row YOUR WIDGETS Lorem ipsum differ sit out Stop to Care YOUR NEWS What functions do smart appliances have? How to live sustaina home and reduce w

Allow your location permission To enhance your experience, please allow location permission to hOn app in the next step. CONTINUE

Select your appliance search for your appliance Freezer Refrigerator Wing Cellar Hob Hood Robust Vacuum Cleaner Air purifier

1 Appliance connection Turn OFF and then ON your appliance In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply. OK, I DID IT

Appliance connection Searching your appliance Don't turn off your Bluetooth. I/O app is looking for your appliance... 00:00:40 ① Stay close to your appliance in order to correctly capture the signal.

Appliance connection Searching your appliance Don't turn off your Bluetooth. Hub New appliance Long appliance name to... CONNECT PRODUCT NOT FOUND

Appliance connection Searching your appliance Don't turn off your Bluetooth. Hob Connecting... New appliance Long appliance name to... Stay close to your appliance in order to correctly capture the signal.

Your appliance has been correctly identified! Brand Model Serial number Is this your appliance? YES IT'S MY WS-49CDB NO IT'S NOT

Simple line drawing of a spatula (no text or symbols)

Simple line drawing of a trash bin with two crossed lines indicating no waste or discharge (no text or symbols)

Technical diagram of a multi-level kitchen cabinet with labeled dimensions A, B, C, D and internal compartments

Simple line drawing of a pointed tool with an arrow pointing downward (no text or symbols)

Simple line drawing of a frying pan with a checkmark icon (no text or symbols)

Two 3D-rendered objects: a fan-shaped fan with internal blades and a circular base, both without any text or symbols.

QR code image containing encoded data, no visible human-readable text

1 hOn Welcome! Sign in to enter in your home page ENTER REGISTER Are you new to hOn? Click below to learn about our products © TRY DEMO

Do you already have a thousand passwords? Register with your social accounts and log in in the context and fastest way. SIGN UP WITH GOOGLE SIGN UP WITH APPLE SIGN UP WITH FACEBOOK No information relating to yourself the shares and we will not post anything from you BY SIGN UP WITH EMAIL Already registered? LOGIN

Hello USERNAME YOUR APPLIANCES Add Virtual Wine Bank second row 2 better there is a second row Add appliance YOUR WIDGETS Lorem ipsum doler sit out Scents Care YOU YOUR NEWS WHAT FUNCTIONS DO SMART appliances Have? How to live sustain home and reduce w

Allow your location permission To enhance your experience, please allow location permission to hOn app in the next step. CONTINUE

Select your appliance Search for your appliance Freezer Refrigerator Wine Cellar Hob Head Robot Vacuum Cleaner Air purifier

Turn OFF and then ON your appliance In case you can't switch OFF your appliance, unplug [for at least 10 seconds] and then plug its power supply. OK, I DID IT

Appliance connection Searching your appliance Don't turn off your Bluetooth HDs app is looking for your appliance. 00:00:40 ① Stay close to your appliance in order to correctly capture the signal.

Appliance connection Searching your appliance Don't turn off your Bluetooth. Hkb New appliance Long appliance name to... CONNECT PRODUCT NOT FOUND

Appliance connection Searching your appliance Don't turn off your Bluetooth. Hub Connecting... New appliance Long appliance name to... Stay close to your appliance in order to correctly capture the signal.

Appliance connection Your appliance has been correctly identified! Brand Model Serial number Is this your appliance? YES IT'S MY WS-49GDB NO IT'S NOT

Simple line drawing of a pen and ruler (no text or symbols)

Capac ceramic

Interval de imersiune recomandat

Senzor

ÎNCĂRCAȚI SONDA PRECI PROBE ÎNAINTE DE UTILIZARE:

Simple line drawing of a spatula (no text or symbols)

Pozitia 1

Two technical line drawings of a mechanical tool or tool with curved surfaces and a handle (no text or symbols)

Pozitia 2

4.4. PREPARATE CULINARE CU AJUTORUL APLICATIEI

Sonda Preci Probe ca termometru

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Abstract geometric shape resembling a stylized letter 'H' or folded paper (no text or symbols)

Simple line drawing of a tilted square frame (no text or symbols)

Technical diagram of a multi-level kitchen cabinet with labeled dimensions A, B, and C

Simple line drawing of a frying pan with a checkmark icon (no text or symbols)

Two 3D-rendered objects: a circular fan with radial blades and a flat plate, both without any text or symbols.

0.8°C min

n

8.8°C min

QR code image containing encoded data, no visible human-readable text

Εγγραφή νέου χρήστη

1 hOn Welcome! Sign in to enter in your home page ENTER REGISTER Are you new to hOn? Click below to learn about our products © TRY DEMO

Do you already have a thousand passwords? Register with your social accounts and log in in the context and fastest way. SIGN UP WITH GOOGLE SIGN UP WITH APPLE SIGN UP WITH FACEBOOK No information relating to you will be shared and we will not post anything from you. OR SIGN UP WITH EMAIL Already registered? LOGIN

Hello USERNAME YOUR APPLIANCES Add Virtual Wine Bank second row 2 better there is a second row Add appliance YOUR WIDGETS License items darker sit out Scan to Care YOUR NEWS What functions do smart appliances have? How to live sustain home and reduce w

Allow your location permission To enhance your experience, please allow location permission to bOn app in the next step. CONTINUE

Select your appliance Search for your appliance Freezer Refrigerator Wine Cellar Hub Hood Robot Vacuum Cleaner Air purifier

1 Appliance connection Turn OFF and then ON your appliance In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply. OK, I DID IT

Appliance connection Searching your appliance Don't turn off your Bluetooth. hOn app is looking for your appliance... 00:00:40 ① Stay close to your appliance in order to correctly capture the signal.

Appliance connection Searching your appliance Don't turn off your Bluetooth. Hub New appliance Long appliance name to... CONNECT PRODUCT NOT FOUND

Appliance connection Searching your appliance Don't turn-off your Bluetooth. Hub Connecting New appliance Long appliance name to... Stay close to your appliance in order to correctly capture the signal.

Appliance connection Your appliance has been correctly identified! Brand Model Serial number Is this your appliance? YES IT'S MY WS-49GDB NO IT'S NOT

Simple line drawing of a pen and ruler with no text or symbols

Κεραμικό καπάκι

Simple line drawing of a spatula (no text or symbols)

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Line drawings of four different mechanical parts: screw, roller, handle, and bracket (no text or symbols)

Technical diagram of a multi-level kitchen cabinet with labeled dimensions A, B, and C

Simple line drawing of a pointed tool with an arrow indicating downward motion (no text or symbols)

Simple line drawing of a frying pan with a handle and checkmark icon (no text or symbols)

Two 3D-rendered objects: a circular fan with radial blades and a flat plate, both without any text or symbols.

3.3.3. Dimenzije in postavitev

Two-panel image showing a digital timer and a hand gesture, both displaying temperature readings in degrees Celsius.

88 IZBIRA KUHALIŠČA IN NASTAVITEV MOČI

QR code image containing encoded data, no visible human-readable text

1 hOn Welcome! Sign in to enter in your home page ENTER REGISTER Are you new to hOn? Click below to learn about our products © TRY DEMO

Do you already have a thousand passwords? Register with your social accounts and log in in the context and fastest way. SIGN UP WITH GOOGLE SIGN UP WITH APPLE SIGN UP WITH FACEBOOK No information relating to yourself the shares and we will not post anything from you BY SIGN UP WITH EMAIL Already registered? LOGIN

Hello USERNAME YOUR APPLIANCES Add Virtual Wine Bank second row 2 better there is a second row Add appliance YOUR WIDGETS Lorem ipsum doler sit out Scents Care YOU YOUR NEWS WHAT FUNCTIONS DO SMART appliances Have? How to live sustain home and reduce w

Izberite »Dodaj aparat«.

Allow your location permission To enhance your experience, please allow location permission to hOn app in the next step. CONTINUE

Dajte dovoljenje za lokacijo.

Select your appliance Search for your appliance Freezer Refrigerator Wine Cellar Hob I hood Robot Vacuum Cleaner Air purifier

Turn OFF and then ON your appliance In case you can't switch OFF your appliance, unplug [for at least 10 seconds] and then plug its power supply. OK, I DID IT

Vklopite aparat; će je že vklopljen, ga izklopite in ponovno vklopite.

Appliance connection Searching your appliance Don't turn off your Bluetooth HDs app is looking for your appliance. 00:00:40 ① Stay close to your appliance in order to correctly capture the signal.

Appliance connection Searching your appliance Don't turn off your Bluetooth. Hxb New appliance Long appliance name to... CONNECT PRODUCT NOT FOUND

Appliance connection Searching your appliance Don't turn off your Bluetooth. Hub Connecting... New appliance Long appliance name to... Stay close to your appliance in order to correctly capture the signal.

Appliance connection Your appliance has been correctly identified! Brand Model Serial number Is this your appliance? YES IT'S MY WS-49GDB NO IT'S NOT

Simple line drawing of a pen and ruler (no text or symbols)

Keramični pokrovček

Simple line drawing of a spatula (no text or symbols)

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Abstract geometric shape resembling a stylized letter 'H' or folded paper (no text or symbols)

Simple line drawing of a tilted rectangular shape with no text or symbols

ODSEKI – ŠIRINA 60 in 65

min. 45 ZGO- RAJ

min. 45 ZGO- RAJ

min. 10 min. 57 naj-manj 20 najmanj 20

najmanj 20+ min. 10 min. 57 najmanj 20

Technical diagram of a multi-level kitchen cabinet with labeled dimensions A, B, and C

Simple line drawing of a pointed tool with an arrow indicating downward motion (no text or symbols)

- Ärge k asutage Heat Feel andurit mikrolaineahjus.

Simple line drawing of a frying pan with a handle and checkmark icon (no text or symbols)

Two 3D-rendered objects: a fan-shaped object with radial lines and a circular base, both without any text or symbols.

QR code image containing encoded data, no visible human-readable text

1 hOn Welcome! Sign in to enter in your home page ENTER REGISTER Are you new to hOn? Click below to learn about our products TRY DEMO

Klöpsake nupul „Registreeri“

Do you already have a thousand passwords? Register with your social accounts and log in in the easiest and fastest way. G SIGN UP WITH GOOGLE i SIGN UP WITH APPLE f SIGN UP WITH FACEBOOK No information returning to you will be shared and we will not post anything from you. IF SIGN UP WITH EMAIL Already registered? LOGIN

Hello USERNAME YOUR APPLIANCES ADD Virtual Wine Bank second row 2 better's there is a second row Add appliance YOUR WIDGETS Lorem ipsum darker sit out Scant to Care YOUR NEWS What functions do smart appliances have? How to live sustain home and reduce w

Allow your location permission To enhance your experience, please allow location permission to find app in the next step. CONTINUE

Andke asukohaluba.

Select your appliance Search for your appliance Freezer Refrigerator Wine Cellar Hub Hood Robot Vacuum Cleaner Air purifier

1 Appliance connection Turn OFF and then ON your appliance In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply. OK, I DID IT

Appliance connection Searching your appliance Don't turn off your Bluetooth. hOn app is looking for your appliance... 00:00:40 ① Stay close to your appliance in order to correctly capture the signal.

Appliance connection Searching your appliance Don't turn off your Bluetooth. Hub New appliance Long appliance name to... CONNECT PRODUCT NOT FOUND

Appliance connection Searching your appliance Don't turn off your Bluetooth. Hub Connecting... New appliance Long appliance name to... Stay close to your appliance in order to correctly capture the signal.

Appliance connection Your appliance has been correctly identified! Brand Model Serial number Is this your appliance? YES IT'S MY WS-4PGDB NO IT'S NOT

Simple line drawing of a spatula (no text or symbols)

Asend 1 Asend 2

4.4. TOIDUVALMISTAMISE ETTEVALMISTAMINE RAKENDUSEGA

Preci Probe termomeetrina

8.1. KESKKONNA SÄÄSTMINE JA AUSTAMINE

Simple line drawing of a trash bin with two crossed lines indicating no waste or discharge (no text or symbols)

Line drawings of four different mechanical parts: screw, roller, handle, and bracket (no text or symbols)

SEKTSIOONID - LAIUS 60 ja 65

min 45 ÜLEVAL

min 45 ULEVAL

min 10 min 57 min 20 min 20

min 10 min 57 min 20 min 20

Technical diagram of a kitchen cabinet with labeled dimensions A, B, and C, showing internal compartments and cabinetry layout.

Simple line drawing of a pointed tool with an arrow indicating downward motion (no text or symbols)

Simple line drawing of a frying pan with a handle and checkmark icon (no text or symbols)

Two 3D-rendered objects: a fan-shaped object with internal grid pattern and a circular object on top, both without any text or symbols.

4.1. KAIP GAMINYS VEIKIA

KAITLENTĖS IJUNGIMAS / IŠJUNGIMAS

Two identical weather control panel diagrams showing temperature readings and icons for lighting and ventilation.

PASIRINKITE KAITVIETE IR NUSTATYKITE GALIA

QR code image containing encoded data, no visible human-readable text

1 hOn Welcome! Sign in to enter in your home page ENTER REGISTER Are you new to hOn? Click below to learn about our products TRY DEMO

Do you already have a thousand passwords? Register with your social accounts and log in in the easiest and fastest way. SIGN UP WITH GOOGLE SIGN UP WITH APPLE SIGN UP WITH FACEBOOK No information returning to you will be shared and we will not post anything from you. BY SIGN UP WITH EMAIL Already registered? LOGIN

Hello USERNAME YOUR APPLIANCES ADD Virtual Wine Bank second row 2 better's there is a second row Add appliance YOUR WIDGETS Lorem ipsum darker sit out Scant to Care YOUR NEWS What functions do smart appliances have? How to live sustain home and reduce w

Allow your location permission To enhance your experience, please allow location permission to find app in the next step. CONTINUE

Select your appliance Search for your appliance Freezer Refrigerator Wine Cellar Hub Hood Robot Vacuum Cleaner Air purifier

Turn OFF and then ON your appliance In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply. OK, I DID IT

Appliance connection Searching your appliance Don't turn off your Bluetooth. hOn app is looking for your appliance... 00:00:40 ① Stay close to your appliance in order to correctly capture the signal.

Appliance connection Searching your appliance Don't turn off your Bluetooth. Hub New appliance Long appliance name to... CONNECT PRODUCT NOT FOUND

Appliance connection Searching your appliance Don't turn off your Bluetooth. Hub Connecting... New appliance Long appliance name to... Stay close to your appliance in order to correctly capture the signal.

Appliance connection Your appliance has been correctly identified! Brand Model Serial number Is this your appliance? YES IT'S MY WS-4PGDB NO IT'S NOT

Simple line drawing of a pen and ruler with no text or symbols

Keraminis dangtelis

Rekomenduojamas panardinimo intervalas

Jutiklis

JKRAUKITE „PRECI PROBE“ ZONDA PRIEŠ NAUDODAMI:

Simple line drawing of a spatula (no text or symbols)

1 padètis

Two technical line drawings of a tool or tool with curved surfaces and a handle (no text or symbols)

2 padètis

4.4. MAISTO GAMINIMAS NAUDOJANTIS PROGRAMÈLE

Simple line drawing of a trash bin with two crossed lines indicating no waste or discharge (no text or symbols)

Simple line drawing of a diamond-shaped object with a small protrusion at the bottom (no text or symbols)

PJÜVIAI – PLOTIS 60 ir 65

min. 45 VIRŠUS

min. 45 VIRŠUS

Technical diagram of a kitchen cabinet with labeled dimensions A, B, and C, showing internal compartments and doorways.

Simple line drawing of a pointed tool with an arrow indicating downward motion (no text or symbols)

Simple line drawing of a frying pan with a handle and checkmark icon (no text or symbols)

Two 3D-rendered objects: a fan with radial blades and a circular object, both without any text or symbols.

QR code image containing encoded data, no visible human-readable text

IENÄCIET Google Play

1 hOn Welcome! Sign in to enter in your home page ENTER REGISTER Are you new to hOn? Click below to learn about our products TRY DEMO

Do you already have a thousand passwords? Register with your social accounts and log in in the easiest and fastest way. SIGN UP WITH GOOGLE SIGN UP WITH APPLE SIGN UP WITH FACEBOOK No information relating to you will be shared and we will not post anything from you. OF SIGN UP WITH EMAIL Already registered? LOGIN

Hello USERNAME YOUR APPLIANCES Add Virtual Wine Bank second row 2 bottles there is a second row + Add appliance YOUR WIDGETS Lorem ipsum dolor sit est Scan to Care YOUR NEWS NEW What functions do smart appliances have? How to live sustain home and reduce w

Atlasiet "Pievienot ierīci"

Allow your location permission To enhance your experience, please allow location permission to tOn app in the next step. CONTINUE

Select your appliance Search for your appliance Freezer Refrigerator Wine Cellar Hub Hood Robot Vacuum Cleaner Air purifier

1 Appliance connection Turn OFF and then ON your appliance In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply. OK, I DID IT

Appliance connection Searching your appliance Don't turn off your Bluetooth HOn app is looking for your appliance... 00:00:40 ① Stay close to your appliance in order to correctly capture the signal.

Appliance connection Searching your appliance Don't turn off your Bluetooth. Hub New appliance Long appliance name to... CONNECT PRODUCT NOT FOUND

Appliance connection Searching your appliance Don't turn off your Bluetooth. Hub Connecting... New appliance Long appliance name to... Stay close to your appliance in order to correctly capture the signal.

Your appliance has been correctly identified! Brand Model Serial number Is this your appliance? YES IT'S MY WS-49GDB NO IT'S NOT

Simple line drawing of a spatula (no text or symbols)

1. pozicija


Two technical line drawings of a mechanical tool or tool with curved surfaces and a handle (no text or symbols)

1. pozicija

4.4. SAGATAVOŠANĀS ĖDIENA GATAVOŠANAI, IZMANTOJOT LIETOTNI Zonde Preci Probe kā termometrs

* ASA = servisa centrs

8. VIDES AIZSARDZĪBA UN UTILIZĀCIJA

8.1. VIDES GLĀBŠANA UN SAUDZĒŠANA

Simple line drawing of a trash bin with two crossed lines indicating no waste or restriction (no text or symbols)

9. UZSTĀDĪŠANA

Elektroinstalācija

Simple line drawing of a diamond-shaped object with a small protrusion at the bottom (no text or symbols)

SADALAS — PLATUMS 60 un 65

min. 45 AUGŠA

min. 45 AUGŠA

Technical diagram of a kitchen cabinet with labeled dimensions A, B, and C, showing internal compartments and cabinetry layout.

Simple line drawing of a frying pan with a checkmark icon (no text or symbols)

Two 3D-rendered objects: a circular fan with radial blades and a flat oval, both without any text or symbols.

80°C 80min

0.8°C min

VS

88°C min

QR code image containing encoded data, no visible human-readable text

1 hOn Welcome! Sign in to enter in your home page ENTER REGISTER Are you new to hOn? Click below to learn about our products © TRY DEMO

Do you already have a thousand passwords? Register with your social accounts and log in in the context and fastest way. SIGN UP WITH GOOGLE SIGN UP WITH APPLE SIGN UP WITH FACEBOOK No information relating to yourself the shares and we will not post anything from you BY SIGN UP WITH EMAIL Already registered? LOGIN

Hello USERNAME YOUR APPLIANCES Add Virtual Wine Bank second row 2 better there is a second row Add appliance YOUR WIDGETS Lorem ipsum doler sit out Scents Care YOU YOUR NEWS WHAT FUNCTIONS DO SMART appliances Have? How to live sustain home and reduce w

Selecione "Adicionar aparelho"

Allow your location permission To enhance your experience, please allow location permission to hOn app in the next step. CONTINUE

Select your appliance Search for your appliance Freezer Refrigerator Wine Cellar Hob I hood Robot Vacuum Cleaner Air purifier

1 Appliance connection Turn OFF and then ON your appliance In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply. OK, I DID IT

Appliance connection Searching your appliance Don't turn off your Bluetooth HDs app is looking for your appliance... 00:00:40 ① Stay close to your appliance in order to correctly capture the signal.

Appliance connection Searching your appliance Don't turn off your Bluetooth. Hxb New appliance Long appliance name to... CONNECT PRODUCT NOT FOUND

Appliance connection Searching your appliance Don't turn off your Bluetooth. Hub Connecting... New appliance Long appliance name to... Stay close to your appliance in order to correctly capture the signal.

Appliance connection Your appliance has been correctly identified! Brand Model Serial number Is this your appliance? YES IT'S MY WS-49GDB NO IT'S NOT

Simple line drawing of a pen and ruler (no text or symbols)

Tampa de cerâmica

Simple line drawing of a spatula (no text or symbols)

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Abstract geometric shape resembling a stylized letter 'H' or folded paper (no text or symbols)

Simple line drawing of a tilted rectangular shape with no text or symbols

SECÇÕES - LARGURA 60 e 65

min. 45 PARTE SUPERIOR

Technical diagram of a multi-level kitchen cabinet with labeled dimensions A, B, and C
