USER MANUAL MRB23D5AST MIDEA

Download the app & activate product

USER MANUAL

MRB23D5AST

Warning notices: Before using this product, please read this manual carefully and keep it for future reference. The design and specifications are subject to change without prior notice for product improvement. Consult with your dealer or manufacturer for details.

The diagram above is just for reference. Please take the appearance of the actual product as the standard.

THANK YOU LETTER

Thank you for choosing Midea! Before using your new Midea product, please read this manual thoroughly to ensure that you know how to operate the features and functions that your new appliance offers in a safe way.

CONTENTS

SPECIFICATIONS 04
PRODUCT OVERVIEW 05
PRODUCT INSTALLATION 06
OPERATION INSTRUCTIONS 13
APP SETUP AND OPERATION 18
CLEANING AND MAINTENANCE 19
TROUBLESHOOTING 21
CERTIFICATIONS 24
TRADEMARKS, COPYRIGHTS AND LEGAL STATEMENT-25
DISPOSAL AND RECYCLING 25
DATA PROTECTION NOTICE 25

LANGUAGES

EN English
FR French
ES Spanish

SPECIFICATIONS

Product model MRB23D5AST
Rated Voltage 115 V~, 60 Hz
Rated Current 3A
Storage Volume 646L (22.8cu.ft.)
Defrosting Type Automatic
Refrigerant and Amount R600a, 72g (2.54oz)
Dimensions (W x D x H)	32.87 x 29.06 x 67.32in (835 x 738 x 1710mm)

Wireless network module MWB-S-WBO1
Standard IEEE 802.11b/g/n
Antenna Type Printed PCB antenna
Frequency Band 2400-2483.5 MHz
Operating Temperature 0 °C - 85 °C /32 °F - 185 °F
Operation Humidity 10% - 85%
Maximum Transmission Power <20 dBm
Power Input	DC 5V/500mA

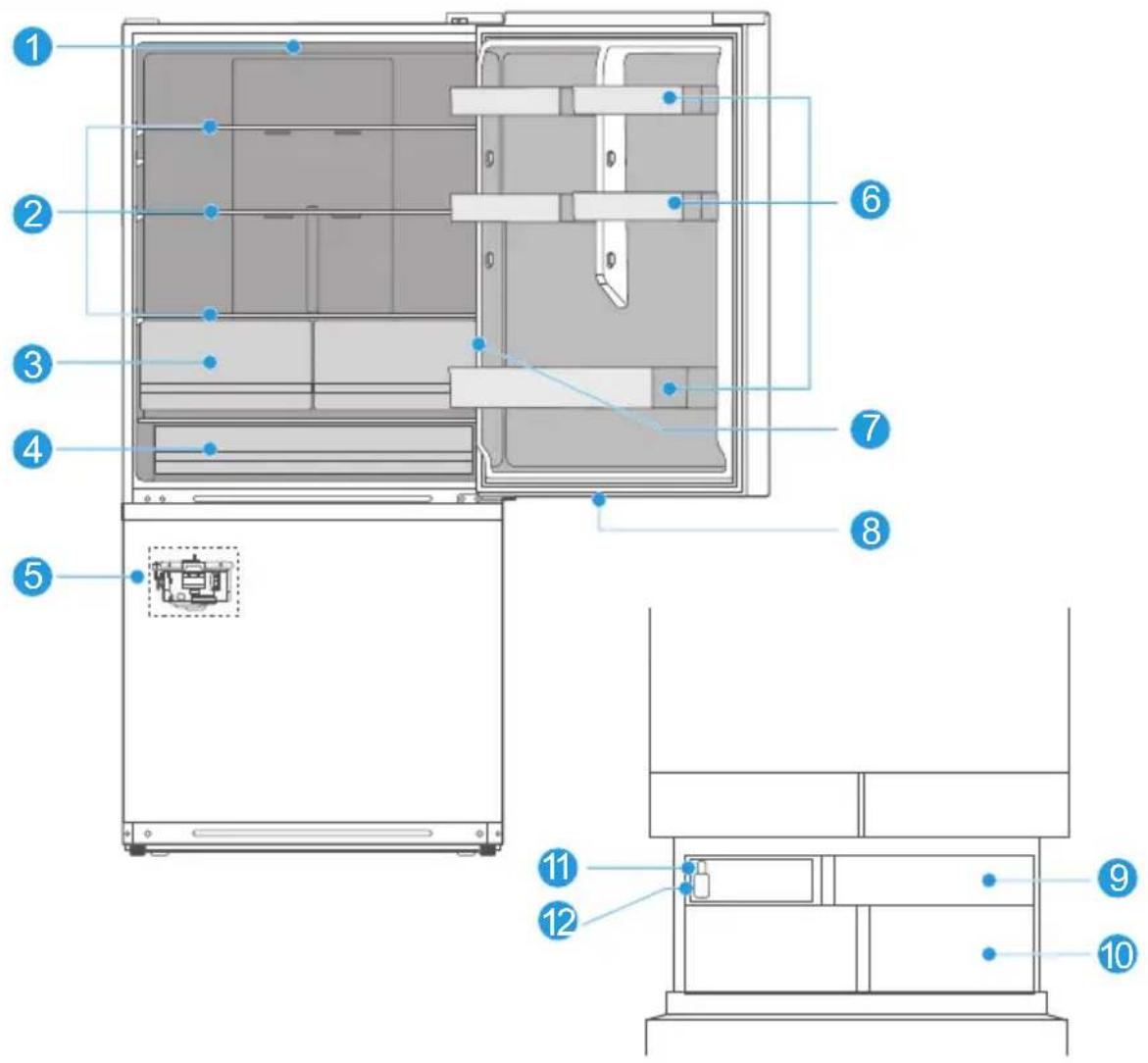

Parts Description

1 LED Light

5 Ice Maker

9 Upper Freezer Drawer

2 Shelf

6 Door Balcony

10 Lower Freezer Drawer

3 Fruit & Vegetable Printer

7 Control panel

11 Ice Scaper

4 Full-widthDrawer

8 LED Light

12 Ice Storage Box

Note: For the most efficient use of energy, keep all internal items such as trays, drawers, shelves and ice cube box in the position as supplied by the manufacturer.

ATTENTION

Differences: Due to technical changes and model differences, some of the illustrations in this manual may differ from yours.

PRODUCT INSTALLATION

Installation Instructions

Refrigerator Location

• Your refrigerator is designed to be free standing, and is not to be recessed or built in.
• Place the refrigerator in a well-ventilated location where the floor is flat and sturdy.
• Keep the refrigerator away from direct sunlight.
• Avoid locations exposing your refrigerator to high humidity and moisture.

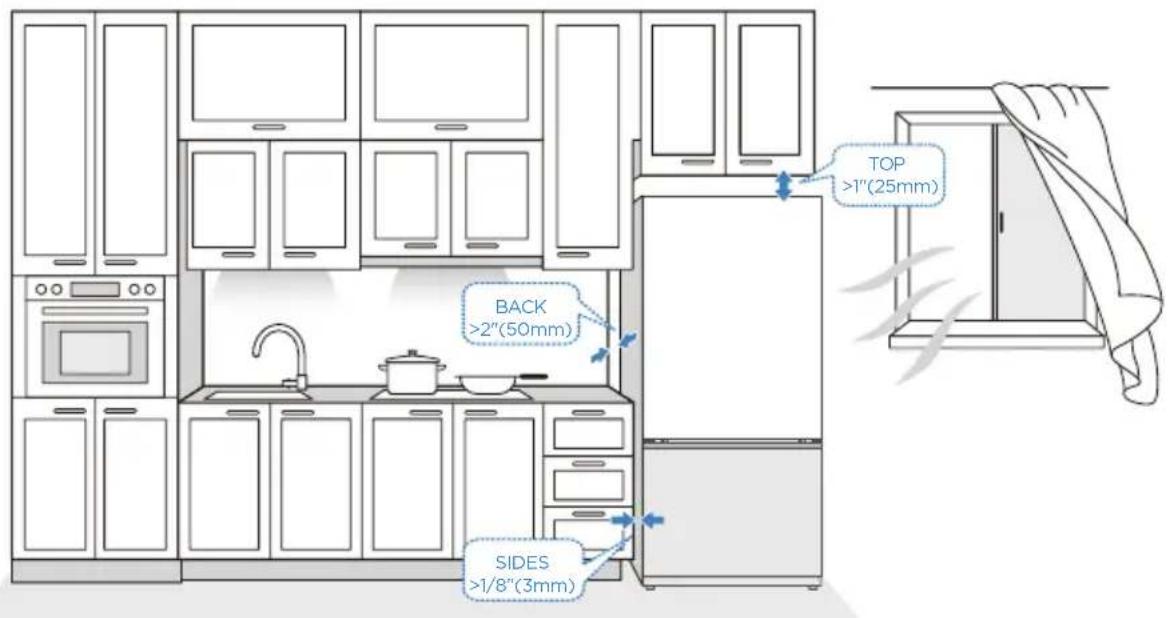

Clearances

• Inadequate clearance from adjacent items may result in the degradation of freezing capability and increased electricity costs. When installing the appliance, maintain the clearance as shown in the figure. However, if your appliance needs to be placed against a wall on the sides, ensure that there is a clearance of more than 1 - 1 / 2 (38mm) between the sides of the unit and the wall. For models with door handles, the clearance should be more than 1 - 1 / 2 (38mm) plus the height of the handle.

Connecting to Power

A 115 V AC, 60Hz, 15- or 20-amp electrical supply is required.
- The power cord is equipped with a 3-prong plug with grounding which mates with standard 3-prong wall outlet. The ground minimizes the possibility of electrical shock.

CAUTION

The refrigerator should be plugged into a dedicated electrical circuit rated to match the requirements of the refrigerator, 115 V AC, 60Hz, 15- or 20-amp

Never unplug the refrigerator by pulling on the power cord. Always grip the plug firmly and pull straight out from the outlet.

When positioning the refrigerator, ensure the power cord is not trapped or damaged.

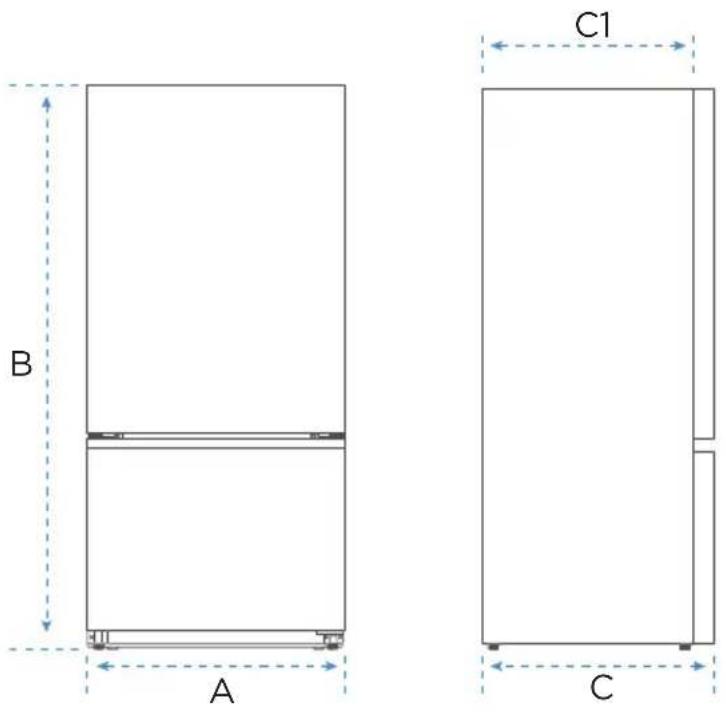

Width	Overall Height	Depth	Depth (Only Cabinet)	Depth (doors open 135°)	Width (doors open 135°)
A B C C D E
32.87 inch 67.32 inch 29.06 inch 25 inch 56.18 inch 52.64 inch
835 mm	1710 mm	738 mm	635 mm	1427 mm	1337 mm

Door Reversal (Optional)

Based on the location where you plan to use your refrigerator, you may find it more convenient to reverse the position of the door.

CAUTION

To avoid injury to yourself or your property, we recommend that someone assist you during the door reversal process.

Make sure that your refrigerator is unplugged and empty.
Have someone available to assist you in the process.
Keep all of the parts you remove to reuse them later.

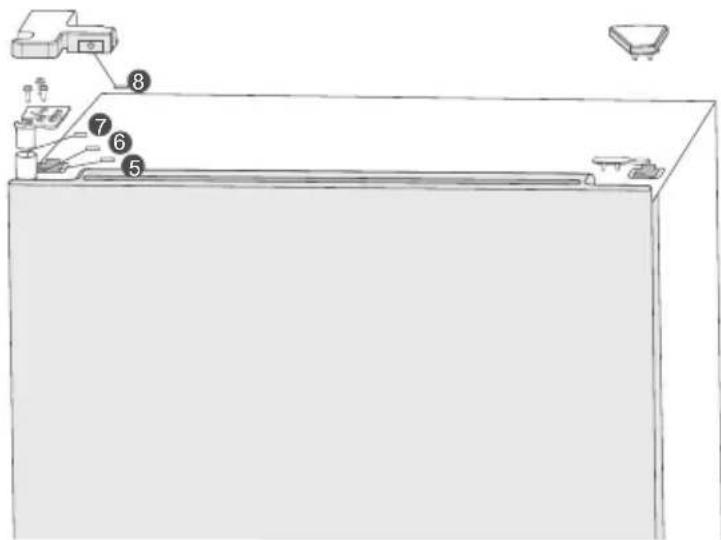

Steps:

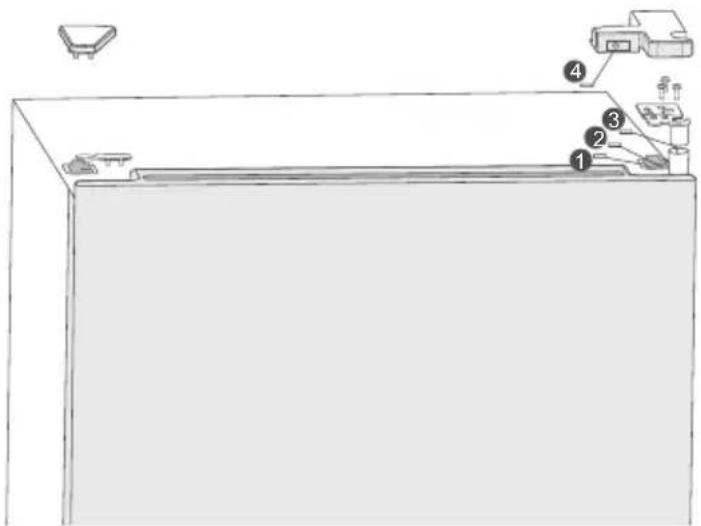

1. Before operation, turn off the power and remove all food from the door shelves.
2. Remove the decorative cover, upper right hinge cover, end cap hole cover, upper hinge, screw, and disconnect the upper right signal wires 1 2 3 4.
3. Remove the shaft sleeve and install the upper cap hole cover to the other side.

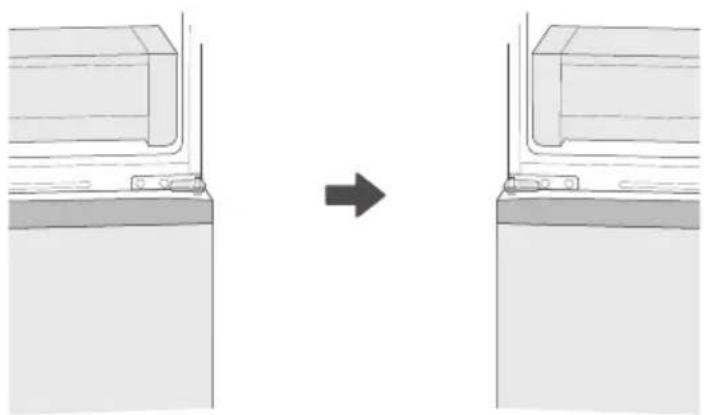

1. Remove the refrigeration door body.
2. Remove the middle hinge and the other side hole cover (3 pcs); remove and install the middle hinge shaft to the other side of the hinge with a slotted screwdriver, and then install the middle hinge to the left side of the refrigerator body; install the hole cover to the right side.

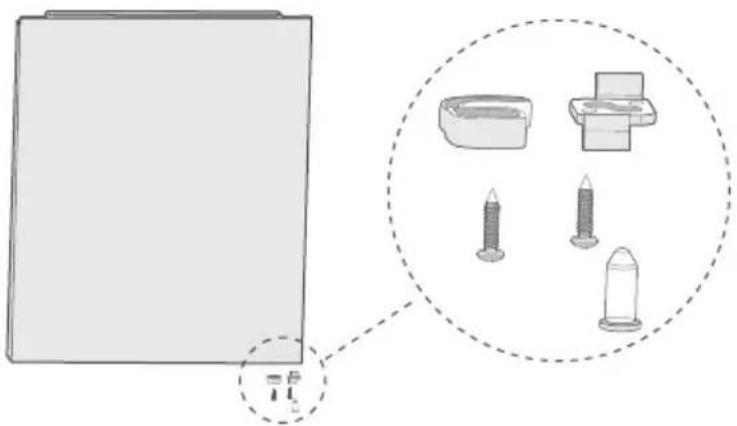

1. Remove the shaft sleeve, door self-locking and door stopper on the right side of the lower end cover of the refrigeration door body.

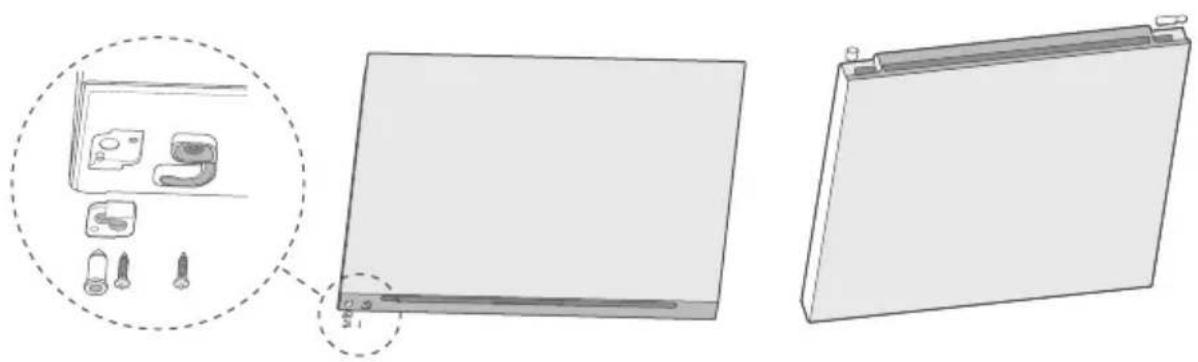

1. Remove the left self-lock from the accessory bag, screw the left self-lock and door stop to the lower left corner of the door, and install the middle hinge sleeve to the lower left corner.
2. Fit the end cap hole cover into the upper right corner; fit the upper hinge shaft sleeve into the upper left corner.

1. Remove the upper left hinge and upper left hinge cover from the accessory bag.

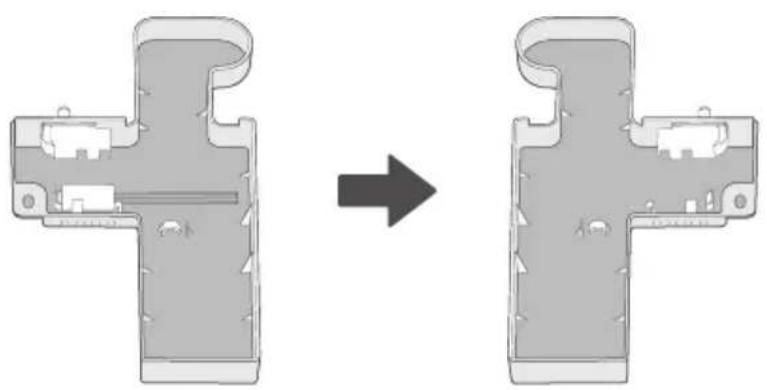

2. Remove the humidity sensor and cylindrical switch on the upper right hinge cover and install the cylindrical switch on the upper left hinge cover.

1. Install the refrigeration door body on the left middle hinge, install the left upper hinge, connect the top signal wire 5 of the refrigerator to the door body signal wire 7, connect the top signal wire 6 of the refrigerator to the cylindrical switch 8.
2. Install the upper left hinge cover, then install the decorative cover to the right side of the refrigerator.

EN

Installing the water line

WARNING: Connect to potable water supply only.

Water line installation kits are available as an additional accessory from your dealer or at a local hardware store.

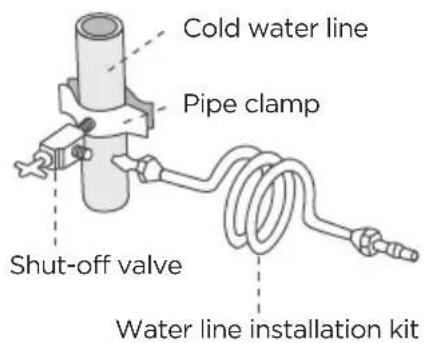

Connecting to the water supply line

1. First, shut off the main water supply line and turn off the ice maker.
2. Locate the nearest cold water supply valve.
3. After connecting the water supply to the water valve, turn your main water supply back on and flush several gallons of water to clear the water supply line.

The minimum inlet water pressure: 276kPa

The maximum inlet water pressure: 689kPa

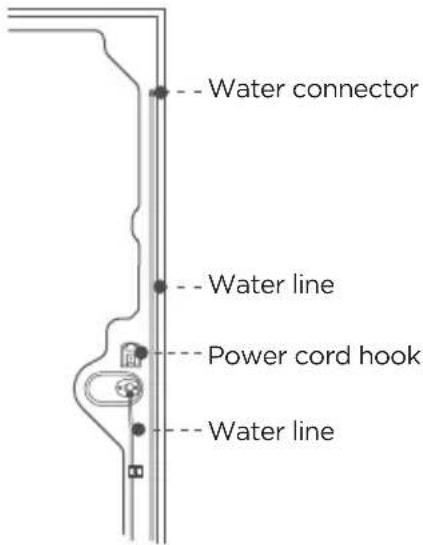

Connecting the water line to the refrigerator

There are several items that you need to purchase to complete this connection. These items are available in kits at your local hardware store.

1. Insert the water line (included) into the appropriate hole on water connector (included), then insert the water line installation kit (not included) into another hole on water connector (included).
2. Turn on the water valve and check for any leakage.
3. When moving the refrigerator, you can hang the power cord on the power cord hook.

Leveling Feet

To avoid vibration, the appliance must be leveled.

If required, adjust the leveling feet (located on both sides of the bottom front) to compensate for the uneven floor.

The front should be slightly higher than the rear to aid in door closing.

Leveling feet can be turned easily by tipping the cabinet slightly.

Turn the leveling feet counterclockwise to raise the unit, or clockwise to lower it.

Moving the Appliance

1. Remove all items from the appliance.
2. Pull the power plug out, insert and fix it into the power plug hook at the rear or on top of the appliance.
3. Tape parts such as shelves and the door to prevent from falling off while moving the appliance.
4. Move the appliance with more than two people carefully. When transporting the appliance over a long distance, keep the appliance upright.

ATTENTION

Before making changes, the refrigerator must be disconnected from power. Precautions should be taken to prevent any personal injury.

Replacing the light

Any replacement or maintenance of the LED lamps is intended to be made by the manufacturer, its service agent or similar qualified person.

ATTENTION

This product contains two light sources of energy efficiency class (F).

Tips for Energy Saving

Do not place the appliance near cookers, radiators or other heat sources. If the ambient temperature is high, the compressor will run more frequently and for longer, resulting in increased energy consumption.

Ensure that there is sufficient ventilation at the base of the appliance, on the sides of the appliance and at the back of the appliance.

Please also observe the spacing dimensions in the chapter "Installation".

An evenly filled refrigerator/freezer compartment contributes to optimal energy use.

Allow warm food to cool before placing it in the refrigerator/freezer compartment. Food that has already cooled down increases energy efficiency.

Allow frozen food to defrost in the refrigeration compartment. The coldness of the frozen food reduces the energy consumption in the refrigerator compartment and thus increases the energy efficiency.

Open the door only as briefly as necessary to minimise cold loss. Opening the door briefly and closing it properly reduces energy consumption.

Setting the temperature no colder than necessary contributes to optimal energy use.

The door gaskets of your appliance must be perfectly intact so that the doors close properly and energy consumption is not increased unnecessarily.

OPERATION INSTRUCTIONS

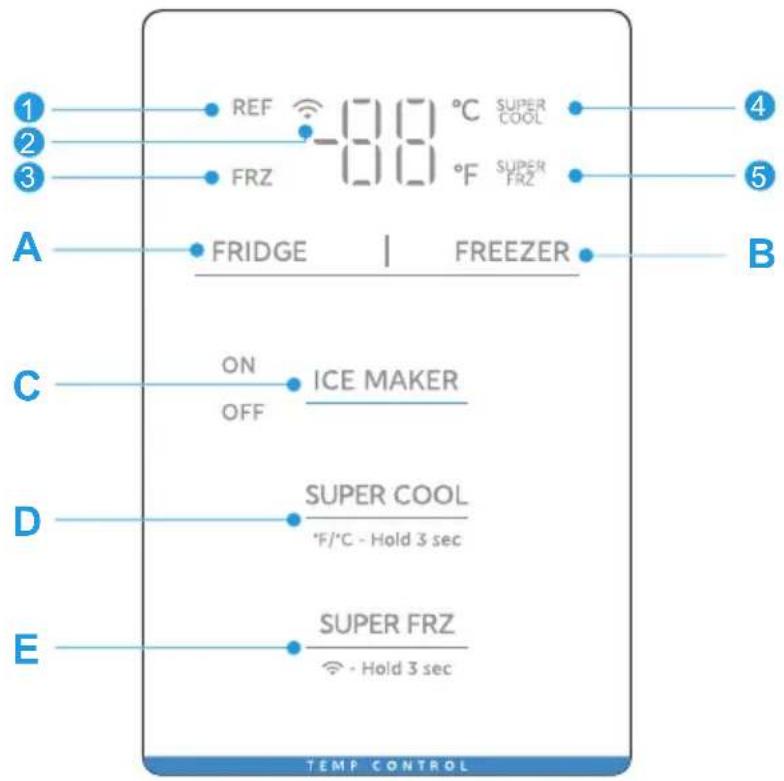

Control Panel

The control panel is located in the lower right corner of the refrigerator compartment.

	Icon Button
1	Refrigerator icon	A	Refrigerator temperature adjustment button
2	Wireless network icon	B	Freezer temperature adjustment button
3	Freezer icon	C	Ice maker on/off button
4	Super cool icon	D	Super cool button
5	Super freeze icon	E	Super freeze button

ATTENTION

The actual control panel may vary depending on the model. The control panel will turn off automatically for energy saving.

Use and Functions

Display

a. When the refrigerator is first electrified, the screen fully displays for 3 seconds. Meanwhile, the start-up ringtone sounds, and the normal function display begins. The refrigerating chamber and freezer chamber are set to 4^ / -18^ respectively at initial power-on. The ice maker is turned on by default and has no memory function after powering off.
b. If there is a fault, the fault code is displayed (cycle display). The refrigerating chamber's set temperature is displayed when there is no fault.
c. When the door is closed and no button is pressed for 10 seconds, the screen will be locked. The display will be off after 30 seconds, and will be on again when any button is pressed. When there is a "fault code visible" type of fault, the display will light up, and will turn off after 30 seconds.

Lock/Unlock

The screen automatically enters the locked state after 10 seconds waiting.
In the locked state, press any button to enter the unlocked state and display the set temperature of the refrigerating chamber.
The alarm can be disabled when the screen is locked. All other button operations are unavailable.

Refrigerator temperature setting

Press the FRIDGE button to adjust the temperature of refrigerating compartment.
The setting range of the compartment is 1^ - 7^ . The setting takes effect after 10 seconds (screen locked).

Freezer temperature setting

Press the FREEZER button to adjust the temperature of freezer compartment.
The setting range of the compartment is -22^ - -14^ . The setting takes effect after 10 seconds (screen locked).

Sabbath mode

To enter the Sabbath mode, press and hold the ICE MAKER and SUPER FRZ buttons simultaneously for 4s, or via the App.
In the Sabbath mode, the lamps will not light, the display screen will be off, and there will be no buzzer sound.
To exit Sabbath mode, press and hold ICE MAKER and SUPER FRZ simultaneously for 4s (it will take effect after screen locked). Or the appliance will automatically exit the mode after 48 hours. You can adjust this time in App settings, see App for more information.

Super Cool mode

Press the SuperCool mode.
When Super Cool mode is set, the temperature of the refrigerator compartment is automatically set to 1^ . Super Cool mode will be automatically exited after 6 hours. When exited, the temperature will return to that set before entering Super Cool mode.
Adjusting the temperature of refrigerating compartment in the Super Cool mode will exit the Super Cool mode immediately.

Super Freeze mode

Press the UEBORT set/exit the Super Freeze mode.
When Super Freeze mode is set, the freezer compartment temperature is automatically set to -22^ . Super Freeze mode will be automatically exited after 40 hours. When exited, the

temperature will return to that set before entering Super Freeze mode.

Adjusting the temperature of freezer compartment in the Super Freeze mode will exit the Super Freeze mode immediately.

ATTENTION

The super freeze function is designed to maintain the nutritional value of the food in the freezer. It can freeze the food in the shortest time. If a large amount of food is frozen at one time, it is recommended that the user turn on the super freeze function and put the food in. At this time, the freezing speed of the freezer compartment is increased, which can quickly freeze the food, effectively lock the nutrition of the food, and facilitate storage.

Fault Indication

The following warnings appearing on the control panel indicate corresponding faults of the refrigerator. Though the refrigerator may still have refrigerator and freezing function with the following faults, the user shall contact a maintenance specialist for maintenance, so as to ensure normal use of the refrigerator.

Fault Code Fault Description

E1 The temperature sensor in the refrigerating chamber fails
E2 The temperature sensor in the freezer chamber fails
E5 The defrosting sensor in the freezer chamber fails
E6 The communication between display board and main control board fails
E7 The ambient temperature sensor fails

EH The humidity sensor fails
EE Ice maker bottom sensor fails

EP Ice maker fails

1. Connect the water line as per the installation instructions.
2. The ice maker function is turned on by default. If you do not need ice, you need to manually turn off the ice maker.
3. Collect ice cubes from the ice storage box.

Notes for use of ice maker:

The ice maker begins producing ice only when the freezer compartment has reached the specified temperature.
Typically, the refrigerator takes about 8 hours to produce the first ice cubes after being powered on.
After the first successful ice making cycle, each subsequent cycle takes approximately 100 minutes, assuming an ambient temperature of 21^ and that the door remains closed. Each cycle produces about 100 grams of ice, which is roughly equivalent to 10 ice cubes.
The ice maker continues to make ice until the ice detection rod on the ice maker touches the ice; when the ice detection rod touches the ice in the ice box, the ice making process stops. At this time, the ice storage box is full of ice.

The ice making time may be extended in the following situations:

The freezer chamber is not fully cooled at the beginning of use.
The temperature is low in winter or the ambient temperature is high in summer.
The door is opened and closed many times; or more food is put in at one time.
The space around the refrigerator is too narrow.

EN

ATTENTION

• Please note that due to technical changes and differences in models, some of the illustrations in this manual may differ from your model.

Freezer Compartment

• The freezer compartment is designated for the storage of food frozen at very low temperature, long-term storage of frozen food, and for the production of ice.
• Use the shelves in the door of the freezer only for storing frozen food, not for storing hot food intended for freezing.
• Do not put fresh and frozen food next to each other. The frozen food may thaw.
• When freezing fresh food (such as meat, fish or chopped meat), cut them into parts that can be used at the same time.
• Storing frozen food: instructions are usually stated on the packages, which must be followed. If there is no information on the packaging, food should not be stored for longer than three months from the date of purchase.
• When purchasing frozen food, make sure that it was frozen at a suitable temperature and that the packaging is not damaged.
• Frozen food should be kept in suitable packages to retain the quality and should be returned to the freezer compartment as soon as possible.
• If a package of frozen food shows moisture or abnormal bulging, it is probable that it was stored at the wrong temperature and the content is spoiled.
• The storage period for frozen food depends on the room temperature, the thermostat setting, the frequency of opening the door of the freezer, the type of food and the time of transporting the product from the shop to the household. Always follow the instructions printed on the packaging and never exceed the maximum storage time stated on the package.

Refrigerator Compartment

To reduce moisture and subsequent ice build-up, never put liquid into the fridge compartment in unsealed containers. Frost tends to concentrate in the coolest parts of the evaporator. Storing uncovered liquids results in a more frequent need for defrosting.

Never put warm foods in the fridge compartment. These should first cool down at room temperature and then be placed so as to ensure adequate air circulation in the fridge compartment.

Foods or food containers should not touch the back wall of the fridge because they could freeze to the wall. Do not keep regularly opening the door of the refrigerator.

Meat and clean fish (packed in a package or plastic foil) can be placed in the fridge compartment, which can be used in 1-2 days.

Fruit and vegetables without packaging can be placed in the part designated for fresh fruit and vegetables

Recommended Temperature

The optimal temperature setting for food storage:

• Fridge: 4^ C( 39^ F) ; Freezer: -18°C (-0.4°F)

ATTENTION

The optimal temperature setting of each compartment depends on the ambient temperature. Above optimal temperature is based on the ambient temperature of 25^ .

APP SETUP AND OPERATION

Download the SmartHome app

On an app market (Google Play Store, Apple App Store), search for SmartHome* and find the SmartHome app. Download and install it on your phone. You can also download the app by scanning the QR code below.

Register and log in

Open the SmartHome app, and create a new account to start (you can also register through a third-party account). If you already have an existing account, use the account to log in.

Connect your devices to SmartHome

1. Please make sure your mobile phone is connected to a wireless network. If it is not, go to Settings and enable wireless networks and Bluetooth.
2. Please power on your devices.
3. Open SmartHome app on your phone.
4. If a message of "Smart devices discovered nearby" appears, click to add.
5. If no message appears, select "+" on the page and select your device in the list of nearby devices available. If your device is not listed, please add your device manually by the device category and device model.
6. Connect your device to the wireless network according to instructions on app. If the connection fails, please follow the instructions provided by the app to continue with the operation.

CLEANING AND MAINTENANCE

CAUTION

Disconnect the appliance from the electrical supply before performing any routine maintenance. Allow at least 5 minutes before restarting the appliance, as frequent starting may damage the compressor.

Hold the plug, not the cable, when unplugging the appliance.

Do not scrape off frost and ice with sharp objects. Do not use sprays, electric heaters, hair dryers, steam cleaners or other sources of heat in order to avoid damage to the plastic parts.

Eliminate the dust on the back of the unit at least once in the year to avoid hazard by fire, as well as increased energy consumption.

Check the door gasket regularly to make sure there is no debris. Clean the door gasket with a soft cloth dampened with soapy water or diluted detergent.

The interior of the product should be cleaned regularly to avoid odor.

Use a soft cloth or sponge to clean the inside of the product, with two tablespoons of baking soda and a quart of warm water. Then rinse with water and wipe clean. After cleaning, open the door and let it dry naturally before turning on the power.

For areas that are difficult to clean in the product (such as narrow gaps or corners), it is recommended to wipe them regularly with a soft rag, soft brush, etc. and when necessary, combined with some auxiliary tools (such as thin sticks) to ensure no contaminants or bacteria accumulation in these areas.

Do not use soap, detergent, scrub powder, spray cleaner, etc., as these may cause odors in the interior of the product or contaminated food.

Wipe the outer surface of the product with a soft cloth dampened with soapy water, detergent, etc., and then wipe dry.

Do not use hard brushes, clean steel balls, wire brushes, abrasives (such as toothpastes), organic solvents (such as alcohol, acetone, isoamyl acetate, etc.), boiling water, acid or alkaline items, which may damage the fridge surface and interior. Boiling water and organic solvents such as benzene may deform or damage plastic parts.

Do not rinse directly with water or other liquids during cleaning to avoid short circuits or affect electrical insulation after immersion.

ATTENTION

The appliance shall run continuously once it is started. Generally, the operation of the appliance shall not be interrupted; otherwise the service life may be impaired.

Defrosting

The refrigerator is made based on the air-cooling principle and thus has an automatic defrosting function. Frost formed due to change of season or temperature may also be manually removed by disconnecting the appliance from power supply or by wiping with a dry towel.

CAUTION!

Don't use sharp objects to remove frost from the freezer.

Only after the interior completely dry should the appliance be switched back on and plugged back into the mains socket.

Cleaning the Door Tray

According to the direction arrow in the figure, use both hands to squeeze the tray and push it upward, then you can take it out.
After washing the removed tray, you can adjust its installation height to suit your needs.

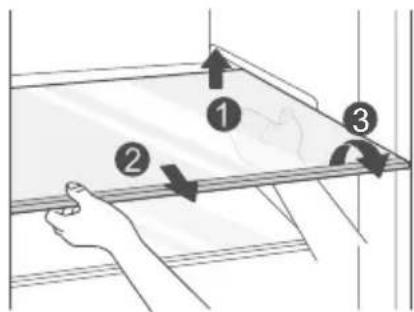

Cleaning the Glass Shelf

As the innermost part of the refrigerator liner where contacting the shelves has a backstop, you shall raise the shelves upward, rotate the shelf as indicated, then you can take it out.
Adjust or clean the shelves as needed.

EN

Cleaning the Ice Storage Box and Freezer Printer

Open the freezer chamber door to the maximum stroke, lift the tail of the ice storage box, take out the ice storage box.

Open the freezing chamber door to the maximum stroke, lift the tail of the upper drawer of the freezer chamber, take out the upper freezer drawer.

Upper freezer drawer

Open the freezer chamber door to the maximum stroke, lift the end of the lower freezer drawer and lift it up.

3 Lower freezer drawer

TROUBLESHOOTING

The following simple issues can be handled by the user. Please call the after-sales service department if the issues are not solved.

Problem Possible Causes
Failed operation	·Check whether the appliance is connected to power or whether the plug is in well contact
	·Check whether the voltage is too low
	·Check whether there is a power failure or partial circuits have tripped
Odor	·Odorous foods shall be tightly wrapped
	·Check whether there is any rotten food
	·Clean the inside of the refrigerator
Long-time operation of the compressor	·Long operation of the refrigerator is normal in summer
	·When the ambient temperature is high, it is not recommended to have too much food in the appliance at the same time
	·Food shall get cool before being put into the appliance
	·The doors are opened too frequently
Light fails to get lit	·Check whether the refrigerator is connected to power supply and whether the illuminating light is damaged
	·Have the light replaced by a specialist
Door can not be properly closed	·The door is stuck by food packages. Too much food is placed
	·The refrigerator is tilted
Loud noises	·Check whether the floor is level and whether the refrigerator is placed stably
	·Check whether accessories are placed at proper locations
Door seal fails to be tight	·Remove foreign matters on the door seal
	·Heat the door seal and then cool it for restoration (or blow it with an electrical drier or use a hot towel for heating)

Problem Possible Causes
Water pan overflows	·There is too much food in the chamber or food stored contains too much water, resulting in heavy defrosting
	·The doors are not closed properly, resulting in frosting due to entry of air and increased water due to defrosting
Hot housing	·Heat dissipation of the built-in condenser via the housing, which is normal When housing becomes hot due to high ambient temperature, storage of too much food or shutdown of the compressor is shut down, provide sound ventilation to facilitate heat dissipation
Surface condensation	·Condensation on the exterior surface and door seals of the refrigerator is normal when the ambient humidity is too high. Just wipe the condensate with a clean towel
Abnormal noise	·Buzz: The compressor may produce buzzes during operation, and the buzzes are loud particularly upon start or stop. This is normal
	·Creak: Refrigerant flowing inside of the appliance may produce creak, which is normal
Not making ice cubes (only on models with an ice maker)	·The ice making function not turned on. Switch on the ice maker
	·The appliance is not being supplied with water. Check whether the water supply is on
	·The water pipe is kinked. Straighten the kinks
	·The water pipe connection is not installed correctly. Check the water connection
	·The water pressure is too low. Check the pressure of the water supply, or whether the filter is clogged

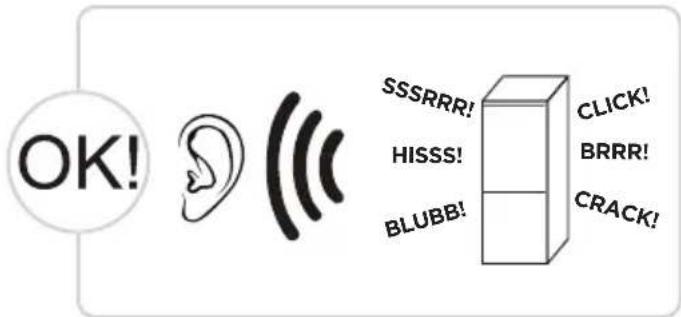

Do you hear these abnormal sounds as below? Usually these sounds are normal.

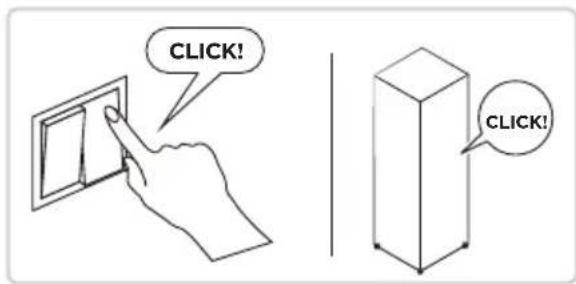

CLICK: Some electrical parts in the refrigerator, such as electric valve will make this noise when working. This is normal.

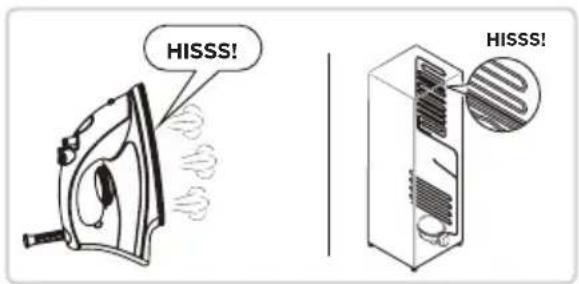

HISSS: When the refrigerant flows into the evaporator, it will make this noise. This is normal.

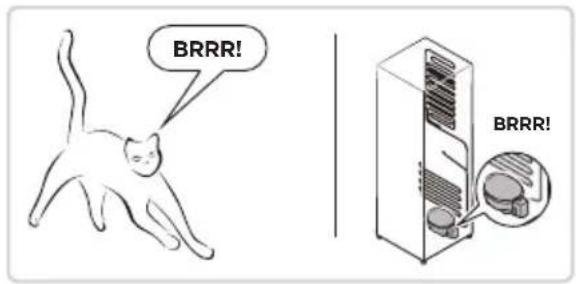

BRRR: The compressor will make this noise when working, and the buzzes are loud particularly upon start or stop. This is normal.

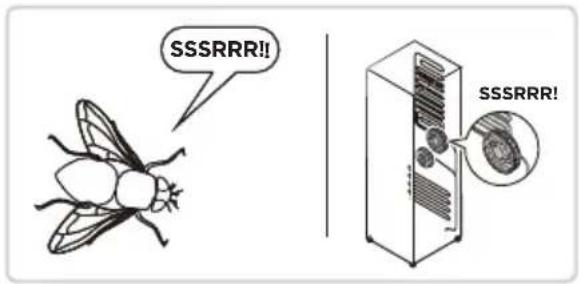

SSSRRR: The fan motor in the No Frost refrigerator will make this noise when working. This is normal.

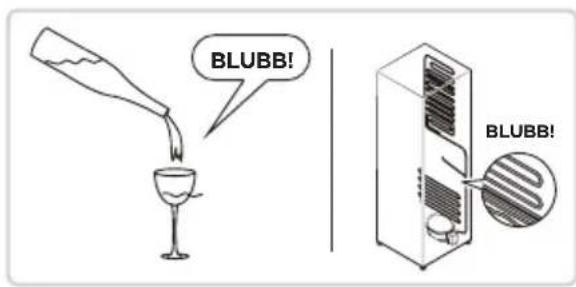

BLUBB: Refrigerant flowing through the pipes in the refrigerator will make this noise. This is normal.

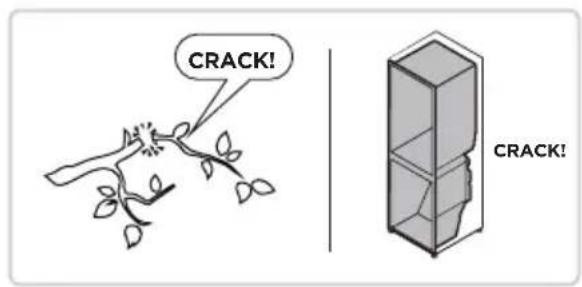

CRACK: Cracking sound or broken ice sound: the overall structure of the refrigerator, air duct frost will be with the thermal expansion and contraction of the expansion sound, these are also normal physical phenomenon.

CERTIFICATIONS

Federal Communications Commission (FCC) Compliance Statement for USA

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.

Industry Canada (IC) Compliance Statement for Canada

This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

CANICES-003(B)/NMB-003(B)

Midea is not responsible for any changes or modifications not expressly approved by Midea. Such modifications could void the user's authority to operate the equipment.

For model: MWB-S-WB01

FCC ID: 2ADQOMWB-SWB01

IC ID: 12575A-WB01

TRADEMARKS, COPYRIGHTS AND LEGAL STATEMENT

idea logo, word marks, trade name, trade dress and all versions thereof are valuable assets of Midea

Group and/or its affiliates ("Midea"), to which Midea owns trademarks, copyrights and other intellectual property rights, and all goodwill derived from using any part of an Midea trademark. Use of Midea trademark for commercial purposes without the prior written consent of Midea may constitute trademark infringement or unfair competition in violation of relevant laws.

This manual is created by Midea and Midea reserves all copyrights thereof. No entity or individual may use, duplicate, modify, distribute in whole or in part this manual, or bundle or sell with other products without the prior written consent of Midea.

All the described functions and instructions were up to date at the time of printing this manual. However, the actual product may vary due to improved functions and designs.

DISPOSAL AND RECYCLING

Important instructions for environment

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point for recycling of electrical electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

EN

Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

DATA PROTECTION NOTICE

For the provision of the services agreed with the customer, we agree to comply without restriction with all stipulations of applicable data protection law, in line with agreed countries within which services to the customer will be delivered, as well as, where applicable, the EU General Data Protection Regulation (GDPR).

Generally, our data processing is to fulfil our obligation under contract with you and for product safety reasons, to safeguard your rights in connection with warranty and product registration questions. In some cases, but only if appropriate data protection is ensured, personal data might be transferred to recipients located outside of the European Economic Area.

Further information are provided on request. You can contact our Data Protection Officer via [e-mail]. To exercise your rights such as right to object your personal data being processed for direct marketing purposes, please contact us via [e-mail]. To find further information, please follow the QR Code.

Réfrigérateur

INSTALLATION DU PRODUIT

Instructions d-installation

make yourself at home
