USER MANUAL MRT10D3BWW MIDEA

Top-Freezer Refrigerator

Power supply: 115 V Frequency: 60Hz Capacity: 10.1 cu. ft.

Warning: Before using this product, please read this manual carefully and keep it for future reference. The design and specifications are subject to change without prior notice for product improvement. Consult with your dealer or manufacturer for details.

version A - 07 - 2025

USER MANUAL

MODEL NUMBER MRT10D3BWW

MRT10D3BST

www.midea.com

Dear user

Thank you for letting Midea help you "make yourself at home."

This manual is part of our commitment to your total satisfaction. Please read this manual carefully before use and keep it in a convenient place for future reference.

To help us better serve you, please consider registering your product using our convenient Midea app MSmartlife, by visiting http://www.midea.com, or by texting a picture of your proof of purchase to 1-844-224-1614

By using the text option you will earn an additional 3 months warranty extension immediately following the completion of the product's original warranty.

REFRIGERATOR SAFETY 3

Location Requirements 6
Electrical Requirements 7

PARTS AND FEATURES 8

INSTALLATION 9

Unpack 9
Move to Final Location 9
Level Refrigerator 10
Reverse the Door Swing 10

BEFORE USE 13

Waiting Period 13
Cleaning 13

REFRIGERATOR USE. 14

General 14
Controls 15

REFRIGERATOR CARE 16

Cleaning 16
Moving 16
Storage 17

TROUBLESHOOTING 17

General 17

Error Codes 19

WARRANTY 20

REFRIGERATOR SAFETY

YOUR SAFETY AND THE SAFETY OF OTHERS ARE VERY IMPORTANT

To prevent injury to the user or other people and property damage, the instructions shown here must be followed. Incorrect operation due to ignoring of instructions may cause harm or damage, including death.

The level of risk is shown by the following indications.

WARNINGWARNING

This symbol indicates the possibility of death or serious injury.

CAUTION

This symbol indicates the possibility of injury or damage to property.

WARNING

This symbol indicates the possibility of dangerous voltage constituting a risk of electrical shock is present that could result in death or serious injury.

IMPORTANT SAFETY INSTRUCTIONS

WARNING

GENERAL APPLIANCE SAFETY

• Read all safety warnings, instructions, illustrations and specifications provided with this appliance. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
• Save all warnings and instructions for future reference.

ELECTRICAL SAFETY

• Plug into a grounded 3-prong o utlet.
• Do not remove ground plug.
• Do not use an adapter.
• Unplug the power cord by holding the plug, never by pulling the cord.
  DO NOT turn the appliance on or off by plugging or unplugging the power cord.
  DO NOT use an extension cord.
• Unplug the refrigerator before cleaning or defrosting.

Grounding requirement

• This refrigerator must be grounded. This refrigerator is equipped with a grounding plug. The plug must be inserted into an outlet that is properly installed and grounded.
• Improper use of the grounding plug can result in a risk of electric shock. Consult a qualified electrician or service person if the grounding instructions are not completely understood or if doubt exists as to whether the refrigerator is properly grounded.

LOCATION SAFETY

• This refrigerator is intended to be used in household and similar environments.
  Install in accordance with the manufacturer's instructions.
• This refrigerator should not be recessed or built-in an enclosed cabinet. It is designed for freestanding installation only.
  WARNING - Keep ventilation openings, in the refrigerator, clear of obstruction.
• DO NOT install near any heat sources, such as radiators, heat registers, stoves, other cooking appliances or in direct sunlight.
• DO NOT store or use gasoline or any flammable liquids inside or in the vicinity of this refrigerator.

USE AND CARE SAFETY

• Flammable refrigerant used. Follow handling instructions carefully. Risk of fire or explosion due to puncture of refrigerant tubing.
• Flammable refrigerant used. Do not use mechanical devices to defrost freezer. Do not puncture refrigerant tubing.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Keep key away from children.
• Children should be supervised to ensure that they DO NOT play with the appliance.
• DO NOT touch the interior of the freezer with wet hands. This could result in frostbite.
• Clean only with a damp cloth. Use nonflammable cleaner.

SERVICE SAFETY

• Disconnect power before servicing.

• Flammable refrigerant used. To be repaired only by trained service personnel. Do NOT puncture refrigerant tubing.

• Refer all servicing to qualified service personnel. Do not repair or replace any part of this appliance unless specifically recommended in this manual. Servicing is required when the appliance has been damaged in any way, such as the power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the appliance, the appliance has been exposed to rain or moisture, does not operate normally, or has been dropped.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified person, in order to avoid a hazard.
• If component part is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Replace all parts and panels before operating.

SAVE THESE INSTRUCTIONS

THIS APPLIANCE IS FOR HOUSEHOLD USE ONLY

State of California Proposition 65Warnings:

WARNING: Cancer and Reproductive Harm

• www.P65Warnings.ca.gov.

PROPER DISPOSAL

WARNING

Suffocation Hazard

Before you throw away your old refrigerator:

• Remove the door or lid so that children cannot hide or get trapped inside your old appliance.
• Leave any shelves in place so that children may not easily climb inside.
• Failure to follow these instructions can result in death or brain damage.

IMPORTANT: Flammable gas and refrigerant used. It is the consumer's responsibility to comply with Federal and Local regulations when disposing of this product. Refrigerants must be evacuated by a licensed, EPA certified refrigerant technician in accordance with established procedures.

Explosion and Fire Hazard

• Keep flammable materials and vapors, such as gasoline, away from appliance.
• Failure to do so, can result in death, explosion or fire.

This refrigerator is designed to be freestanding only, and should not be recessed or built-in.

• Place your refrigerator on a floor that is level and strong enough to support the refrigerator when it is fully loaded.
• Place your refrigerator where there is access to the required electrical connection. See "Electrical Requirements."
• Position the refrigerator in a location away from direct sunlight, because it may affect the acrylic coating and heat sources may increase electrical consumption. To ensure optimal performance, install in areas with an ambient temperature between 41^ (5^) and 109^ (42.8^) .

NOTES:

• Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption.

• Extremely cold temperatures may also prevent the refrigerator from performing properly.

• Avoid locating the refrigerator in areas with high humidity.

• Adequate air circulation is required for efficient operation. Maintain the recommended clearance to ensure adequate air circulation.

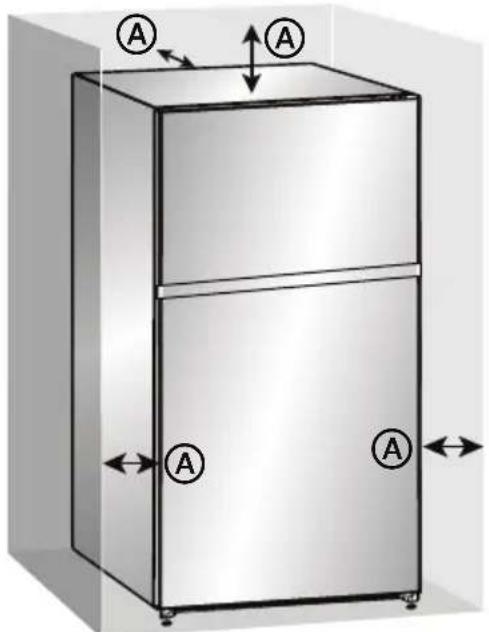

RECOMMENDED CLEARANCE

A

3^ (7.6cm)

Clearance at the top, back and both sides of the refrigerator

NOTE: If you place the refrigerator next to a fixed wall, allow sufficient space on the hinge-side for the door to swing open.

ELECTRICAL REQUIREMENTS

WARNING

Electrical Shock Hazard

• Plug into a grounded 3-prong outlet.
• Do not remove the ground prong from the power cord plug.
• Do not use an adapter.
• Do not use an extension cord.
• Failure to do so can result in death, fire or electrical shock.

IMPORTANT: A 115 Volt, 60Hz , AC only, 15-amp fused, grounded electrical supply is required.

• Use an electrical outlet that accepts the grounding prong.

NOTE: The power cord is equipped with a 3-prong (grounding) plug which mates with a standard 3-prong (grounding) electrical outlet.

• We recommend that the refrigerator be plugged into an electrical circuit serving ONLY this appliance.
• Use an electrical outlet that cannot be turned off with a switch or pullchain.
  DO NOT use an extension cord.

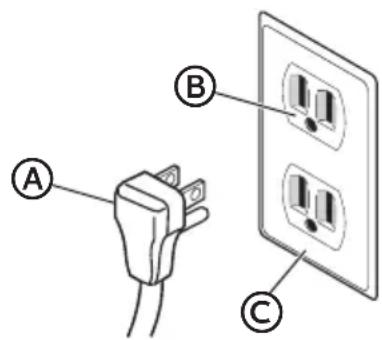

3-prong plug

3-prong receptacle

Receptacle box cover

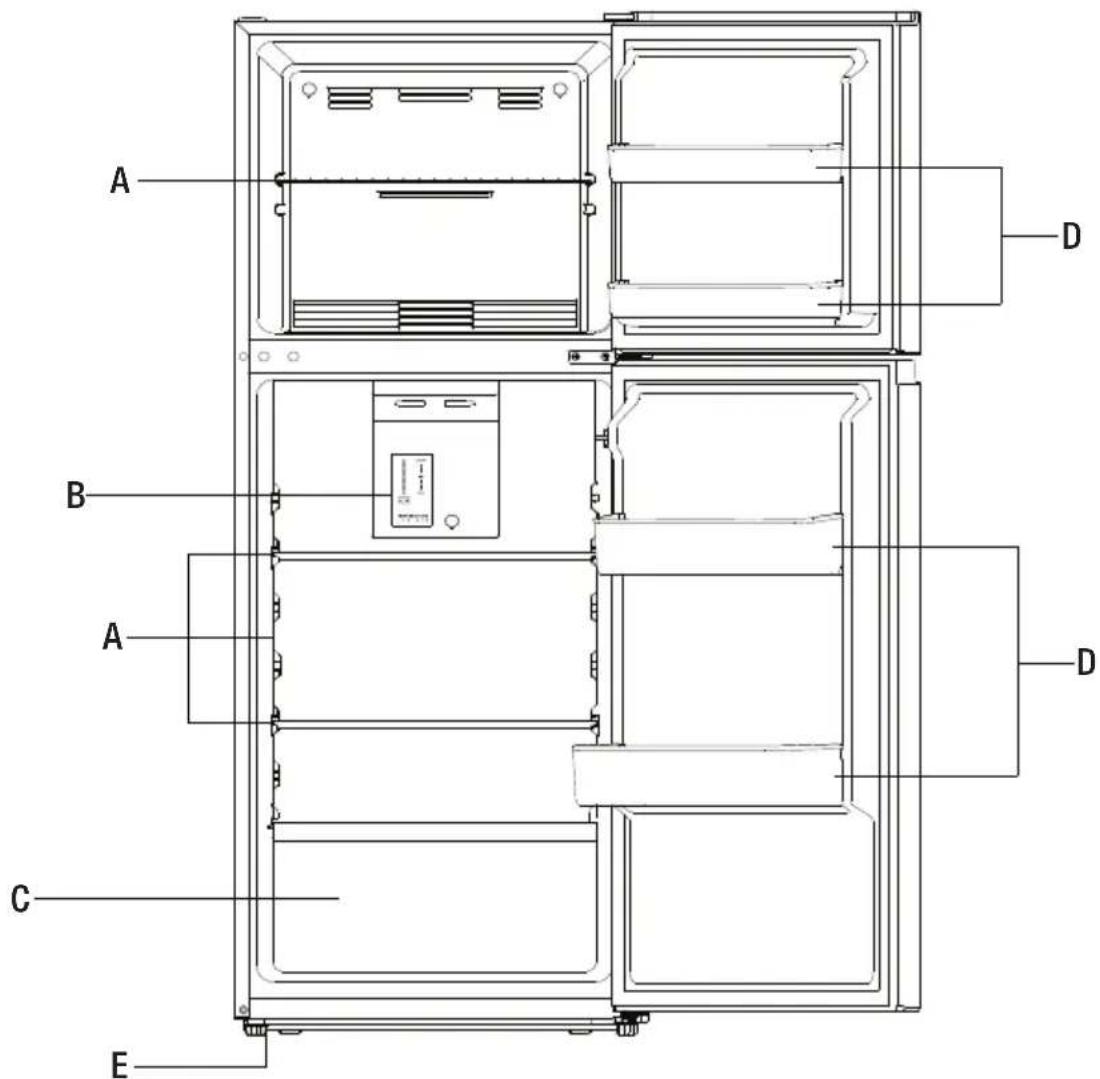

PARTS AND FEATURES

(The picture above is only for reference. The actual configuration will depend on the physical product.)

A Shelves
B Refrigerator control
C Crisper drawer
D Door bins

E Leveling feet

Wheels (1 - left back,

1 - right back)

SPECIFICATIONS

Dimension (WxDxH)	21.5"x27.3"x60" (54.5x69.3x152.4 cm)
Weight	108 lb.(49 kg.)
Power requirements 115	V ~ 60 Hz
Power cord length 66.9"	(170 cm)

INSTALLATION

UNPACK

WARNING

Fire or Explosion Hazard

• Do not puncture refrigerant tubing.
• Follow handling instructions carefully.
• Flammable refrigerant used.
• Failure to do so can result in death, explosion or fire.

IMPORTANT: Remove ALL exterior and interior packing materials including the foam packing between the exterior condenser and the refrigerator cabinet.

MOVE TO FINAL LOCATION

WARNING

Fire or Explosion Hazard

• Do not puncture refrigerant tubing.
• Follow handling instructions carefully.
• Flammable refrigerant used.
• Failure to do so can result in death, explosion or fire.

IMPORTANT:

• If the refrigerator has been in a horizontal position for any period of time, wait 24 hours to allow the refrigerant to settle before plugging in the refrigerator.
• When moving the refrigerator, DO NOT tilt it beyond 45^ from upright.

NOTE: Tilting the refrigerator more than 45^ could damage the compressor and the sealed system.

LEVEL REFRIGERATOR

IMPORTANT: Level the refrigerator for proper operation and to avoid cooling, frost and moisture problems that can occur when the door does not close properly.

1. aMove the refrigerator to its final location. See "Move to Final Location."
2. Place a carpenter's level on the top of the refrigerator cabinet.
3. Adjust the two leveling feet, (one foot located at each of the two front corners of the refrigerator cabinet) until the refrigerator is level.

NOTE: The leveling feet are easier to adjust if you have someone push against the top front of the refrigerator to take some weight off the feet.

To Raise - Turn the leveling feet clockwise.

To Lower - Turn the leveling feet counterclockwise.

REVERSE THE DOOR SWING

List of tools to be provided by the user
	Phillips-head Screwdriver		Putty knife Flat-head Screwdriver
	5/6'' socket and ratchet		Masking tape

Parts included with the hinge kit
Middle hinge(1)	Upper hinge cover(1)	Bottom hinge(1)
Top hinge(1)	Holecaps(2)	door-open stopper(2)

1. Unplug your refrigerator and remove all food from the door shelves. Remove all food from the inner door liner.

Tape the freezer door in place with masking tape.

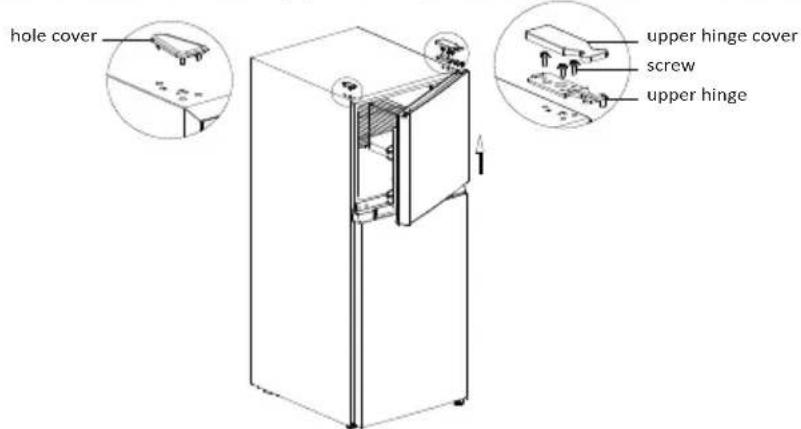

1. Remove the hole cover and the upperhinge cover, then unscrew screws and remove the upperhinge. Keep the screws to reuse.

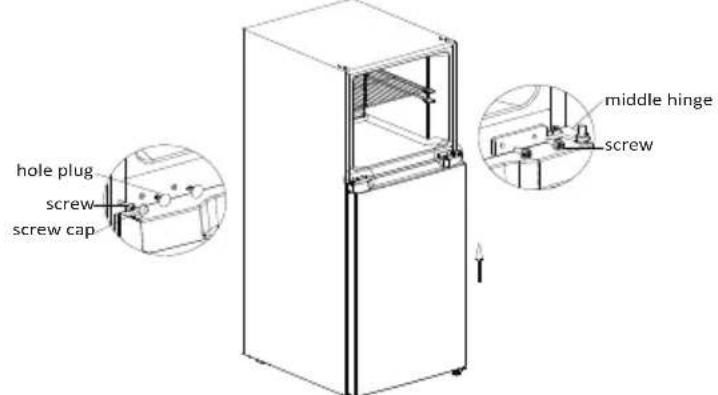

1. Lift the freezer door up and away from your refrigerator.

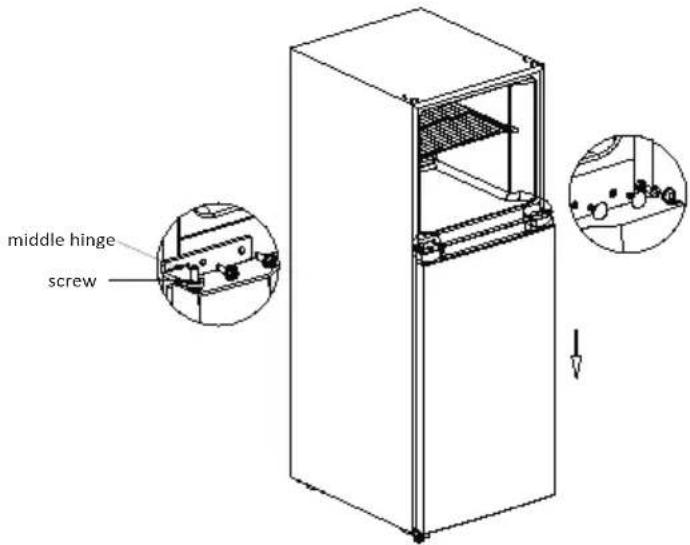

2. Unscrew screws of middle hinge, remove the hinge, then lift the refrigerator door up and away from your refrigerator. Save the screws to reuse. Remove the two hole plugs, a screw, a screw cap on the middle beam.

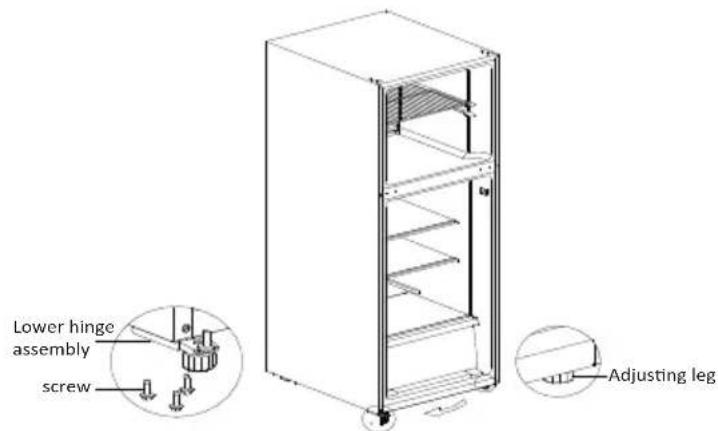

1. Remove the adjusting leg, unscrew screws of the bottom hinge, then remove the bottom hinge from the right side of the refrigerator, then secure the bottom hinge to the left side of the refrigerator, using the screws you removed previously

1. Remove the sleeves from the top right of refrigerator door and hole cap from top left of refrigerator door, and assemble them on the opposite sides.

1. Remove the refrigerator door open stopper and install it on other side of the door. Remove the freezer door open stopper and save. Then to reuse installed on the left of freezer door.

1. Install the refrigerator door vertically onto the bottom hinge, assemble previous unscrewed middle hinge on the left side of the refrigerator.

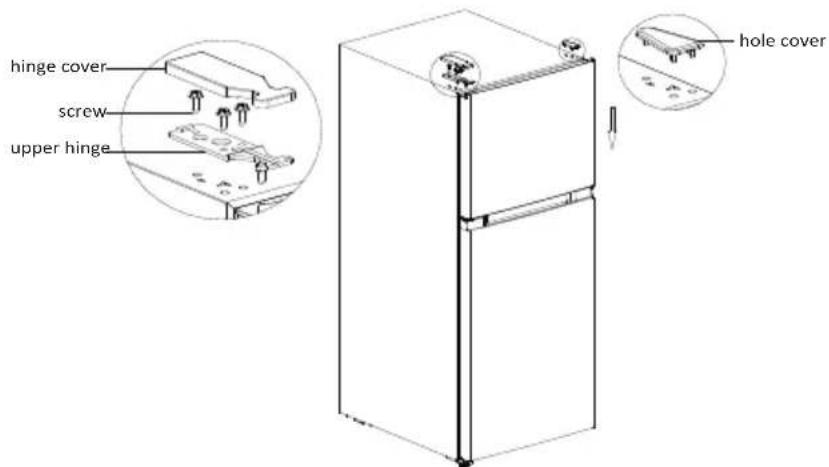

1. Remove top hinge sleeve from right to left

1. Install the freezer door vertically into the middle hinge. Assemble previous unscrewed upper hinge and upper hinge cover on left and hole cover on top right side

WARNING

Unplug the refrigerator. To eliminate the danger of electric shock during installation, you must unplug the refrigerator from its electrical outlet.

BEFORE USE

WAITING PERIOD

• Before plugging the refrigerator into a grounded 3-prong electrical outlet, allow it to stand upright for approximately 2 hours.

NOTE: This reduces the possibility of a malfunction in the cooling system from improper handling during transportation.

CLEANING

1. Wash the refrigerator interior using a soft cloth dampened with a baking soda solution (2 tablespoons baking soda mixed with 1 quart of warm water).
   2.Using a soft cloth, thoroughly dry all surfaces.

REFRIGERATOR USE

GENERAL

• The storage life of frozen foods varies and the recommended storage time should not be exceeded.

WARNING

Electrical Shock Hazard

• Plug into a grounded 3-prong outlet.
• Do not remove the ground prong from the power cord plug.
• Do not use an adapter.
• Do not use an extension cord.

• Failure to do so can result in death, fire or electrical shock.

• Plug in your refrigerator. Wait for 30 minutes, and then open the refrigerator door to determine if the refrigerator is working properly.

• Place frozen food into the refrigerator as quickly as possible after purchase. If there are instructions on the package, carefully follow these instructions regarding storage times.

ENERGY SAVING TIPS

• Allow hot foods to cool to room temperature before placing them in the refrigerator. Foods that freeze too slowly may lose quality or spoil.
• Overloading the refrigerator forces the compressor to run longer.
• Wrap foods properly and wipe containers dry before placing them in the refrigerator. This cuts down on frost build-up inside the refrigerator.
• Do not line refrigerator storage shelves with aluminum foil, wax paper or paper toweling. Liners interfere with cold air circulation, making the refrigerator less efficient.
• Organize and label food to reduce door openings and extended searches. Remove as many items as needed at one time, and then close the door as soon as possible.
• Do NOT add a large amount of unfrozen food to the refrigerator at one time. This will lower the cooling efficiency of the refrigerator.

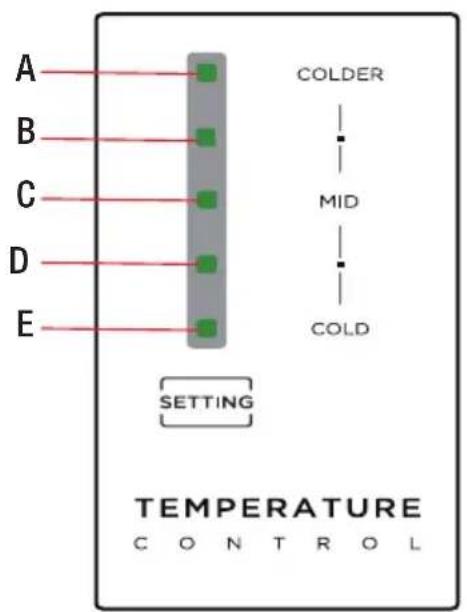

CONTROLS

Setting button

A. LED1 COLDEST indicator
B. LED2 indicator
C. LED3 indicator
D. LED4 indicator
E. LED5 COLD indicator

DISPLAY

Once initially powered on, the display screen is on full display for 3 seconds.

The refrigerator default setting is medium, and the LED 3 indicator will be illuminated.

This is normal operation display

In case of a failure, the appropriate LED light will flash in sequence.

In case of no failures, the current temperature setting of the refrigerator will be on display.

TEMPERATURE SETTING

Each time the temperature setting is pressed once, the temperature setting changes one time.

After the temperature setting has been completed, the refrigerator will run according to the set value after 25s.

From left to right, the temperature is lower.

The order of coldness settings is as follows:

STANDBY MODE

To enter standby mode, press the setting for 3 seconds when the refrigerator is running. In standby mode, the compressor will not operate and the standby indicator light will be illuminated. To resume normal operation, just press the setting momentarily.

SETTING THE FREEZER TEMPERATURE

The freezer temperature will be adjusted automatically according to the fridge temperature setting.

You do not need to adjust the freezer temperature manually.

REFRIGERATOR CARE

Your refrigerator is designed for year-round use and requires minimal cleaning and maintenance. To keep your refrigerator running efficiently and odor free, we recommend that you clean the refrigerator regularly.

CLEANING

WARNING

Electrical Shock Hazard

• Unplug your appliance or disconnect power before cleaning.
• Failure to do so can result in death, electric shock or personal injury.

WARNING

Explosion Hazard

• Use nonflammable cleaner.
• Failure to do so can result in death, explosion or fire.

IMPORTANT: To prevent damage to the finish, DO NOT use gasoline, benzine, thinner or other solvents, and DO NOT use abrasive cleaners.

1. Unplug the refrigerator from the electrical outlet.
2. Remove all food.
3. Remove and wash the shelves with a mild detergent solution.
4. Wash the refrigerator interior using a soft cloth dampened with a baking soda solution (2 tablespoons baking soda mixed with 1 quart of warm water).
5. Clean the gasket around the door. Gently wipe the gasket using a soft cloth dampened with a mild detergent solution.

NOTE: Gaskets must be kept clean and pliable to assure a proper seal.

1. Using a soft cloth, thoroughly dry all surfaces.
2. Plug in or reconnect power.

MOVING

IMPORTANT: When moving your refrigerator, DO NOT tilt it beyond 45^ from upright.

1. Unplug your refrigerator from the wall outlet.
2. Remove all food.
3. Securely tape down all loose items inside your refrigerator.
4. Tape the door shut.

STORAGE

IMPORTANT: Do not store refrigerator in a location that is accessible to children.

1. Unplug your refrigerator from the electrical outlet.
   2.Remove all food.
   3.Clean the refrigerator.
   4.Leave the door open slightly to avoid possible formation of condensation, mold or odor.

TROUBLESHOOTING

IMPORTANT: DO NOT try to repair your refrigerator yourself. Doing so voids the warranty.

GENERAL

PROBLEM POSSIBLE CAUSE SOLUTION
The refrigerator does not operate	The refrigerator is unplugged.	Make sure that the refrigerator power cord is fully plugged into the electrical outlet.
	The fuse on the circuit is blown or the circuit breaker is tripped.	Check the house fuse / circuit breaker box and replace the fuse or reset the circuit breaker.
	Power failure. If a power failure occurs, the refrigerator turns off. Wait until the power is restored.
The refrigerator door does not close completely	Food packages are interfering with the door.	Move or remove some food items.
	The door gaskets are dirty.	Clean the door gaskets.
	The refrigerator may not be level.	Level the refrigerator.
Food in the refrigerator is not cold	The door has been opened too often or was not closed properly.	Make sure that the door is closed properly.
	A large amount of food was recently added.	Allow time for the recently added food to cool, and then check again.
	The door is not closed completely.	Check the door gasket and food distribution, and make sure that the door closes completely.
	The refrigerator has been disconnected for a period of time.	Allow 4 hours for the refrigerator to cool completely before adding food.
	The temperature control is set too warm.	Set the temperature control to a colder setting.
The refrigerator makes unusual noises or vibrations	The refrigerator may not be level.	Adjust the leveling feet located on the front corners of the refrigerator until the refrigerator is level.
	The refrigerator cabinet is touching a wall.	Move the refrigerator away from the wall.
	Metal parts undergo expansion and contraction.	This is normal.
	Refrigerant is circulating throughout the system.	This is normal.
Moisture is building up in the interior of the refrigerator	The door has been opened too often or was not closed properly.	Make sure that the door is closed properly.
	The refrigerator is located in a humid area.	Move the refrigerator to a drier location.
	The weather is hot and humid.	This is normal.
The compressor turns on and off frequently.	The room temperature is hotter than normal.	This is normal.
	A large amount of food was recently added.	Allow time for the recently added food to cool, and then check again.
	The door is not closed completely or was opened too often.	Check the door gasket and food distribution to make sure the door will close completely.
	The refrigerator has been disconnected for a period of time.	Allow 4 hours for the refrigerator to cool completely before adding food.
	The temperature control was not set correctly.	Set the temperature control to the correct setting.
Refrigerator has an odor	Refrigerator needs cleaning.	Clean the refrigerator. See, “Cleaning.”
	Improperly wrapped food is giving off an odor.	Wrap food tightly or seal before storing it in the refrigerator.

ERROR CODES

Fault Code Fault Description
LED1 indicator and LED2 indicator	Refrigerator temperature sensor circuit
LED1 indicator and LED3 indicator	Freezer defrost sensor
LED1 indicator and LED4 indicator	Ambient temperature sensor

MISE AU REBUT APPROPRIÉE

AVERTISSEMENT

Dangers de suffocation

reproductive: www.P65Warnings.ca.gov.

1. Usando un paño suave,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO, SEO
   7.Enchufe o vuelva a conectar la corriente.

MUDANZA

make yourself at home
