USER MANUAL TC-PA 50 EINHELL

GB Original operating instructions Pneumatic angle grinder

5a 1 14 9 8

6 14 12 8

7 13 12

7a 13 15 12

8

D

Gefahr!

When using the equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the information is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.

Explanation of the symbols used (see Fig. 8)

1. Danger! - Read the operating instructions to reduce the risk of injury.
2. Caution! Wear ear-muffs. The impact of noise can cause damage to hearing.
3. Caution! Wear a breathing mask. Dust which is injurious to health can be generated when working on wood and other materials. Never use the device to work on any materials containing asbestos!
4. Caution! Wear safety goggles. Sparks generated during working or splinters, chips and dust emitted by the device can cause loss of sight.
5. Take due note of the machine's direction of rotation.
6. Each time before use, oil the compressed air tool via the compressed air connection.

1. Safety regulations

The corresponding safety information can be found in the enclosed booklet.

Danger!

Read all safety regulations and instructions.

Any errors made in following the safety regulations and instructions may result in an electric shock, fi re and/or serious injury.

Keep all safety regulations and instructions in a safe place for future use.

2. Layout and items supplied

2.1 Layout (Fig. 1-7)

1. Clamp nut
2. Clamp
3. Clamp holder
4. Operating switch

5. Safety lock-off

6. Nipple for the air connection

7. Oil bottle (without oil)
8. Chuck key, 11 mm
9. Chuck key, 17 mm
10. Air outlet, can be swiveled
11. Compressed air connection
12. Grinding disk
13. Abrasive paper
14. Grinding disk holder with shaft
15. Intermediate disk

2.2 Items supplied

Please check that the article is complete as specified in the scope of delivery. If parts are missing, please contact our service center or the sales outlet where you made your purchase at the latest within 5 working days after purchasing the product and upon presentation of a valid bill of purchase. Also, refer to the warranty table in the service information at the end of the operating instructions.

• Open the packaging and take out the equipment with care.
• Remove the packaging material and any packaging and/or transportation braces (if available).
• Check to see if all items are supplied.
• Inspect the equipment and accessories for transport damage.
• If possible, please keep the packaging until the end of the guarantee period.

Danger!

The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suffocating!

• 1x grinding disk
2x chuck key
• 1x nipple for the air connection
• 1x grinding disk holder with shaft
- 50x abrasive paper
• 1x intermediate disk
• 1x oil bottle (without oil)
• Original operating instructions
- Safety information

3. Proper use

This machine is designed for the grinding, polishing and derusting of metal, wood and other materials through the use of suitable abrasive

GB

paper and other pads featuring hook-and-loop fasteners.

The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.

Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.

Remember.

Too small a diameter of the hose and too long a hose line will result in loss of power.

4. Technical data

Max. permitted operating pressure: 6.3 bar Idle speed: 20,000 min ^-1

Air consumption (6.3 bar): 113 l/min

Grinding plate diameter: 50 mm

Recommended hose diameter: ....∅ 9 mm

Weight: 0.55 kg

Sound and vibration

Sound and vibration values were measured in accordance with EN ISO 15744.

L_pA sound pressure level 92 dB(A)

K_pA uncertainty 3 dB

L_WA sound power level 103 dB(A)

K_WA uncertainty 3 dB

Wear ear-muff s.

The impact of noise can cause damage to hearing.

Total vibration values (vector sum of three directions) were determined in accordance with EN ISO 28927-12.

Vibration emission value a_h = 1.4 m/s^2 K uncertainty = 0.7 m/s ^2

The stated vibration emission levels and stated noise emission values were measured in accordance with a set of standardized criteria and can be used to compare one power tool with another.

The stated vibration emission levels and stated noise emission values can also be used to make an initial assessment of exposure.

Warning:

The vibration and noise emission levels may vary from the level specified during actual use, depending on the way in which the power tool is used, especially the type of workpiece it is used for.

Keep the noise emissions and vibrations to a minimum.

• Only use appliances which are in perfect working order.
  • Service and clean the appliance regularly.
  • Adapt your working style to suit the appliance.
  • Do not overload the appliance.
• Have the appliance serviced whenever necessary.
• Switch the appliance off when it is not in use.
  • Wear protective gloves.

Caution!

Residual risks

Even if you use this electric power tool in accordance with instructions, certain residual risks cannot be rules out. The following hazards may arise in connection with the equipment's construction and layout:

1. Lung damage if no suitable protective dust mask is used.
2. Damage to hearing if no suitable ear protection is used.
3. Health damage caused by hand-arm vibrations if the equipment is used over a prolonged period or is not properly guided and maintained.

5. Before starting the equipment

Before you connect the equipment to the power supply make sure that the data on the rating plate are identical to those of the supply voltage. Disconnect the compressed air supply before performing any cleaning, adjusting and maintenance work.

GB

Air supply:

Via a compressed air source with pressure setting function, e.g. a compressor. Before starting up, please also read the section on care and maintenance.

Performance values of the compressor:

The compressor used should have a tank volume of at least 50 liters.

Setting values for work with the suction spray gun:

Set a maximum working pressure of 6.3 bar at your compressed air supply.

5.1 Lubricating the tool

Each time before starting and during prolonged operation:

• Insert 3-5 drops of special compressed air oil into the compressed air connection (6) (not included in delivery)
• Let the equipment run briefly so that any surplus oil is blown out.

5.2 Fitting the nipple (Fig. 3-3a)

Raise the protective cap carefully with a suitable tool such as a screwdriver. Then fasten the nipple (6) to the air connection (11) by screwing it tight with a suitable screwdriver.

5.3 Fitting/removing the grinding disk holder (Fig. 4-5a)

• Undo the clamp nut (1).
- Guide the grinding disk holder (14) into the clamp (2).
• Make sure that the clamping length is at least 10 mm.
- Tighten the clamp nut (1) using the two chuck keys.
- Check that the grinding disk holder (14) is securely seated.

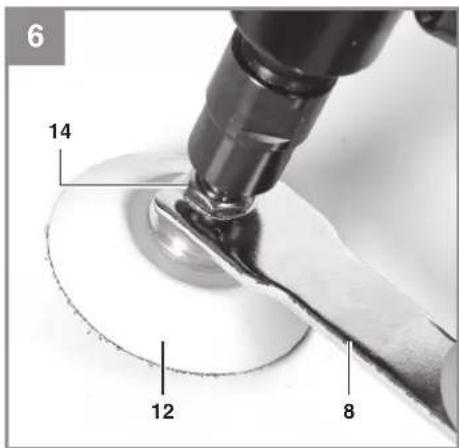

5.4 Fitting the grinding disk (Fig. 6)

Fasten the grinding disk (12) on the shaft of the grinding disk holder (14) and secure it with the chuck key.

Always make sure that the grinding disk and the grinding disk holder are securely seated!

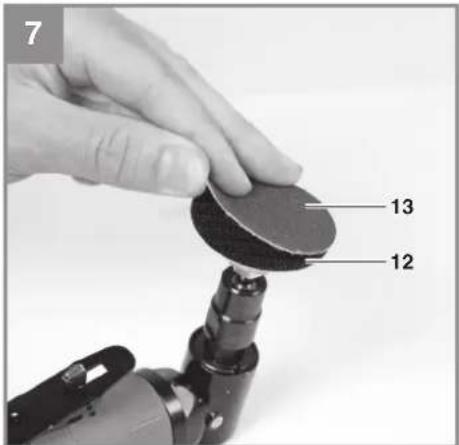

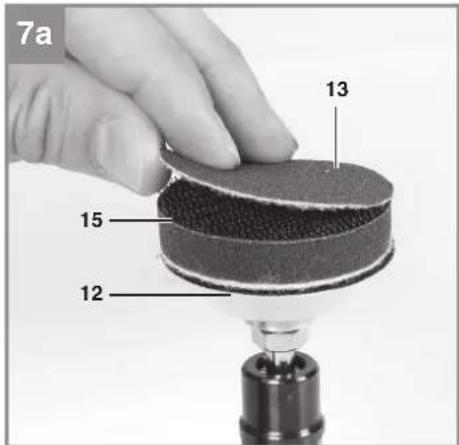

5.5 Fitting the abrasive paper (Fig. 7-7a)

Secure the abrasive paper (13) by means of the hook-and-loop fastener on the grinding disk (12). When working on uneven surfaces you can use the intermediate disk (15).

6. Operation

6.1 Connecting to a compressed air supply

• Connect the nipple (6) to the quick-lock coupling of a compressed air hose (the hose is not supplied).
• Note the maximum permissible operating pressure of the equipment.

6.2 Switching on and off (Fig. 1)

Switching on: Push the safety lock-off (5) forwards, then press the operating switch (4) down. Switching off: Let go of the operating switch (4)

6.3 Working with the pneumatic angle grinder

Warning! The workpiece you want to grind must never be held in your hand. Secure the workpiece on a sturdy surface or with a vise.

• Place the whole surface area of the grinding disk on the material.
• Switch on the machine and move it with gentle pressure over the workpiece, making circular or transverse and linear movements.
• Use a coarse grit for coarse grinding and a finer grit for finish grinding. You can find the best grit size for the job by carrying out grinding tests.

Danger!

The dusts which are formed while the equipment is being used may be a health hazard:

• Always wear safety goggles and a dust mask during grinding work.
- All persons who work with the equipment or enter the workplace must wear a protective dust mask.
- Eating, drinking and smoking are prohibited at the workplace.
• Paints containing lead are not allowed to be used!

7. Cleaning, maintenance and ordering of spare parts

Disconnect the compressed air supply from the equipment before performing any cleaning work.

7.1 Cleaning

- Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it down with compressed air at low pressure.

GB

• We recommend cleaning the equipment immediately each time after use.
- Clean the equipment regularly with a damp cloth and some soft soap. Do not use cleaning agents or solvents; these may be aggressive to the plastic parts in the equipment. Ensure that no water can get into the interior of the equipment.

7.2 Maintenance

Warning!

Disconnect the equipment from the compressed air supply before you carry out any maintenance or cleaning work.

Compliance with the maintenance instructions listed here will help this quality product provide you with a long service life and trouble-free operation.

Regular lubrication is essential for your equipment to work properly for a prolonged period of time.

Regularly check the speed and the vibration level by simply observing the tool.

Note: Use environmentally friendly compressed air oil if you want to operate the equipment outside the workshop.

The following lubrication options are available:

Lubrication by mist oiler

Connect a mist oiler between the compressed air source and the equipment (not supplied, available at retail stores)

By hand

Each time before using the compressed air tool insert 3-5 drops of special compressed air oil into the compressed air connection. If the compressed air tool has not been used for several days you must insert 5-10 drops of special compressed air oil into the compressed air connection before switching on.

Store your compressed air tool only in a dry room.

Other maintenance

There are no other parts inside the equipment which require maintenance.

Excluded from the guarantee are:

- Wearparts

• Damage cause by too much operating pressure.
• Damage caused by non-conditioned compressed air.
- Damage caused by improper use or unauthorized intervention.

7.3 Ordering replacement parts:

Please quote the following data when ordering replacement parts:

• Type of machine
• Article number of the machine
• Identification number of the machine
- Replacement part number of the part required For our latest prices and information please go to www.Einhell-Service.com

8. Disposal and recycling

The equipment is supplied in packaging to prevent it from being damaged in transit. The raw materials in this packaging can be reused or recycled. The equipment and its accessories are made of various types of material, such as metal and plastic. Never place defective equipment in your household refuse. The equipment should be taken to a suitable collection center for proper disposal. If you do not know the whereabouts of such a collection point, you should ask in your local council offices.

9. Storage

Store the equipment and accessories in a dark and dry place at above freezing temperature. The ideal storage temperature is between 5 and 30 °C. Store the electric tool in its original packaging.

The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of the Einhell Germany AG.

Subject to technical changes.

GB

Service information

We have competent service partners in all countries named on the guarantee certificate whose contact details can also be found on the guarantee certificate. These partners will help you with all service requests such as repairs, spare and wearing part orders or the purchase of consumables.

Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables.

Category Example
Wear parts* Grinding plate, intermediate disk
Consumables* Abrasive paper
Missing parts

* Not necessarily included in the scope of delivery!

In the effect of defects or faults, please register the problem on the internet at www.Einhell-Service.com. Please ensure that you provide a precise description of the problem and answer the following questions in all cases:

• Did the equipment work at all or was it defective from the beginning?
• Did you notice anything (symptom or defect) prior to the failure?
• What malfunction does the equipment have in your opinion (main symptom)?
Describe this malfunction.

GB

Warranty certifi cate

Dear Customer,

All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that this equipment develops a fault, please contact our service department at the address shown on this guarantee card. You can also contact us by telephone using the service number shown. Please note the following terms under which guarantee claims can be made:

1. These guarantee terms apply solely to consumers, i.e. natural persons, who do not want to use this product in connection with either their commercial or other self-employed activities. These guarantee terms regulate additional guarantee services which the undermentioned manufacturer promises to buyers of its new products in addition to their statutory rights of guarantee. Your statutory rights of guarantee are not affected by this guarantee. Our guarantee is free of charge to you.

2. The guarantee services cover only defects due to material or manufacturing faults on the new product which you have bought in the European Union from the undermentioned manufacturer and are limited to either the rectification of said defects or the replacement of the product, whichever we prefer. Please note that only equipment under the brand name "Professional" has been designed for use in commercial, trade or professional applications. For all other products the guarantee is invalidated if the equipment is used within the guarantee period in commercial, trade or industrial applications or for other equivalent activities.

3. Our guarantee does not cover:

4. Damage to the equipment caused by failure to comply with the installation/assembly instructions or by unprofessional installation; damage caused by failure to comply with the operating instructions (e.g. connection to the wrong mains voltage or current type); damage caused by failure to comply with the maintenance and safety regulations; damage caused by exposing the equipment to abnormal environmental conditions; damage resulting from poor care and maintenance.

5. Damage to the equipment caused by misuse or incorrect applications (e.g. overloading the equipment or using non-approved attachments or accessories); damage caused by foreign bodies (e.g. sand, stones, dust, ....) getting inside the equipment. Damage in transit; damage caused by force or external influences (e.g. by dropping the equipment).

6. Damage to the equipment or parts of the equipment which is owed to use-related, normal or otherwise natural wear. For example, batteries and battery packs are manufactured with a cycle limit for design-related reasons. Wear is negatively influenced in particular by load demands and charging speeds as well as exposure to heat, cold, vibration and impact.

7. The guarantee is valid for a period of 2 years starting from the purchase date of the equipment. Guarantee claims must be submitted before the end of the guarantee period and within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the equipment even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fitted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or for any replacement parts fitted. This also applies if on-site service is used.

8. To assert your guarantee claim, register the defective equipment at: www.Einhell-Service.com. You will need to provide proof of purchase of the new item of equipment. Equipment returned without such proof or without a rating plate are excluded from the guarantee services because of the lack of traceability. If the defect is covered by our guarantee, then either the item in question will be repaired immediately and returned to you or we will send you a new replacement.

9. If you have taken the equipment with you to a different EU country than where you bought it, we will arrange for a local service partner to provide the guarantee services. If you take the equipment outside the EU, the guarantee will not apply.

Of course, we are also happy to offer a chargeable repair service for any defects which are not covered or no longer covered by the scope of this guarantee. To take advantage of this service, please send the equipment to our service address. We draw attention to the restrictions of this guarantee concerning wear parts, consumables and missing parts as presented in the service information included in this operating manual.

Warrantor/ Service:

Einhell UK Ltd, Unit 10, 1st Floor, Champion's Business Park, Arrowe Brook Road, Upton, Wirral, CH49 0UQ

F

Danger!

Negotovost K_pA .....3 dB

Nivo zvočne moči L_WA 103dB(A)

Negotovost K_WA .....3 dB

Subject to change without notice

Archive-File/Record: NAPR028832

Documents registrar: Sergey Hirsekorn

Wiesenweg 22, D-94405 Landau/Isar

* SB Pneumatic angie dragon - F Musoue aranda e al compatiren - S Mertigatca angolara al artea compressa - DXN Tydikift-kulvelkabel - S Tydikiftsaktiva vlekelsip - CZ Pentalitinkulmetakone - SK Pneumaticia hivuva irnska - NL Haiske perschüttspur - E Amaloidas angular de ara competris - FIN Palmita-kulmalomanso - SLO Pralmitatis katni kureinih - S Arrieti tevegés - sarskozizylze - AO PBOL unghulus pneumatic - GR farnixos kaximyce nonsopuvou aspo - P Rolfidacera pneumatica - NR/BH Kulna brasicsis to kompriniirai ris. RS Pneumatica igazna aegata - BR Peralitinkulmetakone - SW Pneumaticia hivuva irnska - SL Pneumaticia hivuva irosaka - SW Pneumaticia lenoja slaminasa LT Pneumatis caprisa dililuodis - BG Polizer unghulus pneumatic - OKP Neutemianica kyotse shiyeptelma saisha - MK Arolina drypokina na kompriniirai irosk.

Declaration of conformity

We, Einhell UK Ltd

Champions Business Park, First Floor Unit 10, Arrowe Brook Rd, Upton, Wirral CH49 0AB, United Kingdom

declare the conformity to UK standards and legislation was assessed for:

Angle Grinder (Pneumatic) TC-PA 50 (Einhell)

UK legislation

□ Simple Pressure Vessels (Safety) Regulation
□ Electrical Equipment (Safety) Regulation
□ Radio Equipment Regulation
□ Personal Protective Equipment Regulation
□ The Ecodesign for Energy-Related Products and Energy Information Regulation
☐ The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulation
□ Noise Emission in the Environment by Equipment for use Outdoors Regulation
Electromagnetic Compatibility Regulation
□ Measuring Instruments Regulation
□ Pressure Equipment (Safety) Regulation
[Non-Text]
Information Regulation
ces in Electrical and Electronic Equipment Regulation
e Outdoors Regulation

Annex V

Annex VI

Noise:measuredL ww = dB (A); guaranteed L ww = dB (A)
P = kW; L/∅ = cm
UK Approved Body:
[Non-Text]
[Non-Text]

X Supply of Machinery (Safety) Regulation

□ Annex IV

UK Approved Body:

UKTE Certifi cate No.:

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

Wirral, 2023.09.19

Archive-File/Record: NAPR028832

Article Number: 41.385.50 I.-No.: 21013

Subject to change without notice Wiesenweg 22, 94405 Landau/Isar, Germany

Documents registrar: Sergey Hirsekorn

EH 12/2023 (01)
