STE 950 D1 - Toaster SILVERCREST - Free user manual and instructions

USER MANUAL STE 950 D1 SILVERCREST

Exterior view of a modern stainless steel toaster with two food items on top (no visible text or symbols)

TOASTER STE 950 D1 DOPPELSCHLITZ-TOASTER STE 950 D1 GRILLE-PAIN DOUBLE STE 950 D1

Operating instructions and safety instructions

NL BE

TOASTER MET DUBBELE SLEUF

Top-down schematic of a smart home control panel with ventilation grilles and control buttons (no text or labels)

10. Fehlerbehebung

1. Intended use....21
2. Package contents.... 21
3. Technical specifications .... 22
4. Safety instructions 22
5. Copyright.... 26
6. Before you start....26
7. Getting started 27
   7.1 Initial operation 27
   7.2 Toasting....27
   7.3 Using the roll holder....28
8. Maintenance/cleaning 29
   8.1 Maintenance 29
   8.2 Cleaning 29
9. Storage when not in use 30
10. Troubleshooting.... 30
11. Environmental regulations and disposal information.... 31
12. Food-grade use....33
13. Conformity notes 34
14. Warranty and Service Information 34

Congratulations!

By purchasing the SilverCrest STE 950 D1 toaster, hereinafter referred to as the toaster, you have opted for a quality product.

Before first using it, familiarise yourself with the way the toaster works and read these operating instructions through carefully. Be careful to follow the safety instructions and only use the toaster as described in the operating instructions and for the applications given.

Keep these operating instructions in a safe place. If you pass the toaster on to someone else, make sure to give them all the relevant documents with it.

1. Intended use

This toaster is designed exclusively for toasting slices of bread, rolls and baked goods. The toaster has not been designed for corporate or commercial applications. Use the toaster for private purposes only. Any use other than that mentioned above does not correspond to the intended use. The toaster may also not be used outdoors or in tropical climates. This toaster fulfils all relevant norms and standards associated with CE Conformity. In the event of any modification to the toaster that was not approved by the manufacturer, compliance with these standards is no longer guaranteed. The manufacturer shall not be liable for any damage or malfunctions resulting from such modifications.

Observe the regulations and laws in the respective country of use.

2. Package contents

• Toaster
  • These operating instructions

These operating instructions have a fold-out cover. On the inside of the cover, the toaster is shown with figures indicated. The meanings of the numbers are as follows:

1	Toast	slots
2	Roll	holder
3	Start	lever
4	Defrost	button
5	Warm	button
6	Stop	button
7	Control	dial

8	Roll holder lever
9	Cable winder (underneath)
10	Crumb	tray
11	Power	cable

3. Technical specifications

Model STE 950 D1
Power supply 220-240 V	~ (AC), 50/60 Hz
Power consumption 820-980 W
Dimensions (W x H x D) approx. 17 x 18 x 31 cm
Weight	approx. 1.3

The technical data and design may be changed without prior notice.

4. Safety instructions

Before you use this toaster for the first time, please read the following notes and heed all warnings, even if you are familiar with handling electronic devices. Keep this user manual in a safe place for future reference. If you sell the toaster or give it away, pass on the user manual at the same time. The operating instructions are part of the product.

DANGER! This symbol and the word "Danger" denote a potentially dangerous situation. Ignoring it can lead to severe injury or even death.

WARNING! This symbol and the word "Warning" denote important information required for the safe operation of the product and for the safety of its users.

DANGER! Warning, hot surfaces! This symbol denotes the risk of injuries or burns from hot surfaces on the toaster.

This symbol denotes further information on the topic.

Operating environment

This toaster is only suitable for use in dry inside spaces. The toaster is not for use in rooms with a high temperature or humidity (e.g. bathrooms), and must be kept free of excessive dust.

⚠️ DANGER! The toaster is not designed to be operated with an external timer or a separate remote control system. Do not leave the toaster unattended when it is switched on. Fire hazard!

⚠ DANGER! This toaster may be used by children of 8 years or over or by persons with physical, sensory or mental impairments or those with no knowledge or experience providing they are supervised or they have been given instructions on the proper use of the device and they understand the associated risks. Children must not play with the toaster. Cleaning and user maintenance must not be carried out by children unless they are older than 8 years old and supervised. Keep the packaging materials out of the reach of children. There is a risk of suffocation.

Keep children younger than 8 years away from the toaster and its power cable.

⚠️ DANGER! If you notice any smoke, unusual noises or strange smells, switch off the toaster immediately and remove the mains plug from the mains socket. If this occurs, the toaster should not be used before it has been inspected by authorised service personnel. Never inhale smoke from a possible device fire. If you do inadvertently inhale smoke, seek medical attention. Smoke inhalation can be damaging to your health.

⚠️ DANGER! Never touch the power cable or the toaster with wet hands, there is a risk of electric shock!

⚠️ DANGER! Only plug the mains plug into an easily accessible mains socket. Operate the toaster only at the voltage indicated on the rating plate! The rating plate is located on the underside of the toaster. No action is required by the user to set the product to 50 or 60 Hz. The product automatically adjusts to 50 and to 60 Hz.

⚠️ DANGER! Risk of electric shock! Do not poke fingers or metallic objects (e.g. forks, knives, etc.) into the toast slots as the heating elements are live.

⚠️ DANGER! Do not cover the toaster while it is in use. Fire hazard!

⚠️ DANGER! Always place the toaster on an even, heat-resistant surface away from heat sources and combustible materials, liquids or gases. Leave a clearance of at least 15 cm to walls to prevent fire hazards!

⚠️ DANGER! The toaster must not be damaged in order to avoid any further risks.

⚠️ DANGER! Make sure that no fire hazards (e.g. burning candles) are placed on or near the toaster. Fire hazard!

⚠️ DANGER! Do not leave the toaster unattended. When not using the toaster, turn it off and disconnect the mains plug from the mains socket. Do not put the toaster away before it has completely cooled down. Fire hazard!

⚠️ DANGER! Warning: Risk of fire! Bread can burn. Therefore, do not use the toaster near or underneath flammable materials such as curtains. Maintain a clearance of at least 50 cm around the device to flammable and combustible materials.

DANGER! There is a risk of burning if standard sliced bread is not used. Because of the smaller size or the shape, there is a risk of touching hot parts when removing the toast.

⚠ WARNING! Do not expose the toaster to any direct heat sources (e.g. heaters), direct sunlight or strong artificial light. The device must not be exposed to spray or dripping water or abrasive liquids. Do not use the toaster near water. The toaster must especially never be immersed (do not place any containers containing liquids such as drinks, vases, etc. on the toaster). Make sure that the toaster is not subject to excessive shocks or vibrations. Do not introduce any foreign bodies into the device. otherwise the toaster could get damaged.

Power cable

⚠️ DANGER! Always hold the power cable by the mains plug and never pull on the cable itself.

⚠️ DANGER! Make sure that the power cable does not touch any hot surfaces of the toaster.

⚠️ DANGER! Never use adapter plugs or extension cables that do not comply with the safety regulations applicable in your country, and do not modify the power cable yourself! If the mains cable is damaged, it must be replaced by the manufacturer, its customer service or a similarly qualified person, in order to avoid any possible danger.

⚠ WARNING! Never place the toaster, furniture or other heavy objects on the power cable and make sure it does not get kinked.

⚠ WARNING! Never tie knots in the power cable and do not tie it to other cables. The power cable should be laid so that nobody can trip over it or be obstructed by it.

5. Copyright

All the contents of this user manual are protected by copyright and provided to the reader for information only. Copying data and information without the prior explicit written consent of the author is strictly forbidden. This also applies to any commercial use of the contents and information. All texts and diagrams are up-to-date as of the date of printing. Subject to change without notice.

6. Before you start

Remove the toaster from the packaging. Remove all packaging material and check that all parts are complete and undamaged. If you find anything missing or damaged, please contact the manufacturer.

7. Getting started

DANGER! Place the toaster on a level and heat-resistant surface. Place a heat-resistant board in between the surface and the toaster if the surface itself is critical.

DANGER! Risk of getting burnt! When switched on, the temperature of exposed surfaces may be very high. Only touch the controls of the toaster.

DANGER! There is a risk of burning if standard sliced bread is not used. Because of the smaller size or the shape, there is a risk of touching hot parts when removing the toast.

7.1 Initial operation

• Plug the mains plug into an easily accessible mains socket.
• Adjust the control dial (7) to "6" (the highest setting).
• Operate the toaster three times without any bread. To do this, push the start lever (3) down. The indicator on the stop button (6) lights up while it is in use. When you use it for the first time, smells or slight smoke may develop. This is normal and perfectly safe. Open a window to ensure sufficient ventilation.

7.2 Toasting

Please note that different kinds of bread and the thickness and moisture of the slice can affect the level of browning. It is best to store bread in its packaging. Normal sliced bread can burn if the browning level is set too high. First, select a lower level of browning if possible.

Dry, light bread browns quicker than fresh or dark bread.

Do not use slices of bread which are too thick or too large. If a slice of bread gets stuck, remove the mains plug from the mains socket and wait for the toaster to cool. If necessary, push the start lever (3) up and remove the bread.

Set the control dial (7) a little lower if you are only using one toast slot (1).

• Plug the mains plug into an easily accessible mains socket.

• Set the level of browning you want on the control dial (7). You can set the browning level steplessly from 1 (light) to 6 (dark).

• Place the bread in the toast slots (1).

• Push the start lever (3) down. The indicator on the stop button (6) lights up while it is in use.
• The bread is then toasted. The toaster switches off automatically as soon as the set level of browning is reached. The toast pops up.
• Remove the toast from the toast slots (1).
• Clean the toaster as described in the "Cleaning" chapter.

When the toaster is in use, you can press the stop button (6) early to stop toasting. The toast then pops up.

After pressing the start lever (3), press the warm button (5) to warm the bread. The indicator on the warm button (5) lights up. This just warms the bread, instead of toasting it.

After pressing the start lever (3), press the defrost button (4) to defrost and toast frozen bread. The indicator on the defrost button (4) lights up. Please note that the level of browning can be slightly different to non-frozen bread.

7.3 Using the roll holder

DANGER! Risk of getting burnt! Do not attempt to toast bread in the toast slots (1) while the roll holder (2) is in use. Otherwise, the bread can get stuck, causing burns or property damage.

Always use the roll holder (2) for rolls or other larger baked goods. Never place any rolls or other larger baked goods directly on the toaster.

• Press the roll holder lever (8) downwards to unfold the roll holder (2).
• Plug the mains plug into an easily accessible mains socket.
• Set the level of browning you want on the control dial (7). You can set the browning level steplessly from 1 (light) to 6 (dark). We recommend using level of browning 1.
• Place the rolls or baked goods on the roll holder (2).
• Push the start lever (3) down. The indicator on the stop button (6) lights up while it is in use.
• The rolls or baked goods are now toasted. The toaster switches off automatically as soon as the set level of browning is reached.
• Remove the rolls or baked goods from the roll holder (2).
  • Pull the roll holder lever (8) upwards to retract the roll holder (2).
• Clean the toaster as described in the "Cleaning" chapter.

When the toaster is in use, you can press the stop button (6) early to stop toasting.

Toast the rolls or baked goods from both sides to ensure even browning.

8. Maintenance/cleaning

8.1 Maintenance

DANGER! Maintenance is required if the toaster has been damaged in any way, for example, if liquid has entered the product, if the toaster has been exposed to rain or moisture, if the toaster is not working properly or if it has been dropped. If you notice any smoke, unusual noises or strange smells, switch off the toaster immediately and remove the mains plug from the mains socket. If this occurs, the toaster should not be used before it has been inspected by authorised service personnel. All servicing work must be carried out by qualified specialist personnel. Never open the housing on the toaster.

8.2 Cleaning

⚠️ DANGER! Unplug the mains plug from the mains socket before you start to clean, there is the risk of electric shock!

△ DANGER! Wait until the toaster has cooled down. Otherwise there is risk of burn injury!

⚠️ DANGER! Never immerse the toaster itself in water, there is a risk of electric shock!

To clean the casing, use a slightly damp cloth. Never use any solvents or cleaners that may damage the plastic.

Remove and empty the crumb tray (10). Clean the crumb tray (10) with a slightly moistened cloth if necessary. Push the crumb tray (10) back in until you hear it slot into place.

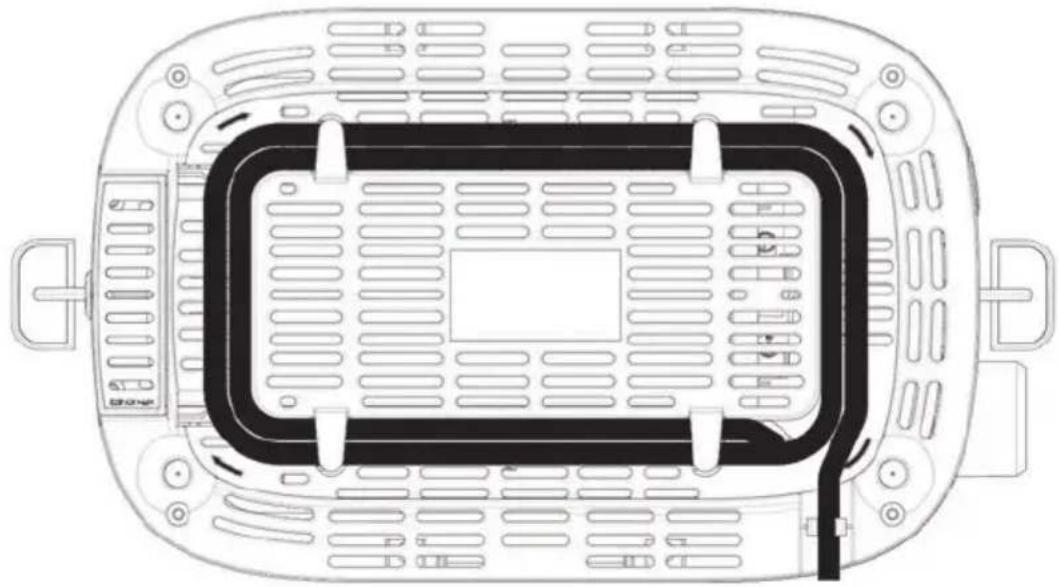

9. Storage when not in use

When you do not wish to use the toaster, disconnect the mains plug from the mains socket. Wind the power cable (11) in the direction shown around the cable winder (9) underneath the toaster. Store the toaster a clean, dry place out of direct sunlight.

Top-down schematic of a device layout with no visible text, numbers, or symbols

10. Troubleshooting

The toaster does not work or the start lever (3) will not engage.

- Check that the mains plug is correctly inserted into the mains socket.

The toast is too light.

- Check the setting of the control dial (7) and increase the level of browning as necessary.

The toast is too dark.

- Check the setting of the control dial (7) and decrease the level of browning as necessary.

The toast is not ejected or gets stuck.

• The bread you are using is too thick. Do not use slices which are too thick.

- If the bread still gets stuck in the toast slot (1), try gently pushing the start lever (3) upwards to push the bread out of the toast slot (1).

• If it is still not possible to remove the bread, proceed as follows:

First unplug the mains plug from the mains socket! There is a risk of electric shock!
Wait until the toaster has cooled down. There is a risk of getting burnt!
Now you can poke your fingers into the toast slot (1) to loosen and remove the stuck bread.

11. Environmental regulations and disposal information

	Electrical and electronic devices are marked with a symbol of a crossed-out wheelie bin.This symbol indicates that electrical and electronic devices may not be disposed of with normal domestic waste, but must instead be taken to a separate disposal centre. The materials contained in the old electrical devices can be reused. In addition, any old batteries, whether conventional or rechargeable, which are removable and lamps which can be removed from the old device without causing damage should be removed from the device prior to disposal.In accordance with Section 17, Paragraph 1 and 2 ElektroG (Electrical and Electronic Device Act), we are obliged to take back old devices free of charge. You can take your old electrical devices to a local collection point for disposal free of charge. On request, we can take back the following when you purchase a new electrical or electronic device- a heat transfer unit,- a screen, monitor or device with a screen with a surface area of more than 100 square centimetres or- an old device with at least one external dimension of more than 50 centimetres (large appliance)free of charge, providing the listed devices are the same type of device and largely fulfil the same functions as the new device.Small devices, lamps, small IT and telecommunications devices where none of the external dimensions measures more than 50 centimetres and devices which have no external dimension greater than 25 centimetres can be returned free of charge to us on purchase of a comparable new device.Irrespective of the purchase of a new electrical device, you can return an old device with no dimension greater than 25 cm to us free of charge.Please note that you are responsible for the deletion of any personal data on your old device.
	The symbol of the crossed-out wheelie bin on conventional and rechargeable batteries indicates that they cannot be disposed of in normal domestic waste but must be disposed of separately.Where batteries contain toxic materials, the chemical symbol of the toxic material is shown underneath the symbol, with meanings as follows:- Pb: Battery contains lead- Cd: Battery contains cadmium- Hg: Battery contains mercuryYou are obliged by law to return used batteries. Old batteries can contain toxic materials which can be damaging to health or the environment if not properly stored or disposed of. Batteries also contain important raw materials, such as iron, zinc, manganese and nickel, which can be reused.After use, you can return the batteries to us or to a local collection point (e.g. in retail outlets or a local collection point) free of charge. Please note that batteries must be disposed of fully discharged at appropriate collection points for old batteries. If disposing of batteries which are not fully discharged, take precautions to prevent short circuits.
	Dispose of all packaging in an environmentally friendly manner. Cardboard packaging can be taken to paper recycling centres or public collection points for recycling. Any film or plastic contained in the packaging should be taken to your public collection points for disposal.
ES/PT
Only relevant for France:"Sorting made easy"The product is recyclable, subject to advanced manufacturer responsibility and is sorted and collected separately.
	Please note the markings on the packaging material when disposing of it, it is labelled with abbreviations (a) and numbers (b), the meanings of which are as follows:1-7: plastic / 20-22: paper and cardboard / 80-98: composite materials.
Symbol	Material Contained in the following packaging elements for this product
	(WHDH)	Polyethylene terephthalate
		High density polyethylene
		Polyvinyl chloride
		Low density polyethylene Plastic bag in the packaging
		Polypropylene
		Polystyrene
		Other plastics
		Corrugated cardboard Sales packaging and inner box
		Other cardboard
		Paper
		Paper/cardboard/plastic
		Paper/cardboard/plastic/aluminium

12. Food-grade use

This symbol designates products whose physical and chemical composition has been tested and found to be non-hazardous to health when used in contact with food in accordance with the requirements of Regulation EU 1935/2004.

13. Conformity notes

CE A ΔΔ

The product complies with the requirements of the applicable European and national directives. Evidence of conformity has been provided. The manufacturer has the relevant declarations and documentation.

The product complies with the requirements of the applicable national directives of the Republic of Serbia.

The complete EU Declaration of Conformity is available for download from this link: https://www.targa.gmbh/downloads/conformity/390697_2201.pdf

14. Warranty and Service Information

Warranty of TARGA GmbH

Dear Customer,

This device is sold with three years warranty from the date of purchase. In the event of product defects, you have legal rights towards the seller. These statutory rights are not restricted by our warranty as described below.

Warranty conditions

The warranty period commences upon the date of purchase. Please keep the original receipt in a safe place as it is required as proof of purchase. If any material or manufacturing faults occur within three years of purchase of this product, we will repair or replace the product free of charge as we deem appropriate.

Warranty period and legal warranty rights

The warranty period is not extended in the event of a warranty claim. This also applies to replaced and repaired parts. Any damage or defects discovered upon purchase must be reported immediately when the product has been unpacked. Any repairs required after the warranty period will be subject to charge.

Scope of warranty

The device was carefully manufactured in compliance with stringent quality guidelines and subjected to thorough testing before it left the works. The warranty applies to material and manufacturing faults. This warranty does not cover product components which are subject to normal wear and which can therefore be regarded as wearing parts, or damage to fragile components such as switches, rechargeable batteries or components made of glass. This warranty is void if the product is damaged, incorrectly used or serviced. To ensure correct use of the product, always comply fully with all

instructions contained in the user manual. The warnings and recommendations in the user manual regarding correct and incorrect use and handling of the product must always be observed and complied with. The product is solely designed for private use and is not suitable for commercial applications. The warranty is rendered void in the event of incorrect handling and misuse, if it is subjected to force, and also if any person other than our authorised service technicians interfere with the device. No new warranty period commences if the product is repaired or replaced.

Submitting warranty claims

To ensure speedy handling of your complaint, please note the following:

Before using your product for the first time, please read the enclosed documentation carefully. Should any problems arise which cannot be solved in this way, please call our hotline.
- Always have your receipt, the product article number as well as the serial number (if available) to hand as proof of purchase.
- If it is not possible to solve the problem on the phone, our hotline support staff will initiate further servicing procedures depending on the fault.
- You can find this and many more manuals, product videos and installation software available for download at www.lidl-service.com. This QR code takes you directly to the LIDL service page (www.lidl-service.com). There, you can enter the item number (IAN) to access your operating manual.

PDF ONLINE www.lidl-service.com

Service

Phone: [phone]

E-Mail: [e-mail]

Phone: [phone]

E-Mail: [e-mail]

Phone: [phone]

E-Mail: [e-mail]

Phone: [phone]

E-Mail: [e-mail]

IAN: 390697_2201

Manufacturer

Please note that the following address is not a service address. First contact the service point stated above.

TARGA

GmbH

Coesterweg 45

59494 Soest

GERMANY
