USER MANUAL ID 1/4" 18.0-EC Flex

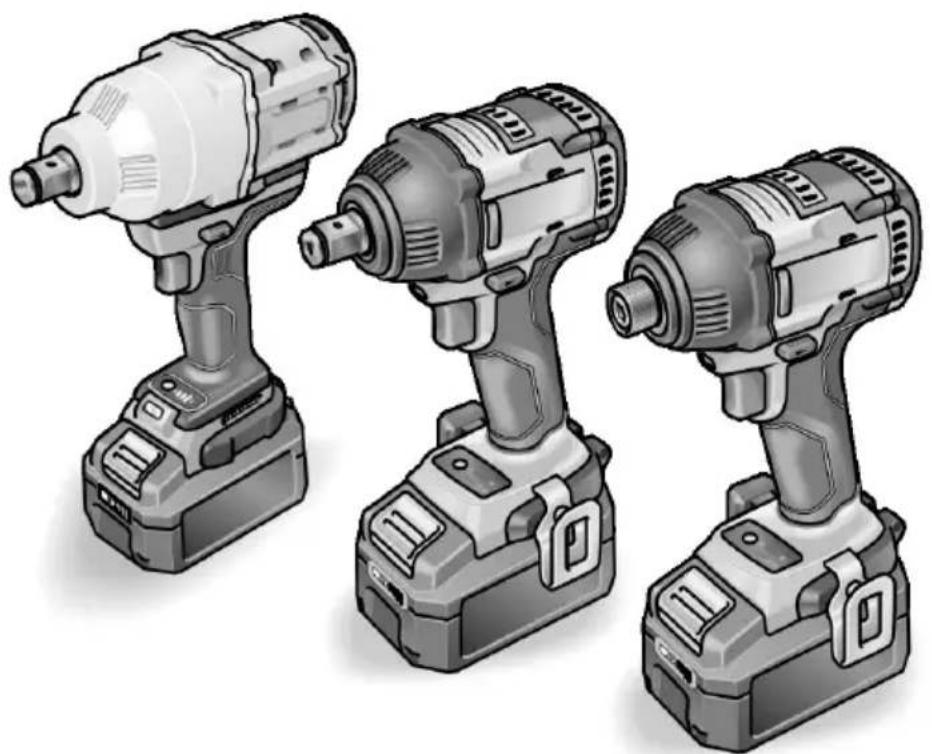

ID 1/4" 18.0-EC IW 1/2" 18.0-EC IW 3/4" 18.0-EC

Illustration of three different types of power tool holders, no text or symbols present

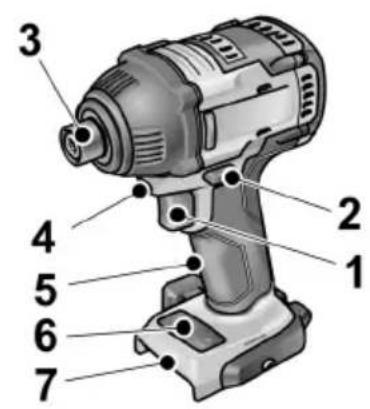

Labeled diagram of a power drill with numbered parts for identification

ID 1/4" 18.0-EC

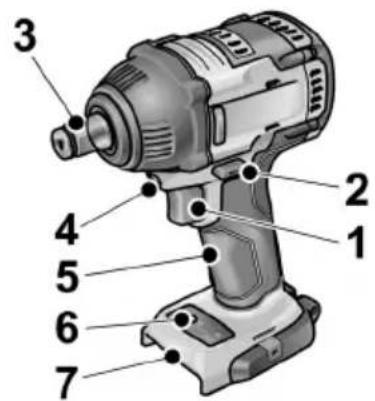

Labeled diagram of a power drill with numbered parts for identification

IW 1/2" 18.0-EC

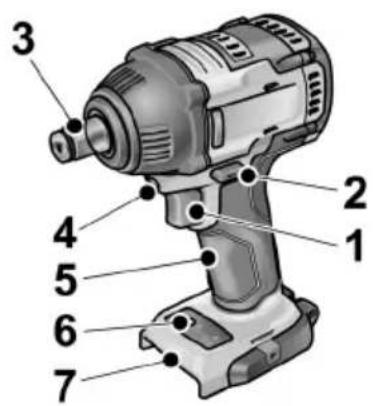

Labeled diagram of a power drill with numbered parts for identification

IW 3/4" 18.0-EC

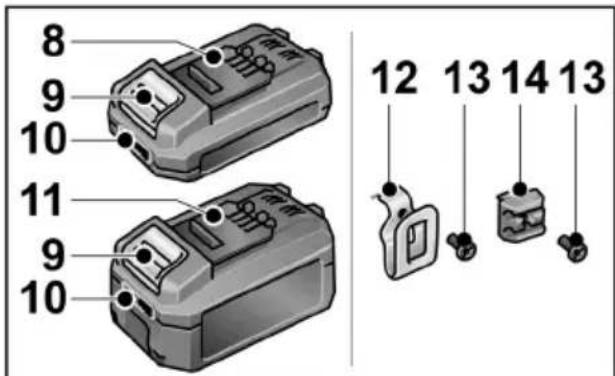

8 9 10 11 9 10 12 13 14 13

1 Schalter

Mechanical assembly diagrams showing two views of a tool with fasteners and fasteners (no text or symbols)

i HINWEIS

IW 1/2" 18.0-EC / IW 3/4" 18.0-EC:

Illustration of a drill bit being inserted into a tool, showing mechanical components and motion direction (no text or symbols)

Diagram illustrating the mechanism of a mechanical device with circular and linear rotation indicators, showing step-by-step states.

Close-up of a white electric drill bit with a black arrow indicating tool direction (no text or symbols)

Gerät ausschalten:

Illustration of a drill bit being inserted into a tool, showing mechanical components and motion direction (no text or symbols)

Illustration of a hand using a drill bit to lift a cylindrical tool, showing two different states of force (no text or symbols present)

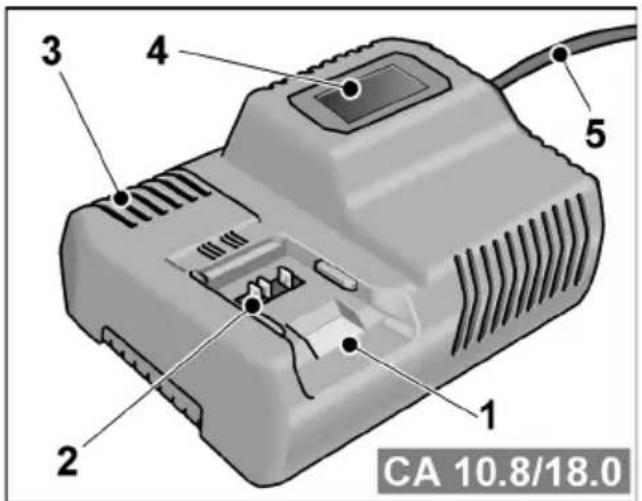

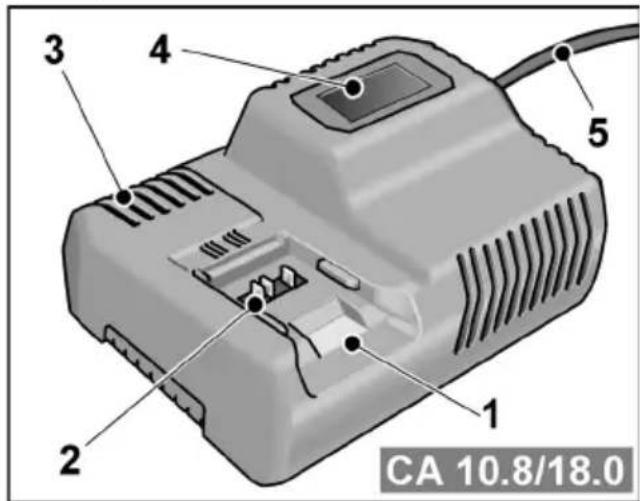

CA 10.8/18.0

• AP 10.8 (2,5 Ah),
• AP 18.0 (2,5 Ah),
• AP 10.8 (4,0 Ah),
• AP 18.0 (5,0 Ah),
• AP 10.8 (6,0 Ah).

Diagram of a device component with numbered parts, likely illustrating a mechanical or electronic assembly.

Zilhe Bhat D.1

Eckhard Rühle

Manager Research &

Development (R & D)

Klaus Peter Weinper

Head of Quality

Department (QD)

18.12.2017

Symbols used in this manual ..... 14

Symbols on the power tool 14

Important safety information ..... 14

Noise and vibration 16

Technical data 17

Overview 18

Instructions for use 19

Maintenance and care 23

Transport 23

C ∈ conformity 23

Disposal information 24

Exemption from liability 24

Symbols used in this manual

WARNING!

Denotes impending danger. Non-observance of this warning may result in death or extremely severe injuries.

CAUTION!

Denotes a potentially dangerous situation. Non-observance of this warning may result in injury or damage to property.

NOTE

Denotes application tips and important information.

Symbols on the power tool

Before switching on the power tool for the first time, read the operating manual.

Wear protective goggles.

Short-circuit-proof safety transformer.

Protect the battery against heat, including prolonged sunshine, and fire. Explosion hazard!.

Do not throw the battery into a fire. Explosion hazard!

The tool is only suitable for use indoors. Do not expose the tool to rain. Store power tools and batteries in dry rooms.

Disposal information (see page 24).

Important safety information

WARNING!

Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.

Before using the power tool, please read the following and act accordingly:

– these operating instructions,
- the "General safety instructions" on the handling of power tools in the enclosed booklet (leaflet no.: 315.915),
– the currently valid site rules and the regulations for the prevention of accidents.

This power tool is state of the art and has been constructed in accordance with the acknowledged safety regulations.

Nevertheless, when in use, the power tool may be a danger to life and limb of the user or a third party, or the power tool or other property may be damaged.

The power tool may be operated only if it is

- for its intended use,

- in perfect working order.

Faults which compromise safety must be repaired immediately.

Intended use

The IW 1/2" 18.0-EC / ID 1/4" 18.0-EC / IW 3/4" 18.0-EC cordless impact driver is intended

– for commercial use in industry and trade,
– for tightening and releasing nuts and screws in the specified dimensions.

Safety instructions for drills and drivers

• Hold the power tool by the insulated gripping surfaces when performing an operation where the cutting accessory or the screw may contact hidden wiring or its own power cord. The screw contacting a “live” wire may make exposed metal parts of the power tool “live” and cause an electric shock.
  ■ Use auxiliary handles if these are supplied with the power tool. The loss of control may result in injuries.
  ■ Use suitable detectors to detect concealed power supply cables or consult your local supply company. Contact with electric cables may result in a fire and/or electric shock. A damaged gas pipe may cause an explosion. Cutting into a water pipe will cause damage to property.
  ■ Switch off the power tool immediately when the cutting accessory jams. Be prepared for high reaction torques which cause kickback. The cutting accessory jams when:

– the power tool is overloaded or

– it snags in the workpiece to be machined.

■ Maintain a firm grip on the power tool. High reaction torques can occur briefly when screws are tightened and released.
- Secure the workpiece. A workpiece is held more securely in a clamping device or vice than by hand.
■ Wait until the power tool has come to a stop before putting it down. The cutting accessory may snag, causing the operator to lose control of the power tool.
■ Use only original batteries with the voltage indicated on the type plate of your power tool. The use of other batteries, e.g. imitations, reconditioned batteries or other makes, increases the risk of injury and damage to property by exploding batteries.

Safety instructions for handling batteries

■ Do not open the battery. Short-circuiting hazard!
■ Protect the battery against heat, including prolonged sunshine, fire, water and moisture. Explosion hazard!
■ A damaged or incorrectly used battery may result in the emission of fumes. Ensure a supply of fresh air and consult a doctor in the event of any physical complications. The fumes may irritate the respiratory tracts.
- Liquid may leak out of the battery if the battery is incorrectly used. Avoid contact with such liquid. If contact accidentally occurs, rinse with water. If liquid contacts eyes, seek medical attention. Liquid discharged from the battery may cause irritation or burns.
■ Recharge batteries only with chargers recommended by the manufacturer. A charger that is suitable for one type of battery may create a fire hazard when used with another battery.
■ The battery may be damaged by pointed objects such as e.g. nails or screwdrivers or by external application of force. This may give rise to an internal short circuit, causing the battery to burn, smoke, explode or overheat.

Charger

■ Always check whether the mains voltage matches the voltage indicated on the type plate of the charger.
■ The charger plug must fit in the power socket. Never modify the plug in any way. Do not use any adapter plugs together with earthed (grounded) power tools. Unmodified plugs and matching power sockets will reduce the risk of electric shock.
■ Only use the charger in dry rooms and avoid all contact with moisture and rain. The ingress of water into the charger increases the risk of electric shock.
■ Never use the charger if cables, plugs or the device itself are damaged as a result of external influence. Take the charger to the nearest authorised repair shop.

■ Under no circumstances open the charger. In the event of a fault, take it to an authorised repair shop.
■ Do not place any objects on the charger and do not place the charger on soft surfaces. Fire hazard!

Special safety instructions

■ Before carrying out any work on the power tool, move the direction preselector switch (2) to the middle position.
■ Operate the direction preselector switch (2) or torque setting turning dial (5) only when the tool is stopped.
■ Identify the power tool with stickers only. Do not drill any holes into the housing.

Noise and vibration

i NOTE

The noise and vibration values have been determined in accordance with EN 62841. The values are set out in the “Technical data” table.

WARNING!

The indicated measurements refer to new power tools. Daily use causes the noise and vibration values to change.

i NOTE

The vibration emission level given in this information sheet has been measured in accordance with a measurement method standardised in EN 62841 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure. The specified vibration emission level represents the main applications of the tool.

However, if the tool is used for different applications, with different cutting accessories or poorly maintained, the vibration emission level may differ.

This may significantly increase the exposure level over the total working period. Tomake an accurate estimation of the vibration exposure level, it is also necessary to take into account the times when the tool is switched off or running but not actually in use. This may significantly decrease the exposure level over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the cutting accessories, keep the hands warm, organisation of work patterns.

CAUTION!

Wear ear defenders at a sound pressure above 85 dB(A).

Technical data

Tool IW 1/2"		18.0-EC	ID 1/4"18.0-EC	IW 3/4"18.0-EC
Type		Impact driver Impact driver		Impact driver
Battery AP 18.0/2.5		AP 18.0/5.0
Charging time (depending on state of charge)– AP 18.0/2.5– AP 18.0/5.0	min	0–400–45
	min
Torque, max.– Hard screwdriving case Nm 250 225 1060
Idling speed– Stage 1– Stage 2– Stage 3	r.p.m.r.p.m.r.p.m.	150020002500	150020002500	90010001700
Impact rate– Stage 1– Stage 2– Stage 3	r.p.m.r.p.m.r.p.m.	130028003300	130028003300	180020002200
Weight according to “EPTA Procedure 01/2003”(without battery)	kg 1.1 1.1 3.3
Weight battery 2.5 Ah5.0 Ah	kgkg	0.40.7
A-weighted sound pressure level
Sound pressure level L_pA	dB(A) 91	91 92.3
Sound power level L_WA	dB(A) 10	2 102 103.3
Uncertainty K	db	3.0
Overall vibration values (vector sum of three directions)
Vibration emission value ah when ....
– screwing	m/s^2	18.5	18.5 12.4
Uncertainty K	m/s^2	1.5

Overview

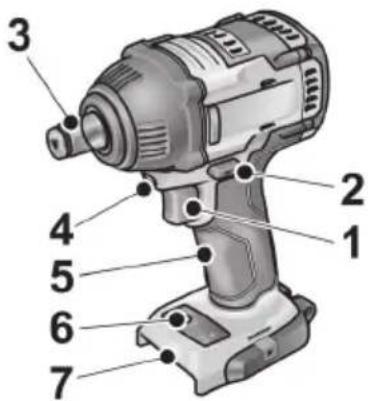

Different electric power tools are described in these instructions. The illustrated electric power tool may differ in detail from the one which you purchased.

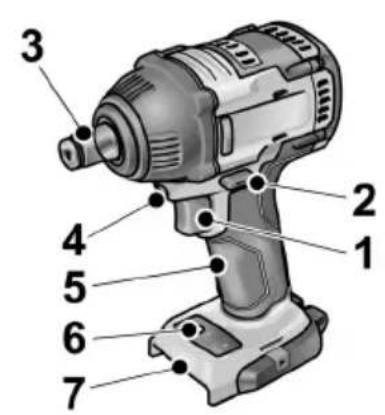

Labeled diagram of a power drill with numbered parts for identification

ID 1/4" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 1/2" 18.0-EC

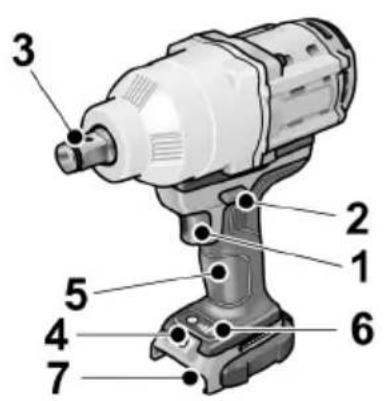

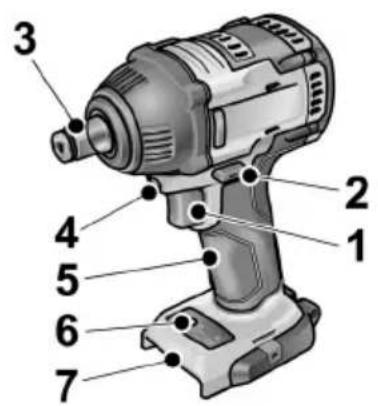

Labeled diagram of a power drill with numbered parts for identification

IW 3/4" 18.0-EC

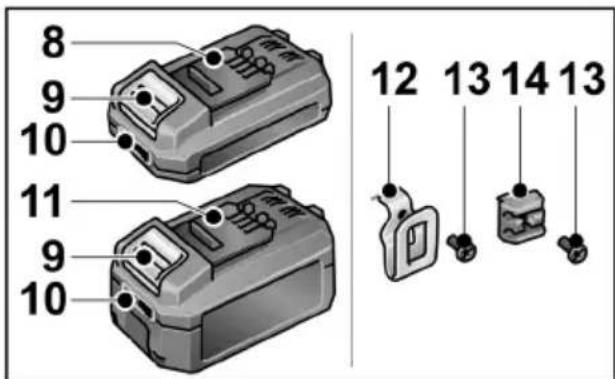

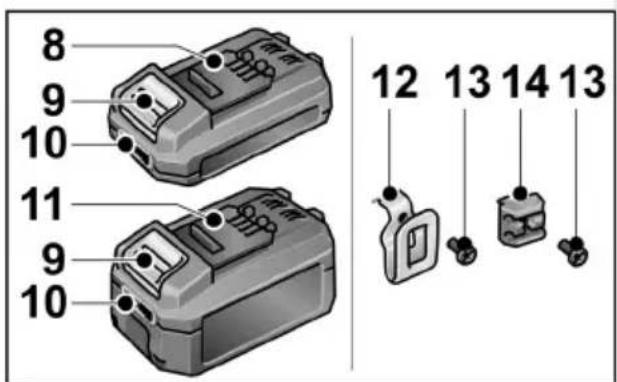

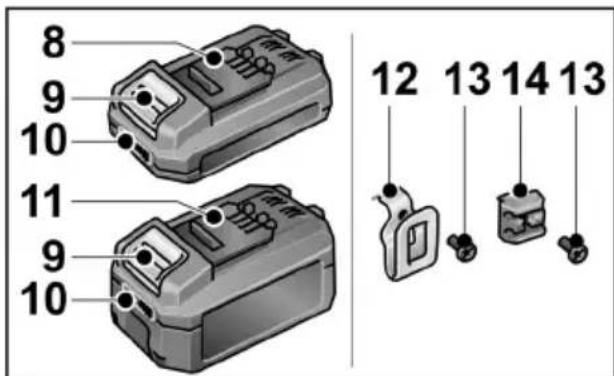

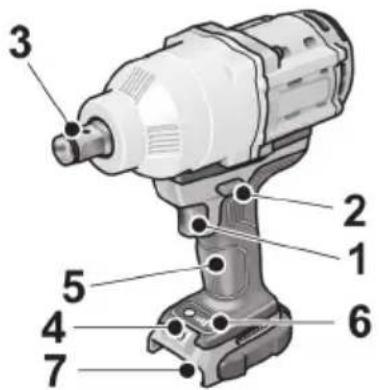

8 9 10 11 9 10 12 13 14 13

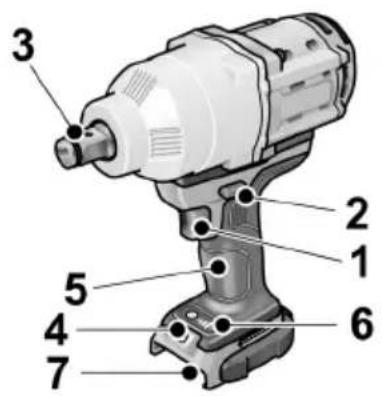

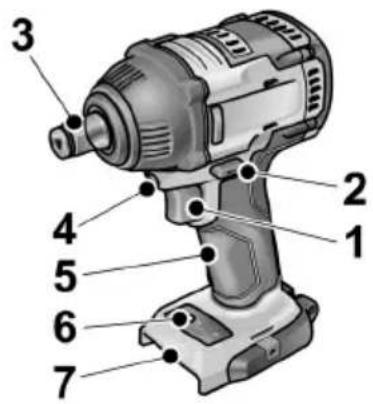

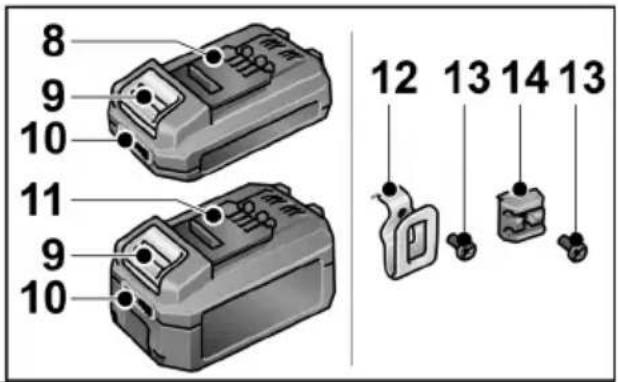

1 Trigger switch

For switching on and off and for accelerating up to maximum rotational speed

2 Direction preselector switch
3 Tool holder
4 Workplace lighting
5 Handle
6 Speed control panel
7 Insertion slot for battery

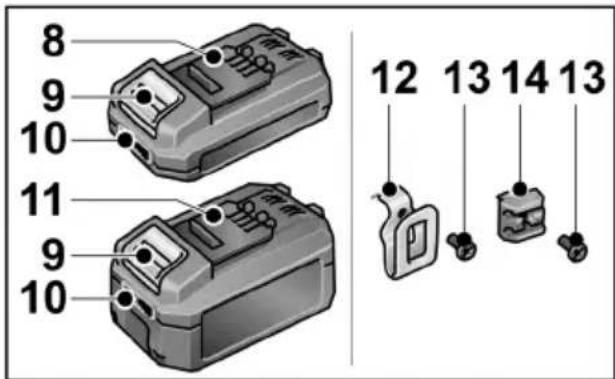

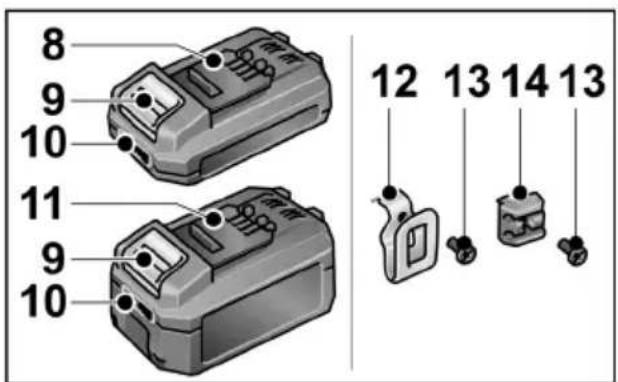

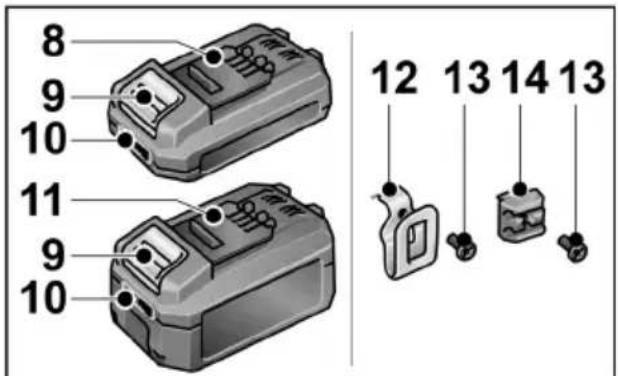

8 Li-ion battery (2.5 Ah)
9 Release button for battery
10 State of charge indicator
11 Li-ion battery (5.0 Ah)
12 Belt clip (not for IW 3/4" 18.0-EC)
13 Fastening screw (not for IW 3/4" 18.0-EC)
14 Bit bracket (not for IW 3/4" 18.0-EC)

Instructions for use

Before initial operation

■ Unpack the power tool and accessories and check that no parts are missing or damaged.

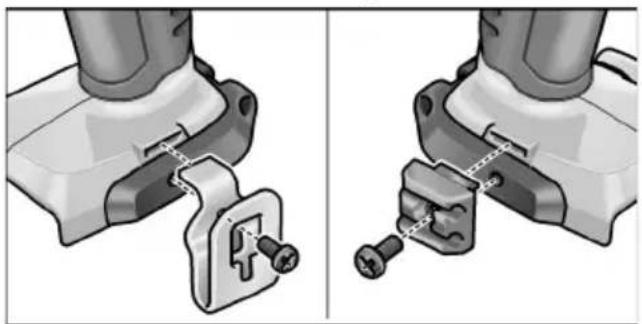

■ Attach the belt clip and bit holder with the enclosed fastening screw.

Mechanical assembly diagram showing two views of a clamp or bracket mechanism (no text or symbols)

i NOTE

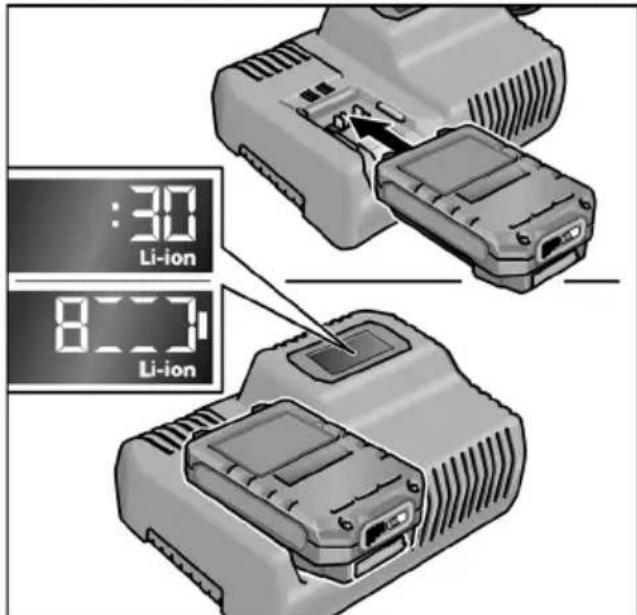

The batteries are not fully charged on delivery. Prior to initial operation, charge the batteries fully. See "Charger/Charging process".

Tool change

CAUTION!

Before carrying out any work on the power tool, move the direction preselector switch (2) to the middle position.

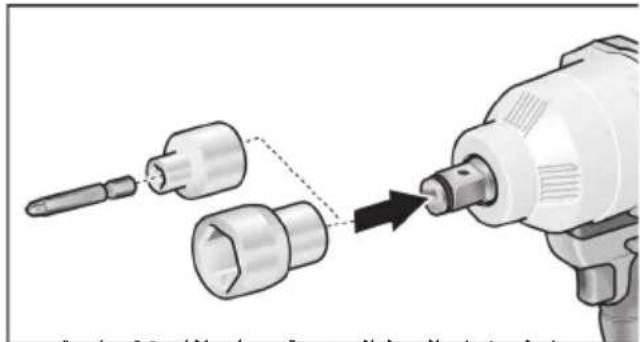

IW 1/2" 18.0-EC / IW 3/4" 18.0-EC:

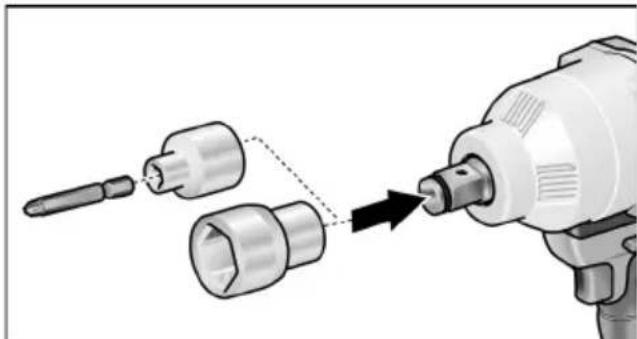

Illustration of a drill bit being inserted into a tool, showing mechanical components and motion direction (no text or symbols)

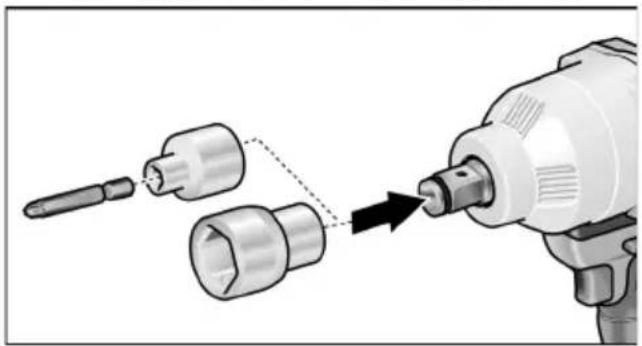

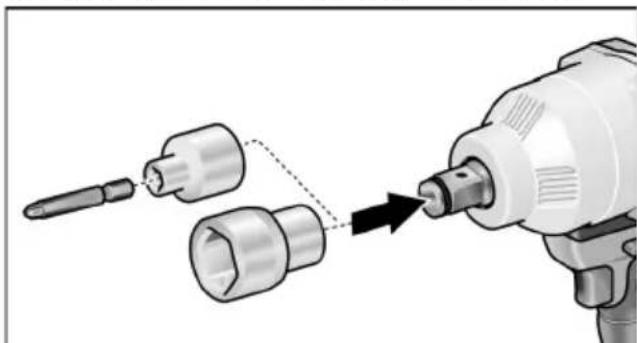

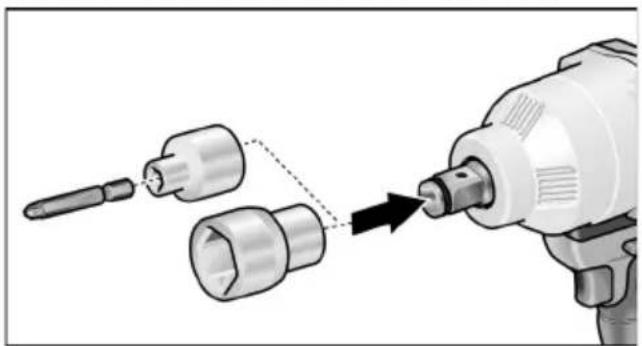

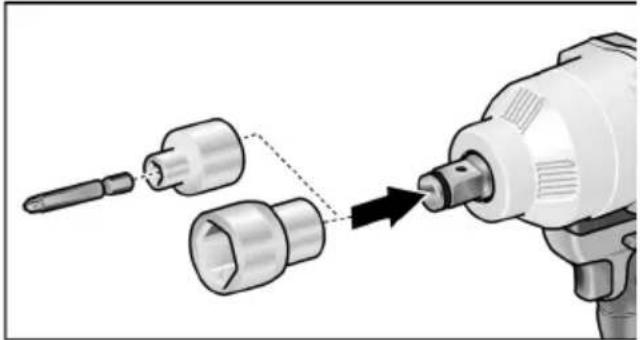

■ Push adapter on square drive of impact driver.
■ Insert tool in adapter.

ID 1/4" 18.0-EC:

1. 2. 3.

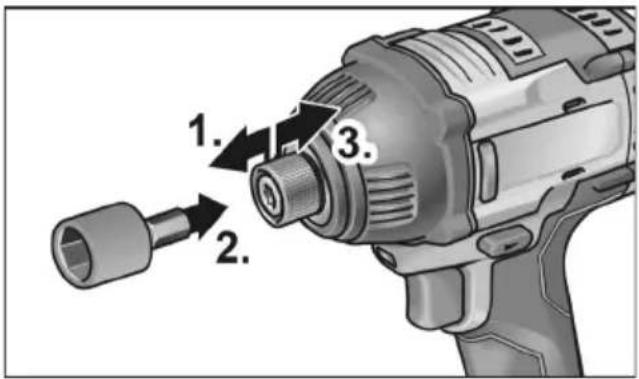

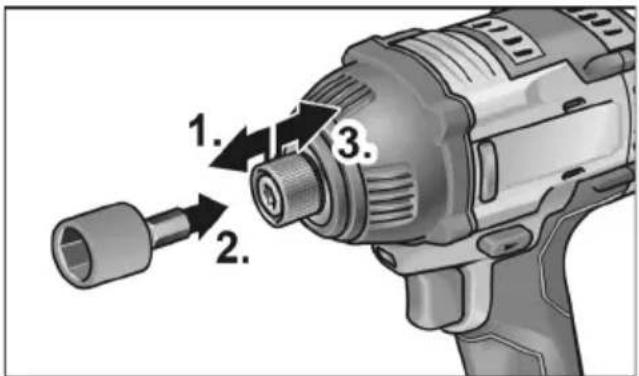

■ Pull tool lock forwards (1.) and press in the tool all the way (2.).
■ Release tool lock.
■ To remove the tool, pull tool lock backwards (3.).

Inserting/replacing the battery

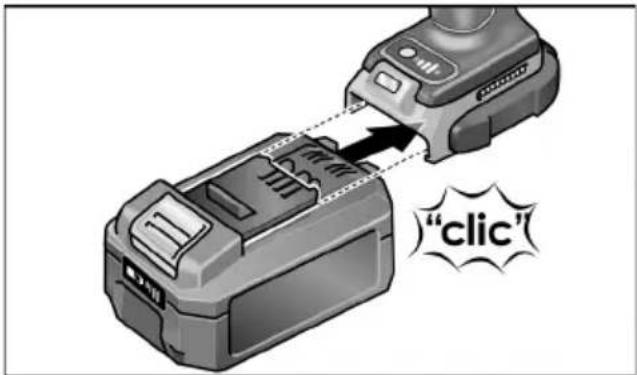

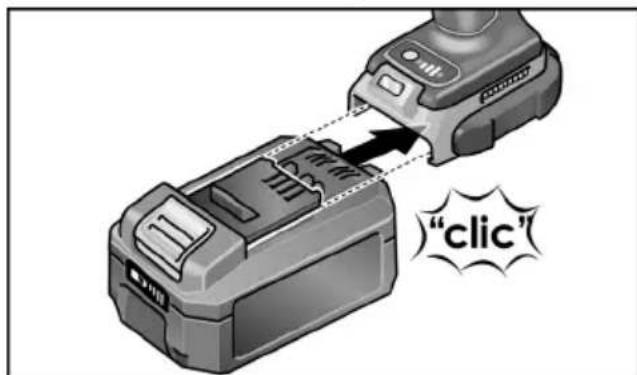

■ Press the charged battery into the power tool until it clicks into place.

"click"

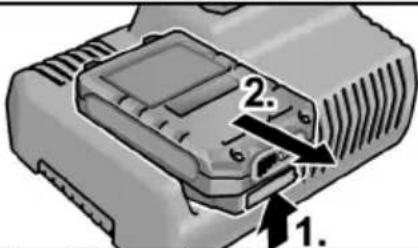

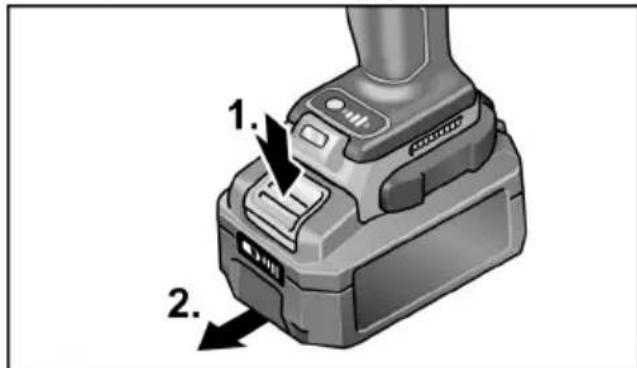

■ To remove, press the release button (1.) and pull out the battery (2.).

1. 2.

CAUTION!

Protect the battery contacts when the battery is not being used. Loose metal parts may short-circuit the contacts – Explosion and fire hazard!

Battery state of charge

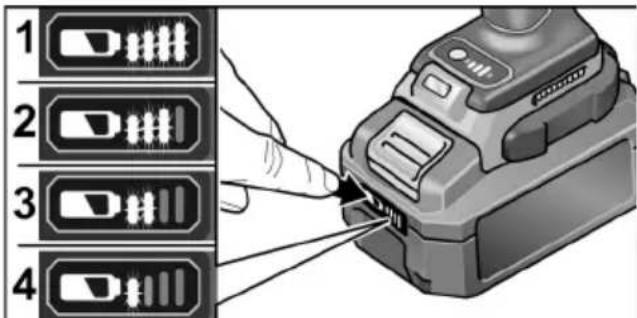

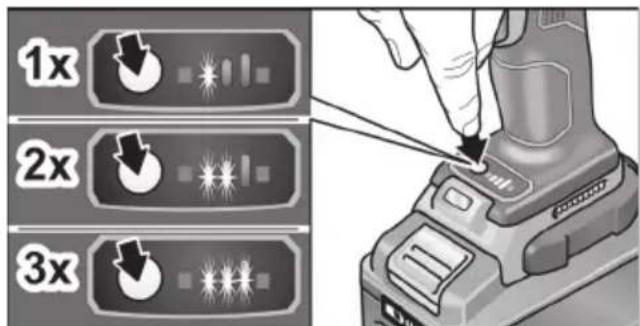

■ Press the button to check the state of charge at the state of charge indicator LEDs.

1 2 3 4

The indicator goes out after 5 seconds. If one of the LEDs flashes, the battery must be recharged. If none of the LEDs light up after the button is pressed, the battery is faulty and must be replaced.

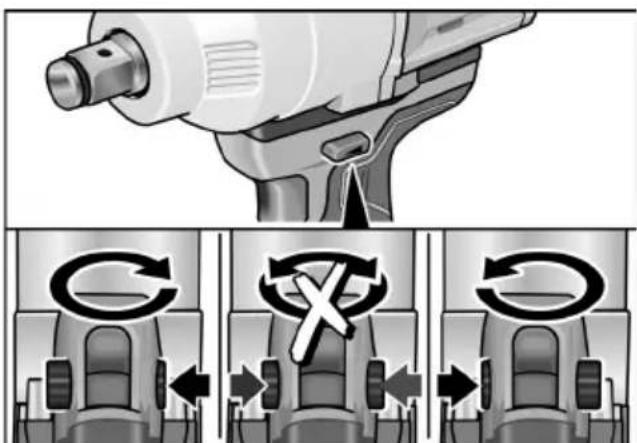

Direction preselection

CAUTION!

Change the direction of rotation only when the power tool is stopped.

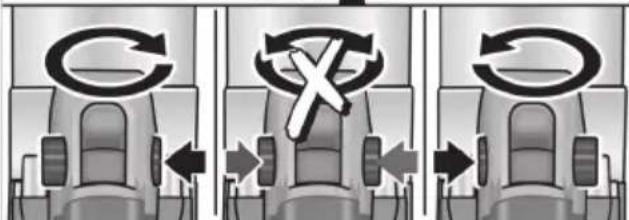

Diagram illustrating mechanical press application with labeled states and rotation arrows, showing a drill bit and cycle mechanism.

■ Move the direction preselector switch to the required position:

• Left: counterclockwise (remove screws, release screws)
• Right: clockwise (drill, insert screws, tighten down screws)
• Middle: switch-on interlock (tool change, when working on the power tool)

Switching on the power tool

To switch the power tool on:

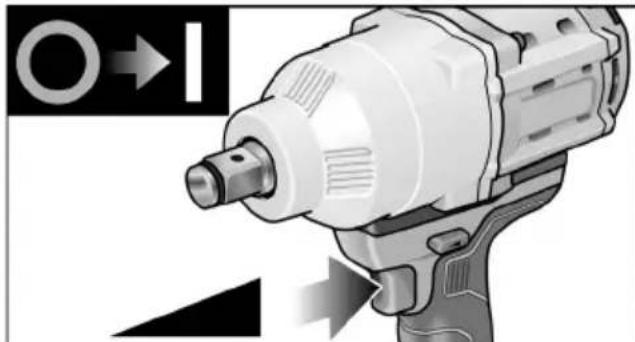

■ Press the trigger switch.

The power tool trigger switch allows the operator to increase the speed in increments up to the maximum speed.

Close-up of a white electric drill bit with a black circular indicator and directional arrow (no text or symbols on the device itself)

To switch the power tool off:

■ Release the trigger switch.

i NOTE

• The power tool is equipped with a brake which stops the cutting accessory as soon as the trigger switch is released.
• When using the power tool continuously, the operator should work primarily with the trigger switch fully depressed.

Workplace lamp on/off switch

1. Turn direction of rotation preselector switch (2) to "Forwards" or "Reverse".
2. Press electric tool on/off switch (1) - Workplace lamp lights up
3. Release electric tool on/off switch (1) - Workplace lamp goes out automatically after approx. 10 sec.

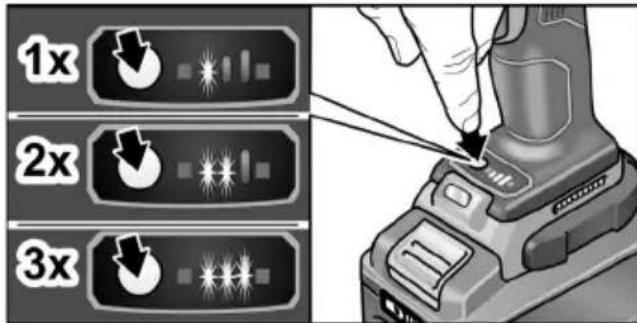

Speed and torque preselector switch IW 1/2" 18.0-EC / ID 1/4" 18.0-EC / IW 3/4" 18.0-EC

1x 2x 3x

Change speed/torque

1. Activate on/off switch (1)
2. Press mode switch briefly (approx. 0.5 sec.).

- An LED lights up - torque:

IW 1/2" 18.0-EC: 150 Nm / 1500 rpm
ID 1/4" 18.0-EC: 60 Nm / 1500 rpm
IW 3/4" 18.0-EC	300 Nm / 900 rpm

1. Press mode switch briefly

- Two LEDs light up - torque:

IW 1/2" 18.0-EC: 180 Nm / 2000 rpm
ID 1/4" 18.0-EC: 105 Nm / 2000 rpm
IW 3/4" 18.0-EC	590 Nm / 1000 rpm

1. Press mode switch briefly

- Three LEDs light up - torque:

IW 1/2" 18.0-EC: 250 Nm / 2500 rpm
ID 1/4" 18.0-EC: 225 Nm / 2500 rpm
IW 3/4" 18.0-EC	1060 Nm / 1700 rpm

1. Press mode switch briefly

- An LED lights up - torque switches back to:

IW 1/2" 18.0-EC: 150 Nm
ID 1/4" 18.0-EC: 60 Nm
IW 3/4" 18.0-EC	300 Nm

Torque can be increased again as described. During reverse operation of the electric tool – which only has one speed – the LEDs in the base go out automatically.

Change single impact mode to impact driver mode (ID 1/4" and IW 1/2" only)

■ Press mode switch for approx.

1.5 seconds.

- LED mode indicator lights up - single impact mode active

- LED mode indicator not lit - impact driver mode active.

Working with the power tool

CAUTION!

Before carrying out any work on the power tool, move the direction preselector switch (2) to the middle position.

i NOTE

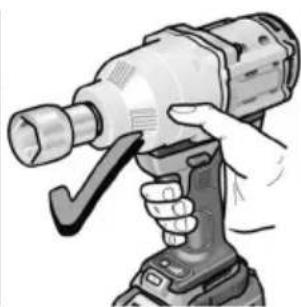

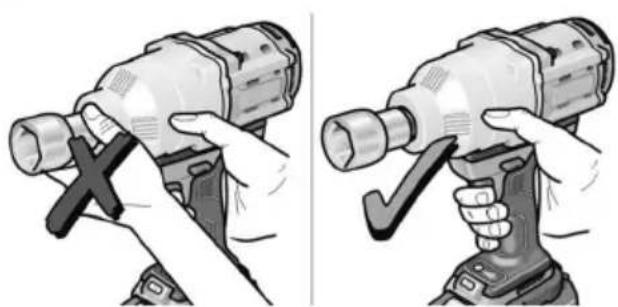

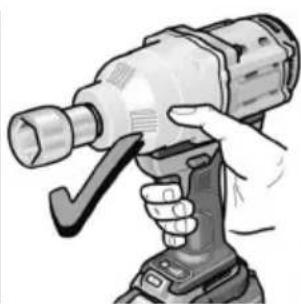

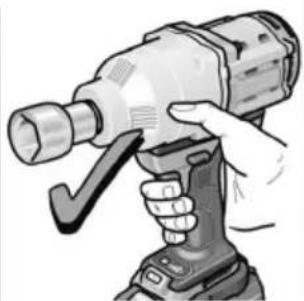

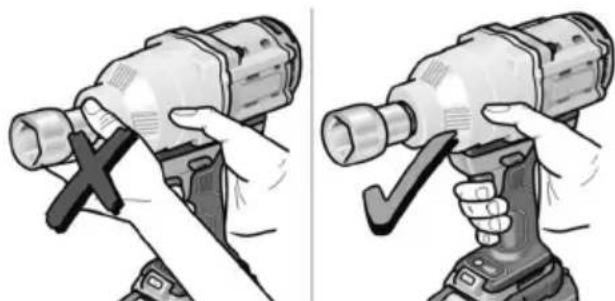

To facilitate handling of the appliance when inserting screws, the screwdriver bit can be inserted directly into the tool holder of the appliance.

Diagram of a drill bit being inserted into a tool, showing mechanical components and tool path (no text or symbols)

1. Assemble the tool head (drill chuck, angle attachment, bit holder attachment).
2. Insert the battery.
3. Insert the tool (drill bits, srewdriver bits, bit holders).
4. Set torque preselection to the required setting.
5. Set the required direction of rotation.
6. Hold the power tool with one hand on the handle and assume the working position. If the power tool is running, never actuate the direction preselector switch or torque setting turning dial.

Illustration of two hands using a drill bit to adjust the drill bit (no text or symbols present)

1. Switch on the power tool.

At the end of work:
8. Release the trigger switch.
9. Move the direction preselector switch (2) to the middle position.

Charger

CA 10.8/18.0

1 Insertion slot for battery
2 Contacts
3 Ventilation slots
4 Operating state display
5 Power cord with mains plug

The CA 10.8/18.0 charger is designed to charge FLEX batteries of the following types

• AP 10.8 (2.5 Ah),
• AP 18.0 (2.5 Ah),
• AP 10.8 (4.0 Ah),
• AP 18.0 (5.0 Ah),
• AP 10.8 (6.0 Ah).

Tips for a long battery service life

CAUTION!

• Never charge batteries at temperatures below 0 °C or above 55 °C.
• Do not charge batteries in environments with high air humidity or ambient temperature
• Do not cover batteries and the charger during the charging process.
• Pull out the charger mains plug at the end of the charging process.

Battery and charger heat up during the charging process. This is perfectly normal!

Lithium-ion batteries do not exhibit the established “memory effect”. Nevertheless, a battery should be completely discharged before charging and the charging process should always be fully completed. If batteries are not used for an extended period of time, store them partially charged in a cool place.

Charging process

CAUTION!

Insert only original batteries in the supplied charger.

■ Insert the charger mains plug. The display backlighting lights up green for 2 seconds and then goes out again. OK is displayed.

:30 Li-ion 8:31 Li-ion

■ Insert the battery fully into the charger until it clicks into place.

• The time remaining in the charging process (until the battery is fully charged) and a graphic representation of the state of charge are shown alternately in the display.
• The display backlighting lights up orange when the battery is charged less than 80%.
• When the battery charge reaches 80% the display lights up green and OK is indicated.

■ The battery is fully charged when the display appears.

The green backlighting goes out after a short time.

■ Remove the battery from the charger.

Diagram of a device component with numbered parts labeled 1 and 2, showing internal structure and connector details.

■ Pull out the mains plug.

i NOTE

If the display flashes after the battery is inserted in the charger, there is a fault in the battery or in the charger.

Display flashes slowly. Backlighting orange.

The battery is too hot or too cold. The charging process starts when the battery reaches the charging temperature (0°C...55°C).

Display flashes rapidly. Backlighting red.

Remove the battery from the charger and insert again. If the same display persists, the battery is faulty. Replace the battery or have it checked at an authorised repair shop.

If this error message is displayed again with a different battery, this indicates that there is a fault in the charger. Have the charger checked at an authorised repair shop.

Maintenance and care

Cleaning

WARNING!

If metals are worked over a prolonged period, electroconductive dust may become deposited inside the housing.

Clean the power tool and ventilation slots at regular intervals. Frequency of cleaning is dependent on the material machined and the duration of use.

■ Regularly blow out the housing interior and motor with dry compressed air. Keep the power tool running while doing this.

Charger

WARNING!

Before performing any work, pull out the mains plug. Do not use water or liquid detergents.

■ Remove dirt and dust from the housing with a brush or a dry cloth.

Repairs

Repairs may be carried out by an authorised customer service centre only.

Spare parts and accessories

For other accessories, in particular cutting accessories, please refer to the manufacturer's catalogues.

Exploded drawings and spare-part lists can be found on our homepage: www.flex-tools.com

Transport

The lithium equivalent content of the batteries contained in the scope of delivery is below the relevant limit values. Therefore the battery as a separate component and the power tool with its scope of delivery are not subject to national or international dangerous goods regulations. If several devices containing lithium-ion batteries are transported, these regulations may become relevant and require special safety measures (e.g. for the packaging). In this case acquaint yourself with the regulations that apply to the country of use.

CE conformity

We declare on our sole responsibility that the product described in "Technical data" conforms to the following standards or normative documents:

EN 62841 according to the provisions of Directives 2014/30/EU, 2006/42/EC, 2011/65/EU.

Responsible for technical documents: FLEX-Elektrowerkzeuge GmbH, R & D Bahnhofstrasse 15, D-71711 Steinheim/Murr

Eckhard Rühle Manager Research & Development (R & D)

Klaus Peter Weinper Head of Quality Department (QD)

• mains operated power tool by removing the power cord,
• battery operated power tool by removing the battery.

EU countries only.

Do not dispose of electric power tools in the household waste! In accordance with the European Directive 2012/19/EU on Waste Electrical and Electronic Equipment and its incorporation into national law, used power tools must be collected separately and recycled in an environmentally friendly manner.

Raw material recovery instead of waste disposal.

Device, accessories and packaging should be recycled in an environmentally friendly manner. Plastic parts are identified for recycling according to material type.

WARNING!

Do not throw batteries into the household waste, fire or water. Do not open disused batteries.

Accumulators/batteries should be collected, recycled or disposed of in an environmentally friendly manner.

EU countries only.

In accordance with the European Directive 2006/66/EC on Waste Electrical and Electronic Equipment and its incorporation into national law, defective or used batteries must be collected separately and recycled in an environmentally friendly manner.

i NOTE

Please ask your dealer about disposal options.

Exemption from liability

The manufacturer and his representative are not liable for any damage and lost profit due to interruption in business caused by the product or by an unusable product. The manufacturer and his representative are not liable for any damage which was caused by improper use of the product or by

use of the product with products from other manufacturers.

Table des matières

Labeled diagram of a power drill with numbered parts for identification

ID 1/4" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 1/2" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 3/4" 18.0-EC

8 9 10 11 9 10 12 13 14 13

1 Interrupteur

Mechanical assembly diagram showing two stages of a tool or clamp mechanism (no text or symbols present)

REMARQUE

Illustration of a drill bit being inserted into a power tool (no text or symbols present)

Diagram illustrating the mechanism of a mechanical device with labeled states and rotational arrows, showing three sequential states.

Close-up of a power drill with tool handle and motion indicator (no text or symbols)

Illustration of a drill bit being inserted into a tool, showing mechanical components and motion direction (no text or symbols)

Hand holding a cylindrical device with a black X mark, no visible text or symbols

Hand holding a handheld electric drill bit with a black checkmark (no text or symbols visible)

CA 10.8/18.0

• AP 10.8 (2,5 Ah),
• AP 18.0 (2,5 Ah),
• AP 10.8 (4,0 Ah),
• AP 18.0 (5,0 Ah),
• AP 10.8 (6,0 Ah).

Diagram of a device component with numbered labels pointing to ports or ports

B. R. Q. - 1

Eckhard Rühle

Manager Research &

Development (R & D)

18.12.2017

Klaus Peter Weinper

Head of Quality

Department (QD)

Labeled diagram of a power drill with numbered parts for identification

ID 1/4" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 1/2" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 3/4" 18.0-EC

8 9 10 11 9 10 12 13 14 13

1 Interruttore

Mechanical assembly diagram showing two stages of a clamp or bracketing mechanism (no text or symbols present)

i AVVERTENZA

IW 1/2" 18.0-EC / IW 3/4" 18.0-EC:

Diagram showing a drill bit being inserted into a tool, with no text or symbols present.

Diagram illustrating the mechanism of a mechanical device with rotation and cycle indicators, showing three sequential states of operation.

Close-up of a white electric drill bit with a tool, showing blade and grip (no text or symbols visible)

Illustration of a drill bit being inserted into a power tool, showing mechanical components and tool path (no text or symbols)

Illustration of two hands using a handheld drill bit to adjust the drill bit (no text or symbols present)

CA 10.8/18.0

• AP 10.8 (2,5 Ah),
• AP 18.0 (2,5 Ah),
• AP 10.8 (4,0 Ah),
• AP 18.0 (5,0 Ah),
• AP 10.8 (6,0 Ah).

B. R. Q. - 1

Eckhard Rühle Manager Research & Development (R & D)

Klaus Peter Weinper Head of Quality Department (QD)

Labeled diagram of a power drill with numbered parts for identification

ID 1/4" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 1/2" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 3/4" 18.0-EC

8 9 10 11 9 10 12 13 14 13

1 Interruptor

Mechanical assembly diagram showing two stages of a tool or bracket with fasteners and bolts (no text or symbols)

i NOTA

IW 1/2" 18.0-EC / IW 3/4" 18.0-EC:

Illustration of a drill bit being inserted into a power tool, showing mechanical components and tool path (no text or symbols)

Diagram showing a hand inserting a device into a device with four labeled components, likely illustrating a digital or mechanical process.

Diagram illustrating the process of a mechanical device with circular and linear rotation indicators, showing three sequential states.

Close-up of a white electric drill bit with a black arrow indicating motion (no text or symbols)

Diagram showing a tool interacting with a drill bit, illustrating the process (no text or symbols present)

Illustration of two hands using a drill bit to adjust the drill bit (no text or symbols present)

CA 10.8/18.0

• AP 10.8 (2,5 Ah),
• AP 18.0 (2,5 Ah),
• AP 10.8 (4,0 Ah),
• AP 18.0 (5,0 Ah),
• AP 10.8 (6,0 Ah).

Manager Research & Development (R & D)

Klaus Peter Weinper

Head of Quality Department (QD

18.12.2017

Labeled diagram of a power drill with numbered parts for identification

ID 1/4" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 1/2" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 3/4" 18.0-EC

8 9 10 11 9 10 12 13 14 13

1 Interruptor

Mechanical assembly diagram showing a tool interacting with a bracket and mounting bracket (no text or symbols visible)

Mechanical assembly diagram showing a tool interacting with a bracket and screw (no text or symbols visible)

i INDICAÇÃO

IW 1/2" 18.0-EC / IW 3/4" 18.0-EC:

Illustration of a drill bit being inserted into a tool, showing mechanical components and motion direction (no text or symbols)

Diagram illustrating a mechanical device with circular and cross-shaped arrows indicating rotation or cycle, showing three sequential states of the operation.

Close-up of a power drill with a tool and directional arrow indicator (no text or symbols on the device itself)

Diagram of a drill bit being inserted into a tool, showing mechanical components and tool path (no text or symbols)

Illustration of a hand using a drill bit to adjust the drill bit (no text or symbols present)

CA 10.8/18.0

• AP 10.8 (2,5 Ah),
• AP 18.0 (2,5 Ah),
• AP 10.8 (4,0 Ah),
• AP 18.0 (5,0 Ah),
• AP 10.8 (6,0 Ah).

Labeled diagram of a power drill with numbered parts for identification

ID 1/4" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 1/2" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 3/4" 18.0-EC

8 9 10 11 9 10 12 13 14 13

1 Schakelaar

Mechanical assembly diagram showing two views of a clamp or bracket mechanism (no text or symbols present)

i LET OP

IW 1/2" 18.0-EC / IW 3/4" 18.0-EC

Illustration of a drill bit being inserted into a tool, showing mechanical components and a close-up of the drill bit (no text or symbols present)

Diagram illustrating mechanical assembly steps with labeled states and directional arrows, showing motion sequence and rotation mechanism.

Close-up of a white electric drill bit with a black circular icon and directional arrow (no text or symbols)

Diagram of a drill bit being inserted into a tool, showing mechanical components and motion direction (no text or symbols)

Two-step illustration of a hand using a drill pen to lift a cylindrical device, showing the process with no text or symbols.

CA 10.8/18.0

• AP 10.8 (2,5 Ah),
• AP 18.0 (2,5 Ah),
• AP 10.8 (4,0 Ah),
• AP 18.0 (5,0 Ah),
• AP 10.8 (6,0 Ah).

Klaus Peter Weinper Head of Quality Department (QD)

18.12.2017

Labeled diagram of a power drill with numbered parts for identification

ID 1/4" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 1/2" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 3/4" 18.0-EC

8 9 10 11 9 10 12 13 14 13

1 Afbryder

Mechanical assembly diagrams showing two views of a clamp or bracket mechanism (no text or symbols)

i BEMAERK

IW 1/2" 18.0-EC / IW 3/4" 18.0-EC:

Illustration of a drill bit being inserted into a tool, showing mechanical components and motion direction (no text or symbols)

Diagram illustrating the process of a mechanical device with circular and linear rotation indicators, showing three sequential states.

Close-up of a white electric drill bit with a black arrow indicating tool direction (no text or symbols)

Slukke maskinen:

■ Slip afbryderen.

i BEMAERK

- To LED'er lyser - moment:

IW 1/2" 18.0-EC:	180 Nm / 2000 min ^-1
ID 1/4" 18.0-EC:	105 Nm / 2000 min ^-1
IW 3/4" 18.0-EC	590 Nm / 1000 min ^-1

Illustration of a drill bit being inserted into a power tool, showing mechanical components and tool path (no text or symbols)

Illustration of a hand holding a cylindrical device with a black X mark, no text or symbols present

Illustration of a hand using a handheld power drill press (no text or symbols visible)

CA 10.8/18.0

Diagram of a device component with numbered parts, likely indicating parts of a battery or connector.

B. 10 - -

Klaus Peter Weinper

Head of Quality

Department (QD)

18.12.2017

Labeled diagram of a drill press with numbered parts for identification

ID 1/4" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 1/2" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 3/4" 18.0-EC

8 9 10 11 9 10 12 13 14 13

1 B r y t e r

Mechanical assembly diagram showing two views of a mechanical clamp or bracket with screws and a fastener (no text or symbols)

i HENVISNING Batteriene er ikke fullstendig ladet ved levering. Før første gangs bruk skal batteriene lades fullstendig. Se i denne forbindelse «Ladeapparat/Lading».

Verktøyskift

IW 1/2" 18.0-EC / IW 3/4" 18.0-EC:

Illustration of a drill bit being inserted into a tool, showing mechanical components and a dashed line indicating insertion (no text or symbols)

Diagram illustrating a mechanical device with rotation and clockwise operation, showing three stages of tool movement.

Close-up of a white electric drill bit with a tool, showing motion arrows (no text or symbols)

Diagram showing a tool interacting with a drill bit, illustrating the process (no text or symbols present)

Two-step illustration of a hand using a drill bit to adjust the drill bit (no text or symbols present)

CA 10.8/18.0

• AP 10.8 (2,5 Ah),
• AP 18.0 (2,5 Ah),
• AP 10.8 (4,0 Ah),
• AP 18.0 (5,0 Ah),
• AP 10.8 (6,0 Ah).

Henvisninger for lang batteri-levetid

FORSIKTIG!

Diagram of a device component with numbered parts labeled 1 and 2, showing internal structure and connector details.

Handwritten signature or scribble on a document, possibly from a formal letter or document.

Eckhard Rühle

Manager Research & Development (R & D)

Klaus Peter Weinper

Head of Quality

Department (QD)

18.12.2017

11 Litiumjonbatteri (5,0 Ah)

12 Bältesklämma

Mechanical assembly diagram showing two stages of tool manipulation: left with a bracket and screw fastener, right with a fastener inserted into a housing (no text or symbols)

i OBS!

IW 1/2" 18.0-EC / IW 3/4" 18.0-EC:

Illustration of a drill bit being inserted into a power tool (no text or symbols present)

Diagram illustrating the process of a mechanical device with circular and linear rotation indicators, showing step-by-step assembly.

Close-up of a white electric drill bit with a black arrow indicating tool direction (no text or symbols)

Illustration of a drill bit being inserted into a power tool, showing mechanical components and tool path (no text or symbols)

Illustration of a hand holding a handheld device with a black X mark (no text or symbols)

Hand holding a drill bit with a tool, no visible text or symbols

CA 10.8/18.0

• AP 10.8 (2,5 Ah),
• AP 18.0 (2,5 Ah),
• AP 10.8 (4,0 Ah),
• AP 18.0 (5,0 Ah),
• AP 10.8 (6,0 Ah).

Handwritten signature or scribble on a document, possibly a signature or official note

Eckhard Rühle Manager Research & Development (R & D)

Klaus Peter Weinper Head of Quality Department (QD)

18.12.2017

Labeled diagram of a drill press with numbered parts for identification

ID 1/4" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 1/2" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 3/4" 18.0-EC

8 9 10 11 9 10 12 13 14 13

Mechanical assembly diagram showing two views of a tool with fasteners and bolts (no text or symbols)

Illustration of a drill bit being inserted into a tool, showing mechanical components and motion direction (no text or symbols)

Diagram showing a hand inserting a device into a device with four labeled buttons, illustrating a process or operation.

Diagram illustrating mechanical assembly steps with labeled states and directional arrows, showing a motor and three sequential states of rotation or cycle.

Close-up of a white electric drill bit with a black arrow indicating tool direction (no text or symbols)

Koneen pysäytys:

Illustration of a drill bit being inserted into a tool, showing mechanical components and motion direction (no text or symbols)

Illustration of two hands operating a drill bit, one with a cross mark and the other with a checkmark (no text or symbols)

1. Käynnistä kone.

Töiden jälkeen:

CA 10.8/18.0

• AP 10.8 (2,5 Ah),
• AP 18.0 (2,5 Ah),
• AP 10.8 (4,0 Ah),
• AP 18.0 (5,0 Ah),
• AP 10.8 (6,0 Ah).

B. T. Q. -

Eckhard Rühle Manager Research & Development (R & D)

Klaus Peter Weinper Head of Quality Department (QD)

18.12.2017

Labeled diagram of a power drill with numbered parts for identification

ID 1/4" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 1/2" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 3/4" 18.0-EC

8 9 10 11 9 10 12 13 14 13

Mechanical assembly diagram showing two stages of a clamp or bracketing mechanism (no text or symbols present)

i YΠΟΔΕΙΞΗ

IW 1/2" 18.0-EC / IW 3/4" 18.0-EC:

Illustration of a drill bit being inserted into a power tool, showing mechanical components and tool path (no text or symbols)

Diagram illustrating the process of a mechanical device with rotation and cycle indicators, showing three sequential states of mechanical operation.

Close-up of a white electric drill bit with a black arrow indicating tool direction (no text or symbols)

Illustration of a drill bit being inserted into a tool, showing mechanical components and motion direction (no text or symbols)

Two-step illustration of a hand using a drill pen to adjust the tool (no text or symbols present)

CA 10.8/18.0

1 Y π o δ o χ ή 2 E π α φ ε ω

3 Σχισμές αερισμού

Klaus Peter Weinper Head of Quality Department (QD)

Labeled diagram of a power drill with numbered parts for identification

ID 1/4" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 1/2" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 3/4" 18.0-EC

8 9 10 11 9 10 12 13 14 13

1 § a l t e r

Mechanical assembly diagram showing a clamp and bracket assembly (no text or symbols visible)

Mechanical assembly diagram showing a clamp securing a pin (no text or symbols visible)

i BİLGİ

IW 1/2" 18.0-EC / IW 3/4" 18.0-EC:

Illustration of a drill bit being inserted into a tool, showing mechanical components and a close-up of the drill bit (no text or symbols present)

Diagram illustrating mechanical assembly steps with labeled states and directional arrows, showing motion of a device.

Close-up of a white electric drill bit with a black circular icon and directional arrow (no text or symbols)

Illustration of a drill bit being inserted into a tool, showing mechanical components and motion direction (no text or symbols)

Illustration of a hand holding a cylindrical device with a cross mark, no text or symbols present

Hand holding a handheld electric drill bit with a tool, no visible text or symbols

1. Cihazı açın.

CA 10.8/18.0

Handwritten signature or name with a circular outline and partial text below

Eckhard Rühle Manager Research & Development (R & D)

Klaus Peter Weinper Head of Quality Department (QD)

Labeled diagram of a power drill with numbered parts for identification

ID 1/4" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 1/2" 18.0-EC

Labeled diagram of a power tool with numbered parts for identification

IW 3/4" 18.0-EC

8 9 10 11 9 10 12 13 14 13

1 Przełącznik

Mechanical assembly diagram showing two stages of tool manipulation: one with a bracket and screw, the other with a fastener and bolt (no text or symbols)

i WSKAZÓWKA

IW 1/2" 18.0-EC / IW 3/4" 18.0-EC:

Illustration of a drill bit being inserted into a power tool, showing mechanical components and tool path (no text or symbols)

Diagram illustrating the process of a mechanical device with three sequential states: rotation, cycle, and rotation.

Close-up of a white electric drill bit with a black arrow indicating tool direction (no text or symbols)

Diagram of a drill bit being inserted into a tool, showing mechanical components and motion direction (no text or symbols)

Two-step illustration of a hand using a drill bit to adjust the drill bit (no text or symbols present)

1. Włączyć urządzenie.

CA 10.8/18.0

• AP 10.8 (2,5 Ah),
• AP 18.0 (2,5 Ah),
• AP 10.8 (4,0 Ah),
• AP 18.0 (5,0 Ah),
• AP 10.8 (6,0 Ah).

Klaus Peter Weinper Head of Quality Department (QD)

18.12.2017

Labeled diagram of a power drill with numbered parts for identification

ID 1/4" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 1/2" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 3/4" 18.0-EC

8 9 10 11 9 10 12 13 14 13

1 Kapcsoló

Mechanical assembly diagrams showing two views of a tool with fasteners and bolts (no text or symbols)

i MEGJEGYZÉS

IW 1/2" 18.0-EC / IW 3/4" 18.0-EC:

Illustration of a drill bit being inserted into a power tool, showing mechanical components and tool path (no text or symbols)

Diagram illustrating a mechanical device with circular and cross-shaped components, showing progressive rotation and assembly steps.

Close-up of a white electric drill bit with a black circular icon and directional arrow (no text or symbols)

A gép kikapcsolása:

Diagram of a drill bit being inserted into a tool, showing mechanical components and tool path (no text or symbols)

Two-step illustration of a hand using a drill bit to adjust the drill bit (no text or symbols present)

CA 10.8/18.0

• AP 10.8 (2,5 Ah),
• AP 18.0 (2,5 Ah),
• AP 10.8 (4,0 Ah),
• AP 18.0 (5,0 Ah),
• AP 10.8 (6,0 Ah).

Handwritten signature or scribble on a document, possibly a signature or official note

Eckhard Rühle

Manager Research & Development (R & D)

Klaus Peter Weinper

Head of Quality

Department (QD)

1. 1. 18.

Labeled diagram of a power drill with numbered parts for identification

ID 1/4" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 1/2" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 3/4" 18.0-EC

8 9 10 11 9 10 12 13 14 13

1 Spínač

Mechanical assembly diagram showing two views of a mechanical clamp or bracket with screws inserted (no text or symbols)

i UPOZORNĚNÍ

IW 1/2" 18.0-EC / IW 3/4" 18.0-EC:

Illustration of a drill bit being inserted into a tool, showing mechanical components and motion direction (no text or symbols)

Diagram showing a hand inserting a device into a device with four labeled buttons, illustrating a process or operation.

Diagram illustrating the process of a mechanical device with rotation and recycling symbols, showing three sequential steps.

Close-up of a white electric drill bit with a black arrow indicating tool direction (no text or symbols)

Vypnutí nářadí:

■ Uvolněte spínač.

i UPOZORNĚNÍ

Illustration of a drill bit being inserted into a power tool, showing mechanical components and tool path (no text or symbols)

Two-step illustration of a hand using a drill bit to adjust the tool (no text or symbols present)

CA 10.8/18.0

Diagram of a device component with numbered parts, likely illustrating a mechanical or electronic assembly.

Klaus Peter Weinper Head of Quality Department (QD)

18.12.2017

Labeled diagram of a power drill with numbered parts for identification

ID 1/4" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 1/2" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 3/4" 18.0-EC

8 9 10 11 9 10 12 13 14 13

1 Vypínač

Mechanical assembly diagram showing a tool interacting with a bracket and mounting bracket (no text or symbols visible)

Mechanical assembly diagram showing a tool interacting with a bracket and screw (no text or symbols visible)

i UPOZORNENIE

IW 1/2" 18.0-EC / IW 3/4" 18.0-EC:

Illustration of a drill bit being inserted into a power tool, showing mechanical components and tool path (no text or symbols)

Diagram illustrating the process of a mechanical device with circular and linear rotation indicators, showing three sequential states.

Close-up of a white electric drill bit with tool handle and head, showing motion direction (no text or symbols)

Vypnutie náradia:

■ Uvoľnite vypínač.

UPOZORNENIE

Illustration of a drill bit being inserted into a power tool (no text or symbols present)

Illustration of a hand holding a cylindrical device with a black X mark, no text or symbols present

Hand holding a handheld electric drill bit with a checkmark (no text or symbols visible)

CA 10.8/18.0

1 Šachta na zasunutie akumulátora
2 Kontakty
3 Vetracie štrbiny
4 Displej na zobrazenie stavu prevádzky
5 Siet'ový kábel so siet'ovou zástrčkou
Nabíjačka CA 10.8/18.0 je určená na nabíjanie akumulátorov FLEX typu
- AP 10.8 (2,5 Ah),
- AP 18.0 (2,5 Ah),
- AP 10.8 (4,0 Ah),
- AP 18.0 (5,0 Ah),
- AP 10.8 (6,0 Ah).

Diagram of a device component with numbered parts labeled 1 and 2, showing internal structure and connector details.

Handwritten signature or scribble on a document, possibly a signature or official note

Eckhard Rühle Manager Research & Development (R & D)

Klaus Peter Weinper Head of Quality Department (QD)

18.12.2017

Labeled diagram of a power drill with numbered parts for identification

ID 1/4" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 1/2" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 3/4" 18.0-EC

8 9 10 11 9 10 12 13 14 13

1 Prekidač

Za uključivanje i isključivanje, te za povećavanje do maksimalnog broja okretaja

Mechanical assembly diagram showing two stages of a clamp or bracketing mechanism (no text or symbols present)

i NAPOMENA

Prilikom isporuke akumulatori nisu potpuno napunjeni. Prije prvog puštanja u rad napunite do kraja akumulatore. U tu svrhu pogledajte „Punjač/Postupak punjenja“.

Zamjena alata

OPREZ!

Prije svih radova na električnom alatu prekidač za odabir smjera okretanja (2) postavite u srednji položaj.

IW 1/2" 18.0-EC / IW 3/4" 18.0-EC:

Illustration of a drill bit being inserted into a power tool, showing mechanical components and tool path (no text or symbols)

■ Nasadni ključ pritisnite na četverokutni prihvat udarnog izvijača (1.).
■ Umetnite alat u nasadni ključ (2.).

ID 1/4" 18.0-EC:

1. 2. 3.

■ Aretiranje alata povucite prema naprijed 1.) i pritisnite alat do graničnika (2.).
■ Otpustite aretiranje alata.
■ Za vađenje alata aretiranje alata povucite prema nazad (3.).

Diagram illustrating the mechanism of a mechanical device with rotation and clockwise rotation, showing three sequential states of operation.

Close-up of a white electric drill bit with a black arrow indicating motion (no text or symbols)

Illustration of a drill bit being inserted into a tool, showing mechanical components and motion direction (no text or symbols)

1. Montirajte nosač alata (zamjenska stezna glava, kutni nastavak, držač nastavka).

2. Umetnite akumulator.

3. Umetnite alat (svrdlo, odvijač, držač nastavka).

4. Odabir okretnog momenta postavite na potrebni stupani.

5. Podesite potreban smier okretanja.

6. Električni alat primite rukom i zauzmite radni položaj.

Kada je motor u radu nikada ne pritišćite prekidač za odabir smjera okretanja odn. postavku okretnog momenta!

Illustration of two hands using a drill bit to adjust the drill bit (no text or symbols present)

1. Uključite aparat.

CA 10.8/18.0

1 Otvor za umetanje akumulatora
2 Kontakti
3 Prorezi za ventilaciju
4 Zaslon za prikaz radnog stanja
5 Mrežni kabel s mrežnim utikačem

Punjač CA 10.8/18.0 namijenjen je za punjenje FLEX akumulatora tipa

• AP 10.8 (2,5 Ah),
• AP 18.0 (2,5 Ah),
• AP 10.8 (4,0 Ah),
• AP 18.0 (5,0 Ah),
• AP 10.8 (6,0 Ah).

Diagram of a device component with numbered parts and directional arrows indicating sequence or flow

■ Izvucite mrežni utikač.

i NAPUTAK

Handwritten signature or scribble with partial text and a curved line, likely from a document or form.

Eckhard Rühle Manager Research & Development (R & D)

Klaus Peter Weinper Head of Quality Department (QD)

18.12.2017

Labeled diagram of a power drill with numbered parts for identification

ID 1/4" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 1/2" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 3/4" 18.0-EC

8 9 10 11 9 10 12 13 14 13

Mechanical assembly diagrams showing two views of a clamp or bracket mechanism (no text or symbols)

i OPOMBA

Akumulatorske baterije ob dobavi niso popolnoma napolnjene. Pred prvo uporabo akumulatorske baterije popolnoma napolnite. V ta namen glejte poglavje „Polnilnik/Polnjenje“.

Menjava orodja IW

POZOR!

IW 1/2" 18.0-EC / IW 3/4" 18.0-EC:

Illustration of a drill bit being inserted into a tool, showing mechanical components and motion direction (no text or symbols)

■ Nasadni ključ pritisnite na štirikotni priključek udarnega vijačnika (1.).
■ Orodje vstavite v nasadni ključ (2.).

ID 1/4" 18.0-EC:

1. 2. 3.

■ Blokado nastavka povlecite naprej (1.), nastavek pa vstavite do prislona (2.).
■ Spustite blokado nastavka.
■ Da nastavek odstranite, blokado nastavka povlecite nazaj (3.).

Vstavljanje/menjava akumulatorske baterije

Napolnjeno akumulatorsko baterijo v električno orodje potisnite tako daleč, da se popolnoma zaskoči.

"click"

Diagram illustrating the mechanism of a mechanical device with rotation and clockwise rotation, showing three sequential states of the operation.

Close-up of a white electric drill bit with a black arrow indicating motion (no text or symbols)

Izklop orodja:

■ Spustite stikalo.

OPOMBA

Diagram of a drill bit being inserted into a tool, showing mechanical components and motion direction (no text or symbols)

Illustration of a hand using a drill bit to adjust a cylindrical tool, showing two different states of the operation (no text or symbols present)

1. Vklopite orodje.
   Po končanem delu:
2. Spustite stikalo.
3. Stikalo za izbiro smeri vrtenja (2) nastavite v osrednji položaj.

Polnilnik

CA 10.8/18.0

1 Reža za vstavljanje akumulatorske baterije

• AP 10.8 (2,5 Ah),
• AP 18.0 (2,5 Ah),
• AP 10.8 (4,0 Ah),
• AP 18.0 (5,0 Ah),
• AP 10.8 (6,0 Ah).

Klaus Peter Weinper Head of Quality Department (QD)

18.12.2017

Labeled diagram of a power drill with numbered parts for identification

ID 1/4" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 1/2" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 3/4" 18.0-EC

8 9 10 11 9 10 12 13 14 13

1 Comutator

Mechanical assembly diagram showing two views of a tool with fasteners and mounting brackets (no text or symbols)

i INDICATIE

IW 1/2" 18.0-EC / IW 3/4" 18.0-EC:

Illustration of a drill bit being inserted into a power tool, showing mechanical components and tool path (no text or symbols)

Diagram illustrating mechanical operation steps with labeled arrows and symbols for cycle, rotation, and switch mechanism

Close-up of a white electric drill bit with a black circular indicator (O→I) and directional arrows indicating motion or action (no text or symbols on the device itself)

Illustration of a drill bit being inserted into a power tool, showing mechanical components and tool path (no text or symbols)

Illustration of a hand using a drill bit to lift a cylindrical device, showing no text or symbols

CA 10.8/18.0

• AP 10.8 (2,5 Ah),
• AP 18.0 (2,5 Ah),
• AP 10.8 (4,0 Ah),
• AP 18.0 (5,0 Ah),
• AP 10.8 (6,0 Ah).

Diagram of a device component with numbered parts labeled 1 and 2, showing internal structure and connection points.

EN 62841 conform prevederilor Directivei 2014/30/UE, 2006/42/CE, 2011/65/UE.

Responsabili pentru documente tehnice: FLEX-Elektrowerkzeuge GmbH, R & D Bahnhofstrasse 15, D-71711 Steinheim/Murr

B. T. Q.-1

Eckhard Rühle Manager Research & Development (R & D)

Klaus Peter Weinper Head of Quality Department (QD)

18.12.2017

Labeled diagram of a power drill with numbered parts for identification

ID 1/4" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 1/2" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 3/4" 18.0-EC

8 9 10 11 9 10 12 13 14 13

1 Превключвател

Mechanical assembly diagram showing a tool interacting with a bracket and mounting bracket (no text or symbols visible)

Close-up of a mechanical tool with a screw and clamping mechanism (no text or symbols visible)

i УКАЗАНИЕ

IW 1/2" 18.0-EC / IW 3/4" 18.0-EC:

Illustration of a drill bit being inserted into a power tool, showing mechanical components and tool path (no text or symbols)

Diagram illustrating the process of a mechanical device with rotation and clockwise motion, showing three sequential states of operation.

Close-up of a white electric drill bit with a tool, showing mechanical components and motion arrows (no text or symbols)

Diagram showing a tool being inserted into a drill bit, with no text or symbols present.

Two-step illustration of a hand using a handheld device to adjust or install a cylindrical component, showing no text or symbols.

1. Включете уреда.

CA 10.8/18.0

• AP 10.8 (2,5 Ah),
• AP 18.0 (2,5 Ah),
• AP 10.8 (4,0 Ah),
• AP 18.0 (5,0 Ah),
• AP 10.8 (6,0 Ah).

B. P. Q. - 1

Eckhard Rühle Manager Research & Development (R & D)

Klaus Peter Weinper Head of Quality Department (QD)

Labeled diagram of a power drill with numbered parts for identification

ID 1/4" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 1/2" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 3/4" 18.0-EC

8 9 10 11 9 10 12 13 14 13

1 Кнопка пуска

Mechanical assembly diagram showing two views of a clamp or bracket with screws and a fastener (no text or symbols)

i УКАЗАНИЕ

IW 1/2" 18.0-EC / IW 3/4" 18.0-EC:

Illustration of a drill bit being inserted into a tool, showing mechanical components and motion direction (no text or symbols)

Diagram illustrating the mechanism of a mechanical device with circular and linear rotation indicators, showing three sequential states.

Close-up of a white electric drill bit with a black circular icon and directional arrow (no text or symbols)

Выключение прибора:

Diagram showing a drill bit being inserted into a power tool, with no text or symbols present.

Illustration of two hands using a drill press to adjust the drill (no text or symbols present)

CA 10.8/18.0

• AP 10.8 (2,5 A*4),
• AP 18.0 (2,5 A*4),
• AP 10.8 (4,0 A*4),
• AP 18.0 (5,0 A*4),
• AP 10.8 (6,0 A*4).

Klaus Peter Weinper Head of Quality Department (QD)

18.12.2017

Labeled diagram of a power drill with numbered parts for identification

ID 1/4" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 1/2" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 3/4" 18.0-EC

8 9 10 11 9 10 12 13 14 13

1 L ü l i t i

Mechanical assembly diagram showing two stages of tool manipulation: left with a clamp and screw, right with a bracket and screw (no text or symbols)

i MÄRKUS!

IW 1/2" 18.0-EC / IW 3/4" 18.0-EC:

Illustration of a drill bit being inserted into a power tool, showing mechanical components and tool path (no text or symbols)

Diagram illustrating the process of a mechanical device with circular and cross symbols indicating rotation or cycle states.

Close-up of a white electric drill bit with a black arrow indicating tool direction (no text or symbols)

Illustration of a drill bit being inserted into a power tool, showing mechanical components and tool path (no text or symbols)

Two-step illustration of a hand using a drill bit to adjust the drill bit (no text or symbols present)

1. Lülitage seade sisse.

CA 10.8/18.0

1 Aku pesa

2 K o n t a k t i

Diagram of a device component with numbered parts and an arrow indicating direction, labeled 1 and 2.

Klaus Peter Weinper Head of Quality Department (QD)

Labeled diagram of a power drill with numbered parts for identification

ID 1/4" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 1/2" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 3/4" 18.0-EC

8 9 10 11 9 10 12 13 14 13

1 Jungiklis

Mechanical assembly diagram showing two views of a tool with fasteners and bolts (no text or symbols)

i NURODYMAS

Illustration of a drill bit being inserted into a power tool, showing mechanical components and motion direction (no text or symbols)

Diagram illustrating the process of a mechanical device with rotation and cycle indicators, showing three sequential states of operation.

Close-up of a white electric drill bit with a black arrow indicating tool direction (no text or symbols)

Illustration of a drill bit being inserted into a tool, showing mechanical components and motion direction (no text or symbols)

Illustration of two hands operating a drill press, showing tool positioning and usage (no text or symbols)

1. Prietaiso jungimas.
   Baigus darba:
2. Jungiklj atleiskite.
3. Sukimosi krypties parinkimo jungiklj (2) nustatykite per vidurj.

Krovimo prietaisas

CA 10.8/18.0

• AP 10.8 (2,5 Ah),
• AP 18.0 (2,5 Ah),
• AP 10.8 (4,0 Ah),
• AP 18.0 (5,0 Ah),
• AP 10.8 (6,0 Ah).

Diagram of a device component with numbered labels pointing to ports or parts, likely indicating assembly or labeling.

B. P. Q.-1

Eckhard Rühle

Manager Research &

Development (R & D)

Klaus Peter Weinper

Head of Quality

Department (QD)

Labeled diagram of a power drill with numbered parts for identification

ID 1/4" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 1/2" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 3/4" 18.0-EC

8 9 10 11 9 10 12 13 14 13

1 S l ̅ e d z i s

Mechanical assembly diagram showing two stages of a tool or bracket attachment (no text or symbols present)

i NORÃDE

IW 1/2" 18.0-EC / IW 3/4" 18.0-EC:

Illustration of a drill bit being inserted into a tool, showing mechanical components and motion direction (no text or symbols)

Diagram showing a hand inserting a device into a device with four labeled buttons, illustrating a process or operation.

Diagram illustrating the process of a mechanical device with rotation and cycle indicators, showing three sequential states of mechanical assembly.

Close-up of a white electric drill bit with a black arrow indicating motion (no text or symbols)

lerīces izslēgšana:

■ Atlaidiet slēdzi.

NORÃDE

Diagram showing a tool being inserted into a drill bit, with no text or symbols present.

Two-step illustration of a hand using a drill bit to adjust the drill bit (no text or symbols present)

1. leslēdziet instrumentu.

Pēc darba beigām:

CA 10.8/18.0

1 Akumulatora nodalijums

2 Kontakti

Diagram of a device component with numbered parts and directional arrows indicating parts 1 and 2.

■ Atvienojiet spraudni.

i NORÃDE

B. P. Q. - 1

Eckhard Rühle

Manager Research &

Development (R & D)

Klaus Peter Weinper

Head of Quality

Department (QD)

18.12.2017

B. H. Q. - 1

Eckhard Rühle Manager Research & Development (R & D)

Klaus Peter Weinper Head of Quality Department (QD)

CA 10.8/18.0

Illustration of a drill bit being inserted into a power tool, showing mechanical components and motion direction (no text or symbols)

Two-step illustration of a hand using a drill bit to adjust the drill bit (no text or symbols present)

Close-up of a power drill with a tool and directional arrow indicator (no text or symbols on the drill itself)

إيقاف تشغيل الجهاز:

يتم ترك الفتح.

تنبیه!

IW 3/4" 18.0-EC IW 1/2" 18.0-EC /

ID 1/4" 18.0-EC

1x 2x 3x

Technical illustration of a power tool with a cylindrical head and base, showing mechanical components without any text or symbols.

Diagram illustrating vehicle seat cycle with circular arrows and a cross symbol, showing sequential states of rotation or cycle.

Mechanical assembly diagram showing a tool interacting with a bracket and mounting bracket (no text or symbols visible)

Mechanical assembly diagram showing a tool interacting with a bracket (no text or symbols visible)

تنييه!

:IW 3/4" 18.0-EC / IW 1/2" 18.0-EC

Illustration of a drill bit being inserted into a tool, showing mechanical components and motion direction (no text or symbols)

Labeled diagram of a power drill with numbered parts for identification

ID 1/4" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 1/2" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 3/4" 18.0-EC

8 9 10 11 9 10 12 13 14 13
