USER MANUAL Intense Pure Air PU4084 TEFAL

Two white outdoor air purifiers with black control panels and digital display screens, one with a logo and the other with 'GATE CAPTUR' branding (no visible text or symbols on the devices themselves)

INTENSE PURE AIR CONNECT

PU408x / PU608x

www.rowenta.com / www.tefal.com

A
B
C
D
F

Line drawing of a white industrial air purifier unit with control panel and ventilation grille (no text or symbols)

E F G H I

1 2345 678910 1112

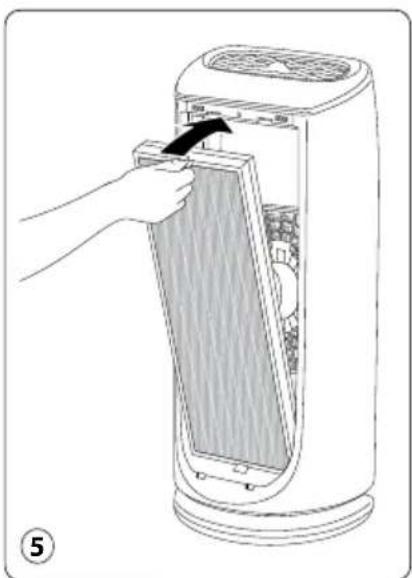

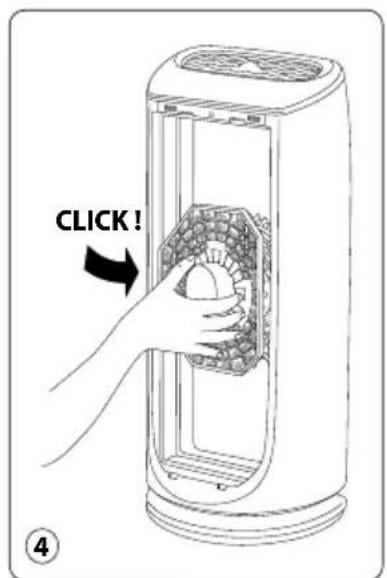

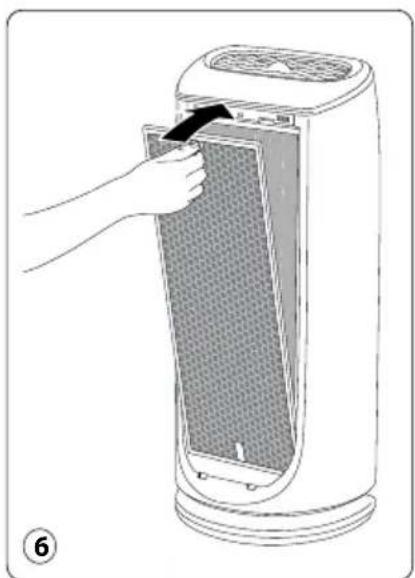

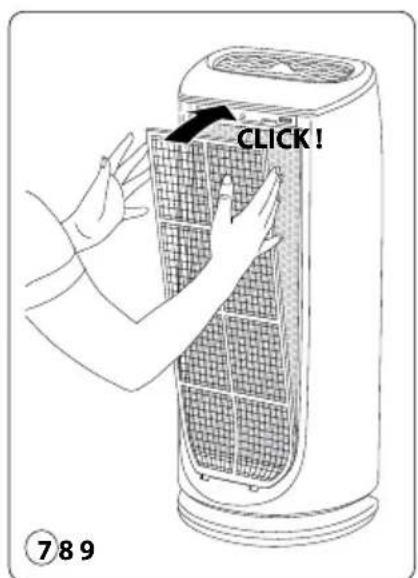

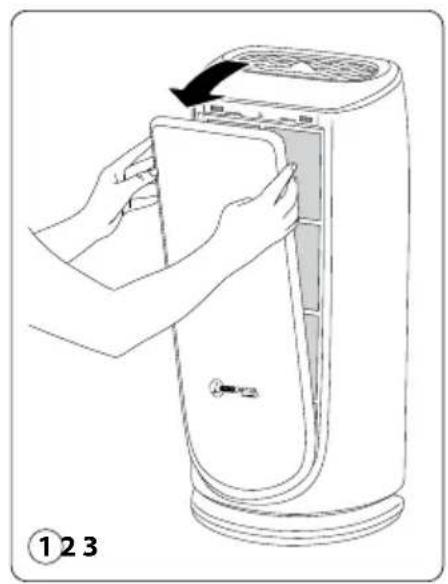

DISASSEMBLING/REASSEMBLING FILTERS

Line drawing of a hand inserting a device into a device with a label (123), no text or symbols present.

Illustration of hands installing or adjusting a grid-patterned air conditioner unit (no text or symbols visible)

Diagram illustrating four steps of fabric cutting or sewing process, showing step 1 with fabric being cut to form a patterned object.

CLICK! ④

Illustration of a hand inserting a fan into a power heater (no text or symbols visible)

Illustration of a hand inserting a filter into a power heater (no text or symbols visible)

CLICK! ⑦89

CLICK !CLICK

Line drawing of a hand inserting a card into a portable air purifier (no text or symbols)

Montage/Démontage des Filtres — Einsetzen/Wechseln der Filter — Desmontar/Voltar a montar os filtros — Rimozione/installazione dei filtri — Instalación/Desmontaje de los filtros — Demontering/Montering van de filters — DemontażMontaż filtrów

DESCRIPTION

Four identical black-and-white grid panels arranged in a 2x2 grid pattern, no text or symbols visible.

Pré-filtre Filtre Charbon

Close-up of a perforated fabric with uniform circular holes, no text or symbols visible

Actif

Close-up of a solar panel with grid lines and a small hole (no text or symbols visible)

Octagonal architectural diagram of a circular building facade with symmetrical window-like patterns (no text or symbols)

Filtre NanoCapturFiltre All

Simple line drawing of a mobile phone with a cross symbol between the two devices (no text or labels)

Illustration of a hand using chopsticks to adjust a small object with a scale, labeled with number 1 (no text or symbols on the object itself)

Illustration of a hand holding a small blood glucose meter with a digital display, no text or symbols present

Hand holding a small device with a pointer, no visible text or symbols

Hand holding a pen and a digital thermometer above a vertical line, no text or symbols present

IMPORTANT :

A Air quality indicator
B Adjustable air outlet grid
C Control panel
D Front door

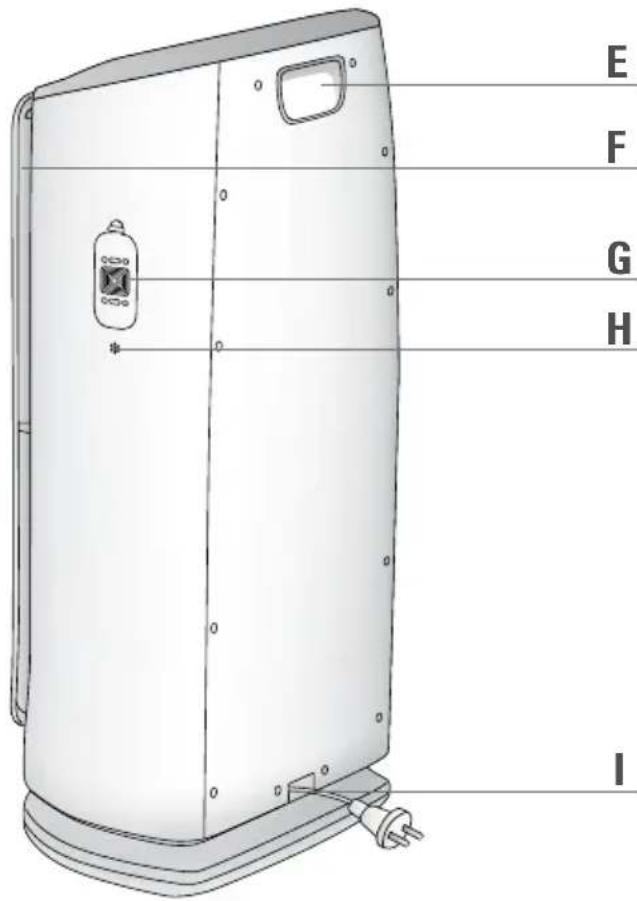

E Handle
F Air inlets
G Particle sensor
H Gas sensor
I Power cord outlet

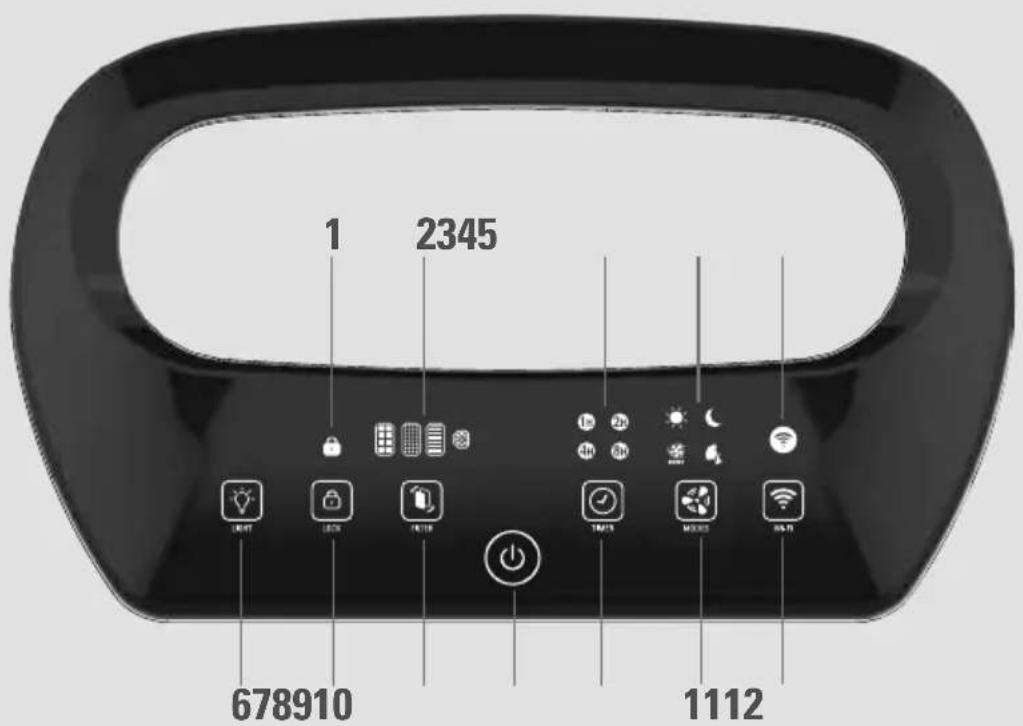

Control panel Lights

1 Lock control Panel
2 Filter change indicator
3 Timer/ delayed start
4 Mode display Auto Day / Auto Night / Boost / silent modes
5 Wi-Fi connection indicator

Control buttons

6 Light
7 Control Panel Lock
8 Filter Reset
9 Start / Stop
10 Timer / Delayed start setting
11 Automatic modes / filtration speed selection
12 Wi-Fi Pairing Button (hold 3 sec)

Read the instructions for use and safety carefully before use and keep them for future reference.

SAFETY TIPS

It is essential that you read these instructions carefully and observe the following recommendations:

• For your safety, this appliance complies with the applicable standards and regulations (low voltage, electromagnetic compatibility, environmental directives, etc.).
• This appliance should not be used by persons (including children) with reduced physical, sensory or mental capacities or lack of experience and knowledge, unless they are supervised or have been given instructions beforehand concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure they do not play with the appliance.
• The appliance can be used by children aged 8 and over and persons with a lack of experience or knowledge or reduced physical, sensory or mental capacities, provided they are supervised, have been trained on the safe use of the appliance and are aware of the risks involved. Children must not play with the appliance.
• If the power cord is damaged, it must be replaced by the manufacturer, its after-sales service or a similarly qualified person so as to avoid any danger.
• Children should not clean or perform maintenance on the appliance without being supervised.
• For maintenance operations, please refer to the “Maintenance” section.

• Keep the appliance and its power cord out of the reach of children aged under 8.

• This appliance is designed for domestic use only. It should not be used for industrial purposes.

• The warranty will be invalidated if damage occurs due to incorrect use.
• Do not operate this appliance in a very dusty and/or humid place or in a location with fire hazards.
• Before use, always make sure that the appliance, plug and power cord are in good condition.
• Never insert objects into the appliance (e.g. needles, etc.).
• Do not pull on the power cord or the appliance, even to unplug it from the wall power outlet.
• Unroll the full length of the cord before use.

VERY IMPORTANT

• Do not cover the air inlets or the outlet grid.
• Do not touch the appliance with wet hands.
• Never allow any liquid to enter the appliance.
• Never use the appliance in a humid place.
• Never use the appliance close to a heat source.

- Never place anything on the appliance or insert anything into it.

- Do not use the appliance close to flammable objects or products (curtains, aerosols, solvents, etc.).

- Never use the appliance in an inclined or horizontal position. Place the appliance on a flat, stable surface.

- In the case of prolonged absence: switch the appliance off using the button (9) and unplug it.

- Switch off and unplug your appliance before moving it.

- Unplug the air purifier during assembly and cleaning.

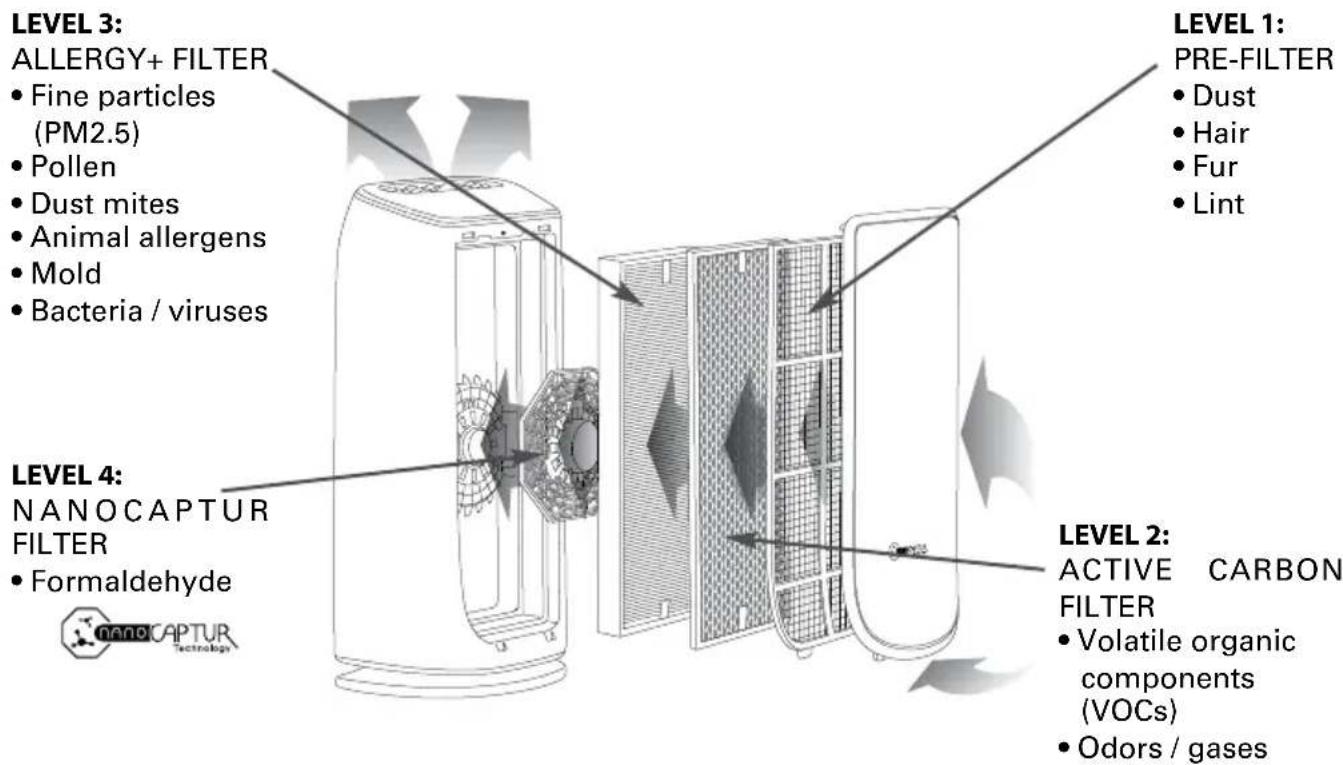

OPERATING PRINCIPLE

The new Intense Pure Air purifier from Rowenta/Tefal enables you to breathe up to 100% pure air in your home and protect your health with 4 filtration levels as described below. Each level is essential and traps characteristic pollutants:

LEVEL 3: ALLERGY+ FILTER • Fine particles (PM2.5) • Pollen • Dust mites • Animal allergens • Mold • Bacteria / viruses LEVEL 1: PRE-FILTER • Dust • Hair • Fur • Lint LEVEL 4: NANOCAPTUR FILTER • Formaldehyde nanoCAPTUR Technology LEVEL 2: ACTIVE CARBON FILTER • Volatile organic components (VOCs) • Odors / gases

« HOW TO ACHIEVE CLEANER INDOOR AIR »

In addition to using your Intense Pure Air purifier, here are some tips on how to improve the quality of your indoor air:

• Ventilate the rooms for at least 10 min. every day, in summer and winter
• Maintain your ventilation system
• Limit the use of household products
• Do not smoke indoors
• Avoid home fragrances, incense sticks, scented candles, etc.
• Ventilate whenever any work is being conducted in your home and for several weeks afterwards
• Avoid green plants that are allergenic or need frequent watering

WHERE TO INSTALL THE APPLIANCE

Place the purifier on a flat, stable surface in the room requiring treatment.

To allow the air to circulate freely, avoid placing the appliance behind curtains, below a window, item of furniture or shelf unit, or close to any other obstacle, and leave at least 50 cm of free space on each side of the appliance.

BEFORE USING THE APPLIANCE FOR THE FIRST TIME

Make sure that the plastic packaging protecting the filters has been removed before using the appliance.

Also make sure that:

• The voltage of your electrical installation corresponds to the one indicated on the appliance.
- Your appliance can be used with a power plug without an earth connection. It is a class II appliance (double electrical insulation),
• The appliance is positioned in the house as described above,
- The air inlet and outlet grids are completely unobstructed,
- Ensure the 4 filters and front panel have been correctly installed (see section titled filter assembly/dismantling paragraph).

This appliance is fitted with a device that automatically prevents it from operating if the front door is not correctly assembled.

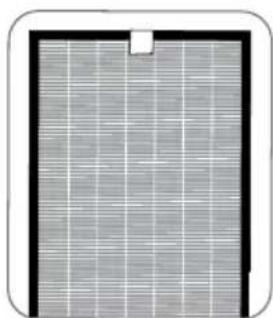

Inserting and replacing the filters

This appliance is equipped with 4 types of filters:

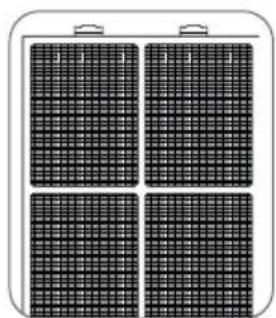

Four identical black-and-white grid panels arranged in a 2x2 grid, each with two side handles (no text or symbols visible)

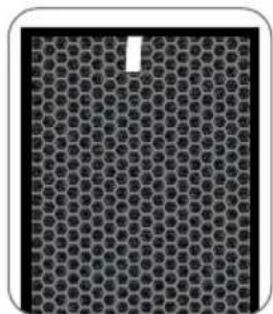

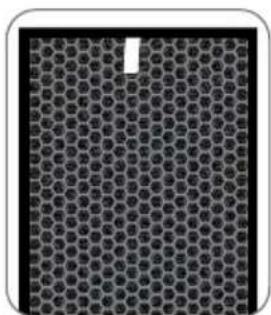

Pre-filter Active carbon

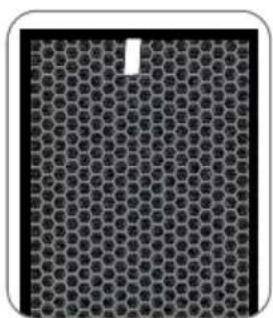

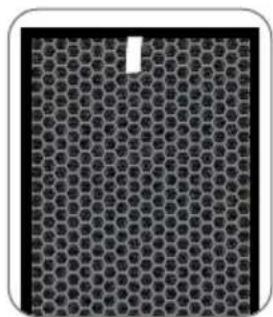

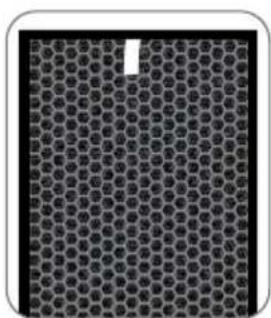

Close-up of a perforated metal panel with uniform circular holes, no text or symbols visible

filter

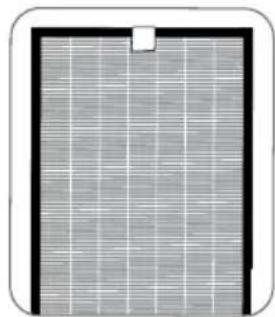

Close-up of a solar panel with grid pattern and mounting bracket (no text or symbols)

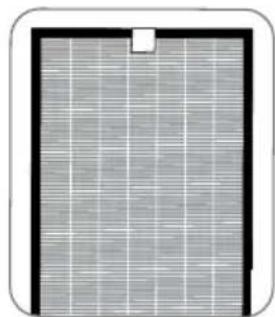

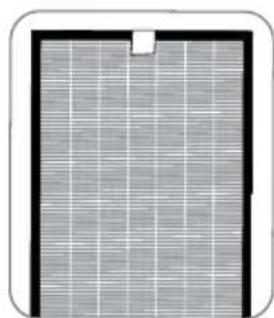

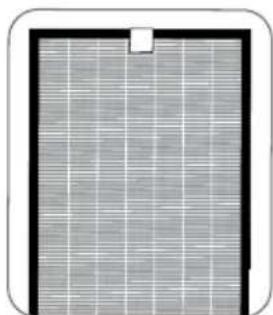

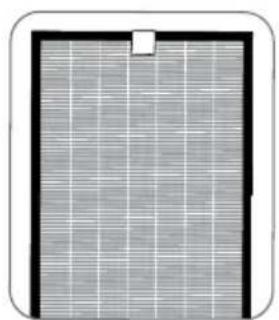

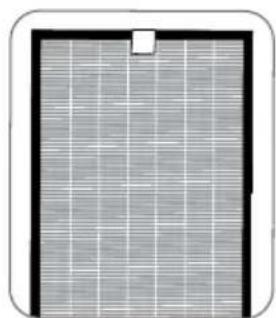

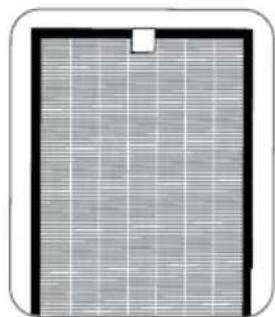

Allergy+ filter

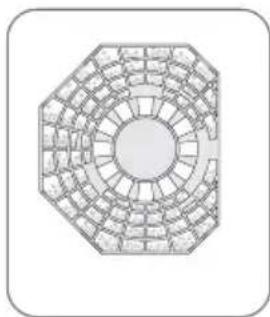

Geometric octagonal diagram with concentric circular segments and radial divisions (no text or symbols)

NanoCaptur filter

NB: For optimum performance of the appliance, only use filters provided by Rowenta/Tefal.

To replace the filters, follow the instructions in the section « Disassembling/Reassembling filters ».

Please note: certain filters may emit a temporary slight odour, due to the transport and storage conditions.

Setting the pollution sensors

The appliance is preset to medium sensitivity.

If the air quality indicator remains:

– poor after 2 hours in operation although the air seems to be purified
– excellent for more than 1 hour although the air seems to be polluted you can adjust the sensor sensitivity as follows:

1. When the air purifier is off, hold down the mode setting button for 3 seconds:

2. Set the sensitivity by briefly pressing the mode setting button:

+ Blue + Purple + Red
Low sensitivity Medium	sensitivity High sensitivity

• Select high sensitivity if the air purifier indicates excellent air quality for more than 1 hour although the air seems to be polluted.

• Select low sensitivity if the air purifier continues to indicate poor air quality even though it has been operating for more than 2 hours and the air seems sufficiently purified.

• Press 'Start/Stop' button to validate the sensitivity setting.

OPERATION

Start

Briefly press this button to switch the air purifier on or off.

Mode / filtration speed selection

Auto day

Automatic: In this operating mode, the filtration speed automatically adjusts according to the air quality detected by the particle sensor and the gas sensor. This mode is recommended for general use.

Auto Night

The filtration speed of your appliance is adjusted for a whisper quiet air flow during the night. The light intensity of the appliance is also reduced. If pollution is detected, the filtration speed increases slightly to purify your air but remains quiet to avoid disturbing your sleep.

Boost mode

The highest speed level of filtration.

Silent mode

The whisper quiet speed.

Light

You can change the light intensity of the appliance as you wish or according to the time of day.

Press Air quality indicator Control panel
1 Light up Light up
2 Moderate light Moderate light
3 Off Moderate light

Timer / delayed start

- Timer: When the appliance is on, you can use this button to define the operating duration. Briefly press the button to select the number of operating hours desired (1, 2, 4 or 8) and the appliance will automatically turn off at the end of the selected period.

- Delayed start: When the appliance is off, briefly press the button to set the appliance to turn on in a certain number of hours (1, 2, 4 or 8).

3D pure air function (adjustable grid)

You can adjust the position of the air outlet grid manually, as desired. For an optimum, even flow of purified air in the room, set the angle to 45^ ; for maximum comfort, set the angle to 90^ .

Control Panel Lock

The lock system prevents the purifier from being accidentally mis-set during operation.

To activate it, press the button (7) for 3 sec until the locked control panel indicator turns on. To exit this mode, press the button (7) again for 3 seconds, until the indicator turns off. When selected, the other buttons are locked.

Wi-fi function

Frequency band operated : 2400-2483,50MHz

Maximum radio-frequency power : 18dbm

To turn on or off the Wi-Fi function on your purifier, hold simultaneously the Wi-Fi button and the Light button during 3 seconds.

- When the Wi-Fi connection indicator flashes it means that the purifier lasts its connection.

HOW TO CONNECT YOUR PURIFIER TO INTERNET?

Download the app Pure Air & follow the instructions on your smartphone :

1. Sign in

Create your Rowenta/Tefal account if you are new. Or log in the app if you already have an account.

1. Make Sure your phone is connected to your domestic Wi-Fi network

1. Turn your purifier on & hold the Wi-Fi button during 3 seconds

(your hear a «ding» and the Wi-Fi indicator flashes to indicate that the Wi-Fi has successfully been turned on.)

1 2

4. Connect your phone to the Wi-Fi of the purifier.HOME WIFI [IMAGE]AIR PURIFIER XXXX [IMAGE]Autre...

5. Then come back to the app & connect the purifier to your domestic Wi-Fi networkHOME WIFI [IMAGE]AIR PURIFIER XXXX [IMAGE]Autre...

6. And you’re done!The Wi-Fi indicator lights to in-dicate that your purifier is well connected to Internet.

In case of problem:

Simple line drawing of a mobile phone and a smartphone with an 'X' symbol (no text or labels)

	Check that your phone is well connected to your domestic Wi-Fi network at the beginning of the process
	Check that your purifier is well plugged and turned on
	If the led of your purifier is not flashing, hold the Wi-Fi button during 3 seconds?
	Restart the product to retry.

I had trouble with the installation of the application:

Check compatibility on the website www.compatibility-pureair.rowenta.com or www.compatibility-pureair.tefal.com

Pairing is not successful:

For the pairing, you need to be close to your air purifier and make sure that your Internet connection is good too.

If you can't find the WIFI of your purifier 'AIR PURIFIER XXXX'':

- Check if the Wifi function is activated (the WIFI indicator flashes). If not, please press WIFI Light Buttons simultaneously to activate the WIFI function.

• You need to press the WIFI button for 3 seconds, you will hear a 'ding' to indicate that the wifi of purifier is activated.
• Check if someone else is already connected to the purifier. You can press 'WIFI' button for 3 seconds to re-start the connection steps.

I cannot control my purifier, why?

If the WIFI indicator of the purifier is flashing:

1. check if your Internet connection at home is good

2. check if the password of your WIFI has been changed?

If the WIFI indicator of the purifier is lighted on, it means that the purifier is connected to the network; in this case,

Check if your smartphone is well connected to internet?

Can I share the purifier with someone else?

Of course! New users just need to download the App PURE AIR and create an account firstly.

Then there are 2 ways to share:

1. You need to enter in 'My Devices', choose the purifier that you want to share, click on 'share by email'. Enter the email of the new user, click on 'OK'
2. You need to enter in 'my devices', choose the purifier that you want to share; you can see the 'QR code' of your purifier.

The new user needs to enter in 'my devices', and click '+' in order to add new product, choose 'scan the QR code'. To scan the 'QR code 'on your screen.

The scheduling doesn't work:

If the time slot is earlier than current time, by default the product will start next day.

Why the pairing didn't work?

Supported encryption type : WPA_1/WPA_2, TIPK, PSK, AES,

Supported networks: 2.4 GHz (not 5Ghz)

If there is a problem with my home Wi-fi during my holiday period, I can't control my purifier via the app anymore?

If the product lost its connection, the product will stop automatically after 24h.

MAINTENANCE

Always switch the appliance off with the button (9) and unplug it before conducting any maintenance operation.

You can clean the appliance with a slightly damp cloth.

IMPORTANT: Never use abrasive products which could damage your appliance's appearance.

FILTERS

Filter Action Cycles
Pre-filter Clean Every 2 to 4 weeks
Active carbon filter Replace Every	12 months
Allergy+ filter Replace Every 2 years
NanoCaptur filter Replace		Color changing(see Color chart on filter)

This data is based on an average use in the appliance of 8 hours per day at the lowest speed of AutoDay mode.

⚠ The recommended frequency for cleaning and replacing the filters may vary depending on the duration of use and the operating environment.

• A "PART" light indicates when the allergy+ filter needs to be replaced. The 'Odor' light display indicates when the carbon filter needs replacing.
• The NanoCaptur filter contains translucent granules which change color according to the formaldehyde absorption rate. Refer to the color chart on the sticker inside the front door or the filter itself to establish the filter saturation rate.Once the saturation rate has reached its maximum, the filter must be replaced. You have to check the filter saturation rate every six months.
• The pre-filter can be re-used: remove the dust using a vacuum cleaner or wash with water. CAUTION:
• The appliance's efficiency can be reduced if the pre-filter is not cleaned regularly.
• Never use a pre-filter that is still damp.
• The pre-filter is the only filter which can be re-used and washed with water. The particle, NanoCaptur and active carbon filters cannot be cleaned and re-used. Never wash with water.
• To replace the filters, follow the instructions in the section « Disassembling/Reassembling filters ».

Your replacement filters are available under the following codes:

Filtre Code PU408x Code PU608x
Allergy+ filter XD6074 XD6077
Active carbon filter XD6060 XD6061
Nanocaptur filter XD6080 XD6081

IMPORTANT: Resetting the filters

The reset light flashes when a filter needs to be replaced or cleaned (Prefilter). Once the filter has been replaced, hold down the reset button for 3 seconds.

Forced reset:

If you have replaced a filter before its end of life, force the reset of the filter replacement cycle:

1. Hold the reset button for 3 seconds.
2. Press the reset button briefly to select the filter you have changed.
3. After selecting the filter to reset, hold the reset button for 3 seconds. The new filter life is then reset.
4. If the reset filter button is not is activated for 10 seconds in forced reset mode, the reset mode is canceled.

• Avoid handling used filters if you suffer from allergies or asthma.
• Wear gloves when changing the filters, or wash your hands well afterwards.
• Put used filters directly into a closed, air-tight bag before throwing them away to avoid spreading pollutants.

POLLUTION SENSORS

The particles sensor and gas sensor (model PU608x only) need to be cleaned regularly (every 2 months) and appropriately.

Make sure you turn off and unplug the appliance before cleaning the pollution sensors and follow the recommendations below:

1. Clean the air inlet and outlet using a soft brush or cloth.
2. Open the sensor cover located on the right-hand side of the appliance.
3. Lightly wet a cotton swab and remove any dust from the lens and the inlet/outlet. Wipe using a dry cotton swab.

1. Clean the gas sensor using a soft brush or vacuum cleaner.

IMPORTANT:

• Never use a detergent or metal object to clean the sensors.
• The efficiency of the sensors may be reduced if not cleaned regularly.
• Cleaning frequency varies depending on the operating environment of the appliance. If it is used in a dusty environment, clean the sensors more frequently.

STORAGE

When you are not using the appliance, store it in a cool, dry place.

IN THE EVENT OF A PROBLEM

• Never dismantle your appliance yourself. A poorly repaired appliance can cause risks for the user.
• Check the troubleshooting table below before contacting an approved Service Center:

Problem Check Solution
The appliance will not switch on.	Is the power cord connected?	Connect the power cord to a plug with the correct voltage.
	Are all the display elements off?	Press the start button and select the required function.
	Is there a power outage?	You can use your purifier once the power turns on again.
	Is the front door closed? Close	the front door properly.
The air flow does not change automatically.	Is the appliance in silent or boost mode?	Select the correct operating mode AutoDay or Auto Night.
The flow is a lot weaker than before.	Does the filter need to be cleaned or replaced?	Check the filter cleaning and replacement frequencies and clean/replace the filter(s) if necessary.
There is an unpleasant smell coming from the air outlet.	Does the filter need to be cleaned or replaced?	Check the filter cleaning and replacement frequencies and clean/replace the filter(s) if necessary.
The air quality light does not change color.	Is the sensor lens covered with dust?	Clean the sensor lens.
	Does the light still indicate poor air quality?	Set the sensor sensitivity to «low» or «medium».
	Does the light still indicate excellent air quality?	Set the sensor sensitivity to “high” or “medium”.

WARRANTY

Contact an approved Service Center if:

• your appliance has been dropped
• your appliance or its power cord is damaged
• your appliance is not working properly

LET'S HELP PROTECT THE ENVIRONMENT!

i Your appliance contains valuable materials which can be recovered or recycled.
Leave it at a local waste collection point or take to an approved service center so that it can be processed.

BESCHREIBUNG

Produktbeschreibung

Four identical black-and-white grid panels arranged in a square pattern, each with two side handles (no text or symbols visible)

Close-up of a perforated metal panel with circular holes, no text or symbols visible

Close-up of a solar panel with grid pattern and mounting bracket (no text or symbols)

Geometric octagonal diagram with concentric circular segments and radial divisions (no text or symbols)

Vorfilter Aktivkohlefilter NanoCaptur-FilterAllergy+ filter

Simple line drawing of a mobile phone and a smartphone with an 'X' symbol (no text or labels)

Hand holding chopsticks near a small bottle, no text or symbols visible

Illustration of a hand holding a small object with a label, no text or symbols present

Hand holding a small object with a pointer, no visible text or symbols

Diagram showing a hand holding a pen next to a small device with a label and number 4, likely illustrating a procedure or step in a technical or educational context.

WICHTIG:

Four identical black-and-white grid panels arranged in a 2x2 grid, enclosed in a rounded rectangular frame (no text or symbols)

Pré Filtro Filtro de carvão

Close-up of a hexagonal grid pattern with no visible text or symbols

ativo

Close-up of a rectangular panel with grid pattern and a small hole, no visible text or symbols

Filtro Allergy+

Geometric diagram of a traditional Chinese octagonal structure with concentric circular patterns (no text or symbols)

Filtro NanoCaptur

Simple line drawing of a mobile phone with an 'X' symbol between the two devices (no text or labels)

Hand holding a tool interacting with a small device (no text or symbols visible)

② BC-10

Hand holding a small object with a label, no visible text or symbols

Hand holding a pen writing on a digital thermometer (no text or symbols visible)

IMPORTANTE:

Four identical black-and-white grid panels with handles, arranged in a 2x2 grid (no text or symbols visible)

Pre-filtro Filtro in carbone

Close-up of a perforated metal panel with uniform circular holes, no text or symbols visible

attivo

Close-up of a rectangular panel with grid pattern and a small hole, no visible text or symbols

Octagonal architectural diagram of a traditional Chinese stone stele with circular medallion (no text or symbols)

Filtro NanocapturFiltro All

Simple line drawing of a mobile phone with a cross symbol between it and a smartphone (no text or labels)

Diagram showing a hand holding a small bottle with chopsticks, labeled with number 1 and circled area

Illustration of a hand holding a small object with a label '2' (no text or symbols on the object itself)

Line drawing of a hand holding a small object with a label, no text or symbols present

Diagram showing a hand holding a pen and a bottle, labeled with number 4 in the corner.

IMPORTANTE!

Diagram of a device interior showing fan, ventilation chamber, and fan blade (no text or symbols)

NIVEL 1:

PREFILTRO

• Polvo
  • Cabello
• Pelos

NIVEL 2:

Four identical black-and-white grid panels arranged in a square pattern, each with a handle (no text or symbols visible)

Close-up of a perforated metal panel with uniform circular holes (no text or symbols)

activo

Close-up of a rectangular electronic component with grid pattern and mounting bracket (no visible text or symbols)

Octagonal architectural diagram of a traditional Chinese courtyard structure (no text or symbols)

Filtro NanoCapturFiltro allerg

Simple line drawing of a mobile phone with an X symbol (no text or labels)

Illustration of a hand holding chopsticks near a small bottle, with a numbered label (1) below, no text or symbols present.

Illustration of a hand holding a blood glucose meter with fingers, no text or symbols present

Hand holding a small electronic device with a label, no visible text or symbols on the device itself

Diagram showing a hand holding a pen and a small device with a label, marked with number 4 in the corner.

IMPORTANTE:

WAAR HET APPARAAT TE PLAATSEN?

Four identical black-and-white grid panels arranged in a 2x2 grid, each with two handles (no text or symbols visible)

Close-up of a textured fabric with uniform circular patterns and a small white mark (no text or symbols)

actieve kool

Close-up of a solar panel with grid pattern and mounting bracket (no text or symbols)

Allergy+ filter

Octagonal architectural diagram of a traditional Chinese corridor or corridor (no text or symbols)

Simple line drawing of a mobile phone and a smartphone with an 'X' symbol (no text or labels)

Illustration of a hand using chopsticks to adjust a small object with a label (no text or symbols on the object itself)

②

Hand holding a small object with a pointer, no visible text or symbols

Hand holding a pen writing on a bottle, with a numbered circle below (no text or symbols on the diagram itself)

BELANGRIJK:

Four black-and-white grid panels arranged in a 2x2 grid pattern, each with two handles (no text or symbols visible)

Close-up of a perforated fabric with uniform circular holes, no text or symbols visible

aktywnym

Close-up of a rectangular panel with grid pattern and a small hole, no visible text or symbols

Octagonal architectural diagram of a traditional Chinese corridor or corridor (no text or symbols)

Filtr NanoCapturFiltr Allergy

Simple line drawing of a mobile phone with an 'X' symbol between the two devices (no text or labels)

Illustration of a hand holding chopsticks near a small bottle, with a numbered label (1) in the corner (no text or symbols on the diagram itself)

②

Line drawing of a hand holding a small object with a label, no text or symbols present

Illustration of a hand holding a pen next to a small bottle, with no visible text or symbols

WAŻNE:

W PRZYPADKU PROBLEMÓW
