USER MANUAL SPS 1.5 A1 SILVERCREST

White electric toothbrush with toothbrush and handle, no visible text or symbols

www.lidl-service.com

MINI TRIMMER SPS 1.5 A1

GB IE NI

MINI TRIMMER

Operating instructions

FR BE

MINI-TONDEUSE POUR FEMME

Mode d'emploi

DE AT CH

MINI-TRIMMER

Bedienungsanleitung

DK

MINI-TRIMMER

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

DK

GB/IE/NI Operating instructions Page 1

DK	Betjeningsvejledning	Side	31
FR/BE Mode d'emploi Page 63
NL/BE Gebruiksaanwijzing Pagina 95
DE/AT/CH Bedienungsanleitung Seite 129

Exploded view diagram of a hairdryer with numbered parts for identification

Contents

Introduction ..... 2

Intended use .... 2

Package contents ..... 3

Operating elements ..... 4

Technical data ..... 4

Safety instructions ..... 5

Inserting the battery .... 1 2

Tips and tricks ..... 1 3

Using the appliance ..... 1 4

Removing and connecting the attachments ..... 1 4

Using the bikini line trimmer .... 1 6

Using the eyebrow trimmer .... 1 9

Cleaning and care ..... 2 2

Storage ....2

Troubleshooting ..... 2 4

Disposal 24

Kompernass Handels GmbH warranty ..... 26

Service 30

Importer 3

Introduction

Congratulations on the purchase of your new appliance.

You have selected a high-quality product. The operating instructions are part of this product. They contain important information about safety, usage and disposal. Before using the product, please familiarise yourself with all operating and safety instructions. Use the product only as described and for the range of applications specified. Please also pass these operating instructions on to any future owner.

Intended use

This appliance is intended solely for trimming eyebrows, the bikini line and the underarm area in private households. It is not suitable for commercial use! The device is not intended for any other purpose, nor for use beyond the scope described.

Claims of any kind for damages resulting from misuse, improper repairs, unauthorised modifications or the use of unauthorised spare parts are excluded.

The risk shall be borne solely by the user.

Package contents

Mini Trimmer
■ Protective cap for the eyebrow trimmer
Eyebrow trimmer
Eyebrow comb
Trimmer
■ Trimmer comb
Storage pouch
■ Cleaning brush
AA battery
Operating instructions

Extract all parts of the appliance from the carton and remove all packaging material. Check the package for completeness and signs of visible damage.

NOTES

If the delivery is incomplete or damage has occurred as a result of defective packaging or during transport, contact the Service hotline (see section Service).

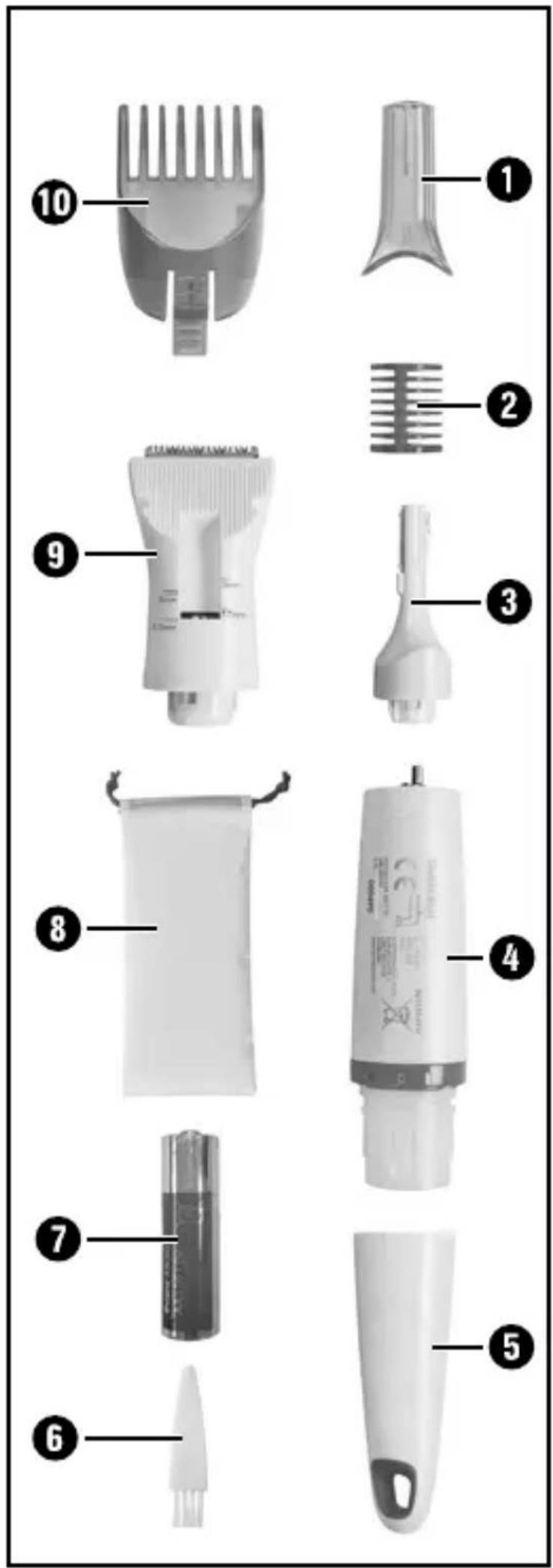

Operating elements

See fold-out page for illustrations:

① Protective cap for the eyebrowtrimmer
② Eyebrow trimmer comb
③ Eyebrow trimmer
4 Handset
⑤ Battery compartment cover
6 Cleaning brush
⑦ AA battery
8 Storage pouch
⑨ Bikini line trimmer
10 Bikini line trimmer comb

Technical data

Appliance
Voltage supply	1 x 1.5 V, type AA/LR6/ Mignon
Voltage 1.5 V	== (DC)
Protection type	IPX4 Protection against water splashes from any direction.

Safety instructions

▶ Check the device for visible external damage before use. Do not operate an appliance which has been damaged or dropped.

⚠️DANGER! Do not allow children to play with the packaging material! Keep all packaging materials away from children.

There is a risk of suffocation!

▶ Hair trimmers may be used by children aged 8 and above and persons with limited physical, sensory or mental capabilities or lack of experience and knowledge,

provided that they are under supervision or have been told how to use the appliance safely and are aware of the potential risks. Do not allow children to use the appliance as a toy. Cleaning and maintenance may not be carried out by unsu- pervised children.

▶ Hair trimmers may be used by children aged 3 and above if they are supervised.
▶ Do not expose the device to direct sunlight or high temperatures. Otherwise it may over-heat and be irreparably damaged.

⚠️DANGER! Do not operate the device close to naked flames (e.g. candles) and do not place burning candles on or next to the device. This will help to prevent fires.

▶ To avoid personal injury, do not use the appliance with a damaged or faulty attachment.

▶ Switch the device off immediately if you hear any unusual noises, smell fumes or notice any smoke. Have the device checked by a qualified specialist before using it again.

▶ All repairs must be carried out by authorised specialist companies or by the customer service department. Improper repairs may put the user at risk. It will also invalidate any warranty claims.

▶ Do not make any unauthorised modifications or alterations to the appliance. This appliance may not be opened by the user.

Can be cleaned under running water.

DANGER

Mishandling the batteries can cause fires, explosions, leakages or other hazards!

▶ Do not throw the batteries into a fire and do not subject them to high temperatures.

▶ Do not open, deform or short-circuit batteries, since this can lead to chemical leakage.

▶ Do not attempt to recharge the batteries. Do not charge batteries unless they are explicitly labelled as "rechargeable". There is a risk of explosion!

DANGER

▶ Check the condition of the batteries at regular intervals. Leaking chemicals can cause permanent damage to the appliance. Take particular care when handling damaged or leaking batteries. Risk of acid burns! Wear protective gloves.

▶ Chemicals that leak from a battery can cause skin irritation. If it contacts your skin, rinse off with plenty of water. If the chemicals get into your eyes, rinse thoroughly with water, do not rub and consult a doctor immediately.

DANGER

▶ Do not mix different types of batteries.
▶ Always insert the batteries the right way round (observe correct polarity) otherwise there is a danger that they could explode.

▶ If you do not intend to use the appliance for a long time, remove the batteries.

▶ Keep batteries out of the reach of children. Children might put batteries into their mouths and swallow them. If a battery has been swallowed, seek medical assistance immediately.

Inserting the battery

1) Turn the battery compartment cover ⑤ clockwise until the ▲ marking on the battery compartment cover ⑤ points towards the ▼ marking on the handset ④.
2) Pull the battery compartment cover ⑤ off the housing.
3) Insert the AA battery ⑦ into the handset ④ with the positive terminal (+) first.
4) Reattach the battery compartment cover ⑤ to the handset ④ with the ▲ marking on the battery compartment cover ⑤ pointing towards the ▼ marking on the handset ④.
5) Turn the battery compartment cover ⑤ anticlockwise until the ▲ marking on the battery compartment cover ⑤ points towards the 0 marking on the handset ④.

Tips and tricks

NOTE

▶ Do not use the appliance if...
- You have sunburn on the specific part of the body.
- You have skin irritation or redness.
- You have a skin disease such as neurodermatitis.
- You have pimples, moles or warts on the affected parts of the body.
- You have wounds, open sores or raised scars on the affected parts of the body.

▶ Test the appliance in a small, usually covered spot first in order to establish skin compatibility.

■ Before using the appliance, treat the skin with a scrub treatment or a massage glove. This helps remove dead skin cells, prevents ingrowing hair and make fine hair stand up. This enables the appliance to cut the hair better.

■ Only use the appliance on dry, clean hair.

■ After using the appliance, treat the skin with a moisturising lotion or cream. Ideally, use a cream containing aloe vera or camomile extracts to soothe and maintain the skin.

Using the appliance

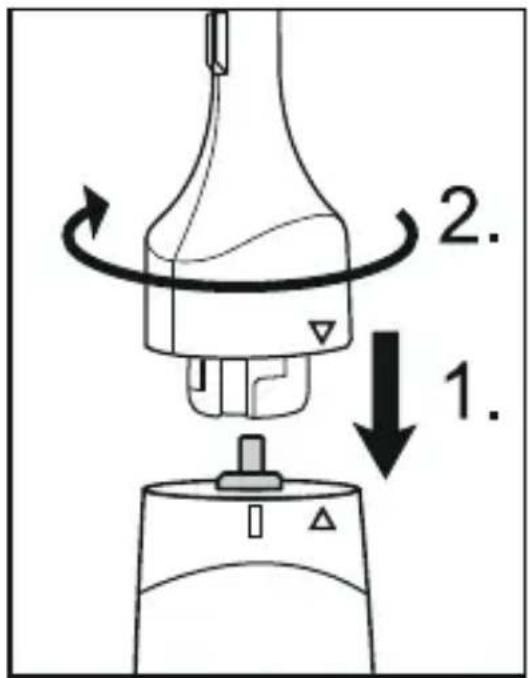

Removing and connecting the attachments

The supplied attachments (bikini line trimmer ⑨ and eyebrow trimmer ③) are connected and removed in the same way. Ensure the correct orientation of the attachment to the handset ④.

- Removing the attachment:

1) Turn the attachment anticlockwise until the ▼marking on the attachment points towards the ▲marking on the handset ④.

2) Remove the attachment from the handset 4. Connecting the attachment:

1. 2. 1.

(Fig. 1)

1) Fix the attachment to the handset ④ such that the ▼marking on the attachment faces towards the ▲marking on the handset ④ (see Fig. 1).

2) Turn the attachment clockwise until the ▼ marking on the attachment points towards the ■ marking on the handset ④ (see Fig. 1).

Using the bikini line trimmer

To shave or trim your bikini line or underarm hair, proceed as follows:

1) Attach the bikini line trimmer ⑨ to the handset ④ as described in the section "Removing and connecting the attachments".

NOTE

If you wish to trim your hair to a specific length, you can attach the bikini line trimmer comb 10 to the bikini line trimmer 9:

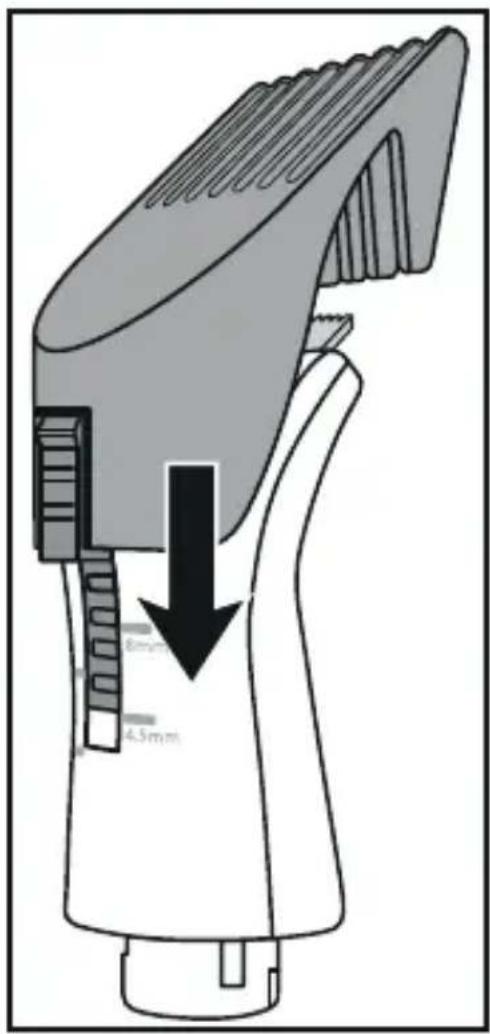

- plug the length control unit of the bikini line trimmer comb 10 into the gap on the bikini line trimmer 9 (see Fig. 2).

- Lock the bikini line trimmer comb 10 at the desired length. The further you push the bikini line trimmer comb 10 into the gap on the bikini line trimmer 9, the shorter your hair will be trimmed.

8mm 4.5mm

(Fig. 2)

Length settings of the bikini line trimmer comb 10

Level 1 (pushed all the way in)

Level 2 4.5 mm

Level 3 6 mm

Level 4 8 mm

3.5 mm

2) To switch the appliance on, turn the battery compartment cover ⑤ anticlockwise until the ▲marking on the battery compartment cover ⑤ points towards the I marking on the handset ④.

3) Move the bikini line trimmer ⑨ against the direction of growth across the patch of skin to be shaved.

4) To switch the appliance off, turn the ▲ marking of the battery compartment cover ⑤ to the 0 marking on the handset ④.

NOTE

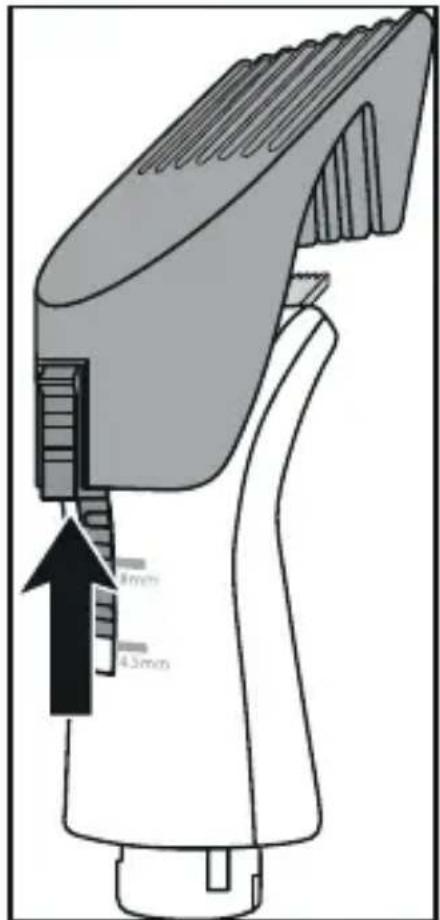

To remove the bikini line trimmer comb ⑩ from the bikini line trimmer ⑨, push the length control unit down while simultaneously pulling the bikini line trimmer comb ⑩ off upwards (see Fig. 3).

4mm 4.5mm

(Fig.3)

Using the eyebrow trimmer

To trim your eyebrows or remove facial hair, proceed as follows:

1) Attach the eyebrow trimmer ③ to the handset ④ as described in the section "Removing and connecting the attachments".

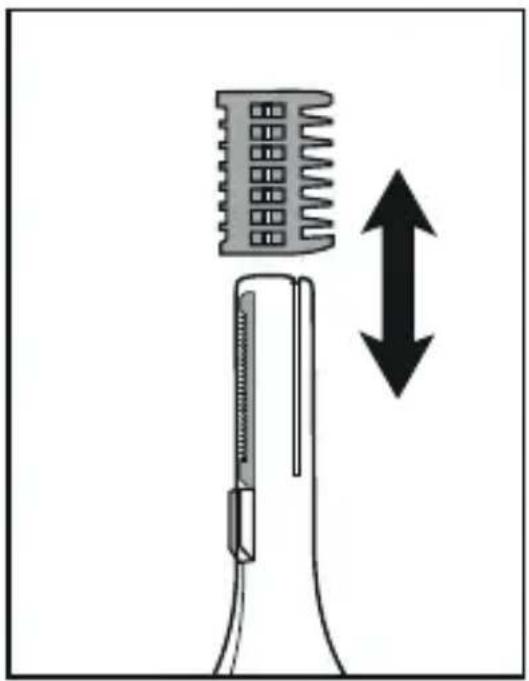

2) To trim the hair to a length of 3 mm or 6 mm, additionally attach the eyebrow trimmer comb ② to the eyebrow trimmer ③:

Diagram of a hairdryer with a double-headed arrow indicating compression or compression (no text or symbols present)

(Fig.4)

Lock the eyebrow trimmer comb

② into the guide rail on the eyebrow trimmer ③ (see Fig.

4). Ensure that the desired length of the

eyebrow trimmer comb ②

is adjacent to the side of the eyebrow trimmer ③ which has the longer blade.

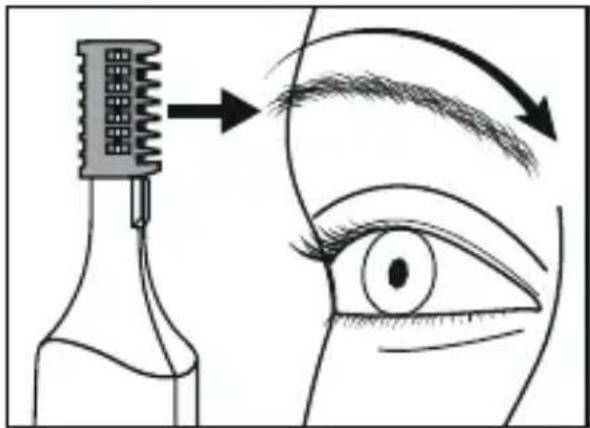

The short edges of the eyebrow trimmer comb ② allow you to trim your eyebrows to 3 mm and the long edges of the eyebrow trimmer comb ② allow you to trim your eyebrows to 6 mm evenly; to do this, apply the eyebrow trimmer comb ② vertically to your skin (Fig. 5).

Diagram illustrating hair follicle application on a toothbrush, showing eye anatomy with hair loss and eyelid insertion.

(Fig. 5)

3) In order to switch the appliance on, turn the battery compartment cover ⑤ anticlockwise until the ▲ marking on the battery compartment cover ⑤ points towards the ■ marking on the handset ④.

4) Place the eyebrow trimmer ③ with the desired length of the eyebrow trimmer comb ② against the beginning of the eyebrow you are about to trim. Move the tip of the eyebrow trimmer comb ② over the eyebrow against the direction of growth several times.

5) To switch the appliance off, turn the ▲ marking of the battery compartment cover ⑤ to the 0 marking on the handset ④.

NOTE

You can use the eyebrow trim-mer ③ without the eyebrow trimmer comb ② in order to shape the contours of your eyebrows. Carefully use the short blade of the eyebrow trimmer ③ to remove stray hairs at the edges of your eyebrows. Move the blade against the direction of growth.

Cleaning and care

CAUTION - SPROPERTY DAMAGE!

▶ Never immerse the appliance in water or other liquids!
▶ Ensure that the appliance is switched off for cleaning.

Before cleaning the attachments ③/⑨, remove the combs ②/⑩ from the attachments ③/⑨.
■ After each use, clean the attachments ③/⑨ using the supplied cleaning brush ⑥ to remove loose hair.

■ Regularly clean and disinfect the attachments ③/⑨ with disinfectant spray.
■ Wipe the appliance with a damp cloth. If required, use some mild detergent on the cloth. Ensure that the appliance is completely dry before the next use.

You can also clean the attachments ③/⑨ under running water:

- Remove the attachment ③/⑨ from the handset ④ as described in the section "Removing and connecting the attachments".

• Clean the attachments ③/⑨ under running water.
• Ensure that the attachments ③/⑨ are completely dry before using them again.

Storage

■ Always protect the eyebrow trimmer ③ using the supplied protective cap ①.

■ Store the appliance and all accessories in a dry and dust-free location in the supplied storage pouch ⑧.

Troubleshooting

The appliance is not working:

• Replace the battery.
  ■ The appliance is defective. Contact the Customer Service department.

Not all hairs are plucked:

■ You are working too fast. Move the appliance over your skin slowly.

Disposal

Appliance

Symbol of a trash bin crossed with diagonal lines, representing no waste or discharge (no text or labels)

Never of the appliance in your normal domestic waste.

This product is subject to the provisions of the European WEEE (Waste Electrical and Electronic Equipment) Directive 2012/19/EU.

Dispose of the appliance via an approved disposal company or your municipal waste facility. Please observe the currently applicable regulations. Please contact your waste disposal facility if you are in any doubt.

Packaging

The packaging is made from environmentally-friendly material and can be disposed of at your local recycling plant.

a b

Dispose of the packaging in an environmentally friendly manner.

Note the labelling on the

packaging and separate the packaging material components for disposal if necessary. The packaging material is labelled with abbreviations (b) and numbers (a) with the following meanings:

1-7: Plastics
20- 22: Paper and cardboard
80-98: Composites

Disposal of (rechargeable) batteries

Simple line drawing of a trash bin with two crossed lines indicating no waste or restriction (no text or symbols)

Used batteries must not be disposed of in household waste.

Consumers are legally obliged to dispose of batteries at a collection point in their community/city district or at a retail store.

The purpose of this requirement is to ensure that batteries are disposed of in an environmentally friendly manner. Only return batteries or rechargeable batteries when they are fully discharged.

This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.

Warranty conditions

The validity period of the warranty starts from the date of purchase.

Please keep your original receipt in a safe place. This document will be required as proof of purchase.

If any material or production fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you at our discretion. This warranty service is dependent on you presenting the defective appliance and the proof of purchase (receipt) and a short written description of the fault and its time of occurrence.

If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.

Warranty period and statutory claims for defects

The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.

Scope of the warranty

This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.

The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or fragile parts such as switches, batteries, baking moulds or parts made of glass.

The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.

This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications/repairs which have not been carried out by one of our authorised Service centres.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

■ Please have the till receipt and the item number (e.g. IAN 12345) available as proof of purchase.

■ You will find the item number on the type plate, an engraving on the front page of the instructions (bottom left), or as a sticker on the rear or bottom of the appliance.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

■ You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

You can download these instructions along with many other manuals, product videos and software on www.lidl-service.com.

Service

Service Great Britain

Tel.: [phone] (£

0.10/Min.)

E-Mail:

[e-mail]

Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

IAN 298780

Importer

Please note that the following

address is not the service address.

Please use the service address provided in the operating instructions.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

GERMANY

www.kompernass.com

Indholdsfortegnelse

Introduktion ....3 2

8mm 4.5mm

(Fig.2)

Længdeindstillingerbikinitrimmerkam10
Trin 1(sat helt ind)	3,5 mm
Trin 2 4,5 mm
Trin 3 6 mm
Trin 4 8 mm

4mm 4.5mm

(Fig 3)

Diagram of a hairdryer with a magnified view showing the brush tip and arrow (no text or symbols)

(Fig. 4)

Diagram illustrating hair application on a toothbrush, showing eye anatomy with hair being applied to the tooth.

(Fig. 5)

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Bortskaf

produktet sam- men med det almindelige hus- holdningsaffald.

Simple line drawing of a trash bin with crossed lines indicating no waste or restriction (no text or symbols)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

TYSKLAND

www.kompernass.com

Table des matières

Introduction....64

Utilisation conforme .....6 4

Matériel livré .....6 5

8mm 4.5mm

(Fig.2)

Diagram of a hairdryer with a double-headed arrow indicating vertical motion (no text or symbols)

(Fig.4)

Illustration of a hairdryer tool applying material to an eye, showing the brush tip and eyelid (no text or symbols present)

(Fig. 5)

Simple line drawing of a trash bin with crossed lines indicating no waste or restriction (no text or symbols)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

ALLEMAGNE

www.kompernass.com

Inhoud

Inleiding .....96

8mm 4.5mm

(afb. 2)

Lengte-instellingen bikinitrimmerkam ^10

Diagram of a hairdryer with a double-headed arrow indicating vertical motion (no text or symbols)

(afb. 4)

Medical illustration showing eye anatomy with a surgical instrument and eyelid, labeled in English.

(afb. 5)

Symbol of a trash bin crossed with no text or labels

Deponeer

Simple line drawing of a trash bin with crossed lines indicating no waste or plastic discharge (no text or symbols)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

DUITSLAND

www.kompernass.com

Inhaltsverzeichnis

Einführung ..... 1 3 0

8mm 4.5mm

(Abb. 2)

Diagram of a micrometer with a thermometer and directional arrows indicating measurement or force (no text or symbols)

(Abb. 4)

Medical illustration showing eye anatomy with a surgical instrument and eyelid, labeled in English.

(Abb. 5)

Simple line drawing of a trash bin with two crossed lines indicating no waste or restriction (no text or symbols)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

DEUTSCHLAND

www.kompernass.com

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

GERMANY

www.kompernass.com

Last Information Update · Tilstand af information

Version des informations · Stand van de informatie
