| Product type | Nose and ear trimmer / eyebrows |
| Brand | SilverCrest |
| Model | HG01088 |
| Power supply | 1.5 V battery (AA) |
| Protection rating | IPX4 (splash-proof) |
| Sound pressure level | < 72 dB(A) |
| Cutting length (long attachment) | Approx. 7 mm |
| Cutting length (short attachment) | Approx. 4 mm |
| Functions | Removal of nose and ear hair, eyebrow trimming |
| Blade material | Stainless steel |
| Package contents | 1 trimmer, 1 AA battery, 1 cleaning brush, 1 long attachment, 1 short attachment, 1 instruction manual |
| Cleaning | Blade washable with water, body with a dry cloth |
| Safety | Do not use if damaged, do not immerse, keep out of reach of children |
| Warranty | 3 years |
| Weight (without battery) | Approx. 50 g |
| Dimensions (L x W x H) | Approx. 15 x 3 x 3 cm |
| Intended use | Private use, removal of human nose and ear hair and eyebrow trimming |
Frequently Asked Questions - HG01088 SILVERCREST
User questions about HG01088 SILVERCREST
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Electric mower in PDF format for free! Find your manual HG01088 - SILVERCREST and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. HG01088 by SILVERCREST.
USER MANUAL HG01088 SILVERCREST
Operation and Safety Notes
Translation of original operating instruction
FR BE
TONDEUSEMULTIFONCTION
B
C
Introduction......Page 6
Intended use......Page 6
Parts description....Page 7
Technical data......Page 7
Included items ...... Page 7
Safety instructions......Page 8
Safety advice concerning batteries......Page 9
Preparing the product for use ...... Page 11
Inserting / replacing the battery ...... Page 11
Removing nose and ear hair....Page 11
Cutting eyebrows....Page 11
Cleaning, care and storage ...... Page 12
Troubleshooting Page 13
Disposal Page 13
Information......Page 14
Declaration of Conformity....Page 14
Warranty Page 15

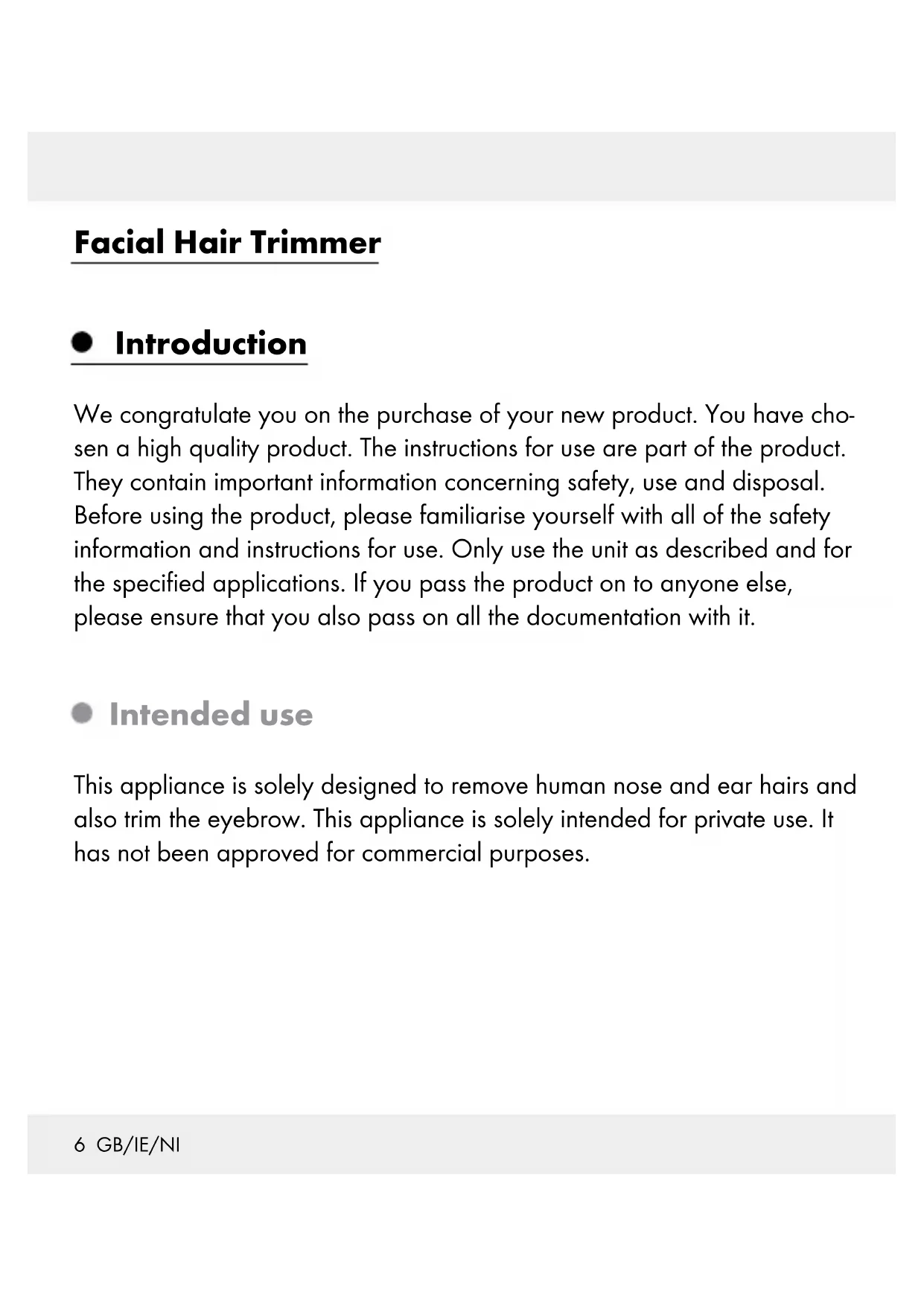

Facial Hair Trimmer
- Introduction
We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the unit as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.
- Intended use
This appliance is solely designed to remove human nose and ear hairs and also trim the eyebrow. This appliance is solely intended for private use. It has not been approved for commercial purposes.

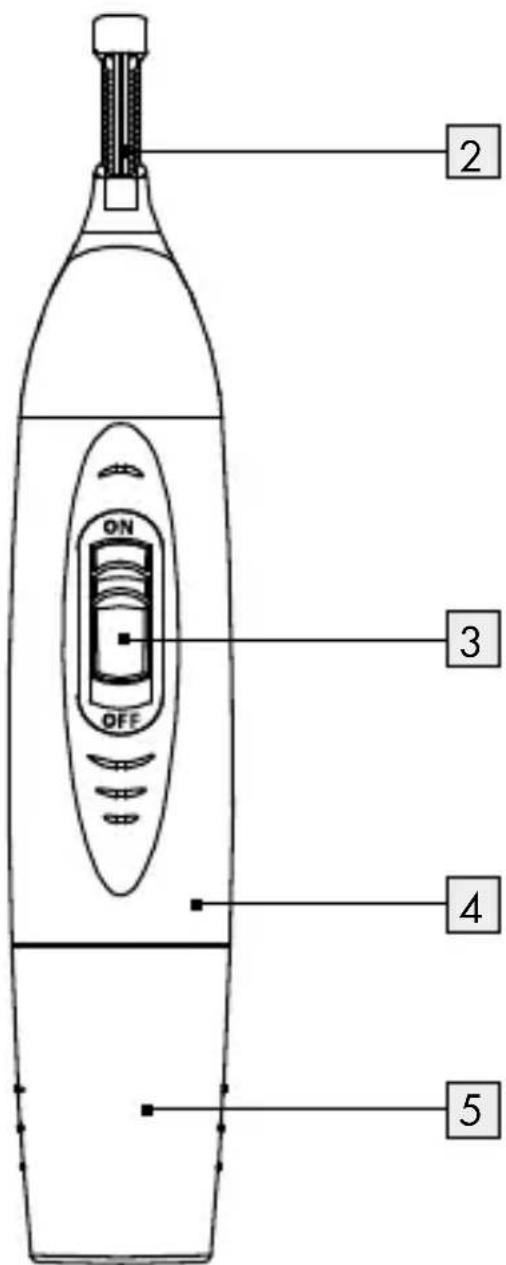

Partsdescription
1 Protective cap
2 Blade
3 ON/OFF switch
4 Trimmer casing
5 Battery compartment cover
6 Long comb attachment
7 Short comb attachment
8 Cleaning brush
9 Battery
- Technical data
Battery: 1.5V battery (AA)
Degree of protection: IPX4 (splash-proof)
Emissions Sound pressure level: < 72 dB(A), K = 3 dB(A)
Includeditems
1 Nose & ear hair trimmer
1 Battery 1.5 V=AA
1 Cleaning brush
1 Long comb attachment
1 Short comb attachment
1 Instructions for use
Safetyinstructions
KEEP ALL THE SAFETY ADVICE AND INSTRUCTIONS IN A SAFE PLACE FOR FUTURE REFERENCE!
■ CAUTION! This product is not a toy for children! Keep out of the reach of children. Children are not aware of the dangers associated with handling electrical products.
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user mainte-
nance shall not be made by children without supervision.
- Do not use the product if you notice any signs of damage, otherwise you may get hurt.
- Do not expose the product to high temperatures or moisture, otherwise the product may be damaged.
■ Prevent strong impact or stress on the product to avoid damages!
In the event of damage, repairs or other problems with the device, please contact an electrician.
WARNING!
Keep the appliance dry. Never immerse this appliance into water.
Safety advice concerning batteries
WARNING!
DANGER TO LIFE! Batteries are not intended to be in the hands of children.
Do not leave batteries lying around. They could be swallowed by children or pets. In the event of swallowing a battery, contact a doctor immediately.
WARNING!
FIRE HAZARD! Do not allow
the battery to short-circuit. Overheating, fire or bursting of the batteries might result.
WARNING!
Never throw batteries into fire or
water. Never attempt to recharge single-use batteries! The batteries might explode.
Spent or damaged batteries may irritate the skin on contact; so always wear suitable protective gloves in these circumstances.
■ Remove used batteries from the device. Very old or used batteries may leak. The chemical fluid can damage the product.
■ Remove the battery from the device if it will not be used for a prolonged period.
- Check the battery regularly for leaks.
● Preparing the product for use
- Inserting / replacing the battery

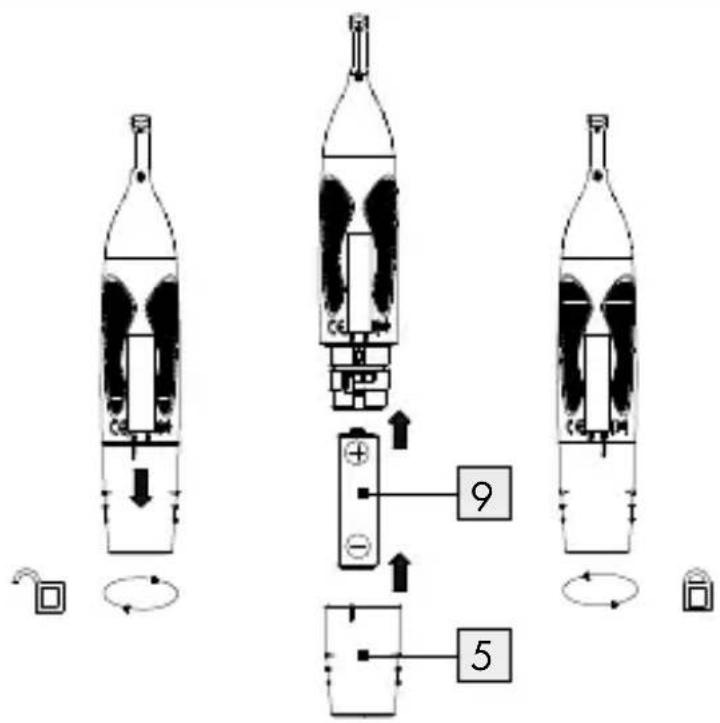

☐ To insert / replace the battery 9, proceed as shown in Fig. B.
- Removing nose and ear hair
Note: Do not use the product if the blade 2 is deformed or damaged.
Take off the protective cap 1. Switch the device on by pushing the ON/OFF switch 3 upwards.
■ CAUTION! DANGER OF INJURY! Be careful not to insert the device too deep into nose or ears. Carefully insert only the tip of the blade into the front area of your nostril or ear. Remove the nose or ear hair with small circular movements.
After using the trimmer, switch the device off by pushing the ON / OFF switch downwards.
Cuttingeyebrows
☐ Select the long comb attachment 6 or the short comb attachment 7 depending on the desired hair length ("Long" 6: approx. 7 mm length; "short" 7: approx. 4 mm length).

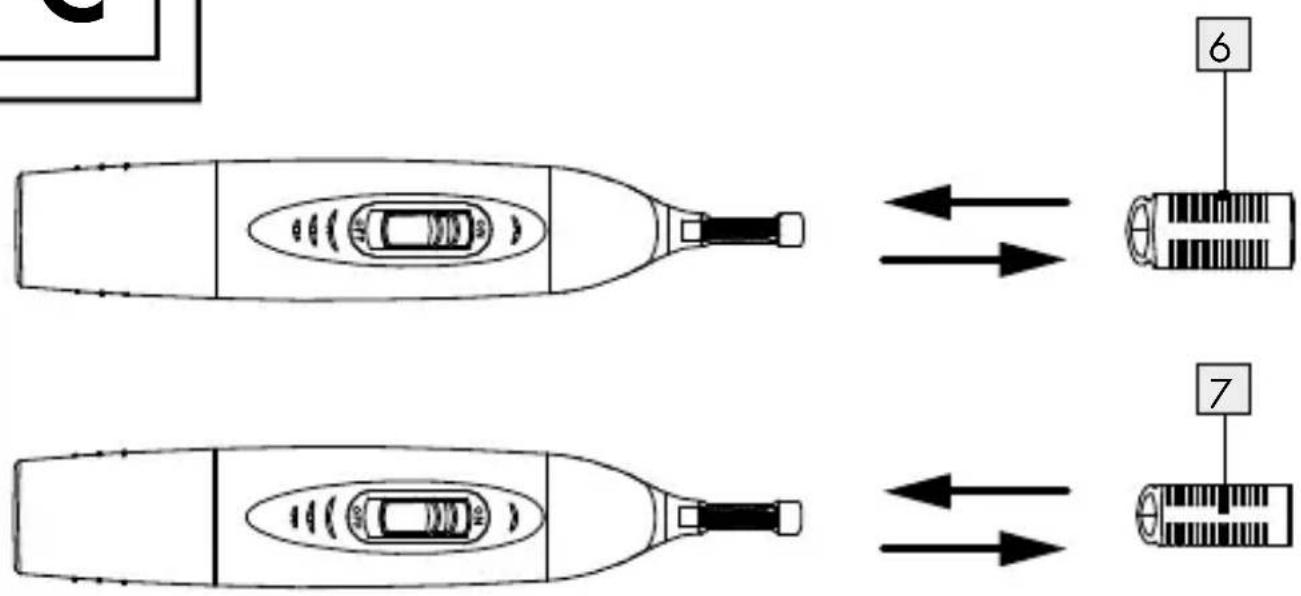

☐ Set the comb attachment on the blade (see fig. C). Ensure that the comb attachment 6, 7 fastens audibly and sits tightly.

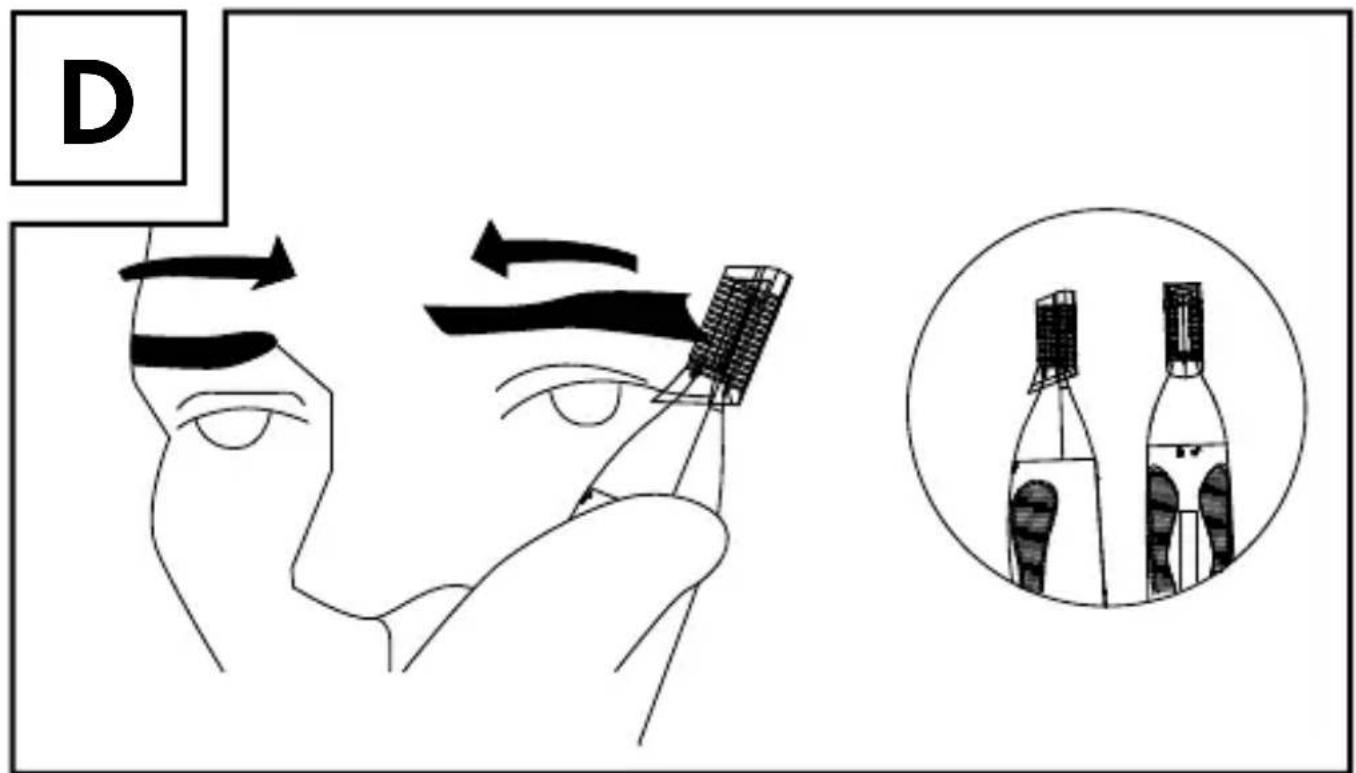

☐ Switch the appliance on. Move the comb in the opposite direction to the hair growth, and from the outer tip of the eyebrow towards the nose (see Fig. D).
☐ To trim hair just above the skin surface, remove the comb attachment 6, 7 and guide the blade 2 directly over the skin in the desired area.
Note: To trim only individual hairs, adjust the angle of the blade and guide this against the individual hairs.
- Cleaning, care and storage
Note: Always switch off the product before cleaning it.
- Do not use any corrosive or abrasive cleaning agents. These might damage the surface of the product.
□ Clean the housing with a dry cloth.

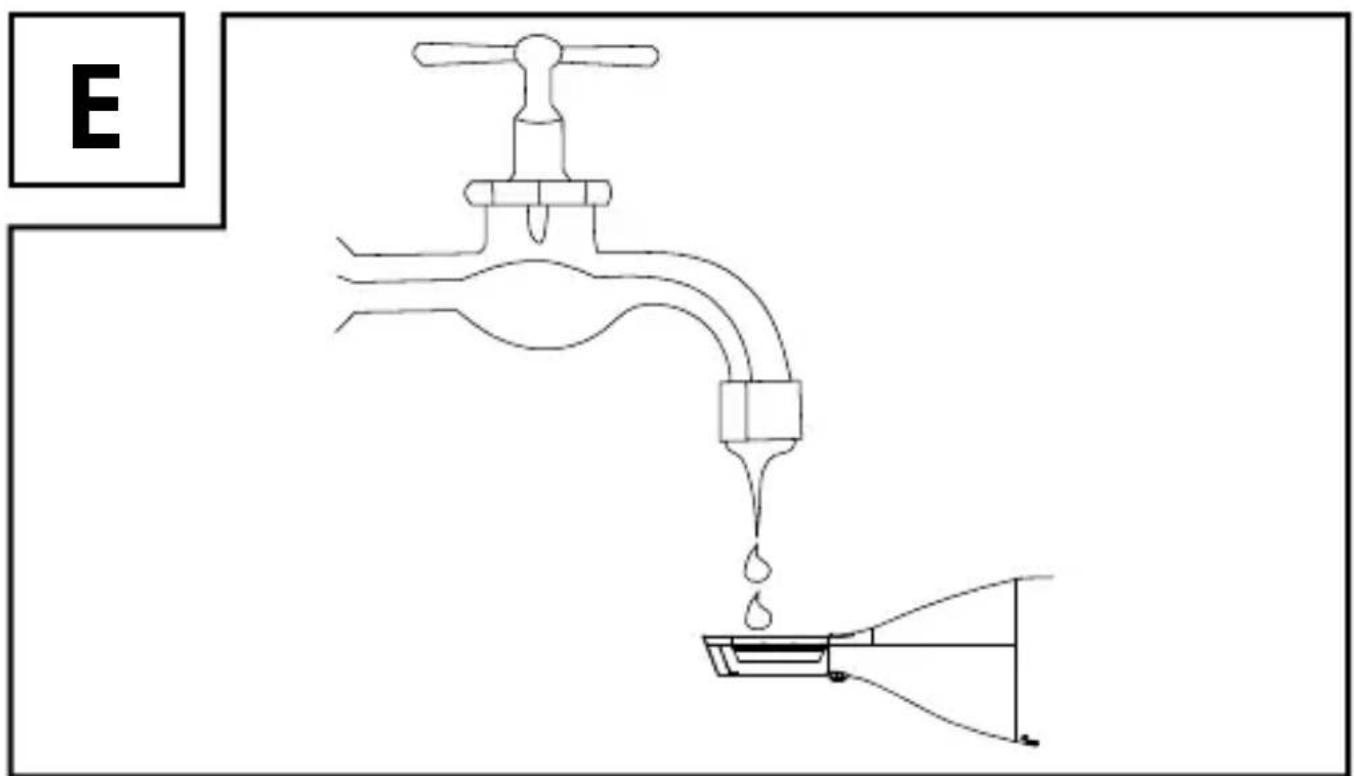

☐ Take off the comb attachment 6, 7 (see fig. C) and clean the blade carefully under running water (see fig. E). Then fully dry the blade before using the product again.
Attention: The product is only protected against splash water. Never immerse it in water. Otherwise, irreparable damage may result.

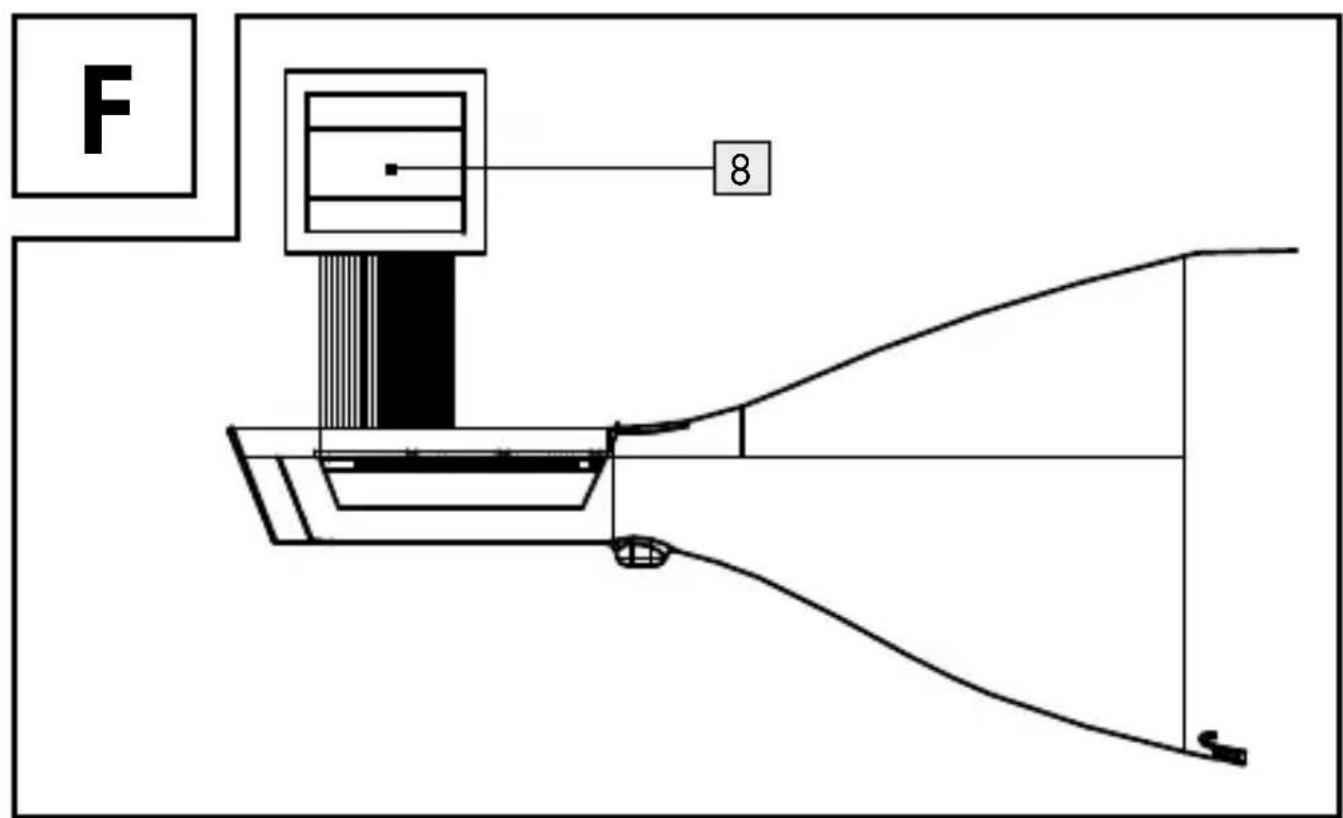

☐ If there are still hairs in the blade, clean it with the a soft brush 8 (see fig. F).
☐ To store the device, always put on the protective cap 1.
□ Keep the device in a cool, dry location.
●Troubleshooting
| Fault Cause Solution | ||
| The stainless steel blades move slowly. | The battery is empty. Exchange the battery (see fig. B). | |
| The device will not turn on. | The battery is empty. Exchange the battery (see fig. B). | |
| The stainless steel blades move slowly. | The blades are blocked and should be cleaned. | Clean the blades carefully under running water (see fig. E). Use the included cleaning brush, if you notice that some hairs are blocking the blades. |
●Disposal
The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.
Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.
To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.
Faulty or used batteries must be recycled in accordance with Directive 2006 / 66 / EC and its amendments. Return the batteries and / or the device through the appropriate collection facilities.
Environmental damage through incorrect disposal of the batteries!
Batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols for heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries at a local collection point.
Information
• Declaration of Conformity
We, OWIM GmbH & Co. KG Stiftsbergstraße 1 D-74167 Neckarsulm, hereby declare under our sole responsibility that the product: Facial Hair Trimmer, Model No.: HG01088, Version: 08 / 2016, to which this
declaration refers, complies with the standards / normative documents of 2006/42/EC, 2014/30/EU, 2011/65/EU.
Related harmonised standard:
EN 60335-1:2012/A11:2014
EN 60335-2-8:2003 / A2:2008
EN 62233:2008
EN ISO 12100:2010
EN 50581:2012
EN 55014-1:2006/A2:2011
EN 55014-2:1997/A2:2008
Tobias Koenig
Division Manager
Neckarsulm, 04 May 2016
The complete declaration of conformity can be viewed at: www.owim.com
- Warranty
The device has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have
legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.
The warranty for this device is 3 years from the date of purchase. Should this device show any fault in materials or manufacture within three years from the date of purchase, we will repair or replace it – at our choice – free of charge to you.
The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the device has been damaged or improperly used or maintained.
The warranty applies to faults in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.
CE IPX4
