USER MANUAL EMG 9-18 Essentiel B

Contents of the box 14

Technical characteristics 14

Warnings 15

beforeFirstuse15

use 16

Ice cube production 16

The ice-making cycle 17

Indicator lights 17

cleaning and maintenance 18

troubleshooting guide 19

You have just purchased a product from the Essentiel b brand and we thank you. We pay particular attention to the RELIABILITY, EASE OF USE and DESIGN of our products.

We hope that this ice cube maker will give you complete satisfaction.

your product

Contents of the box

1 ice cube maker
1 ice cube basket
- 1 ice scoop
- 1 user manual

Technical characteristics

Supply voltage: 220-240 V~50 Hz
Maximum power: 150 W
- Rated current: 1.0 A
- Electrical Protection Class: I
Climate classes: ST/SN/N/T
- Refrigerant type / weight: R600a / 24 g
Insulation material: Expandable Polystyrene Foam (EPS)
- Ice capacity: 10 kg of ice in 24 h
Water tank capacity: 1.8 litres
- Ice cube basket full indicator: "Ice Full"
- Empty water tank indicator: "Add Water"
Water drainage available
Unit size: L330 x W227 x H292 mm
Weight: 7.8kg

Warnings

Do not return the appliance. This could cause compressor and system problems.

Place the appliance on a flat, horizontal surface capable of supporting the weight of the machine (6.1 kg).

For proper ventilation of your appliance, leave a space of at least 15 cm around your ice cube maker.

before First use

• IMPORTANT: Before plugging the appliance into the mains socket for the first time, please allow the appliance to rest with the lid open for 2 hours on a flat, stable surface, to allow the refrigerant gas to descend into the compressor. Failure to wait for 2 hours could damage the compressor.
• This appliance is intended for domestic use only.
• Do not use outdoors.
• Take the appliance out of the box and remove all packaging material. The ice scoop and ice cube basket are stored inside the ice cube maker.
• Before using the machine for the first time (or after a period of inactivity), clean the water tank and ice cube basket. Use the first ice production cycle to flush the system. Discard the water and ice cubes produced in the first cycle.

Ice cube production

• IMPORTANT: Do not open the lid while making ice cubes. You can check production through the viewing window.

• Before plugging the appliance into the power outlet after moving it, please allow the appliance to rest for 30 minutes.

• Make sure the drain plug is inserted into the drain hole in the bottom of the water tank.

• Open the lid and take out the ice cube basket.
• Fill the water tank with room temperature water (1.2 L max.). Make sure that the water does not overflow into the ice cube basket and does not exceed the MAX mark indicated on the interior wall of the appliance.
• Replace the ice cube basket and close the lid.
• Plug the power cord into an earthed AC outlet. The power indicator flashes green. The appliance is in standby mode.
• Press the SELECT button to select the large or small ice cube program. The respective indicator lights up solid green when the program is selected.
• Press the ON/OFF button to start making ice. The power indicator lights up solid green and ice production begins.
• When you have obtained the desired amount of ice cubes, turn off the appliance by pressing the ON/OFF button and unplug it from the power supply. It takes about 7-15 minutes to make ice cubes. The time may vary depending on the ambient temperature of the room and the water poured into the tank.
• Place the ice cubes in a container or glasses for immediate use, or place them in the freezer for storage.
• After removing the ice cubes, remove the drain plug located under the appliance and allow the remaining water to drain from the water tank. Replace the drain plug when all the water has been drained.

Notes:

• During the first 3 cycles, the size of the ice cubes may be reduced and irregular.
• You can keep the ice cubes in the appliance for approximately 18 hours, depending on the ambient temperature of the room.
• Do not leave water in the appliance for more than 24 hours.
• Clean the ice cube maker fully at least once a week (refer to the "Cleaning and maintenance" section).

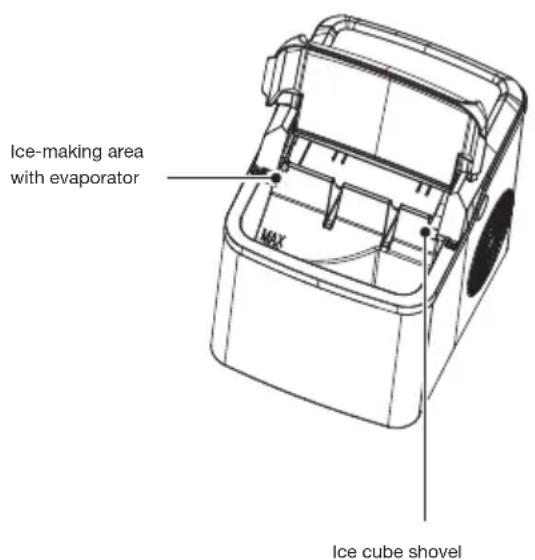

The ice-making cycle

The production of ice cubes takes place as follows:

1. The water from the water tank is pumped up to the appliance's ice making area at the back of the appliance. Ice begins to form on the "fingers" of the evaporator.
2. Once the cycle is complete, the remaining water flows into the water tank and the ice cubes fall from the evaporator's fingers.
3. The ice cube shovel pushes the ice into the ice cube basket.
4. Once the ice cube shovel is back in the initial position, a new cycle begins again.

Indicator lights

• When the water level in the water tank is insufficient, the add water indicator lights up red. You must add water to the water tank. If the small or large cube program was the last program in use, then press the ON/OFF button to restart the appliance. If the water tank becomes empty while the cleaning program is in use, refill the water tank, and then press the ON/OFF button twice to restart the appliance, (the red indicator will take a few seconds to change to green after the second button press). The appliance automatically restarts after 30 minutes if the user does not restart the appliance after it has been refilled.
• When the ice cube basket is full, the appliance automatically turns off and the ice cube basket full indicator turns on white. In this case, remove the ice from the ice cube basket with the ice scoop. The appliance automatically restarts ice production after 5 seconds.
• IMPORTANT: Make sure the appliance is not tilted!

cleaning and maintenance

Clean the ice cube maker at least once a week for fresh tasting ice and to ensure product longevity.
Before cleaning the appliance, stop the ice-making program, unplug it, remove any ice cubes and allow the appliance to warm up to room temperature.

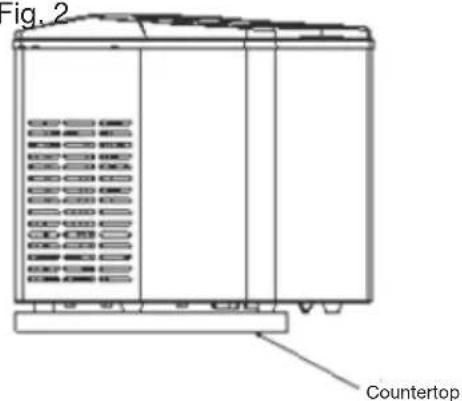

Fig.1 Fig.2

• To drain the appliance (remove the water from the water tank), make sure it is placed on a flat, stable surface. Move it slightly over the edge of the countertop (Fig. 1) approx. 60~mm . Place a container under the drain hole to collect the water. Pull out the drain plug which is located under the appliance (Fig. 2) and drain the water. Tilt the appliance up to 30^ to assist the draining. If there is residual water in the ice tray, gently push the ice tray backwards so that all the water drains into the water tank. After draining, insert the drain plug into the drain plug hole.
  After use, leave the lid open so that mould and bacteria do not grow.

• To clean the internal parts of the ice cube maker and flush through the pipes:

• Fill the water tank to the MAX mark with water.

• Press the SELECT button until the green cleaning indicator light turns on.
• Press the ON/OFF button to start cleaning. The power indicator lights up solid green and the pump starts to pump water around the appliance. The cleaning program takes 6 minutes.

• When the cleaning program has finished, drain the water from the water tank.

• Clean the ice cube maker, its internal cavity and its components (except the evaporator) regularly with a damp cloth and a mild cleaning solution.

• Do not use abrasive cleaning agents or harsh tools for cleaning. Never use gasoline or solvent-based cleaning products. Rinse thoroughly before resuming use.
• For hygiene reasons, the water in the tank must be changed every 24 hours.
• If the compressor stops due to lack of water, excess ice, power outage, etc., do not operate the ice cube maker immediately. Wait 3 minutes then restart the ice cube maker.

If the appliance is not to be used for a long period of time:

• Remove the drain plug to drain the remaining water. Replace the drain plug once the water has completely drained.
• Leave the lid open so mould and bacteria do not grow.
• Make sure the appliance is completely dry.

troubleshooting guide

Problem Possible	cause Solution
The add water indicator lights up.	There is not enough water and/or the filter in the water tank is blocked.	Check the filter is not blocked. Clean it with a soft cloth. Then:1. Add water to the maximum level.2. Wait 3 minutes.3. Press the ON/OFF button to restart the ice-making program. Press the ON/OFF button twice to restart the cleaning program.If the problem persists, drain the water from the water tank and run the cleaning program to flush through the pipes (refer to the “Cleaning and maintenance” section).
	There is air or dirt in the water pump.	Contact the after-sales service of your store.
The ice cube basket full indicator lights up.	The ice cube basket is full. Remove the ice cubes from the tray.
The ice cube basket full indicator lights up, but the tray is not full.	The ice cube basket full infrared sensors are iced up or not working properly.	1. Remove any ice from the infrared sensors.2. Press the ON/OFF button to restart the appliance. If the problem persists, contact the after-sales service of your store.
The ice cube basket full and add water indicator lights turn on simultaneously.	The ice cube basket is incorrectly positioned.	Unplug the appliance and check if the ice tray is blocked by ice.
	Bright sunlight is interfering with the infrared light sensor.	Unplug the appliance and move it to a location where it is not exposed to direct sunlight. Then plug in the appliance and select a program.
The ice cubes produced are too large or stuck together.	The temperature of the water or the ambient temperature is too low.	Fill the water tank up to the MAX mark with water that has a temperature of at least 8°C and up to 25°C.
The ice cubes produced are too small or of poor quality.	There is insufficient ventilation space around the appliance.	Leave a free space of at least 15 cm around the appliance for optimal ventilation.
	The ambient room temperature is too high.	Make sure the room temperature is between 10°C and 43°C.
	The water temperature is too high.	Fill the water tank up to the MAX mark with cool water (from 8°C and up to 28°C).
The operating conditions are good, but the appliance does not produce ice cubes.	The refrigerant system is blocked or leaking.	Contact the after-sales service of your store.
The ice cube shovel is blocked.	Ice formed on or around the ice cube shovel.	1. Turn off and unplug the appliance.2. Push the flap back slightly and remove the pieces of ice.3. Restart the appliance.

If the problem persists or you cannot resolve it, unplug the appliance from the power outlet and contact the after-sales service of your store. Do not carry out any repairs to the appliance yourself.
