EBM11 - Blender Essentiel B - Free user manual and instructions

USER MANUAL EBM11 Essentiel B

Exterior view of a modern kitchen blender with clear glass and metallic casing (no text or symbols visible)

To help you get the most out of your purchase

Manual de utilizacion

Diagram of a mechanical component with a red X mark, no text or symbols present

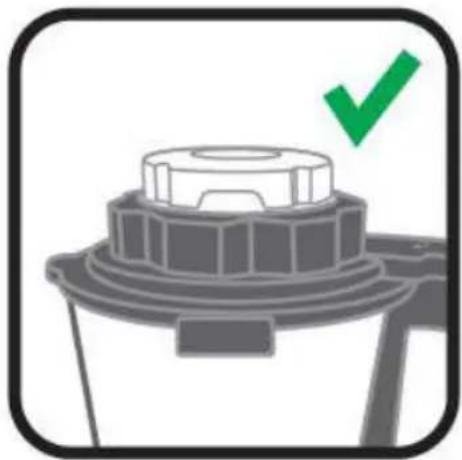

Illustration of a mechanical component with a green checkmark indicating selection (no text or symbols present)

Diagram of a mechanical component with red and green arrows indicating directional movement (no text or symbols)

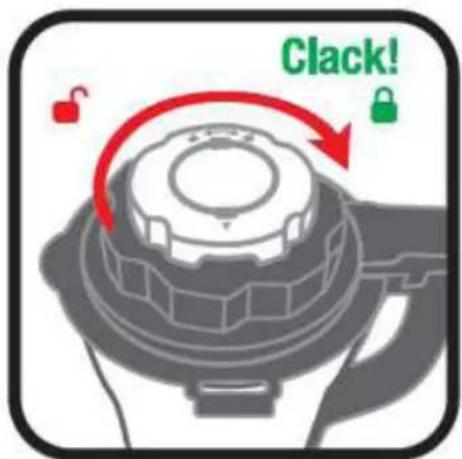

Clack!

Line drawing of a blender with leafy liquid inside (no text or symbols)

Line drawing of a blender with leafy contents inside, showing liquid and lid (no text or symbols)

Line drawing of a blender with a handle and lid, showing top and front views (no text or symbols)

L 600 - 15 700 - 120 800 - 10 TBU - 270 800 - 150

Line drawing of a kitchen blender with a lid and handle, showing a drop in the funnel (no text or symbols)

Abstract black-and-white illustration of a circular object with a triangular base (no text or symbols)

Attention!

instructions for use

CAREFULLY READ THESE INSTRUCTIONS BEFORE USING THE APPLIANCE AND KEEP THEM FOR FUTURE REFERENCE.

WARNING: to avoid the risk of fire, electric shock, or injury, always follow the following principal safety guidelines when using an electrical appliance.

WARNING: Risk of injury in case of misuse of the device.

• This appliance is intended for household use only. This appliance is not intended for use in domestic and similar environments such as staff kitchen areas in shops, offices or other work environments, farms, hotels, motels or other residential or bed and breakfast type environments.
• Do not use this appliance outdoors.
• Only use this appliance for food preparation.

• Before plugging in your appliance, make sure that the voltage of your home matches that indicated on the appliance rating plate.
  • Always connect your appliance to an easily accessible electrical outlet.
  • Always place the appliance on a flat, stable and heat-resistant surface.

• This appliance should not be used by children. Keep the appliance and its cord out of the reach of children.

• This appliance can be used by people with reduced physical, sensory or mental capabilities or whose experience or knowledge is insufficient, provided that they are supervised or have received instructions on using the appliance safely and properly understand the potential dangers.
• Children should not use the appliance as a toy.
  • Make sure children do not play with the device.
• Do not leave the device unattended when plugged in.
• Do not use this appliance outdoors and store it in a dry place.
• Do not use this appliance near direct heat sources.
• Do not use this appliance in the bathroom or near a sink full of water. If this appliance is dropped into water, you must not, under any circumstances, grab it straight away. First, unplug the plug from the socket.
• WARNING: Never immerse the appliance, motor unit, power cord or plug in water or any other liquid.

• When you unplug the power cord, always pull it at the plug. Do not pull on the cord itself.

• Do not handle the appliance or plug with wet hands.

• Only use accessories provided and recommended by your retailer. The use of non-recommended accessories could endanger the user and cause damage to the appliance.
  • Do not use this appliance:

-If the plug or the power cord is damaged,
–In case of malfunction,
-If the appliance has been damaged in any way,
-If you have dropped it,
-If the blades are damaged,
-If the motor unit has fallen in water.

• Take it to an after-sales service centre for inspection and repair. Repairs cannot be performed by the user.
- Do not use the appliance if the jug is broken, chipped or damaged or if the blades are broken.
- Switch off and unplug the appliance before leaving it unattended and before assembling, disassembling, or cleaning it.
- Turn the appliance off and unplug it from the power supply before changing accessories or approaching its moveable parts when it is running.

• If the power cord is damaged, it must be replaced by your retailer, their after-sales department or a similarly qualified person in order to prevent any kind of risk.
• Do not hang the power cord over the edge of a table or work surface, and make sure it doesn't come into contact with hot surfaces.
• Do not wrap the cord around the motor unit and do not twist it.
• Do not place or use this appliance near any heat source (hob, heater, etc.).
• Do not exceed the maximum capacity indicated on the jug.
• When mixing hot liquids, particular attention should be paid to prevent hot liquid spray that could cause burns.
• WARNING: extreme care should be taken when moving an appliance containing hot liquids.
• WARNING: the blades are sharp. Handle them with care! Do not touch the cutting edges of the blades when handling them, emptying the jug or cleaning them.

• For instructions on using accessories and speed settings, refer to the “Assembly” and “Use” sections.

• Keep your hands and utensils out of the container when blending foods to reduce risk of bodily injury or damage to the appliance.

• If the jug's blades get jammed and do not move, it could damage the motor. Stop the appliance and unplug it from the power point. You can insert a spatula or other utensil into the container to loosen it only when the appliance is unplugged.
• Do not remove the motor unit from the jug until the blades have stopped moving.
• Let the appliance cool before cleaning or storing it.
• To clean surfaces in contact with food, please refer to the “Cleaning and maintenance” section at the end of this manual.
• This appliance is not intended to be operated by an external timer or by a separate remote control system.
• This appliance cannot operate continuously. It is not a professional type of appliance. You must observe operating breaks. Otherwise, you may damage the motor.
• Do not operate this appliance continuously for more than one minute for liquids or more than two minutes for solid foods. Take a 10-minute break before using the appliance again.

your product

Box contents

1 x blender (jug and motor unit)

1 x instruction manual

Technical characteristics

• Power: 500 W
Rated input voltage: 220-240 V\~
- Capacity: 1.5 L
Rated frequency: 50-60 Hz
• Graduated glass jug with spout
- Splash cover
- Measuring cap
- Removable blade assembly
- Speed regulator
- “Pulse” function
- Non-slip feet
- Cord storage

before first use

WARNING!

• Do not immerse the jug in water. To clean the jug, see the “Cleaning and maintenance - Cleaning the jug” section.

• The appliance and accessories must not be washed in the dishwasher!

• Before using for the first time, remove the appliance and accessories from the packaging.

• Ensure to thoroughly wash all of the blender's components, except the motor unit, with soapy water.
• Rinse with clean water and thoroughly dry using a soft cloth.
• Refer to the "Cleaning and Maintenance" section for cleaning precautions.

WARNING!

• The jug contains very sharp blades. Handle them with care!
• Respect the graduation marks indicated on the jug. Failure to do so may result in damage to the appliance and/or injury to yourself.
• Do not place hot food in the appliance. Use cold or warm food. The maximum temperature must be less than 60 °C.

use

• Do not put a spatula or any other utensil into the jug during operation. You may insert a utensil into the jug only once the appliance has stopped completely.
  • We do not recommend putting raw meat or fish into the machine. Please precook them before adding them to the jug.
• Never place the following items in the blender: bones, frozen food (except ice cubes), hard food.
• Do not operate this appliance continuously for more than two minutes for liquids or more than one minute for solid foods. Take a 10-minute break before using the appliance again.

• Do not use the appliance when empty (without food).

• Put the food to be blended in the jug.

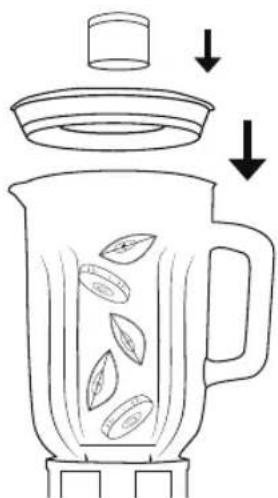

• Place the lid on the blender jug and make sure it's properly seated. Turn the lid clockwise until it clicks in place. The 2 prongs on the lid must be correctly inserted into the 2 prongs on the glass jug.

• Plug the filling opening in the lid with the measuring cap. The measuring cap has 2 functions: to measure and prevent splashing.

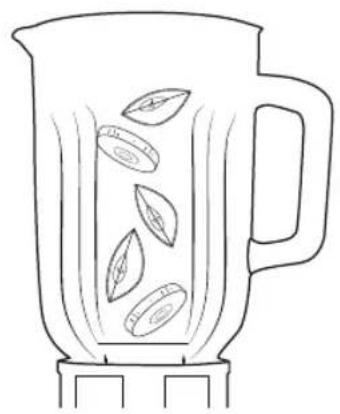

Line drawing of a blender with leafy liquid inside (no text or symbols)

Line drawing of a blender with leaves inside, showing liquid and lid (no text or symbols)

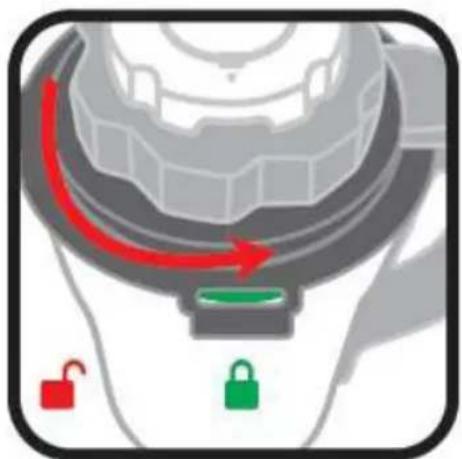

1. Place the blender jug on the motor unit.

2. Plug the power cord into the mains socket.

3. Turn the knob clockwise to desired speed, or use the pulse function by turning the knob anticlockwise.

Line drawing of a blender with a cooling pot and lid, showing the blade being heated (no text or symbols)

1000 - 15 1250 - 125 1500 - 15 300 - 0.75 300 - 0.5

Control settings

P Pulse Spins in the opposite direction at the highest speed to release ingredients, which helps to clean the machine without clogging. The pulse function helps prevent food from getting stuck in the machine. It lifts the fruits and vegetables upwards. This is suitable for ice and for when you only want to roughly blend ingredients and you require control so that you do not end up with a really fine mixture. The pulse function protects the appliance from the overloading of ingredients or hard ingredients and corrects the juice extraction process. For short pulses of blending at high speed, turn the control dial to “P”. When you release the control dial, the blender will stop and return to “0” automatically. Use about 3-5 seconds and stop it.
0 OFF Turns off the table blender
1 Low speed Blends continuously on the lowest speed.
2-4 Medium speeds Speed 2: 20% faster than speed 1Speed 3: 40% faster than speed 1Speed 4: 60% faster than speed 1
5 High speed Blends continuously at the highest speed.

WARNING!

If the motor overheats, the unit automatically stops to prevent damage to the motor. Wait about 10 minutes until the unit cools down, unplug it and plug it in again: the appliance can be used again.

1. When your preparation is ready, turn the control dial to the "O" position and unplug from the mains socket.
2. Remove the lid. You can now serve the preparation.

Practical tips for use

• Cut meat or solid food into pieces before putting them in the blender.
• If you need to mix/chop large amounts of solid food, do so in small portions.

• Some preparations cannot be properly made in a blender:

• Whisked egg whites

• Whipped cream
• Mashed potatoes
• Minced raw meat
• Kneaded dough

• Fruit and vegetable juice extraction

• Liquids or other ingredients can be added at any time without stopping the machine. Remove the measuring cap from the lid (by turning it anticlockwise). Do not exceed the maximum recommended quantities.

• To crush ice, it is recommended not to put more than 10 ice cubes at a time. Then use the PULSE function ten times. If the result is not satisfactory, you can do a few more pulses.

cleaning and maintenance

WARNING!

• Before cleaning your blender, make sure that the control dial is in "O" position and that the unit is unplugged from the power point.
• Never immerse the motor unit, power cord, power plug in water or any other liquid.
  • There is a potential risk of injury if used incorrectly.
  • The surface of the heating element may remain hot for some time after use
• Never place the appliance and accessories in the dishwasher!
  • The blades are sharp. It is essential that you take special precautions when handling them to avoid injury.
• Never use scouring pads or abrasive detergents for cleaning.

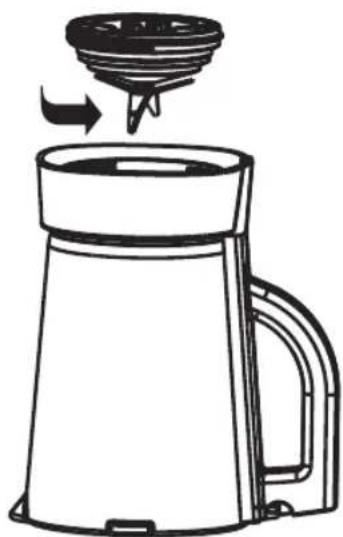

DISMANTLING THE APPLIANCE

1. Lift the blender jug off its base and place it on a flat, stable surface.
2. Remove the measuring cap.
3. Turn the lid release button anticlockwise and remove the lid.
4. Make sure the blender jug is empty, turn it over and place it on a flat and stable surface.

1. Unscrew the 2-crossed blades knife knife assembly by turning it clockwise.

Line drawing of a blender with a lid and handle, showing a drop in the top pan (no text or symbols)

1. Remove the blade gasket from the plastic base.

Abstract black-and-white illustration of a circular object with a triangular base (no text or symbols)

Warning!

When reassembling, pay close attention to the direction you fit the gasket on the base.

GENERAL CLEANING RECOMMENDATIONS

• Immediately rinse all the parts after use for easy cleaning.
• Wipe the motor unit with a sponge, and then thoroughly dry it with a soft cloth.
• Stubborn stains can be removed with a damp sponge and possibly a little non-abrasive detergent (washing up liquid, for example).
• The removable parts (lid, measuring cap, blender jug) should be washed by hand with water and washing up liquid. No removable parts can be placed in the dishwasher.
• Be sure to clean the lid seal and the 2-crossed blades knife gasket thoroughly. When they are clean and dry, put them back on the unit properly.
• The blender jug should not be immersed in water or any other liquid. To clean the jug, see the “Cleaning and maintenance - Cleaning the jug” section.

To quickly rinse the jug (in between preparations, for example), you can use clean water and run the appliance for a few seconds. In this case, do not use detergent.

THOROUGH CLEANING OF THE JUG

• Use a brush to remove all traces of or food and rinse.
• For a complete cleaning of the jug, pour 800 ml of clear water into the jug and a small amount of washing-up liquid, close the lid and then run the appliance for a few seconds in normal mode or in "PULSE" mode (refer to section "Use"). The blades will rotate to clean the bowl, and you can stop the cleaning process at any time by turning the knob to the "0" (OFF) position.
• Rinse the jug again with clean water.
• Then thoroughly wipe with a soft, dry cloth. Make sure the jug is completely dry before placing it back on the motor unit.

CLEANING THE LID

• Pour some warm water into the lid and add a few drops of washing up liquid.
• Use a brush to remove all traces of food and rinse.
• Then thoroughly wipe with a soft, dry cloth. Make sure the lid is completely dry before placing it back on the jug.
• You can also clean the seal. To do this, remove it, taking care not to damage it. Clean the seal with a damp sponge and possibly a little non-abrasive detergent (washing up liquid, for example). Once dry, return it to its original position.

CLEANING THE MOTOR UNIT

- Clean any stains on the motor block with a clean, slightly damp cloth and dry it completely.

STORAGE

- Wrap the power cord around the cord holder located under the motor unit and store the appliance in a cool, dry place.

Line drawing of a blender with leafy liquid inside (no text or symbols)

Line drawing of a blender with leafy contents inside, showing liquid and lid (no text or symbols)

Line drawing of a blender with a handle and blade, showing top view and side view (no text or symbols)

Line drawing of a blender with a lid and handle, showing a drop in the top pan (no text or symbols)

Abstract black-and-white illustration of a circular object with a triangular base and textured top (no text or symbols)

¡Atención!

Line drawing of a blender with leafy liquid inside (no text or symbols)

Line drawing of a blender with leafy contents inside, showing liquid and lid (no text or symbols)

Line drawing of a blender with a handle and blade, showing top view and side view (no text or symbols)

Line drawing of a blender with a lid and handle, showing a drop in the top pan (no text or symbols)

Abstract black-and-white illustration of a circular object with a triangular base and textured top (no text or symbols)

Achtung!

Line drawing of a blender with leafy liquid inside (no text or symbols)

Line drawing of a blender with leafy contents inside, showing liquid and lid (no text or symbols)

Line drawing of a blender with a handle and blade, showing top view and side view (no text or symbols)

Line drawing of a kitchen blender with a lid and handle, showing a drop in the top pan (no text or symbols)

Abstract black-and-white illustration of a circular object with a triangular base and textured top (no text or symbols)

Opgelet:

*EN. 2 year warranty

Protection of the environment

This symbol attached to the product means that it is an appliance whose disposal is subject to the directive on waste from electrical and electronic equipment (WEEE). This appliance may not in any way be treated as household waste and must be subject to a specific type of removal for this type of waste. Recycling and recovery systems are available in your area (waste removal) and by distributors. By taking your appliance at its end of life to a recycling facility, you will contribute to environmental conservation and prevent any harm to your health.

Tested in our laboratories

Warranty valid from the date of purchase (receipt as proof of purchase). This warranty does not cover defects or damage caused by improper set up, incorrect use, or normal wear and tear of this product.

Customer Relations Department /
