USER MANUAL SED 3.7 G3 SILVERCREST

PDF ONLINE www.lidl-service.com

White SwissCaser brand electric shaver with visible brand mark and control knob (no text or symbols beyond branding)

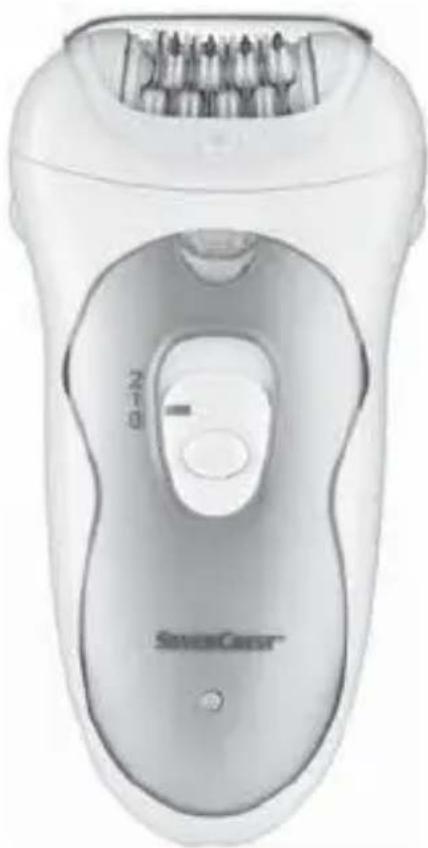

EPILIERER / EPILATOR ÉPILATEUR ÉLECTRIQUE SED 3.7 G3

DE AT CH

EPILIERER

Bedienungsanleitung

FR BE

Operating instructions

NL BE

EPILEERAPPARAAT

Gebruiksaanwijzing

CZ

EPILÁTOR

Návod k obsluze

IAN 331147_1907

DE

BE

PL

CZ

SK

i

DE AT CH

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR BE

Labeled diagram of a device interior with numbered parts for identification

B

10

11

Simple line drawing of a container with a handle and a small object attached to the top (no text or symbols)

12

Simple line drawing of a bulb with a vertical line above it and a striped base (no text or symbols)

Inhaltsverzeichnis

Einführung 2

Urheberrecht 2

Simple line drawing of a trash bin with two crossed lines indicating no waste or prohibition (no text or symbols)

Symbol of a trash bin crossed out by two crossed lines, with no text or labels present.

Line drawing of a mechanical component with a central internal structure and mounting feet (no text or symbols)

Simple line drawing of a mechanical component with a central spring-like structure (no text or symbols)

▶ 1 Epilierkopf ②

▶ 1 Massagerollenaufsatz 9

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DEUTSCHLAND

www.kompernass.com

Table of Contents

Introduction 24

Copyright 24

Intended Use 24

Items supplied 25

Operating Elements 26

Technical data 27

Safety instructions 29

Mains power operation 33

Battery operation 33

Tips and Tricks 34

Epilation 35

Cleaning and Care 37

Storage 38

Troubleshooting 38

Disposal 39

Ordering spare parts 40

Kompernass Handels GmbH warranty ..... 41

Service 43

Importer 44

Introduction

Congratulations on the purchase of your new appliance.

You have clearly decided in favour of a quality product. These operating instructions are a part of this product. They contain important information in regard to safety, use and disposal. Before using the product, familiarise yourself with all of these operating and safety instructions. Use the product only as described and only for the specified areas of application. In addition, pass these documents on, together with the product, to any future owner.

Copyright

This documentation is copyright protected.

Any copying or reproduction, including as extracts, as well as the reproduction of images, also in an altered state, is only permitted with the written authorisation of the manufacturer.

Intended Use

This appliance is intended exclusively for the epilation of human hair in domestic households. Do not use it for commercial purposes! This appliance is not intended for any other use or for uses beyond those mentioned.

Claims of any kind resulting from damage caused by improper use, incompetent repairs, unauthorised modifications or the use of non-approved spare parts will not be acknowledged.

The operator alone bears the risk.

Items supplied

The appliance is supplied with the following components as standard:

■ Epilator
■ Protective cap
■ Massage roller attachment
■ Mains adapter
- Cleaning brush
Storage pouch
■ Operating Instructions

Extract all parts of the appliance from the carton and remove all packaging material. Check the contents to ensure everything has been supplied, and for signs of visible damage.

TIPS

As delivered, the storage pouch is located under the plastic shell containing the device itself.
▶ If the delivery is incomplete, or has been damaged due to defective packaging or transportation, contact the Service Hotline (see section Service).

Operating Elements

Figure A:

1 Protective cap
② Epilator head
③ Restraint fixtures for epilator head
4 Travel lock
5 Speed switch
6 Control lamps red/green
⑦ Socket for mains adapter
⑧ LED light
⑨ Massage roller attachment

Figure B:

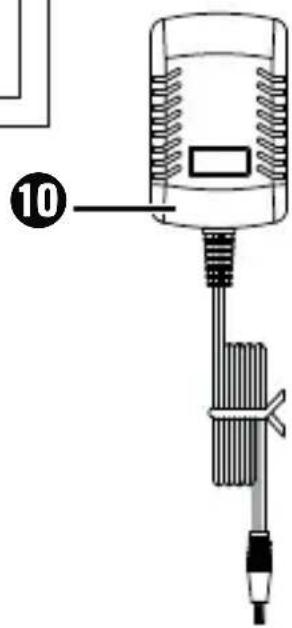

⑩ Mains power adapter

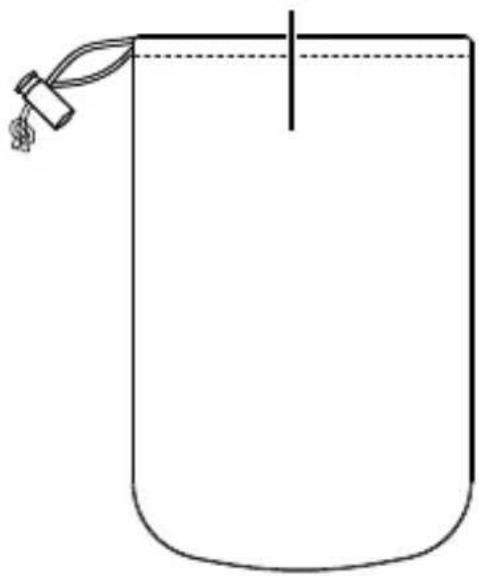

11 Storage pouch
12 Cleaning brush

Technical data

Mains adapter
Type ZDM045100EU
Manufacturer	E-TEK Electronics Manufactory Co., Ltd.Commercial register number:91440300755667743WAddress:B, 3 Bldg, Tangwupu Industrial Park, Yanchuan, Songgang SubdistrictBao'an DistrictShenzhen, Guangdong 518105P.R. China
Input voltage 100-240 V ~ (AC), 50/60 Hz
Power consumption 0.2 A
Output voltage 4.5 V	---(DC)
Output current 1.0 A
Output power 4.5 W
Average operating efficiency ≥ 72.81%
Low load efficiency (10%) ≥ 63.77% (reference data)
No-load power consumption 0.1 W max.
Protection class	II/□(double insulation)
Polarity
Switched-mode power supply

Efficiency class 6
Short-circuit proof safety transformer
Nominal ambient temperature (ta)	40°C
Protection class	IP 20: Protected against ingress of solid foreign objects with a diameter of >12.5 mm
Appliance
Input voltage 4.5 V	——
Power consumption 1.0 A
Rechargeable battery 3.7 V	——700 mAh Li-ion battery

Appliance

Input voltage 4.5 V	==
Power consumption 1.0 A
Rechargeable battery 3.7 V	==700 mAh Li-ion battery

TIPS

UN 34811 Tel. [phone]

The product is equipped with or supplied with a lithium-ion battery.

Safety instructions

RISK OF ELECTRIC SHOCK

• Connect the appliance only to correctly installed mains power sockets supplying a current rating of 100 - 240 V \~, 50/60 Hz.
  ▶ In the event of operational malfunction, and for cleaning, always remove the plug from the mains power socket.
  ▶ To disconnect the power cable, always pull the plug itself from the mains power socket, do not pull on the cable.
  ▶ Do not kink or crimp the power cable and place it in such a way as to prevent anyone from stepping on or tripping over it.
  ▶ Ensure that the power cable cannot become wet or moist during operation. Place it such that it cannot be squashed or damaged.
  ▶ To avoid risks, should the appliance be damaged discontinue the use of it immediately.
  ▶ Do not use the appliance outdoors.

RISK OF ELECTRIC SHOCK

▶ Do not wrap the power cable around the appliance and protect it from being damaged.
▶ NEVER grasp the appliance, power cable or plug with wet hands.
▶ TAKE NOTE! Keep the appliance dry.
▶ Never use the appliance near water, particularly not near sinks, baths or other vessels. The proximity of moisture presents a danger, even when the appliance is switched off.
After use, always remove the plug from the mains power socket. As additional protection, the installation of a faulty-current protection unit with an activation power rating of not more than 30 mA is recommended for the power circuit in the bathroom. Consult your electrician for advice.

⚠ WARNING! RISK OF INJURY!

- Do not operate the appliance if it has sustained a fall or is damaged. Arrange for the appliance to be checked and/or repaired by qualified technicians.

▶ Do not open the housing or attempt to repair the appliance yourself. Should you do so, appliance safety can no longer be assured and the warranty will become void. Permit only authorised technicians to repair a defective appliance if repairs should be necessary.

▶ Use the appliance only with the supplied power adapter.

▶ Charge the appliance only with the supplied power adapter.

This appliance may be used by children aged 8 over and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, provided that they are under supervision or have been told how to use the appliance safely and are aware of the potential risks.

WARNING! RISK OF INJURY!

▶ Children must not play with the appliance.
- Cleaning and user maintenance tasks must not be carried out by children unless they are supervised.

WARNING! PROPERTY DAMAGE!

Use the appliance only indoors.

Mains power operation

1) Insert the connector plug of the mains power adapter ⑩ into the socket for mains adapter ⑦ on the appliance. Ensure that the speed switch ⑤ is set at "0".
2) Connect the mains power adapter ⑩ to a mains power socket. The control lamp ⑥ glows red to indicate that the charging process is active.

The appliance is ready for immediate use.

Battery operation

1) Insert the connector plug of the mains power adapter ⑩ into the socket for mains adapter ⑦ on the appliance. Ensure that the speed switch ⑤ is set at "0".
2) Connect the mains power adapter ⑩ to a mains power socket. The control lamp ⑥ glows red to indicate that the charging process is active.

As soon as the control lamp ⑥ glows green the appliance is fully charged and you can disconnect it from the mains power supply.

NOTICE

For the initial charging, the appliance requires about 80 minutes to fully charge.
▶ First recharge the appliance when the control lamps ⑥ indicate, by alternately flashing red and green, that the battery charge level is low.

Tips and Tricks

NOTICE

▶ Do not use the appliance if ...
- You have a sunburn on the specific part of the body.
— Skin irritation or redness is extant.
- You have a skin disease such as, for example, neurodermatitis.
- You have pimples, moles or warts on the specific parts of the body.
- You have wounds, open sores or raised scars on the specific parts of the body.

▶ First test the appliance on a small hidden location to establish the skin compatibility.

■ The hairs should be between 0.3 cm and 0.5 cm long. Shorter hairs are not gripped by the tweezers and plucking out longer hairs is very painful. If needs be, shorten long hair.

■ The skin must be free of grease or cream residues. Otherwise, the tweezers will stick/soil and the efficiency of the appliance will be reduced.

■ The skin must be completely dry.

The best time for epilation is in the evening after a shower. Then the skin is somewhat softened, so that the hairs can be plucked out easily. In addition, the skin can recover overnight, and any skin reddening will recede.

Before epilation, treat the skin with a peeling or a massage glove. This helps remove dead skin cells, ingrowing hairs are avoided, and fine hairs stand proud. This enables the appliance to grip the hairs better.

■ After epilation, nurture the skin with a moisturising lotion or cream. Ideally, the cream will contain aloe vera or camomile extracts to soothe and maintain the skin.

Epilation

If the body parts to be epilated are prepared:

1) Rub your hand once more against the growth direction of the hairs to be removed. Through this the hairs will be raised so that they can be better captured by the tweezers.
2) Remove the protective cap ① from the epilator head ②.
3) If necessary, fit the massage roller attachment ⑨ onto the epilator head ②. The massage rollers stimulate the skin and thus ensure a gentler epilation experience.
4) Press the travel lock ④ and slide the speed switch ⑤ upwards to the desired speed level:

— Level 1: for sensitive areas (armpits and bikini line)

- Level 2: for legs

During operation, the LED light ⑧ illuminates the skin area being depilated.

5) Hold the skin tight with one hand.
6) Place the epilator perpendicular to the skin and, without exerting any pressure, move it against the direction of the hair growth.

Thereby, the side with the speed switch ⑤ must face towards you. Do not make back and forth or circular movements.

Always start anew and pass over the body part to be epilated several times, so that all of the hair is removed.

NOTICE

It may be that the hair grows back after a few days. The reason for this is that these hairs were too short to be removed during the last epilation session.

7) When you are finished with the treatment, place the speed switch ⑤ to "0".

8) Clean the epilator head ② as described in the section "Cleaning and Care".

9) If necessary, remove the massage roller attachment ⑨ and place the protective cap ① on the epilator head ②.

NOTICE

▶ Stop using the epilator head ② immediately if it is damaged!

To order a new epilator head ②, please contact the Service

Department (see section "Ordering replacement parts").

To replace the epilator head ②, please proceed as follows:

- Press the two restraint fixtures ③ together, and at the same time pull the epilator head ② upwards.

— Press the new epilator head ② onto the appliance.

The epilator head ② must click into place.

Cleaning and Care

RISK OF ELECTRIC SHOCK

Before cleaning, disconnect the appliance from the mains power adapter ⑩ and the mains power adapter ⑩ from the main power supply.

WARNING! PROPERTY DAMAGE!

▶ NEVER submerse the appliance in water or other liquids!

■ After every use clean the epilator head ② with the supplied cleaning brush ⑫ to remove loose hairs.

- Disinfect the epilator head ② regularly by spraying and cleaning it with disinfectant spray.

To thoroughly clean the epilator head ② you can remove it from the appliance:

- Press the two restraint fixtures ③ together and at the same time pull the epilator head ② upwards.

- Clean the epilator head ② under running water and then allow it to dry.

- Place the epilator head ② back onto the appliance. The epilator head ② must audibly engage.

- Clean the appliance housing and the mains power adapter 10 with a moist cloth. If required, use some mild detergent on the cloth. Ensure that the appliance is completely dry before the next use.

Storage

■ Always protect the epilator head ② with the supplied protective cap ①.

■ Store the appliance, the cleaning brush ⑫ and the mains power adapter ⑩ in the storage pouch ⑪.

■ Store the appliance at a dry and dustfree location.

Troubleshooting

Problem Cause	Solution
The appliance does not function.	The battery is drained.	Recharge the appliance.
	The appliance is defective.	In this case, contact CustomerServices.
The appliance only runs slowly.	The battery is drained.	Recharge the appliance.
The plucking of the hairs is very painful.	The hairs may be too long.	Shorten the hairs to about 0.3 - 0.5 cm. See also the section "Tips and Tricks".
Not all hairs are plucked.	It is possible that the hairs are too short.	The hairs should have a length of 0.3 - 0.5 cm.
	You are working too fast.	Move the appliance more slowly over your skin.

Disposal

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Never dispose of the appliance or the mains adapter in your normal domestic waste. This product is subject to the provision of European Directive 2012/19/EU WEEE (Waste Electrical and Electronic Equipment).

Simple line drawing of a trash bin with two crossed lines indicating no waste or restriction (no text or symbols)

Dispose of the appliance and the mains adapter via an approved disposal company or your municipal waste facility. Observe the currently applicable regulations. In case of doubt, please contact your waste disposal centre.

NOTE

The integrated rechargeable battery in this appliance cannot be removed for disposal. To prevent risks, the removal or replacement of the battery may only be carried out by the manufacturer or the manufacturer's customer service department or a similarly qualified person. When disposing of the appliance, indicate that the appliance contains batteries.

Your local community or municipal authorities can provide information on how to dispose of the worn-out product.

The product is recyclable, subject to extended producer responsibility and is collected separately.

The packaging is made of environmentally friendly materials which you can dispose of at your local recycling centre.

Dispose of the packaging in an environmentally friendly manner. Note the labelling on the packaging and separate the packaging material components for disposal if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings: 1–7: Plastics, 20–22: Paper and cardboard, 80–98: Composites.

Ordering spare parts

You can order the following replacement parts for product SED 3.7 G3:

Line drawing of a mechanical component with no visible text or symbols

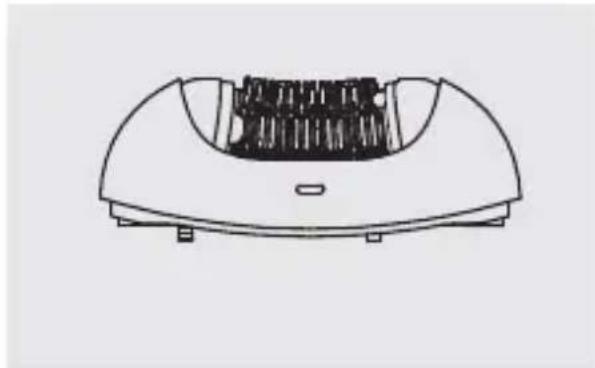

▶ 1 epilator head ②

Simple line drawing of a mechanical component with a central spring-like structure (no text or symbols)

▶ 1 massage roller attachment ⑨

Order the replacement parts via the Service Hotline (see section „Service“) or simply visit our website at www.kompernass.com.

SED 3.7 G3

NOTE

▶ Have the IAN number of the appliance ready (can be found on the cover of these operating instructions) when you place your order.

This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.

Warranty conditions

The warranty period starts on the date of purchase. Please keep your receipt in a safe place. This will be required as proof of purchase.

If any material or manufacturing fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you or refund the purchase price (at our discretion). This warranty service requires that you present the defective appliance and the proof of purchase (receipt) within the three-year warranty period, along with a brief written description of the fault and of when it occurred.

If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.

Warranty period and statutory claims for defects

The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.

Scope of the warranty

This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.

The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or to fragile parts which could be considered as consumable parts such as switches, batteries or parts made of glass.

The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.

This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

■ Please have the till receipt and the item number (e.g. IAN 12345) available as proof of purchase.

■ You will find the item number on the type plate on the product, an engraving on the product, on the front page of the operating instructions (below left) or on the sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

■ You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

PDF ONLINE www.idi-service.com

You can download these instructions along with many other manuals, product videos and installation software at www.lidl-service.com.

This QR code will take you directly to the Lidl service page (www.lidl-service.com) where you can open your operating instructions by entering the item number (IAN) 123456.

Service

Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

IAN 331147_1907

Importer

Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Sommaire

Introduction 46

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Symbol of a trash bin crossed with no text or labels

Line drawing of a car front bumper with internal gear mechanism (no text or symbols)

Simple line drawing of a mechanical component with no text or symbols

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

ALLEMAGNE

www.kompernass.com

Inhoud

Inleiding 72

Auteursrecht 72

⚠ WAARSCHUWING! LETSELGEVAAR!

⚠ WAARSCHUWING! LETSELGEVAAR!

Simple line drawing of a trash bin with crossed lines indicating no waste or restriction (no text or symbols)

Symbol of a trash bin crossed with no text or labels, representing environmental restriction (no text present)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DUITSLAND

www.kompernass.com

Spis treści

Wprowadzenie 94

Prawo autorskie 94

Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or labels)

Symbol of a trash bin crossed with a diagonal line, representing waste sorting or disposal (no text or labels)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NIEMCY

www.kompernass.com

Obsah

Úvod 116

Simple line drawing of a trash bin with two crossed lines indicating no waste or restriction (no text or symbols)

Simple line drawing of a trash bin with crossed lines indicating no waste or restriction (no text or symbols)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NĚMECKO

www.kompernass.com

Obsah

Úvod 136

Autorské práva 136

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Simple line drawing of a trash bin with two crossed lines indicating no waste or prohibition (no text or symbols)

Line drawing of a car front bumper with internal components (no text or symbols)

Simple line drawing of a mechanical component with no text or symbols

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NEMECKO

www.kompernass.com

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Stand der Informationen · Last Information Update · Version des informations

Stand van de informatie · Stan informacji · Stav informací · Stav informácií:
