Product Type	Electric Sprayer
Brand	Chapin
Model	97200E
Power Source	12 V DC (vehicle battery)
Maximum Pressure	60 psi (4.1 bar)
Flow Rate	1.0 gallon per minute (GPM)
Pump Type	Two-chamber diaphragm pump, self-priming
Hose Length	4.6 m (15 ft)
Maximum Spray Reach	10.7 m (35 ft)
Pump Weight	0.57 kg (1.25 lb)
Construction Materials	Nylon 6/6, Viton, Santoprene, stainless steel
Thermal Protection	Thermally protected motor
Maximum Liquid Temperature	43 °C (110 °F)
Standard Nozzle	Adjustable nozzle #18
Warranty	1 year
Maintenance	Rinse with water after use, winterize with RV antifreeze
Recommended Safety Equipment	Goggles, gloves, long sleeves, long pants, closed-toe shoes
Prohibitions	Do not spray flammable, caustic, acidic, chlorine, bleach, or petroleum products
Spare Parts	Available (full list in manual)

Frequently Asked Questions - 97200E Chapin

Why doesn't the pump run all the time?

It is a demand pump that only runs with a flow: spray wand, bypass, spray nozzles, or leak in the system.

Why does the pump surge during spray wand use?

Low flow can cause pump surging (or fluctuation). This can occur when the spray wand is set to a small or fine spray pattern. To overcome this, slightly open the adjustable nozzle.

How can I adjust the pressure?

Pressure can only be adjusted by adjusting the nozzle.

My pump stops and won't restart. What should I check?

Check all electrical connections. Make sure the switch is in the On position. Check the inline fuse. Ensure proper voltage (12-13 volts).

Flow is low or non-existent. What should I check?

Check for a clogged suction hose and/or suction strainer. Often you will need to clean the suction strainer. Check for proper voltage. Make sure the filter is in the Off position.

Is there a fuse for the sprayer?

Yes, an inline fuse in the wiring harness.

What size fuse should I use as a replacement?

7.5 A.

What is the spray reach of the wand?

10.7 m (35 ft) maximum.

How should I clean the tank after use?

Rinse the tank thoroughly with water only, empty it and fill with water. Drain the sprayer by spraying for at least 1 minute to flush the line. The remaining water can be drained through the drain plug. Store the sprayer tank upside down in a warm, dry place.

Can the spray nozzle on the wand be replaced with a different nozzle?

Yes. However, your spray wand comes with the standard #18 nozzle. Brass nozzles will generally produce better spray patterns than plastic.

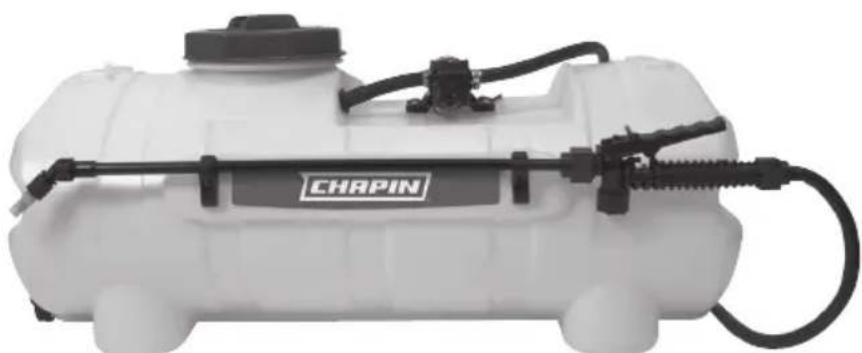

USER MANUAL 97200E Chapin

See website for warranty details

15 Gallon

25 Gallon

Chapin International, Inc

P.O. Box 549 700 Ellicott St.

Batavia, NY 14021-0549 U.S.A.

1-800-950-4458 www.chapinmfg.com

Model 97200E, 97400E

WARNING

Carefully Read These Instructions Before Use

WARNING

IMPROPER USE OR FAILURE TO FOLLOW INSTRUCTIONS CAN RESULT IN EXPLOSIVE FAILURE CAUSING SERIOUS EYE OR OTHER INJURY.

FOR SAFE USE OF THIS PRODUCT YOU MUST READ AND FOLLOW ALL INSTRUCTIONS. DO NOT LEAVE SPRAYER IN THE HOT SUN. HEAT CAN CAUSE PRESSURE BUILD-UP RESULTING IN POSSIBLE EXPLOSION. DO NOT STORE OR LEAVE SOLUTION IN TANK AFTER USE. ALWAYS WEAR GOGGLES, GLOVES, LONG SLEEVE SHIRT, LONG PANTS AND FULL FOOT PROTECTION WHEN SPRAYING.

DO NOT ATTEMPT TO MODIFY THIS SPRAYER. REPLACE PARTS ONLY WITH MANUFACTURER'S ORIGINAL PARTS.

NEVER SPRAY FLAMMABLE, CAUSTIC, ACIDIC, CHLORINE, BLEACH, PETROLEUM BASED OR OTHER CORROSIVE SOLUTIONS OR HEAT, PRESSURE, OR GAS PRODUCING CHEMICALS. ALWAYS READ AND FOLLOW CHEMICAL MANUFACTURER'S INSTRUCTIONS BEFORE USE WITH THIS SPRAYER AS SOME CHEMICALS MAY BE HAZARDOUS WHEN USED WITH THIS SPRAYER.

ENSURE THE WIRING HARNESS DOES NOT BECOME PINCHED OR DAMAGED IN ANY WAY. THIS MAY DAMAGE THE PUMP OR CAUSE THE WIRING HARNESS TO OVERHEAT, RESULTING IN MELT DOWN OR FIRE.

SOME CHEMICALS WILL DAMAGE THE PUMP VALVES IF ALLOWED TO SOAK UNTREATED FOR A LONG PERIOD OF TIME. ALWAYS FLUSH THE PUMP WITH WATER AFTER USE. DO NOT ALLOW CHEMICALS TO SIT IN PUMP FOR EXTENDED TIMES OF IDLENESS. FOLLOW CHEMICAL MANUFACTURERS INSTRUCTIONS ON DISPOSAL OF ALL WASTE WATER FROM THE SPRAYER.

CAUTION

THIS SPRAYER HAS BEEN DESIGNED TO BE ATTACHED TO STABLE SURFACES.

OPERATION

The pumping system draws solution from the tank, through the strainer and to the pump. The pump forces the solution under pressure to the spray wand.

The pump has a pressure switch which will shut the pump off when it reaches 60 PSI.

Regularly inspect the suction supply screen on the inside of the tank. Flush with water to clear any accumulated debris.

AFTER SPRAYING

After use, fill the sprayer part way with water. Start the sprayer and allow clear water to be pumped through the plumbing system and out through the spray wand.

Refill the tank about half full with plain water and use a chemical neutralizer and repeat cleaning instructions. Flush the entire sprayer with the neutralizing agent. Follow the chemical manufacturer's disposal instructions of all wash or rinsing water.

WINTER STORAGE

Drain all water and chemical out of sprayer, paying special attention to pump and valves. These items are especially prone to damage from chemicals and freezing weather.

The sprayer should be winterized before storage by pumping a solution of RV antifreeze through the entire plumbing. Proper care and maintenance will prolong the life of the sprayer.

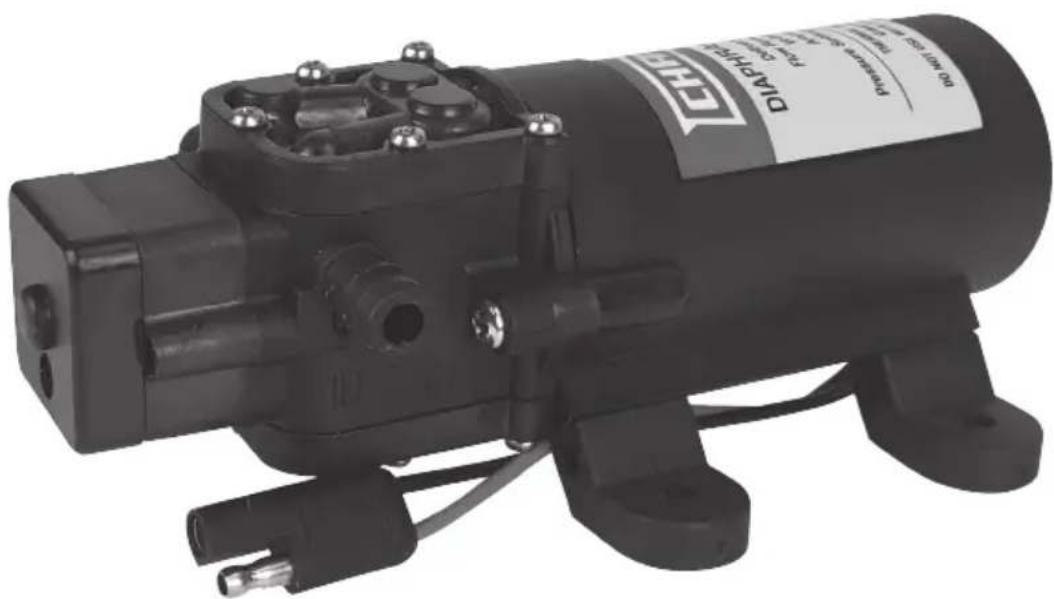

Fits Chapin 15 and 25 gallon ATV sprayers

12 Volt DC, totally enclosed, non ventilated

Max amp rating: 3.0 MAX

Leads: 6" long

2 chamber positive displacement diaphragm pump, self priming, capable of being run dry, demand or bypass model.

Priming Capabilities: 4 feet [1.2 ml]

Max Pressure: 60 PSI

3/8" Straight hose barb

TROUBLESHOOTING

CONDITION CHECK/SOLUTION

Pump won't start Correct voltage (12 - 13V) and electrical connections
Correct voltage at switch
Pump will not prime(No discharge with motor running)	Debris in strainer
	Restriction (kinks) in inlet / outlet tubes
	Debris / swelling in inlet / outlet valves
Pump will not shut-off(output line closed and no leaks)	Air trapped in outlet line or pump head
	Correct voltage to pump
	Debris in pump inlet / outlet valves
	Loose drive assembly or pump head screws
	Pressure switch operations / adjustments
Leaks from pump head or switch	Loose screws at switch or pump head
	Switch diaphragm ruptured or pinched
	Punctured diaphragm if fluid is present
Pump makes noise, but no output	Prime with garden hose by removing intake hose and flood with water while pump is running until water starts flowing (this may take up to 15 minutes to create suction).
	To better understand the priming process see video at: https://www.youtube.com/watch?v=IrNeAvNL7Fs or search "Priming the Pump on Your Chapin ATV Sprayer" at Chapin International's YouTube page

SPRAY & PUMP FAQ

1. Why does the pump not run all the time?

This is an on-demand pump and only runs with flow; spray wand, by-pass, spray tips or leak in system.

2. Why does the pump surge while using the spray wand?

Low flow/high pressure may cause the pump to surge (or cycle). This could happen when the spray wand is adjusted for a small or fine spray pattern. To overcome, adjust the nozzle for higher flow.

3. How do I adjust the pressure?

Pressure can only be adjusted by adjusting the nozzle.

4. My pump quit and will not restart - what should I check?

Check all electrical connections. Ensure switch is in the on position. Check in-line fuse. Ensure correct voltage (12-13 volt).

5. Low flow or no flow at all - what should I check?

Check for a clogged suction hose and/or suction strainer. Often you will need to clean the suction strainer. Check for proper voltage. Check filter in shut-off.

6. Is there a fuse for the sprayer?

Yes, an in-line fuse, in the wire harness.

7. What size fuse should I use as a replacement?

7.5 amp

8. What is the range of the spray wand?

30 foot max

9. How should I clean the tank after use?

• Rinse tank thoroughly with water only, empty, refill with water.
• Empty sprayer by spraying no less than 1 minute to rinse out line. The remaining water can be drained per the drain plug.
• Store sprayer tank upside down, in a warm dry location.

10. Can the spray tip on the wand be replaced with a different type of tip?

Yes, however your wand comes with a #18 tip which is standard. Brass tips generally produce better spray patterns than plastic.

11. Each time I turn on the pump my fuse blows.

• Excessive voltage
• Improper adjustment of the pressure switch • Damaged wiring harness

12. What is the warranty [time duration] on pump, tank, and accessories?

1 year after purchase.

Congratulations!

You have just purchased a quality Chapin product.

Register Your Spreader Online@ www.chapinmfg.com/warranty.asp

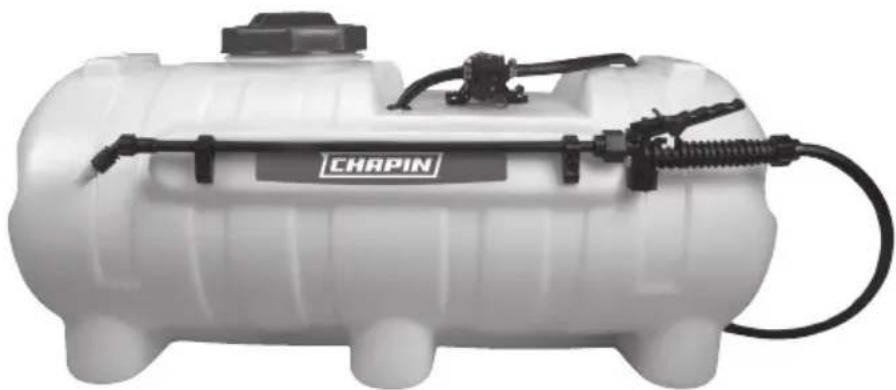

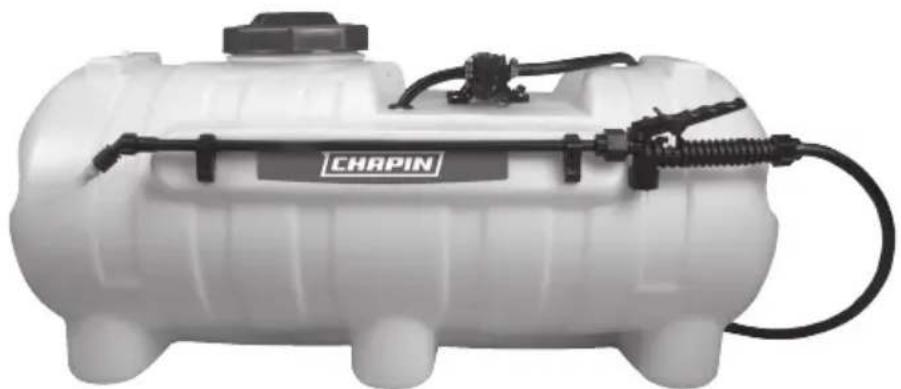

EZ MOUNT™

15 Gallon

25 Gallon

Chapin International, Inc

P.O. Box 549 700 Ellicott St.

Batavia, NY 14021-0549 U.S.A.

1-800-950-4458 www.chapinmfg.com

Model 97200E, 97400E

WARNING

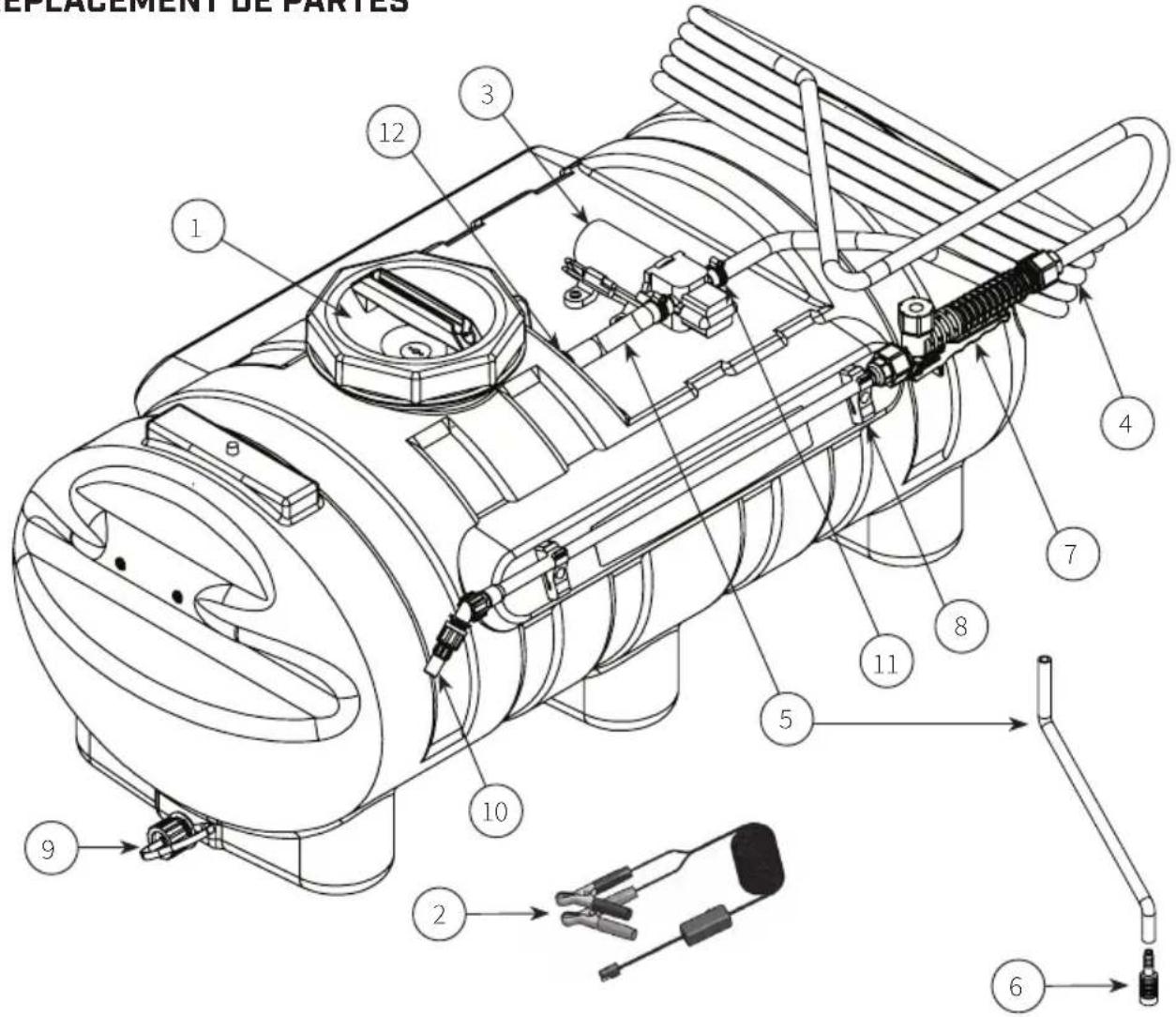

PARTS REPLACEMENT

REF NO. PART NO. QTY DESCRIPTION

15 Gallon

25 Gallon

Chapin International, Inc

P.O. Box 549 700 Ellicott St.

Batavia, NY 14021-0549 U.S.A.

1-800-950-4458 www.chapinmfg.com

TROUBLESHOOTING GUIDE
