USER MANUAL 97400E Chapin

See website for warranty details

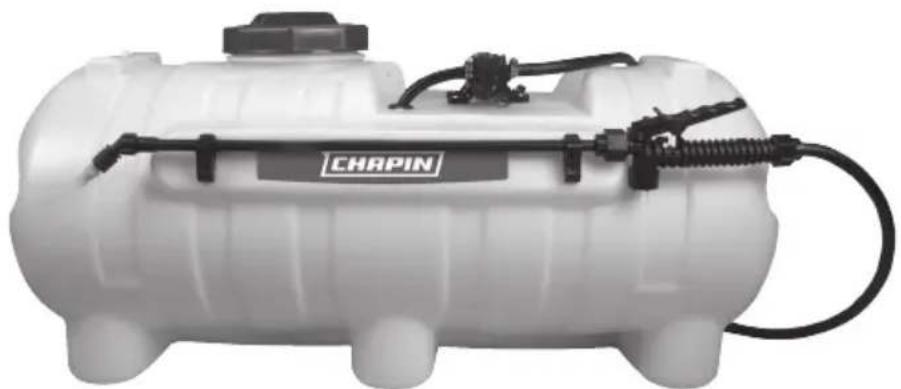

White outdoor spray sprayer with black filter and attached hose (no visible text or symbols)

15 Gallon

White CRAPIN water tank with attached piping and valve (no visible text or symbols)

25 Gallon

Chapin International, Inc

P.O. Box 549 700 Ellicott St.

Batavia, NY 14021-0549 U.S.A.

1-800-950-4458 www.chapinmfg.com

Model 97200E, 97400E

WARNING

Carefully Read These Instructions Before Use

WARNING

IMPROPER USE OR FAILURE TO FOLLOW INSTRUCTIONS CAN RESULT IN EXPLOSIVE FAILURE CAUSING SERIOUS EYE OR OTHER INJURY.

FOR SAFE USE OF THIS PRODUCT YOU MUST READ AND FOLLOW ALL INSTRUCTIONS. DO NOT LEAVE SPRAYER IN THE HOT SUN. HEAT CAN CAUSE PRESSURE BUILD-UP RESULTING IN POSSIBLE EXPLOSION. DO NOT STORE OR LEAVE SOLUTION IN TANK AFTER USE. ALWAYS WEAR GOGGLES, GLOVES, LONG SLEEVE SHIRT, LONG PANTS AND FULL FOOT PROTECTION WHEN SPRAYING.

DO NOT ATTEMPT TO MODIFY THIS SPRAYER. REPLACE PARTS ONLY WITH MANUFACTURER'S ORIGINAL PARTS.

NEVER SPRAY FLAMMABLE, CAUSTIC, ACIDIC, CHLORINE, BLEACH, PETROLEUM BASED OR OTHER CORROSIVE SOLUTIONS OR HEAT, PRESSURE, OR GAS PRODUCING CHEMICALS. ALWAYS READ AND FOLLOW CHEMICAL MANUFACTURER'S INSTRUCTIONS BEFORE USE WITH THIS SPRAYER AS SOME CHEMICALS MAY BE HAZARDOUS WHEN USED WITH THIS SPRAYER.

ENSURE THE WIRING HARNESS DOES NOT BECOME PINCHED OR DAMAGED IN ANY WAY. THIS MAY DAMAGE THE PUMP OR CAUSE THE WIRING HARNESS TO OVERHEAT, RESULTING IN MELT DOWN OR FIRE.

SOME CHEMICALS WILL DAMAGE THE PUMP VALVES IF ALLOWED TO SOAK UNTREATED FOR A LONG PERIOD OF TIME. ALWAYS FLUSH THE PUMP WITH WATER AFTER USE. DO NOT ALLOW CHEMICALS TO SIT IN PUMP FOR EXTENDED TIMES OF IDLENESS. FOLLOW CHEMICAL MANUFACTURERS INSTRUCTIONS ON DISPOSAL OF ALL WASTE WATER FROM THE SPRAYER.

CAUTION

THIS SPRAYER HAS BEEN DESIGNED TO BE ATTACHED TO STABLE SURFACES.

OPERATION

The pumping system draws solution from the tank, through the strainer and to the pump. The pump forces the solution under pressure to the spray wand.

The pump has a pressure switch which will shut the pump off when it reaches 60 PSI.

Regularly inspect the suction supply screen on the inside of the tank. Flush with water to clear any accumulated debris.

AFTER SPRAYING

After use, fill the sprayer part way with water. Start the sprayer and allow clear water to be pumped through the plumbing system and out through the spray wand.

Refill the tank about half full with plain water and use a chemical neutralizer and repeat cleaning instructions. Flush the entire sprayer with the neutralizing agent. Follow the chemical manufacturer's disposal instructions of all wash or rinsing water.

WINTER STORAGE

Drain all water and chemical out of sprayer, paying special attention to pump and valves. These items are especially prone to damage from chemicals and freezing weather.

The sprayer should be winterized before storage by pumping a solution of RV antifreeze through the entire plumbing. Proper care and maintenance will prolong the life of the sprayer.

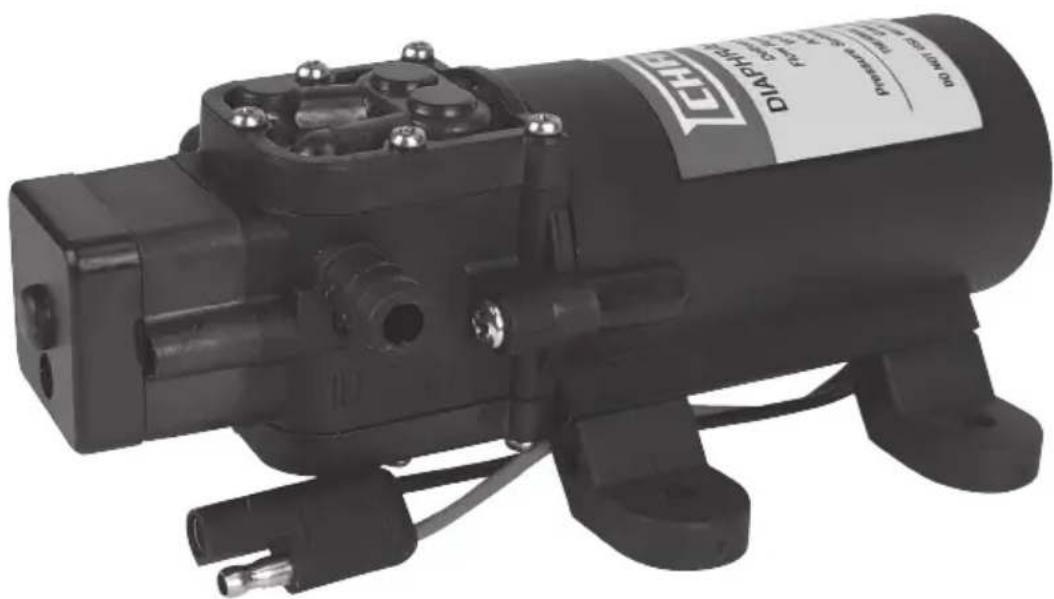

Fits Chapin 15 and 25 gallon ATV sprayers

12 Volt DC, totally enclosed, non ventilated

Max amp rating: 3.0 MAX

Leads: 6" long

2 chamber positive displacement diaphragm pump, self priming, capable of being run dry, demand or bypass model.

Priming Capabilities: 4 feet [1.2 ml]

Max Pressure: 60 PSI

3/8" Straight hose barb

DC DC 120-350 DC 120-350 DC 120-350 DC 120-350 DC 120-350 DC 120-350 DC 120-350 DC 120-350 DC 120-350 DC 120-350 DC 120-35 DC 120-35 DC 120-35 DC 120-35 DC 120-35 DC 120-35 DC 120-35 DC 120-35 DC 120-35 DC 120-35 DC 120-35 DC 120-35

TROUBLESHOOTING

CONDITION CHECK/SOLUTION

Pump won't start Correct voltage (12 - 13V) and electrical connections
Correct voltage at switch
Pump will not prime(No discharge with motor running)	Debris in strainer
	Restriction (kinks) in inlet / outlet tubes
	Debris / swelling in inlet / outlet valves
Pump will not shut-off(output line closed and no leaks)	Air trapped in outlet line or pump head
	Correct voltage to pump
	Debris in pump inlet / outlet valves
	Loose drive assembly or pump head screws
	Pressure switch operations / adjustments
Leaks from pump head or switch	Loose screws at switch or pump head
	Switch diaphragm ruptured or pinched
	Punctured diaphragm if fluid is present
Pump makes noise, but no output	Prime with garden hose by removing intake hose and flood with water while pump is running until water starts flowing (this may take up to 15 minutes to create suction).
	To better understand the priming process see video at: https://www.youtube.com/watch?v=IrNeAvNL7Fs or search "Priming the Pump on Your Chapin ATV Sprayer" at Chapin International's YouTube page

SPRAY & PUMP FAQ

1. Why does the pump not run all the time?

This is an on- demand pump and only runs with flow; spray wand, by-pass, spray tips or leak in system.

2. Why does the pump surge while using the spray wand?

Low flow/high pressure may cause the pump to surge (or cycle). This could happen when the spray wand is adjusted for a small or fine spray pattern. To overcome, adjust the nozzle for higher flow.

3. How do I adjust the pressure?

Pressure can only be adjusted by adjusting the nozzle.

4. My pump quit and will not restart - what should I check?

Check all electrical connections. Ensure switch is in the on position. Check in-line fuse. Ensure correct voltage (12-13 volt).

5. Low flow or no flow at all - what should I check?

Check for a clogged suction hose and/or suction strainer. Often you will need to clean the suction strainer. Check for proper voltage. Check filter in shut-off.

6. Is there a fuse for the sprayer?

Yes, an in-line fuse, in the wire harness.

7. What size fuse should I use as a replacement?

7.5 amp

8. What is the range of the spray wand?

30 foot max

9. How should I clean the tank after use?

• Rinse tank thoroughly with water only, empty, refill with water.
• Empty sprayer by spraying no less than 1 minute to rinse out line. The remaining water can be drained per the drain plug.
• Store sprayer tank upside down, in a warm dry location.

10. Can the spray tip on the wand be replaced with a different type of tip?

Yes, however your wand comes with a #18 tip which is standard. Brass tips generally produce better spray patterns than plastic.

11. Each time I turn on the pump my fuse blows.

• Excessive voltage
• Improper adjustment of the pressure switch
  • Damaged wiring harness

12. What is the warranty [time duration] on pump, tank, and accessories?

1 year after purchase.

Congratulations!

You have just purchased a quality Chapin product.

Register Your Spreader Online@ www.chapinmfg.com/warranty.asp

EZ MOUNT™

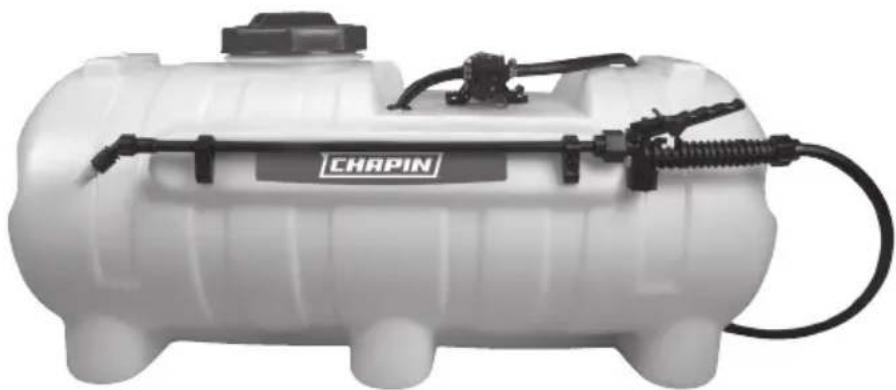

White plastic water spray sprayer with black fittings and a 'CHAPIN' label (no additional text or symbols visible)

15 Gallon

White CRAPIN water purifier with attached hose and valve (no visible text or symbols)

25 Gallon

Chapin International, Inc

P.O. Box 549 700 Ellicott St.

Batavia, NY 14021-0549 U.S.A.

1-800-950-4458 www.chapinmfg.com

Modelo 97200E, 97400E

ADVERTENCIA

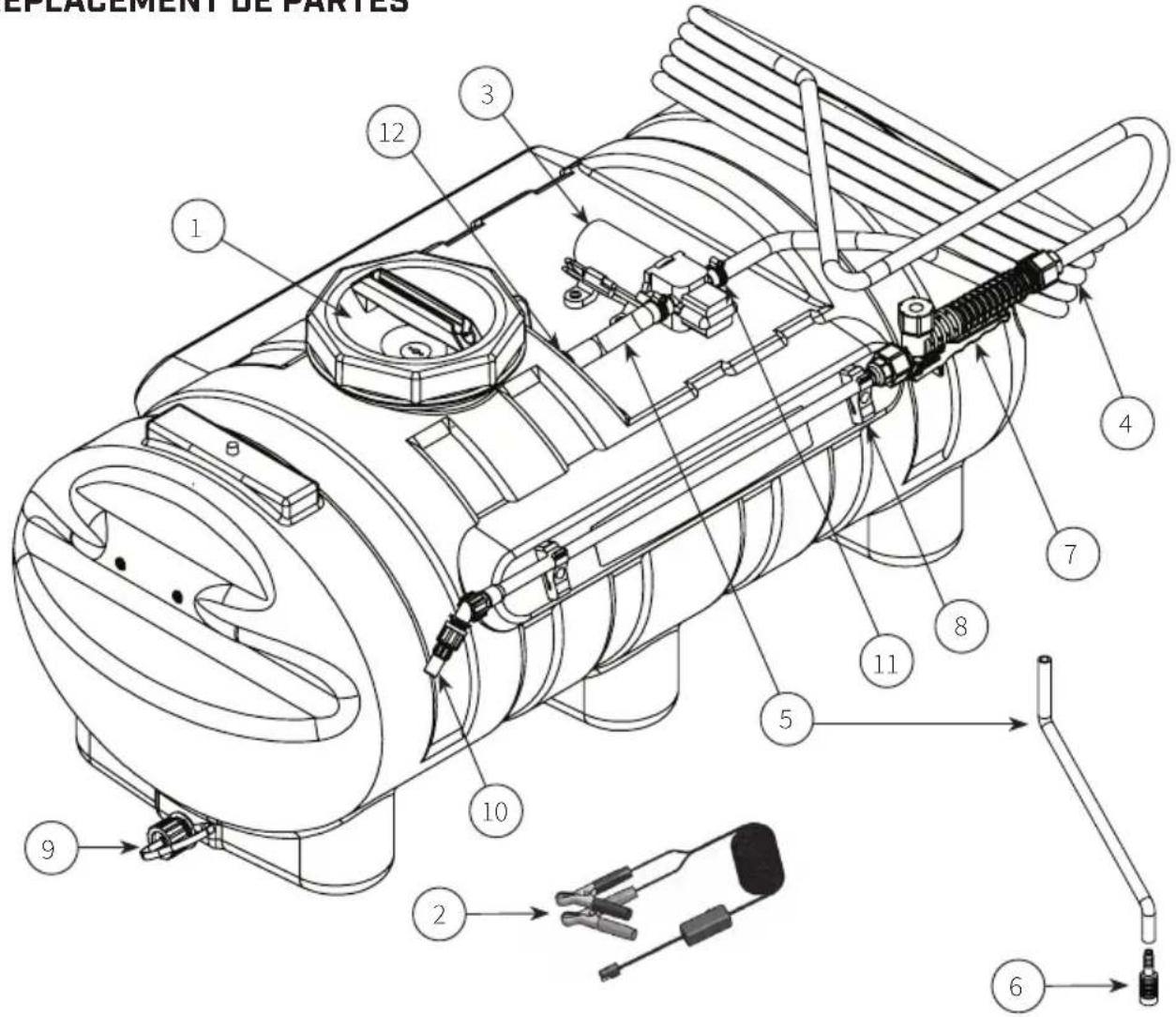

REPLACEMENT DE PARTES

EPLACEMENT DE PARTES 1 2 3 4 5 6 7 8 9 10 11 12 1

REF NO. PART NO. QTY DESCRIPTION

Black industrial pump with attached metal components and a label (no visible text on pump body)

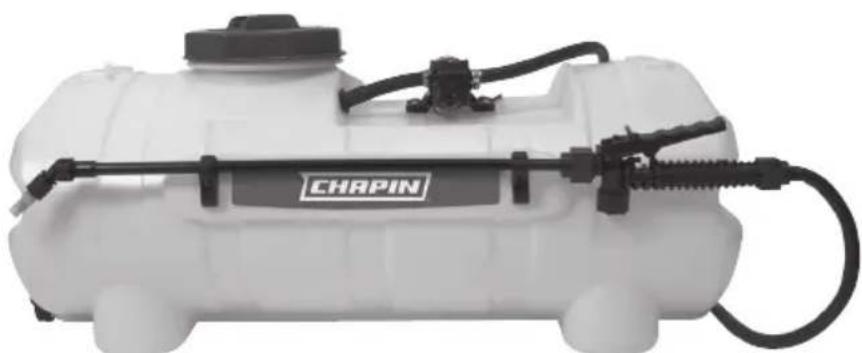

White outdoor spray sprayer with black hose and attached valve (no visible text or symbols)

15 Gallon

White CRN water tank with attached hydraulic cylinder and hose (no visible text or symbols)

25 Gallon

Chapin International, Inc

P.O. Box 549 700 Ellicott St.

Batavia, NY 14021-0549 U.S.A.

1-800-950-4458 www.chapinmfg.com

Black industrial pump with attached metal components and mounting base (no visible text or symbols)

GUIDE DE DÉPANNAGE
