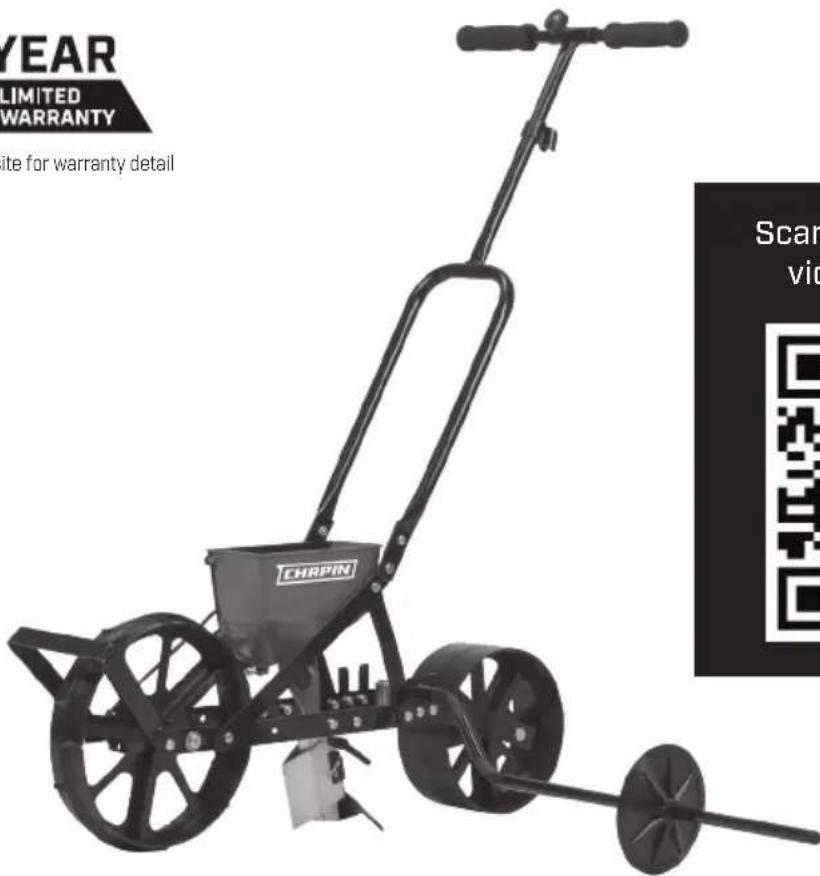

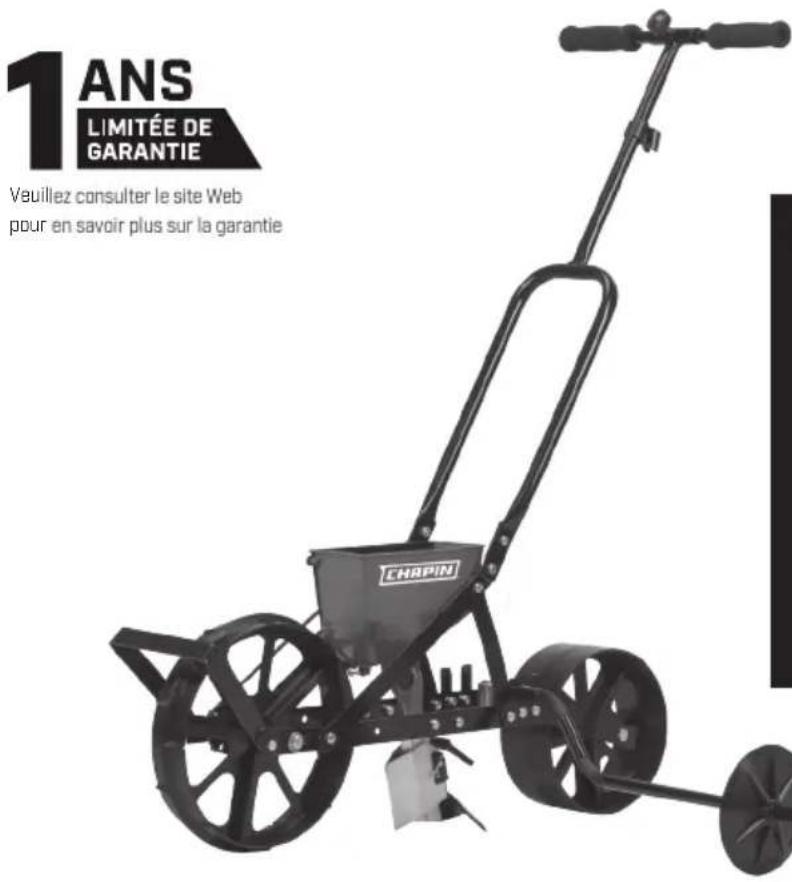

CONGRATULATIONS!

YOU HAVE JUST PURCHASED A QUALITY CHAPIN PRODUCT.

REGISTER YOUR SPREADER ONLINE @ WWW.CHAPINMFG.COM

VISIT US ON THE INTERNET: WWW.CHAPINMFG.COM

BEFORE RETURNING THIS PRODUCT FOR ANY REASON, PLEASE CALL:

1-800-950-4458

When calling, please have the following information available: Sales receipt & model number. This number connects you directly with the manufacturer of this product. Our Technical Support Team will be happy to help you with any assembly, troubleshooting and replacement information you may need.

WARNING

WARNING: IMPROPER USE OR FAILURE TO FOLLOW INSTRUCTIONS CAN RESULT IN PRODUCT FAILURE OR INJURIES. FOR SAFE USE OF THIS PRODUCT YOU MUST READ AND FOLLOW ALL INSTRUCTIONS BEFORE USING.

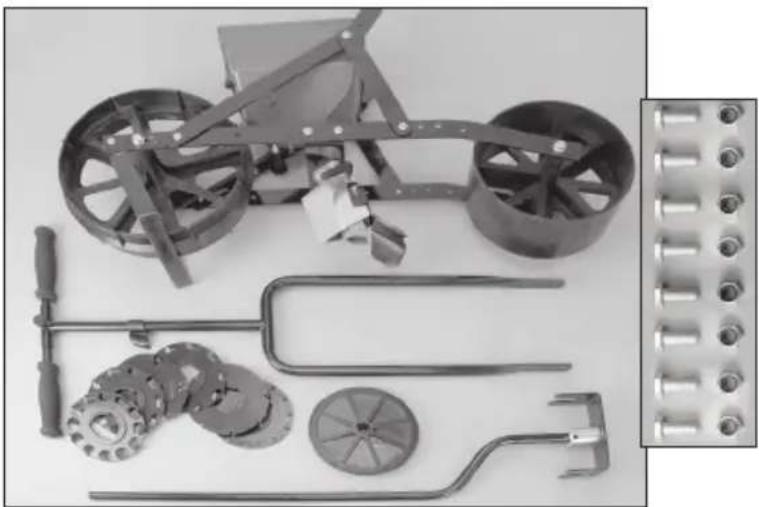

CHECK TO SEE THAT YOU HAVE ALL NECESSARY PARTS:

Collection of mechanical components including a wheeled cart, gears, and clamps arranged on a plain surface (no text or symbols visible)

Assembly Notes

• This Garden Seeder comes partially assembled. You will be required to assemble the handle and row marker to the hopper and wheel assembly.
• Before you begin assembly please lower the kickstand at the front of the garden seeder to keep it steady during assembly.

Close-up of a black mechanical component with radial grooves and mounting holes (no visible text or symbols)

ASSEMBLY INSTRUCTIONS

1. Assemble Bottom Handle to Hopper/Wheel Assembly

Close-up of a hand holding a small container with circular objects, next to a metal frame (no visible text or symbols)

Using 4 nuts and 4 bolts, secure handle bar to hopper/ wheel assembly as shown

Close-up of hands using a wrench to adjust a mechanical component (no visible text or symbols)

Using a 10 mm wrench to hold nut and a 10 mm wrench to secure bolt, tighten all 4 bolts to secure handlebar to hopper/wheel assembly.

Close-up of hands using a tool to adjust or install a mechanical component (no visible text or symbols)

2. Row Marker Assembly

Mechanical assembly with metal frames and mounting holes (no visible text or symbols)

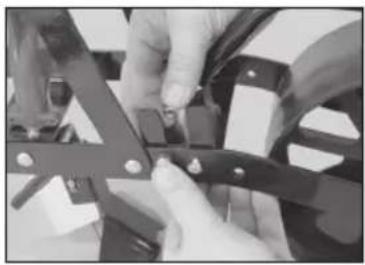

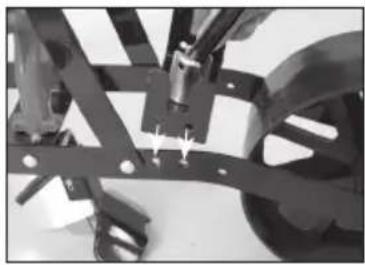

Align base plate of row marker with the 4 corresponding holes on the hopper/wheel assembly as shown.

Close-up of hands assembling or adjusting a mechanical bracket (no visible text or symbols)

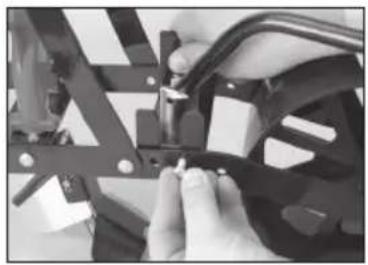

Once holes are aligned, insert 4 bolts and secure with 4 nuts.

Close-up of hands assembling or adjusting mechanical components (no visible text or symbols)

Attach row marker clip to top of handle (below cross bar).

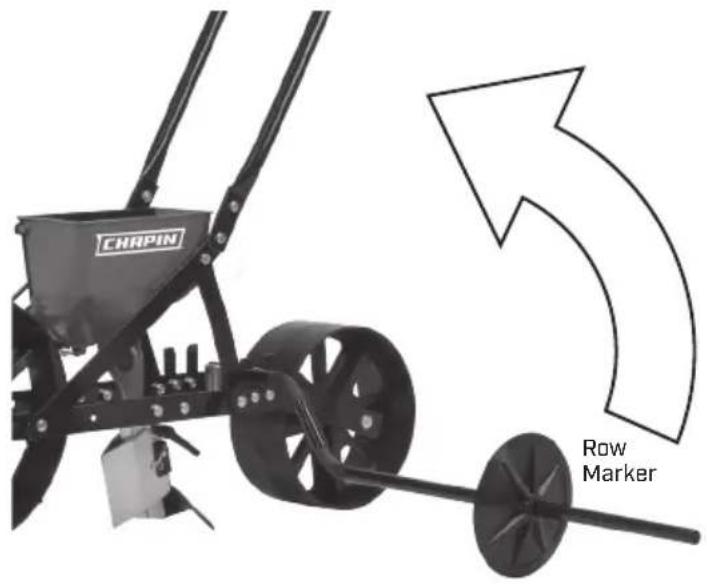

Row Marker

Lock row marker into clip.

CHRPIN Row Marker

3. Row Marker Blade Assembly

Close-up of a hand holding a metallic object with a star-like pattern, possibly a turbine or impeller (no text or symbols visible)

Loosen nut on blade and slide it onto row marker pole.

Close-up of a mechanical device with a curved bracket and a circular dish mounted on a stand (no visible text or symbols)

Set length to desired row spacing.

Close-up of hands holding a circular object with a tool, no visible text or symbols

Secure blade with adjustable handle.

Your seeder comes with 2 adjustable handles for quick and easy adjustments on the Row Marker blade and the plow

Diagram of a mechanical lever mechanism with rotational arrows indicating motion (no text or symbols)

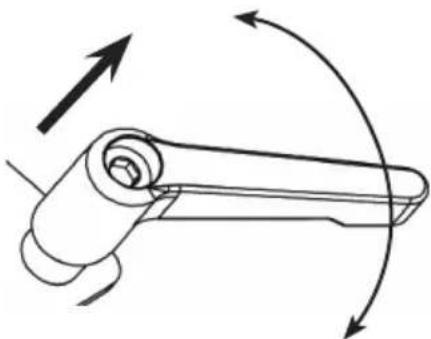

Adjustable handle:

Lift the handle to disengage and rotate freely for adjustment. Handle spins freely for positioning when not engaged.

GARDEN SEEDER MAINTENANCE

1. Hopper should be wiped out with a clean cloth after each use. Accumulation of dust, dirt, or residue from seeds may cause the seed plates to stick and alter the accuracy of the planting of seeds.
2. Static electricity may build up in the seed hopper and interfere with the planting of fine seeds. Under these circumstances please wash the hopper and seed plates with a mild dishwashing detergent and allow them to dry thoroughly.
3. We recommend removing the seed plate and cleaning the hopper and seed plates thoroughly before storing the garden seeder.

OPERATING INSTRUCTIONS

1. One seed plate is in the hopper and the remaining 5 are in the storage bag. To replace the plate with the desired plate:

a. Remove the plate by holding the pulley and belt stationary with one hand while rotating the seed plate in the "OFF" direction, indicated by the arrow on the plate.
b. Push the seed plate off the hub through the hole.

1. Select the desired seed plate. Use the Seed Plate Guide to determine the best seed plate based on the type and size of seed you're planting.

a. We suggest testing the seed plate with your seed before planting.
b. If more distance between seeds is required, place a piece of masking tape over every other hole or as required on the seed plate to achieve your desired distance.

1. Install the selected seed plate (make sure the hopper is completely empty before installing new plate)

a. Hold seed plate at an angle with the bottom against the straight wall inside the hopper
b. Line up the slots against the inside of the hopper and rotate approximately 12 " in the "ON" direction until the cam action locks the seed plate into place on the hub. Do not force the seed plate on.

1. Set the planting depth with the wedge shaped ground opener located directly under the hopper.

a. Move the ground opener until the top edge is in line with the appropriate planting depth (refer to the planting instructions on the packaging of the seed you're plating for proper planting depth)
b. Tighten wing nut after adjustment is made and check the depth by moving the garden seeder forward a few inches.

1. Pour seeds into the hopper. DO NOT fill the hopper above the FILL LINE indicated inside the hopper.
2. Using the Row Marker

a. Mark the first row with strings and stakes.

b. Lower the row marker pole and adjust the row marker blades to the desired width for the next row.

c. Lift the kickstand over the front wheel and begin walking at a steady pace.

1. Emptying the Hopper

a. Remove the drain plug from side of hopper.
b. If there are any remaining seeds in the hopper, lower the kickstand and tip the garden seeder forward until all seeds are removed.

Seed Plates Included:

Plate #	Used For
	Baby Lima Beans, Peas
	Medium Beans, Medium Peas
	Sunflower, Cucumber, Corn
	Sweet Corn
	Small Beets, Radishes
	Brussels Sprouts, Rutabaga, Parsnips, Spinach, Cabbage, Broccoli, Rhubarb, Endive, Carrots, Cauliflower, Celery, Kale, Lettuce, Onions, Peppers, Turnips
