8700G - Agricultural spreader Chapin - Free user manual and instructions

Product type	Handheld agricultural spreader
Brand	Chapin
Model	8700G
Primary use	Spreading granular fertilizers, grass seeds and other small products
Hopper capacity	Approximately 5 liters (estimated)
Dimensions (L x W x H)	Approximately 45 x 25 x 35 cm (estimated)
Weight	Approximately 2.5 kg (estimated)
Power source	Manual (crank)
Spreading width	Adjustable via side deflector
Flow settings	4 positions: 1/4 in, 1/2 in, 3/4 in, full opening
Crank type	Removable crank with handle, nut fixing
Main material	Plastic and steel
Maintenance	Clean after each use, avoid corrosion
Safety instructions	Read instructions before use; do not misuse
Spare parts	Contact manufacturer via QR code or support service
Warranty	Check website for details
Included accessories	Shoulder strap, crank, side deflector
Repairability	Technical support available; replaceable parts

Frequently Asked Questions - 8700G Chapin

How to assemble the Chapin 8700G spreader?

The spreader is pre-assembled. Simply attach the crank: remove the nut, slide the handle into the plastic base, tighten the nut, then insert the handle into the equipment and turn clockwise. Use a 14 mm wrench to tighten the nut properly.

How to fill the hopper?

Make sure the valve is closed before filling the hopper with the desired material (fertilizer, seeds, etc.).

How to adjust the spreading flow rate?

Lower the spreader lever into the corresponding slot. The positions are: 1/4 in, 1/2 in, 3/4 in, and full opening. Refer to the adjustment table for the material type.

What are the recommended settings for granular fertilizer?

For granular fertilizer or a small product: use fine slot in position 1 or coarse slot in position 2.

How to use the spreader correctly?

Put on the shoulder strap, place the unit on your chest, adjust the strap, then turn the crank with a steady motion while walking at a regular pace for even distribution.

How to close the valve?

Simply lift the lever so the spring returns the valve to the closed position.

How to adjust the spreading direction?

Use the side deflector (see figure C in the manual) to direct the spreading to the side if needed.

How to maintain the spreader after use?

Thoroughly clean the hopper and mechanisms to prevent corrosion and residue buildup. Store it in a dry place.

What to do if there is a problem or a defective part?

Contact Chapin customer support with your sales receipt and model number (8700G). You can also scan the QR code on the manual for video instructions.

What safety precautions should I take?

Read all instructions before use. Improper use may result in product failure or injury. Do not exceed recommended settings.

USER MANUAL 8700G Chapin

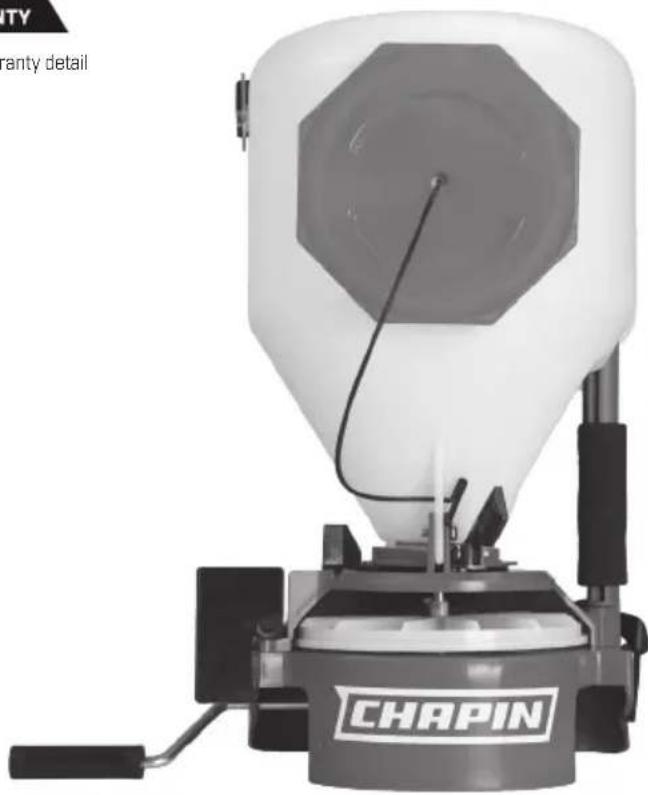

CHEST-MOUNTED SPREADER

USE AND CARE MANUAL

WARNING

CAREFULLY READ THESE INSTRUCTIONS BEFORE USE

Failure to do so may result in damage to property and/or person.

See website for warranty detail

Scan QR Code for easy video instructions.

CONGRATULATIONS!

YOU HAVE JUST PURCHASED A QUALITY CHAPIN PRODUCT. REGISTER YOUR SPREADER ONLINE @ WWW.CHAPINMFG.COM VISIT US ON THE INTERNET: WWW.CHAPINMFG.COM

BEFORE RETURNING THIS PRODUCT FOR ANY REASON, PLEASE CALL:

1-800-950-4458

When calling, please have the following information available: Sales receipt & model number. This number connects you directly with the manufacturer of this product. Our Technical Support Team will be happy to help you with any assembly, troubleshooting and replacement information you may need.

WARNING

IMPROPER USE OR FAILURE TO FOLLOW INSTRUCTIONS CAN RESULT IN EXPLOSIVE FAILURE CAUSING SERIOUS EYE OR OTHER INJURY.

ASSEMBLY INSTRUCTIONS

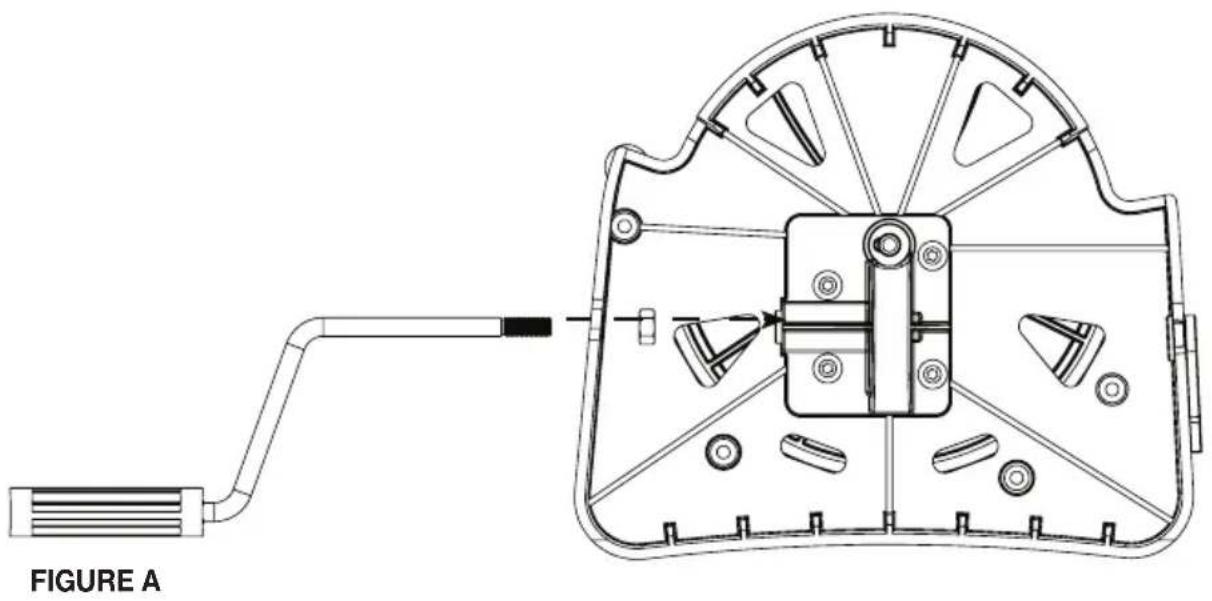

The Chapin 8700 Chest Spreader is preassembled at our factory, leaving only the crank handle for you to attach. To attach, remove nut, slide handle through plastic base and fully tighten the nut. Insert handle into gear and turn clockwise to tighten. Use a 14mm wrench to snug the nut against the gear. (Fig. A)

OPERATING INSTRUCTIONS

1) Make sure the Gate is closed before filling hopper.
2) Fill hopper with material.
3] Place shoulder strap over shoulder and snap buckle into base. Place unit on chest and adjust the strap.
4) Select spreader lever position and lower into slot to set size of gate opening (Fig. B). Slot positions allow for 1/4", 1//2", 3/4" and full open
5) Crank the handle maintaining a steady clockwise motion and walk a consistent pace to spread the material evenly.
6) Adjust side baffle as needed (Fig. C).
7) Adjust Gate location as needed (Fig. C).
8) To close the Gate, simply flip up lever and allow spring to return it to closed position.

FIGURE B (Spreader Settings)

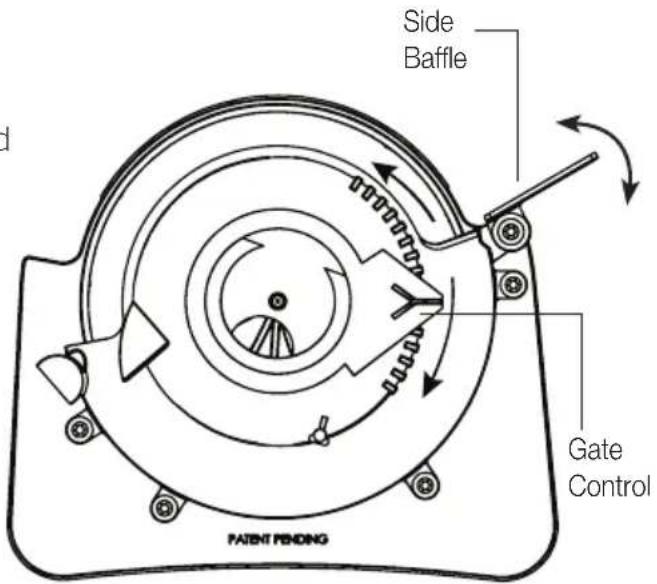

FIGURE C (Gate Location)

SPREADER SETTINGS:

MATERIAL TYPE		LEVER POSITION*
Granular Fertilizer or other small product	Fine Slot 1
	Coarse Slot 2
Grass Seed	Fine Slot 3
	Coarse Slot 4

* Due to the variables involved, these settings are intended for reference only.
