SAFETY GUIDELINES
For your safety and in order to use your appliance correctly, carefully read these instructions (including the warnings and useful advice), before installation and first use.
To avoid damaging the appliance and unnecessary injury, it is important that the persons who use the appliance fully understand how it works and the safety instructions.
Always keep these instructions close to the appliance so that they can accompany it in the event of resale or a change of house. In this way, the appliance will continue to function optimally and any risk of injury will be avoided.
The manufacturer shall not be held liable in the event of misuse of the appliance.
GENERAL SAFETY AND WARNINGS
This appliance is exclusively intended for domestic use in private households. It may only be used in a roofed, enclosed and heated environment such as a kitchen or any other room fulfilling these conditions. Its use on shared or professional premises such as in an office or workshop break room, a camp site building, or a hotel, etc., does not comply with the use defined by the manufacturer.

WARNING! Keep your appliance away from any source of flame during installation, servicing and use. The symbol in the margin which is found on the rear of your appliance, means that there are inflammable materials in this area.
The refrigerating and insulating agents used in this appliance contain inflammable gases.
When transporting, installing and servicing the appliance, make sure that none of the components of the cooling circuit are damaged. If the cooling circuit is damaged:
√ Avoid naked flames and all sources of inflammation.
√ Ventilate the room in which the appliance is installed.

Installation safety
- Your appliance must be installed and, if necessary, secured and used in accordance with the instructions in this manual in order to avoid any risks due to poor installation.
- Maintain clear of obstruction ventilation openings in the appliance enclosure or in the built-in structure.
- It is dangerous to change the composition of this model in any way whatsoever.

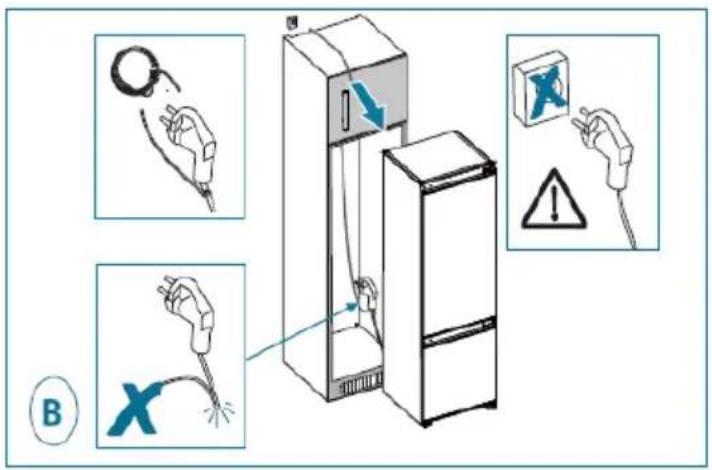

- Ensure that the power cord is not trapped or damaged when you position your appliance.
- Any damage to the power cord may result in a short circuit and/or electrocution.
- If the power cord is damaged, it should be replaced by the manufacturer, its after-sales service department or a similarly qualified person, so as to avoid danger.
- Do not place multiple plugs or portable power supply units behind the appliance.
- For models fitted with a water dispenser or an ice compartment, only fill or connect using a supply of drinking water.

Safety of vulnerable persons
- This appliance may be used by children aged 8 years or more and by people with physical, sensual or metal deficits and lacking experience or knowledge of the device provided that they are correctly supervised or have been provided with instructions regarding the safe use of the appliance and provided that the risks present have been fully
understood.
● Children must not play with the appliance.
● Children must not clean and maintain the appliance without supervision.
- Children aged 3 to 8 are allowed to load and unload refrigeration appliances.
- Keep all the packaging materials out of the reach of children, as they can cause suffocation.

Safety of use
- Do not damage the refrigerating circuit.
- Do not use any mechanical or other means, other than those recommended by the manufacturer, to speed up the defrosting process.
- Do not use any electric appliances inside the compartment for food, unless they are of a type recommended by the manufacturer.
- Do not store any explosive substances, such as aerosols containing inflammable propellant gases, inside the appliance.

Food safety
To avoid contaminating food, follow the instructions below:
● Leaving the door open for long periods of time may significantly raise the temperature in the appliance compartments.
- Regularly clean any surfaces that may come into contact with food and accessible drain systems.
- Clean water containers if they have not been used for 48 hours. Properly rinse the water distribution system connected to a fresh water network if no water has been drawn off for five days.
- Store raw meat and fish in the appropriate refrigerator compartments so that the latter products are not in contact with other food and do not drip onto other food.
- The "two star" compartments for frozen foods are suitable for storing food that is already frozen, for storing or making ice cream and ice cubes.
- The "one, two and three star" compartments are not suitable for freezing fresh foods.
- If the refrigerator remains empty for an extended period of time, switch it off, defrost it, clean it, dry it and leave the door open to prevent any mould from forming inside the appliance.

This symbol indicates that this product should not be treated as household waste.
Only dispose of the appliance in certified collection centres.
Your appliance contains a large amount of recyclable material. It is marked with this label to indicate the used appliances must be disposed of in certified collection points.
Contact your town hall or your retailer for the used appliance collection points closest to your home. This way, the appliance recycling organised by your manufacturer will be done under the best possible conditions, in compliance with European Directive on Waste Electrical and Electronic Equipment.
This appliance's packing materials are also recyclable. Help recycle it and protect the environment by dropping it off in the municipal receptacles provided for this purpose.
In accordance with the most recent legislative provisions applying to the protection and respect for the environment, your appliance does not contain any CFCs, but a refrigerant called R600a. The exact type of coolant gas used in your appliance is clearly shown on the ID plate inside the fridge part of your appliance, at the foot of the left-hand side panel. R600a is a non-polluting gas that does not harm the ozone layer and hardly contributes to the greenhouse effect at all.
Used appliances must be immediately made unusable.
Disconnect the power cord and cut it as close to the appliance as possible. Inhibit the closing mechanism of the door or, even better, detach the door, so that children or pets cannot remain enclosed inside the appliance when playing.

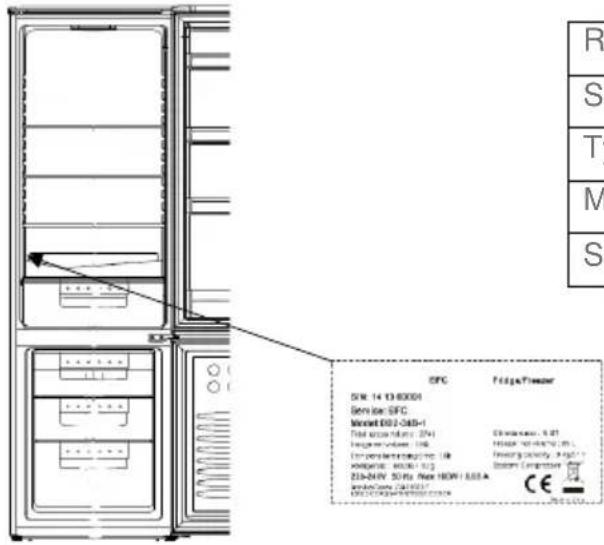

To access the data on your model, stored in the product database in line with regulation (EU) 2019/2016 and data relating to energy labelling, please connect to the dedicated website at https://eprel.ec.europa.eu/
Find the reference of your appliance on the website by entering the service reference shown on the ID plate on your appliance.
Another way to access this information is to flash the QR code found on the energy label on your product.
Layout and presentation of your appliance
- Your appliance was designed and tested to optimise its energy use.
- The proposed layout represents the ideal solution for achieving ideal energy consumption and optimum food storage.


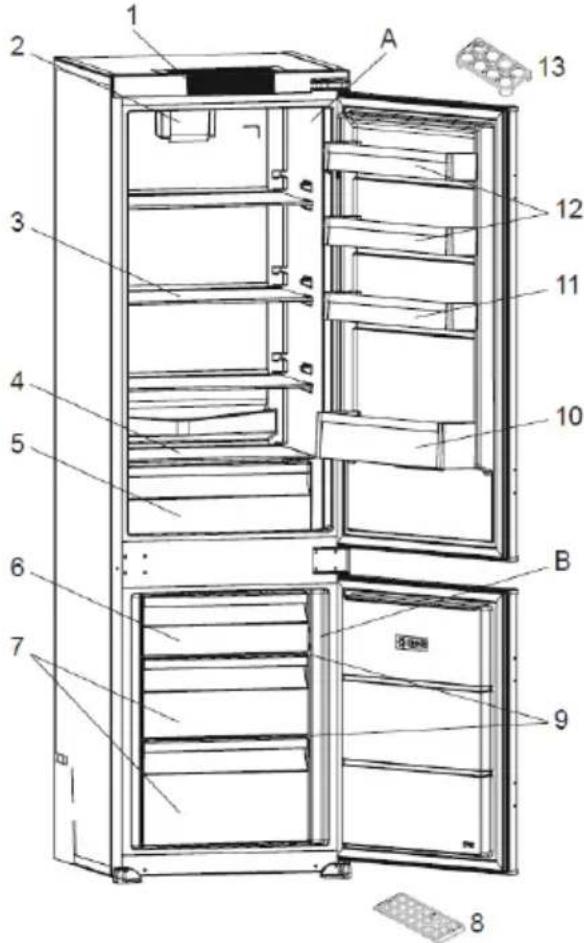

B) Freezer compartment
1) Control panel

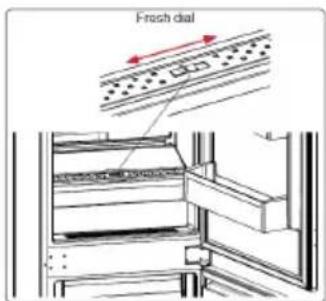

2) Turbo fan *
3) Refrigerator shelves
4) Crisper cover
5) Crisper
6) Freezer upper flap / Drawer
7) Freezer drawers
8) Ice box tray
9) Freezer glass shelves
10) Bottle shelf
11) Adjustable door shelf * / Door shelf
12) Door shef
13) Egg holder
* In some models
This illustration is only for hinting, the detail please check your appliance.
You can only keep your food in good condition and optimise your energy consumption by following the instructions in this installation and user guide.
Energy-saving measures
In order to reduce the power consumption of your appliance:
- Install it in a suitable location (see "Installing your appliance").
- Leave the doors open for the shortest time possible.
- Never put hot food in the fridge or the freezer, and in particular soups and other preparations that release a lot of steam.
- Check that your appliance is working correctly and do not allow too much ice to accumulate in the freezer (defrost when the ice is more than 5-6 mm thick). Clean the condenser on a regular basis.
- Regularly check the door seals and make sure that the doors can be closed properly. If this is not the case, contact after-sales service.
- Do not adjust the temperature too low.
Storing food
Here are some rules you should follow:
- Maintain the cold chain and select "Booster" mode at least 6 hours before coming home with groceries (if your model has it).
- Clean the refrigerator part at least once a month (see Care and cleaning)
- Keep home-made food in the refrigerator after first taking care to leave it to cool.
- Make sure that your appliance is set to the recommended temperatures shown below. The temperatures for every compartment are recommended to optimise storing food and avoid any waste.
| Area | Type of compartment | Recommended temperature |
| Fresh food compartments | Fresh food compartment (refrigerator) | +4°C |
| Frozen food compartments | 0 star compartment (depending on model) | 0°C |
| 1 star compartment (depending on model) | -6°C | |
| 2 star compartment (depending on model) | -12°C | |
| 3 star compartment (depending on model) | -18°C | |
| 4 star freezer drawers/shelves (depending on model) | -18°C |
- Place the food in the locations recommended in the tables below.
Fresh food compartments
| Refrigerator compartments | Type of food |
| Refrigerator door and door racks | Jams, drinks, eggs, condiments.Do not place perishable fresh food in these areas |
| Crisper | Lettuce, fruit, vegetables, herbsDo not put bananas, onions, potatoes or garlic in the refrigerator. |
| Lower shelf | Raw meat, fish, highly perishable food. |
| Intermediate shelf | Milk products |
| Top shelf | Cold cuts, prepared meals, meals to reheat |
Frozen food compartments (compartments available depending on model)
| Freezer compartments | Logos & Markings | Type of food |
| 0 star compartment | To store sorbet for a few hours and make ice cubes.This compartment is not suitable for freezing fresh food. | |
| 1 star compartment | ![]() | To store frozen products for a few hours and make ice cubes.This compartment is not suitable for freezing fresh food. |
| 2 star compartment | ![]() | To store frozen products for a few days, make ice cream and ice cubes.This compartment is not suitable for freezing fresh food. |
| 3 star compartment | ![]() | To store frozen products for a few weeks/months and make ice cubes.This compartment is not suitable for freezing fresh food. |
| 4 star freezer drawers/shelves | ![]() | To freeze food and store:- Meat, fish (lower drawer/shelf).- Vegetables, chips (intermediate drawer/shelf).- Ice cream, fruit, ready-made dishes (upper drawer/shelf) |
Care before installation
Before installing the appliance and connecting it to the power, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand new product, then dry thoroughly.
① Never use detergents or abrasive cleaners, they will damage the inside coating.
When using the appliance for the first time or after a period of non-use, before putting the food in the compartment let the appliance run at least two hours on the higher settings.
Location

Warning! Never expose the appliance to a naked flame.
• Install the appliance in a dry and well ventilated place.
- The appliance should be located far from heat sources like radiators, boilers, sunlight, etc.
- Your appliance is designed to function optimally at a given ambient temperature. In this case, it is said to be designed for a particular "climate class". The climate class is clearly shown on the ID plate (see the "Contact" chapter). The refrigerator may not maintain satisfactory inside temperatures if it operates outside of the temperature limits set for the "climate class" it is designed for. Ensure that the chosen location is compliant with these temperature limits:
| Class | Ambient temperature |
| SN | This refrigeration appliance is designed for use at ambient temperatures between 10°C and 32°C |
| SN-ST | This refrigeration appliance is designed for use at ambient temperatures between 10°C and 38°C |
| SN-T | This refrigeration appliance is designed for use at ambient temperatures between 10°C and 43°C |
| N | This refrigeration appliance is designed for use at ambient temperatures between 16°C and 32°C |
| ST | This refrigeration appliance is designed for use at ambient temperatures between 16°C and 38°C |
| T | This refrigeration appliance is designed for use at ambient temperatures between 16°C and 43°C |
- Based on the above, avoid locating your appliance on balconies, verandas, terraces, in garages, etc. Excessively high temperature in summer and excessively low temperatures in winter can prevent it from functioning properly and therefore properly conserving food.
- Appliance levelling is achieved by adjusting one or more adjustable feet located under the unit (refer to the "Levelling the appliance" section).
If your appliance is fitted with casters, then remember that they should only be used for short movements. Do not move the appliance over long distances on its casters.
How to reverse the door
- Ensure the unit is unplugged and empty.
- To take the door off, it is necessary to tilt the unit backwards. You should rest the unit on something solid so that it will not slip during the door reversing process.
- All parts removed must be saved to do the reinstallation of the door.
- Do not lay the unit flat as this may damage the coolant system.
- It's better that 2 people handle the unit during assembly.

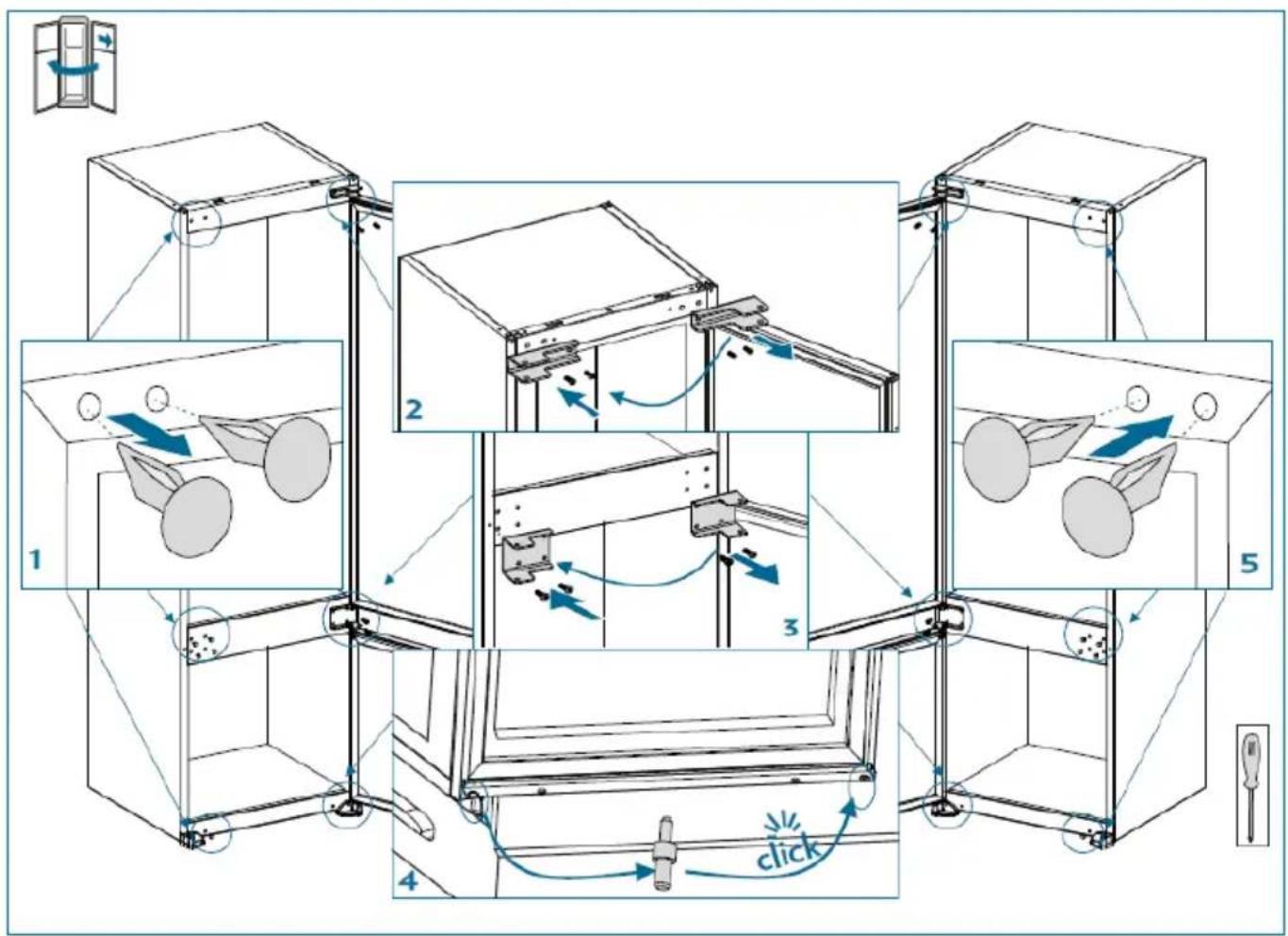

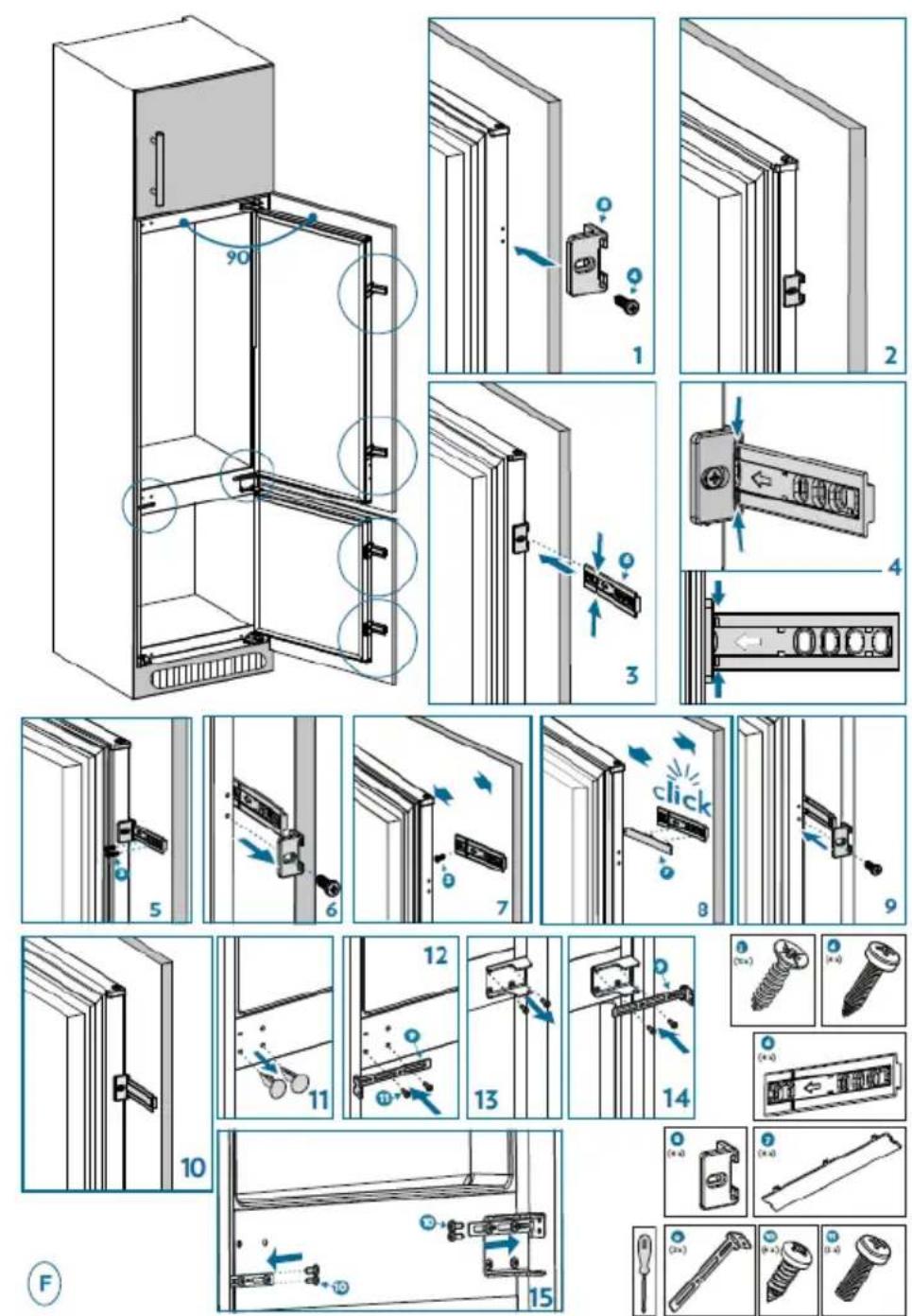

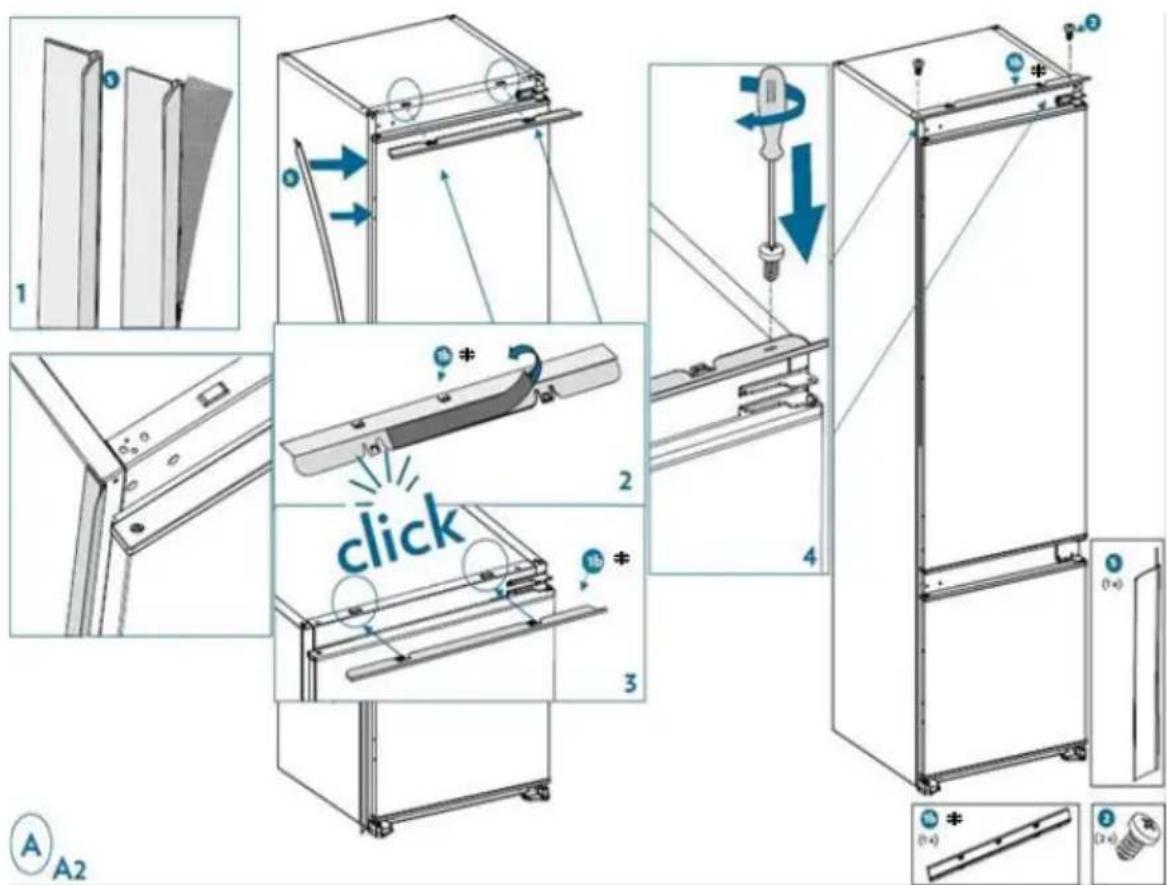

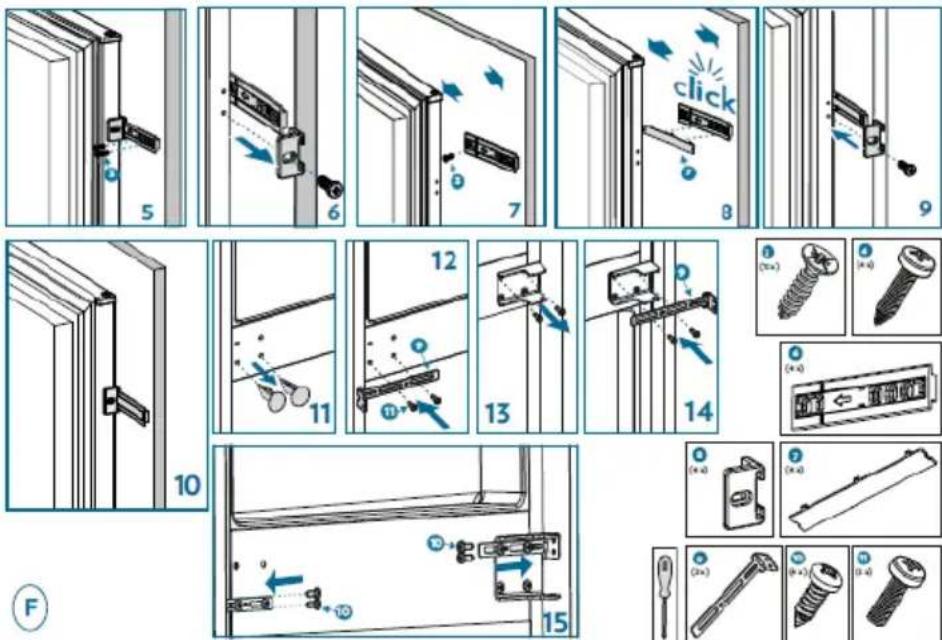

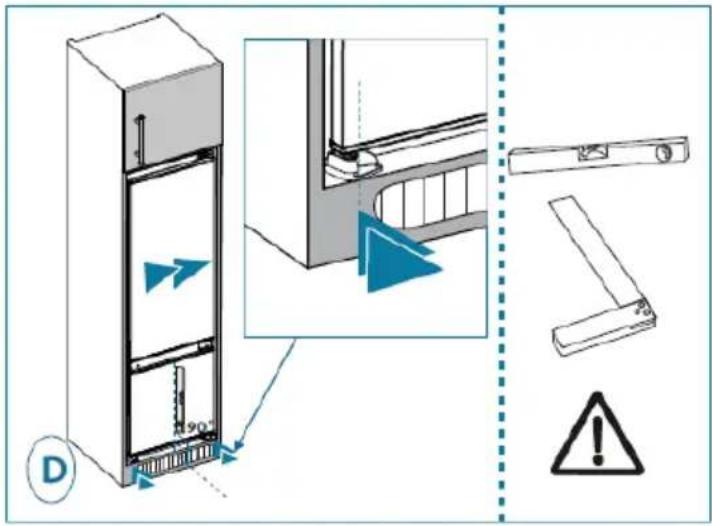

Refer to the drawing below


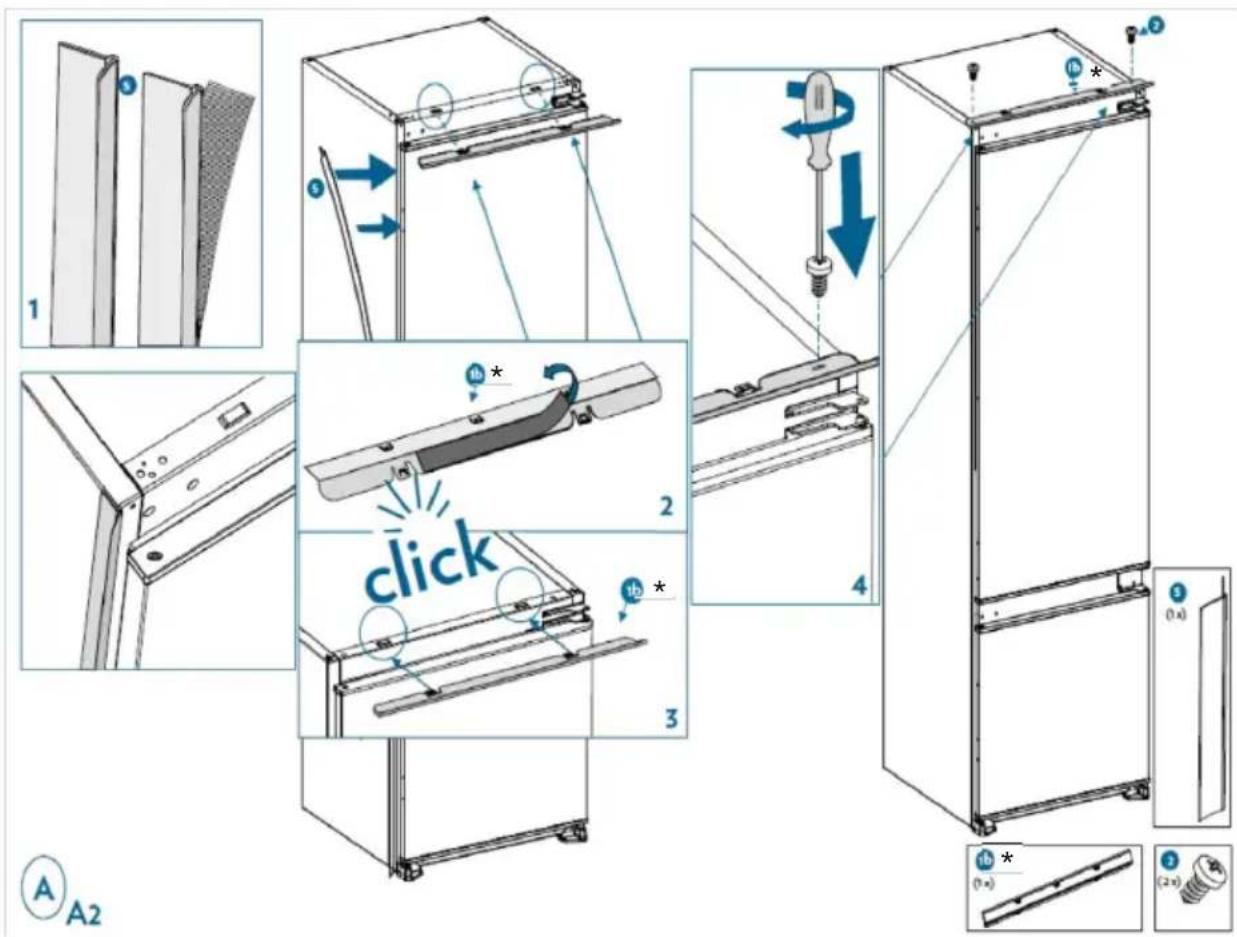

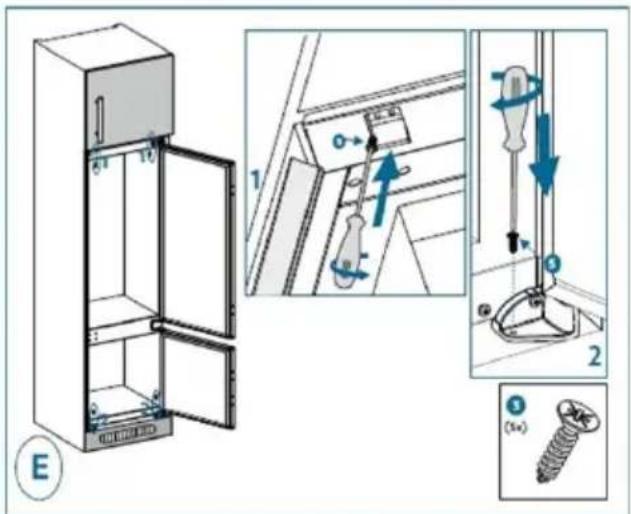

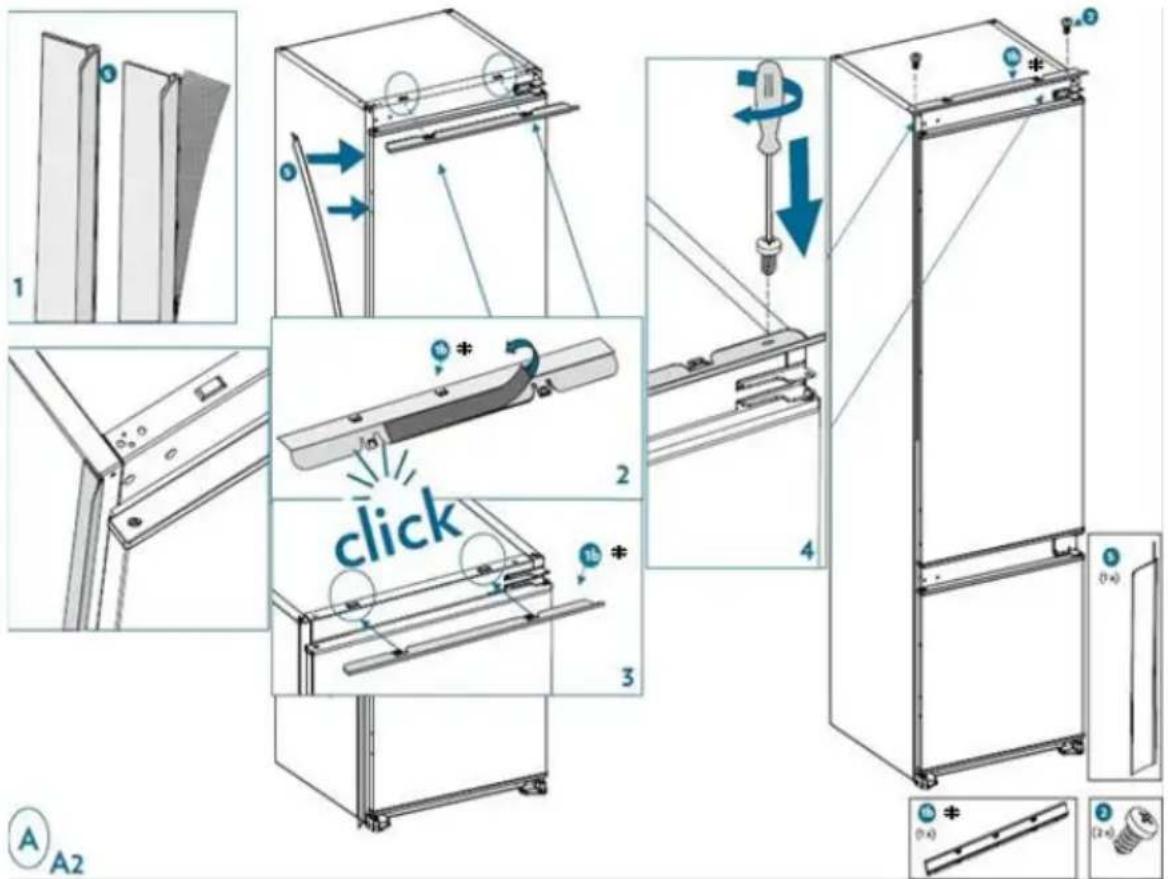

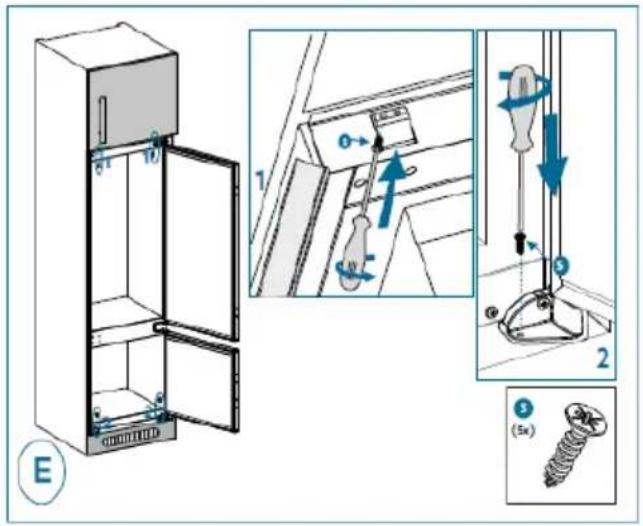

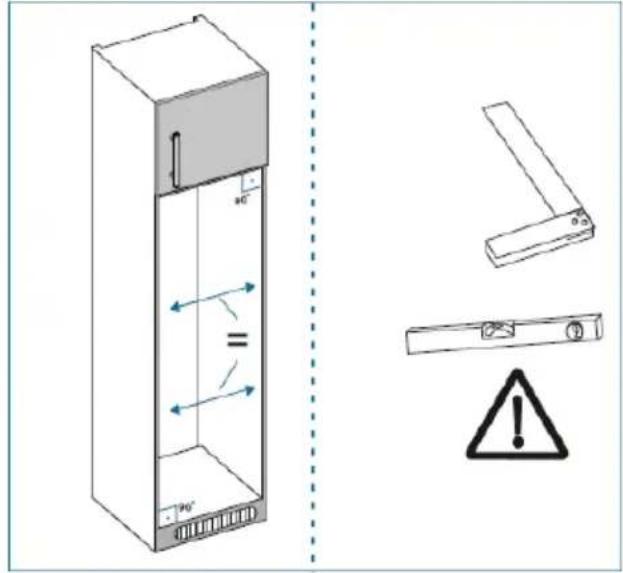

Installation

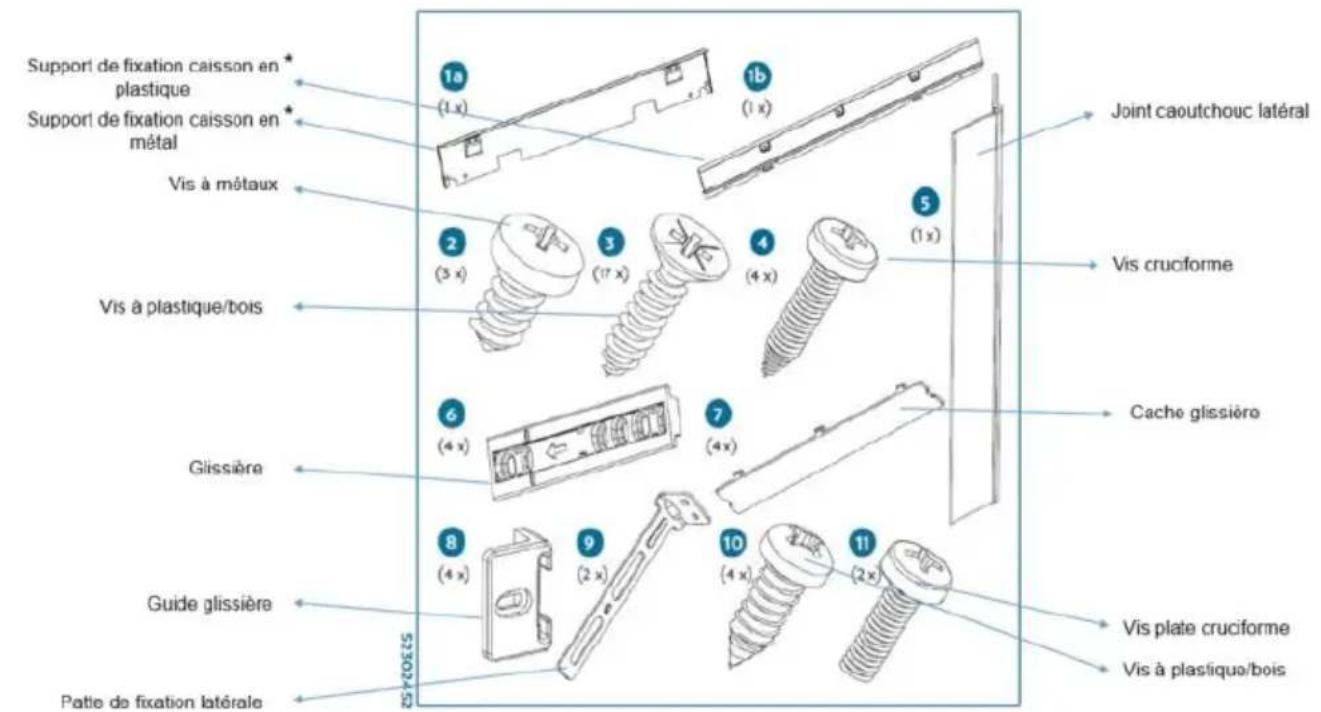

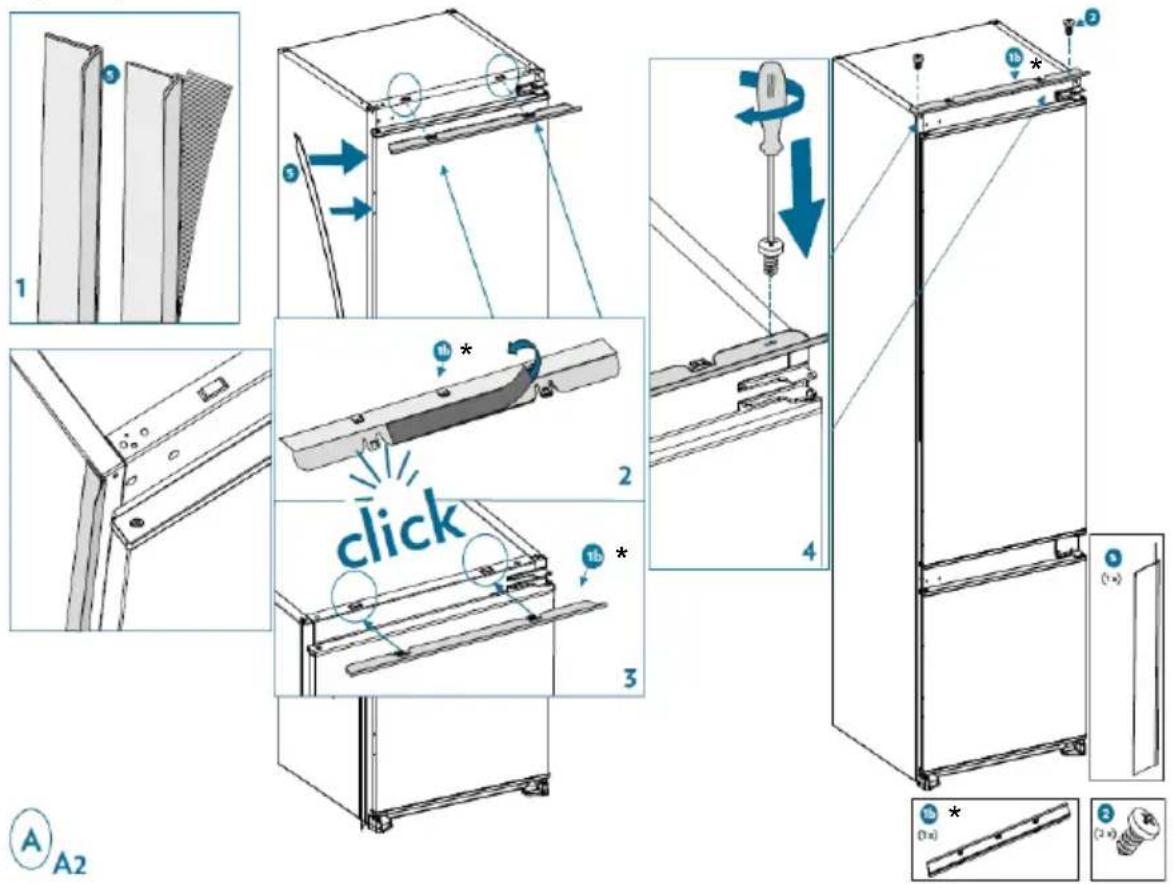

Kits for installation


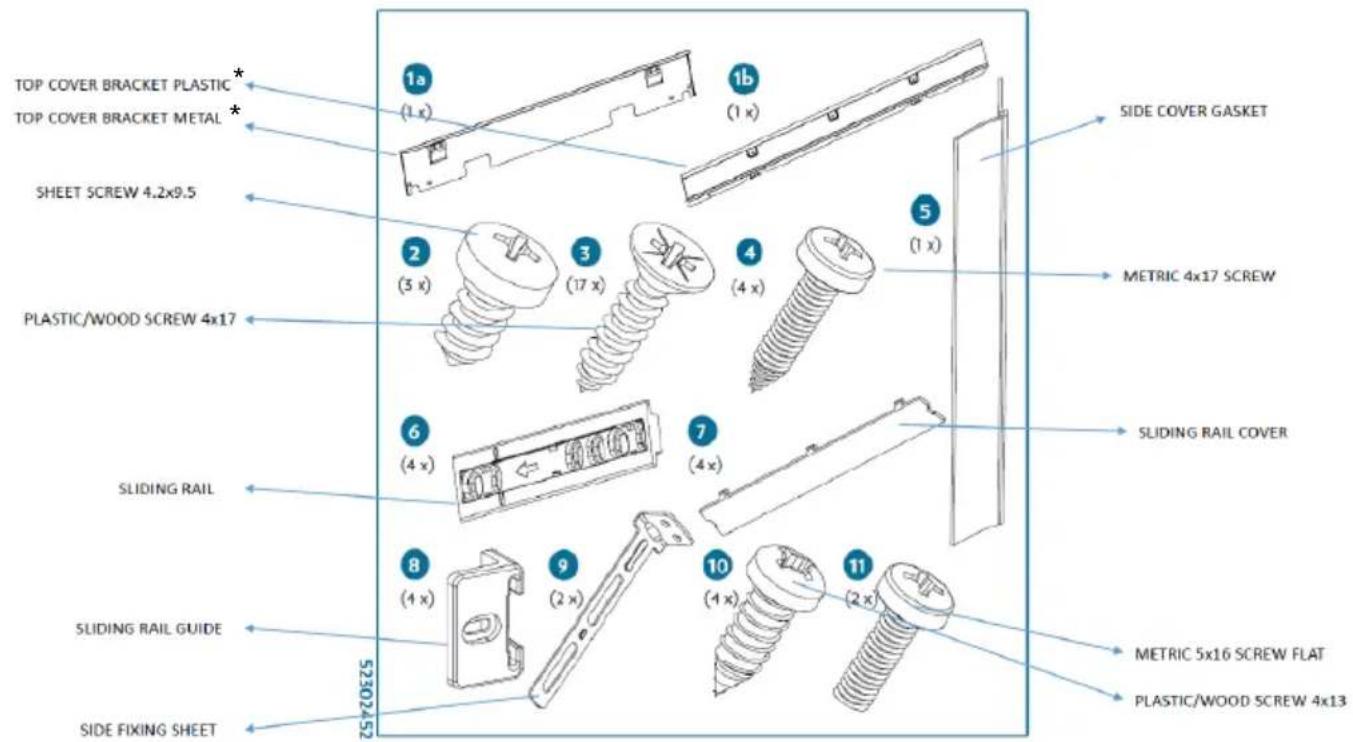

TOP COVER BRACKET PLASTIC TOP COVER BRACKET METAL SHEET SCREW 4.2x9.5 PLASTIC/WOOD SCREW 4x17 SLIDING RAIL SLIDING RAIL GUIDE SIDE FIXING SHEET 1a (1 x) 1b (1 x) 2 (3 x) 3 (17 x) 4 (4 x) 5 (1 x) 6 (4 x) 7 (4 x) 8 (4 x) 9 (2 x) 10 (1 x) 11 (2 x) SIDE COVER GASKET METRIC 4x17 SCREW SLIDING RAIL COVER METRIC 5x16 SCREW FLAT PLASTIC/WOOD SCREW 4x13 5230245*Depending on models

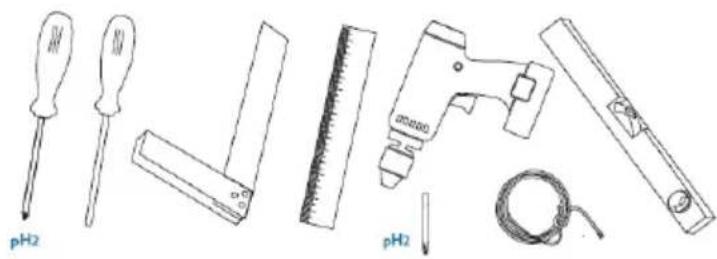

Tools needed

other

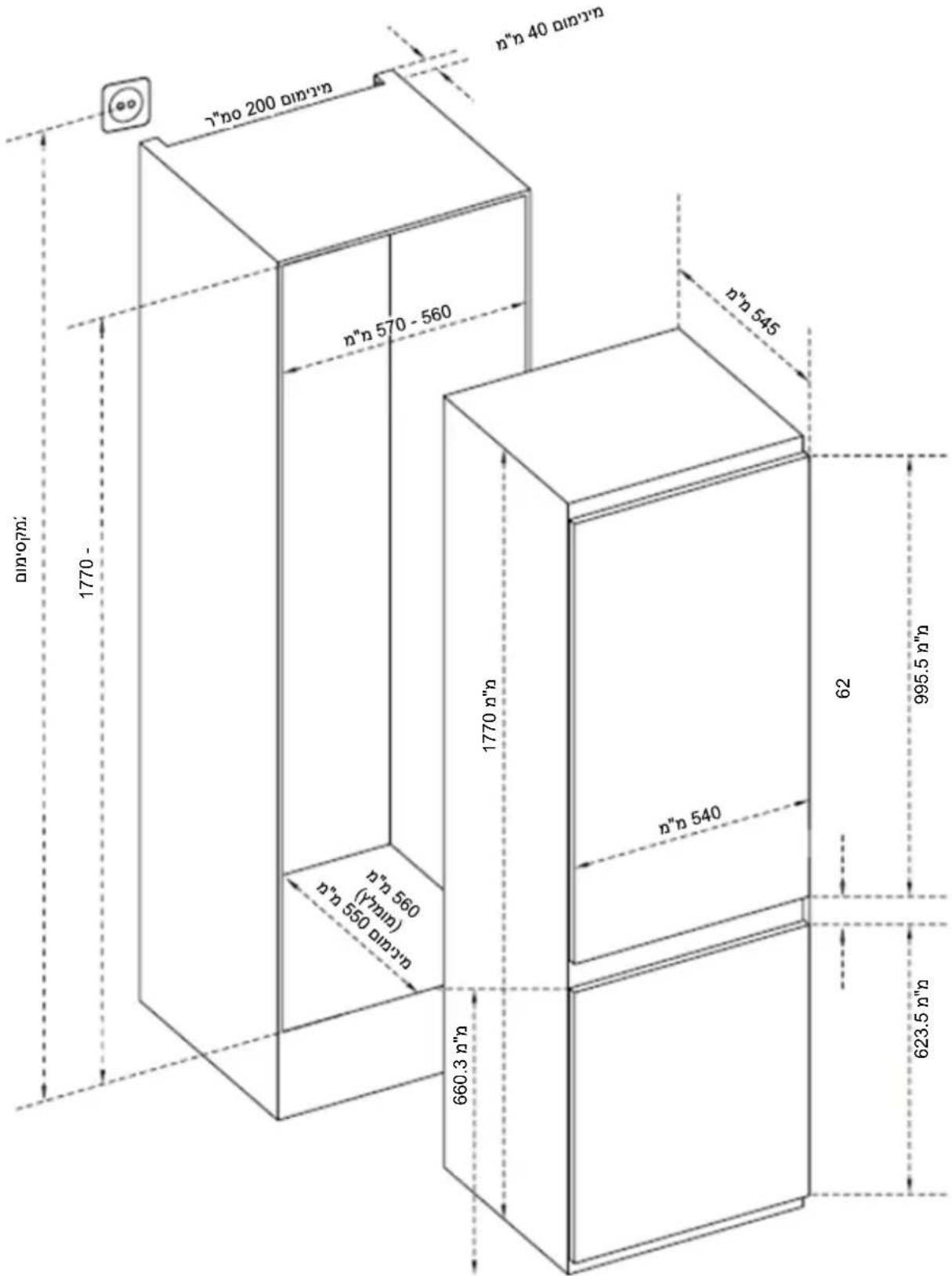

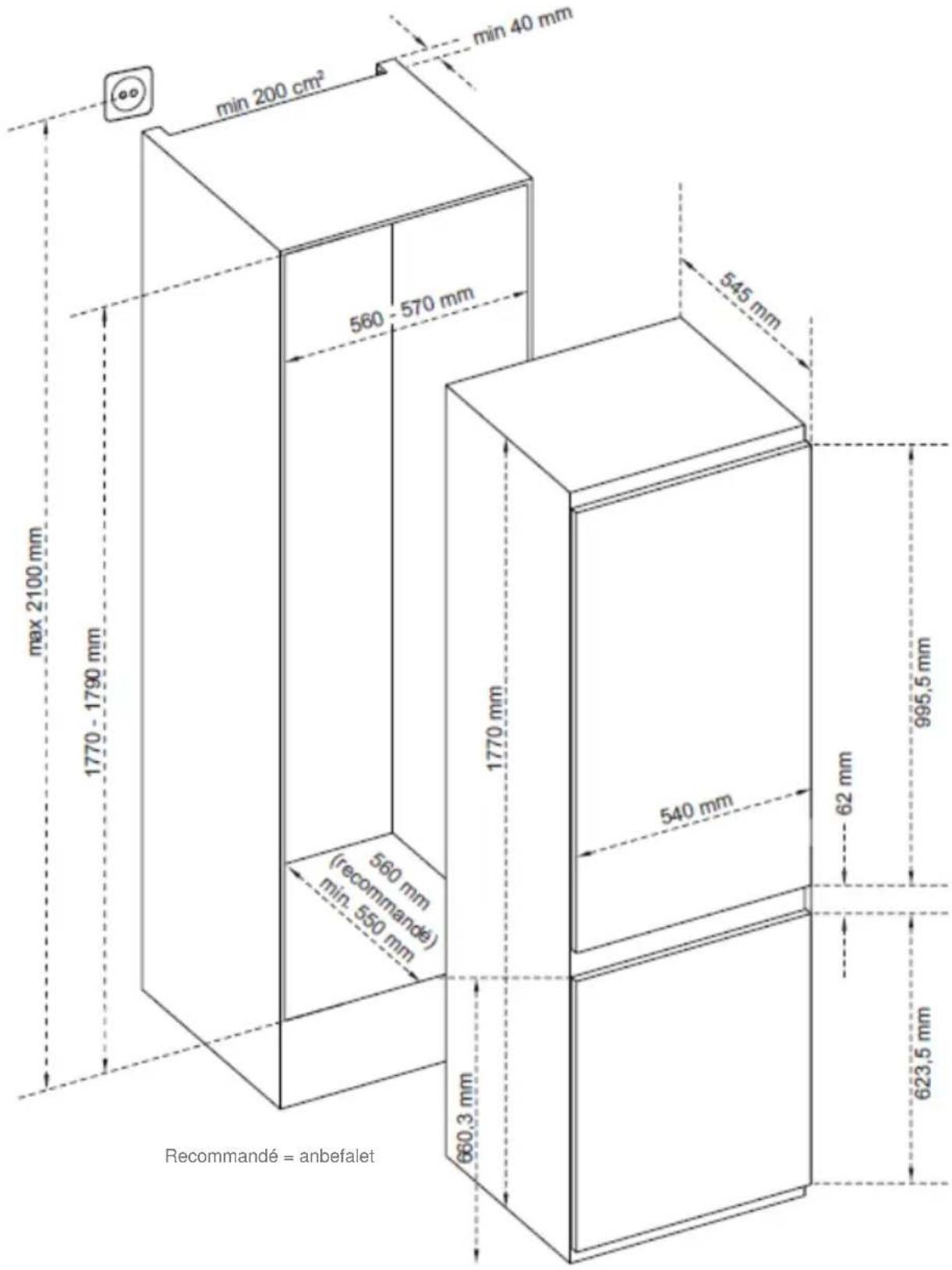

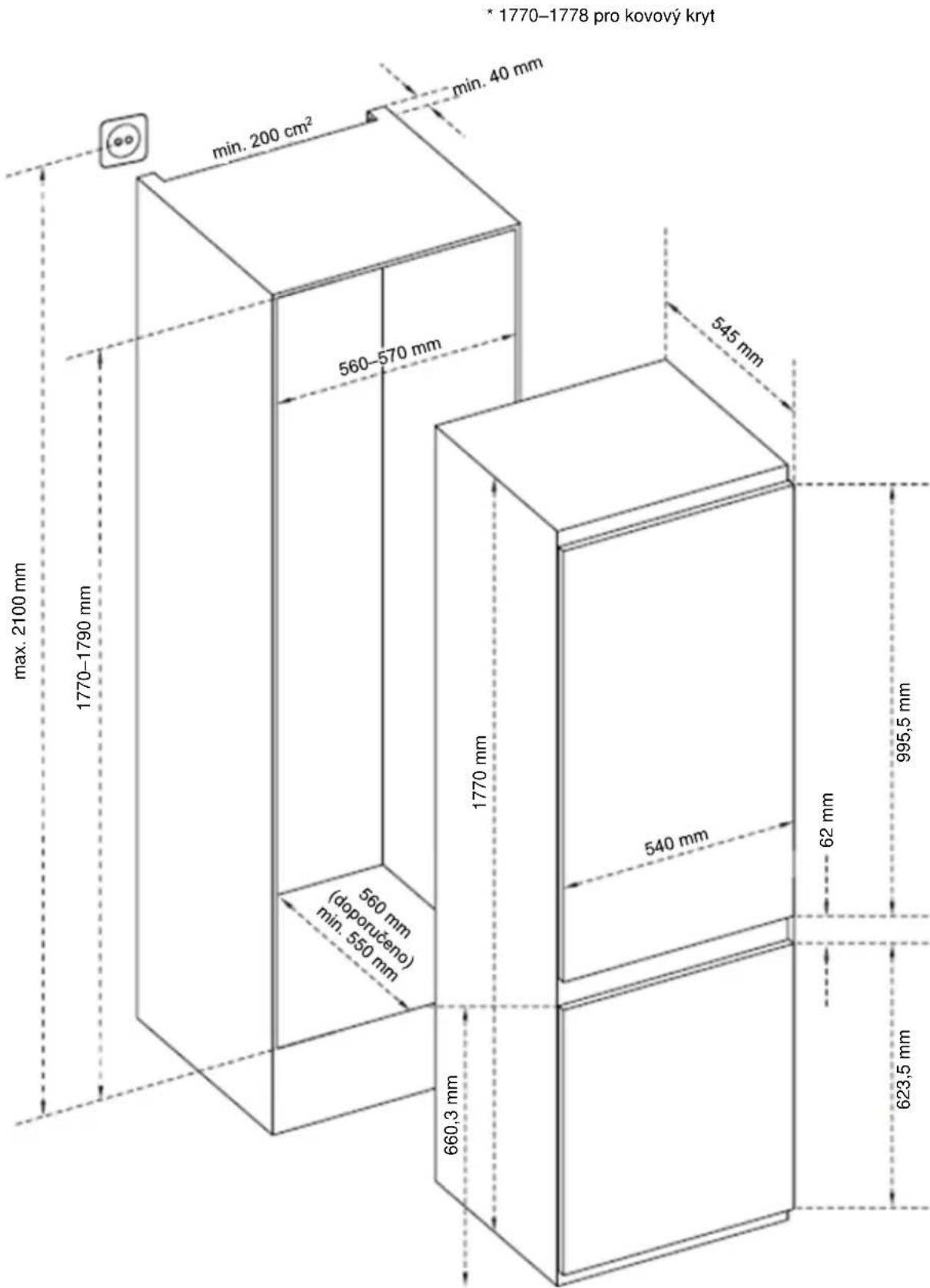

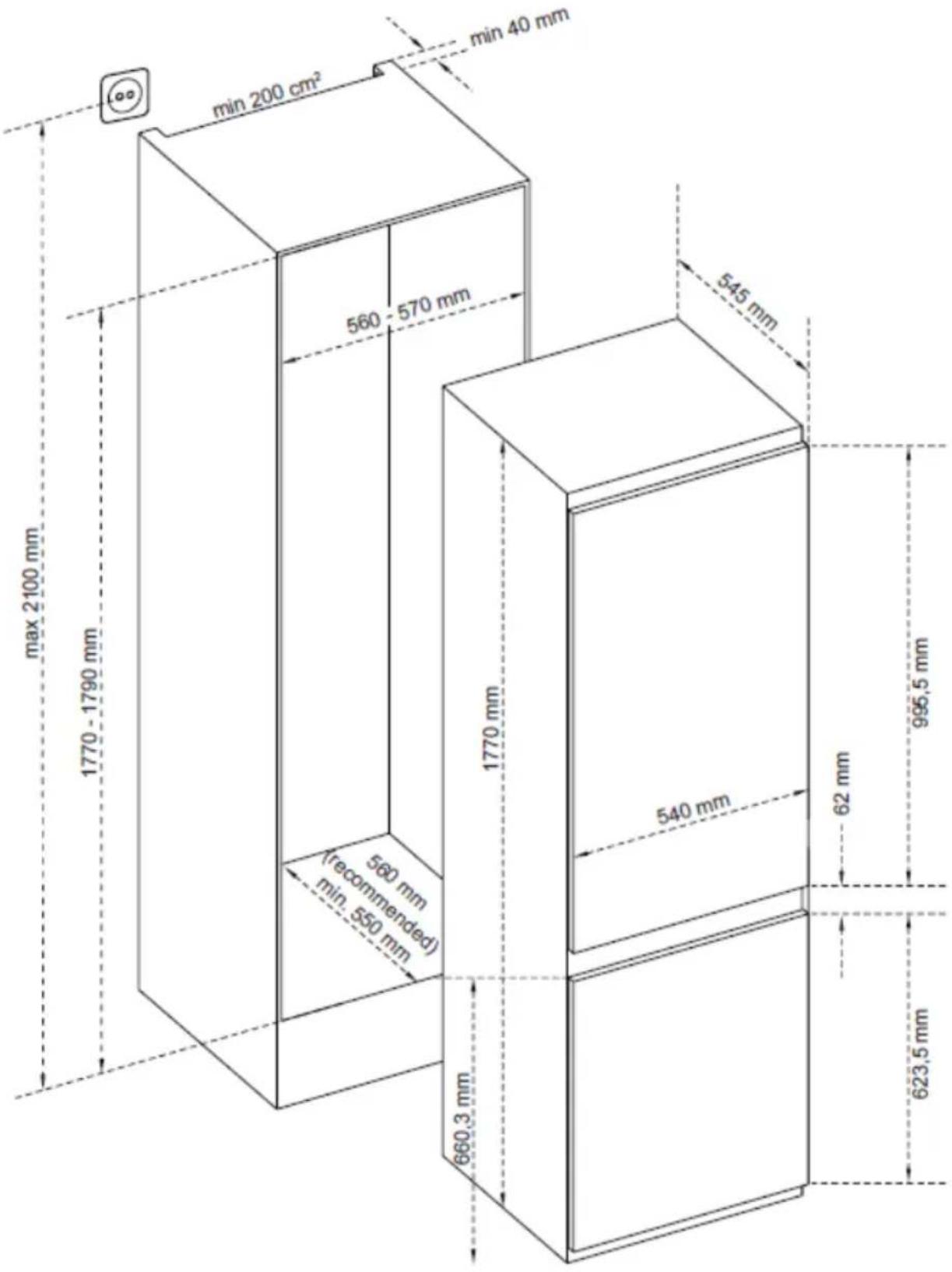

| Dimension | Value | | ----------------- | --------- | | Total Width | 2100 mm | | Total Height | 1770 - 1790 mm | | Total Height | 560 - 570 mm | | Total Height | min 200 cm² | | Total Height | min 40 mm | | Total Height | min 60 mm | | Total Height | min 80 mm | | Total Height | min 95 mm | | Total Height | min 100 mm | | Total Height | min 110 mm | | Total Height | min 120 mm | | Total Height | min 130 mm | | Total Height | min 140 mm | | Total Height | min 150 mm | | Total Height | min 160 mm | | Total Height | min 170 mm | | Total Height | min 180 mm | | Total Height | min 190 mm | | Total Height | min 200 mm | | Total Height | min 210 mm | | Total Height | min 220 mm | | Total Height | min 230 mm | | Total Height | min 240 mm | | Total Height | min 250 mm | | Total Height | min 260 mm | | Total Height | min 270 mm | | Total Height | min 280 mm | | Total Height | min 290 mm | | Total Height | min 300 mm | | Total Height | min 310 mm | | Total Height | min 320 mm | | Total Height | min 330 mm | | Total Height | min 340 mm | | Total Height | min 350 mm | | Total Height | min 360 mm | | Total Height | min 370 mm | | Total Height | min 380 mm | | Total Height | min 390 mm | | Total Height | min 400 mm | | Total Height | min 410 mm | | Total Height | min 420 mm | | Total Height | min 430 mm | | Total Height | min 440 mm | | Total Height | min 450 mm | | Total Height | min 460 mm | | Total Height | min 470 mm | | Total Height | min 480 mm | | Total Height | min 490 mm | | Total Height | min 500 mm | | Total Height | min 510 mm | | Total Height | min 520 mm | | Total Height | min 530 mm | | Total Height | min 540 mm | | Total Height | min 550 mm | | Total Height | min 560 mm | | Total Height | min 570 mm | | Total Height | min 580 mm | | Total Height | min 590 mm | | Total Height | min 600 mm | | Total Height | min 610 mm | | Total Height | min 620 mm | | Total Height | min 630 mm | | Total Height | min 640 mm | | Total Height | min 650 mm | | Total Height | min 660.3 mm| | Total Height | min 670.3 mm| | Total Height | min 680.3 mm| | Total Height | min 690.3 mm| | Total Height | min 700.3 mm| | Total Height | min 710.3 mm| | Total Height | min 720.3 mm| | Total Height | min 730.3 mm| | Total Height | min 740.3 mm| | Total Height | min 750.3 mm| | Total Height | min 760.3 mm| | Total Height | min 770.3 mm| | Total Height | min 780.3 mm| | Total Height | min 790.3 mm| | Total Height | min 800.3 mm| | Total Height | min 810.3 mm| | Total Height | min 820.3 mm| | Total Height | min 830.3 mm| | Total Height | min 840.3 mm| | Total Height | min 850.3 mm| | Total Height | min 860.3 mm| | Total Height | min 870.3 mm| | Total Height | min 880.3 mm| | Total Height | min 890.3 mm| | Total Height | min 900.3 mm| | Total Height | min 910.3 mm| | Total Height | min 920.3 mm| | Total Height | min 930.3 mm| | Total Height | min 940.3 mm| | Total Height | min 950.3 mm| | Total Height | min 960.3 mm| | Total Height | min 970.3 mm| | Total Height | min 980.3 mm| | Total Height | min 990.3mm | | Total Height | max 2100mm | | Top Section | (no label) | | Middle Section | (no label) | | Bottom Section | (no label) | | Top Section | (no label) | | Middle Section | (no label) | | Bottom Section | (no label) | | Top Section | (no label) | | Middle Section | (no label) | | Bottom Section | (no label) | | Top Section | (no label) | | Middle Section | (no label) | | Bottom Section | (no label) | | Top Section | (no label)|- Ensure the size of cabinet is enough for proper ventilation.


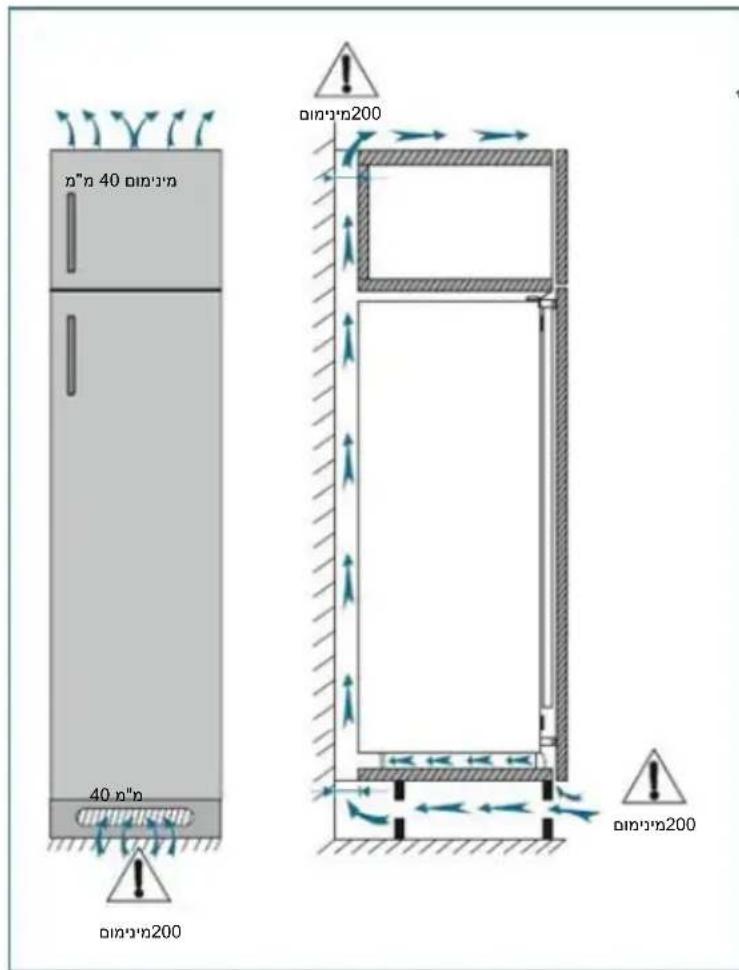

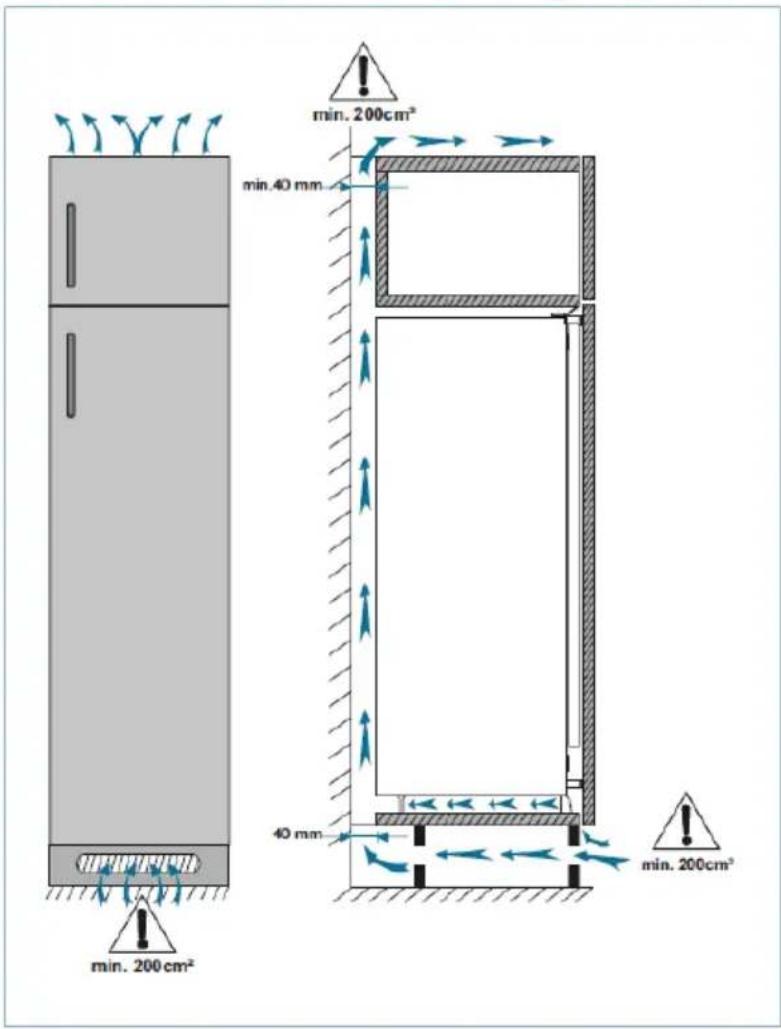

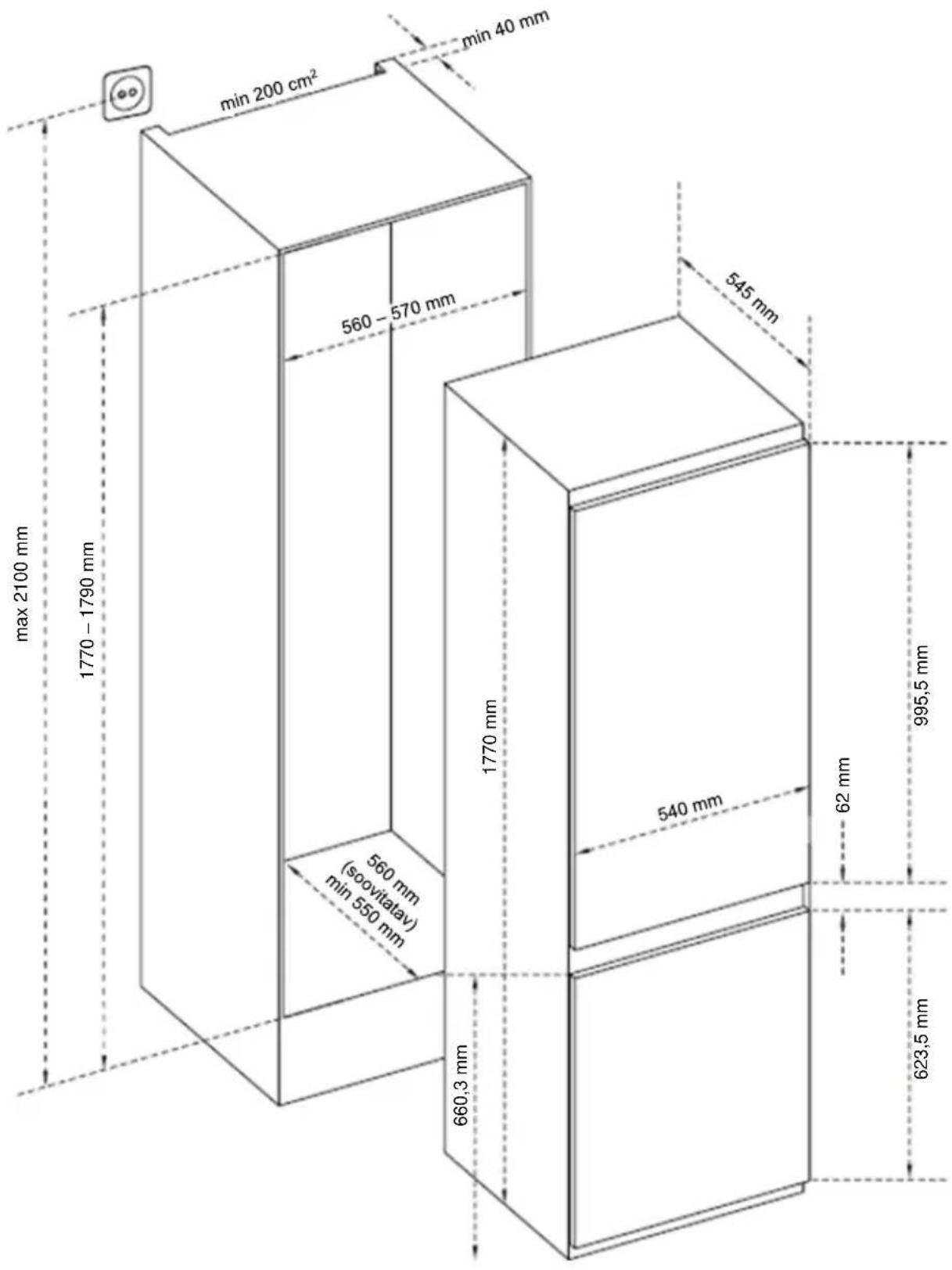

min. 200cm² min.40 mm 40 mm min. 200cm²


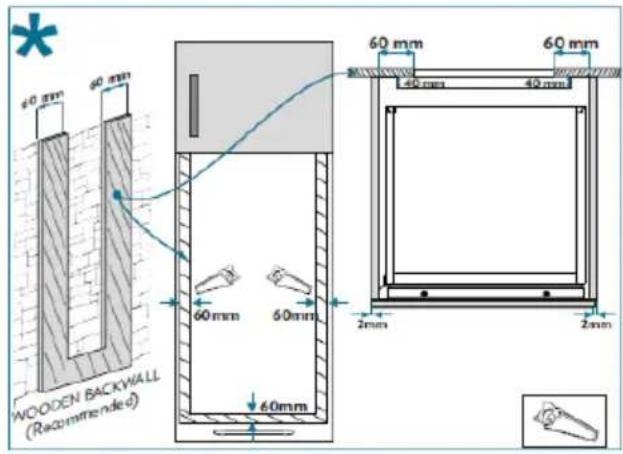

60 mm 40 mm WOODEN BACKWALL (Recommended) 60 mm 50 mm 60 mm 60 mm 40 mm 2mm 2mm


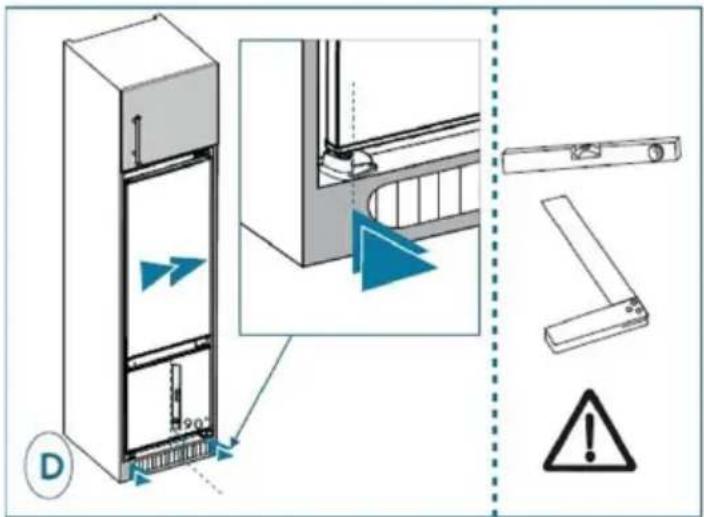

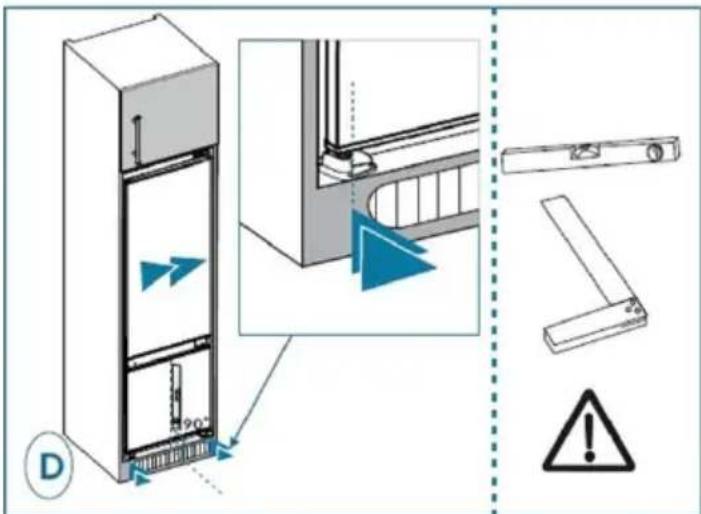

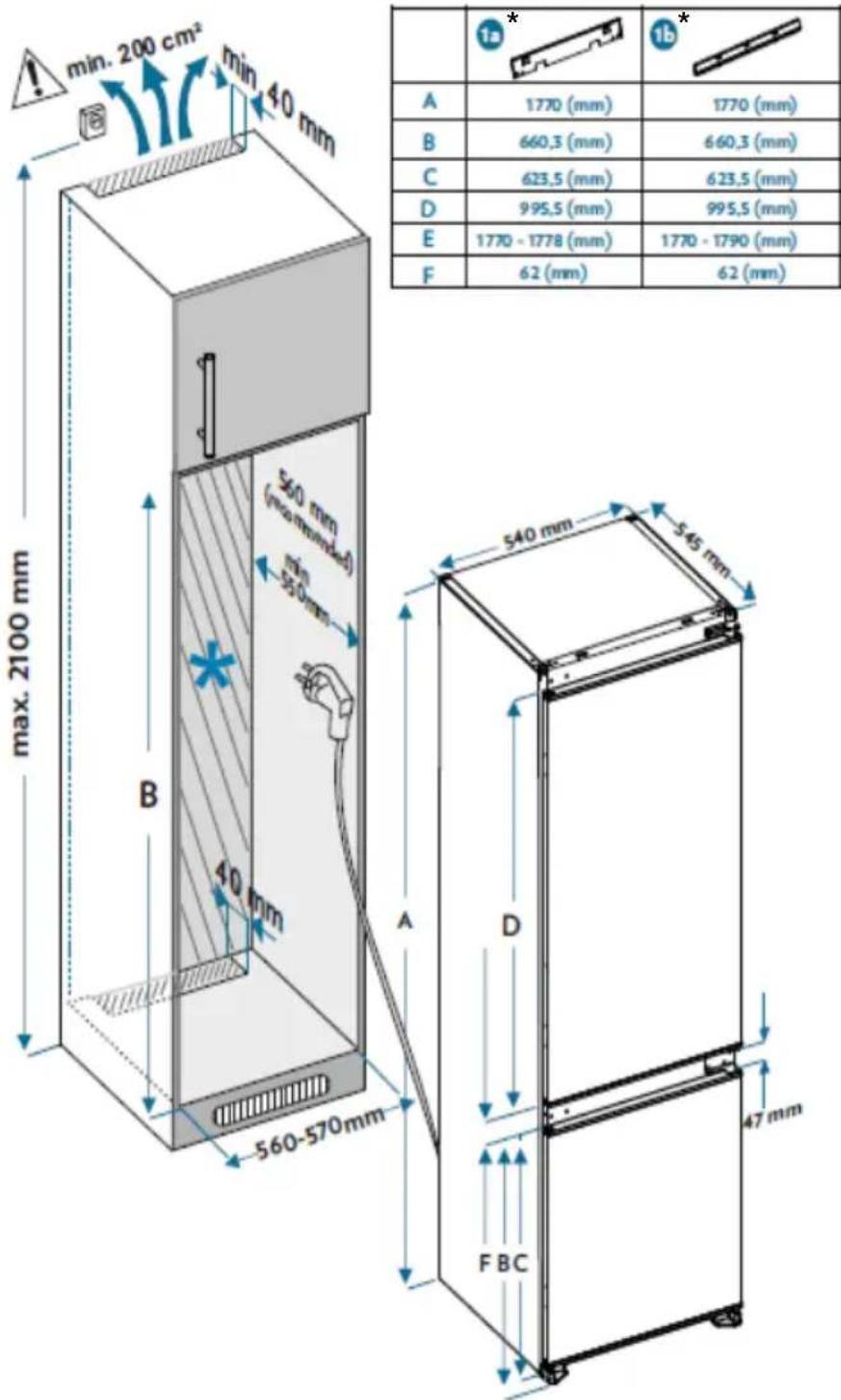

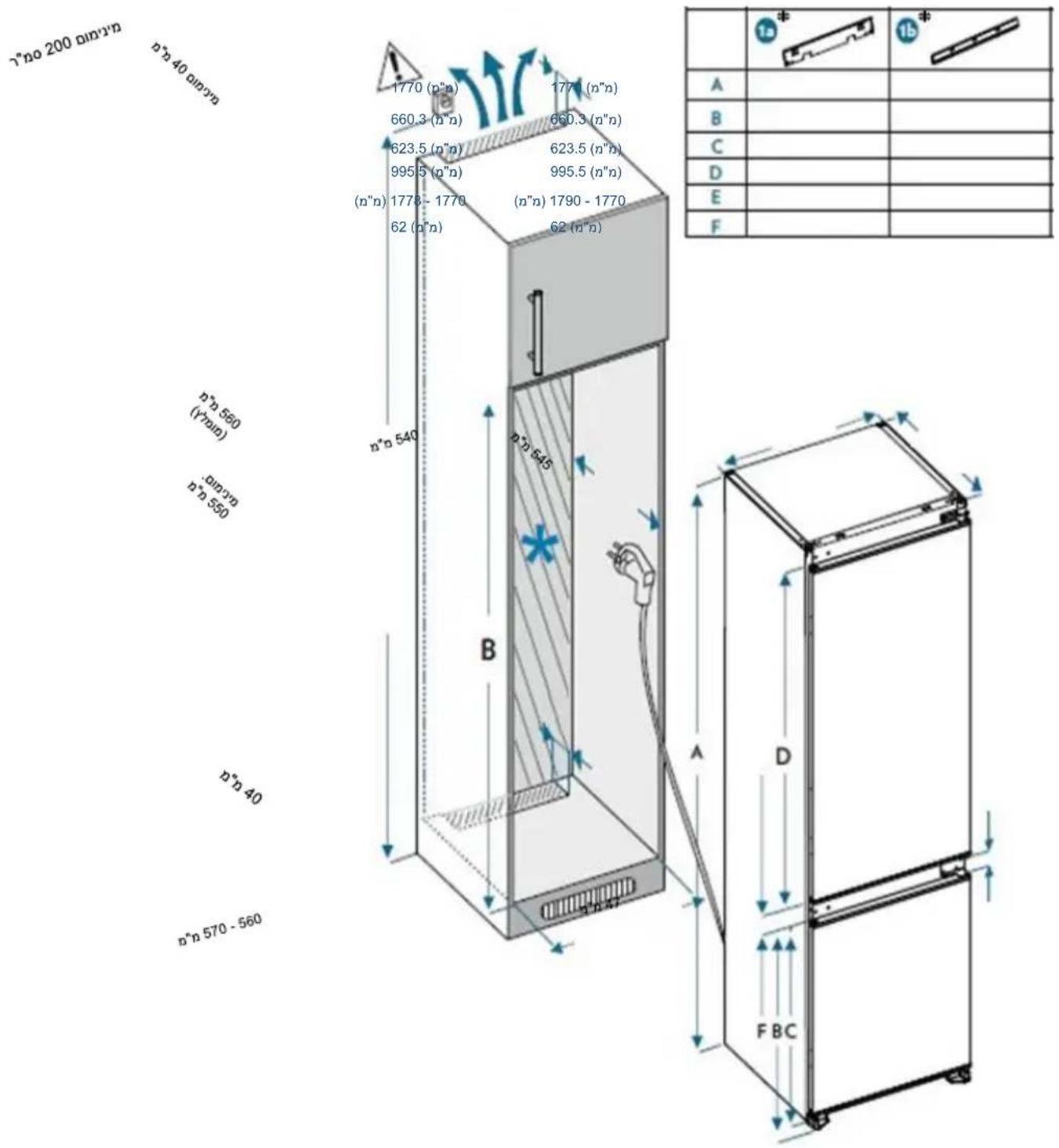

Technical diagram of a refrigerator with labeled dimensions and warning symbols- Install the side cover gasket on the side where the door opens, to close the gap between the appliance and the wooden cabinet. Attach the top cover bracket to the appliance.


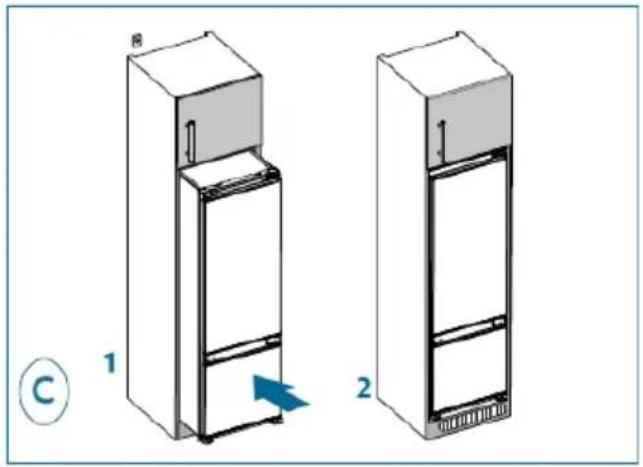

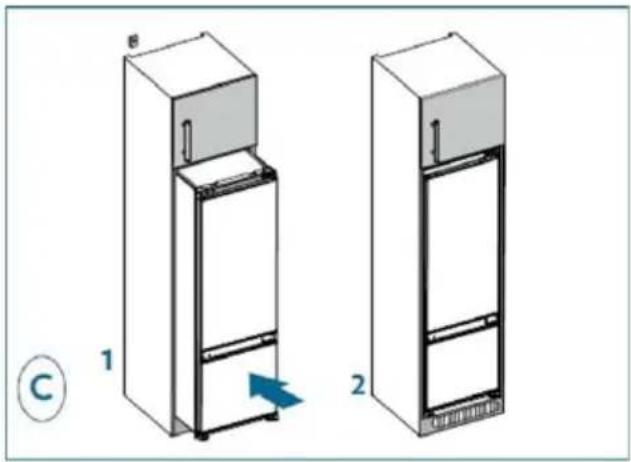

Technical diagram illustrating the assembly of a refrigerator with labeled parts and directional arrows indicating motion or movement.*Depending on models


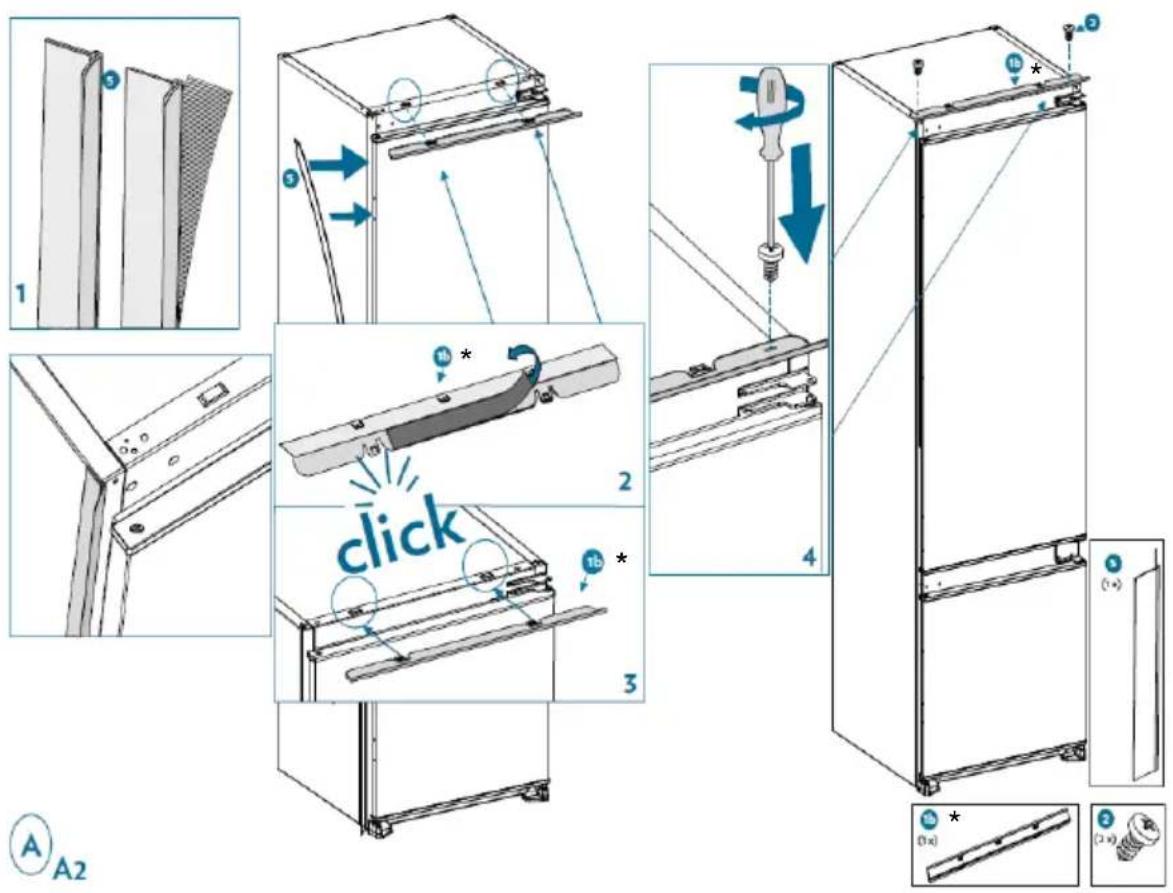

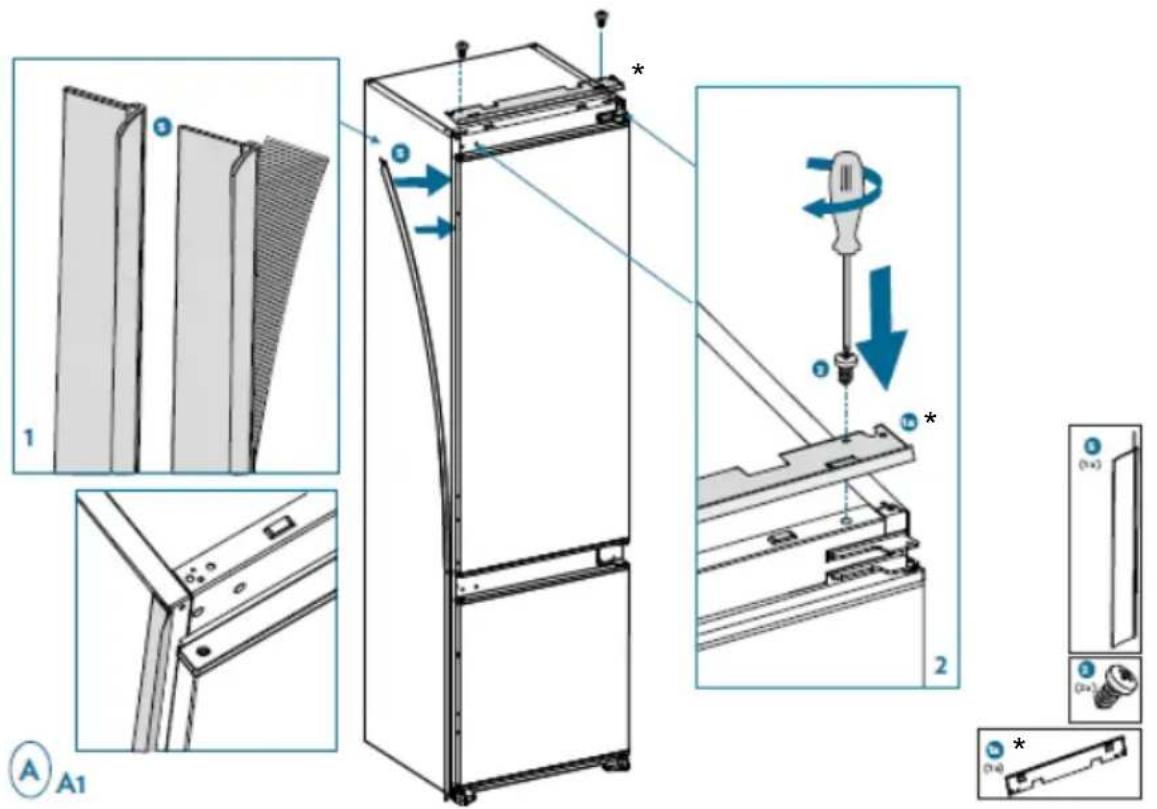

- Do not plug in the appliance. Fix the top cover bracket and feet to the cabinet.


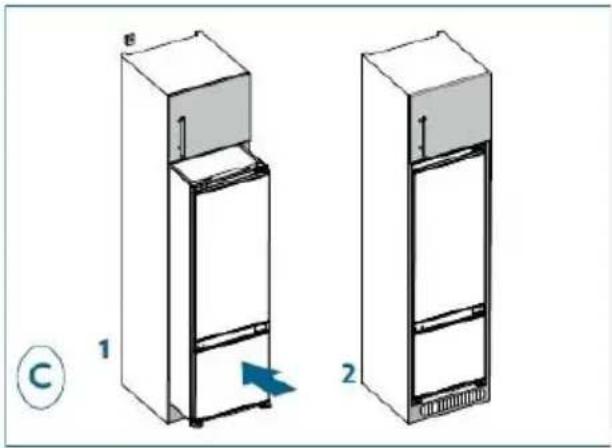

Diagram illustrating the installation of a refrigerator with labeled components and warning symbols


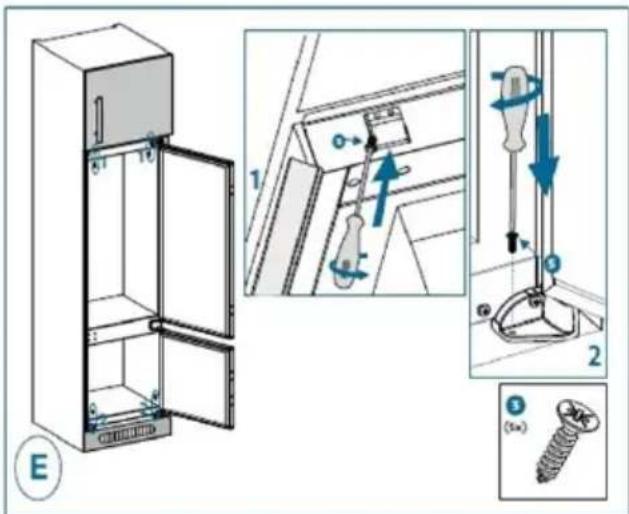

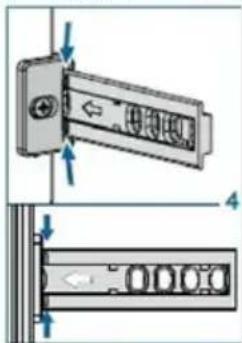

Screw the guide back onto the unit by inserting the slide.
Above the freezer compartment, on the left side of the appliance, remove the covers and screw a side fixing on it. On the right side, unscrew the hinge screws and screw the side fixing on it.

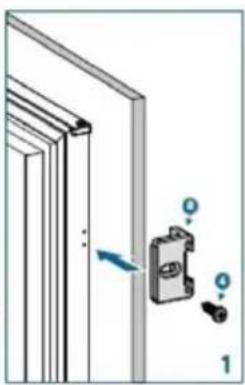

Finally, attach the side fixing to the door.


Levelling the appliance
Choose a place to install the refrigerator on a flat surface.
Electrical connections

Warning! It must be possible to unplug the appliance from the mains power, so the plug must remain easy to access after installation.
- The electric connections must meet the applicable standards and be capable of withstanding the maximum power shown on the ID plate.
- The power plug must be easily accessible and out of the reach of children.
- For your safety this appliance must be earthed. If the power plug is not earthed, consult a qualified electrician to connect your appliance in line with applicable regulations.
- Do not use extensions, adapters or multiple plugs.
- Do not place multiple plugs or portable power supply units behind the appliance.
The manufacturer declines all liability if the above-mentioned safety precautions are not complied with. If in doubt, refer to your reseller.
"COLD AREA" indicator

The sign opposite can be found in your fridge.
It clearly shows the coldest zone of your appliance, where the temperature is lower than or equal to +4^ C.
A temperature gauge in this zone allows you to check the settings of your fridge.

Adjust the thermostat

Temperature correct
Warning!
If the door of the fridge is left open for too long, the temperature inside the fridge will rise. Check the temperature gauge within 30 seconds after opening the door to make sure that the reading is correct.
Temperature setting

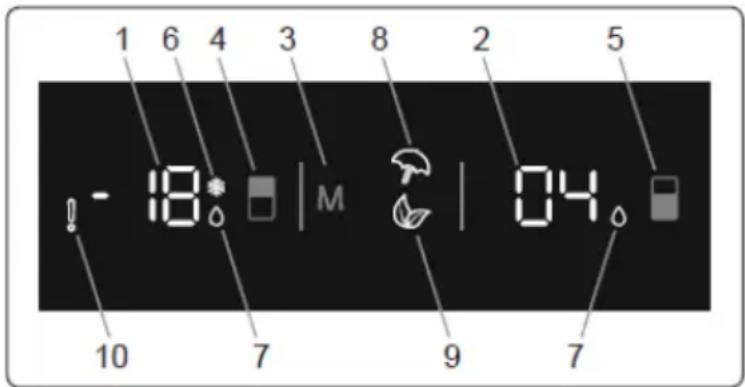

Control Panel
Using the Control Panel
- Freezer set value screen
- Cooler set value screen
- Mode button. It enables the modes (Eco, Holiday, etc.) to be activated if desired.
- Freezer set button. Enables the setting of the freezer to be modified and super freeze mode to be activated if desired. The freezer may be set to -16, -18, -20, -22, or -24 °C.
- Cooler set button. Enables the setting of the cooler to be modified and super cool mode to be activated if desired. The cooler may be set to 8, 6, 5, 4, or 2 °C.
- Super freeze indicator.
- Super cool indicator.
- Holiday mode symbol.
- Eco mode symbol.
- Alarm symbol.
Temperature Settings
Freezer Temperature Settings
The initial temperature value for the freezer setting indicator is -18^ .
- When you first push this button, the last set value will blink on the screen.
- Whenever you press this button, a lower temperature will be set (-16 °C, -18 °C, -20 °C, -22 °C, -24 °C, super freeze).
- When you push the set freezer button until the super freeze symbol appears, and if you do not push any other button within 1 second, super freeze will flash. If you continue to press it, it will restart from -16 °C.
- The temperature value selected before holiday mode, super freeze mode, super cool mode or Eco mode is activated and will remain the same when the mode is over or cancelled. The appliance continues to operate with this temperature value.
Cooler Temperature Settings
Initial temperature value for the cooler setting indicator is +4 °C.
- When you first push this button, the last value will appear on the cooler setting indicator.
- Whenever you press this button, a lower temperature will be set. (+8 °C, +6 °C, +5 °C, +4 °C, +2 °C, super cool)
- When you push the cooler set button until the super cool symbol appears, and if you do not push any button within 1 second, super cool will flash.
- If you continue to press the button, it will restart from +8 °C.
- The temperature value selected before holiday mode, super freeze mode, super cool mode or Eco mode is activated and will remain the same when the mode is over or cancelled. The appliance continues to operate with this temperature value.
Super Freeze Mode
This mode allows you to freeze fresh cooked food faster, and is also useful when a large quantity of food is inserted at the same time, after fresh or frozen food purchase for example.
It is necessary to activate this mode 24 hours before placing the food or, if not done, at least 4 hours before. After 54 hours, the appliance automatically returns to the previous setting.
- Press and hold the Freezer button while the displayed temperature is flashing, to activate the mode. A buzzer sounds, the mode is set.
- Press the button until you return to the temperature at which you set the Super freeze mode. The Super freeze light appears next to the temperature, the mode is set.
During This Mode:
- Temperature of cooler and super cool mode may be adjusted. In this case super freeze mode continues.
- Eco and Holiday mode cannot be selected.
- It can be disabled manually, but it must be kept active for at least 24 hours.
Super freeze mode can be cancelled by the same operation of selecting.
Super cool mode
This mode allows to cool and store a large quantity of food in the fridge compartment, and to quickly cool drinks.
- Press and hold the Fridge button while the displayed temperature is flashing, to activate the mode. A buzzer sounds, the mode is set.
- Press the button until you return to the temperature at which you set the Super cool mode. The Super cool light appears next to the temperature, the mode is set.
During This Mode:
- Temperature of freezer and super freeze mode may be adjusted. In this case super cool mode continues.
- Eco and Holiday mode cannot be selected.
- Super cool mode can be disabled by pressing and holding the Fridge button again. When disabled, the selected setting values will proceed.
Eco mode
Energy savings. During periods of less frequent use (door opening) or absence from home, such as a holiday, Eco program can provide optimum temperature whilst saving power.
- If no button is pressed for 1 second. Mode will be set. Eco symbol will blink 3 times. When mode is set, buzzer will sound beep beep.
- Freezer and refrigerator temperature segments will show "E".
- Eco symbol and E will light till mode finishes.
During this mode:
- Freezer may be adjusted. When Eco mode will be cancelled, the selected setting values will proceed.
- Cooler may be adjusted. When Eco mode will be cancelled, the selected setting values will proceed.
- Super cool and super freeze modes can be selected. Eco mode is automatically cancelled and the selected mode is activated.
- Holiday mode can be selected after cancelling the Eco mode. Then the selected mode is activated.
- To cancel, you will just need to press on mode button.
Holiday mode
- If no button is pressed for 1 second. Mode will be set. Holiday symbol will blink 3 times. When mode is set, buzzer will sound beep beep.
• Cooler temperature segment will show "--". - Holiday symbol and "--" will light till mode finishes.
During this mode:
- Freezer may be adjusted. When holiday mode will be cancelled, the selected setting values will proceed.
- Cooler may be adjusted. When holiday mode will be cancelled, the selected setting values will proceed.
- Super cool and super freeze modes can be selected. Holiday mode is automatically cancelled and the selected mode is activated.
- Eco mode can be selected after cancelling the holiday mode. Then the selected mode is activated.
- To cancel, you will just need to press on mode button.
Drink cool mode
This mode is used to cool drinks within an adjustable time frame.
- Special animation will start on freezer set value screen and 05 will blink on cooler set value screen.
- Press cooler button to adjust the time (05 - 10 - 15 - 20 - 25 - 30 minutes).
- If no button is pressed within 2 seconds the time will be set.
- The countdown starts from the adjusted time minute by minute.
• Remaining time will blink on the screen. - To cancel this mode press freezer set button for 3 seconds.
Screen saving mode
This mode saves energy by switching off all control panel lighting when the panel is left inactive. Screen saver mode will be activated automatically after 30 seconds.
- If you do not cancel the screen saving mode or press any button for 30 seconds, control panel remains off.
To disable the Screen saving mode
- Press any button to activate the keys and then press and hold the Mode button (#3 on control panel drawing) for 3 seconds.
- To reactivate Screen saving mode, press and hold the Mode button (#3 on control panel drawing) for 3 seconds.
Door open alarm
- The alarm will sound when door is left open for a long time. It switches off when door is closed.
Daily use
Your refrigerator compartment is equipped with shelves, door racks and drawers with various logos to help you store your food in the right place.
Using the shelves
The walls of the refrigerator are equipped with a series of runners so that the shelves can be positioned as desired.

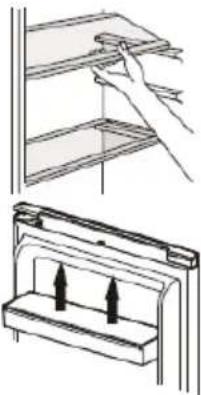

Positioning the small door trays
The small door trays can be removed to assist cleaning. To do this, progressively pull the door rack in the direction indicated by the arrows until you can remove it completely. After cleaning it, replace it in the desired location.


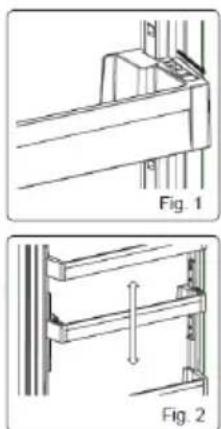

To change the position of adjustable door rack:
- Hold the bottom of the door rack and pull the tabs on the side of the door rack, in the direction of the arrow. (Fig.1)
- Position door rack the required height by moving it up and down. After you get the position that you want for the door rack, release the tabs that are on the side of the door rack (Fig.2) Before releasing the door rack, apply pressure up and down to ensure that it is perfectly in place.
Turbo Fan
Do not block the air inlet and outlet openings when storing food, otherwise air circulation provided by the turbo fan will be impaired.

If the crisper is full, the fresh dial located in front of the crisper should be opened. This allows the air to go into the crisper and the humidity rate to be controlled, in order to increase the life of food within.
The dial, located behind the shelf, must be opened if any condensation is seen on the glass shelf.
Ultrafresh technology helps to remove ethylene gas (a bioproduct released naturally from fresh foods) and unpleasant odors from the crisper. In this way, food stays fresh for a longer time.
- Ultrafresh must be cleaned once a year. The filter should be cleaned during 2 hours at 65°C in a oven.
- To clean the filter, remove the back cover of the filter box by pulling it in the direction of the arrow.
- The filter should not be washed with water or any detergent.
- The refrigerator is a domestic appliance suited to short-term conservation of food products like fruit, vegetables, drinks, etc.
- Do not use it as a specialised appliance for storing products that require storage in line with strict temperature rules, like medicines, etc.
- Cooked foods must be cooled to ambient temperature before they are placed in the refrigerator.
• We recommend placing food in sealed containers before storing them in the fridge. - Never place food right next to the air outlet as this could impede the airflow and freeze the food.
- Never place volatile, inflammable or explosive liquids like solvents, alcohol, acetone or petrol in the fridge. There is an explosion hazard.
- Never leave the door open longer than necessary.
Hints for refrigeration
- Meat (all types) must be wrapped in sealed polyethylene bags and placed on the glass shelf above the crisper.
- For safety, store in this way only one or two days at the most.
• Cooked foods, cold dishes, etc.: these should be covered and may be placed on any shelf. - Fruit and vegetables: these should be thoroughly cleaned and placed in the special drawer provided.
- Butter and cheese should be placed in special sealed containers, wrapped in aluminium foil or placed in a sealed bag.
- Milk bottles should be capped and stored in the bottle rack in the door.
- To save energy, all of the door shelves and glass shelves should be fitted in their designed location.
Ice cubes
This appliance can accept one or more ice cube trays for making ice cubes.
Freezing tips
To help you optimise the freezing process, here are some important tips:
- The maximum amount of food that you can freeze every 24 hours can be found on the ID plate.
- The freezing process takes 24 hours. Do not add any more food to freeze during this time.
- Only freeze good quality, fresh and properly washed food.
- Prepare food in small portions to enable it to be rapidly and completely frozen and to make it possible to subsequently thaw only the quantity required.
- Wrap up the food in aluminium foil or polyethylene food wraps which are airtight.
- Do not allow fresh, unfrozen food to touch the food which is already frozen to avoid raising their temperature.
- Iced products, if consumed immediately after removal from the freezer compartment, may cause frost burns to the skin.
• We recommend labelling and dating each frozen package. - To obtain ice cubes faster, we recommend placing the ice cube trays in the top drawer.
Thawing food
Before eating, frozen or deep frozen food may be thawed in the refrigerator compartment or at ambient temperature, depending on the time available.
Some food may also be cooked directly when taken out of the freezer, while it is still frozen. In this case, cooking will take longer.
Important In the event of accidental thawing, caused for example by a power break, quickly eat the thawed food. Never refreeze thawed food.

Warning! No thawed food may be replaced in the freezer. Place it in the refrigerator then eat it quickly.
Refreezing a thawed product encourages the spread of bacteria. This may become a health hazard if the bacteria that spreads are pathogens, as these may cause more or less serious food poisoning depending on the type of bacteria involved. If any doubt, cook the food involved.
Hints for the storage of frozen food
To guarantee optimum performance, comply with the following instructions:
- Ensure that frozen food has been stored correctly by the food retailer.
- Ensure that frozen food is quickly carried from the retailer to your freezer.
- Do not open the door too often or avoid leaving the door open longer than necessary.
- Once thawed, food will deteriorate rapidly and should never be refrozen.
- Do not exceed the storage states shown on the food.

Warning! Always unplug your appliance before any maintenance work. Never pull on the power cord, but only on the plug itself.
Cleaning
For hygiene reasons, regularly clean the appliance (sidewalls and interior and exterior accessories).
Important! Ethereal oils and organic solvents can damage plastic parts, e.g. lemon juice, butyric acid or acetic acid.
- Do not allow such substances to come into contact with appliance parts.
- Do not use any abrasive cleansers.
- Remove food from the appliance. Store it in a cool place and keep well covered.
- Clean the appliance and the interior accessories with a cloth and lukewarm water with a diluted white vinegar or bicarbonate of soda solution. Do not wash the accessories in a dishwasher.
• After cleaning them, rinse surfaces with clear water and dry them.
• After everything is dry, plug the appliance back into the plug. - Make sure that no water enters the lamp housing and other electrical components.
- Clean the condenser with a brush at least twice a year. This will help you to save energy costs and increase productivity.
① Never clean the appliance with a steam cleaner.
Cleaning the drain
To stop the defrost water from running into the refrigerator, clean the drain at the back of the refrigerator part from time to time. To do this, use a cleaning product as shown in the diagram on the right.

Replacing the light
This product contains a light source whose the energy efficiency class is F.
The light inside the fridge uses a LED. To replace it, please contact your after sales service or an approved technician.
You will find all the information you need to contact our authorized technicians and our after-sales service in the “CONTACTS & INFORMATION” section.
Troubleshooting

Warning! If there is any anomaly, unplug your appliance. Only a qualified electrician or competent person may carry out troubleshooting.
If there is any anomaly during operation, check the following points before calling our approved after sales service or a qualified professional.
| ERROR TYPE | MEANING | WHY | WHAT TO DO |
| E01 | Sensor warning | Call Service for assistance as soon as possible. | |
| E02 | Sensor warning | Call Service for assistance as soon as possible. | |
| E03 | Sensor warning | Call Service for assistance as soon as possible. | |
| E06 | Sensor warning | Call Service for assistance as soon as possible. | |
| E07 | Sensor warning | Call Service for assistance as soon as possible. | |
| E08 | Low voltage warning | Power supply to the device has dropped to below 170V. | - This is not a device failure, this error helps to prevent damages to the compressor.- The voltage needs to be increased back to required levels.If this warning continues, an authorised technician needs to be contacted. |
| E09 | Freezer compartment is not cold enough | Likely to occur after long term power failure. | 1. Set the freezer temperature to a colder value or set Super Freeze. This should remove the error code once the required temperature has been reached. Keep doors closed to improve time taken to reach the correct temperature.2. Remove any products which have thawed/defrosted during this error. They can be used within a short period of time.3. Do not add any fresh produce to the freezer compartment until the correct temperature has been reached and the error is no longer.If this warning continues an authorized technician needs to be contacted. |
| E10 | Fridge compartment is not cold enough | Likely to occur after:- Long term power failure.- Hot food has been left in the fridge. | 1. Set the fridge temperature to a colder value or set Super cool. This should remove the error code once the requiredtemperature has been reached. Keep doors closed to improve time taken to reach the correct temperature.2. Please empty the location at the front area of air duct channel holes and avoid putting food close to the sensor.If this warning continues, an authorised technician needs to be contacted. |
| E11 | Fridge compartment is too cold | Various | 1. Check if Super cool mode is activated2. Reduce the fridge compartment temperature3. Check if vents are clear and not cloggedIf this warning continues, an authorised technician needs to be contacted. |
Some noises may be heard during normal appliance operation (compressor operating cycle, automatic defrosting, circulation of the refrigerating gas through the appliance, etc.).
If you cannot find the cause of the anomaly, only call our approved after sales service or a qualified professional.
CONTACTS & INFORMATION
Customer Relations
For more information about our products or to contact us, please:
Visit our website: www.de-dietrich.com
Servicing and repairs,
Any repairs to your appliance must be made by a qualified professional accredited to work on the brand.
When making contact, mention the complete reference of your appliance (model, type, serial number). This information is provided on the ID plate located at the bottom left of the refrigerator (above the shelf or behind the crisper).
| Serial number | |
| Type | |
| Model | |
| Service Reference |
You can find a list of approved service centres on our website www.de-dietrich.com This website also allows access to information on spare parts.
Original replacement parts

During servicing, ask for only original spare parts to be used.
The minimum length of time for making available spare parts listed in European Regulation 2019-2019-EU and accessible especially to the appliance user is 10 years under the terms set out in the above regulation.
Guarantee
Please contact your reseller to benefit from the guarantee. The manufacturer does not offer any commercial guarantee for the refrigeration appliance.
VÁŽENÁ ZÁKAZNICE, VÁŽENÝ ZÁKAZNÍKU,
Line drawings of various tools including screwdriver, ruler, and tool holder (no text or symbols)
other
| Dimension | Value | | ----------------- | --------- | | Maximum (2100 mm) | 2100 | | Maximum (1770–1790 mm) | 1770–1790 mm | | Minimum (200 cm²) | 200 | | Minimum (40 mm) | 40 | | Width (mm) | 660.3 | | Top Margin (top) | 550 mm | | Top Margin (top) | 560 mm | | Top Margin (top) | 560 mm | | Top Margin (top) | 540 mm | | Top Margin (top) | 545 mm | | Top Margin (top) | 62 mm | | Top Margin (top) | 623.5 mm | | Top Margin (top) | 995.5 mm |text_image
Technical diagram showing a cabinet with internal components and warning symbols including an exclamation mark and warning symbol.text_image
Technical diagram illustrating the assembly of a refrigerator with labeled parts and directional arrows indicating motion or movement.* Podle modelu.
Diagram illustrating the procedure of removing a refrigerator from a door, with labeled warning symbols and instructions.
Two identical diagrams showing a checkmark and an 'X' symbol inside vertical bars, likely indicating cancellation or error.text_image
- 18 |M | 04text_image
- 18• |M | 04text_image
+ | M | 05natural_image
Illustration of a hand interacting with a touchscreen device (no text or symbols visible)natural_image
Diagram showing a hand placing a component into a shelf, and a close-up of a mechanical component with upward arrows (no text or symbols)Nastavitelný držák
Sikkerhed under installation
B) Fryseboks
other
| Dimension | Value | | ----------------- | --------- | | Total Width | 2100 mm | | Total Height | 1770 - 1790 mm | | Total Height | 560 mm | | Total Height | 570 mm | | Total Height | 540 mm | | Total Height | 623.5 mm | | Total Height | 995.5 mm | | Total Height | 660.3 mm | | Total Height | 1770 mm | | Total Height | 660.3 mm | | Total Height | 1770 mm | | Total Height | 660.3 mm | | Total Height | 1770 mm | | Total Height | 660.3 mm | | Total Height | 1770 mm | | Total Height | 660.3 mm | | Total Height (Top) | 2100 mm | | Total Height (Bottom) | 40 mm | | Total Height (Top) | 2100 mm | | Total Height (Bottom) | 40 mm | | Total Height (Top) | 2100 mm | | Total Height (Bottom) | 40 mm | | Total Height (Top) | 2100 mm | | Total Height (Bottom) | 40 mm | | Total Height (Top) | 2100 mm |text_image
Technical diagram illustrating the assembly of a refrigerator with labeled parts and directional arrows indicating motion or movement.*Ifølge modellen
Two identical diagrams showing a checkmark and a cross symbol on vertical bars, likely indicating approval or rejection status.Indikator for "KOLDT OMRÅDE"
- 18 |M | 04text_image
- 18 |M | 04text_image
+ |M | 05 □natural_image
Hand interacting with a black screen and square buttons (no text or symbols visible)natural_image
Technical line drawing showing a hand installing or adjusting a component above a shelf, with an inset view of a mechanical bracket (no text or symbols)natural_image
Technical line drawing of a structural bracket with no visible text or symbols
| Serienummer | |
| Type | |
| Model | |
| Servicereference |
Line drawings of various household cleaning tools including screwdriver, ruler, and tool holder (no text or symbols)* 1770 – 1778 metallist pealmise kattega

other
| Dimension | Value | | ----------------- | --------- | | Width (mm) | max 2100 | | Height (mm) | 1770 - 1790 | | Top Diameter | 660.3 | | Bottom Diameter | 1770 | | Top Width (mm) | 540 | | Bottom Width | 623.5 | | Top Width (mm) | 580 - 570 | | Bottom Width | 545 | | Top Width (mm) | 62 | | Bottom Width | 995.5 |text_image
Technical diagram showing a cabinet with internal components and warning symbols including an exclamation mark and warning symbol.text_image
Technical diagram illustrating the assembly of a refrigerator with labeled parts and directional arrows indicating motion or movement.*Vastavalt mudelile
Diagram illustrating the procedure of removing a refrigerator from a door, with labeled warning symbols and instructions.
Two identical diagrams showing a checkmark and an 'X' symbol inside vertical bars, likely indicating approval or cancellation.text_image
- 18 |M | 04- Sügavkülmiku seadeindikaatori algtemperatuur on -18^ .
- 18 |M | 04text_image
+ | M | 05natural_image
Illustration of a hand interacting with a touchscreen device (no text or symbols visible)natural_image
Diagram showing a hand pressing down on a shelf and then adjusting a rectangular device with upward arrows (no text or symbols)Reguleeritav ukseriiul
.19.00 τν 10.00 τινγο τιν γ' α'α'α' α'α'
other
| Dimension | Value | | ----------------- | --------- | | Width | 660.3 n"n | | Height (Width) | 1770 n"n | | Width (Width) | 1770 - 560 | | Height (Width) | 623.5 n"n | | Width (Width) | 995.5 n"n | | Width (Width) | 62 | | Width (Width) | 540 | | Width (Width) | 545 | | Width (Width) | 560 | | Width (Width) | 570 | | Width (Width) | 580 | | Width (Width) | 590 | | Width (Width) | 600 | | Width (Width) | 610 | | Width (Width) | 620 | | Width (Width) | 630 | | Width (Width) | 640 | | Width (Width) | 650 | | Width (Width) | 660 | | Width (Width) | 670 | | Width (Width) | 680 | | Width (Width) | 690 | | Width (Width) | 700 | | Width (Width) | 710 | | Width (Width) | 720 | | Width (Width) | 730 | | Width (Width) | 740 | | Width (Width) | 750 | | Width (Width) | 760 | | Width (Width) | 770 | | Width (Width) | 780 | | Width (Width) | 790 | | Width (Width) | 800 | | Width (Width) | 810 | | Width (Width) | 820 | | Width (Width) | 830 | | Width (Width) | 840 | | Width (Width) | 850 | | Width (Width) | 860 | | Width (Width) | 870 | | Width (Width) | 880 | | Width (Width) | 890 | | Width (Width) | 900 | | Width (Width) | 910 | | Width (Width) | 920 | | Width (Width) | 930 | | Width (Width) | 940 | | Width (Width) | 950 | | Width (Width) | 960 | | Width (Width) | 970 | | Width (Width) | 980 | | Width (Width) | 990 | | Width (Width) | 1000 |
Technical diagram illustrating the assembly of a refrigerator with labeled parts and directional arrows indicating motion or movement.הכלה
Technical line drawing of a refrigerator with open door and side-mounted shelf (no text or symbols)
F
Two identical diagrams showing a checkmark and an 'X' symbol inside vertical bars, likely indicating cancellation or error.תַעְרָה בְּרָה
- 18 | M | 04text_image
- 18° | M | 04text_image
- 18 |M | 04.text_image
+ | M | 05natural_image
Illustration of a hand pressing a button on a black surface (no text or symbols)natural_image
Pure diagram of a mechanical or electrical component with two upward arrows inside a rectangular frame (no text or symbols)בַרְשָׁה בַרְשָׁה
Diagram of a refrigerator with doors open, showing internal shelves and door frame (no text or symbols)Ultrafreshesh
EU-2019-2019 19:00: 19:00: 19:00: 19:00: 19:00: 19:00: 19:00:
Line drawings of various household cleaning tools including screwdriver, ruler, and tool holder (no text or symbols)other
| Dimension | Value | | ----------------- | --------- | | μέγ | 2100 mm | | 1770 - 1790 mm | | | εξ | 200 cm² | | εξ | 40 mm | | ακ | 40 mm | | ακ | 545 mm | | ακ | 62 mm | | ακ | 623.5 mm | | ακ | 995.5 mm | | ακ | 1770 mm | | ακ | 580 - 570 mm| | ακ | 580 mm | | ακ | 580 mm | | ακ | 580 mm | | ακ | 580 mm | | ακ | 580 mm | | ακ | 580 mm | | ακ | 580 mm | | ακ | 580 mm | | ακ | 580 mm | | ακ (cutoff) | 580 mm | | ακ (cutoff) | 580 mm | | ακ (cutoff) | 580 mm | | ακ (cutoff) | 580 mm | | ακ (cutoff) | 580 mm | | ακ (cutoff) | 580 mm | | ακ (cutoff) | 545 mm | | ακ (cutoff) | 62 mm | | ακ (cutoff) | 623.5 mm | | ακ (cutoff) | 623.5 mm | | ακ (cutoff) | 623.5 mm | | ακ (cutoff) | 623.5 mm | | ακ (cutoff) | 623.5 mm | | ακ (cutoff) | 623.5 mm | | ακ (cutoff) (cutoff) | 623.5 mm | | ακ (cutoff) (cutoff) | 623.5 mm | | ακ (cutoff) (cutoff) | 623.5 mm | | ακ (cutoff) (cutoff) | 623.5 mm | | ακ (cutoff) (cutoff) | 623.5 mm | | ακ (cutoff) (cutoff) | 995.5 mm | | ακ (cutoff) (cutoff) | 995.5 mm | | ακ (cutoff) (cutoff) | 995.5 mm | | ακ (cutoff) (cutoff) | 995.5 mm | | ακ (cutoff) (cutoff) | 995.5 mm | | ακ (cutoff) (cutoff)| 995.5 mm | | ακ (cutoff) (cutoff) | 995.5 mm | | ακ (cutoff) (cutoff) | 995.5 mm | | ακ (cutoff) (cutoff) | 995.5 mm | | ακ (cutoff) (cutoff) | 995.5 mm | | ακ (cutoff) | 995.5 mm | | ακ (cutoff) | 995.5 mm | | ακ (cutoff) | 995.5 mm | | ακ (cutoff) | 995.5 mm | | ακ (cutoff) | 995.5 mm | | ακ (cutoff) | 995.5 mm | | ακ (c tooth) | | | ακ (c tooth) | | | c tooth | | | c tooth | | | c tooth | | | c tooth | | | c tooth | | | c tooth | | | c tooth | | | c tooth | | | c tooth | | | c tooth | | | c tooth | | | c tooth | | | c tooth | | | c tooth | | | c tooth | nanmm| | c tooth | nanmm| | c tooth | nanmm| | c tooth | nanmm| | c tooth | nanmm| | c tooth | nanmm| | c tooth | nanmm| | c tooth | nanmm| | c tooth | nanmm| | c tooth | nanmm| | c tooth | nanmm| | c tooth | nanmm|text_image
Technical diagram showing a cabinet with internal components and warning symbols including an exclamation mark and warning symbol.text_image
Technical diagram illustrating the assembly of a refrigerator with labeled parts and directional arrows indicating motion or movement.text_image
Diagram illustrating the procedure of removing a refrigerator from a door, with labeled warning symbols and instructions.
Two identical signboards with checkmarks and an 'X' symbol, likely indicating approval or rejection status.text_image
- 18 |M | 04text_image
- 18 |M | 04text_image
- 18• |M | 04text_image
- 18 |M | 04.text_image
+ | M | 05natural_image
Illustration of a hand interacting with a touchscreen device (no text or symbols visible)natural_image
Technical illustration showing a hand placing a component into a shelf, with an inset view of a mechanical device with upward arrows (no text or symbols)natural_image
Technical line drawing of a mechanical bracket or bracket assembly (no text or symbols visible)
Ultrafresh
Technical diagram of a refrigerator with numbered parts for identification and assembly referenceA) Compartimento do frigorífico
B) Compartimento do congelador
1) Módulo de comandos
2) Fornecedor de ar *
3) Prateleiras do frigorífico
4) Tampa do compartimento de legumes
5) Compartimento de legumes
6) Tampa superior do congelador/ gaveta superior do congelador
7) Gavetas do congelador
8) Recipiente para cubos de gelo
9) Prateleiras pequenas em vidro no congelador
10) Prateleira porta-garrafas
11) Prateleira de porta ajustável * /
Prateleira
12) Prateleiras pequenas
13) Suporte para ovos
*Consoante alguns modelos
Technical diagram showing a 3D enclosure with internal structure and warning symbols including an exclamation mark and warning symbol.text_image
Technical diagram illustrating the assembly of a refrigerator with labeled parts and directional arrows indicating motion or movement.*Consoante o modelo
Diagram illustrating the procedure of removing a refrigerator from a door, with warning symbols and instructions in Chinese.
Two identical diagrams showing a checkmark and an 'X' symbol inside vertical bars, likely indicating cancellation or error.text_image
- 18 |M | 04text_image
- 18 |M | 04text_image
- 18• |M | 04text_image
- 18 |M | 04.text_image
+ | M | 05natural_image
Hand interacting with a touchscreen device (no text or symbols visible)natural_image
Diagram showing a hand placing a component into a shelf, and a close-up of a mechanical component with upward arrows (no text or symbols)natural_image
Diagram of a mechanical or architectural component with no visible text or symbols
Technical diagram of a refrigerator with numbered parts for identification and assembly referencenatural_image
Line drawings of various household cleaning tools including screwdriver, ruler, brush, and tool holder (no text or symbols)other
| Dimension | Value | | ----------------- | --------- | | Largest Width | 2100 mm | | Height (Width) | 1770–1790 mm | | Top Diameter | 560–570 mm | | Middle Diameter | 40 mm | | Top Diameter (Width) | 660.3 mm | | Middle Diameter | 62 mm | | Bottom Diameter | 623.5 mm | | Top Diameter (Width) | 995.5 mm | | Middle Diameter | 545 mm | | Top Diameter (Width) | 540 mm | | Middle Diameter | 560 mm | | Top Diameter (Width) | 565 mm | The chart is a schematic representation of the total height in the box. The labels for each dimension are explicitly provided.text_image
Technical diagram showing a cabinet with internal components and warning symbols including an exclamation mark and warning symbol.text_image
Technical diagram illustrating the assembly of a refrigerator with labeled parts and directional arrows indicating motion or movement.text_image
Diagram illustrating the procedure of removing a refrigerator from a door, with labeled warning symbols and instructions.
Two identical diagrams showing a checkmark and an 'X' symbol inside vertical bars, likely indicating cancellation or error.text_image
- 18 |M | 04text_image
- 18 | M | 04text_image
- 18° |M | 04text_image
- 18 |M | 04.text_image
+ | M | 05 □natural_image
Illustration of a hand interacting with a touchscreen device (no text or symbols visible)natural_image
Diagram showing a hand holding a shelf above a rack, and a close-up of a mechanical component with upward arrows (no text or symbols)natural_image
Pure technical line drawing of a structural bracket or frame (no text or symbols)
Смеситель воздуха
Technical diagram of a refrigerator with numbered parts for identification and assembly referenceA) Chladiaci priestor
B) Mraziaci priestor
1) Ovládací panel
2) Turbo ventilátor*
3) Poličky chladničky
4) Kryt priestoru pre zeleninu a ovocie
5) Priestor pre zeleninu a ovocie
6) Horný kryt mrazničky/Zásuvka
7) Zásuvky mrazničky
8) Zásobník na l'ad
9) Sklenené poličky mrazničky
10) Držiak na fl'aše
11) Nastavitelný regál chladničky*/Regál dvierok
12) Regály dvierok
13) Držiak na vajíčka
| Dimension | Value | | ----------------- | --------- | | Total Width | 2100 mm | | Total Height | 1770 - 1790 mm | | Total Height | 660.3 mm | | Total Height | 1770 mm | | Total Height | 540 mm | | Total Height | 623.5 mm | | Total Height | 995.5 mm | | Total Height | 545 mm | | Total Height | 560 mm | | Total Height | (Bottom Edge) | | Total Height | min 200 cm² | | Total Height | min 40 mm | | Total Height | min 200 cm² | | Total Height | max 2100 mm| | Total Height | max 2100 mm| | Total Height | max 2100 mm| | Total Height | max 2100 mm| | Total Height | max 2100 mm| | Total Height | max 2100 mm| | Total Height | max 2100 mm| | Total Height | max 2100 mm| | Total Height | max 200 cm²| | Total Height | min 40 mm | | Total Height | min 40 mm | | Total Height | min 40 mm | | Total Height | min 40 mm | | Total Height | min 40 mm | | Total Height | min 40 mm | | Total Height | min 40 mm | | Total Height | min 40 mm | | Total Height | min 40 mm | | Total Height | min 40 mm | | Total Height | min 40 mm | | Total Height | min 40 mm | | Total Height | min 40 mm | | Total Height | min 40 mm | | Total Height | min 40 mm | | Total Height | min 40 mm | | Total Height | min 40 mm | | Total Height | min 380 mm| | Total Height | min 380 mm| | Total Height | (Bottom Edge)| | Total Height | min 380 mm| | Total Height | (Bottom Edge)| | Total Height | (Bottom Edge)| | Total Height | (Bottom Edge)| | Total Height | (Bottom Edge)| | Total Height | (Bottom Edge)| | Total Height | (Bottom Edge)| | Total Height | (Bottom Edge)| | Total Height | (Bottom Edge)| | Total Height | (Bottom Edge)| | Total Height | (Bottom Edge)| | Total Height | (Bottom Edge)|text_image
Technical diagram illustrating the assembly of a refrigerator with labeled parts and directional arrows indicating motion or movement.*Podl'a modelu
Diagram illustrating electrical hazard warning and safety instructions for removing a refrigerator, with labeled diagrams and warning symbols.
Potom pripevnite kryt posuvnej kol'ajničky k posuvnej kol'ajničke.
Zaskrutkujte držiak naspät' na spotrebič vložením posuvnej časti.
- 18 |M | 04text_image
- 18 | M | 04text_image
- 18° | M | 04text_image
- 18 |M | 04.text_image
+ | M | 05natural_image
Hand interacting with a black screen and a small icon (no text or symbols visible)natural_image
Technical illustration showing a hand pressing down on a shelf and a mechanical component with upward arrows (no text or symbols)
Illustration of a ventilation system with a fan and a box, no text or symbols presenttext_image
BPC PridgePraiser SNT 16 TO 00001 Service BPC MDC0302-005-1 Time (minutes): 274.0 Temperature: 180.0 Temperature range: 126.0 Dimensions: 10Km x 15g ISO DCF: SE No. MAX100P / ISO A Symbol: 274.0 ©text_image
Technical diagram of a refrigerator with numbered parts for identification and assembly referencenatural_image
Line drawings of various household cleaning tools including screwdriver, ruler, and tool holder (no text or symbols)other
| Dimension | Value | | ----------------- | --------- | | Largest Diameter | 2100 mm | | Height (Maximum) | 2100 mm | | Width (Maximum) | 1770–1790 mm | | Width (Maximum) | 1770 mm | | Width (Maximum) | 1770 mm | | Width (Maximum) | 1770 mm | | Width (Maximum) | 1770 mm | | Width (Maximum) | 1770 mm | | Width (Maximum) | 1770 mm | | Width (Maximum) | 1770 mm | | Width (Maximum) | 560 mm | | Width (Maximum) | 560 mm | | Width (Maximum) | 560 mm | | Width (Maximum) | 560 mm | | Width (Maximum) | 560 mm | | Width (Maximum) | 560 mm | | Width (Maximum) | 560 mm | | Width (Maximum) | 560 mm | | | Width (Maximum) | 560 mm | | Width (Maximum) | 560 mm | | Width (Maximum) | 560 mm | | Width (Maximum) | 560 mm | | Width (Maximum) | 560 mm | | Width (Maximum) | 560 mm | | Width (Maximum) | 560 mm | | Thickness Range | 2100 mm | | Thickness Range | 1770–1790 mm | | Thickness Range | 1770–1790 mm | | Thickness Range | 1770–1790 mm | | Thickness Range | 1770–1790 mm | | Thickness Range | 1770–1790 mm | | Thickness Range | 1770–1790 mm | | Thickness Range | 1770–1789 mm | | Thickness Range | 1770–1790 mm | | Thickness Range | 1770–1790 mm | | Thickness Range | 1770–1790 mm | | Thickness Range | 1770–1790 mm | | Thickness Range | 1770–1790 mm | | Thickness Range | 1770–1844 mm | | Thickness Range | 2100 cm² | | Thickness Range | 2100 cm² | | Thickness Range | 2100 cm² | | Thickness Range | 2100 cm² | | Thickness Range | 2100 cm² | | Thickness Range | 2100 cm² | | Thickness Range | 2100 cm² | | Thickness Range | 2100 cm² | | | Thickness Range | 2100 cm² | | Thickness Range | 2100 cm² | | Thickness Range | 2100 cm² | | Thickness Range | 2100 cm² | | Thickness Range | 2100 cm² | | Thickness Range | 2100 cm² | | Thickness Range | 2100 cm² | | thickness Range | 2100 cm² | | thickness Range | 2100 cm² | | thickness Range | 2100 cm² | | thickness Range | 2100 cm² | | thickness Range | 2100 cm² | | thickness Range | 2100 cm² | | thickness Range | 2100 cm² | | thickness Range * Thickness Range* | - | | Thickness Range * Thickness Range* | - | | Thickness Range * Thickness Range* | - | | Thickness Range * Thickness Range* | - | | Thickness Range * Thickness Range* | - | | Thickness Range * Thickness Range* | - | | Thickness Range * Thickness Range* | - | | Thickness Range * Thickness Range* | - | | Thickness Range * Thickness Range* | - | | Thickness Range * Thickness Range* | - | | Thickness Region | - | | Thickness Region | - | | Thickness Region | - | | Thickness Region | - | | Thickness Region | - | | Thickness Region | - | | Thickness Region | - | | Thickness Region | - | | Thickness Region | - | | Thickness Region | - | | Thickness Region | - | | Thickness Region | - | | Thickness Region | - | | Thickness Group | - | | Thickness Group | - | | Thickness Group | - | | Thickness Group | - | | Thickness Group | - | | Thickness Group | - | | Thickness Group | - | | Thickness Group | - | | Thickness Group | - | | Thickness Group | - | | Thickness Group | - | | Thickness Group | - | | Thickness Group | - |text_image
Technical diagram illustrating the assembly of a refrigerator with labeled parts and directional arrows indicating motion or movement.text_image
Diagram illustrating the procedure of removing a refrigerator from a door, with labeled warning symbols and instructions.
Two identical diagrams showing a checkmark and an 'X' symbol inside vertical bars, likely indicating cancellation or error.text_image
- 18 |M | 04text_image
- 18 | M | 04text_image
- 18• |M | 04text_image
- 18 | M | 04.00text_image
+ | M | 05natural_image
Illustration of a hand interacting with a touchscreen device (no text or symbols visible)natural_image
Diagram showing a hand placing a component into a shelf, and a close-up of a mechanical component with upward arrows (no text or symbols)natural_image
Pure technical line drawing of a structural bracket or frame (no text or symbols)
Illustration of a front panel with airflow arrows and a separate box (no text or symbols)Поради та підказки
The image is too blurry to recognize any text content.
