USER MANUAL SS-21270 Sogo

Black desktop fan with blue blades and mesh grille, standing on a black stand (no text or symbols visible)

COOL® WAVE

Caution: please read and preserve these important instructions

ÍNDICE

1 Important Note P.11
2. Symbol definitions P.11
3. Safety instructions for the user P.11

I. General precautions during the use of electrical equipment P.11

II. Restrictions on use to avoid personal injury P.12
III. Product use restrictions due to poor condition or breakdown

IV. Restrictions on use when used with children and elders P.14

V. IMPORTANT WARNING P.15
VI. Instructions to follow when using the device P.15

1. Technical information P.17

2. Parts of the fan P.17

3. Instructions for assembly and use P.17
4. Cleaning and maintenance P.18
5. (ERP) Technical specifications P.55
6. Declaration of conformity P.57
7. Responsibility of disposal, details of the manufacturer and after-sales service P.58

ÍNDICE

Exploded view diagram of a mechanical device with numbered parts for identification

Mechanical assembly diagram showing four stages of a motor or fan assembly (no text or labels)

• Always read the instruction book carefully before using.
- This manual can be downloaded from our web page www.sogo.es
- Keep these instructions for future reference.

2. Symbol definitions

1

2

GENERAL PRECAUTIONS

3

1- Important information and useful hinds on use
2- Warning against dangerous situations in terms of life and property
3- Cautions while using electrical and electronic equipment.

3. GENERAL PRECAUTIONS Safety instructions for the user

I. General precautions during the use of electrical equipment

Do not use the appliance for any other purpose than described in this manual.

Do not use or store the appliance outdoors.

• Always place the appliance on to the flat and even surface.

• This product is intended for indoor, non-industrial, non-commercial and only for household use. Do not use the item outdoors or for any other purpose. Misuse or improper handling may cause problems in the appliance and cause injury to the user.
• The unit must be used only for the intended purposes. No liability is accepted for damages arising from improper use or wrong handling.
• Ensure that the voltage indicated on the nameplate matches the mains voltage before plugging in the appliance.
• Always remove the plug from the power socket when the appliance is not in use. Do not leave the appliance unattended when switched on.
• Close supervision is necessary when any appliance is being used by or near children.
• The device is not completely disconnected from the power source, even after it has been turned off. To disconnect it completely, disconnect it from the mains plug.
• The appliances are not intended to be operated by means of an external timer or separate remote-control system.

II. !Restrictions on use to avoid personal injury

- Do not let the appliance operate unattended.

• Do not place or operate this appliance near water sources.
• Do not place or operate the appliance and its power cord on or near hot surfaces (e.g., stove plates) or open flames.
• Do not leave the power cord hanging from sharp edges and keep away from hot objects and flames. Do not wind the cord around the appliance and do not bend it.
• Never use accessories that are not recommended by the manufacturer.
• The use of accessories not recommended or sold by the appliance manufacturer may result in fire, electric shock or injury to persons.
• When you want to remove the plug from the wall contact, please do this at the plug itself and not by pulling on the cable or the appliance itself.
• To avoid electric shock, make sure your hands are dry before plugging or unplugging.
• Do not use the device with wet hands, on damp floors or when the atmosphere is humid, there is a risk of electric shock.
• While using the appliance, make sure that the power cord must not be caught or crushed.
• Do not let the motor unit, cord or plug get wet to protect against risk of electric shock.

III. Product use restrictions due to poor condition or breakdown

• Never immerse the appliance or the plug-in water or any other liquid. In the event of the appliance falling in water, disconnect immediately from the mains supply and take it to an authorized service agent for repair before reusing.
• Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.
• Do not use the appliance if the cable or plug is damaged. In case of the cord be damaged, it must be replaced only by the manufacturer, its service agent or similarly qualified persons in order to avoid Hazard.
• In case of appliance malfunction, or if it has been damaged in any manner, return the appliance to the nearest authorized service facility for examination, repair or adjustment.
• In case of hardware problems, do not attempt to repair the product yourself. Repairs should only be carried out by qualified technicians.

IV. ☐! Restrictions on use when used with children and elders

- Cleaning and user maintenance shall not be made by children without supervision.

• Children shall not play with the appliance.
- The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
• Children should be supervised to ensure that they do not play with the appliance.

V. IMPORTANT WARNING

• To avoid a circuit overload when using this product, do not operate another high-watt-age product on the same electrical circuit.
• A short power supply cord is provided with this product. An extension cord is not recommended for use with this product, but if one must be used:

- The marked electrical rating of the cord must be at least as great as that of the product.

- Arrange the extension cord so that it does not hang where it can be tripped over or pulled unintentionally.

VI. Instructions to follow when using the device

• Children aged less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended

normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Please make sure that the fan will not meet any obstruction when oscillating.
• Do not put your fingers or any other object into the front case of the fan at any times. Please pay special attention when using the fan near children, to avoid children play with fan.
• Do not let hair, net curtains, tablecloth, clothes or curtains be next to the inlet or outlet of the fan. They could be sucked into the fan, causing damage or injuries.
• Do not use this fan with any semi-conductors speed control.
• Do not operate the fan in an area where gasoline is used or stocked, painting or such flammable liquids.
• Once the fan is assembled, it is forbidden to di-sassemble the housing when cleaning.
• If the unit requires external cleaning, make sure it is unplugged from the power supply. Use a soft tissue or dry cloth for general cleaning. To remove more persistent dirt or grime with a warm soapy dampened cloth.
  Do not use any solvents (such as thinners), and these may damage the plastic casing.

4. Technical information

Model No Voltage Frequency Power
SS-21270 220-240V 50Hz 50W

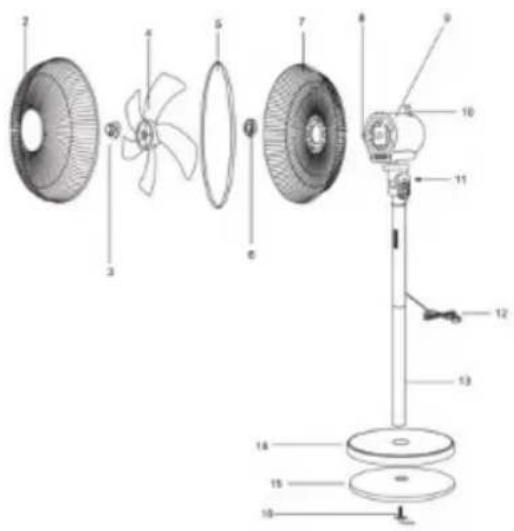

5. Parts of the fan

1. Grille Cover
2. Front Grille
3. Blade retaining nut
4. Fan Blade
5. Grille ring
6. Grille retaining nut
7. Rear Grille
8. Motor shaft
9. Motor housing
10. Oscillation knob
11. Pivot screw
12. Power cord
13. Outer pipe
14. Base plate
15. Base weight
16. L-screw

Exploded view diagram of a mechanical device with numbered parts for identification

6. Instructions for assembly and use

How to install

How to install

Check before installation:

• Unpack the product to check if all the accessories are available.
• Check the voltage shown in the nameplate to see if it accords with the local situation.
• Check the motor if it can move smoothly.

Assembly

Column Assembly Instructions

Take the base plate (#14), base weight (#15) and column parts (#13) from the packing box and L screw (#16). Fix the column on the base plate using the L screw (#16). Unscrew the height adjusting knob. Mount the column ornament, and move to the desired height.

Note: The column of this fan is splitted into two different size of tubes to adjust the fan height to 90cm or 125cm.

Grille & Blade Assembly (#1 - #9):

1. Set the rear grille (#7) to the motor housing (#9) with the handle facing up.
2. Secure together by screwing the grille retaining nut (#6) clockwise onto the motor housing (#9).
3. Install the fan blade (#4) on the motor shaft (#8) with the cut outs on the blade fitted to the motor shaft.
4. Screw the blade retaining nut (#3) on the motor shaft (#8) to hold the fan blade (#4) in place by rotating counterclockwise.
5. Close all the rim clasps to secure the grilles (#2 and #7)

6. Mount the grill cover (#1) to the front grille.

7. Install the front grille (#2) onto the rear grille (#7). Be sure the clasps and hooks on the grilles are aligned.

Mechanical assembly diagram showing four stages of a motor or fan assembly (no text or labels)

Operating instructions

Ensure the fan is in the off position before plugging into a 220-240v\~50hz outlet.

This fan has a 4 position push-button control located at the front of the fan's upper column.

[0] Pressing this button will power the fan off.
[1] Pressing this button will power the fan on at low speed setting.
[2] Pressing this button will power the fan on at moderate speed setting.
[3] Pressing this button will power the fan on At high speed setting.

This fan has 3 functions which will allow you to better customize your preferred air comfort as well as improve the air circulation in the room.

Oscillation:

To activate the oscillation function for widespread breeze distribution, simply press the oscillation knob (#10) down located on top of the fan's motor house. To turn off the oscillation function for a targeted breeze setting, pull the oscillation knob up. Controlling the oscillation can be done while the fan is operating.

Tilt:

To tilt the fan head so that the breeze is targeted at an angle, steady the motor housing of the fan with one hand and grip the fan head with another, carefully tilt the head of the fan until it reaches the desired angle. This position will hold. Be careful as to not tilt the head back further than it is intended to go, doing so will damage the unit.

Height adjustment:

This fan has 2 heights set for the comfort and needs of the user. The height can be chosen between 90cm and 125cm just by adding and removing the column tubes.

7. Cleaning and maintenance

Cleaning and maintenance:

1. Always disconnect the cord from the electrical outlet when cleaning your fan.
2. Light accumulated dust may be removed by using a soft cloth to wipe away the dust at the back grille of the fan.
3. Wipe the exterior surfaces of the fan occasionally with a damp cloth (not dripping wet) and dry thoroughly with a soft dry cloth before operating the fan.
4. Do not use harsh cleaners or materials to clean this unit, doing so will cause damages to it

Storage:

1. Follow cleaning instructions 1-4 above. Make sure to disassemble and clean fan before storing.
2. Retain the original packaging to store your fan.
3. Always store in a dry place.
4. Never store while still plugged in.
5. Never wrap cord tightly around the fan or put any stress on the cord where it enters the fan as it could cause the cord to fray or break.

1. IMPORTANT:

Exploded view diagram of a fan assembly with numbered parts for identification

Diagram showing four different mechanical components or assemblies with no visible text or symbols

Exploded view diagram of a mechanical device with numbered parts for identification

Diagram of four different mechanical components or assemblies, including wheels and a fan assembly (no text or labels)

Exploded view diagram of a mechanical device with numbered parts for identification

Mechanical assembly diagrams showing motor, gear, and fan components (no text or labels)

Gebrauchsanleitung

Exploded view diagram of a mechanical device with numbered parts for identification

Diagram showing four different types of mechanical components with no visible text or symbols

Directive 2009/125/EC

Directive 2009/125/EC

Description Symbol Value Unit
Alimentation / Fonte de energia		220 – 240V~ 50Hz
Puissance / Potência 125W
Classe / Class II
Débit du ventilateur / Caudal do ventilador		F – m3/min
Puissance d'entrée du ventilateur / Entrada de energia do ventilador		P – W
Valeur du service / Valor do serviço		SV – (m3/min) /W
Consommation électrique en veille / Consumo de energia em espera		P_SB	–	W
Consommation d'électricité utilisée / Consumo de eletricidade em uso		Q	–	kWh/a
Niveau de puissance acoustique du ventilateur / Nível de potência sonora do ventilador		L WA – dB(A)
Vitesse de l'air / Velocidade do ar		C – Meters/sec
Norme de mesure pour voler du service /Padrão de medição para sair do serviço		IEC 60879:1986 (corr. 1992)
Détails du contact /Detalhes do contato	SANYSAN APPLIANCES S.L.C/BARCAS 2°, 2A , 46002, VALENCIA, SPAIN

ITA / ALE

Directive 2009/125/EC

Description Symbol Value Unit
Alimentazione / Stromversorgung		220 – 240V~ 50Hz
Potere / Potenz		50W
Classe / Klasse II
Portata del ventilatore / Lüfterdurchfluss		F m3/min	-
Potenza assorbita dal ventilatore / Lüfterleistungseingang		P	-	W
Valore del servicio / Servicewert		SV (m3/min)-/W
Consumo energético in standby / Standby-Stromverbrauch		P_SB	-	W
Consumo di elettricità in uso / Stromverbrauch im Einsatz		Q kWh/a	-
Livello di potenza sonora del ventilatore / Lüfter-Schallleistungspegel		L WA dB(A)	-
Velocità dell'aria / Luftgeschwindigkeit C Meters/sec			-
Standard di misura per volare dal servicio / Messstandard, um vom Dienst zu fliegen		IEC 60879:1986 (corr. 1992)
Detalles de contacto /Contact details	SANYSAN APPLIANCES S.L.C/BARCAS 2°, 2A , 46002, VALENCIA, SPAIN

DECLARATION OF CONFORMITY

This device complies with EU Low Voltage Directive 2014/35/EC.

Electromagnetic Compatibility Directive 2014/30/EU. Directive 2015/863/EU on the restriction of the use of certain hazardous substances in electrical.

Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

This symbol on the product or on the packaging indicates that this product can't be disposed as normal rubbish or household waste. All the electrical, electronic equipment's and battery-operated units must recycle in proper manner and according to the local municipal laws. You can recycle them by taking them to government authorized disposal centres or specialized bins which you can find in any nearby big super markets, electronics or electro domestics products stores or malls who have these types of facilities available.

Designed by: SOGO based on European quality standards Imported by: Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2, 46002 Valencia, Spain Product manufactured in China. After-sales service: www.sogosat.com [e-mail] / 0034 902 222 161
