USER MANUAL SS-8770 Sogo

Black SOGO portable speaker with two sound waves (no text or symbols visible)

REPRODUCTOR PORTÁTIL DE MÚSICA Y KARAOKE PORTABLE RECHARGEABLE PARTY SPEAKER LECTEUR DE MUSIQUE ET DE KARAOKÉ PORTABLE LEITOR PORTÁTIL DE MÚSICA E KARAOKE TRAGBARER MUSIK- UND KARAOKE-PLAYER LETTORE PORTATILE MUSICALE E KARAOKE

Icon of a person reading a book inside a circle (no text or symbols)

Technical diagram of a device rear panel with numbered components and labeled parts in Chinese

SAFETY INFORMATION AND WARNINGS

CAUTION

Symbol Definitions

DANGER: Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury. This symbol appears only in the most extreme situations.

WARNING: Indicates a potentially hazardous situation which could result in death or serious injury.

CAUTION: Indicates a potentially hazardous situation, which, if not avoided, may result in minor/moderate injury or product/property/damage. It also warns against unsafe practices

The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of insulated ‘dangerous voltage’ within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK), NO USER SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

READ ALL INSTRUCTIONS BEFORE USE

Icon of a person reading a book inside a circular frame (no text or symbols)

Always follow basic safety precautions when using this Bluetooth speaker system, especially when children are present.

SAFETY INSTRUCTIONS

1. Read this Instruction Manual before you attempt to connect or operate the appliance.
2. Keep these instructions in good condition. Heed all warnings. Follow all instructions.
3. Save this Instruction Manual for future reference.
4. The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the product. Dry location use only.
5. No naked flame source, such as candles, should be placed on the product.
6. Children should be supervised to ensure that they do not play with the appliance.
7. Ventilation should not be impeded by covering the ventilation openings.
8. Ensure that the unit is plugged into an 100-240V\~50/60Hz power outlet. Using higher voltage may cause the unit to malfunction or even fire catching. Turn off the unit before unplugging it from power source to completely switch it off.
9. Do not plug/ unplug the power plug into/from an electrical outlet with wet hands.
10. If the power plug does not fit into your outlet, do not force the plug into an electrical socket if it does not fit.
11. Use replacement parts, which are specified by

the manufacturer.

1. Install the unit in accordance with the manufacturer's instructions.
2. Place the unit where there is good ventilation. Place the system on a flat, hard and stable surface. Do not expose to temperatures above 40^ C. Allow at least 30 cm clearance from the rear and the top of the unit and 5 cm from each side.
3. Press the buttons of the unit gently. Pressing them too hard can damage the unit.
4. Dispose of used batteries in an environmental-responsible manner.
5. Always ensure that the product is unplugged from the electrical outlet before moving or cleaning. Clean it with dry cloth only.
6. Unplug the product during lightning, storms or when it will not be used for long periods of time.
7. This product has no user-serviceable parts. Do not attempt to repair this product yourself. Only qualified service personnel should perform servicing. Take the product to the electronics repair shop of your choice for inspection and repair.
8. NEVER let anyone, especially children, push anything into holes, slots or any other openings in the unit's casing as this could result in a fatal electric shock.
9. Don't mount this product on a wall or ceiling.
10. Do not place the unit near TVs, speakers and other objects that generate strong magnetic fields.
11. Do not leave the unit unattended when it is in use.

NOTE: To disconnect the system completely if it not to be used for a long time, remove the AC power plug from the wall outlet.

PRODUCT OVERVIEW

Top View

1. 3.5mm AUX IN JACK

2. 6.3mm MIC JACK 1

3. 6.3mm MIC JACK 2

4. POWER ON/OFF BUTTON

5. USB CHARGE PORT

6. LCD DISPLAY

7. FUNCTION/C BUTTON

8. EQ BUTTON

9. LIGHTBUTTON

10. ECHO BUTTON

11. VOLUME CONTROL

12. P-MODE/M. BUTTON

13.10/MEM./FOLD.- BUTTON

1. 10/MEM./FOLD.+BUTTON

2. ▶TUN.+ BUTTON

16.MIC VOL. CONTROL

1. TUN.- BUTTON

2. ▶/PAIR/SCAN BUTTON

3. CHARGE INDICATOR

20.PAIR INDICATOR

1. USB PORT

2. SUPBER BASS BUTTON

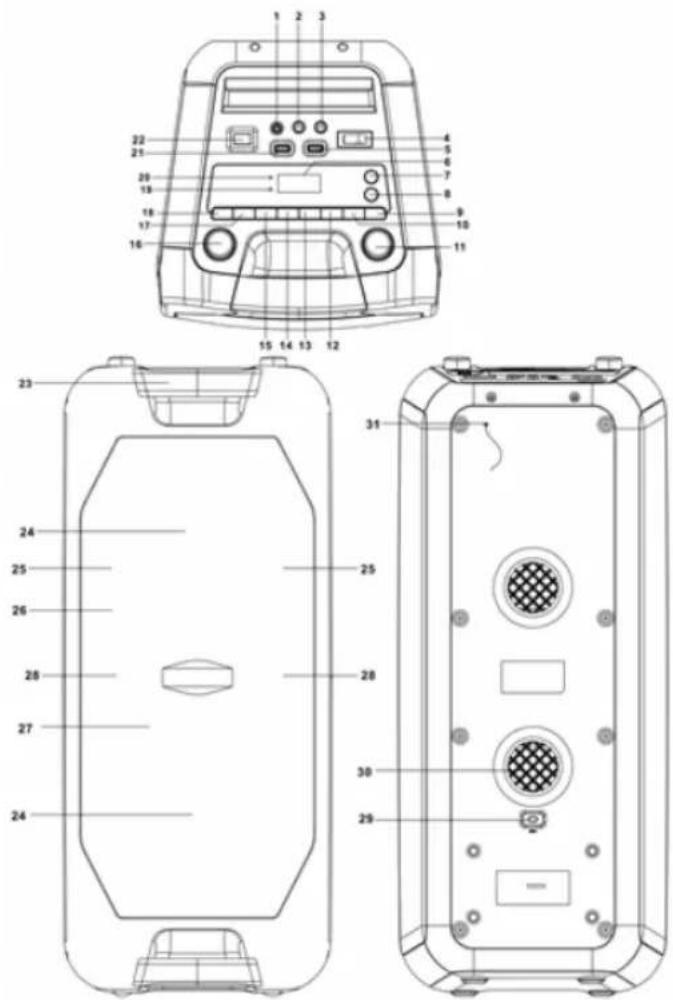

Front and Back view

1. HANDLE

2. SPEAKERS

3. DECORATION LEDS

4. SPEAKER GRILL

5. DISCO LED LIGHT

6. TWEETERS

7. AC SOCKET

8. VENTILATION HOLES

9. FM ANTENNA

Technical diagram of a device's front panel with numbered components and labeled parts

Getting Started

POWER SOURCE

This unit works with rechargeable lead-acid battery (the battery capacity 4000mAh). Fully charge the unit (around 7 hours) before using the product for the first time. The playback time has about 2 hours after full charging. Unplug the AC Power cord from the AC socket to work on the battery pack after fully charged. Plugging the AC Power cord while the battery pack is attached initiates the charging of this battery, the charge LED indicator lights red during charging, when the battery is fully charged the indicator will turn to green. When the unit is with low battery, the LED indicator will flash in red.

Warning: Do not change the battery, only high-qualified personnel can perform this operation.

BASIC FUNCTION

Press the power ON/OFF button to switch the unit on/off.

NOTE: In USB/Bluetooth/AUX mode, when the unit is not providing the main function for around 15 minutes, the unit will automatically switch into standby mode. Press the FUNCTION / ⏻ button to turn on the unit again. Please note that low volume setting in the audio source may be recognized as “no audio signal”, this will affect the capability of signal detection from the device and can also originate an automatic switch into standby mode. If this happens please reactivate the audio signal transmission or increase the volume setting on the audio source player in order to resume playback.

Electrostatic Discharge hints – The unit may reset or may not reset to normal operation mode due to electrostatic discharge, just switch it off and reconnect again.

SETTING THE FUNCTION MODE

To change the function modes, press the FUNCTION / ⏻ button repeatedly to choose USB/Bluetooth/AUX/Radio function.

ADJUSTING THE VOLUME

1. Rotate the VOLUME knob on the unit to increase or decrease the music volume.

2. Rotate the MIC VOL. knob on the unit to increase or decrease the microphone volume.

BASS ADJUSTMENT

Press the SUPER BASS button on unit to increase the bass effect.

This unit has a built-in equalizer system, press the EQ button on unit to select a setting that best matches the music style: FLAT, CLASSIC, ROCK, POP and JAZZ.

USB CHARGING

This unit provides a 5V 1A USB charging port for charging your smart phone. Connect the USB cable of your smart phone to the USB CHARGE port for charging.

MICROPHONE ECHO ADJUSTMENT

Press the ECHO button on unit turn on or off the microphone echo effect.

FLASHING LIGHT

There are 9 modes for the DISCO LED lighting. Press the LIGHT button to choose the light modes. The decoration LED light around the speaker will be always auto-changing between different colors smoothly. To inactivate the light, press the LIGHT button until "OFF" showed on the display.

L-1: Blue LED will be on constantly when it is selected.

L-2: Red LED will be on constantly.

L-3: Green LED will be on constantly.

L-4: Purple LED will be on constantly.

L-5: Light green LED will be on constantly.

L-6: Light blue LED will be on constantly.

L-7: White LED will be on constantly.

L-8: 7 colors LED flash follow the music rhythm.

L-9: 7 colors auto change smoothly

There is LED lighting around the volume knobs. Press and hold the LIGHT button to turn on or off the light.

RADIO OPERATION

Listen to FM radio broadcasts. Press the FUNCTION / ⏻ button on the unit, the display reads FM and the radio frequency.

Note: in order to get the best reception, extend the FM ANT. on the rear of the unit before use to its full length

TUNING TO A RADIO STATION

If you know the station frequency that you want to tune to directly:

- Tune to a station by press the ▶TUN.+ or ▶TUN.- button repeatedly. The station frequency is shown on the display.

AUTOMATIC TUNING STOP

Press and hold the ⬆TUN.- BUTTON or ⬆TUN.+ BUTTON to start tuning, tuning stop automatically when a station is received.

AUTO PRESET MEMORY / SCAN

To scan for stations within reception range and save them to preset memory automatically, press and hold the ▶| / PAIR / SCAN. button. After the unit is finished scanning, the unit will automatically tune to preset number

1 (P01). To tune to a preset station:

- To tune to the next preset station, press the 10/MEM./FOLD.+ button.

- To tune to the previous preset, press the 10/MEM./FOLD.- button.

Choose which stations to save in preset memory instead of scanning automatically.

1. Use the ▶TUN. + or ▶TUN.- button to tune to the station that you want to save as a preset (e.g., 93.1).

2. Press the P-MODE/M. button. "P01" will flash on the display to indicate that you are saving the station as Preset Memory 01. (To change the preset memory number, press the 10/MEM./FOLD.+ or 10/MEM./FOLD.-buttons.)

3. Press the P-MODE/M. button to finish saving the station (e.g., P01 is now set to 93.1).

4. To save another station, repeat steps 1 to 3. You may save up to 30 FM stations.

USB OPERATION

1. Press the FUNCTION / button on unit to select "USB" mode.

2. Plug the USB memory stick to the USB port on top of the unit(The unit can support up to 32G USB device).

Playback will start automatically from Track 1.

1. To pause playback, press the ▶I / PAIR / SCAN button on unit. The playing time will flash on the display.
2. To resume playback, press the ▶/PAIR / SCAN button again.
3. To select a desired track, press the ▶ or button respectively during playing until the desired track appears on the display. The unit will start play automatically.
4. To search for a particular passage during playback, press and hold the ▶ or ▶ button to scan the current playing track at high speed until desired point (passage) appears, then release the button for normal playback mode.
5. To select a song which track number exceeds 10, press the 10/MEM./FOLD.+ or 10/MEM./FOLD.- button each time to skip forward/backward 10 tracks, then press the ▶or button to select desired track.
6. To select a desired folder (if the USB contains more than one folder), press and hold the 10/MEM./FOLD.+ or 10/MEM./FOLD.-button each time to skip forward/backward a folder, then press the ▶ or ◀ button to select desired track.

Important: The USB port is intended for data transfer only, other devices cannot be used with this USB connection. The use of USB extension cords is not recommended. Don't plug the USB from the unit when playing or reading the USB device.

REPEAT PLAY

You can play one track or all tracks on the USB repeatedly.

To Repeat a Single Track

1. Press P-MODE/M. button on unit during play, the display will show " ∩" and the current track will be played over and over again.

2. To cancel repeat play, press P-MODE/M. button on unit until "⊂" disappears from the display.

To repeat all the Tracks

1. Press P-MODE/M. button on unit until the “⊂⊃” shows steadily on the display, all tracks on the USB will be played over and over again.

2. To cancel repeat play, press the P-MODE/M. button on unit until "⊂⊃" disappears from the display.

To repeat the folder (only for USB which contains more than one folder)

1. Press the P-MODE/M. button on unit until “⊂⊃ FOLDER” shows steadily on the display, the current folder will be repeated over and over again.

2. To cancel repeat play, press the P-MODE/M. button on unit until “⊂⊃ FOLDER” disappears from the display.

RANDOM PLAY

Press the P-MODE/M. button on unit in play mode till the "RAND" shows steadily on the display, the random play will start from next track automatically. Press the P-MODE/M. button on unit again until the "RAND" disappears from the display to cancel.

BLUETOOTH OPERATION

1. Press the FUNCTION / ⏻ button on unit to switch to BLUETOOTH function, the LCD will display "bt" and the pair indicator will flash at high speed.
2. Turn on the Bluetooth function on the device, scan the unit "SS-8770" and connect, then input the password 0000 if required, the pair indicator keep light up to indicate connection done, and the display will show "bt" steadily. Press Play to start playback.
3. Rotate the VOLUME knob on the unit or adjust the volume on the external device to increase or decrease the music volume to your desired level.
4. Press and hold the PLAY/PAUSE/PAIR/SCAN button to disconnect Bluetooth.
   Note: The Bluetooth works best within 10 meters in open air.

AUX-IN OPERATION

1. Press the FUNCTION / button on unit to select the "AUX" mode.
2. Connect your audio device to the AUX IN jack on the top panel of the unit with an AUX IN cable.(audio cable is not included)
3. Rotate the VOLUME knob on the unit or adjust the volume on the external device to increase or decrease the music volume to your desired level.
4. Control the playback with your audio device.

MIC JACK OPERATION

Microphone input is available in all modes.

1. Connect your microphone to the 6.3mm MIC JACK found on the top panel of the unit.
2. Rotate the MIC VOL. knob on the unit to increase or decrease the microphone volume.
3. Press the ECHO Button to turn on or off the echo effect of the microphone.

Technical Specifications

GENERAL

Power Requirements: 100-240V\~50/60Hz

Battery type: Built-in rechargeable battery, 4000mAh/12V, lead-acid

Power consumption: 35W

Power output: 25W X 2

FM frequency: FM 87.5-108MHz

AUX in jack: 3.5mm

Microphone jack: 6.3mm

Work temperature: 5°C - +35°C

USB memory section

Playback format: WMA/MP3

Memory: 32MB to 32GB

Bluetooth

Reception Range: 10 meter (line-of-sight distance)

ACCESSORIES

Instruction Manual x 1pc

AC Cord x 1pc

Wired Microphone x 1pc

Note: Specifications are subject to change for continuous improvement without prior notice.

INFORMATIONS DE SÉCURITÉ ET AVERTISSEMENTS

Icon of a person reading a book inside a circular frame (no text or symbols)

Technical diagram of a device rear panel with numbered components and labeled parts

Commencer

SOURCE D'ÉNERGIE

FONCTIONNEMENT AUX-IN

Prise jack AUX: 3.5mm

Prise microphone: 6.3mm

Icon of a person reading a book inside a circle (no text or symbols)

Icon of a person reading a book inside a circular frame (no text or symbols)

Icon of a person reading a book inside a circle (no text or symbols)

Technical diagram of a device rear panel with numbered components and labeled parts

Iniziare

FONTE DI POTERE

DECLARATION OF CONFORMITY

This device complies with Low Voltage Directive 2014/35/EC, Electromagnetic Compatibility Directive 2014/30/EU, Directive 2015/863/UE on the restriction of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

DÉCLARATION DE CONFORMITÉ

This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of waste electrical and electronic equipment (WEEE).

Imported by:

Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2

46002 Valencia, Spain

Product made in P.R.C. – Designed by SOGO based on the European Quality Standards

Customer Service: www.sogosat.com / [e-mail] / 0034 902 222 161
