SS-465 - Refrigerator Sogo - Free user manual and instructions

Brand	Sogo
Model	SS-465
Product Type	Mini portable heater and cooler
Rated Voltage	100-240V (AC) / 12V (DC)
Power Consumption	48W
Operating Principle	Semiconductor cooling technology (without compressor)
Heating Temperature	60°C ± 10°C
Cooling Temperature	15°C to 18°C below ambient temperature
Climate Class	SN/N
Main Functions	Cooling, heating, normal mode, silent mode
Power Supply	Household plug (AC) or cigarette lighter (DC 12V)
Indicator Lights	Green (cooling), red (heating)
Cooling Module Lifespan	Up to 50,000 hours
Cleaning	Wipe with a soft cloth and detergent; do not rinse with water
Maintenance	Regularly clean the interior; replace the fan every 3 to 6 months if necessary
Replaceable Parts	Fan, cooling module
Safety	Do not cover during use; do not use outdoors; do not immerse in water
Compliance	Directives 2014/35/CE, 2014/30/UE, 2015/863/UE, 2009/125/CE
Recommended Use	Car, home, office, dormitory, yacht, picnic
Recommended Foods	Fruits, drinks, tea, cosmetics, medicine (no frozen food or fresh meat)

Frequently Asked Questions - SS-465 Sogo

How to switch from cooling mode to heating mode?

First set the switch to the OFF position (center), wait 15 minutes, then switch to the other mode to avoid damaging the system.

What temperature does it reach in heating mode?

The heating temperature is approximately 60°C ± 10°C. Be careful of burns.

Can this appliance be used to freeze food?

No, this appliance is not a refrigerator. It does not freeze and it is forbidden to put fresh meat or frozen items like ice.

How to clean the mini heater/cooler?

Turn off and unplug the appliance. Wipe the outside with a soft cloth dampened with detergent, and the inside with a soft cloth and warm water. Never rinse with water to avoid electric shock.

Can I use the appliance in my car?

Yes, use the 12V cigarette lighter cable. Make sure the vehicle is running to avoid draining the battery.

What to do if the appliance does not cool well?

Check that the fan is working (replace it every 3 to 6 months if necessary). Touch the interior screws to check the temperature. If they are not cold, the cooling module may be defective.

What types of food can I store?

Fruits, bottled/canned drinks, tea, cosmetics, medicine (according to the indicated temperatures). Not suitable for raw meat, ice cream or frozen foods.

What is the difference between normal mode and silent mode?

In normal mode, the fan runs faster for more efficient cooling/heating. In silent mode, the fan is slower, ideal for night.

How long does the cooling module last?

The lifespan is estimated at 50,000 hours under normal usage conditions.

Is it possible to leave the appliance on continuously?

Yes, but make sure not to block the ventilation openings and not to cover it. For prolonged use, prefer silent mode at night.

USER MANUAL SS-465 Sogo

Thank you for choosing our portable mini cooler and warmer box. In order to let the product work better for you, please read all the instructions carefully before using it. For consulting in later days, please keep the instruction manual in a safe place for future use.

This manual can also be found and downloaded from our website www.sogo.es

For proper operation, please read the following carefully before using the appliance. Any incorrect use of the appliance might cause serious health issues and injuries, sometimes even death.

1. The surroundings of the cooling and heating box must have free air flow. It must be installed away from curtains and other combustible materials.
2. WARNING: In order to avoid overheating, do not cover the cooling and heating box during use.
3. WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.
4. WARNING: Do not locate multiple portable sockets-outlets or portable power supplies at the rear of the appliance.
5. The cooling and heating box must be installed and fully protected to prevent liquid from getting into the cover; otherwise, that will

cause damage or electric shock to users.

1. Please confirm that the socket connections are tight. A loose socket can cause the cords and sockets to heat up and break, or even cause a fire.
2. Do not switch the cool/warm function abruptly. Switch the function after the appliance has been OFF for 15 minutes.
3. Do not rinse it with water.
4. The cooling and heating box must be used indoors only.
5. The cooling and heating box must be used on a stable and horizontal surface, and must be used according to the instructions; otherwise, it may cause danger to users.
6. This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
7. Children shall not play with the appliance.
8. Cleaning and user maintenance shall not be made by children without supervision.
9. Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.
10. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
11. Please follow local regulations regarding disposal of the appliance for its flammable

blowing gas. Before you scrap the appliance, please take off the doors to prevent children from being trapped.

1. Do not use the appliance if the cable or plug is damaged. Should the cord be damaged, it must be replaced only by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.
2. Never immerse the appliance or the plug in water or any other liquid. In the event of the appliance falling into water, disconnect immediately from the mains supply and take it to an authorized service agent for repair before reusing.
3. This appliance is intended to be used in household and similar applications such as: - Staff kitchen areas in shops, offices, and other working environments; - Farm houses and by clients in hotels, motels, and other residential type environments; - Bed and breakfast type environments; - Catering and similar non-retail applications.
4. When the power cord is damaged, do not touch the AC power cord with your hands to avoid danger.
5. When using the product, please note that the voltage used is absolutely correct (the applicable voltage of this product is clearly marked on the product nameplate).
6. The vehicle-used function can only be activated when the vehicle is running. Be sure to turn off its power and unplug the vehicle-used power cord after the vehicle

stops running.

1. The product should not be used for transporting or loading acid-corrosive items, and the product should not be wiped with corrosive solvents.
2. Do not block the ventilation openings in normal use.
3. Use this product in strict accordance with the instructions, please do not disassemble the internal parts without permission.
4. Under the heating condition, the temperature inside the appliance can be controlled within a temperature at about 60°C ± 10°C , please pay attention to high temperature to avoid burns.
5. The product should be stored in a place which is tidy and of good draft, and a ventilation channel with a width of 10cm should be kept around it. And do not put the product at the rainy places or the places with heat sources, such as electric stoves, LPG stoves, heat pipes or flames.
6. The Mini Warmer & cooler should be cleaned regularly if there is residual water inside it.
7. The Mini Warmer & cooler is not a refrigerator, and it is not allowed to be used for freezing fresh meat. It is better to put frozen foods and drinks into it for storage.
8. Please do not open the door frequently and the door cannot be opened for too long in order to keep contents inside it be fresh.

PRODUCT DESCRIPTION

1. This product can not only be used for cooling but also for warming. It is of simple and cute appearance, compact, easy to carry, as well as of long service life and low power consumption. It is a good helper for home and travel use.
2. This product is fully embodied a concept of "Green and Environmentally-friendly". And this product uses semiconductor cooling technology, it has no bulky compressor and no refrigerant to avoid noise and fluorine pollution. It is an environmentally-friendly refrigeration product without pollution.
3. This product is particularly suitable for drivers, tourists, migrant workers, singles, mother, office workers, students and for anyone to take it to the beach or on a picnic due to its multi-function, light weight, small size and easy-to-carry.
4. This product has simple structure and long service life, and it is convenient to maintain, and is of low power consumption and strong shock-resistant capability.
5. This product has a long service life, and the life of the cooling module can reach 50000 hours.

PRODUCT PARAMETERS

Product name: Mini Portable Warmer & cooler	Product model: SS-465
Rated voltage: 100-240V/12V Rated power	consumption: 48W
Working principle: semiconductor cooling technology	Heating temperature: Heat up to 60°C ± 10°C
Cooling temperature: 15°C -18°C lower than the current ambient temperature	Climate class: SN / N

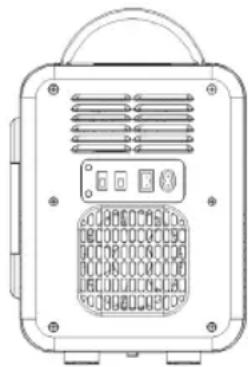

1. Front

2. Side 3. Back

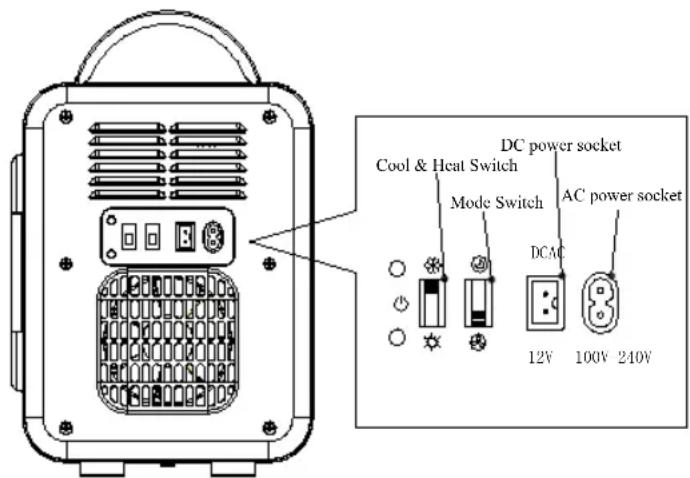

ILLUSTRATION FOR POWER SUPPLY

(1) Turn to the "Cool" setting. (2) Align the vehicle-used power cable with the socket of the vehicle (DC12V), and then insert it well in position.

(3) Directly insert the cigarette lighter of the vehicle-used cord into the cigarette lighter socket of the vehicle.

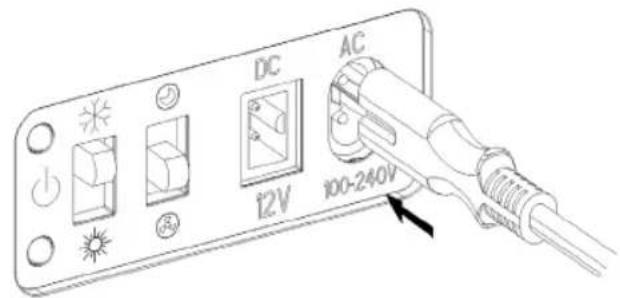

2. Home use (AC 100V-240V)

(1) Turn to the "Cool" setting. (2) Insert one end of the household power cord into the AC socket of the Mini Warmer & Cooler (100V-240V).

(3) Insert the other end of the household power cord into the household outlet.

3. Operation for "Cool" and "Heat"

(1) When cooling, turn the "Cool and Heat Switch" to "Cool" setting, the green indicator lights up and the Mini Warmer & Cooler starts to cool. (2) When heating, turn the "Cool and Heat Switch" to "Heat" setting, the red indicator lights up and the Mini Warmer & Cooler starts to heat. (3) When need to turn off the Mini Warmer & Cooler, turn the "Cool and Heat Switch" to the middle "OFF" position, and the Mini Warmer & Cooler stops working. (4) When make switch between "Cool" and "Heat" settings, be sure to turn the switch to "OFF" setting firstly and then switch to another setting after 15 minutes. Do not directly make switch between "Cool" and "Heat" setting as the cooling system of the Mini Warmer & Cooler may be damaged due to the drastic change of temperature.

Cool: Green indicator lights up

Heat: Red indicator lights up

4. Operation for "Normal mode" and "Silent mode"

(1) Normal mode: The fan runs at higher speed under normal mode, it is recommended to select this mode in the day time. (2) Silent mode: The fan runs at lower speed under normal mode, it is recommended to select this mode at night.

TIPS FOR OPERATION

(1) The closer to the cooling position, the better the cooling effect. (2) Metal cans can be selected for cooling drinks for better results. (3) The fruits such as watermelon can be cut into two halves and be sealed by the plastic wrap, and then make its flat surface be attached to the inner wall of the Mini Warmer & cooler. (4) For make the meal be fresh, firstly put the meal into a flat stainless steel plate, and then seal the plate with the plastic wrap, finally, make the bottom surface of plate be attached to the inner wall of the Mini Warmer & cooler. (5) Cosmetics and medicines are spread on the inner wall of the Mini Warmer & Cooler flatly. The closer to the cooling module, the better the cooling result.

SUGGESTED TEMPERATURE

1. Fruits: The suggested temperature for refrigerating fruits is about 0-10°C, which can maintain the quality and flavor of the fruits and extend their freshness period.
2. Beer: The suggested temperature for storing beers should be between 0-15°C, preferably about 10°C. Bottled beer should be stored between 5-25°C.
3. Tea: Tea can be kept better if the temperature is controlled between 5-10°C, and the flavor of the tea can be maintained for more than 1 year.
4. Cosmetics/skincare products: Generally, the temperature should be below 25°C, and the temperature for storing cosmetics or skincare products is 10-18°C. Too high or too low temperature will deteriorate the cosmetics. Cooled cosmetics (skincare products) will have a good cooling effect on hot skin, making the skin feel comfortable and refreshed.
5. Medicines: The temperature for refrigerating household medicines should be set according to the requirements of the medicines. Generally, the refrigerating temperature is below 20°C.

SCOPE OF APPLICATION

1. Application places: Car, home, yacht, office, dormitory, and cosmetics store, etc.
2. Suitable for refrigeration: Fruits, bottled/canned beverages, tea, medicines, breast milk, and cosmetics, etc.
3. Not suitable for refrigeration: Frozen foods such as ice cream and others, chemical reagents, and meat, etc. Cooked food can be stored for 5-8 hours.

TROUBLESHOOTING

1. If the Mini Warmer & Cooler is not energized, please follow the steps below: (1) Check and make sure the power cord is properly connected to the power outlet. (2) Check and make sure the Mini Warmer & Cooler is turned on. (3) Check and make sure the AC/DC switch of the Mini Warmer & Cooler is operated correctly. (4) Check and make sure the cigarette lighter is properly connected and turned on, and clean the base of the cigarette lighter with a non-metallic brush if it is contaminated.
2. If the cooling effect is not good, please deal with it according to the following measures:

(1) Check and make sure the fan is running normally. If not, please replace the fan. It is recommended to replace the fan every 3-6 months. (2) Touch the four screws inside the Mini Warmer & Cooler to check if it is cold. Replace the cooling module if there is no cooling effect.

CLEANING AND MAINTENANCE

1. Before performing cleaning and maintenance, the "Cool & Heat Switch" must be firstly turned off and then unplugged to disconnect the power source.
2. Wipe the dirt and dust on the surface of the body with a piece of soft cloth dipped with detergent. And you can use a piece of soft cloth dipped with warm water to clean the inside of the appliance.
3. The body must not be rinsed with water, especially the parts of the body such as the ventilation openings of the switch socket, otherwise it will cause damage to the product and a risk of electric shock.

USER SAFETY INSTRUCTIONS

DECLARATION OF CONFORMITY

This device complies with Low Voltage Directive 2014/35/EC, Electromagnetic Compatibility Directive 2014/30/EU, Directive 2015/863/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of waste electrical and electronic equipment (WEEE).

Imported by:

Sanysan Appliances S.L., NIF: B98753056, C/ Barcas 2, 2

46002 Valencia, Spain

Product made in P.R.C. - Designed by SOGO based on the European Quality Standards

Customer Service: www.sogosat.com / [e-mail]/0034902222161
