USER MANUAL Bogota Physa

Line drawing of a modern massage chair with adjustable armrest and backrest (no text or symbols)

Technical diagram showing the assembly of a toilet with labeled parts and component views

Technical diagram of a mechanical device with labeled parts A, B, and C showing exploded and assembled views.

Technical diagram illustrating the assembly of a vehicle simulator frame with labeled components and a magnified inset showing internal components.

Line drawing of a mechanical device with a curved arm and base, showing motion arrows (no text or symbols)

This User Manual has been translated using machine translation. We have made every effort to ensure the translation is accurate, but please note that automated translations are not perfect and are not meant to replace human translators. The official version of the User Manual is in English. Any differences between the translated version and the original English are not legally binding. If you have any questions about the accuracy of the translation, please refer to the English version, which is the official reference. More language versions are available upon request via [e-mail].

Technical data

Parameter description Parameter value
Product name	Electric Pedicure Chair - with massage function with foot bath - 105 W - 200 kg - brown
Model	Physa bogota brown
Rated voltage [V~] / frequency [Hz] AC 220-240 /	50/60
Rated power [W] 120
Protection class	I
Dimensions [width * length * height; mm] 875*1660*1310
Weight [kg] 117.5

Description

Line drawing of a modern office chair with adjustable armrest and seat (no text or symbols)

The product is designed to provide comfort for clients while supporting a back-friendly working posture for practitioners. The chair can be adjusted to suit the specific needs of each treatment.

The user is liable for any damage resulting from unintended use of the device.

Installation

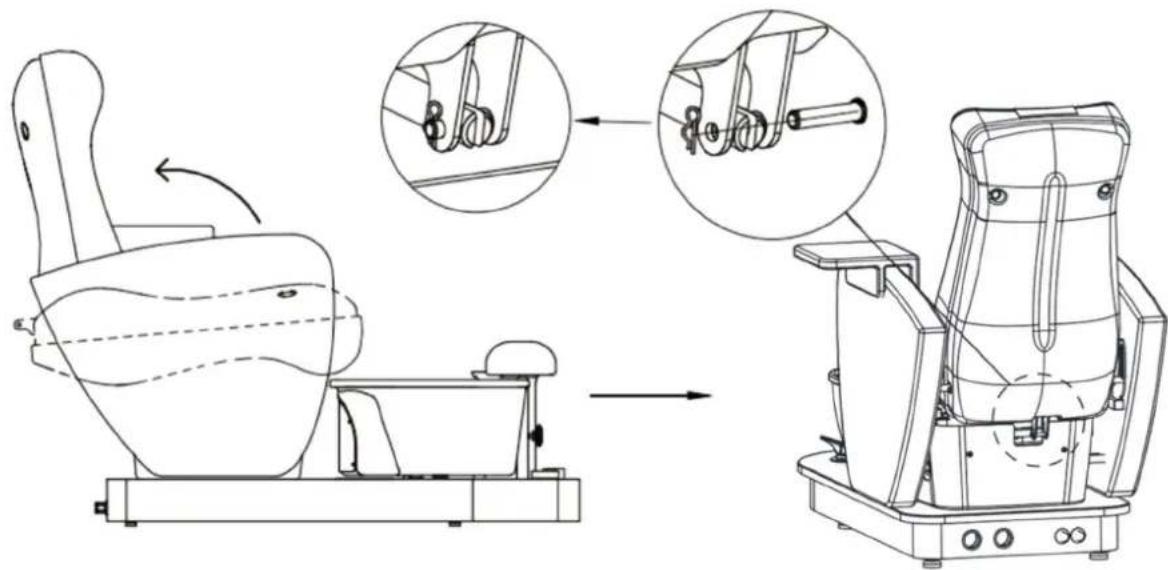

1. Installing the backrest

Technical diagram showing the assembly of a toilet with labeled parts and component views

Pull up the backrest, insert the push rod, and fix it with a pin as shown above.

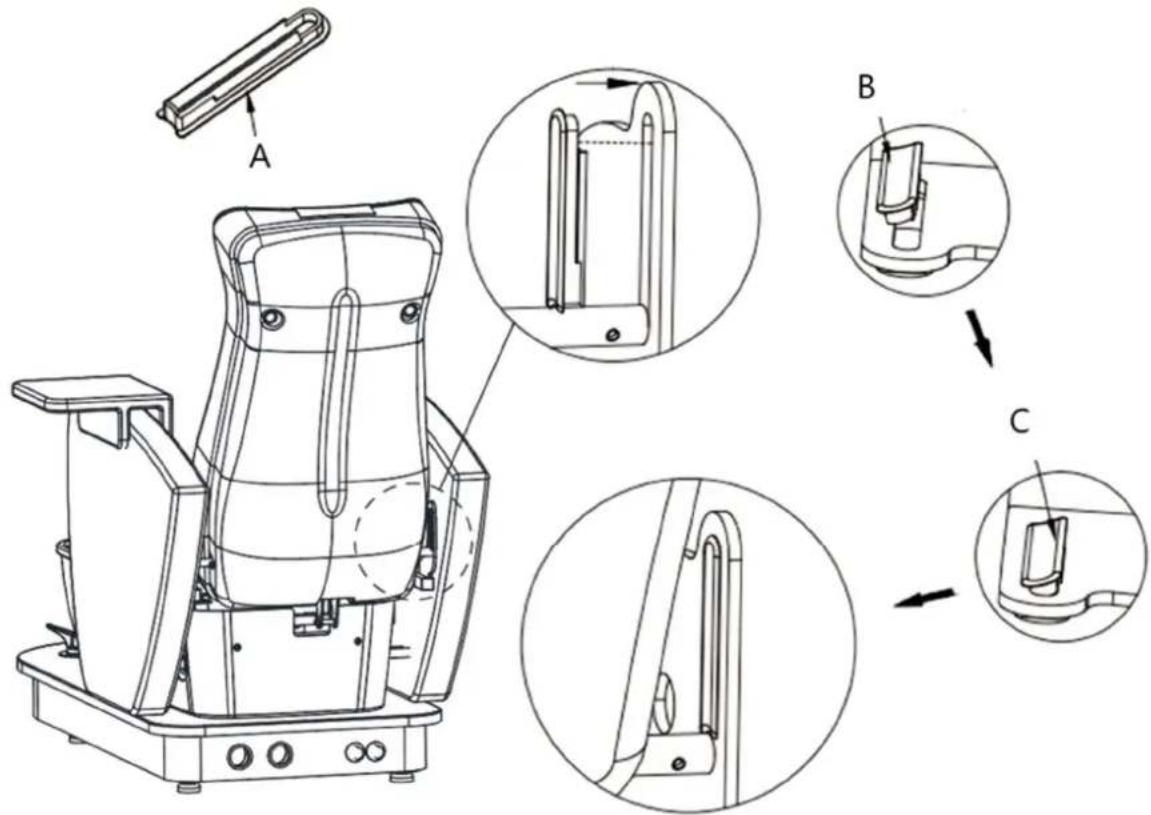

2. Inserting the plastic fixing cover, as shown below

Technical diagram of a mechanical device with labeled parts A, B, and C showing exploded and assembled views.

A- Plastic fixing cover.
B- Place the side of the plastic fixing cover into the slot diagonally first.
C- Press the other side harder into the slot.

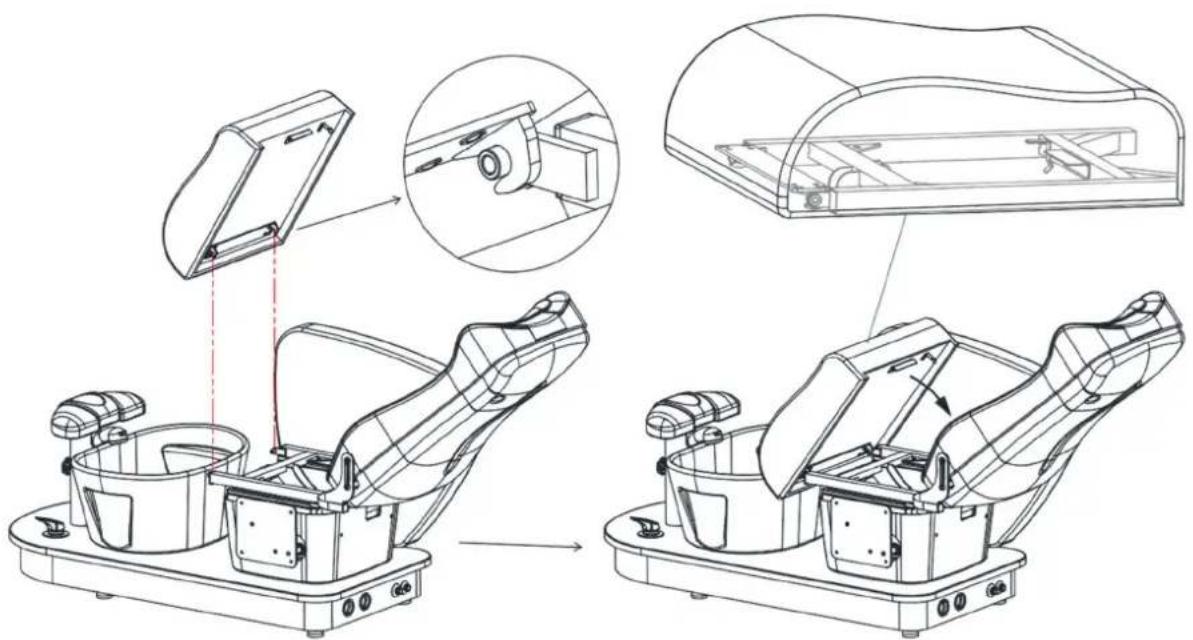

3. Installing the seat cushion

Technical diagram illustrating the assembly of a medical device with labeled parts and a magnified inset showing internal components.

First, tilt the backrest to its maximum angle. Then insert the seat cushion, ensuring that the metal bracket beneath the cushion is securely snapped into place with the seat frame, as illustrated in the diagram.

Operation

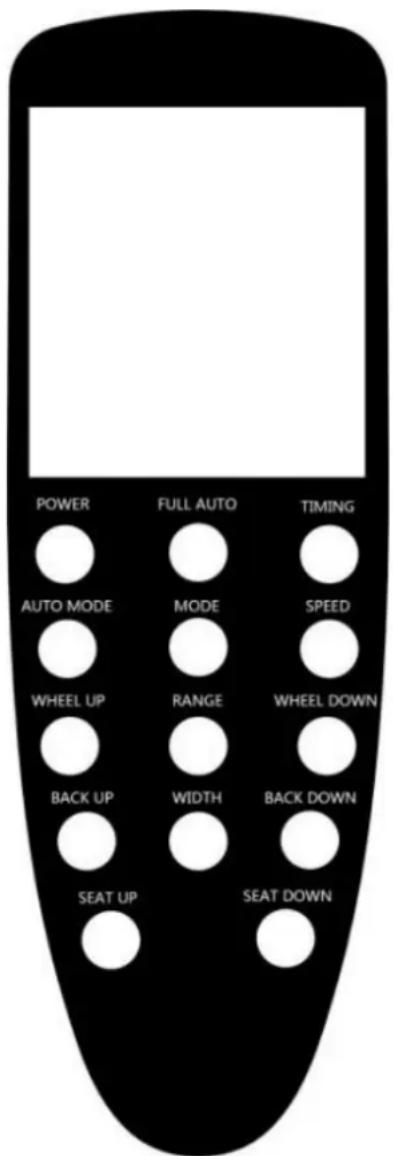

Remote control

POWER FULL AUTO TIMING AUTO MODE MODE SPEED WHEEL UP RANGE WHEEL DOWN BACK UP WIDTH BACK DOWN SEAT UP SEAT DOWN

1. POWER: Switch the hand control on or off.

2. On: Activates the screen.

3. Off: Stops all functions and resets the massage hands.

4. FULL AUTO: Toggles the fully automatic massage function on or off.

5. TIMING: The default timer is set to 20 minutes. Adjustable in increments of 10, 20, or 30 minutes.
6. AUTO MODE: Press to select between full body, shoulder, or waist massage modes. The default setting is full body mode.
7. MODE: Allows manual selection of manoeuvre, including kneading, pounding, kneading + pounding, knocking, and pushing.
8. SPEED: Adjust the speed of the massage, with options for low, medium, and high.
9. WHEEL UP/WHEEL DOWN: Manually adjust the position of the massager. This function is not available in "Full auto mode" or "Mode" settings.

10. RANGE: Applicable when no specific mode is selected. Unavailable when "Full auto mode" or "Mode" are active. Effective when "Manoeuvre" is selected. Massage areas include:

11. Fixed-point massage

12. Local massage
    • Full-body massage

(Note: In "Manipulation – push" mode, fixed-point massage is disabled, while local and full-body massage are enabled.)

1. BACK UP/BACK DOWN: Long press to adjust the backrest angle.
2. WIDTH: Long press to adjust the width of the massaging hands.
3. SEAT UP/SEAT DOWN: Long press to adjust the seat height.

Operation methods

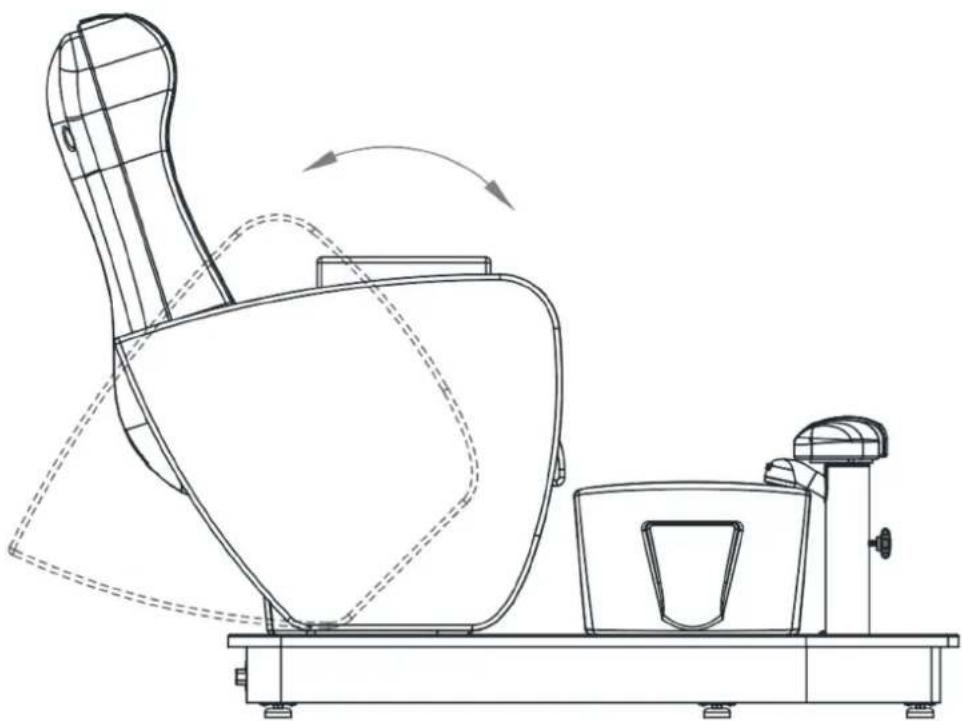

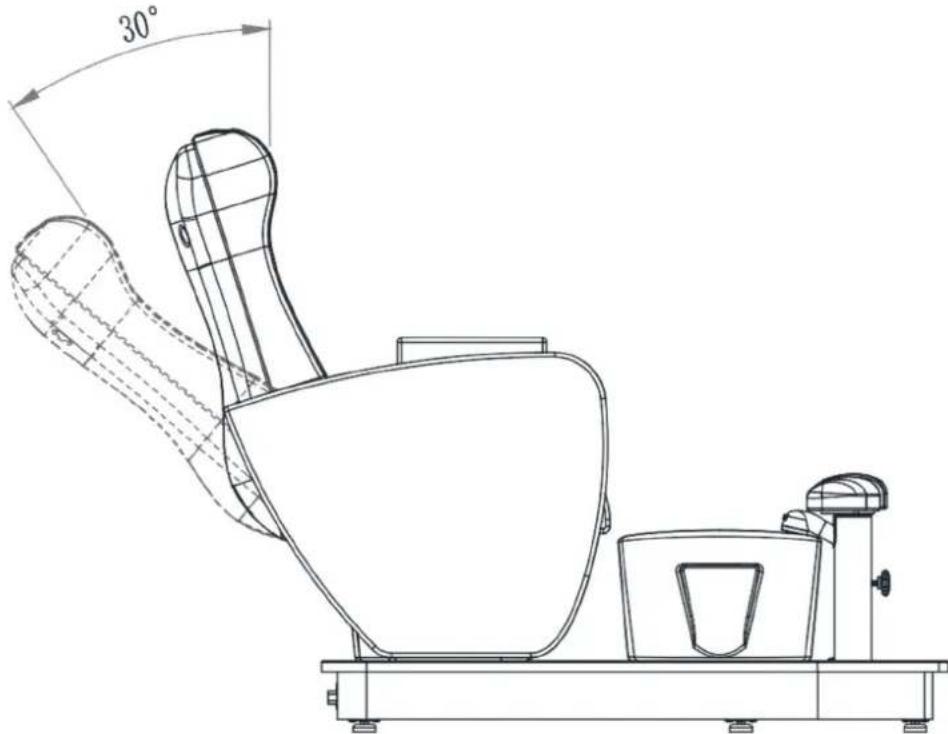

1. Backrest adjustment

Long press BACK UP/BACK DOWN to adjust the incline angle of the backrest.

30°

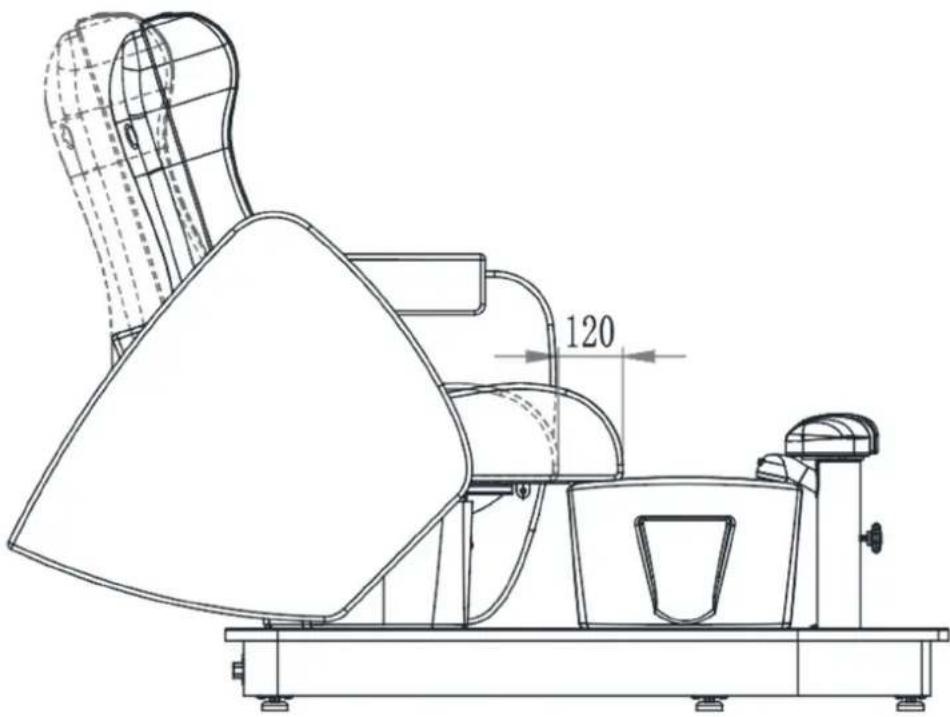

2. Seat adjustments

Long press SEAT UP/SEAT DOWN to adjust the seat cushion position

120

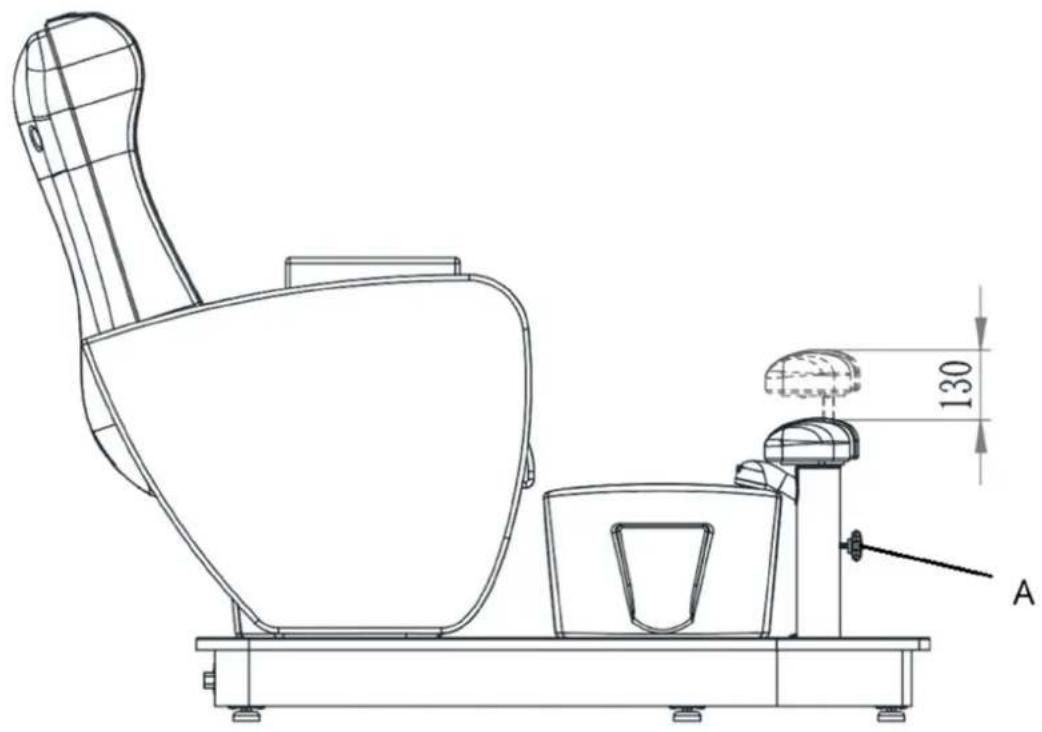

3. Footrest adjustment

Loosen the nob on the foot cushion to adjust the height

130 A

A- The nob

4. Armrest adjustment

The left and right armrests could be turned directly by hand.

Line drawing of a mechanical device with a curved arm and base, showing motion arrows (no text or symbols)

Cleaning and maintenance

1. Daily cleaning

Wipe dust from the product using a soft, dry cloth.

2. Cleaning stubborn dirt

For dirt that cannot be removed with a dry cloth, use a soft towel moistened with a diluted cleaner.

3. Avoid harsh chemicals

Do not use benzene, diluted detergents, or other chemical cleaners.

4. Do not use solvents

Solvents such as benzene, thinner, or gasoline may damage the product's leather or erode its surface.

5. Storage and usage environment

Avoid placing the product in areas with direct sunlight or high humidity to prevent damage.

6. Operating conditions

The product is suitable for use in temperatures ranging from -5^ to 50^ , with humidity levels between 45% and 85% .

Disposing of used devices

Do not dispose of this device in municipal waste systems. Hand it over to an electric and electrical device recycling and collection point. Check the symbol on the product, instruction manual, and packaging. The plastics used to construct the device can be recycled following their markings. By choosing to recycle you are making a significant contribution to the protection of our environment.

Contact local authorities for information on your local recycling facility.

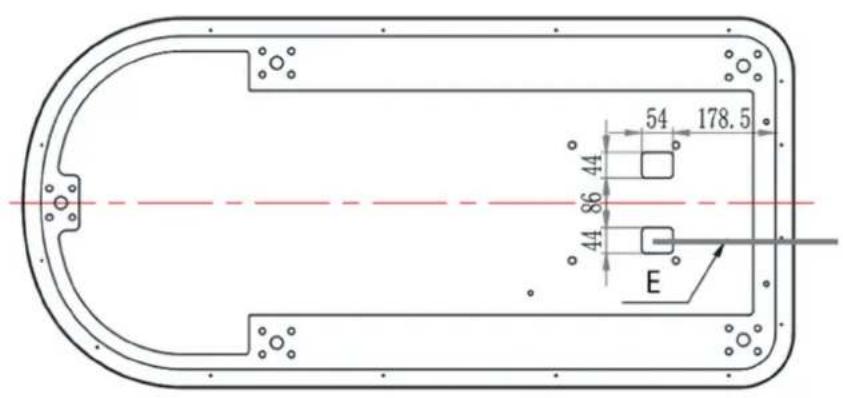

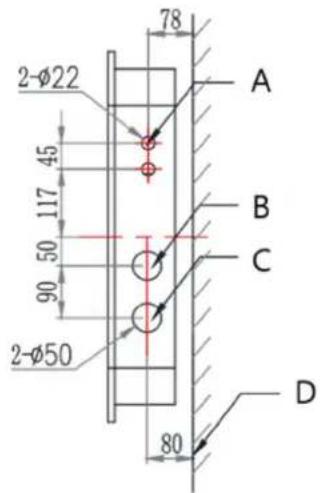

Schematic diagram of water fittings

2-Ø22 78 45 117 50 90 2-Ø50 A B C D 80

54 178.5 44 86 44 E

A- Hot & cold water pipe: 1/2 threaded pipe

B- Power cable outlet

C- Drainpipe hole 32mm

D- The ground

E- Power cable

Troubleshooting

Problem	Possible	cause
The product does not respond	1. Is the controller power switch on	1. Turn the controller switch back on
	2. Has the foot control key functioned to the extreme	2. Try pressing another control key
	3. Whether the power plug is plugged in	3. Unplug the power supply and plug it in again
	4. Is the transformer plugged into each connection	4. Unplug the transformer and plug it in again
The power switch light does not light up	1. The fuse is burnt out	1. Fuse replacement
The hand control working indicator does not light up	1. The hand control cable isn’t plugged in tightly, or the hand control is broken.	1. Plug in the hand control cable first, if it does not work properly, replace the hand control

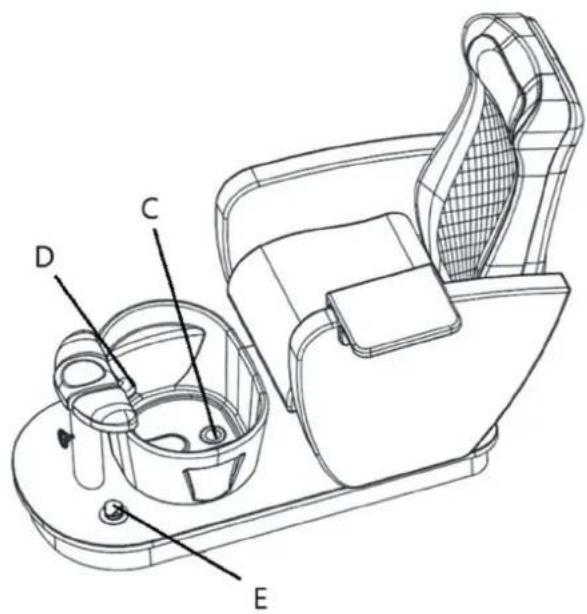

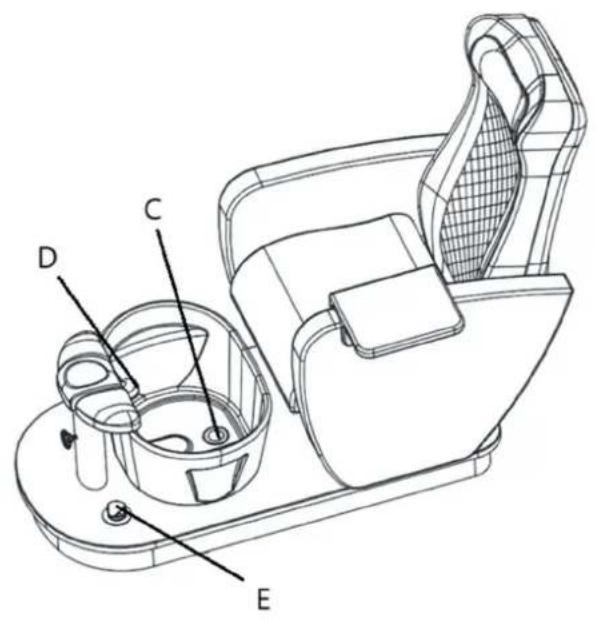

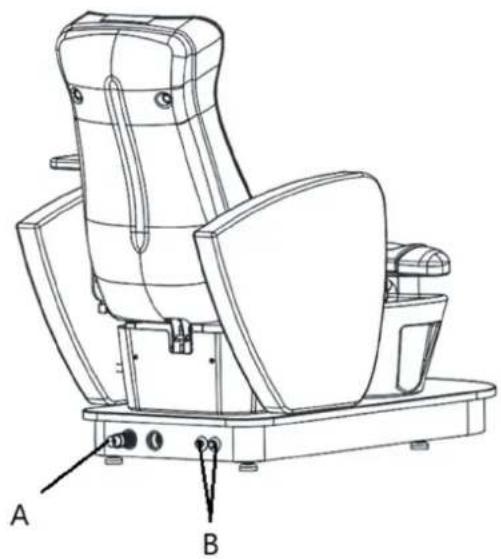

Parts diagram

Technical line drawing of a mechanical device with labeled parts A and B (no text or symbols beyond labels)

D C E

Part number Description
A	Drainpipe
B Inlet for hot and cold water
C	Drainer
D	Faucet
E	Drain
