USER MANUAL Edition Tube 20th Anniversary HUGHES & KETTNER

Edition Tube 20th Anniversary

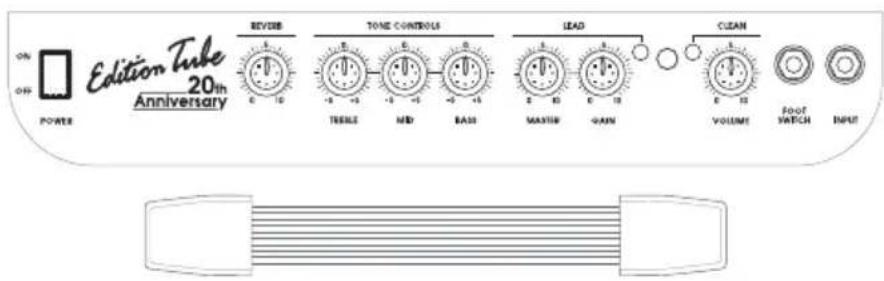

ON ON Power Edition Tube 20th Anniversary REVIEW TONE CONTROLS LEAD CLEAN POWER TEILE MID BASI MASTER MAIN VOLUME FOOT WATCH INPUT

MANUAL

Hughes & Kettner® TECHNOLOGY OF TONE

IMPORTANT SAFETY INSTRUCTIONS BEFORE CONNECTING, READ INSTRUCTIONS

• Read all of these instructions!
• Save these instructions for later use!
• Follow all warnings and instructions marked on the product!
• Do not use this product near water, i.e. bathtub, sink, swimming pool, wet basement, etc.
• Do not place this product on an unstable cart, stand or table. The product may fall, causing serious damage to the product or to persons!
• Slots and openings in the cabinet and the back or bottom are provided for ventilation; to ensure reliable operation of the product and to protect it from overheating, these openings must not be blocked or covered. This product should not be placed in a built-in installation unless proper ventilation is provided.
• This product should not be placed near a source of heat such as a stove, radiator, or another heat producing amplifier.
• Use only the supplied power supply or power cord. If you are not sure of the type of power available, consult your dealer or local power company.
• Do not allow anything to rest on the power cord. Do not locate this product where persons will walk on the cord.
• Never break off the ground pin on the power supply cord.
• Power supply cords should always be handled carefully. Periodically check cords for cuts or sign of stress, especially at the plug and the point where the cord exits the unit.
• The power supply cord should be unplugged when the unit is to be unused for long periods of time.
• If this product is to be mounted in an equipment rack, rear support should be provided.
• This product should be used only with a cart or stand that is recommended by HUGHES & KETTNER®.
• N ever push objects of any kind into this product through cabinet slots as they may touch dangerous voltage points or short out parts that could result in risk of fire or electric shock. Never spill liquid of any kind on the product.
• Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks. Refer all servicing to qualified service personnel.
• Clean only with dry cloth.
• Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for the safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
• Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:
• When the power cord or plug is damaged or frayed.
  • If liquid has been spilled into the product.
• If the product has been exposed to rain or water.
• If the product does not operate normally when the operating instructions are followed.
• If the product has been dropped or the cabinet has been damaged.
• If the product exhibits a distinct change in performance, indicating a need of service!
• Adjust only these controls that are covered by the operating instructions since improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to normal operation.
• Exposure to extremely high noise levels may cause a permanent hearing loss.
• Individuals vary considerably in susceptibility to noise induced hearing loss, but nearly everyone will lose some hearing if exposed to sufficiently intense noise for a sufficient time. The U.S. Government's Occupational Safety and Health Administration (OSHA) has specified the following permissible noise level exposures:

Duration Per Day In Hours	Sound LeveldBA, Slow Response
8	90
6	92
4	95
3	97
2 100
1^1/2	102
1 105
^1/2	110

1_4 or less 115

• According to OSHA, any exposure in excess of the above permissible limits could result in some hearing loss.
• Ear plug protectors in the ear canals or over the ears must be worn when operating this amplification system in order to prevent a permanent hearing loss if exposure is in excess of the limits as set forth above. To ensure against potentially dangerous exposure to high sound pressure levels, it is recommended that all persons exposed to equipment capable of producing high sound pressure levels such as this amplification system be protected by hearing protectors while this unit is in operation.
• Fuses: Replace with IEC 127 (5x 20 mms) type and rated fuse for best performance only.

TO PREVENT THE RISK OF FIRE AND SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO MOISTURE OR RAIN. DO NOT OPEN CASE; NO USER SERVICE-ABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

PLEASE READ BEFORE USE AND KEEP FOR LATER USE!

The unit has been built by HUGHES & KETTNER ^® in accordance with IEC 60065 and left the factory in safe working order. To maintain this condition and ensure non-risk operation, the user must follow the advice and warning comments found in the operating instructions. The unit conforms to Protection Class 1 (protectively earthed).

• HUGHES & KETTNER™ ONLY GUARANTEE THE SAFETY, RELIABILITY AND EFFICIENCY OF THE UNIT IF:
• A assembly, extension, re-adjustment, modifications or repairs are carried out by HUGHES & KETTNER ^ or by persons authorized to do so.
  • The electrical installation of the relevant area complies with the requirements of IEC (ANSI) specifications.
• The unit is used in accordance with the operating instructions.
• The unit is regularly checked and tested for electrical safety by a competent technician.

WARNING:

• If covers are opened or sections of casing are removed, except where this can be done manually, live parts can become exposed.
• If it is necessary to open the unit this must be insulated from all power sources. Please take this into account before carrying out adjustments, maintenance, repairs and before replacing parts.
• The appliance can only be insulated from all power sources if the mains connection is unplugged.
• Adjustment, maintenance and repairs carried out when the unit has been opened and is still live may only be performed by specialist personnel who are authorized by the manufacturer (in accordance with VBG 4) and who are aware of the associated hazards.
• Loudspeaker outputs which have the IEC 417/5036 symbol (Diagram 1, below) can carry voltages which are hazardous if they are made contact with. Before the unit is switched on, the loudspeaker should therefore only be connected using the lead recommended by the manufacturer.
• Where possible, all plugs on connection cables must be screwed or locked onto the casing.
• Replace fuses only with IEC127 type and specified ratings.
• It is not permitted to use repaired fuses or to short-circuit the fuse holder.
• Never interrupt the protective conductor connection.
• Surfaces which are equipped with the "HOT" mark (Diagram 2, below), rear panels or covers with cooling slits, cooling bodies and their covers, as well as tubes and their covers are purposely designed to dissipate high temperatures and should therefore not be touched.
• High loudspeaker levels can cause permanent heating damage. You should therefore avoid the direct vicinity of loudspeakers operating at high levels.

Wear hearing protection if continuously exposed to high levels.

MAINS CONNECTION:

• The unit is designed for continuous operation.
- The set operating voltage must match the local mains supply voltage.
• The unit is connected to the mains via the supplied power unit or power cable.
- Power unit: Never use a damaged connection lead. Any damage must be rectified by a competent technician.
- A void connection to the mains supply in distributor boxes together with several other power consumers.
- The plug socket for the power supply must be positioned near the unit and must be easily accessible.

PLACE OF INSTALLATION:

• The unit should stand only on a clean, horizontal working surface.
• The unit must not be exposed to vibrations during operation.
• Keep away from moisture and dust where possible.
• Do not place the unit near water, baths, wash basins, kitchen sinks, wet areas, swimming pools or damp rooms. Do not place objects containing liquid on the unit - vases, glasses, bottles etc.
• Ensure that the unit is well ventilated.
• Any ventilation openings must never be blocked or covered. The unit must be positioned at least 20 cm away from walls. The unit may only be fitted in a rack if adequate ventilation is ensured and if the manufacturer's installation instructions are followed.
• Keep away from direct sunlight and the immediate vicinity of heating elements and radiant heaters or similar devices.
• If the unit is suddenly moved from a cold to a warm location, condensation can form inside it. This must be taken into account particularly in the case of tube units. Before switching on, wait until the unit has reached room temperature.
• Accessories: Do not place the unit on an unsteady trolley, stand, tripod, base or table. If the unit falls down, it can cause personal injury and itself become damaged. Use the unit only with the trolley, rack stand, tripod or base recommended by the manufacturer or purchased together with the unit. When setting the unit up, all the manufacturer's instructions must be followed and the setup accessories recommended by the manufacturer must be used. Any combination of unit and stand must be moved carefully. A sudden stop, excessive use of force and uneven floors can cause the combination of unit and stand to tip over.
  • Additional equipment: Never use additional equipment which has not been recommended by the manufacturer as this can cause accidents.
• To protect the unit during bad weather or when left unattended for prolonged periods, the mains plug should be disconnected. This prevents the unit being damaged by lightning and power surges in the AC mains supply.

Diagram 1 Diagram 2

CONSEILS DE SECURITE IMPORTANTS!

PRIERE DE LIRE AVANT L'EMPLOI ET A CONSERVER POUR UTILISATION ULTERIEURE!

The EDITION TUBE delivers mighty all-tube tone in Hughes & Kettner's handy Edition format. Sporting two channels and a nifty retro design, it mates simple functional elegance to bodacious tube tone, giving you an easy-to-use, portable combo that looks and sounds great.

The EDITION TUBE's Clean channel delivers a remarkably varied spectrum of vintage sounds from squeaky-clean yet warm skank to rough-and-ready blues-approved bite, and all points in between. Taking up where Clean leaves off, the Lead channel ups the dirt factor, giving you the full bandwidth, from a throaty growl to creamy, searing rock lead tone.

Two EL84 tubes toil away in the EDITION TUBE's engine room - they're responsible for the amp's striking sound. These power amp tubes are known and cherished by tube freaks for a unique property - they begin saturating at medium volume levels, and squeezing the signal with ever so sweet compression. And that's why the EDITION TUBE is better suited for situations that call for moderate volume levels.

However, we're not talking wallflower here - au contraire, it can rock out with the best of them. Living up to Hughes & Kettner's rep for building ultra-responsive tone generating machines, the preamp reacts very dynamically to your touch, and packs plenty of punch when you attack those strings hard. With a back that is almost fully closed, the cabinet provides additional bottom end oomph. Twenty genuine tube-driven watts and the 12" Eminence RockDriver Cream loudspeaker do their part to give the EDITION TUBE the kind of sonic wallop you need to be heard loud and clear at rehearsals and club gigs.

Rounding out the EDITION TUBE's complement of features are a variable spring reverb, an effects loop, and a connector for external cabinets. But then that shouldn't come as a huge surprise because any Hughes & Kettner amp boasting the "EDITION" mark of distinction promises a touch of class.

HERE'S YOU WISHING YOU LOTS OF FUN WITH THE TONE OF YOUR EDITION TUBE!

BEFORE POWERING UP

• Check that your local wall socket voltage and the amp's AC power rating are identical before you plug the amp in.
• Ensure air can circulate around your amp's ventilation ducts.
• Make sure the amp sits securely on a stable platform where it is not exposed to mechanical shocks or temperature extremes which may damage the amp or endanger the safety of bystanders.
• Hughes & Kettner is not liable for damages due to improper use.

TABLE OF CONTENTS

SAFETY PRECAUTIONS 5
BEFORE POWERING UP 5
1.0 JACKS AND CONTROLS 6
2.0 STANDARD SETUP/CABLE CONNECTIONS .....7
3.0 OPERATION 7
3.1 SELECTING SOUNDS ....7
3.2 USING SIGNAL PROCESSORS 7
4.0 REPLACING TUBES, SERVICE AND PREVENTIVE MAINTENANCE ....7
5.0 TROUBLESHOOTING 8
6.0 TECHNICAL SPECIFICATIONS .....26/27

1.0 JACKS AND CONTROLS

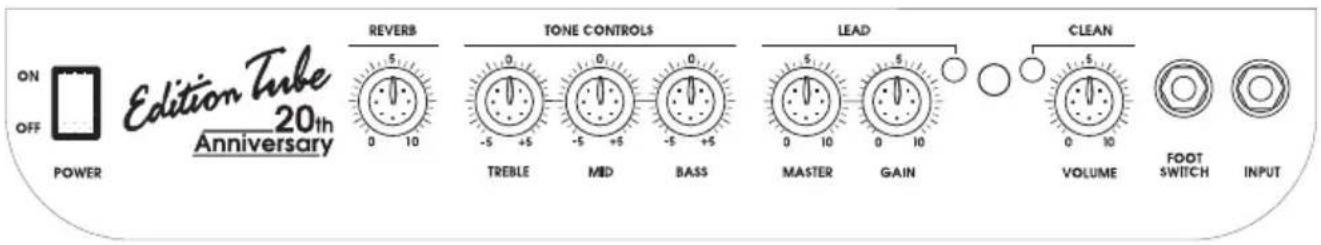

ON OFF Power Edition Tube 20th Anniversary REVERB TREBLE MID BASS LEAD MASTER GAIN CLEAN VOLUME FOOT SWITCH INPUT

INPUT: Plug your guitar into this jack.

FOOTSWITCH: Plug a footswitch (e.g. the Hughes & Kettner TTY-1) into this jack when you want to change channels remotely. If you choose to use a footswitch, make sure that the CHANNEL SELECT switch is set to the CLEAN channel (yellow LED lights up).

VOLUME: This knob controls the CLEAN channel's volume and saturation levels. Depending on your guitar's output level, you can dial in fat, crunchy sounds at higher VOLUME settings.

YELLOW CHANNEL SELECT LED: Lights up to indicate the CLEAN channel is active.

CHANNEL SELECT BUTTON: This selector lets you change channels by pushing the button by hand as opposed to stomping on a footswitch, which is also an option.

RED CHANNEL SELECT LED: This one illuminates up to indicate the LEAD channel is active.

GAIN: Rotate this knob to determine the amount of distortion in the LEAD channel.

MASTER: Dial this knob to control the LEAD channel's volume level.

EQ SECTION: The Bass, Mid and Treble knobs affect both channels. Mid and Treble influence one another, an attribute considered normal and desirable in a tube amp. Boosting treble decreases midrange honk and vice versa: jacking up the mids cuts back on the high-end shimmer.

REVERB: Controls the intensity of the on-board reverb effect.

POWER: The EDITION TUBE's mains power switch.

MAINS IN: Connect the included Euro-norm mains cord to this socket. Ensure the amp's voltage rating matches your local AC power rating before you plug the cord into the wall outlet.

EXTERNAL SPEAKER: Use this jack to connect external speaker enclosures with an overall impedance ranging from 8 to 16 ohms (an 8-ohm cabinet, for example, would work nicely). The internal loudspeaker remains in operation.

RETURN: Connect this jack to the output of your signal processor.

SEND: Connect this jack to the input of your signal processor.

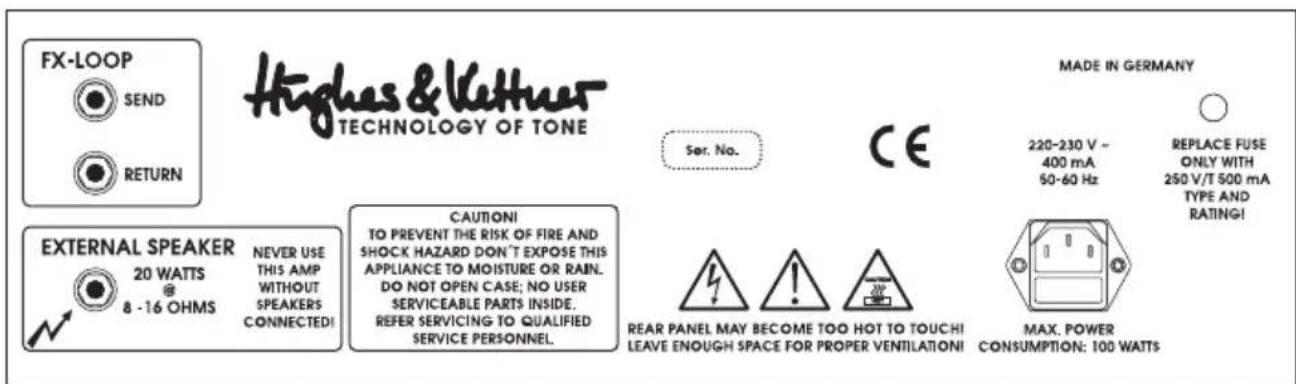

FX-LOOP SEND RETURN Hughes & Kettner TECHNOLOGY OF TONE External SPEAKER 20 WATTS 8 -16 OHMS NEVER USE THIS AMP WITHOUT SPEAKERS CONNECTED! CAUTIONI TO PREVENT THE RISK OF FIRE AND SHOCK HAZARD DON'T EXPOSE THIS APPLIANCE TO MOISTURE OR RAIN. DO NOT OPEN CASE; NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. SER. No. CE MADE IN GERMANY 220-230 V - 400 mA 50-60 Hz REPLACE FUSE ONLY WITH 250 V/T 500 mA TYPE AND RATING! REAR PANEL MAY BECOME TOO HOT TO TOUCH! LEAVE ENOUGH SPACE FOR PROPER VENTILATION! MAX. POWER CONSUMPTION: 100 WATTS

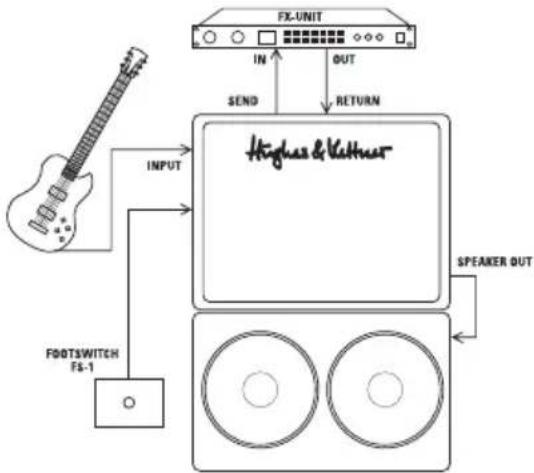

2.0 STANDARD SETUP/CABLE CONNECTIONS

3.0 OPERATION

3.1 SELECTING SOUNDS

When you're ready to tweak the settings for both of the fundamental sounds that the EDITION TUBE has to offer, we recommend you proceed as follows;

• Dial in all your sound settings with the guitar's volume knob turned all the way up so that it give the amp the highest possible level to work with.
• First concentrate on tuning the CLEAN channel VOLUME knob to dial in the desired volume level and amount of overdrive.
• Once you're satisfied with that sound, activate the LEAD channel and use the GAIN knob to shape the second fundamental sound to suit your taste.
• Now adjust the LEAD MASTER to dial in the desired balance of levels between the LEAD and CLEAN channels.

3.2 USING SIGNAL PROCESSORS

The EDITION TUBE is equipped with a serial effects loop. This means that the entire preamp signal is routed to the FX device and processed there. For this reason, use only high-quality signal processors that do not color the signal unnecessarily, add undue noise, or impair its sound quality.

CONNECTING EFFECT DEVICES:

• Connect the SEND jack to the processor's input, and the RETURN jack to the processor's output.
• To avoid noise, signal loss, and signals from being cut off, use high-quality patch cords only.

• Make sure the processor is not distorting the signal. Check the processor's level meter and use its input and output controls to dial in a suitable level.

• Unless you're going for bizarre lo-fi effects, distortion devices are not designed for use in an FX loop. As a rule of thumb, any kind of device that compresses the signal should be connected first in the signal chain. Depending on the type of effect you want to achieve, you may want to connect a compressor to the amp's input.

• If you are using several processors or stomp boxes, ensure you connect them in the proper sequence.

Volume pedals, wah-wahs and the like evoke a slightly different sound and elicit a different response when you plug them into the EDITION TUBE's front panel input rather than the effects loop. Both can sound hip, so which option you choose is a matter of personal preference.

4.0 REPLACING TUBES, SERVICE AND PREVENTIVE MAINTENANCE

Your EDITION TUBE features factory-equipped EL84 and 12AX7A tubes. They are first burned in and then checked for their electrical and mechanical properties (microphonics), selected and matched, and then given a final audio and response test once they have been installed in a EDITION TUBE. One of the most important steps in the testing process is power tube matching, i.e. selecting and pairing tubes with identical characteristics.

WHEN SHOULD YOU REPLACE TUBES?

The tubes in your EDITION TUBE are of exceptionally high quality and will last extremely long. If you do encounter a problem, first check whether one of the following situations apply:

• Is the defect a problem caused by a faulty or worn-out tube, or is there actually a peripheral problem, for instance a defective speaker cable that caused damage to the tube? If this is the case, unless you correct the defect first, the problem will recur once you have installed a new tube.
• Did the AC power supply fluctuate during operation? Whereas digital equipment often malfunctions when the power supply dips below a minimum value, all-tube amps tend to malfunction when the power level rises above a certain value. Generators and faulty high-power circuits often cause these power fluctuations.
• Did a fuse trip although there was no plausible cause? Aging fuses, particle ionization in the tube or spark-over due to power spikes may cause this type of problem. In this case, replacing a tube will not solve the problem.
• Old tubes begin to show signs of wear after they have been in operation for a very long time: increased micro-phonics and noise, treble loss, weak power output, muddy sound, etc. are all indicators of pending tube failure. Power amp tubes wear out faster than preamp tubes. If you encounter these problems, replace the tubes. Not only do old tubes sound bad, they also have a tendency to fail altogether.

NOTE: We recommend you refrain from exchanging tubes solely for sound experimentation purposes. Improper use runs the risk of damaging your amp and will not be covered under warranty. Besides, we tested every conceivable tube option and installed the tube types that deliver the best possible performance.

KEEP THE FOLLOWING IN MIND WHEN YOU ARE READY TO REPLACE TUBES:

• We recommend only qualified service personnel replace tubes.
- Before removing the chassis, ensure the mains cord is unplugged from the wall socket! Wait at least 2 minutes for the amp to power down.
- If you are replacing a power amp tube, ensure the replacement tube bears identical specs.
- Use only matched pairs of power amp tubes.
- If you install a matched pair of tubes bearing precisely the same specs as the original tubes, the amp does not have to be re-biased. Conversely, if the specs are not identical, the amp must be biased. Biasing is a complex procedure requiring special tools and should only be executed by a qualified amp technician.

HOW CAN YOU EXTEND THE LIFE OF YOUR TUBES?

- Never operate the EDITION TUBE without a proper load (speaker) connected to the output.

Switch the amp off and let the tubes cool down before transport. A quality flight case is a good investment and is only slightly more expensive than a complete set of tubes.

- Proper bias and trim are essential. If you find the tubes need to be replaced too often, consult a qualified technician.

All other EDITION TUBE components do not require maintenance. Use a slightly dampened cloth for all metal parts and the exterior surfaces. Avoid exposure to mechanical shocks, extreme heat, dust and moisture. Ensure the cooling vents are not obstructed during operation.

Here are a few more basic rules that will extend the service life of your amp enormously if you follow them:

- Make sure all peripheral devices and connecting cables are in a state of good repair! - Ensure plenty of air can circulate around the amp's ventilation slots at all times - your EDITION TUBE's life depends on it.- Definitely avoid exposure to mechanical shocks and extreme heat, dust and particularly moisture.

- Be very careful about the kind of peripheral devices you connect to your amp and always check out their specs before you plug them in. Never connect speaker cabinets with an impedance (ohm) rating lower than the EDITION TUBE is designed to handle. Under no circumstances should you connect devices with high output signal levels (e.g., power amps) to your amp's input.

- Be sure the AC power source delivers the current that your amp is designed to handle before you plug it in. When in doubt about the local rating, ask the venue's sound technician or a stage hand.

- Refrain from DIY repairs! To be on the safe side, you should also have a qualified technician replace internal fuses.

5.0 TROUBLESHOOTING

1) The EDITION TUBE is not getting any power:

• Check the mains cable to see if it is connected properly.
• The mains fuse may be defective. Replace the fuse with another identical fuse. If this fuse also trips, consult your Hughes & Kettner dealer.

2) The EDITION TUBE is connected properly, but no sound is audible.

• One or several GAIN and MASTER controls may be turned all the way down. Dial in a higher setting.
• A short circuit in the speaker signal chain may have tripped an internal fuse, or one of the power tubes is defective. Replace the speaker cable and have a qualified service technician replace the fuse/tube (identical specifications are a must). Please read Section 4.0 on how to replace tubes correctly.

3) The sound is slightly distorted and you cannot get a truly clean tone.

• The input section is being overdriven. Depending on the type of pickups in your guitar, this effect is very pronounced or may not be audible at all. If you don't want this slight distortion (although many players prefer a little dirt in their sound), reduce the volume of your guitar or volume pedal, turn the screws on the frame of your pickups so the distance between the strings and pickups is greater, or try a different combination of pickups.
• If the distortion has an annoying gritty edge to it, there may be some type of fault due to improper use of a signal circuit, for instance a speaker output connected to the EDITION TUBE's input. In this case, consult your Hughes & Kettner dealer.

4) You have connected an FX processor to the SEND jack and the signal is totally distorted, even when you have dialed in a clean sound.

- The LINE OUT signal is overloading the input of the FX processor. Reduce the processor's input sensitivity ("INPUT" or "GAIN").

5) You have connected an FX processor to the SEND jack of the EDITION TUBE and the signal's volume level is way too low.

- The FX processor's output level is set incorrectly. Turn it up.

Edition Tube 20 ^th Anniversary

WIR FREUEN UNS, DASS SIE SICH FÜR EINEN HUGHES & KETTNER® EDITION TUBE ENTSCHIEDEN HABEN!

ON OFF Power Edition Tube 20th Anniversary REVERB TREBLE MID BASS LEAD MASTER GAIN CLEAN VOLUME FOOT SWITCH INPUT

Edition Tube 20th Anniversary

NOUS VOUS FÉLICITONS D'AVOIR CHOISI L'EDITION TUBE DE HUGHES & KETTNER !

ON OFF POWER Edition Tube 20th Anniversary REVERS TONE CONTROLS LEAD CLEAN TREBLE MID BASS MASTER GAIN VOLUME FOOT SWITCH INPUT

ON OFF Power Edition Tube 20th Anniversary REVERB TREBLE MID BASS LEAD MASTER GAIN CLEAN VOLUME FOOT SWITCH INPUT

ON OFF POWER Edition Tube 20th Anniversary REVERS TONE CONTROLS LEAD CLEAN TREBLE MID BASS MASTER GAIN VOLUME FOOT SWITCH INPUT

This is to certify that

HUGHES & KETTNER EDITION TUBE

complies with the provisions of the Directive of the Council of the European Communities on the approximation of the laws of the Member States relating to electromagnetic compatibility (EMC Directive 89/336/EEC) and the low voltage Directive (73/23/EEC). This declaration of conformity of the European Communities is the result of an examination carried out by the Quality Assurance Department of STAMER GmbH in accordance with European Standards EN 50081-1, EN 50082-1 and EN 60065 for low voltage, as laid down in Article 10 of the EMC Directive.

Lothar Stamer Dipl.Ing. Managing Director St.Wendel, 03/26/04

* Stamer Musikanlagen manufactures exclusively for Hughes & Kettner

HUGHES & KETTNER EDITION TUBE

20 W RMS (into 8 Ohms)

SPEAKERS:

Eminence RockDriver Cream

12", 8 Ohms

GENERAL TECHNICAL DATA:

VOLTAGE:

220-230 V\~ (European, Korean model)

117 V\~ (North American model)

100 V\~ (Japanese model)

MAX. POWER-CONSUMPTION:

100 W

MAINS FUSE:

T500mA (220-230V modell)

T1A (117V modell)

T1A (100V modell

ANODE FUSE:

T200mA

SECONDARY FUSES:

T100mA (low voltage)

DIMENSIONS

555 x 480 x 260 mm

(22" x 19" x 10 1/4")(W x H x D)

WEIGHT:

24 kg (53 lb.) (approx.)

T100mA (basse tension)

DIMENSIONS:

555 x 480 x 260 mm (L x H x P)

POIDS:

approx. 24 kg

6.0 SPECIFICHE TECNICHE
