USER MANUAL 69522 Vollrath

Professional Series Countertop and Drop-In Induction Ranges

ThankyouforpurchasingthisVollrathequipment.Beforeoperatingthe equipment,readandfamiliarizeyourselfwiththefollowingoperating andsafetyinstructions.SAVETHESEINSTRUCTIONSFORFUTURE REFERENCE.Savetheoriginalboxandpackaging.USethispackaging toshipthequipmenttifrepairsareneeded.

SAFETY PRECAUTIONS

Toensuresafeoperation, read the following statements and understand their meaning. This manual contains safety precautions which are explained below. Please read carefully.

WARNING

Warningisusedtoindicatethepresenceofahazardthatwillorcauseseverepersonaljuryordeath.

CAUTION

Cautionisusedtoindicate the presenceofahazardthatwillcauseminorormajorpersonalinjuryifthecautionisignored.

NOTICE: Notice is used to note information that is important but not hazard-related.

To reduce risk of injury or damage to the equipment:

• Plugonlyintogroundedelectricaloutletsthatmatchthevoltage on theratinglabel.
• Thisequipmentrequiresdedicatedcircuit.
• Donotusextensioncords, powerstripsorsurgeprotectorswith thisequipment.
• Unploughisequipmentfromthewalloutletwhennotinuse.
• Usethisequipmentonlyinaflat,levelposition.
  -Toprotectagainstelectraceuticalshockdonotimmersethecordorplug inwater.Keepthecordawayfromheatedsurface.Donotletthe cordhangovertheedgeoftableorcounter.
• Asaprecaution, persons using pacemakers should standback! (30cm) from an operating unit. Studies have shown that the induction element will not disrupt pacemaker.
• Keepallcreditcards, driver licenses and other items with magnetic stripaway from operating unit. Theunit's magnetic field will damagetheinformation onthesestrips.
• Theheatingsurfaceismadeofastrong,non-porousmaterial. However,shoulditcrackorbreak,stopusingandimmediately unplugtheunit.Cleaning solutionsandspillscouldpenetratethe brokencook-topandcreateariskofelectricalshock.
• Donotoperatethisequipmentwithadamagedcordorplugorifitis notfunctioningproperly.
• Donotoperatunattended.Closelysuperviseunitsoperating in publicareasand/oraroundchildren.
• Donotplaceanyobjectsinsidetheairintakeorexiaustpanels.
• Donotattachanyaccessoryobjectstothisequipment.

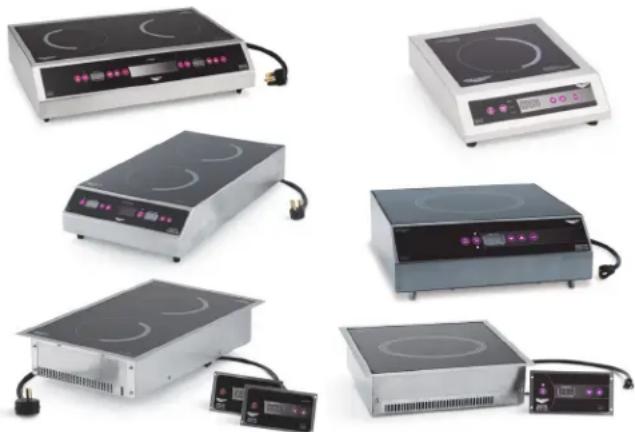

Item No.	Description		Plug
69520	Hob,Side-by-Hob,Front-to-	SingleHobNEMA6-20P
69523Dual		Side	NEMA6-30P
69522Dual		Back
6954301	huko Countertop China	SingleHob	NEMA6-20P
6954302Sd
6954303UK
6954304China
6954305AU
6954702	China	DualHob,Front-to-Back	Schuko
6954703UK
6954704China
69521	Drop-in	SingleHob	NEMA6-20P
6952105AU
69524Dual	Hob,Front-to-	BackNEMA6-30P

FUNCTION AND PURPOSE

Thisequipmentisintendedforuseincommercialfoodservice operationsonly.Itsnotintendedforhousehold,industrialor laboratoryuse.Itsis intended to be used with induction-ready cookware.

Induction Ready Cookware

-Flatbasemeasuring41%"(11.4cm)to101%(26cm)wide
-Ferrousstainlesssteel
-Iron
Castiron

Unsuitable Cookware

NOTICE: Equipment Damage Hazard

Not intended forusewithaluminumpanswithametaldiscon thebottom. Underhighheat,themetaldiscswilleparatefrom thepan.Thesepansmaydamageyouunitandvoidyour warranty.

Cookwarewithabaselessthan 41 / 2 (11.4cm)
Pottery, glass, aluminum, bronze copper cookware
Cookwarewithanytypeoffootedbase

Register your product at Vollrath.com/registration and become eligible to win a free 10" Vollrath Tribute® fry pan.

FCC STATEMENT

ThisequipmenthasbeentestedandfoundtocomplywithPart18of FCCRules.Theselimitsaredesignedtoprovidereasonableprotection againsttharmfulinterferenceinesresidentialinstallation. Thisequipment generates,usesandcanradiateradiofrequencyenergyand,ifnot installedandusedinaccordancewiththeinstructions, maycause harmfulinterferencetoradiocommunications.However,thereisno guaranteethatinterferencewillnotoccurringinaparticularinstallation.If thisequipmentdoescauseharmfulinterferencetoradioortelevision reception,whichcanbedeterminedbyturningtheequipmentoffand

on, the user is encouraged to try to correct the interference by one or more of the following measures:

-Reorientorrelocatethereceivingantenna
- Increase the separation between the equipment and receiver
Connectthequipmentintoanoutletonacircuitdifferentfromthat towhichthereceiverisconnected
- Consultthedealeroranexperiencedradio/TVtechnicianforhelp Toassurecontinuedcompliance,anychangesormodificationsnot expresslyapprovedbythepartyResponsibleforcompliancecouldvoid theuser'sauthoritytooperatethisequipment.

COUNTERTOP INSTALLATION

Clearance and Environment Requirements

NOTICE: This unit is not designed to be enclosed or built into any area. Sufficient airflow must be allowed around the unit. Blocking the airflow could cause the unit to overheat.

Rearoftherangeoanysurroundingsurface:4"(10cm)
- Bottomoftherangeotoansurroundingsurface: 1 / 2^ (2 cm)
-Indooruseonly.
- Donotplatzeequipmentnornearheat-producingequipment.

Installation

1. Placetheinductionrange/warmeronaflatstablesurface.
   2.Plugthepowercordintoagroundedelectricaloutletsthatmatchthevoltageontheratinglabel.

NOTICE: This equipment requires a dedicated circuit.

NOTICE: Using a voltage other than the nameplate rated voltage will cause damage to the unit. Incorrect voltage, modification to the power cord or electrical components can damage unit and will void the warranty.

DROP-IN INSTALLATION

NOTICE: Refer to the drop-in specification sheet for cutout dimensions, air flow and venting requirements, minimum clearance distances and environment requirements.

NOTICE: Countertop materials require specific preparation. Refer to the countertop manufacturer for instructions regarding proper installation of equipment into the material.

NOTICE: Exposed wood or particle board edges must be sealed with an appropriate waterproofing material. Seal the edge between the glass and the countertop with silicone or similar material. Failure to do so may result in damage to the countertop.

Clearance and Environment Requirements

1. Downloadthespecificationssheetforyourdrop-infrom Vollrath.com.Youwillneedtreftothisdocumentfor dimensions,clearance,ventingandpowerrequirements.
   2.Verifytheproperelectricaloutletisavailableattheinstallationsite.

NOTICE: This equipment requires a dedicated circuit.

NOTICE: Do NOT modify the cord or plug on the drop-in. Modifying any component may damage the drop-in or cause injury, and will void the warranty. See the specification sheet on Vollrath.com for electrical specifications.

3.Knowthecountertopmanufacturer'srequirementsforpreparing and installingequipmentintothecountertoppriortostartinginstallation.

Prepare the Countertop and Cabinet

1.Cutrequiredopeningsinthecountertopandcabinet.
2.Cleandebrisfromthecutoutarea(s).
3. Reinforcethecountertopsupportasneededperthecountertop manufacturerguidelinesandtheweightoftheequipment.

Mount the Drop-in

1.Chooseaflat,levelcountertopforthemountingsurface.
2.Measuretheareaforthecutout.Seethespecificationsheet.

Mount the Control Box

1.Measuretheareaforthecontrolboxcutout.
2. Applysealnttothespacebetweenthecontrolboxandthe mountingsurfacetopreventmoisturepenetration.
3. Securethecontrolboxtothemountingsurface.

FEATURES AND CONTROLS OPERATION

Drop-inControlPanel

CountertopRangeControlPanel59522,6954702,6954703, 6954704

CountertopControlRange69520and69523(leftside)

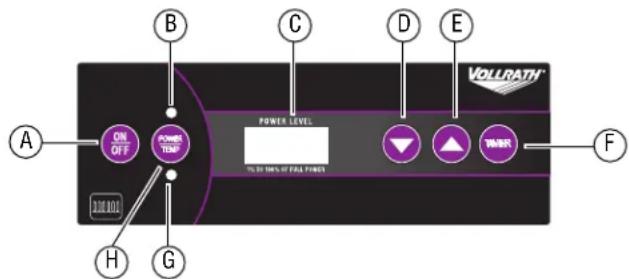

A On/Off button. Presstoturnnontherange.
B Power Mode LED Light. Illuminates when the range is on.
C Display Panel. Displaysthepowerlevel, settemperature, ortime depending upon the selected mode.
D Down button. Decreases the power levelortime.
E Up button. Increaseshepowerlevelortime.
F Timer button. Used to switch on and start the timer function.
G Temperature LED Light. Illuminates when the unit is in temperaturemode.
H Power/Temp button. Switches between power and temperature and ^ F and ^ C .

WARNING

Electrical Shock Hazard

Keepwaterandotherliquidsfromenteringtheinsideofthe equipment.Liquidinsidethequipmentcouldcauseanelectricalshock.

CAUTION

Burn Hazard

Don't touch hot food, liquidor heating surfaces while equipment is heating or operating.

NOTICE: Do not preheat empty cookware. Because of the speed and efficiency of the induction range, cookware can very quickly overheat and be damaged.

NOTICE: Do not drop cooking utensils or other objects onto the cooking surface. The strong, non-porous surface will break. The warranty does not cover this type of abuse.

NOTICE: Do not leave an empty pan on an operating unit.

NOTICE: Do not heat sealed cans or containers, they may explode.

Turn on the Induction Range

Pressandrelease.

Adjust the Power Level or Temperature Increase or decrease

asethepowerlevelortemperature.

Basethepowerlevelortemperature.

Switch between power and temperature modes

Pressandrelease.

Switch the temperature control between ^ F and ^ C

Pressand release.

Activate the Timer (69520 and 69523 only)

1.Pressandrelease.

The display will show "T" with a flashing dot in the right-hand corner.

netimertfrom1to180minutes.

1. Whenthetimecycleiscomplete, theunitwillturnoff.

4.Tocancelthetimer, pressor.

Cook Food

TheDISPLAYSHouldremainconstantduringoperation.lftthedisplayis flashing.seetheTroubleshootingsectioninthismanual.

Removingcookwarefromthecookingsurfaceformoretthan10minutes willcausetheunittoautomaticallyturnoff.Removingcookwarefor lessthan10minuteswillnotinterruptoperation.

CLEANING

Tomaintaintheappearanceand increasethesservicelife,cleanour inductionrangedaily.

WARNING

Electrical Shock Hazard

Donotspraywatercleaningproducts.Liquidcould contact theelectricalcomponentsandcauseashortcircuitoran electricalshock.

CAUTION

Burn Hazard

Heatingsurfaceremainshottafterequipmentsturnedoff.Hot surfacesandfoodcanburnskin. Allowthehotsurfacestocool beforehandling.

NOTICE: Do not use abrasive materials, scratching cleansers or scouring pads to clean the equipment. These can damage the finish.

1. Pressandreasetoturnelftherange.
   2.Unplugrecordfromthewalloutlet.
2. Allow the equipment to cool.
   4.Wipethexteriorwithacleandampcloth.
3. Thoroughly wipeoffanymildsoaporchemicalcleaners.

NOTICE: Residue could corrode the surface of the unit.

TROUBLESHOOTING

Problem	Might be Caused By	Course of Action
Thedisplayisflashing.	Thereisnotapot/panontheinduction range.	Placean induction-readypanontheinductionrange.
Therangeturnedoffafter10 minute(s).	Thereisnotapot/panontheinductionrange Theinductionrangeturnedoff.This is normal.	Placean induction-readypanontheinductionrange.
Therangeison,butnothesing.	Thecookwaremaybetoosmallormaynot beinductionready.	Makesurethrop/panisinductionready.SeetheFunction and Purposesectionofthismanual.
ThedisplayisflashingF2.	Theoverheat-protectionfeaturemayhave activated.	Removecookware.Letcookingsurfacecool.
ThedisplayisflashingF9.Thepot/panisnotinductionready		Makesurethrop/panisinductionready.SeetheFunction and Purposesectionofthismanual.
Therangesuddenlystoppedworking.	Theunitmaybetooclosetoanexternalheat sourceorthearintakemayberestricted.	Relocate the unitawayfromanyexternalheatsource.Clear any obstructionstotheairintake.

SERVICE AND REPAIR

ServiceablepartsareavailableonVollrath.com.

To avoid serious injury or damage, never attempt to repair the unit or replace a damaged power cord yourself. Do not send units directly to TheVollrathCompanyLLC. Please contact Vollrath Technical Services for instructions.

When contacting Vollrath Technical Services, please be ready with the item number, model number (if applicable), serial number, and proof of purchaseshowingthedatetheunitwaspurchased.

WARRANTY STATEMENT FOR THE VOLLRATH CO. L.L.C.

ThewarrantyperiodforProfessionalSeriesinductionrangesis2years.

This warranty does not apply to products purchased for personal, family or household use, and The Vollrath Company LLC does not offer a written warranty to purchasersforsuchuses.

The Vollrath Company LLC warrants the products it manufactures or distributes against defects in materials and workmanship as specifically described in our full warranty statement. In all cases, the warranty runs from the date of the end user's original purchase date found on the receipt. Any damages from improper use, abuse, modification or damage resulting from improper packaging during return shipment for warranty repair will not be covered under warranty.

Forcompletewarrantyinformation,productregistrationandnewproductannouncement,visitwww.vollrath.com.

TheVollrathCompany,L.L.C. Headquarters 1236North18thStreet
Sheboygan, Wisconsin 53081-3201USA
MainTel:800-624-2051or920-457-4851
MainFax:800-752-5620or920-459-6573
CanadaCustomerService:800-695-8560
TechServices:techservicereps@vollrathco
www.vollrath.com
