USER MANUAL UltraHot Premium STIEBEL ELTRON

Certified to ANSI / UL 94 & UL 499

Conforms to CAN/ CSA C22.2 No. 64

Conforme a CAN/CSA C22.2 No. 64

Tested and certified by WQA to NSF/ANSI/CAN 372 for lead free compliance.

Line drawing of a cylindrical industrial water heater with control panel and gauges (no text or symbols)

STIEBEL ELTRON

IMPORTANT SAFETY INFORMATION

OPERATION

1. General information

2. Safety instructions 3

2.1 Other symbols in this documentation ____ 3

2.2 Units of measure 3

1. Safety 4

3.1 Proper use ____ 4

3.2 General safety guidelines ____ 4

3.3 cETLus / WQA 5

3.4 Certification mark 5

1. Registering your product 5

2. Appliance description 5

5.1 Operating the appliance 5

5.2 User interface 5

1. Settings 6

6.1 Setting the desired temperature ____ 6

6.2 Standard settings 6

6.3 Enable/disable standby mode 7

6.4 Configuration menu 7

1. Cleaning, care, and maintenance 8

2. Troubleshooting 8

INSTALLATION

1. Safety 9

9.1 General safety guidelines ____ 9

9.2 Codes, standards, and regulations ____ 9

1. Appliance description 9

10.1 Standard delivery 9

10.2 Accessories 9

1. Preparations 9

11.1 Installation location 10

1. Installation 10

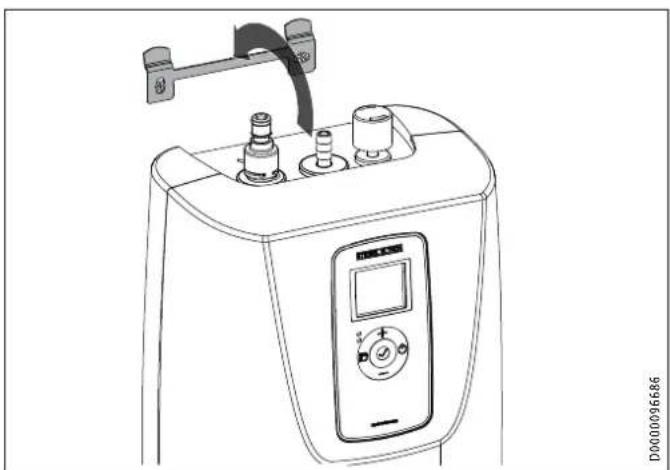

12.1 Installing the appliance 10

12.2 Water connection 10

12.3 Connecting to a water filter (required in hard water areas) ____ 11

12.4 Electrical connection 11

1. Commissioning 11

13.1 Initial startup 12

13.2 Restarting the appliance 12

1. Shutting down the appliance 12

2. Fault messages 12

3. Maintenance 13

16.1 Draining the appliance 13

16.2 Clean the strainer 13

1. Specification 13

17.1 Dimensions and connections 13

17.2 Country-specific approvals and certifications ____ 13

17.3 Extreme operating and fault conditions 13

17.4 Data table 14

1. Warranty 15

IMPORTANT SAFETY

INFORMATION

WARNING:

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR PERSONAL INJURY, BASIC SAFETY PRECAUTIONS MUST BE OBSERVED WHEN USING ELECTRICAL APPLIANCES, INCLUDING:

• READ ALL THE INSTRUCTIONS BEFORE USING THE APPLIANCE.
• This hot water appliance must be grounded. Only connect it to a properly grounded receptacle.
• Do not install or locate this hot water appliance except as specified in the installation instructions provided.
• Only use this hot water appliance for its intended purpose as described in this manual.
• Do not use an extension cord/cable with this hot water appliance. If no there is no existing receptacle in the vicinity of the hot water appliance, contact a certified electrician and have one properly installed.
• As with any electrical appliance, close supervision is required when it is being used by children.
• Do not operate the hot water appliance if the cable or plug is damaged, if it is not working properly, or if it has been damaged or dropped.
• This hot water appliance should only be serviced by qualified service staff. Contact the professional who installed the unit for inspections or adjustment.
• Do not place the hot water appliance in locations where the water lines could be exposed to freezing temperatures.
• Install the hot water appliance in such a way that if a leak occurs, the resulting water that escapes does not cause damage to the area around the hot water appliance.
• Make sure when installing the hot water appliance to leave sufficient clearance around the appliance in order make service and maintenance easier.

OPERATION

1. General information

These instructions are intended for users of the appliance and qualified contractors.

Note

Please read these instructions carefully before use and keep them near at hand.

Pass the instructions on to any later users.

Read the entire manual. Failure to follow the guidelines, instructions, and rules could result in personal injury or property damage. Improper installation, adjustment, modification, service, and use of this appliance may result in serious injury.

Stiebel Eltron recommends professional installation of the appliance by a licensed plumber (and electrician if no 120 V grounded outlet is available and needs to be installed). The installation must comply with all national, state, and local regulations governing plumbing and electrical installations. The operator is responsible for ensuring proper installation. Failure to follow the installation and operating instructions or improper use will void the warranty.

Keep these instructions for later reference. The installer should leave these instructions with the user.

If you have questions about the installation, use, or operation of this hot water appliance or if you need additional manuals, please call our technical customer service at 800-582-8423 (USA and Canada only). If you are calling from outside the USA or Canada, please call [phone].

2. Safety instructions

2.0.1 Structure of safety instructions

KEYWORD Type of risk Here, possible consequences are listed that may result from failure to observe the safety instructions.

▶ Steps to prevent the risk are listed.

2.0.2 Symbols, type of risk

Symbol Type of risk

Injury

Electrocution

Burns (burns, scalding)

2.0.3 Keywords

KEYWORD Meaning

DANGER Failure to observe this information will result in serious injury or death.

WARNING	Failure to observe this information may result in serious injury or death.
CAUTION	Failure to observe this information may result in non-serious or minor injury.

2.1 Other symbols in this documentation

Note

General information is identified by the symbol shown on the left.

▶ Read these texts carefully.

Symbol

Meaning

Property damage (appliance, consequential, environmental damage)

Appliance disposal

This symbol indicates that you need to do something. The actions required are described step by step.

2.2 Units of measure

Note

Unless otherwise indicated, all dimensions are in inches (millimeters).

3. Safety

DANGER PERSONAL INJURY

• Read and follow the instructions in this document.
• Failure to follow these instructions may lead to serious bodily injury or death.
• The installation must comply with all national, state, and local regulations governing plumbing and electricity.
• Unplug the power cable before proceeding with installation or servicing this appliance. Failure to do so may lead to serious injury or death.
• Never remove the appliance cover. Doing so may lead to injury or death.
• Do not store or use gasoline or other flammable vapors or fluids near this or any other electrical appliance.

Property damage

Install this hot water appliance only in strict compliance with the instructions provided and the local electrical and building codes. Neither the manufacturer nor the distributor may be held liable for damage caused by improper installation or connection of the appliance.

3.1 Proper use

The UltraHot Plus appliance is designed for residential use by untrained individuals. The UltraHot Premium is designed for residential and small office use, up to light commercial use such as larger offices, break rooms, lunch rooms, public facilities, houses of worship, etc.

Any use contrary or additionally to that described here is considered use contrary to the specified intended use. Intended use also includes complying with these instructions and the instructions for any accessories used.

This non-pressurized appliance heats drinking water almost to boiling point. UltraHot Plus/Premium appliances are equipped with a patented automatic boiling point detector. This feature allows the appliance to automatically determine the boiling point and then reduces the temperature to prevent the appliance from accidentally boiling dry.

3.1.1 Water filter

Property damage

The UltraHot Plus/Premium appliance must be operated with a water filter when water hardness values are greater than or equal to 8.76 gpg (1.5 mmol/l). This will prevent limescale buildup in the appliance. Using the appliance without an external water filter at values above these will void the appliance warranty. Damage to the appliance caused by limescale or a high mineral concentration is not covered by the warranty.

3.1.2 Flushing recommendation

Water is one of the most important nutrients there is, and it is subject to very high standards. To help ensure that the UltraHot Plus/Premium hot water appliance meets these standards at all times, we would like to give you a few important tips.

Storing hot water can in certain cases change the taste or smell of the water. This may be caused by substances in the water that enter the appliance from outside through the piping. For that reason, we strongly recommend using a water filtration system.

The act of storage itself can affect the water, regardless of what material a storage tank is made of. This change usually occurs when the appliance has not been used for longer periods of time. The UltraHot Plus/Premium has a high grade stainless steel (1.4404 | 316L) tank that is fully approved for hot water heating.

In order to prevent unwanted water quality deterioration, observe the general standards regarding plumbing installations for the UltraHot Plus/Premium. These state that long stand-by periods without usage should be avoided, or that regular flushing is required.

Specifically, we recommend a daily minimum water usage of around 0.5 gal. (2 liters). If you go without using this minimum amount for a longer period of time (after around 4 days), please drain off the entire contents of the appliance (approx. 0.7 gal. (2.6 liters)), so that you are heating fresh water again. For longer periods where no water is being drawn, we also recommend switching the appliance to standby beforehand, and then draining the tank once completely before resuming normal use.

3.2 General safety guidelines

CAUTION Burns

- The faucet can reach a temperature of over 140 °F (60°C).

- Scalding may occur at outlet temperatures greater than 109.4 °F (43°C).

WARNING Injury

This appliance can be used by children 8 years of age and over and persons with reduced physical, sensory, or mental capacities or limited experience and knowledge if they are supervised or instructed in how to use the appliance safely and understand the risks that result from its use. Children must not be allowed to play with the appliance. Children may not perform cleaning and user maintenance without supervision.

Property damage

Do not allow the appliance and the faucet to freeze.

Property damage

Discoloration may occur if hot water persistently drips on sink surfaces made of composite materials.

3.3 cETLus / WQA

The cETLus mark indicates that the appliance meets all electrical safety requirements for operation in the USA and Canada.

• Certified to ANSI / UL 94 & UL 499
• Conforms to CAN/ CSA C22.2 No. 64
• Tested and certified by WQA to NSF/ANSI/CAN 372 for lead free compliance.

3.4 Certification mark

See the appliance type plate.

4. Registering your product

Note

You must register this product on our website within 90 days of purchase in order to activate the standard warranty or to apply for the extended warranty. Go to our website at: www.stiebel-eltron-usa.com and click on "Register Your Product".

Before you begin the registration process, we recommend that you gather the following required information:

Model, for example: UltraHot Plus (on the label located on the top of the unit in the middle)

Number listed after "Nr.".

Where purchased

Date purchased

First and last name

Email address

Physical address

Telephone number

If you have questions about the registration process or warranty options, please contact Stiebel Eltron USA directly at either 800-582-8423 or 413-247-3380.

5. Appliance description

This appliance uses electricity to heat hot water. The UltraHot Plus/ Premium appliance is equipped with a patented automatic boiling point detector that automatically determines the boiling point, and then reduces the temperature by 9 °F (5°C) to prevent the appliance from accidentally boiling dry. Automatic boiling point detection will occur again if the appliance is unplugged or loses power for approximately 18 hours.

The anti-drip feature prevents expanding water from escaping from the kitchen faucet while it is being heated.

Suitable non-pressurized hot water faucets can be used to draw hot water from the appliance. Stiebel Eltron has faucets specially designed for the UltraHot Plus/Premium.

Note

To prevent damage to the appliance and the installation, only compatible non-pressurized kitchen faucets or taps must be used with this appliance. Stiebel Eltron faucets have been tested and approved for use with the UltraHot Plus/Premium appliances.

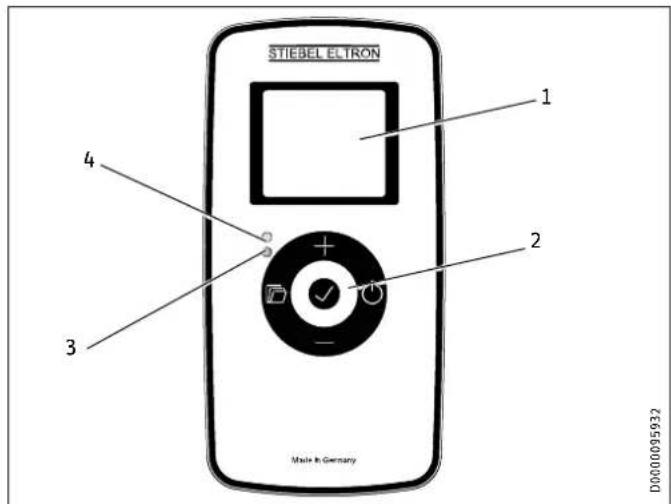

5.1 Operating the appliance

STIEBEL ELTRON 1 2 3 4 Made in Germany D0000095932

1 Display
2 User interface
3 R e d L E D
4 Green LED

5.2 User interface

Button Name Description

	"Menu" button Bring up and exit menusShort text: Bring up standard settingsLong text: Bring up configuration menu
√	"OK" button Apply selection and settings.
	"On/Off" button	Enable and disable standby mode
+	"+" button	Bring up menu itemsChange settingsEnable and disable operating lock
-	"-" button	Bring up menu itemsChange settingsEnable and disable operating lock

5.2.1 LED indicator

LED	Meaning
Red LED lit	Heating is on.
Green LED lit, red LED blinking quickly (1 sec)	Boiling point detection
Green LED lit	Boiling point detection successful
Both LEDs blinking quickly (1 sec)	Fault. Note the text on the display.

5.2.2 Display symbols

Symbol Description

	Time display:Displays the current time or a programmed start time.
	Timer mode:The appliance is heating according to the selected time program.
	Night mode:The appliance maintains the preset lower nighttime temperature.
	Frost protection:The appliance is protected from freezing (frost protection temperature = 45°F (7°C)).The faucet and water line are not protected.
	Operating lockThe user interface is locked.
	Heating active:The appliance is heating in order to maintain the preset target temperature.
	Temperature display
	Edit parameter:The displayed parameter can be changed using the "+" and "-" buttons.

5.2.3 Default display

After switching on the appliance, and once the boiling point detection is completed, the default display shows the desired temperature or "HOT" displayed continuously.

If you are in a menu and do not perform any operator activity for more than 20 seconds, the appliance automatically returns to the default display.

Backlight

If there is no user interaction for 20 seconds, the display backlight switches off. Pressing any button switches the backlight back on.

Operating lock

To block the user interface from accidental use or to unlock it, press and hold the "+" and "-" buttons at the same time for 5 seconds.

6. Settings

6.1 Setting the desired temperature

You can use the user interface buttons to set the temperature you desire between 149 °F (65 °C) and the boiling point temperature that was automatically detected [ -9 °F (-5 °C) ].

▶ Press the “+” or “-” button until the desired temperature is displayed.

The hot water appliance automatically applies the setting after 20 seconds.

6.2 Standard settings

You can set the appliance standard settings here. The following menu items are available for this purpose:

Display Description

	Set weekday and time
	Set night mode temperature (factory setting = 149 °F (65°C))
	Enable timer mode (Pro1, Pro2, Pro3) or disable it (off)

▶ To access the standard settings, briefly press the "Menu" button. You can now use the "+" and "-" buttons to bring up the menu items:
▶ If you wish to change one of the menu items, bring up the corresponding menu item using the "+" and "-" buttons. Press the "OK" button.
As soon as the "Edit parameter" symbol appears, you can change the menu item settings using the "+" and "-" buttons. To save the settings, press the "OK" button.
▶ To exit the standard settings, press the "Menu" button. The default display appears.

6.2.1 Set weekday and time

The weekday and time settings are required for the time programs to operate correctly.

▶ Navigate through the standard settings to the “Set weekday and time” menu item and adjust the settings using the “+” and “-” buttons. The sequence is hour, minute, and day of the week. The setting for the day of the week is done numerically, with “1” representing Monday.

▶ To save the settings, press the "OK" button.

Notes

• You must set the weekday and time at initial startup and after long periods disconnected from power (more than approx. 8 hours).
• You can select the 12 or 24-hour time format in the configuration menu.

6.2.2 Set the night mode temperature

For periods when no hot water is needed, the appliance temperature setting can be reduced to an adjustable lower “night mode” value, based on the time of day. This feature is good for the environment and helps to save energy as well.

If desired, the factory default night mode temperature of 149 °F (65 °C) may be adjusted:

▶ Navigate through the standard settings to the “Set night mode temperature” menu item and adjust the temperature setting using the “+” and “-” buttons.
▶ To save the settings, press the "OK" button.

Preprogrammed settings (Pro1 and Pro2) utilize the night mode function. It is also possible to set a custom time program (Pro3) that will determine the hours night mode is active.

6.2.3 Select or disable time program/timer mode

Using the time programs Pro1 and Pro2, choose the start and end time for hot water operation. The appliance operates in night mode outside of this preset time range. This provides a hot water phase and a night mode phase that repeats daily (Pro1) or every workday (Pro2).

▶ Navigate through the standard settings to the “Enable timer mode” menu item and select the desired time program using the “+” and “-” buttons. If a time program is already enabled, select “Off” to disable it.

▶ To save the settings, press the "OK" button.

Display Description

Pro1 Cycle: dailyfor private residences, for example

Pro2 Cycle: workdaysfor places of work, for example

Pro3 user defined

Off appliance always operates in hot water mode

The Pro1 and Pro2 time program factory settings are configured as follows:

- 8:00 am - 10:00 pm: Hot water mode

- 10:00 pm - 8:00 am: Night mode

Note

When time program Pro2 is activated, the appliance stays in night mode for the entire weekend.

6.3 Enable/disable standby mode

You can switch the appliance to standby mode when you are going to be away for longer periods of time. In standby mode, the temperature of the tank contents is maintained at 45^ F ( 7^ C) to protect the appliance from freezing.

The appliance itself is always protected from freezing when connected to a power supply. However, the kitchen faucet and water connections are not protected from freezing by the appliance, even when it is has power.

▶ Press the "On/Off" button on the user interface to enable/disable standby mode.

The display shows “---” while standby mode is active.

6.4 Configuration menu

You can display the actual values, program the time programs for timer mode, and set other parameters in the configuration menu.

Display Description		Unit
I1	Actual temperature	°C | °F
I2	Operating time in days	d
I3	Heating time in hours (meter resets to 0 after 9999)	h
Pro1-Pro3	Time programs
P3	Set time format	12 h | 24 h
P4	Set temperature units	°C | °F
P6	Reset to factory settings	on | off

▶ To access the configuration menu, press and hold the "Menu" button. After around 3 seconds, the actual value l1 is displayed.

▶ You can use the “+” and “-” buttons to switch between the individual actual values, time programs, and parameters.
▶ If you wish to change the value of a parameter, bring up the corresponding parameter using the "+" and "-" buttons. Press the "OK" button.
As soon as the "Edit parameter" symbol appears, you can change the parameter value using the "+" and "-" buttons. To save the value you have set, press the "OK" button.
▶ To exit the configuration menu, press the "Menu" button. The default display appears.

6.4.1 Program time programs/timer mode

There are three time programs available for using the appliance in timer mode. Time programs Pro1 and Pro2 are pre-configured at the factory, but can be adjusted as needed. You can set time program Pro3 to meet your individual needs.

Display Description

Pro1 Cycle: dailyfor private residences, for example

Pro2 Cycle: workdaysfor places of work, for example

Pro3 User defined

Note

Make sure when setting the time programs that the day of the week and the time are set correctly on the appliance.

Note

Activating standby mode ("On/Off" button) disables the timer mode.

Pro1 | Pro2

UltraHot Plus/Premium has 3 time programs: Pro1, Pro2, and Pro3. Pro1 and Pro2 are preprogrammed at the factory, but you can also adjust them as needed.

To set time programs Pro1 and Pro2 to meet your needs, proceed as follows:

▶ Use the “+” and “-” buttons in the configuration menu to bring up the required time program.
▶ Press the "OK" button.

The starting time for hot water operation is displayed.

▶ Set the required start time using the “+” and “-” buttons.
▶ Press the "OK" button.

The ending time for hot water operation is displayed.

▶ Set the required end time using the “+” and “-” buttons.
▶ Press the "OK" button.

The time program is now configured.

Pro3

You can use time program Pro3 to specify up to 14 separate hot water phases that repeat on a weekly basis.

To configure a hot water phase in time program Pro3, proceed as follows:

▶ Use the “+” and “-” buttons in the configuration menu to bring up the Pro3 time program.

▶ Press the "OK" button.

The display indicates "3---".

▶ Press the "OK" button.

The display shows a weekday or a group of weekdays.

▶ Use the “+” and “-” buttons to set the required day of the week or required group of weekdays.

▶ Press the "OK" button.

The starting time for hot water operation is displayed.

▶ Set the required start time using the “+” and “-” buttons.

▶ Press the "OK" button.

The ending time for hot water operation is displayed.

▶ Set the required end time using the “+” and “-” buttons.

▶ Press the "OK" button.

Hot water phase "3-01" is now configured. The display shows time program Pro3 again.

▶ To configure another hot water phase, press the "OK" button. Use the "+" and "-" buttons to select the display "3---". Proceed as described above.

Note

The following applies for all time programs (Pro1, Pro2, Pro3):

- If the end time is earlier than the start time, the end time is automatically applied to the next weekday. The hot water phase is maintained past midnight and ends on the next weekday at the preset end time.

Note

Activate the required time program in the standard settings (see the section "Operation / Settings / Standa settings").

Note

To reset the hot water phases you have set, activate the parameter "Reset to factory settings".

▶ Note that resetting to factory settings will reset all the appliance settings to their original factory settings.

6.4.2 Set time format

You can use the P3 parameter to determine whether the time is displayed in 12 or 24-hour format.

6.4.3 Set temperature display units

You can use the P4 parameter to determine whether the temperature is displayed in Fahrenheit (°F) or Celsius (°C). Factory setting = °F.

6.4.4 Reset to factory settings

Activating parameter P6 resets the appliance to its original factory settings.

▶ After activating parameter P6, you must wait about 10 seconds, unplug the appliance power plug, wait another 10 seconds, and then plug it back in.

The appliance settings will then reset to the factory settings.

7. Cleaning, care, and maintenance

▶ Do not use abrasive or corrosive cleaning agents. A damp cloth is sufficient for cleaning and care of the appliance.
▶ Check the faucet regularly. Remove any limescale on the spout using commercially available descaling agents. If there is an aerator, remove it from the screw fitting to descale it. Stiebel Eltron taps are fitted with an aerator.

Flush the appliance and faucet

Note

If the appliance has been in standby mode for more than a week or has been completely disconnected from the power supply, we recommend flushing the appliance.

Leave the hot water outlet valve open for around 3 minutes.

8. Troubleshooting

Problem Cause Remedy
Appliance is not supplying hot water.	There is no power to the appliance.	Check the circuit breaker in the main breaker panel.
	The appliance is in stand-by mode.	Switch the appliance on by pressing the "On/Off" button.
	The strainer in the appliance cold water supply is clogged.	Clean the strainer as shown in chapter 16.2.
Only a small amount of water is coming out of the kitchen faucet.	The strainer in the appliance cold water supply is clogged.	Clean the strainer as shown in chapter 16.2.
Water temperature is not rising above 194 °F (90°C).	Boiling point detection has shut off incorrectly.	Reset the appliance to its factory settings and repeat commissioning.

If you are unable to fix the problem, call a qualified contractor. To allow the contractor to assist you better and faster, please provide the number from the type plate (000000-0000-000000).

INSTALLATION

9. Safety

Installation, commissioning, and maintenance and repair of the appliance may only be performed by a qualified contractor.

WARNING Injury

Do not install the appliance anywhere where it might regularly be sprayed with water. Doing so may result in electric shock.

WARNING Injury

Hot water lines may be hot to the touch. Insulation must be used for hot water pipes placed lower than 36" (0.91 m) to eliminate burn hazards for children.

Property damage

Hard water or water with a high mineral content can damage the appliance. Damage to the appliance caused by limescale or a high mineral concentration is not covered by the warranty.

Stiebel Eltron recommends the use of an external filter system in the UltraHot Plus/Premium cold water supply.

Property damage

This appliance should not be installed in a location where it may be exposed to freezing temperatures (below 35.6 °F (2 °C)). If the appliance may be exposed to freezing temperatures, you must drain all of the water from the appliance. Failure to follow this instruction will void any warranty.

The appliance should be installed in an area where water escaping from the appliance or the connections will not cause damage to the area surrounding the appliance. If such a location cannot be avoided, it is recommended that a drain pan be installed under the appliance..

9.1 General safety guidelines

We guarantee trouble-free function and operational reliability only if compatible accessories intended for the appliance are used.

9.2 Codes, standards, and regulations

Note

Observe all national and regional codes and regulations.

10. Appliance description

The open (non-pressurized) appliance is designed only for undersink installation. The appliance is designed to supply a draw-off point for near-boiling water.

The appliance may only be installed and used with an open (non-pressurized) faucet from Stiebel Eltron or another manufacturer. If you use fittings other than these, it will void the appliance warranty.

10.1 Standard delivery

The following are delivered with the appliance:

- Wall mounting bracket

10.2 Accessories

10.2.1 Optional accessories

Stiebel Eltron compatible faucets are available separately.

10.2.2 Additional recommended accessories

- Water filter for the cold water supply connection (available separately)

11. Preparations

▶ Flush out the water line thoroughly.

Plumbing installation

A safety valve is not required.

Faucets

Suitable non-pressurized hot water faucets can be used to draw hot water from the appliance. Stiebel Eltron has faucets specially designed for the UltraHot Plus/Premium.

Note

To prevent damage to the appliance and the installation, only compatible non-pressurized kitchen faucets or taps must be used with this appliance. Stiebel Eltron faucets have been tested and approved for use with the UtraHot Plus/Premium appliances.

11.1 Installation location

Property damage

Install the appliance only in a frost-free space.

Property damage

The appliance is designed only for undersink installation. The appliance water connections face toward the top.

Note

Make sure that enough clearance is left around the appliance for maintenance work.

Install the appliance perpendicular and in the vicinity of the draw-off point.

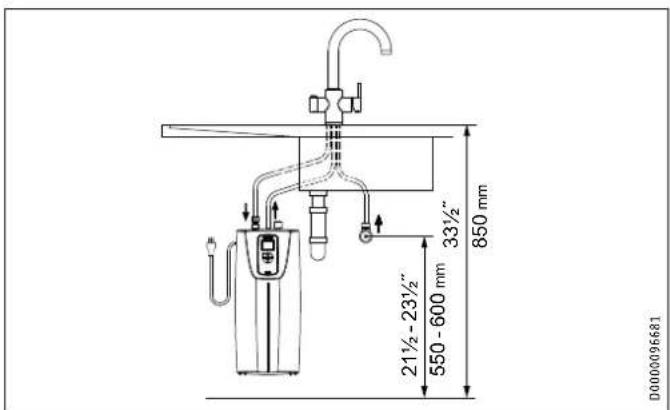

21½ - 23½" 550 - 600 mm 33½" 850 mm D0000096681

1 Minimum clearances

12. Installation

12.1 Installing the appliance

▶ Mark the drill hole points using the bracket as a template.
Drill the holes and secure the wall mounting bracket with the appropriate screws and accessories if needed for the wall substrate.
▶ Hang the appliance on the wall mounting bracket.

Line drawing of a laboratory instrument with control panel and mechanical components (no text or symbols)

1 Mounting the UltraHot Plus/Premium

12.2 Water connection

Property damage

Carry out all plumbing connection and installation work according to instructions.

Property damage

The appliance can leak and may fail to operate if installed improperly.

▶ Do not expose the appliance to any water pressure.
▶ Do not mix up the water connections.

Match the color coding of the water connection fittings and the appliance:

• Blue = cold water supply inlet
• Red = hot water outlet

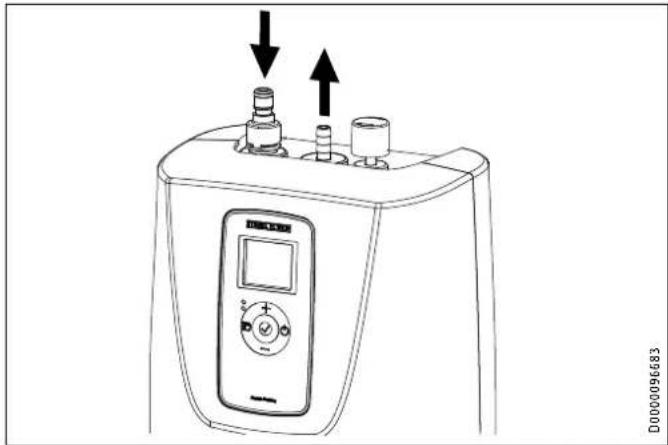

Line drawing of a digital pressure testing device with two ports and an LCD screen (no text or symbols)

1 Plumbing connections

For the cold water supply: Plug the push-fit connector of the fitting onto the cold water supply of the UltraHot Plus/ Premium.
For the hot water outlet: Push the 16" hose of the faucet onto the sleeve of the hot water outlet on the UltraHot Plus/Premium as far as it will go.
- Secure the connection location by sliding on the ear clamp provided and tightening it with ear clamp pliers, crimping pliers, or end cutters.

Note

Make sure that the plumbing connections are not kinked during installation. Avoid applying any tension during installation.

Note

The hot water outlet tube should be installed so that it rises in a constant slope to the faucet, without any sag in the hose.

12.3 Connecting to a water filter (required in hard water areas)

Property damage

The UltraHot Plus/Premium appliance must be operated with a water filter when water hardness values are greater than or equal to 8.76 gpg (1.5mmol/l). This will prevent limescale buildup in the appliance. Using the appliance without an external water filter at values above these will void the appliance warranty. Damage to the appliance caused by limescale or a high mineral concentration is not covered by the warranty.

In areas with hard water, when water hardness values are greater than or equal to 8.76 gpg (1.5mmol/l), the UltraHot Plus/Premium appliance must be operated with a water filter (not supplied). For the water filter to work properly, it should be installed between the wall connection and the faucet.

Note

Follow the filter manufacturer's operating and installation instructions when installing the water filter (not supplied).

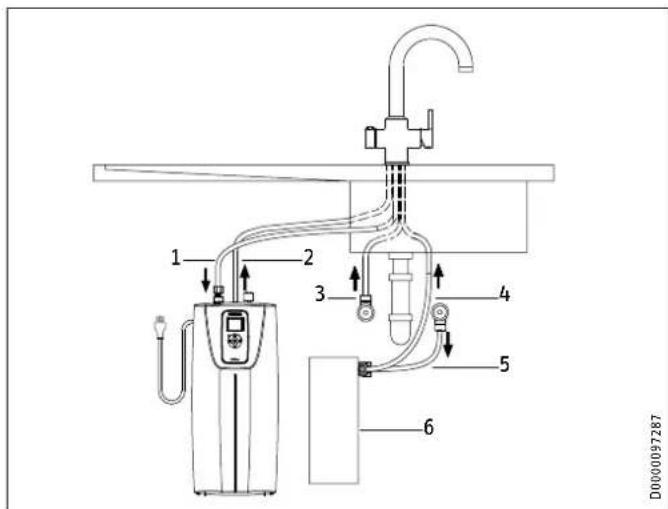

12.3.1 Connecting the recommended water filter and a 3-in-1 kitchen faucet

1 2 3 4 5 6 D0000097287

1	Cold water supply to the appliance	Plastic hose with push-fit connector
2	Hot water outlet on appliance	7126 " plastic hose
3	Warm water supply to the faucet	Short flexible hose with red braid
4	Cold water supply to the faucet Short flexible hose with blue braid
5	Cold water supply to the filter
6	Suggested water filter (not supplied)

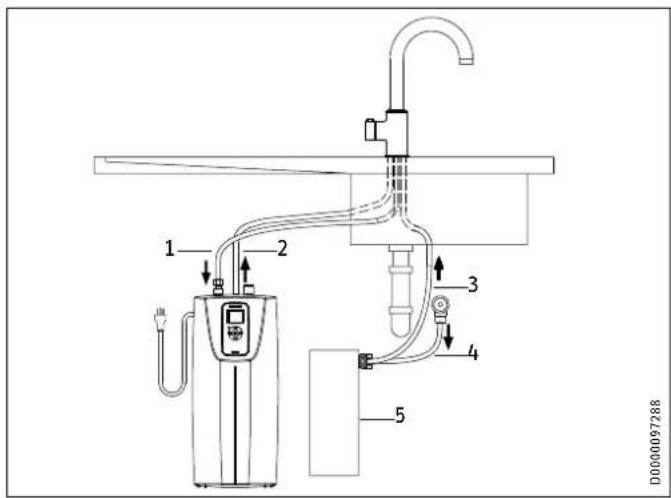

12.3.2 Connecting the recommended water filter and single near-boiling water faucet

1 2 3 4 5 D0000097288

1 Cold water supply to the appliance	Plastic hose with push-fit connector
2 Hot water outlet	^7I_6 " plastic hose
3 Cold water supply to the faucet Short flexible hose with blue braid
4 Cold water supply to the filter
5 Suggested water filter (not supplied)

12.4 Electrical connection

WARNING Electrocution

Carry out all electrical connection and installation work according to instructions.

Property damage

The voltage indicated on the type plate must match the utility voltage.

▶ Note the type plate.

The following electrical connection options are permitted:

- Connection to a freely accessible grounded receptacle with an appropriate plug.

13. Commissioning

WARNING Electrocution

Commissioning may only be performed by a qualified contractor in compliance with safety codes.

Note

You must set the weekday and time at initial startup and after long periods disconnected from power (approx. 8 hours).

13.1 Initial startup

D0000049325

▶ Open the hot water valve of the faucet until water without any bubbles comes out (at least 3 min). Once the stream is free of air bubbles, close the hot water valve.
▶ Insert the plug into the grounded receptacle.
▶ Check to ensure none of the plumbing connections are leaking.

Note

If the proper sequence (first water, then power) is not followed, it will trigger the dry-run check.

Dry-run check

At initial startup and after every power interruption, the appliance PCB performs a dry-run check:

Red LED Lights for 20 seconds Appliance heats

Red LED Off for 40 seconds PCB self-test

During the dry-run check, the symbol "heating" flashes and the backlight is switched on. The display shows "dr" followed by a number, a counter, and "test" in sequence. The dry-run check will take approximately 60 seconds.

Note

During the dry-run check ...

• the appliance must not be disconnected from the utility power network.
• do not draw any water at the draw-off point.

After the dry-run check has completed successfully, the appliance starts the automatic boiling point detection, which takes approximately 5 minutes. Once everything is completed then the green light will be constantly lit. This indicates a properly detected boiling point and a working unit.

Note

If the dry-run check has been activated, the fault code "E1" appears on the display. The appliance is locked out of restarting for 5 minutes.

Proceed as follows:

▶ Fill the appliance with cold water.
▶ After a 5-minute lockout period, the appliance performs another dry-run check.
▶ If the fault is displayed again, reset the appliance (P6 = on).

13.1.1 Appliance handover

Explain the function of the appliance to the user. Familiarize them with its operation.
▶ Tell the user about potential hazards, especially the risk of scalding.

▶ Hand these instructions to them, along with the instructions for any accessories.

13.2 Restarting the appliance

See the section "Installation / Commissioning / Initial startup".

14. Shutting down the appliance

▶ Disconnect the appliance from the power supply by unplugging it or switching off the circuit breaker at the load center.

- Drain the appliance (see "Installation / Maintenance / Draining the Appliance").

15. Fault messages

Flashing LEDs are used to signal faults. The corresponding fault code appears on the display:

Fault code	Cause	Remedy
E001	Dry running	See "Initial startup / Dry-run check".
E002	Temperature sensor fault (break, short-circuit)	Replace appliance
E007	Waiting to cool to boiling point detection	Open the hot water valve until the water coming out is cold. Close the valve and wait for successful boiling point detection.

16. Maintenance

WARNING Electrocution

Completely disconnect the appliance from the power supply when performing any work on it.

▶ Uninstall the appliance when performing maintenance.

16.1 Draining the appliance

WARNING Burns

Hot water may escape when draining.

▶ Before you drain the appliance, unplug the power plug and flush for at least two minutes until only cold water is coming out of the hot water outlet of the faucet.

▶ Drain the appliance via the connectors.

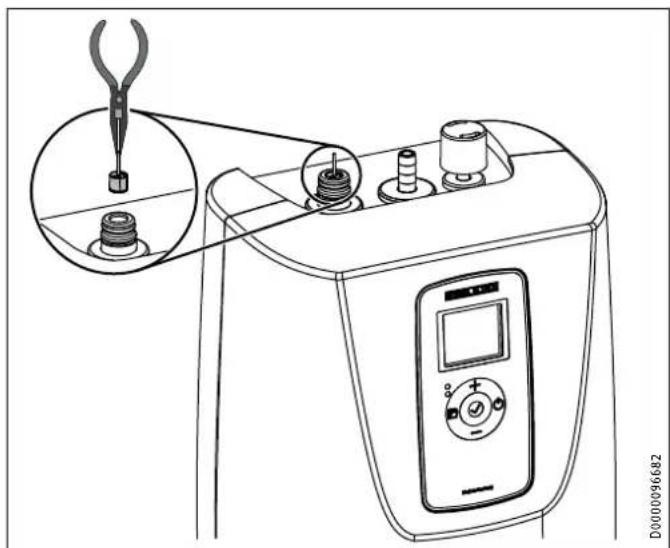

16.2 Clean the strainer

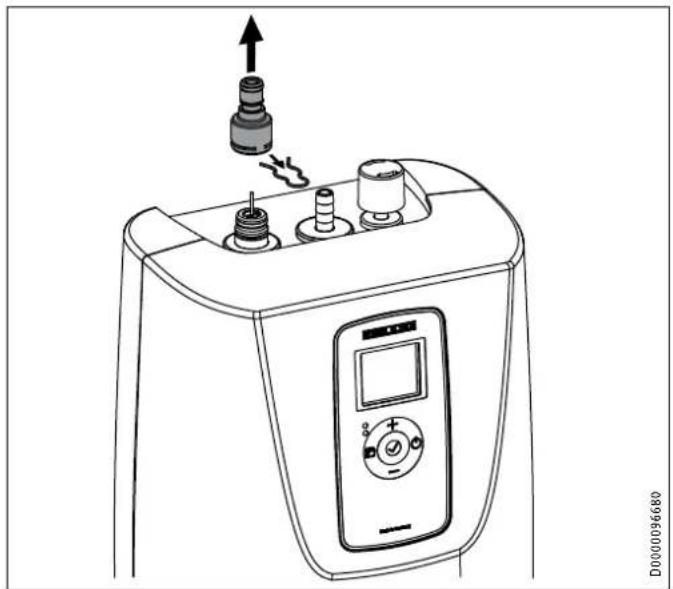

Line drawing of a digital water purifier with ports and control panel (no text or symbols)

1 Disconnect the push-fit connector

Line drawing of a sewing machine with a tool inserted, showing base, spool, and control panel (no text or symbols)

2 Remove the strainer

▶ Remove the cold water supply connection.
▶ Disconnect the push-fit connector from the appliance.
▶ Using pliers, pull the strainer out of the cold water supply connection.
▶ Descale or replace the strainer.
▶ Reinstall the strainer, reinstall the push-fit connector, and reconnect the cold water supply.

17. Specification

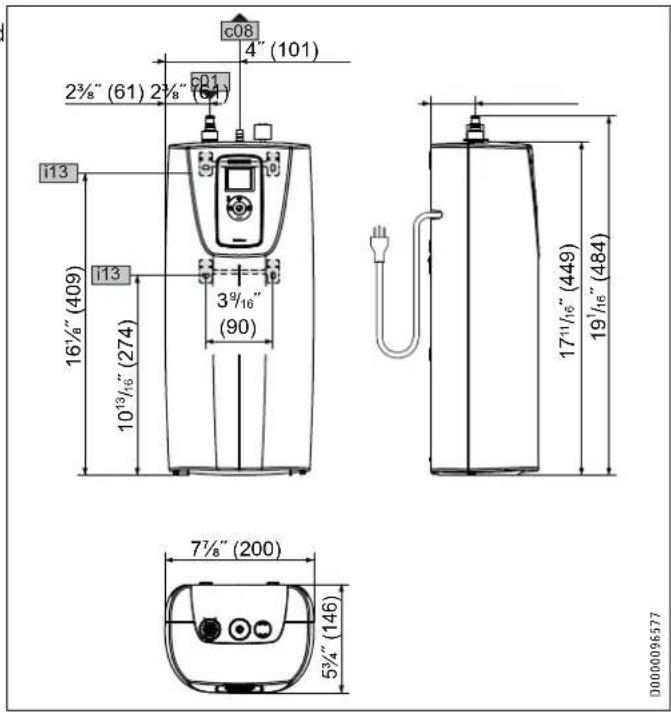

17.1 Dimensions and connections

c08 4" (101) 2¾" (61) 2¾" i13 i13 16½" (409) 10³/₁₆" (274) 3¾/₁₆" (90) 17¼/₁₆" (449) 19½" (484) 7½" (200) 5¾" (146) D0000096577

		UltraHot Plus/Premium
c01	Cold water supply	Connectors
c06	Hot water outlet	Nozzle
i13	Wall mounting bracket

17.2 Country-specific approvals and certifications

See the type plate for certifications.

17.3 Extreme operating and fault conditions

If the appliance fails, temperatures of up to 212 °F (100°C) may occur briefly in the installation.

17.4 Data table

UltraHot Plus	TM	UltraHot PremiumTM
Item no. 203876 203877
Electrical data
Rated voltage 120 V 120 V
Rated output 0.75 kW 1.44 kW
Rated current	6.25 A	12 A
Circuit breaker	10 A	15 A
Phase	1/N/GND	1/N/GND
Frequency	50/60 Hz	50/60 Hz
Hydraulic data
Rated capacity	0.7 gal (2.6 l)	0.7 gal (2.6 l)
Max. flow rate, hot water	0.66 gpm (2.5 l/min)	0.66 gpm (2.5 l/min)
Potable water quality requirements
Hardness range	1	1
Total hardness	8.76 gpg (1.5 mmol/l)	8.76 gpg (1.5 mmol/l)
Application limits
Max. permissible pressure	0 psi	0 psi
Details
Casing material	ABS-FR ABS-FR
Thermal insulation material	PU foam	PU foam
IP-Rating	IP24	IP24
Type	open	open
Connections
Power connection	6' (1.8 m) cord w/plug	6' (1.8 m) cord w/plug
Dimensions
Height	17^3/_4'' (450 mm)	17^3/_4'' (450 mm)
Width	7^7/_8'' (200 mm)	7^7/_8'' (200 mm)
Depth	5^3/_4'' (146 mm)	5^3/_4'' (146 mm)

Environment and recycling

Please help us to protect the environment by disposing of the packaging in accordance with the national regulations for waste processing.

18. Warranty

LIMITED WARRANTY

Subject to the terms and conditions set forth in this limited warranty, Stiebel Eltron, Inc. (the "Manufacturer") hereby warrants to the original purchaser (the "Owner") that each UltraHot Plus Instant Hot Water Dispenser (the "Dispenser") shall not leak or fail due to defects in the Manufacturer's materials or workmanship for a period of three (3) years from the date of purchase, or that each UltraHot Premium Instant Hot Water Dispenser (the "Dispenser") shall not leak or fail due to defects in the Manufacturer's materials or workmanship for a period of four (4) years from the date of purchase. This warranty will be null and void if the Dispenser is installed in an application outside of its intended use:

UltraHot Plus: for residential use only

UltraHot Premium: for residential and light commercial use defined as offices, break rooms, lunch rooms, public facilities, houses of worship etc.

As Owner's sole and exclusive remedy for breach of the above warranty, Manufacturer shall, at the Manufacturer's discretion, send replacement parts for local repair; retrieve the unit for factory repair, or replace the defective Dispenser with a replacement unit with comparable operating features. Manufacturer's maximum liability under all circumstances shall be limited to the Owner's purchase price for the Dispenser.

This limited warranty shall be the exclusive warranty made by the Manufacturer and is made in lieu of all other warranties, express or implied, whether written or oral, including, but not limited to warranties of merchantability and fitness for a particular purpose. Manufacturer shall not be liable for incidental, consequential or contingent damages or expenses arising directly or indirectly from any defect in the Dispenser or the use of the Dispenser. Manufacturer shall not be liable for any water damage or other damage to property of Owner arising, directly or indirectly, from any defect in the Dispenser or the use of the Dispenser. Manufacturer alone is authorized to make all warranties on Manufacturer's behalf and no statement, warranty or guarantee made by any other party shall be binding on Manufacturer. Manufacturer shall not be liable for any damage whatsoever relating to or caused by:

1. any misuse or neglect of the Dispenser, any accident to the Dispenser, any alteration of the Dispenser, or any other unintended use;

2. acts of God and circumstances over which Manufacturer has no control;

3. installation of the Dispenser other than as directed by Manufacturer and other than in accordance with applicable building codes;
4. failure to maintain the Dispenser or to operate the Dispenser in accordance with the Manufacturer's specifications;
5. operation of the Dispenser under fluctuating or excessive water pressure or in the event the Dispenser is supplied with non-potable water, for any duration;
6. improper installation and/or improper materials used by any installer and not relating to defects in parts or workmanship of Manufacturer;
7. moving the Dispenser from its original place of installation;
8. exposure to freezing conditions;
9. water quality issues such as corrosive water, hard water, and water contaminated with pollutants or additives;
10. not continuously supplying the unit with water aka "dry-fi ring".
11. installation of any incompatible tap or faucet

Should owner wish to return the Dispenser to manufacturer for repair or replacement under this warranty, Owner must first secure written authorization from Manufacturer. Owner shall demonstrate proof of purchase, including a purchase date, and shall be responsible for all removal and transportation costs. If Owner cannot demonstrate a purchase date this warranty shall be limited to the period beginning from the date of manufacture stamped on the Dispenser. Manufacturer reserves the right to deny warranty coverage upon Manufacturer's examination of Dispenser. This warranty is restricted to the Owner and cannot be assigned.

Some States and Provinces do not allow the exclusion or limitation of certain warranties. In such cases, the limitations set forth herein may not apply to the Owner. In such cases this warranty shall be limited to the shortest period and lowest damage amounts allowed by law. This warranty gives you specific legal rights and you may also have other rights which vary from State to State or Province to Province.

Owner shall be responsible for all labor and other charges incurred in the removal or repair of the Dispenser in the fi eld. Please also note that the Dispenser must be installed in such a manner that if any leak does occur, the flow of water from any leak will not damage the area in which it is installed.

Line drawing of a portable water heater with control panel and mechanical components (no text or symbols)

D0000096686
1 Colgar el UltraHot Plus/Premium

Line drawing of a laboratory instrument with two ports and directional arrows indicating movement (no text or symbols)

D0000096683

Line drawing of a digital water purifier with control panel and mechanical components (no text or symbols)

Line drawing of a sewing machine with a magnified inset showing thread being inserted (no text or symbols)

UltraHot Plus/Premium

Line drawing of a laboratory instrument with control panel and mechanical components (no text or symbols)

1 Suspension de l'appareil UltraHot Plus/Premium

12.2 Raccordement hydraulique

Dommages matériels

Line drawing of a laboratory instrument with two pressure gauges and a digital display (no text or symbols)

1 Raccordements hydrauliques

Line drawing of a digital kitchen appliance with a control panel and mechanical components (no text or symbols)

Line drawing of a sewing machine with a magnified inset showing thread being inserted (no text or symbols)

2 Retrait du filtre

United States of America

STIEBEL ELTRON, Inc.

17 West Street | West Hatfield, MA 01088

Tel. [phone] | Fax [phone]

Toll-free 800.582.8423

[e-mail]

www.stiebel-eltron-usa.com

Austria

STIEBEL ELTRON Ges.m.b.H.

Eferdinger Str. 73 | 4600 Wels

Tel. [phone] | Fax [phone]

[e-mail]

www.stiebel-eltron.at

Belgium

STIEBEL ELTRON bvba/sprl

't Hofveld 6 - D1 | 1702 Groot-Bijgaarden

Tel. [phone] | Fax [phone]

[e-mail]

www.stiebel-eltron.be

Czech Republic

STIEBEL ELTRON spol. s r.o.

Urzhumskaya street 4,

building 2 | 129343 Moscow

Tel. [phone] | Fax [phone]

[e-mail]

www.stiebel-eltron.ru

Slovakia

TATRAMAT - ohrievače vody, s.r.o.

Hlavná 1 | 058 01 Poprad

Tel. [phone] | Fax [phone]

[e-mail]

www.stiebel-eltron.sk

Sweden

STENERGY

Vasagatan 14 | 545 30 Töreboda

Sales:

Tel. [phone] | [e-mail]

Technique & Service:

Tel. [phone] | [e-mail]

www.stiebel-eltron.se

Switzerland

STIEBEL ELTRON AG

United Kingdom and Ireland

STIEBEL ELTRON UK Ltd.

Unit 12 Stadium Court

Stadium Road | CH62 3RP Bromborough

Tel. [phone] | Fax [phone]

[e-mail]

www.stiebel-eltron.co.uk

4017213479277

Irrtum und technische Änderungen vorbehallen! | Subject to errors and technical changes! | Sous réserve d'erreurs et de modifications techniques! | Onder voorbehoud van vergissingen en technische wijzigingen! | Salvo error o modificación técnica! | Rätt till misstag och tekniska ändringar förbehålls! | Excepto erro ou alteração técnica | Zastrzeżone zmiany techniczne i ewentualne błędy | Omyly a technické zmény jsou vyhrażeny! | A muszaki változtatások és tévedések jogát fenntartjuk! | Отсутствие ошибок nie гарантируется. Возможны технические изменения. | Chyby a technické zmény sú vyhradené! Stand 8643

STIEBEL ELTRON
