DO7060S - Iron DOMO - Free user manual and instructions

USER MANUAL DO7060S DOMO

White and blue electric iron with 'DOMO CeraGliss' branding, no visible text or symbols on body

EN Instruction booklet Steam iron

Read all instructions carefully.

Save this instruction manual for future reference.

⚠PRODUCTSPECIFIEKE WAARSCHUWINGEN

Line drawing of a steam iron with a handle and spout, shown in perspective (no text or symbols)

TEMPERATUURKEUZE

Prohibition sign with crossed-out trash bin and a blank rectangular symbol below

⚠AVERTISSEMENTS SPÉCIFIQUES AU PRODUIT

Line drawing of a steam iron with a handle and spout, shown in perspective view (no text or symbols)

CHOIX DE LA TEMPÉRATURE

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Line drawing of a steam iron with a cloth cover and handle, shown in perspective (no text or symbols)

TEMPERATURAUSWAHL

Symbol of a trash bin crossed with two crossed lines and a solid black rectangle below (no text or labels)

Thank you for your confidence in DOMO. We do hope you enjoy your new purchase. Before reaching you, all our products undergo a strict quality inspection. Should you still encounter problems with your appliance, then we are truly sorry and will do everything possible to resolve the situation quickly. Do not hesitate to contact our customer service. Our staff will do all they can to help you!

[phone] [e-mail]

Monday - Thursday: 8.30 - 12.00 and 13.00 - 17.00

Friday: 8.30 - 12.00 and 13.00 - 16.30

This device has a warranty period of 2 years from the date of purchase. During this warranty period, the distributor will assume responsibility for any defects that can be shown to be the result of material, construction or manufacturing errors. Such defects will be remedied by repair or replacement of the device. The 2-year warranty period will be suspended during the repair period and will continue after the repair has taken place for the remaining duration of the warranty period. The warranty will be honoured if proof of purchase clearly showing the date of purchase is provided. If your device becomes defective within the 2-year warranty period, please return it with your proof of purchase to the store you purchased it from or follow the procedure of the relevant webshop if you bought it online.

The warranty does not cover damage to the device, accessories or parts caused by:

• normal wear and tear from use;
• non-compliance with the instructions for use, maintenance and cleaning in the manual;
- incorrect connection, e.g. electrical voltage too high;
- incorrect, heavy-handed or abnormal use;
• repairs or alterations carried out by the consumer or unauthorised third parties;
- use of parts or accessories not recommended nor supplied by the distributor.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following. Any injury or damage caused by failure to comply with these rules are at your own risk. Neither the manufacturer, importer, or the supplier may be held liable.

• Read all instructions carefully.
  • Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.

• This appliance is only suitable for use in domestic and similar environments, such as:

• staff kitchen areas in shops, offices and other working environments;

• farm houses;
• by clients in hotels, motels and other residential type environments;
  • bed and breakfast type environments.

• Children should be supervised to ensure that they do not play with the appliance.

- This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

- Cleaning and user maintenance shall not be made by children unless they are older than 16 or supervised.

- Keep the appliance and its cord out of reach of children younger than 16 years.

- All repairs should be carried out by the manufacturer or its aftersales service.

⚠️ELECTRICAL WARNINGS

- In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer or a

separate remote control, or connected to a circuit that is regularly switched on and off by the utility.

- The appliance must be disconnected from its power source when not in use, during service and when replacing parts. If present, first turn all the buttons to the 'off' position, then pull the plug out of the socket by grasping the plug itself. Never pull the cord or appliance to remove the plug from the socket.

- Before use, check carefully that the electric tension and frequency of the power net at your home match the indications on the rating label of the appliance.

- The appliance must be plugged into an appropriate outlet that is installed and grounded in accordance with local installation regulations.

- Do not let the power supply cord hang over the edge of a counter, or touch hot surfaces.

- Keep the power cord away from hot parts and don't cover the appliance.

- Unwrap the cord completely to prevent overheating of the cord. Do not allow the power cord supply to run underneath or around the unit.

- For safety reasons, never use the appliance if the cord, plug, or appliance itself is damaged, or after a malfunction of the appliance. Return the appliance to the DOMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do not try to repair the appliance yourself.

⚠️INSTALLATION

- Do not place near flammable materials, gases or explosives.

- Do not use or store this appliance outdoors.

• Always use the appliance on a steady, dry and level surface.

- Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.

⚠ USE

- Do not use this appliance for other than intended use.

- Never leave the appliance unattended while it is functioning.

• Do not operate the appliance with wet hands.
• The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries. Only use the utensils delivered with the appliance.

⚠ CLEANING AND MAINTENANCE

• To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.
• Failure to maintain this appliance in a clean condition could adversely affect the life of the appliance and possibly result in a hazardous situation.

⚠PRODUCTSPECIFIC WARNINGS

• Empty the water tank after use.
- Never fill the water tank with hot water, perfumed liquids, starch, fabric softener or other chemical compounds.
- Do not use the appliance if it has been dropped, shows visible signs of damage or is damaged or leaking.
- Do not move the iron while in use or when still hot. Allow to cool before moving the iron or before maintenance.
- Do not use the steam function of the iron without water in the reservoir. This might cause damage to the iron.
- The plug must be removed from the socket-outlet before the water reservoir is filled with water.

The surface(s) marked with this symbol are liable to get hot during use. It is advised not to touch the surfaces of the appliance other than the handles to avoid burns.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

All images and descriptions in this manual are purely indicative and may differ slightly from the actual device.

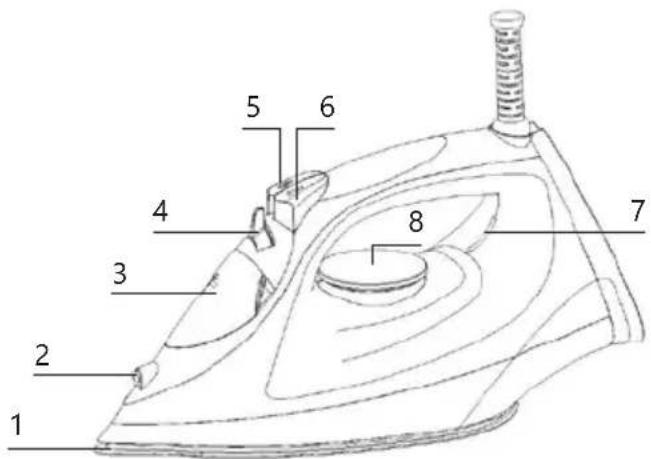

PARTS

1. Sole of iron
2. Spray opening
3. Filling opening
4. Steam regulator + self-cleaning
5. Steam boost button
6. Spray button
7. Indication light
8. Temperature button

1 2 3 4 5 6 7 8

BEFORE THE FIRST USE

• Remove all packaging materials and any promotional stickers.
• Remove any stickers and protective film from the soleplate.
• Heat the iron to the maximum temperature and iron over a damp cloth for several minutes to remove any residue from the soleplate.

Attention:

• The appliances are tested briefly each time after production. It is therefore normal for condensation droplets to have formed in the water tank.
• It is normal for a strange smell to be released during initial use. This smell will disappear after a while.
• There may be particles coming out of the ironing soleplate during the first use. This is normal. The particles are not harmful and will disappear after a while.
• While heating up the soleplate, a little steam will automatically come out of the soleplate. This is also normal and will last about 3 seconds.
• The iron must always be at "Min" if you put the plug in or take it out of the outlet.
• Never pull on the cord but on the plug itself.

USE

1. Fill the water reservoir as indicated in "Filling the water reservoir".
2. Put the plug of the device in the outlet.
3. Make sure that the steam regulator is set to the no steam position.
4. Turn the temperature regulator to the desired position: see "Temperature selection". The indicator light will turn off when the appliance has reached the selected temperature.
   the indicator will turn on and off while ironing. This is to maintain a constant temperature. This is normal.
   ⚠️ If you put the iron down while it is hot, set it upright on a flat surface.

IRONING WITH STEAM

1. Turn the temperature regulator to a temperature that includes steam. This is for "cotton" and "linen".
2. Make sure that the water reservoir is always at least 14 full. If the water level is too low, steam will not be produced.
3. The steam regulator allows you to either use or not use steam:

•roning without steam
• ECO: continuous steam with low consumption
• continuous low steam
• pulse high steam

1. After use, turn the temperature regulator to MIN, move the steam regulator button to the "ironing without steam" position and remove the plug from the outlet.

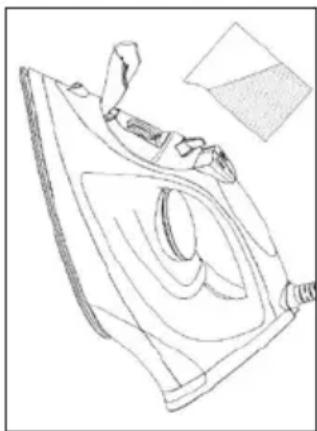

FILLING THE WATER RESERVOIR

• Remove the plug from the outlet. Set the steam regulator to ironing without steam ✉
• Open the lid of the fill opening. Hold the iron at a slant and fill the water reservoir through the opening. So not fill it beyond the MAX level. Close the lid of the fill opening.
• If you live in an area with hard water, it is recommended you use 50 % tap water and 50 % demineralised or distilled water. Do not use chemically modified water or perfumed water.
• Never store the device with a filled water tank.

Line drawing of a mechanical component with a triangular base and internal structure (no text or symbols)

TEMPERATURE CHOICE

- Check the ironing instructions on the item of clothing that you wish to iron. Use the dial to set the right temperature for the right fabric.

Symbol Fabric Temperature dial
	Synthetic fabric/nylon	● SYNTHETIC
	Wool/silk	● ●WOOL- SILK
	CottonLinen	● ● ●TTON - LINEN
	This symbol means that the article must not be ironed!

• Silk and materials with a separate shiny layer or other extra finishings should be ironed inside out at the lowest temperature.
• If a fabric consists of several types of fibres, always choose the lowest temperature to iron the combination of these fibres.

- Sort your laundry by type of fabric and temperature at which it must be ironed. Begin with the items of clothing for low temperatures and end with the laundry for the highest temperature.

- If you turn the temperature down, give the appliance time to cool off.

• Wools and other delicate fabrics such as silk, velour, etc., can best be ironed with a pressing cloth to prevent the fabric from being damaged. Always keep the iron moving.
• Never iron over zips or other metal objects in a garment. This can damage the soleplate. Always iron around such objects.

SPRAYING

• Pushing the spray button will cause water to be sprayed out of the opening and moisten materials difficult to iron.
• To prevent staining, it is recommended not to use the spray function on delicate materials such as silk.
• This function can be used with every temperature and will not interfere with the other functions.
• With the first use of the spray button, it will need to be pressed several times to activate it.
• Make sure there is always enough water in the reservoir.

STEAM BOOST

• You can remove stubborn wrinkles with a steam boost.
• The steam shot works best with the temperature regulator set at MAX.
• Press on the steam boost button. Wait a few second for the steam to penetrate the fabric before you press again.
• The steam shot can also be used when the iron is upright. This allows you to remove wrinkles from garments or curtain that are hanging up.

Do not use the steam boost button more than three times in a row in order to maintain optimal steam quality. Using the steam boost several times in a row will cool the iron. For this reason, pay attention to the temperature indicator light before and after you use this function.

EMPTYING THE WATER RESERVOIR

• Set the steam regulator to ironing without steam
• Pull the plug from the outlet.
• Open the water reservoir and remove the water. Shake the iron to remove the excess water.

CLEANING AND MAINTENANCE

• Unplug the appliance and let it cool down before cleaning.
• Wipe off any residue on the ironing sole with a damp cloth or a non-caustic (liquid) cleaning product.
• Clean the upper part of the iron with a soft, damp cloth.
• If you do not use the steam iron for a long time, pour the water out of the water tank.

⚠️Do not immerse unit, cord, or plug in water or other liquid.

⚠️ Never use aggressive or abrasive cleaning agents.

Do not use chemical, steel, wooden or abrasive products to scrub the soleplate clean.

SELF-CLEANING

This function removes the lime scale and minerals that build up in the steam chamber. This treatment is best done once a month to keep the iron in optimal working condition. Depending on the hardness of the water, this treatment may have to be done more than once a month.

1. Fill the iron as described in "Filling the water reservoir". Fill the water tank halfway.
   Caution: Never fill the iron with vinegar or other liquid decalcifiers.
2. Place the iron straight up on a flat surface.
3. Put the plug in the mains.
4. Put the device on at the max. temperature. Wait until the device is at temperature.
5. Hold the iron horizontally above the sink.
6. Move the steam regulator to the self-cleaning position: 'CALC CLEAN'. Keep it pressed in.
   Steam and boiling water will come out of the holes in the sole of the iron, rinsing the lime scale and minerals out.
   ⚠️ Note: Make sure you do not come into contact with the hot water.
7. Move the iron gently back and forth, until the water tank is empty.
8. Release the steam regulator button when you are finished cleaning.
9. Place the iron in a vertical position and allow it to cool completely
10. Dry the sole with a cold, damp cloth.

PROBLEMS AND SOLUTIONS

PROBLEMS SOLUTIONS
The appliance leaks water from the holes in the ironing soleplate.	·The iron is not hot enough. Set the temperature dial within the margins of the steam symbol. Wait for the light to go out.·You use the steam button too often. Wait a few seconds before pressing the button again.
Brown liquid comes out of the ironing soleplate.	·There are dust fibres in the soleplate that have been burnt. Clean the sole with a damp sponge.·Do not use limescale remover or starch.·Demineralised water was used. Use only tap water or 50/50 tap water/demineralised water.
The ironing soleplate is dirty or brown . ·You are using a too high temperature.Clean the soleplate with a damp sponge.·You are using starch. Spray the starch on the inside of the laundry.
No or little steam comes out of the iron. ·The water tank is empty.·There is limescale in your appliance.·The temperature dial is at too low a temperature.
The appliance makes a rattling noise. ·Water is heating up.
Steam does not come out of the iron immediately.	·The soleplate is not yet warm enough. Wait until the light on the iron is off.·You haven't used the steam button for a long time, so the water has to be pumped through the pipes.
The steam burst does not work. • To use the steam burst, the water tank must be at least 1/4 full.

GUIDELINES

Symbol of a trash bin crossed with two crossed lines and a black rectangle below (no text or labels)

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

The packaging is recyclable. Please treat the packaging ecologically.

This appliance conforms to all European requirements in the areas of safety, health, and environmental protection.

The EU declaration concerning this appliance can be requested at any time from [e-mail]

GARANTIA

Estimado cliente,

Line drawing of a steam iron with a handle and spout, shown in perspective (no text or symbols)

Symbol of a trash bin crossed with two crossed lines and a black rectangular base (no text or numbers)

Line drawing of a steam iron with a handle and spout, shown in perspective view (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Line drawing of a steam iron with a triangular load, showing internal components and a separate geometric shape (no text or symbols)

NASTAVENÍ TEPLOTY

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

Line drawing of a mechanical component with no visible text or symbols

NASTAVENIE TEPLOTY

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)
