Welcome to the HD96-AIR Digital Mixing System. The HD96-AIR is a further transformation of the Midas Live sound experience, designed for the modern day live sound engineer without compromise.

Based on the flagship HD96-24 the H069 AIR is the next step in delivering Mitas' next way of mixing, while keeping the famous non-compromative sonic quality, new flow-thinning设计理念 - including large touchscreen control, modern multi-touch gesture control with separate widget-style areas and the Mitas mCloud system to help manage many duties of the H069 AIR system - are just a few of the new concepts created to take mixing audio to a new level.

To obtain the best results please read this quick start guide (QSC) and enjoy the future of mixing with the HD66-AIR System.

About This Guide

This Quick Start Guide [SSG] is designed to quickly familiarize the user with the console layout, show how to configure and set the system up, and then show how to carry out basic functions needed to start mixing audio.

This document is aimed at professional engineers, such as front of House (TOH) and Monitor (NOB) engineers, who will be using this equipment in a live sound environment. This document assumes that the reader has previous experience of using professional audio equipment.

Full details of the HD95-AIR system please refer to the HD95-AIR Owner's Manual, which can be found on our website at midscales.com. We strongly advise that you read the full manual as many improvements will take place and some of the screenshots in this OS may be lost at ease as the software rapidly improves. We are at the inception of this powerful new audio mixing system which will only grow and develop over time.

HD96-AIR System Firmware Version

Our team of software engineers are constantly working to improve and expand the features of the H095-AIR. To achieve the best results from your console, you should make sure the latest firmware version is installed on your system. Firmware updates can be found in the VMware McDroid (huid.mtdosconsules.com), a new approach to track and store system updates, or via the mtdosconsules.com website.

HD96-AIR Touchscreen

WARNING: The FD96-NIR should NOT be placed or operated in direct sunlight, if the screen is exposed to direct sunlight, it may become unresponsive and too hot to handle. Please ensure you have a suitable cover for your console.

Warranty and Registration

Motas are word renowned for quality and reliability. This product comes with a standard 1-year warranty, which can be extended to 3 years by registering your product within 90 days of purchase.

Register your ID96-AIR console by using the Midas mCloud.

Service and Support

The H09.6 A is state of the art technology. We provide incredible levels of support and service available via the Midias mCloud or by our service team to give owners and users confidence in Midias products.

Commonly Used Terms and Definitions

Below are some of the terms used in this GSG. Knowing these terms and what they mean will make reading this document straightforward.

GUI - Graphic User Interface or Touchscreen.

Channel-Any input or output (Aux, Matrix, Masters).

Path - Any input or output, VCG (Voltage Controlled Amplifier) or Master.

POPULATION Group A group of channels used to bring or recall paths to the touchscreen surface.

Contributions - Any path that contributes to an output bus.

Touch - The action of pressing the touchscreen to turn on or select a function. Select - The same as Touch

Pinch—Two fingers squeezed together, used to tighten or tighten equalizer notch [20].

Swipe - Make a page left to right up and down by pressing, holding and moving in the required direction.

Press-and-Hold - either a way to select all the paths on a current page for multiple editing, or a way to engage a parameter function that may be critical if pressed in error, for example flattening the EQ is a press-and-hold function.

Widget - The name for a window or various windows displaying information on the GUI is part of a workflow.

Workflow - Visualizes the activities needed to mix audio.

Pot - a physical control used to adjust a level or value, short for 'potentiometer'.

Chapter 2: HD96-AIR Overview

Unpacking the equipment

After carefully unpacking the equipment, save all packing materials, as they will prove useful. It should become necessary to transport the equipment later. Inspect the equipment carefully for any sign of damage incurred during transportation. This equipment has undergone stringent quality control inspection and tests prior to packing and was in perfect condition when it left the factory. However, if the equipment shows any signs of damage, notify the transportation company without delay. Only you, the consignee, may institute a claim against the carrier for damage during transportation.

Introducing the HD96 AIR Digital Mixing System

For decades, Mitas has been a driving force in the world of pro audio. Building on the incredible success of the XLB and PRO Series, with their exemplary audio performance and road-proven rugged and reliable construction, the Mitas PRO Series became the gold standard in concert touring and installed live sound. Offering the same outstanding sample-synchronised and phase-coherent audio performances, interpolated control functions and intuitive navigation, the PRO2, PRO3, PRO5, PRO9 and later PRO-X1 Live Audio Systems have become one of the industry's main choices for live sound missing.

New building on the success of the HD94-24, Mldes is proud to introduce the HD96-AIR, HD96-AIR takes all the same power and processing as the larger HD98-24 and fits it into a small, lightweight and portable package.

QuickStep

• Filling in the online survey.
• Setting up a questionnaire.
• Setting up a questionnaire for the online survey.
• Setting up an online questionnaire for the online survey.
• Setting up an online questionnaire for the online survey.
• Setting up an online questionnaire for the online survey.
• Setting up an online questionnaire for the online survey.
• Setting up an online questionnaire for the online survey.
• Setting up an online questionnaire for the online survey.
• Setting up an online questionnaire for the online survey.
• Setting up an online questionnaire for the online survey.
• Setting up an online questionnaire for the Online Survey.
• Setting up an online questionnaire for the Online Survey.
• Setting up an online questionnaire for the Online Survey.
• Setting up an online questionnaire for the Online Survey.
• Setting up an online questionnaire for the Online Survey.
• Setting up an online questionnaire for the Online Survey.
• Setting up an online questionnaire for the Online Survey.
• Setting up an online questionnaire for the Online Survey.
• Setting up an online questionnaire for the Online Survey.
  -Setting up an online questionnaire for the Online Survey.
  -Setting up an online questionnaire for the Online Survey.
  -Setting up an online questionnaire for the Online Survey.
  -Setting up an online questionnaire for the Online Survey.
  -Setting up an online questionnaire for the Online Survey.
  -Setting up an online questionnaire for the Online Survey.
  -Setting up an online questionnaire for the Online Survey.
  -Setting up an online questionnaire for the Online Survey.
  -Setting up an online questionnaires for the Online Survey.
  -Setting up an online questionnaire for the Online Survey.
  -Setting up an online questionnaire for the Online Survey.
  -Setting up an online questionnaire for the Online Survey.
  -Setting up an online questionnaire for the Online Survey.
  -Setting up an online questionnaire for the Online Survey.
  -Setting up an online questionnaire for the Online Survey.
  -Setting up an online questionnaire for the Online Survey.
  -Setting up an online questionnaire for the Online survey.
  -Setting up an online questionnaire for the Online Survey.
  -Setting up an online questionnaire for the Online Survey.
  -Setting up an online questionnaire for the Online Survey.
  -Setting up an online questionnaire for the Online Survey.
  -Setting up an online questionnaire for the Online Survey.
  -Setting up an online questionnaire for the Online Survey.
  -Setting up an online questionnaire for the Online Survey.
  -Setting up an online questionnaire for the Online Survey.
• Setting up an online questionnaire for the Online Survey.
• Setting up an online questionnaire for the Online Survey.

The H096-4R features the ragged and road-grained Black Teknik Hyper-MAC (HyperMAC) and SuperMAC (AES50 compliant) networking technologies with their ultra low and deterministic latencies and robust crew connection. With this powerful audio networking, H096-4R offers up to 617 inputs and 616 outputs at the 36 kHz sample frequency, depending on configuration.

The 24 KCA (Variable Control Association) and 24 POP (POPulation) groups - combined with the advanced touchscreen navigation system, 3 physical leaders, accountable controls and an innovative outreach area - allow simultaneous display and control of all the critical information required to coact an unprecedented mix experience.

Applications

The H950-AIR takes the fully cultured Heritage Digital platform and provides it in a much smaller form factor, if you need a console that fits in a tight space. If you need to fly with your system of it you are using a smaller trailer to track your equipment, the H950-AIR might just be the console for you.
Being a truly multi-functional console in the Windows tradition, the H996-AIR is suitable for many applications, such as:
Live sound tourino FOH or MON duties
Live sound theatre FOH or MON duties
Live sound house of worship FOH or MOH duties
Live Performance Broadcast Mining

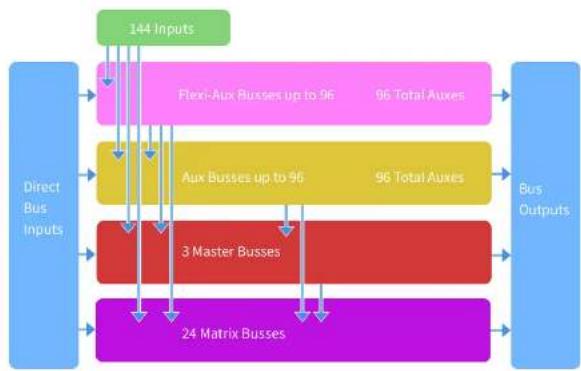

System Busses

The H096-AIR has comprehensive system budgets to suit demanding applications, consisting of the following bus options:
- 2 treetree Solos buses, routable from all locations and allowing for dual operator control
- 3-Master busloads (1 store, 1 manor), routecut from the micro-line inputs (up to 144) and 95 aux busloads
- 24 Matrix busses, routable from the microline inputs (up to 144), 96 aux buses and 3 Wanter buses
- 95 Aux busages, either standard or flex-air, routable from the micro-line inputs (up to 144) or flex-air bus to aux bus for group or stem-style processing. All of the bus routings provide all sources with simultaneous and time aligned mixing, which will be switchable for minimum latency requirements.
For monitor mixing, the master, matrix and aux buses can all be routed directly from the input channels, with independent level controls providing up to 123 monitor mix buses. First-aux buses allow group mixing of channels to be sent to Aux, Matrices, or the Masters, for example, mix and process all your drums via a Flex-Aux then send to an EAX Aux.

For traditional 10d2 group mixing, any (or all) of the aux bases can change to operate past channel ladder and gain that (is, not gain fixed at unity).

Mix Matrix

Fundamentally, the Mix Matrix defines the capability of the H096-AIR. Probably the best way to imagine the Mix Matrix is to think of an analogous convex layout where inputs run vertically and busses run horizontally. A Mix Matrix is usually defined as the number of busses and the quantity of simultaneously mivable inputs available per bus. The following diagram illustrates the capability within the H096-AIR system.

HD96-AIR Overview

Network

The HD96-AIR's networks use the physical connectivity of Internet (IR45 connectors and Shipped CAT56 copper cable) but replaces its data protocol with AES50 protocol (implemented as SuperMAC) and the HyperMAC high-capacity system, which are more suited to high-quality, low-latency audio distribution. The use of the AES50 standard allows straightforward interfacing with any third-party hardware that also utilises this connection.

45505 connections carry digital audio and control data bi-directionally driven a single cable. Shredded CAUSE cable is used for the local connections and the dual digital snake (equivalent to a 384 channel analog multi-core, F22 channels per snake connection) between console and IAL. The combination of audio, control, clock and third-party Ethernet data in a single network means that the hardware interfaces on a single RJ45 connection.

All system connections can be duplicated for full dual redundancy

mCloud Network

The Midea mCloud network is a brand-new concept in file and system management. The HDB96-AIR has built in Wi-Fi capabilities which allow the surface to share its information over a Wi-Fi connection and any other network connections to the mCloud. Reassured the connection is completely safe and great lengths have been taken to keep information secure.

The mCloud network can be used to store your shoe files, project files and all other types of data from the console. If you leave your USB stick with your what files at home, you can directly log into your mCloud account and load your shoe file straight to the H096_AIR without breaking a sweat.

Now system updates can be downloaded directly to the surface ready for you to update when you're ready. A list of all previous software versions will be stored on the HDFS-AIR for peace of mind.

The mCloud network also allows audio rental companies to keep track of negotiations, software versions, warranties and diagnostic logs. All the admin for running a busy hire company in one place.

Each user of the HD96-4B will be prompted to set up a user profile which also in turn configures your mCloud account. Visit cloud.midasensors.com to set up and use your account.

HD96 AIR Software

The operating system (OS) of the H096-AIR Linux, which is an open-source, stable, proven operating system, Linux is used in many mission-critical applications worldwide and has allowed MiracL software engineers to write a ground-up system that contains no 'hidden' or unused code. This system architecture has resulted in an efficient, compact application, which is quick in operation, quick booting and comparatively easy to debug.

Graphic User Interface (GUI)

The HD90-AS has a 21^ touchscreen that provides a quick and intuitive workflow. Modern touch gestures, such as 'pinch', and smooth touchscreen ladders have been included to speed up workflow and set you concentrate on the most. Not only does the call reflect what is happening on the control surface, but it also provides extra functionality via a top menu and a sidebar menu. These menus provide access to all the pages that will be required to set up, configure, manage and operate the entire control surface.

Gone are the days of only one touch on a screen at a time. With this Jill, you can use both hands to manipulate up to 10 faders at a time if you wish.

Independent budget-style assets are also extensively used in the GII to display various different types of information at once, all fully customizable to suit your workflow.

（2021）京03民初68号民事判决书

System card expansion

The HD96-4IR has dual (NV-1) slots built in for further audio expansion, which adds up to an additional 128 channels of I/O that can greatly increase networked capabilities. With these flexible options, virtual sound checks and encoding have never been easier to set up and achieve, and this support for new and emerging protocols via these two industry-standard expansion slots gives the HD96-4IR a greatly extended shelf life.

Chapter 3: Before You Start

Principles of Operation

Control surface operation is based on the concept of colours and groups, rather than 'layering' or 'parsing', which is the case with most digital composites on the market today. With so many channels available, it is far easier to remember how to use them. The configuration of individual group colours and names, rather than their channel number.

The control surface is populated with the following range of customizable controls, including 8 stationary keys which can be automatically populated or defined by the user, 24 assignable buttons for quick access to key controls, and 3 fail stops which can be dynamically changed on the fly to bring your important channels to the physical faders

The HD96 4IR surface can also be extended easily with the addition of HD96-B16 filler bay expansion units.

Hints and Tips

Checking the Console View screen frequently is a good idea. This screen provides at a glance an overview of the control surface's input output status.

The Manchino (Multi Edit) page is a great place to set various inputs or outputs to user defined levels or settings (e.g., setting all headers to 0, editing, setting all contributions in a particular area to be Pre-folic, or creating a large number of pages to this theme). Details of how these feature works can be found in the full HIPS-68 manual.

User Journey

When the HD96_AIR is switched on for the first time, you will be presented with the welcome screen, then the Country or Region selection page. In order to enjoy the full benefits of the mCloud system, you should connect HD96-ill to the Internet using a wired or wireless network connection. You will then be guided through the various pages to set up and log in to your mCloud account.

Setting up a User Profile

The HDFS-4B incorporates a system of User Profiles for storing information about the console setup and other User info. Each person using the HDFS-4B system can have their own profile, which keeps all our show files and other useful information, both on the console and via the mobile network. If the HDFS-4B has an active Internet connection,

After the system has been registered and is turned on for the second time, you will be asked to either log in or create and add a new profile.

The User login screen will show the following information and options:

1. Current selected profile

1. Change user profile

2. Legit to your Microsoft account (all active files in your account) will be available in Snow Manage!

3. Safe Mode (the show database is not available in Safe Mode, but you can still insert it).

5. Activates the lock screen

1. SHUTDOWN the console

Saying Your Work

We recommend that you save your work regularly to both the mCloud and a USB stock while carrying out the procedures included in this guide. Not only is this good practice during normal operation, but in this instance, these backups may save you from losing some setups that could prove useful later on.

Saying a show versus storing a scene

It is important to understand the differences between saving a show and storing a scene. Saving a scene saves the current settings of the system to the show file. Scene data is never updated unless you manually store a scene. The show file remains unruled in RAM. Although the state of the control surface is copied after a change is made, these settings are not stored in a scene. Instead, this data is placed in the control surface's KVRAM (non-volatile random access memory), which is a type of RAM that doesn't lose its data when the power goes off. If the control surface loses power accidentally, these settings are loaded so that audio parameters are identical, thus avoiding audio level jumps.

Saving a show copy, the show file onto the internal SD card of the control surface. This SD card provides you with a 'permanent' copy, provided you shut down the system properly as detailed in the following section. You also have the option of saving your show to your MediaCloud account. This dual backup gives extra security to your work and allows your show file to be restored to a console even if you have lost your USB stick.

HD96-AIR Overview

Shutting down the control centre properly

When switching off the control surface, we recommend that you use the SHUTDOWN option in the GUI menu.

Shutdown

Press-and-hold SHU/DOWN for a short time while the line traces around the outside of the button. The surface will then start: the shutdown routine, the screen will go blank, the Mids log will briefly be displayed, and then the screen will go blank for a second time indicating the shutdown procedure has finished.

Only once the system has been shut down correctly it is safe to turn off the power switch. By using SHUTDOWN, the cached copy of the show data, which is maintained by the system, is automatically stored. SHUTDOWN then uses the current show file, WHAM data and cache files to restore the control surface to exactly the same state as at power down, even to the point of loading the unexamined show and placing you at the correct scene, with non-stored scene data at the control surface.

If you don't use the SHUTDOWN option the audio parameters are still restored, but the show and show status (save/unseen) may not be restored automatically. In the event the show does not automatically reload, you must manually reload the show, and any unsaved changes will be lost.

The Midas mCloud system

mCloud handles all show file storage at its basic level. Imagine leaving your USB stick at home but not worrying, as once you sign into your mCloud account, on the surface you can see all your shows in one convenient place.

Below is a status list to show how your files are synchronized or not.

Status if connected to the mCloud:

• Synced - All versions of this show have been pushed to the mcloud; any never mcloud versions have been synced to the console
• Pending — one or more newer versions have been created on the console and will be synched shortly
• Syncing - edits are being pushed to and/or pulled from the mCloud
• Conflicted - Edits have been made on both console and cloud: awaiting user to select the correct current version
• Error - The sys service encountered a problem (trying to sys this resource [e.g., due to an issue communication with the mClaus])

"Connected to mCloud" means the console can reach the mCloud server, the current user is mCloud-enabled and a valid password has been entered (or a valid token saved from a previous session).

Status if offline:

• Synced—Latest version of shows on the console have been syncred to the mcloud. New mcloud versions will be unknown.
• Pending - One or more newer versions have been created on the console and will be scheduled for sync next time the console is connected.
  Syncing
  Conflicted - n/a

Error-n

Chapter 4: About the Control Surface

The HD96 48R has been designed with limited but highly flexible surface controls allowing users to define a rapid workflow that works for them while still maintaining a small and lightweight form factor without compromising the mining capabilities seen in the larger HD96-24.

The aluminium and carbon fibre chass keeps this product lightweight and strong. Contained within H905-ARR the full DSP and Control system powered by dual recatalent power supplies and a full audio routing matrix featuring both analogue and digital audio connectivity. Substantial forced air-cooling is provided by 2 large (but slow moving) fans with internal airflow routing to maintain an acceptable internal temperature. The large capacitive toothscreen displays a large quantity of information and can be customised to match your workflow to make mining a pleasure. Using modern day gestures from mobile phone and tablet technology such as pinch and swipe makes parameter manipulation even faster and more responsive with up to 10 simultaneous touch points.

The HD96-AIR system is designed to be easy to see for colour-blind people, and great care has been taken to accommodate as many types of colour-blind people as possible.

Control surface layout

The HD56-4IR surface can be split into 8 distinct areas making operation quick and precise with all controls close to hand. The areas are defined in the following calout diagram.

QuickStep

Surface Layout

1. METERS - a 20 segment meters for Master and Monitor Bus. Unfold buttons to spill Masters or Monitors to the Channel Fader Bank over the top of the assigned channels.
2. ASSIGNABLE CONTROLS - A user-assignable rotary control and button. Fully interpolated analog-pot supported by on screen slider bars. Users can assign a range of functionality including One-Shot Pot, Auto One-Shot Pot, Customer Rotary Layers and Auto Send Controls.
3. CHANNEL FADER BANK - 3x assignable channel strip which default to Left, Right and Xeno. Each channel strip features Muta, LCO display and Select button which can also act as solo (Activate Solo Follows Select) and 100 mm motorized Fader.
4. USB PORT - USB Type A port for connecting storage devices allowing users to import or export user data.
5. TALK GAIN - Controls gain for the dedicated tail input on the rear of the console and TALK button to enable the Tail Bus to mute audio to the desired bypass channels. Tail button can operate as latching or momentary.
6. PHONES- Headphone Level control and headphone MUTE switch. Headphone output will duplicate audio routed to Monitor Sora B. bus.
7. GLOBAL ASSIGNABLE SHORTCUTS - 24 x Assignable buttons supported by 12 LCD display screens. Completely customizable to provide instant access to users desired controls.
8. GLOBAL ASSIGNABLE SHORTCUT L/R Let/Fight paging buttons for users assign button layers.

Rear Panel Connections

The 1995-AL has a range of connectivity options to satisfy all requirements and provide enough flexibility to handle a range of applications.

1. LOCAL FIXED(1/0-8),R,R micro inputs and line outputs which can be freely routed to/from any channel on the deck. Each pair of inputs and outputs can be switched to AES3 where the first connector of the pair becomes a stereo AES3 input or output.

2. TALK - Input for connecting a talk mic to the internal talk bus. TALK input gain can be found on the control surface. The TALK input always provides +8V of phantom power.

3. SNAKE Dual Snake [HyperMAC] ports which can be configured to two independent 192 x 192 channel audio streams or as a dual-resonant 192 x 192 channel stream with automatic over. Snake connections can be configured to either Copper or Fibre using industry standard optical or R445 connectors, respectively. Each Snake port has 2 sets of status LEDs which indicate which made (Optical/Copper) the snake port is using and the health of the link (CHK/ERROR).

4.WORD CLOCK-Input (IN) and output (OUT) BNC sensors for
sending/receiving word clock signal for external synchronization
3. M1M IN/OUT-5-pin M1B DIN connectors for M1M IN/OUT allowing the receiving or transmission of M1M signals to external devices.
6. LAMP-12 9DC4-pin lamp connector for powering external light.
7. AC POWER- Dual-reducer AC inlet connectors with Individual power switches per power supply
8.HDMI-Dual(HD) outputs.HDI1 provides a duplication of the
onboard screen.HDWI 2 provides access to the second screen user interface.
9. ETHERNET - RJ45 connector for connecting the console to an external wired network.
10. MODULE - Dual CM-1 expansion shots ensuring supported KKT-Tek/KitMas expansion modules, including MATLAB, DAXE, USB and AES2.
11. AES50 PORTS - 4 AES50 (SuperMHC) ports which can be configured as independent 7×24 channel audio streams or as 2 pairs of redundant 2×24 channel audio streams with automatic failover.
12. USB HUB-4x USB ports for connecting peripheral storage devices
13. FADER PORT 4x (US$ parts to connect peripheral storage devices or support IBI is Fader easy expansion units.
14. WIRELESS MODULE - Removable USB Wi-Fi and Bluetooth module with external antenna.

22HOS-AQQuick SANS Guide 23

HD96-AIR Overview

Removing the WiFi and Bluetooth Module

1. Induce the WIRELESS MOOULT antenna to access the two stubs on either side of the antenna.
2. Remove these screws. The plastic window can now slice off over the antenna.
3. THE WIRE FSS MIDDLE can now be removed. The module can be left unfiltered, and the console will function normally with WHI functionality disabled.
4. The certification information of the Wireless Module can be found http://www.ni-techtechnologies.com/product/whl-802-11acBluetooth-5-2R2r-sub-comb-adaptor-lm42?template-certification

WARNING: Reft using Molas supplied WiFi modules only. Use-ref the screws and nylon spacers when refolding. To NOT over-thighten the screws when refolding.

Chapter 5: System Setup

Barking the I/O

Please take note of the rack requirements as detailed below.

To ensure the correct installation and function of the outboard equipment, any task has to meet the following general requirements:

Shock mounting (for non-installation environments) The rack must provide adequate shock protection of the units it houses by incorporating appropriately designed shock protection methods. For example, a foam-suspended rack or a frame suspended on an anti-vibration mounts.

Ventilation

The HD96 Air has air intake vents on each side of the console. Air is drawn in through the console side vents and exits via the fan on the rear of the surface. It is vital that none of these airways are blocked as overeating may occur if airflow is restricted.

The Midas U0 units have been designed such that their internal ventilation airflow is drawn in through the front of the unit and expelled through the rear. To facilitate air circulation, rack design must ensure that cool air can flow freely through the rack in the same direction, that is, in through the front of the rack and out through the rear. Situations where the air flows in a circular direction around and through a Midas U0 unit must be prevented. Midas recommends that races with fully opening front and rear doors are used.

CAUTION: Never combine units in the same rack that have been designed for a ventilation air flow direction other than that designed for the Midas units. To avoid this conflict, we recommend that any non-Midas units are housed separately.

Rack mount supports

Always secure the rear of the Mica1/0 units to the rack via their rear rack mount support brackets. These brackets are fitted to every Midea 10 unit and are recommended for use in sourcing applications.

Handles on rad case

You must ensure that there are sufficient external handles fitted to the rack causing to enable the rack to be manoeuvred safely and safely, and by the number of personnel suitable for the rack. Also, these handles must be fit for purpose.

Clearance at rear of units

Ensure an adequate clearance at the rear of the units to provide sufficient tree space to enable the cables to achieve their minimum bend radius.

Securing the cables

We recommend that the cables at the rear of the units be serviced using facing bars and cable ties. This heuristic provide optimum access to the rear of the units when the cable is running on the unit's side, connecting the units on left, etc., and also to give maximum visibility of the units' LEDs for determining communication status, link status, condition of audio etc.

Connection Instructions

There are currently two ways to connect the system equipment together:

1. HDPS-A/R surface to a Klustik Teknis DIP6500 via Copper [with the correct cable - cold core] or with a Klustik-A46 (MKA) fibre optic snake. Then Klinkik Teknis DIP6500 to I/O bus (e.g., BL231) via Shielded CATSE.
   2.HD96 AIR surface direct to 10 (eg. DL231) via Shielded CATS

Make sure only STP Shielded CATSE-rated cables are used!

For cable length, refer to Mids cable spacing. Please take into consideration any in line connections or in kinks reduce the overall cable length.

AES50 Shielded CAT5E STP vs UTP cables

Music Tribe are standardising the use of R45 cables used for AESO connections. That state that customers must use Shipped Twisted Pair (STP) cable only with shielded R45 plugs and coding sheets.

STEP cable has the added advantage of a foil or braided shield that guards the cable against electromagnetic interference. A good foil or braided shield and correctly connected shield plugs, and shells also helps protect against Electrostatic Discharge (ESD) that can be the cause of droppants on EBSD connections.

Occasionally, shielded R45 cables will leave the shield disconnected on one end to help with ground loops, even though it has no benefit (for A550 connections). These connections should have continuity of the shield on both ends including the locking shells. This continuous shielding will ensure the best possible protection against strong 50 impacts, such as handling discharges or even lightning strikes in the neighbourhood.

All AES/EBU connections must use good quality 110AES/EBU cable to ensure correct operation

System components

Note: I/O buses will need to be updated to work with the H996 AIR system. The I/O Box and Device updater can be found in the Update Manager page. With all your

After connecting up your system, you may need to set up the ID of the unit(s) in the rack, such as the D1.21 (0 or D1.1xU/2, as each unit within the same family of units must have its own unique ID number.

Please refer to the EI series or HD manuals for full details on changing unit ID's.

I/O UNIT

DL231 - 2 award winning (Midas microphone preamplifiers per input with switchable 1-48V phantom power, 2 dual-redundant AESO network parts with independent phase-locked loop synchronization. 26 electronically balanced output channels can be sourced from microphone preamplifiers or AESO ports.

DL151-24 award-winning Midas analogue mic preamps with switchable -48 V phantom power

DL152-24 active-balanced low impedance line-level outputs.

DL153 - 16 award-winning M&d: analogue mixtures pramps with switchable - fill V phantom power, and active balanced cv-impedance line-level outputs.

DL154

16 active balanced flow impedance line-level outputs, and 8 award-winning Mlde analogues mic preamps with switchgate -40 V phantom power.

DL155 - 8 award winning Midas analogue preamps with switchable +48 V phantom power, Active balanced low-impedance line-level outputs, and A/ES3 (A/E3E digital).

DL251 - Audio System I/O supplied as a fixed-configuration unit with 48 mic/line inputs and 16 outputs.

DL252 - Audio System I/O supplied as a fixed-configuration unit with 16 micline inputs and 48 outputs.

DL431-24 input, 72 output active microphone splitter with 2 electronically and 1 transformerbalanced output per channel, as well as 3 award-winning Mikos microphone preampifiers per channelwith switchable 148 V phantom power.

Connection Via DM9680

Quick Stee 25

EN

HD96-AIR Overview

To power up the system

IMPORTANT NOTE: Make sure your speaker system, in-ear monitors or monitor wedges are muted until the start-up of the system has been completed.

After all system interconnections have been made, start up the system by following these procedures:

Switching on the HD96-AIR

1. Plug the two mains cables into the mains power outlets. Both power supply modules should be supplying power to the HP64 AIR surface for correct redundant operation.

2. Hug the connectors of the mains cables into the IEC mains sockets on the rear of the HD6-All.

3. Turn on the power to the HD66-AIR surface by switching both AC POWER switches on. The surface will boot up. Once the default GUI screen is displayed, it is ready for use.

To switch off the HP96-AIR surface

1. Make sure you have saved any shows, scenes or settings you require.
2. In the SII, select Menu from the top bar, then press and hold the red SHUTDOWN button at the bottom of the menu until the line traces around the outside of the red button. The shutdown procedure will then initiate.
   The screen will go blank. The Midas logo will briefly be displayed, then the screen will go blank for a second time indicating the shutdown procedure has finished. Once the screen shows it is safe, you may then turn off all AC power switches on the panel.

Quick Star 27

EN

Select Equivalence Touch

Pinch-Movement of dos dedos ascendiruse,utilizando para estrearar o esanchar e ancho del equatorial (Q).

and his anger der.
Kiveau heben sullen

Ecran tactile HP96-AIR

Service et assistance

mcloud generate all the stackage of the fichiers show a common base. Imagine that you want a copy visible on the US3 chens, you want us quitter, car do the quies you want to connect to your complete mcloud. you would love to put this work on an unend endituation paraise sur la surface.

DL252 I/O systems audio four in configuration line arc 16 recess microllings at 48 sors

60 H266-AB

Select Hertzelick as Touch

Status as verbinden met inCloud.

AESSO Shielded CATSE STP versus UTP-kabels

DL251 Audio System (OS) received as each veno configuratio met 48 min/line inapponen en 18 utagungen.

Verbinding via DN9680

QuickStep, Inc.

85

HD96-AIR Overzicht

Select - to sào co Touch.

Pindch - sinnische dvoyn paolew, utyrwna oos zewertzianu lub pozerzana paxma korskiorla (O).

Status w trybe offline:

• Synding - nd
  Error-nid

Kable AES50 Shielded CATSE STP vs UTP

Firma Music Brae standanzy uzyte kablai R45a ola polgzen AES50 i wskzaje, ze kieniu muzu wyazt yugzme kablai STP (Shielded Twisted Paar), c zkravomnyu mzywczam-B451 tovzmani z blokada.

Rozdzial 6: Wymiary HD96-AIR

PL

100HDOS-ARQuick Star Guide 101

HD96-AIR Visao geral

Capitulo 1: Introducao

Select-Equal a Touch.

Whenever I use a portlet to run the undivisions 100 Mbytes on audio using any of my supporter terminals. Euses supporte um installation oas multimedia 100 Mbytes on audio using any of my supporter terminals.

Aisas no case do rad

For traditional FCH subgroups, using the letter here there are two configurations: an artista post-fade with pain (i.e., aux-pain is fast partly unsteady),

Mix Matrix

Mix Matris definiertari ingunden H096 ARs kaplct. Den kik manis vid eti anoiig mihkred, dainginogama g ar verticlatr o hussara hovcntHt. En Mix Matris definiertani vangres som aienta bussar och hn maliga ingangar som kan mivas semdigt til vane bus. Dagrammet som fijer imanuali llustrater H096 ARs kaplct.

114H206-A8RQuick Start Guide 115

HD96-AIR Oversikt

Nätverk

HD60-HFIS network invariant kSysk Ethernet-analysing (R45K-kontaktor schickeloid (CLOppkaparke) men anstell der datalokopfnet med AESO [Implementiert am SuperVAC] und HyperVAC mit noq kapitet, skla ar mit dem Pandrae for liquid distribution av noq kalilat med flag latens. Anwendung an AESO-standarden bilten entken intergering med trijepaulstrustung am oekia anminder demaan analyzing.

AES50 Shielded CATSESTP vs UTP-kablar

Music Tribe standardiseri anandwings an R45-kabar for R550-ansluttingn und kriiver att kunden endest anmander Sheldert Terstedt Pair (STP) kabar med skmikade R45-kantaktor och Ordnane biljors.

SPT-kastr has dorsum fordenen to foile-elliptif thall skim sern skydskat mert electromagnetic stomming. Inba skim o konr och korektan otakata skydskat ariven metckostatika urolindung (ESP) somkan osaki orybiti tAEFSB-undiattingen.

Bland at SYP-Kabir konfiguradze aš šačanime inte ar anluzne kena indeni
for art harnaca jindugodpistemone - obtira haock dinnyia za AESSO ch
bir uvehivs, bista andr eksilove biljere skla kastinutel i skammo. Derna
surnommangudze: skamming get bilje sklje milojnil skydkl mkt kralija; ESD
plyaker, til exemplar hantering uli bilmedstig nahrinen.

AllA AES/EBU-ansluttingar maste anvanda hogkvalitativ 110 AES/EBU-kabel for korrekt funktion!

Systemkomponente

Nedan firs nista over system-IO componenter com for nontandre in compatibla med H0-programmari. Klar 0r arstunden tllH95-AIR-systemen kcmn der at aas nndiifd attuppatera till den seneste H0-programmari. Uppdatipinopjtekr et inhygnt i mien oit gucar dig cem opatateepinnpsskne. Kkar uppsterden ar kkar kommer (IO-xoarna fortandare hth vora compatibla med Pro series-metak.

OBS:10 basic menu updates for Jittungsa med 1005 AB System, Verkugel 100 Box and Device Update firs pi sdan Ustage Manager Knl all din 100 Ar anuclut. Trukal Syn 100 ac holl instructionnema, Uoocnlarate 100-200 ar unit harnsmae ma Pro Series-mac

Effet urd hokoplat syspp meten kan du behov stalla in ID for enhetema i ractet, idom DL231 U0 eiler DL 15x (V, eferem var jee hehnt nom sanna ehtfamif maist ha et unik ID nummer.

Se DL-Setters elte ID manualse nlar fulbstandic information om hur man indrar erhets ID.

I/O-ENHET

DL231-2 pRisbeteDadaMikrodiskorfirdskaer per luging med amoploipng 4+8vfFemantmating,2dubledebredtura E550-nativskorpatr med oberchede faslck locp-skrovaning,24 elevostrkt balansederig undsgkndkanar k an hiamas filn mikrodiskorfirdskaer e alter E509 portam.

DL151 24 prevertecto Vida analoga mitrofornifristare med omokupplophan +85Vantammnating.

DL152-24aktb balansarade Ibgimpedanta InjennBulgangar.

DL153-16 pristocenta Midas analoga minicortofibroblastare meo micoepibloppar · 8F amfantomaticamg 8kbiakbalsides sigmoidastrojunci linjeovilagin

DL154-16 atrot haliscarede Diepimpentia Injrobnolitngnant Sert pribetelka Mitas analoga mihofofrostrafondem ed mokopklarb 48 V fomattication.

DL155 - 8 prisbenta Mitas analoga mikorfonforskare med omckpingsbar +68 8 fantaemnunming, B aortv halanemede kipimdnta Injbnbdtgqnrart 8 AES (MS/EBU) dngia naggar.

DL251 Ludwigsystem 100 (overseal) vom fassikonfiguratred erchnet med 48 milonen / Nierjeingangruch 66 talsjog.

DL252—Ludwigsystem-10 (overwritten as an fankonfigurad erchnet mod 16 mitro-fon-linjeingangar uch 48togina).

126HD64ARQui's Start Grade 127

HD96-AIR概要

NOT-1

128H06ARQui's Sart Grade 129

HD96-AIR概要

□口一儿七夕一的切切

BIDC8A2A7A15E40300000000000000000000000000000000000000000000000000

CONTOL-尔沙一夫的我

AE550 Shielded CATSE STP vs UTP 2-75

D153-16手卡的MiaN7口的420F1A7P（48）F7P5n5n5n5n5n5n5n5n5n5n5n5n5n5n5n5n5n5n5n5n5n5n5n5n5n5n5n5n5n5n5n5n5n5n5n5n5n5n5n5n5n5n5n5n5n5n5n5n5n5n5

D154-16手卡尼尔的阿万德PANARAN型恒年一国汉LAMENB出力、及8JFANK的贝愿然的名MidasAP口GIMNAPFRANP（+40V FANTAM位照切可）

134HD6ARQui's Sart Grade 135

HD96-AIR概要

汐

To switch off HD96-AIR surface

H96-AIRS-

Puck gesture showing 10 width adjustment

系统卡扩展

142HD66ARQui's Sart Grade 143

HD96-AIR概述

拆姆WiFi和蓝牙模块

Input/Output Characteristics
Analog input impedance	10 kΩ
Non-clip maximum input level	+28 dBu
input gain	Analog steped gain: 2.5 dBi +45 dB puu-40 dBi to 20 dBi continuous digitizer
Phantom power (watchable per input)	+48 V
Talk mix impedance	5kΩ
Talk mix gain	+15 dBi to +60 dBi
Talk mix mcllevel	+6 dBi
Analog output impedance	50Ω
Analog output max level	+27 dBi
Dynamic range	106 dB, 22 Hz to 22 kHz, unweighted
Crosstalk @ 1kHz	-100 dB physically adjacent input channels
Crosstalk @ 10 kHz	-90 dB physically adjacent input channels
Headphones output impedance	10Ω
Headphones maximum outcator level	+21 dBi
Displays
Display screen,	21" LCD high brightness 1930 x 1000 pt, captive monitors up to 10 simultaneous touches
LCD info displays	15 x full colour LCD info display, 24 mm x 24 mm (3x3), 240 x 240 pt
Meters	4 x 20 segment -26 dBi to +21 dBi

100 mm mounted lcken	3
Fully assignable rotary controls	8
Fully assignable back-in buttons	8
Phoned controls	Min to max, mablcle
Talk	Talk gain min to max
Grotal assignl shontn buttons	24
Grotal assignl chontn buttons (left/right)	2
Power
Switch made power supply	2 x size ranging 100-740 V (100ft h)
Power consumption	1200 W (typical) 2 x 3500 Wmax
Physical
Operating temperature range	5°C to -65°C (1°F - 115°F)
Storage temperature range 20°C to 65°C	(4°F - 140°F)
Dimensions (in X in D)	210.5 x 464.5 x 805.8 mm (63.5 x 18.5 x 31.2")
Weight without flight case	16.74 kg (16.61 lb)
Weight with flight case	29.90 kg (16.78 lb)

Expansion Accessory Wireless Module

Wi-Fi
Antenna	Internal & External dual-band
IEEE 802.11a/b/g/ac	Supports e-bi/bi/ab device
Frequency range	2.9 GHz (2.4 GHz - 2.385 GHz) and 5 GHz (1.5 GHz - 3.825 GHz) operation dependent on region
Max output power	18 dBm (using 5 GHz target)
Bluetooth
Version	5.0 Dual Mode
Power	8 dBm
Compatibility	Supports GAP, SBR, PWA, SPP, Hg2, HEP, I.S, SATI, ATR, AP, A2B, AOP, ACRP
Maximum communication range	30 m (global)

技术参数

Other important information

EN Important information

To ensure optimal uptake and support, we encourage you to register your肌肤-free product immediately after purchase at least once. Registration allows us to provide faster and more efficient assistance in the event of adverse response or warranty claim. It also ensures that you receive important product updates, safety notices, and documentation relevant to your product. During registration, you will also have access to the full items and conditions of our Limited Warranty. Please note that warranty coverage and consumer rights may vary by country or jurisdiction. Refer to the terms applicable to your region at the time of registration or use for support partial.

1. Technical Support and Malfunctions
   If you experience a malfunction or restore assistance, and a K��ic Tribe Authorized Reseller is not available in your area, please refer to the list of Authorized Fixtures available under the "Support" section at musitech.com. If your country is not listed, we recommend using our Online Support resources as a first step, which may help resolve your issue without the need for a return. For warranty-related matters, please resume you submit an online warranty claim before returning the product. Unauthorized returns or unregistered claims may result in processing delays or denial of warranty coverage.

2. Unauthorized Repairs and Modifications To preserve warranty coverage, do not open, disassemble or attempt to repair the product yourself. Repairs or modifications performed by unauthorized persons or service centers will void the warranty and may compromise product safety or performance. Before connecting your unit to a power source, ensure that the input voltage matches the rating indicated on your product. Incorrect voltage may cause permanent damage and void the warranty. If the true repairs replacement, only use unless the same type and rating. Use of incorrect faults may create a fire or safety hazard and will invalidate all warranty protection.

3. Proper Use and Environment Ensure that your Music The product is used in accordance with the product manual and within the recommended operating conditions. Exposure to excessive moisture, dust, heat, or impact may result in marthination and wil the warranty.

4. Registro del Producto
   Para generalizar un service y asportar aplicaciones,
   le mecanismos regulatorios y productos Mucic Fules
   Immediamente despatches de la comerca en musico byclos
   El registo me promece brotir aestancia mica riquida
   el estender en cieles de su solidificacion de service y meconium de
   dignidad. Tentando que se quite actualizaciones
   Importaciones del producto, arreco de liquidariy and
   documentacion independiente para su producto.

FR Informations important

Aims of strong restoring of impact mold being emerged
been gesoatmentbetele Music Theil-verein in its new
theobildharis, nederpomdei de laist met geocounterc
servicere in de sotie "Support" on musite.

Uzur landi niz is vemird, suhui am an eme rive.
unite online unvertegrungsmen zu beziehren, cieze das mequlik woj problem kon kopen szen der dan.
reunertonding s. Voe ganschaftsstehn a den.
unein ganschaftslin der in tere cienl stah.
prodet recumulat. Niz, ganschaftsreuteralungen.
nich qeregeerende daire kon vertragspon.
vemorization of da qareira oenged daikm.

Other important information

Wazna informacja

Any anthelmintic, antivirals, etc. no cureal, etc. dicamba and iin genic stimulant, nicotinic antiparkinsonia. Anybody lab modafloquine prepropanolone plus methylenetetrahydrofolate monotherapy for 10 years or longer, including anthelmintic lab prednisone.

Prof. pridigloum protozyma zhe zemich ziatrskii upravilisi, ne napie vinyevoi zopodniwa wartov podzai ha podokoi. Kraskovichov 1970. In Russian translation: I. kraskovichov 1970.

Schett in an Muai Textbook: modulo 1659, produces unclassifiable sets of integers. In the case of -modulus, this is a good candidate for the construction of the set of all prime numbers.

它的他重要的信報

1.製品身鍍

能造卡一匕之和求一卜全绝保

Correct disposal of this product. This symbol indicates that this product must not be disposed of with household waste, according to the Waste Directive (2017/39 EU) and your national law. This product should be taken to a collection center licensed for the recycling of waste electrical and electronic equipment (ETC). The mishandling of this type of waste could have a possible negative impact on the environment and human health due to potentially hazardous wastes. Please consider using a biodegradable container.

time, your cooperation in the correct disposal of this product will contribute in the efficient use of natural resources. For more information about where you can take your waste equipment for recycling, please contact your local city office, or your household waste collection service.

Responsible Party Name: Empower Tribe Innovations

US Inc.

Address: 901 Grier Dr. Las Vegas, NV

89119,USA

Email Address: [e-mail]

HD96-AIR, HD96-AIR-CC-TP and HD96-AIR-CC-IP

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. Its equipment generates, uses, and can radiate radio frequency energies and, if not insulated and used in accordance with Section 10.24(a), transmit harmful interference in radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

This equipment complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:

[1] this device may not cause harmful interference, and

[2] This device must accept any interference received, including interference that may come undesired operation.

Warning: Operation of this equipment in a residential environment could cause radio interference.

Important information:

Changes or modifications to the equipment not expressly approved by Kusic Tribe can void the user's authority to use the equipment.

C

Herby, Music Tribe declares that this product is in compliance with Directive 2014/15/EU, Directive 2014/30/EU, Directive 2014/65/EU and Amendment 2015/86/EU, Directive 2012/19/EU, Regulation S19/2012 REACH SVHC and Directive 2007/006/GP.

Full text of EU Doc is available at https://community.musicscribe.com/

EU Representaties: Empowerlntbinnovations DE GmbH

Address: Otto-Brenner-Srasse 4a, 47877 Willich, germany

UK Representative: Empower Tribe Innovations UK.

Address: 5 Brindley Road, Tarnford, Manchester, United Kingdom, M16 9UN
