Product type	Portable projection screen / Green screen
Brand	Fromm & Starck
Model	STAR_PFGS_05
Dimensions (unfolded)	1680 x 170 x 140 mm
Projection surface	1600 x 2040 mm
Weight	11.4 kg
Aspect ratio	4:3 (default) / 16:9 configurable
Screen color	Green (green screen)
Screen type	Manual retractable roller
Feet	Retractable feet (2 pieces)
Handle	Integrated for transport
Casing	With cover and locking latch
Mounting	On stand, manual unfolding
Screen material	Flame-retardant fabric (not specified)
Black border	Width 1.25 mm (left/right) and 60 mm (top); bottom 1090 mm
Usage	Indoor only, on a flat and stable surface
Maintenance	Clean with soft cloth or sponge; do not immerse
Safety	Risk of hand crushing; keep out of reach of children
Included accessories	User manual
Repairability	Repair only by manufacturer's after-sales service
Warranty	Compliant with quality standards (not specified)
Power supply	None (manual screen)

Frequently Asked Questions - STAR_PFGS_05 Fromm & Starck

How to assemble the STAR_PFGS_05 projection screen?

Place the screen on a flat and stable surface. Unfold the two feet, unlock the latch, open the cover, then pull the handle upward to unfold the screen. The stand holds the screen in the unfolded position. To fold, pull the handle downward, close the cover and lock the latch, then fold the feet.

What are the dimensions of the projection surface?

The projection surface is 1600 mm wide by 2040 mm high, approximately 80 inches in 4:3 format.

Can I use this screen outdoors?

No, the device is designed for indoor use only. Do not use outdoors in bad weather (wind, rain) and do not leave it outside overnight.

How to clean the screen?

Clean with a soft cloth or sponge. Do not use sharp or metal objects. Do not immerse the device in water or clean it with a water jet.

What is the weight of the STAR_PFGS_05 screen?

The screen weighs 11.4 kg.

Is the screen delivered with wall mounts?

No, this screen is a portable model with integrated feet. It does not require wall mounting.

What to do if the screen does not unfold correctly?

Check that the latch is properly unlocked and the casing is open. Make sure the feet are correctly unfolded. If the problem persists, contact the manufacturer's after-sales service.

What are the important safety instructions?

Read the instruction manual carefully before use. Beware of hand crushing risk during unfolding/folding. Do not let children play with the device. Keep the screen away from heat sources.

Can I use this screen for chroma key (green screen)?

Yes, the STAR_PFGS_05 model is a portable green screen, ideal for chroma key and compositing effects in video and photo.

Where can I download the full manual?

The manual is available free of charge in PDF format on the site notice-facile.com for the Fromm & Starck STAR_PFGS_05 model.

USER MANUAL STAR_PFGS_05 Fromm & Starck

STAR_PFPS_01 | STAR_PFPS_02 | STAR_PFPS_03

STAR_PFPS_04 | STAR_PFPS_05 | STAR_PFPS_06

PORTABLE FLOOR GREEN SCREEN FOR VIDEO EDITING

STAR_PFGS_01 | STAR_PFGS_02

STAR_PFGS_04 | STAR_PFGS_05

USERMANUAL

BEDIENUNGSANLEITUNG

INSTRUKCJA OBSLUGI

NAVOD KPOUZITI

MANUEL D'UTILISATION

ISTRUZIONI PER L'USO

1. General Description

The instruction manual is intended to assist in safe and reliable use. The product is designed and manufactured strictly according to technical specifications using the latest technology and components and maintaining the highest quality standards.

PLEASE CAREFULLY READ AND UNDERSTAND THIS INSTRUCTION MANUAL BEFORE OPERATION,

To ensure long and reliable operation of the unit, make sure to operate and maintain it properly in accordance with the guidelines in this instruction manual. The technical data and specifications contained in this instruction manual are up to date. The manufacturer reserves the right to make changes in order to improve the quality. Taking the technical progress and the possibility of reducing noise into account, the unit is designed and built in such a way so that risks resulting from noise emissions are reduced to the lowest possible level.

Explanation of symbols

Please read the instructions before use.

CAUTION! Danger of crushing your hand!!

The illustrations in this instruction manual are for reference only and may differ from the actual product in some details.

The original instruction manual is in the German language version. Other language versions are translations from German.

2. Safety of use

The term "unit" or "product" in the warnings and in the description of the instructions refers to the PORTABLE FLOOR PULL-UP PROJECTION SCREEN/ PORTABLE FLOOR GREEN SCREEN FOR VIDEO EDITING

2.1. Safety in the workplace

a) Keep the work area tidy and well lit. Disorder or poor lighting can lead to accidents. Be foresighted, watch what you are doing and use common sense when using the unit.
b) Only the manufacturer's service department may repair the product. Do not carry out repairs yourself!
c) If you have any doubts as to whether the product is working properly or if it is damaged, contact the manufacturer's service department.
d) Keep these instructions for use for future reference. If the unit is to be passed on to a third party, the operating instructions must also be handed over together with the unit.
e) Keep the packaging and small assembly parts out of the reach of children.

2.2. Personal safety

a) Do not operate this product if you are tired, ill or under the influence of alcohol, drugs or medication that could impair your ability to operate the product.
b) The unit is not intended to be used by persons (including children) with reduced mental, sensory or intellectual functions or persons who lack experience and/or knowledge unless they are supervised or have been instructed by a person responsible for their safety on how to operate the unit.
c) The unit is not a toy. Children should be watched to ensure that they do not play with the unit.

2.3. Safe use of the unit

a) Keep unused equipment out of the reach of children and out of the reach of anyone unfamiliar with the unit or this instruction manual. These units is dangerous in the hands of inexperienced users.
b) Keep the unit in good working condition. Check before each use for general damage or damage to moving parts (cracks in parts and components or any other condition that may affect the safe operation of the unit). If damaged, have the unit repaired before use.
c) Repairs and maintenance should be carried out by qualified personnel using only original spare parts. This will ensure the safety of use.
d) The unit is not a toy. Cleaning and maintenance must not be performed by children without adult supervision.
e) Do not tamper with the unit to alter its performance or design.
f) Keep the unit away from sources of fire and heat.

g) Do not use the unit outdoors during bad weather (wind, rain).

h) Do not leave the unit outside overnight.

CAUTION! Although the product has been designed to be safe, with adequate safeguards, and despite the additional safety features provided to the user, there is still a slight risk of accident or injury when handling the unit. You are advised to use caution and common sense when using this product.

3. Rules of use

The product is designed to watch the image projected by the projector. The user is responsible for any damage resulting from misuse.

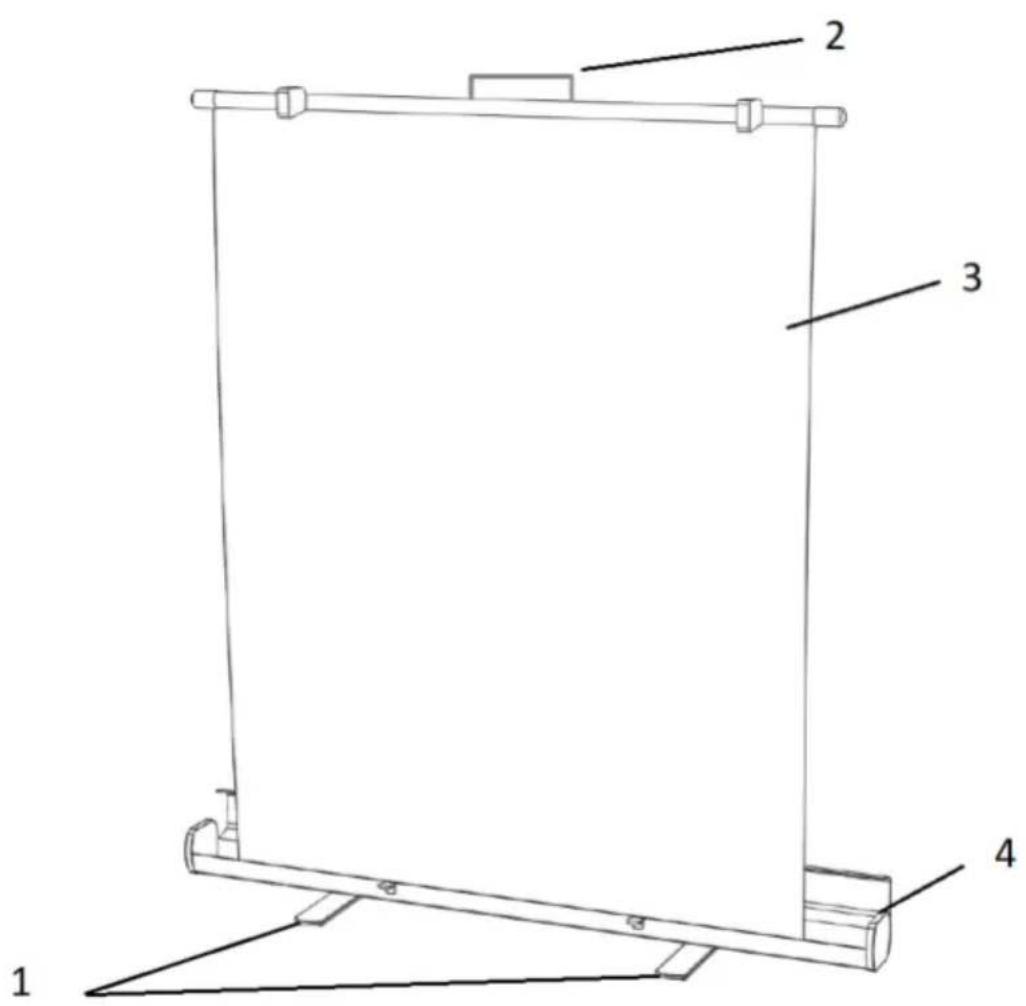

3.1.Description

1. Legs, base
2. Handle
3. Screen
4. Casing, cover for the screen

3.2. Preparation for operation

Keep the unit away from any hot surfaces. Always operate the unit on a level, stable, clean, fireproof and dry surface and out of the reach of children and persons of impaired mental, sensory and intellectual functions.

ASSEMBLY OF THE UNIT

1. Place the screen on a level surface.

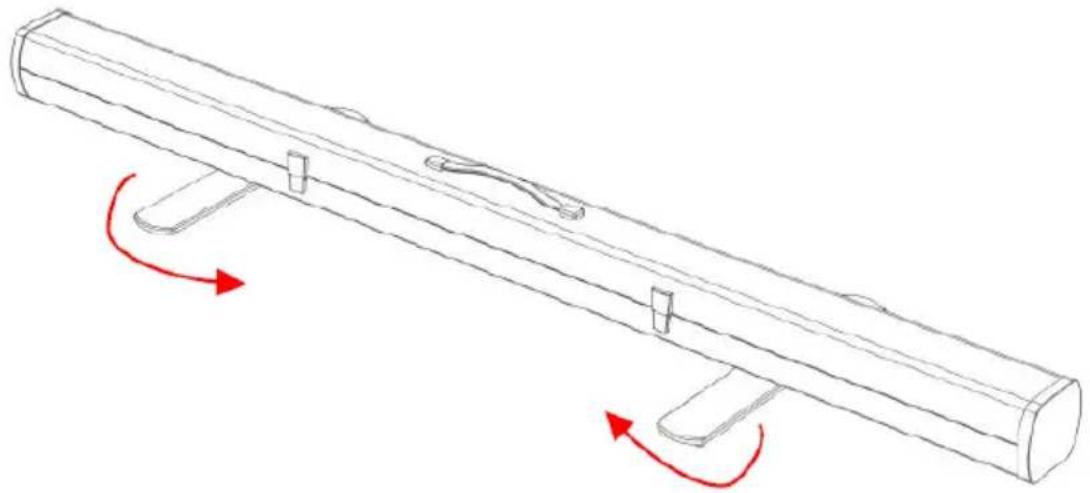

2. Tilt the legs as shown in the picture.

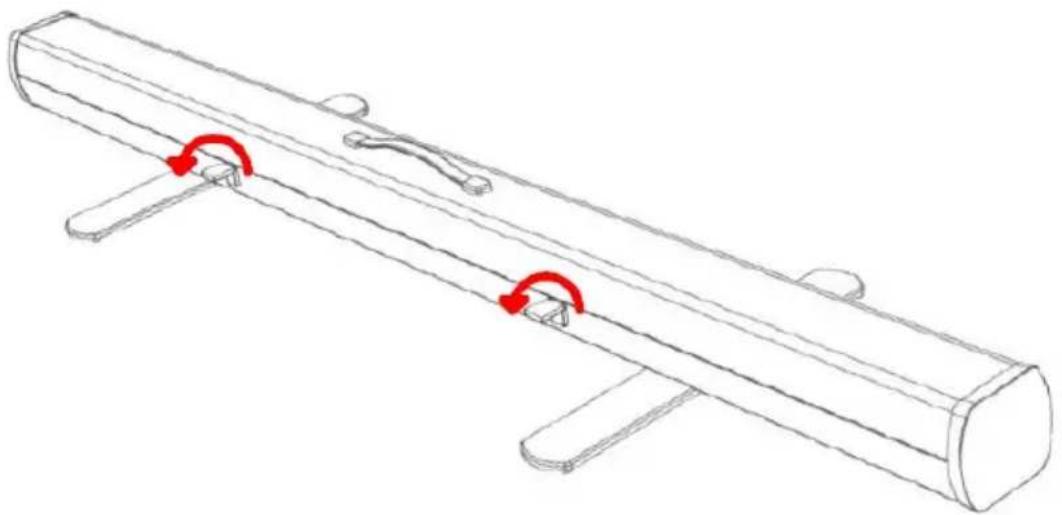

1. Unlock the locking clasp as shown in the picture.

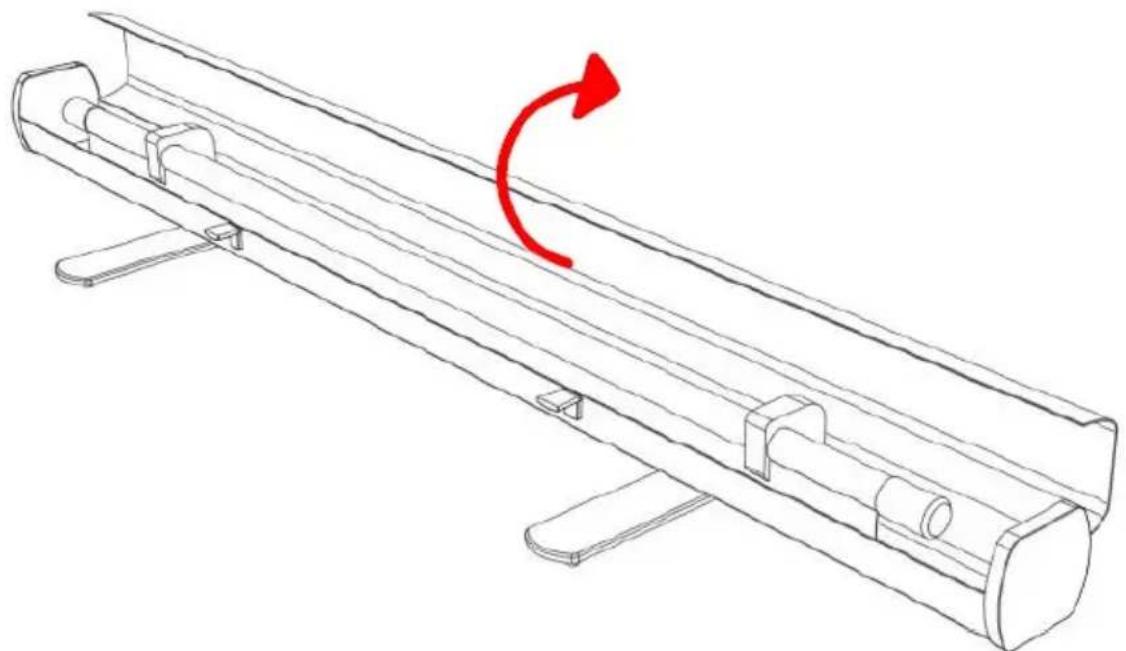

1. Open the case cover.

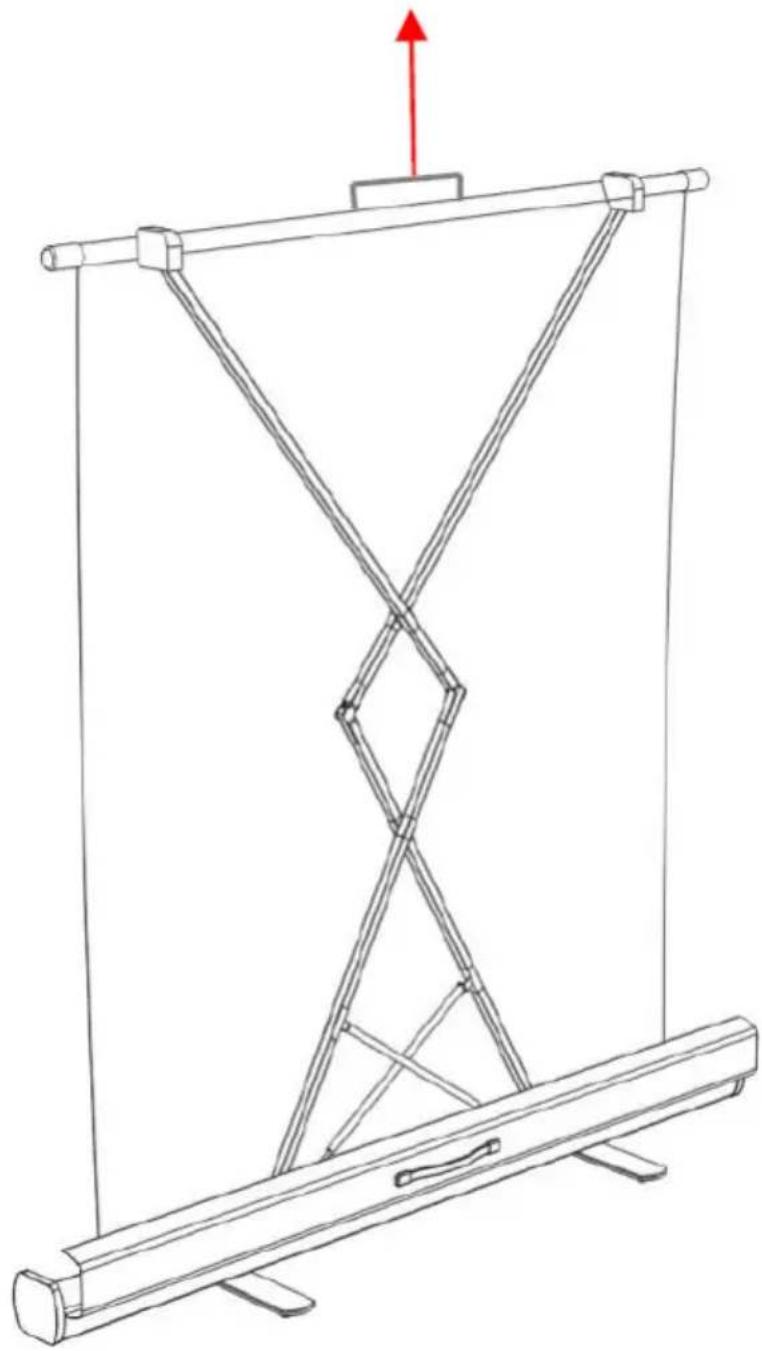

1. Grasp the screen by the handle and pull it upward. The rack will hold the screen in the extended position.

1. The screen is ready for use.

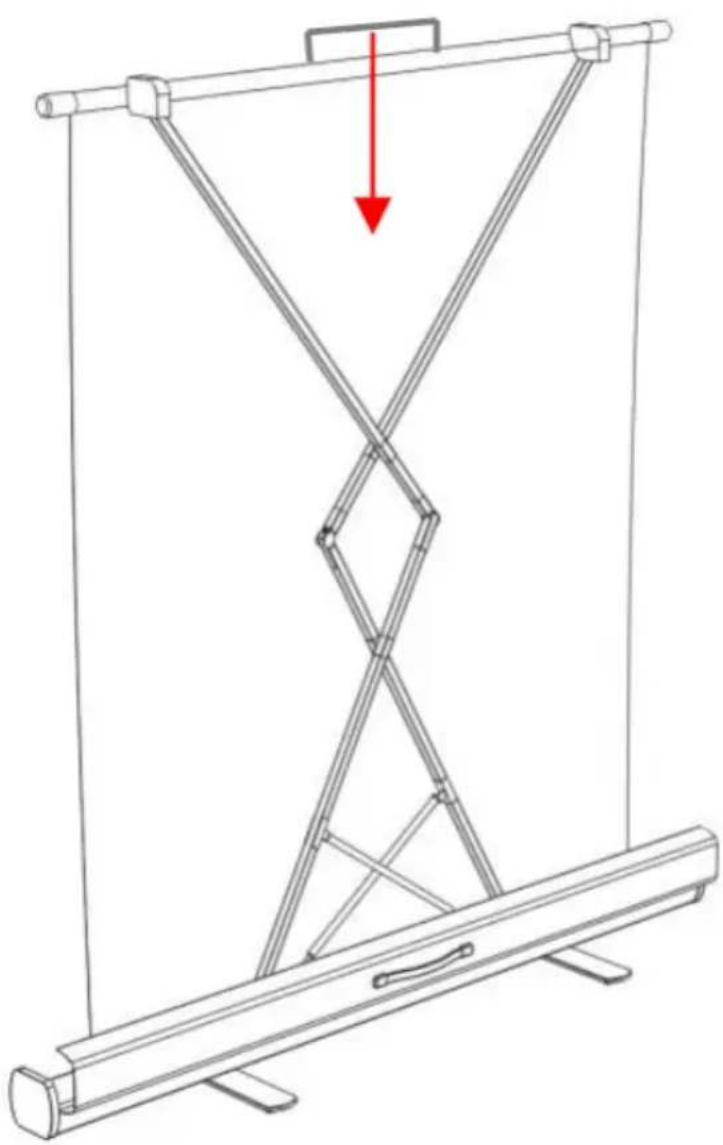

2. To fold the screen, grasp the handle and pull it down.

1. Close the case cover.

2. Lock the safety clasp.

3. Retract the legs.

3.3. Cleaning and maintenance

a) Store the unit in a dry and cool place protected from moisture and direct sunlight.
b) Do not spray the unit with a stream of water or immerse it in water.
c) Use a soft cloth for cleaning.
d) Do not use sharp and/or metal objects (e.g. a wire brush or metal spatula) for cleaning, as these may damage the surface of the material from which the unit is made.

Dane techniczne

Opis parametu	Wartość parametu
Nazwa produktu	PRZENOSNY EKRAN PODŁOGOWY PULL UP
Model	STAR_PFPS_01	STAR_PFPS_02	STAR_PFPS_03	STAR_PFPS_04	STAR_PFPS_05	STAR_PFPS_06
Wymiary [mm]	1350x170x140	1553x170x140	1756x170x140	1458x170x140	1680x170x140	1902x170x140
Powierzchnia projekcyjna [mm]	915x122060" 4:3	1067x142370" 4:3	1220x163080" 4:3	1328x74760" 16:9	1550x87270" 16:9	1771x99680" 16:9
Ciezar [kg]	10,2	11,4	12,6	10,8	11,6	13,2
Grubosć czarnego obramowa [mm]	1.25	1.25	1.25	1.30	1.25	1.25
1. lewo/prawo	2.60	2.60	2.60	2.300	2.60	2.60
2. góra	3. 1176	3. 1023	3.870	3. 1343	3. 1090	3. 1094
3.doğan

Opis parametu	Wartość parametu
Nazwa produktu	PRZENOŚNY POD.§OGOWY ZIELONY EKRAN DO EDYCJI VIDEO
Model	STAR_PFGS _01	STAR_PFGS _02	STAR_PFGS _04	STAR_PFGS _05
Wymiary [mm]	1350x170x140	1553x170x140	1458x170x140	1680x170x140
Powierzchnia projekcyjna [mm]	1270x2040	1473x2040	1378x2040	1600x2040
Ciezar [kg]	8,5	9,6	10,3	11,4
