Technical data

Parameter description	Parameter value
Product name	Projector screen
Model	STAR_PS_04	STAR_PS_05	STAR_PS_06
Product dimensions [mm]	1965x810x1810	2325x810x2100	3400x800x2620
Screen dimensions [mm]	1860x1050	2212x1245	3319x1867
Weight [kg]	7.2	8	13.5

General Description

This manual is intended to assist you for safe and reliable use. The product is designed and manufactured strictly according to technical specifications using the latest technology and components, and maintaining the highest quality standards.

CAREFULLY READ AND UNDERSTAND THIS MANUAL BEFORE USE.

To ensure long and reliable operation of the product, operate and maintain it correctly, strictly in compliance with this manual. The technical data and specifications in this manual are up-to-date. The manufacturer reserves the right to modifications for the purpose of quality improvement.

Explanation of symbols

	Read the manual before use.
	CAUTION! or WARNING! or REMEMBER!General warning sign.

CAUTION! The figures in this manual are illustrative only and may vary in some details from the actual appearance of the product.

SAFETY OF USE

The term "device" or "product" in the warnings and in the description of the manual refers to

Projector screen

a) If in doubt as to whether the product is working properly or found to be damaged, contact the manufacturer's technical service.
b) Keep this manual for future reference. If the product is to be handed over to a third party, hand it over with this user manual.
c) Keep packaging components and small installation parts out of the reach of children.
d) Keep the product away from children and animals.
e) When using this product with other devices, also follow the other instructions for use.
f) The product is not a toy. Children should not play with the product.
g) Keep the product away from sources of fire and heat.
h) Do not touch the screen surface.
i) Do not write or draw on the surface of the screen.
j) Do not fold the screen!
k) Do not use the product outdoors in bad weather, especially in rain and wind.
I) When using the product outside, do not leave it overnight, regardless of the weather.

CAUTION!

Although the device is designed to be safe, it is recommended to exercise caution and common sense when using it.

ASSEMBLY ELEMENTS

Symbol	Element	ModelsSTAR_PS_04STAR_PS_05	ModelSTAR_PS_06
A		2	2
B		2	2
C		2	4
D		4	4
E		2	2
F		2	2
G		2	2
H		4	4
I		6	6
J		4	4
K		4	4
L		4	4

ASSEMBLY

CAUTION! It is recommended that at least two people assembly it.

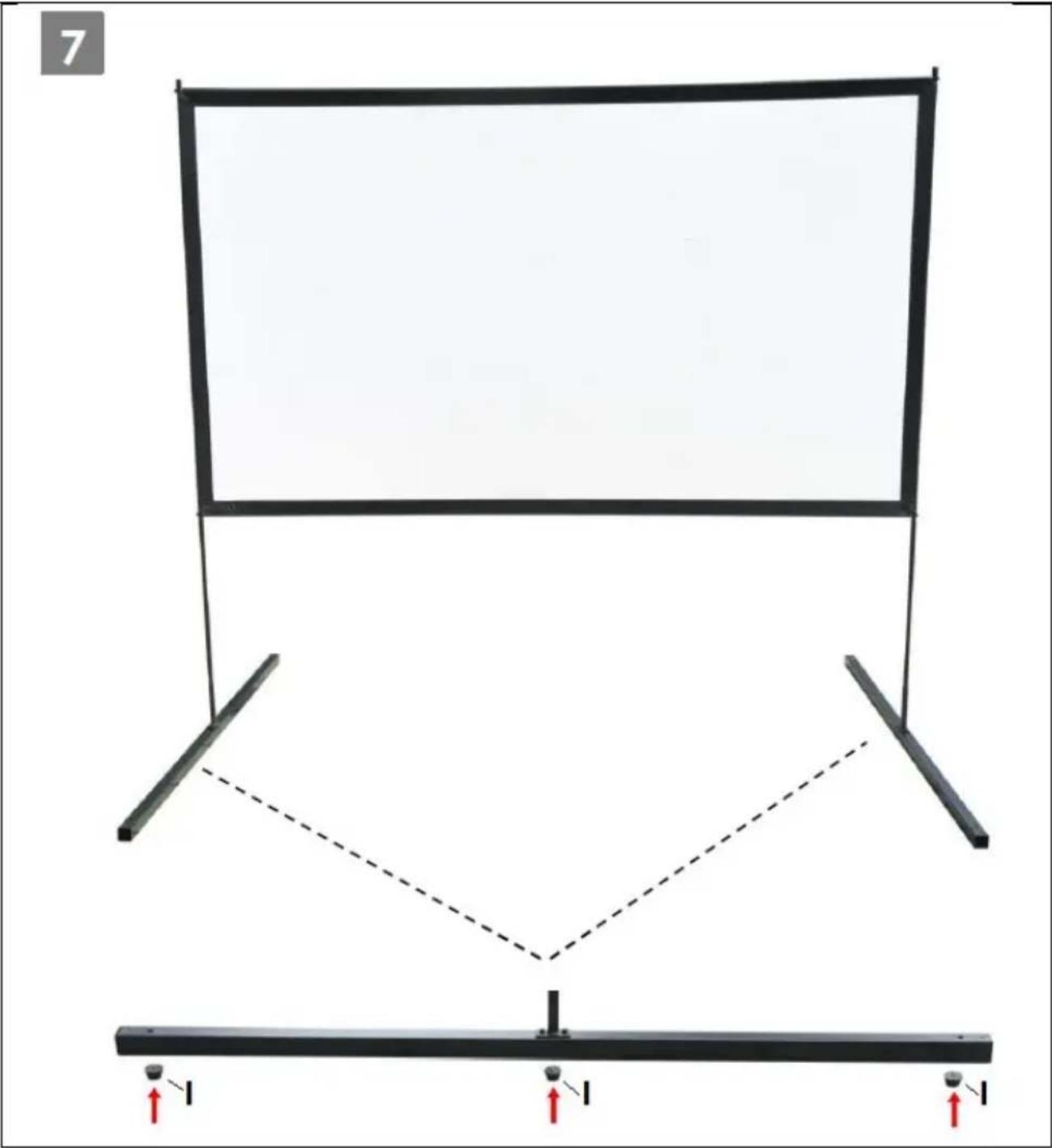

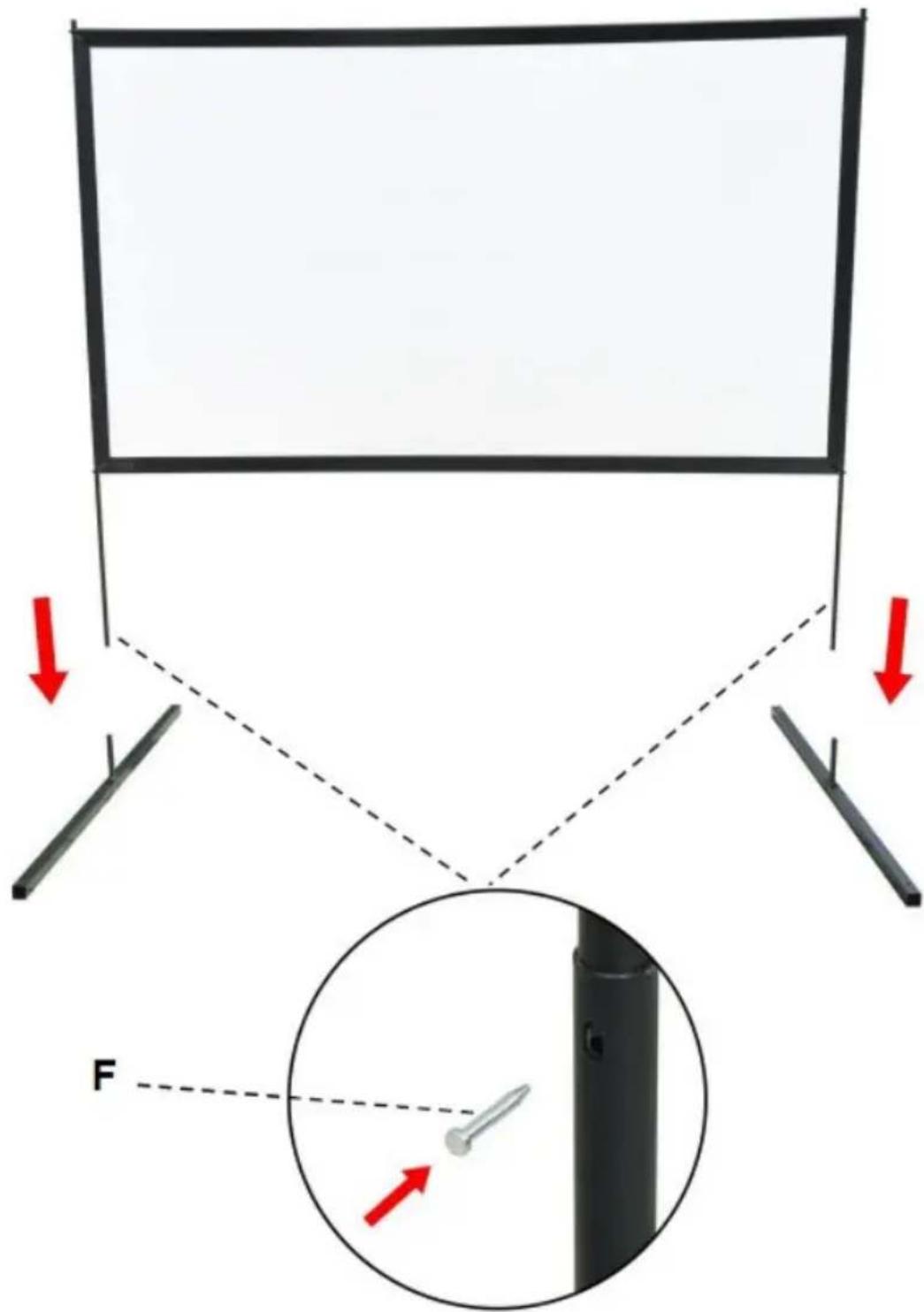

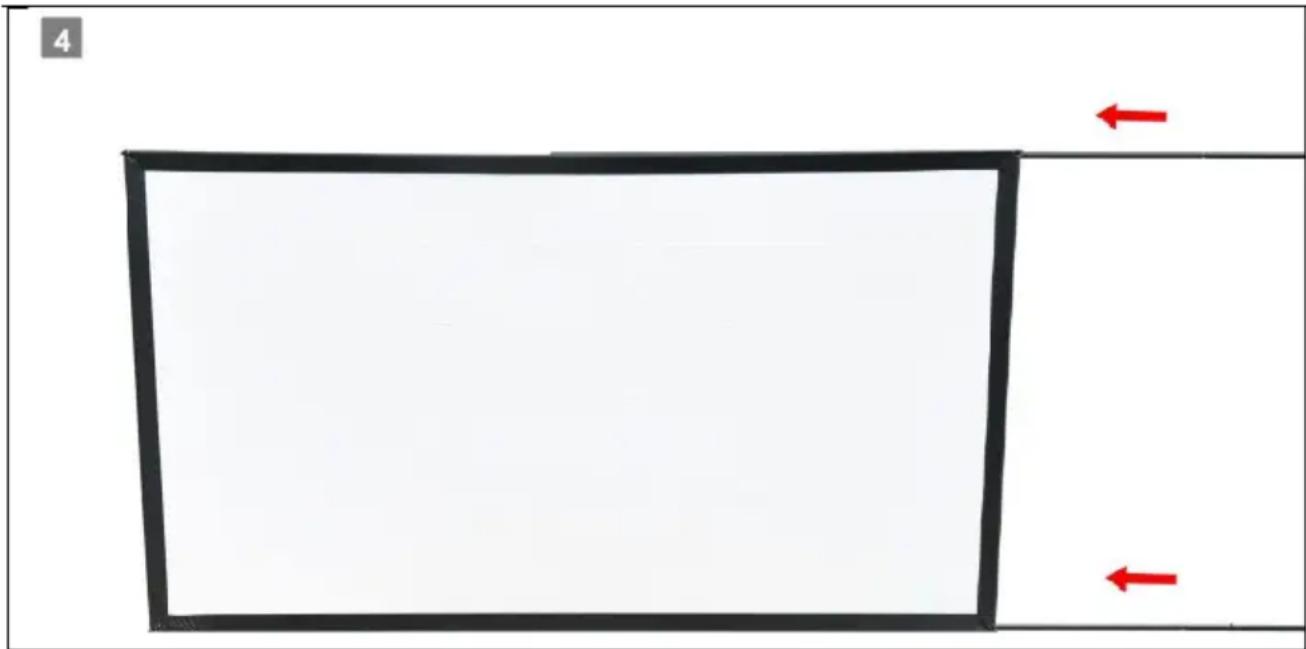

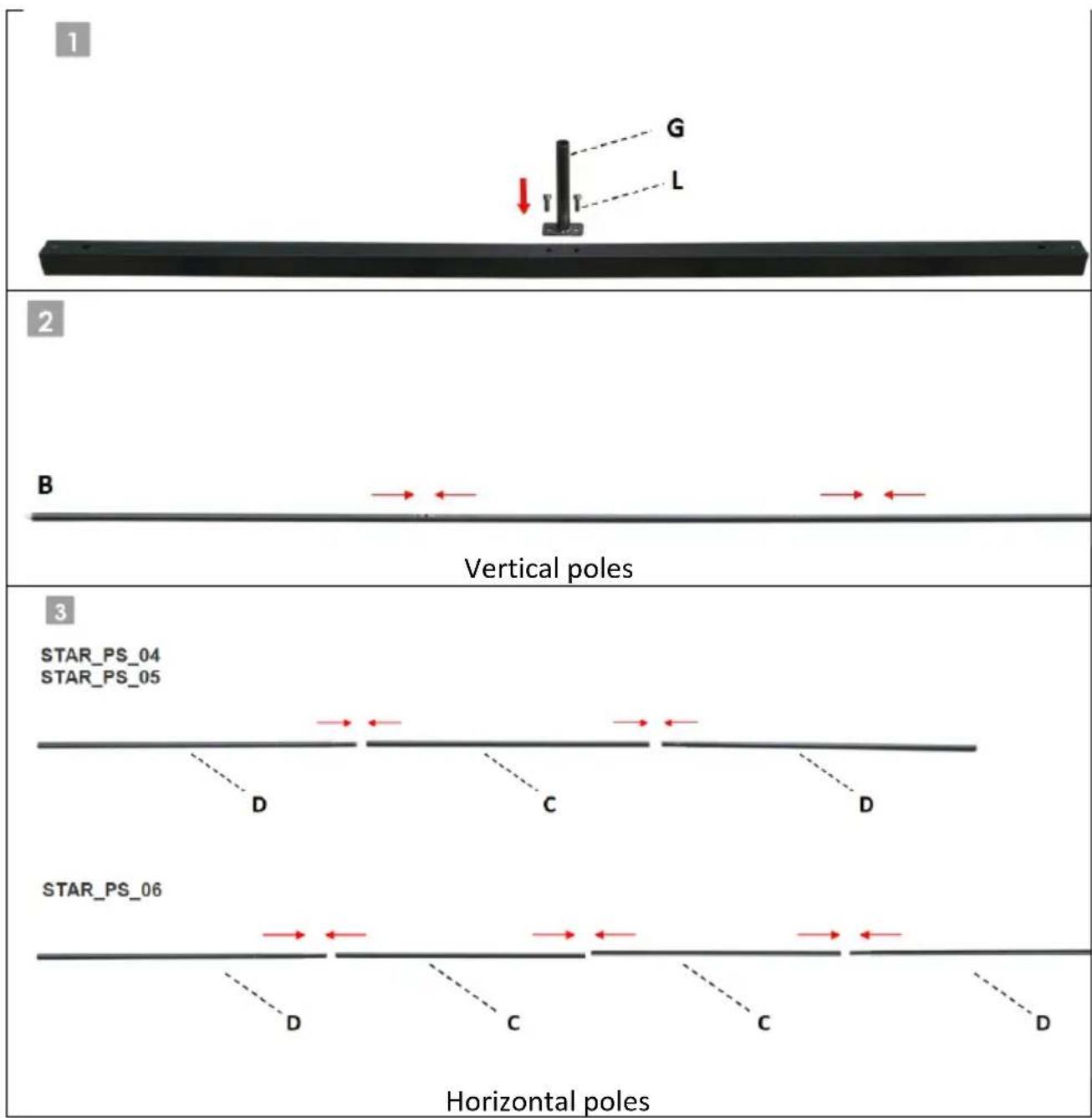

1 G L 2 B Vertical poles 3 STAR_PS_04 STAR_PS_05 D C D STAR_PS_06 D C C D Horizontal poles

Simple diagram with a black rectangular frame and two red arrows pointing left, no text or symbols present.

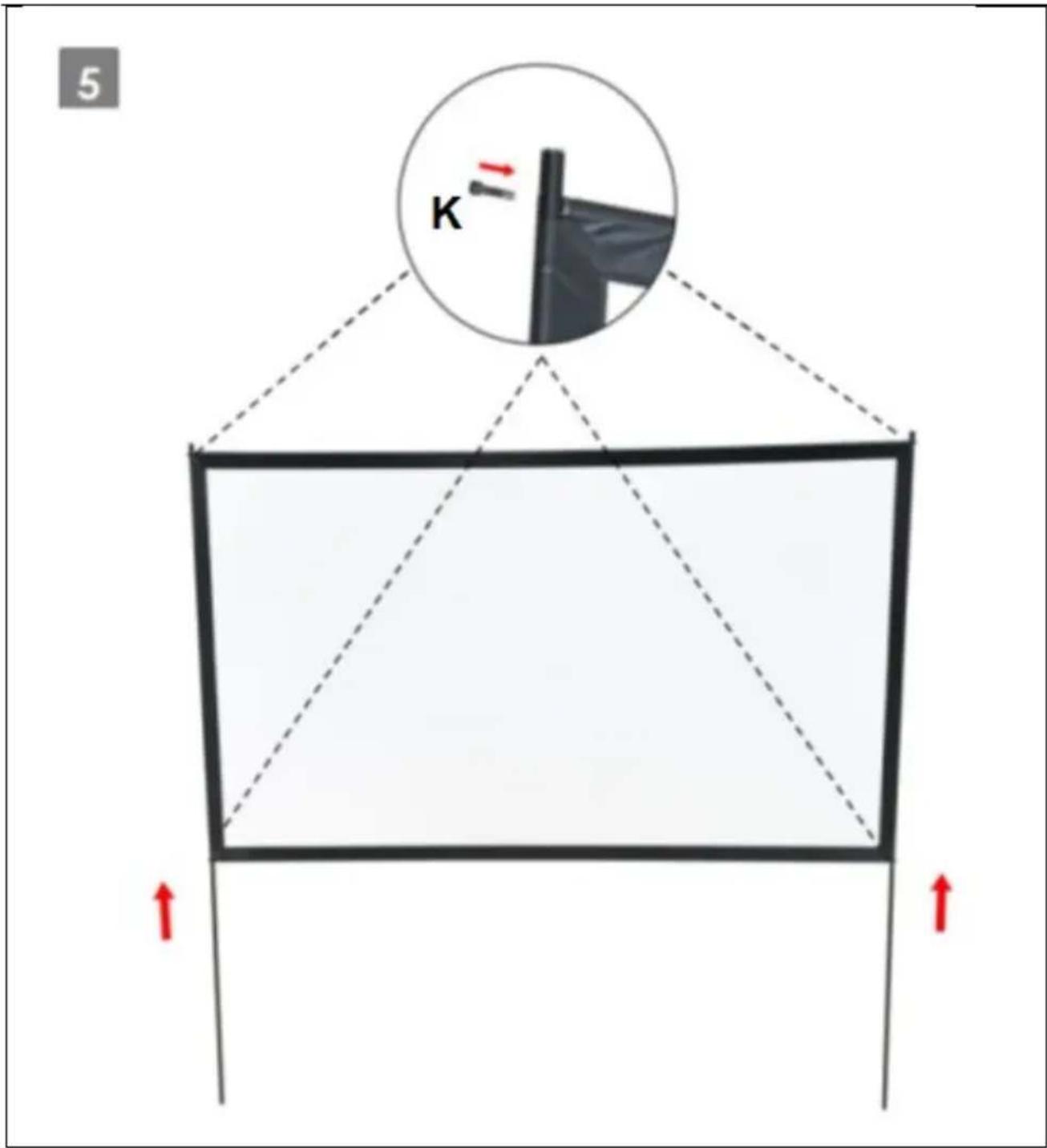

5 K

6

Diagram illustrating a physics experiment with force F applied to a vertical rod, showing motion direction and force vectors.

Diagram of a projector setup with two supports and a central display, showing alignment and red arrows indicating direction (no text or symbols)

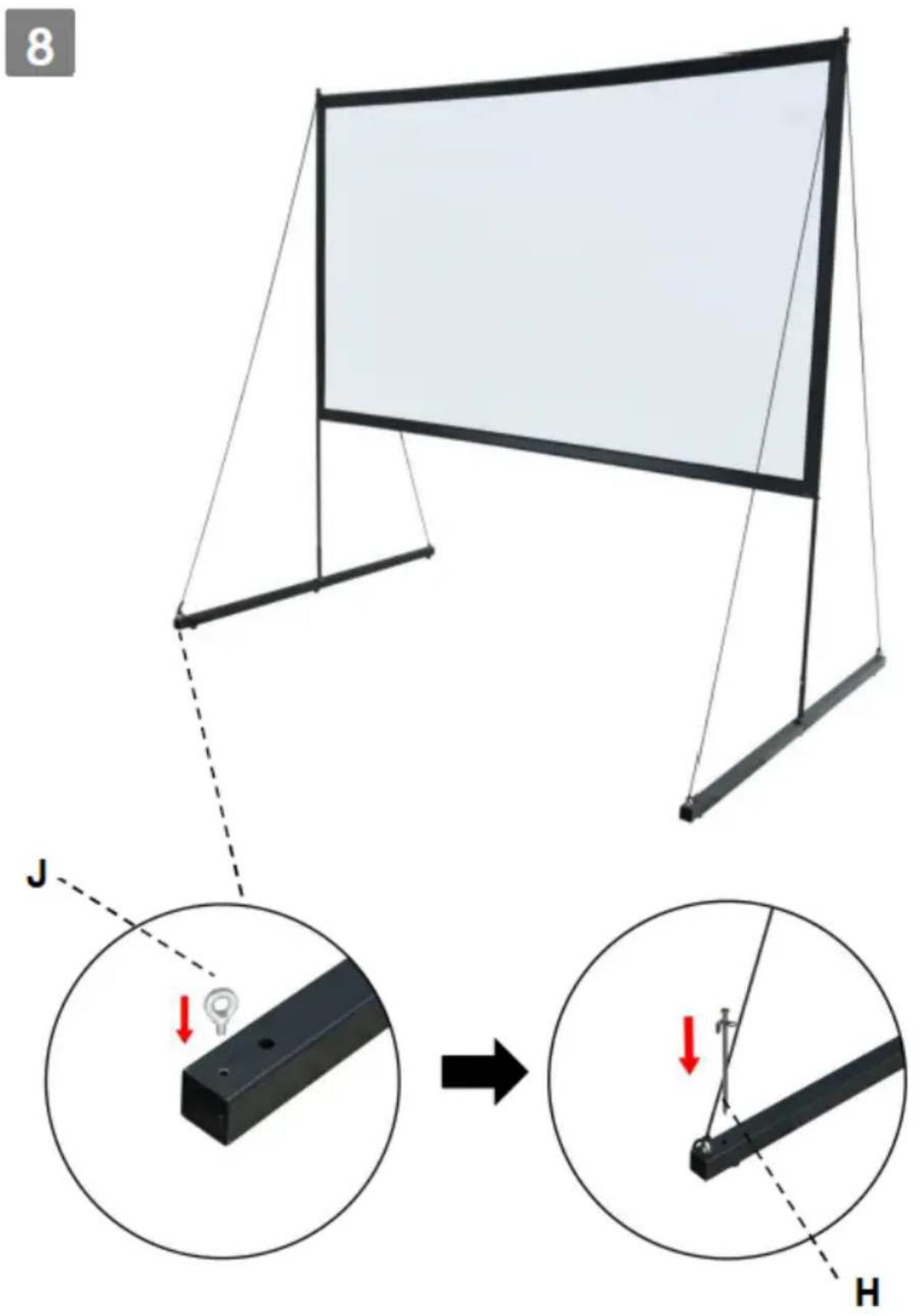

8 J H

CAUTION! When using the product outdoors, it is recommended to attach the product to the ground with the pegs (included).

Simple diagram showing a rectangle with a horizontal line and two red arrows indicating direction (no text or symbols)

5 K

6

Diagram illustrating a physics experiment with force F applied to a vertical rod, showing motion direction and force vectors.

Diagram of a projector setup with two supports and a central display, showing alignment and red arrows indicating direction (no text or symbols)

8 J H

Simple diagram with a black rectangular frame and two red arrows pointing left, no text or symbols present.

5 K

6

Diagram illustrating a physics experiment with force F applied to a vertical rod, showing motion direction and force vectors.

Diagram of a projector setup with two supports and a central display, showing alignment and red arrows indicating direction (no text or symbols)

8 J H

Simple diagram with a black rectangular frame and two red arrows pointing left, no text or symbols present.

5 K

6

Diagram illustrating a physics experiment with force F applied to a vertical rod, showing motion direction and force vectors.

Diagram of a projector setup with two supports and a central display, showing alignment and red arrows indicating direction (no text or symbols)

8 J H

Simple diagram with a black rectangular frame and two red arrows pointing left, no text or symbols present.

5 K

6

Diagram illustrating a physics experiment with force F applied to a vertical rod, showing motion direction and force vectors.

Diagram of a projector setup with two supports and a central display, showing alignment and red arrows indicating direction (no text or symbols)

8 J H

Simple diagram with a black rectangular frame and two red arrows pointing left, no text or symbols present.

5 K

6

Diagram illustrating a physics experiment with force F applied to a vertical rod, showing motion direction and force vectors.

Diagram of a projector setup with two supports and a central display, showing alignment and red arrows indicating direction (no text or symbols)

8 J H

Simple diagram with a black rectangular frame and two red arrows pointing left, no text or symbols present.

5 K

6

Diagram illustrating a physics experiment with force F applied to a vertical rod, showing motion direction and force vectors.

Diagram of a projector setup with two supports and a central display, showing alignment and red arrows indicating direction (no text or symbols)

8 J H

Simple diagram with a black rectangular frame and two red arrows pointing left, no text or symbols present.

5 K

6

Diagram illustrating a physics experiment with force F applied to a vertical rod, showing motion direction and force vectors.

Diagram of a projector setup with two supports and a central display, showing alignment and red arrows indicating direction (no text or symbols)

8 J H
