USER MANUAL SRWB 1000 B1 SILVERCREST

Product photo of a black hair styling brush with multiple dials and a power cord (no text or symbols visible)

PDF ONLINE www.lidl-service.com

ROTATING HOT AIR STYLING BRUSH / ROTIERENDE WARMLUFTBÜRSTE / BROSSE ROTATIVE À AIR CHAUD SRWB 1000 B1

GB IE

ROTATING HOT AIR STYLING BRUSH

Operating instructions

FR BE

BROSSE ROTATIVE À AIR CHAUD

Mode d'emploi

CZ

ROTAČNÍ HORKOVZDUŠNÝ KARTÁČ

Návod k obsluze

SK

ROTAČNÁ TEPLOVZDUŠNÁ KEFA

Návod na obsluhu

DK

ROTERENDE VARMLUFTDYSE

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

DE AT CH

GB/IE Operating instructions Page 1

Warnings and symbols used 2

Safety information .... 3

Package contents....5

Appliance description 6

Technical data....6

Attaching/removing the attachment....6

Switching on and off, setting the speed/ temperature level .....7

Using attachments ....7

Large and small round brush 8

Styling nozzle 9

Paddle brush 10

Cleaning 10

Storage 11

Ordering replacement parts 11

Disposal....12

Disposal of the appliance 12

Disposal of the packaging 12

Kompernass Handels GmbH warranty 13

Service....14

Importer 14

Introduction

Congratulations on the purchase of your new appliance.

You have selected a high-quality product. The operating instructions are part of this product. They contain important information about safety, usage and disposal. Before using the product, please familiarise yourself with all operating and safety instructions. Use the product only as described and for the specified range of applications. Please also pass these operating instructions on to any future owner.

Proper use

The appliance is intended for drying and styling human hair by means of ionic action. Do not use it on wigs or hairpieces made of synthetic material or on animals. This appliance is intended solely for use in private households. Not for commercial or industrial use.

Warnings and symbols used

The following warnings and symbols are used in these operating instructions, on the packaging and on the appliance (where applicable):

	DANGER! A warning with this symbol and the signal word "DANGER" indicates an imminently hazardous situation which will result in death or serious injury if not avoided.
	WARNING! A warning with this symbol and the signal word "WARNING" indicates a potentially hazardous situation which could result in death or serious injury if not avoided.
	CAUTION! A warning with this symbol and the signal word "CAUTION" indicates a potentially hazardous situation which could result in a minor or moderate injury if not avoided.
	ATTENTION! A warning with this symbol and the signal word "ATTENTION" indicates a potential situation which could result in property damage if not avoided.
	Note: A note provides additional information that will assist you in using the appliance.

Safety information

DANGER!

- Connect this appliance only to a properly installed mains socket with a mains voltage corresponding to that on the rating plate.

▶ Never immerse the appliance in liquids or allow liquids to penetrate the housing. Do not expose the appliance to humidity and do not use it outdoors. If liquid gets into the housing, disconnect the appliance from the mains power socket immediately and have it repaired by a qualified technician.

- Remove the plug from the mains power socket in the event of malfunctions and before cleaning the appliance.

▶ To disconnect the appliance from the mains, pull only on the plug itself, not on the power cable.

If the power cable of this appliance is damaged, it must be replaced by the manufacturer, its customer service department or a similarly qualified person in order to avoid hazards.

- Do not kink or crush the power cable, and always route it in such a way as to prevent people from stepping on it or tripping over it.

▶ Do not use extension cables.

▶ Never hold the appliance, the power cable or the power plug with wet hands.

▶ Do not open the appliance housing or attempt to repair the appliance yourself.

This can lead to risks and also invalidates the warranty. Defective appliances should be repaired by qualified specialists only.

ever use the appliance near water, especially in vicinity of sinks, baths or other similar containers. The proximity of water is hazardous, even if the appliance is switched off. Always disconnect the plug from the mains power socket after use. For additional protection, we recommend that you install a residual current circuit breaker with an activation power rating of no more than 30 mA for the power circuit in the bathroom. Ask your electrician for advice.

WARNING!

This appliance may be used by children aged 8 years or more and by persons with reduced physical, sensory or mental capabilities or lack of experience and/or knowledge if they are supervised or have been instructed in the safe use of the appliance and have understood the potential risks.
▶ Do not allow children to use the appliance as a toy.
▶ Cleaning and user maintenance should not be performed by children unless they are under supervision.
▶ Never put the appliance down when it is switched on, and never leave a switched-on appliance unsupervised.
▶ Never place the appliance close to sources of heat, and always protect the power cable against potential damage.
▶ Do not operate the appliance if it has been dropped or is damaged in any way. Have the appliance checked and/or repaired by qualified technicians, if necessary.

CAUTION!

The coating of the round brushes can become very hot during use. Therefore, only hold them by the plastic ends and hold the appliance by the handle.

▶ Always use the appliance with the attachment attached. The heating coils in the attachment holder become very hot.

- Allow the appliance to cool down before disassembling or storing it. Always place it on a heat-resistant surface to cool down and disconnect the mains plug from the mains socket.

ATTENTION!

▶ Only use accessories that are included in the scope of delivery or recommended by the manufacturer.

▶ Never insert objects into the openings of the appliance, e.g. keep hairpins and hair clips away from it.

▶ Do not cover the air intake grille while operating the appliance. Clean it at regular intervals.

Package contents

The following components are included in the delivery:

● Hot air brush with 4 attachments
- Operating instructions

1) Remove the appliance and the operating instructions from the packaging.
2) Remove all packaging material.

WARNING! Do not allow children to play with packaging materials. There is a risk of suffocation.

① Note: Check the package for completeness and signs of visible damage. If any items are missing or damaged as a result of defective packaging or transportation, contact the service hotline (see section Service).

Appliance description

(For illustrations see the fold-out page)

Figure A

① Attachment holder
② Rotation button>
③ Level switch
4 Air intake grille
5 Hanger
⑥ Power cable with 360° swivel joint
7 Rotation button

Figure B:

8 Large round brush (50 mm) with mixed bristles
9 Small round brush (38 mm) with firm bristles
⑩ Styling nozzle
⑪ Paddle brush

Technical data

Power supply 220-240 V ~ (AC), 50-60 Hz

Rated power 1000 W

Protection class II / □ (double insulation)

Attaching/removing the attachment

1) Place the desired attachment ⑧-⑪ in the attachment holder ① so that the symbol points to the marking on the appliance.
2) Turn the attachment ⑧-⑪ until the symbol 🔒 points to the marking | on the appliance and the lock engages audibly. The attachment ⑧-⑪ is fitted.
3) To remove, turn the attachment ⑧-⑪ until the symbol ⑦ points to the mark on the appliance. Pull the attachment ⑧-⑪ off the attachment holder ①.

Switching on and off, setting the speed/temperature level

1) Plug the power plug into the mains socket. 2) Slide the level switch ③ to switch on the appliance. Choose between the three levels:

- "I" Low combined speed/temperature level: Ideal for sensitive or fine hair.

- "II" High combined speed/temperature level: Ideal for normal hair.

- "C" Gentle combined speed/temperature level "Cool" (cool-shot function): Cold level, particularly suitable for final fixing after styling, for example.

3) The speed/temperature level that the level switch ③ points to first is switched on. Slide the level switch ③ to the desired level, feeling it engage when a new level is reached. The appliance starts heating and air flows out of the attachment ⑧-⑪.

4) Switch off the appliance by moving the level switch ③ back to "O". The level switch ③ engages perceptibly when the position "O" is reached and the level switch ③ points to "O".

5) Always unplug the appliance from the mains socket after use.

6) Allow the appliance to cool down before disassembling or storing it. Make sure that you place the appliance on a heat-resistant surface.

Using attachments

You can dry and style your hair with the attachments ⑧ - ⑪. Wash and condition your hair as usual beforehand.

A suitable styling product can enhance the durability of the hairstyle. Choose a product that also contains heat protection if you expose the hair to significant heat. You can finish the styling with the cold setting "Cool" to fix the hairstyle. If necessary, use hair spray as well.

Attachment Function
	The large round brush 8 gives the hair more volume and bounce.
	The small round brush 9 gives the hair more shape and curl.The styling nozzle 10dries the hair and prepares it for further styling, if desired.
	The paddle brush 11dries and smooths the hair and prepares it for further styling, if desired.

Large and small round brush

The large round brush ⑧ gives your hair more volume and is also suitable for medium to long hair. You can achieve more shape with the small round brush ⑨.

1) Dry your hair with a towel and brush it through. Use the styling nozzle ⑩ or the paddle brush ⑪ until the hair is almost dry. If necessary, divide the hair into several sections and isolate a single strand.

① Note: Style your hair with the round brush ⑧/⑨ only when it is almost dry. Make sure that it is free of knots. These can cause hair to get caught in the bristles, especially with longer hair.

2) Select the desired round brush ⑧/⑨ and attach it to appliance.

3) Plug the power plug into the mains socket.

4) Set the speed/temperature level "I" or "II" according to your hair type.

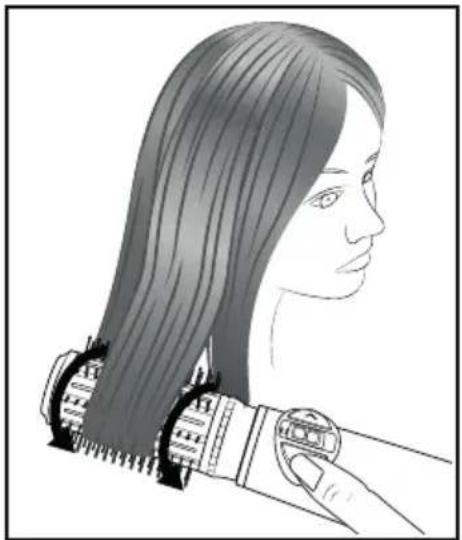

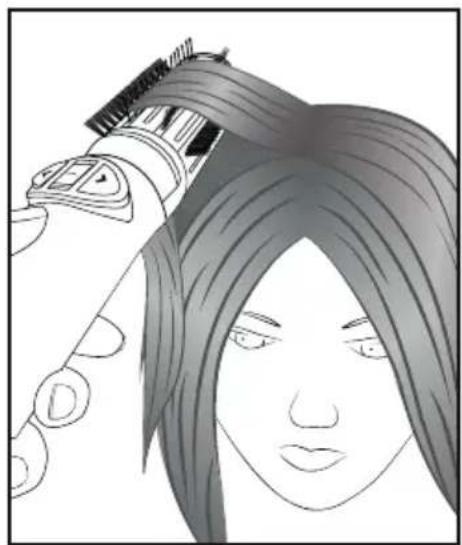

5) Press and hold the rotation button ② >/⑦ /⑦ < before the hairline is reached. The brush stops rotating.

Side profile illustration of a woman with long hair and a robotic arm (no text or symbols)

Fig. 1 Fig. 2

Illustration of a person with long hair and a hairpin, no text or symbols present

6) Hold the brush in the coiled hair for a few seconds. The duration affects the strength of the styling effect. Other factors must be taken into account, such as the thickness of the coiled strand, the hair texture or the set speed/temperature level. Start with a short duration and increase if necessary until the desired styling effect is achieved or the hair is completely dry. Note, however, that hair can be damaged if exposed to high heat for excessive periods of time.

7) To uncoil the strand again, press the opposite rotation button ② >/⑦ < At the same time, gently pull the appliance downwards to release the round brush ⑧/⑨ from the strand.

CAUTION! If hair is caught in the bristles of the round brush ⑧/⑨, immediately release the rotation button ② >/⑦ <. Make sure that you slide the level switch ③ back to the position "O". Then carefully remove the hairs from the bristles, e.g. with your fingers.

The coating of the round brush ⑧/⑨ can become very hot during operation. Therefore, only hold the round brush ⑧/⑨ by the plastic ends and hold the appliance by the handle.

(i) Note: Start with the lower strands of hair and then style strand by strand until the desired result is achieved.

Counteract the twisting movement a little and bring slight tension into the strand by pulling the round brush ⑧/⑨ very slightly downwards. This requires some practice. Immediately release the rotation button ② >>/⑦ < if the round brush ⑧/⑨ rotates too fast and always before it reaches the hairline.

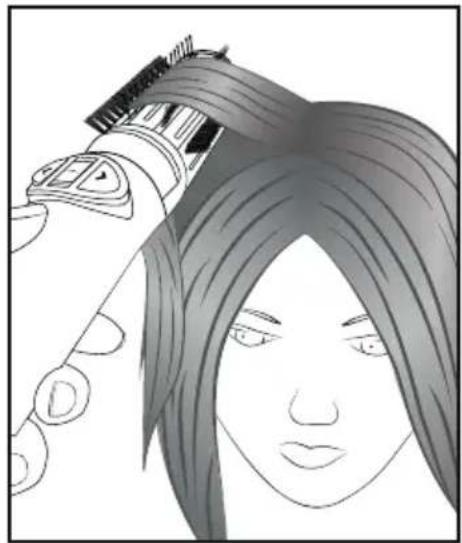

You can also achieve more fullness at the hairline by simply holding the round brush ⑧/⑨ for a few seconds just below the strand at the hairline (see Fig. 2). Do this without the rotation function, otherwise the hair will get caught in the bristles!

8) Switch off the appliance by moving the level switch ③ back to "O".

Styling nozzle

You can dry your hair with the styling nozzle ⑩ to prepare it for further styling, e.g. with the round brush ⑧/⑨.

1) Attach the styling nozzle ⑩ to the appliance.
2) Plug the power plug into the mains socket.
3) Set the speed/temperature level "I" or "II" according to your hair type.
4) Aim the airflow at the hair and move the appliance around the head with one hand. Run your free hand through your hair and divide it into strands. This makes it easier to dry the parts underneath.

5) Switch off the appliance by moving the level switch ③ back to "O".

Paddle brush

With the paddle brush Ⓟ, you can dry and straighten your hair at the same time.

1) Attach the paddle brush ⑪ to the appliance.
2) Plug the power plug into the mains socket.
3) Set the speed/temperature level "I" or "II" according to your hair type.
4) Place the paddle brush ⑪ at the roots and pull it down to the ends of the hair, as with a conventional brush.

① Note: You can achieve more volume by brushing the hair upside down afterwards.

5) Switch off the appliance by moving the level switch ③ back to "O".

Cleaning

DANGER! Risk of fatal injury from electrocution! Before cleaning the appliance, disconnect the power plug from the mains power socket! Never immerse the appliance, the mains cable or the plug in water or any other liquids!

After cleaning, ensure that the appliance is completely dry before using it again!

CAUTION! Allow the appliance to cool down before cleaning it. Risk of burns!

ATTENTION! Do not use abrasive or caustic cleaning agents. They can corrode the surface and damage the appliance beyond repair.

■ Remove hair from the attachments ⑧-⑪ with your fingers. Place the attachments ⑧-⑪ in lukewarm water to clean them. You can use mild detergents, but make sure to rinse it off thoroughly afterwards with water. Allow the attachments ⑧-⑪ to dry completely before re-attaching them to the appliance.

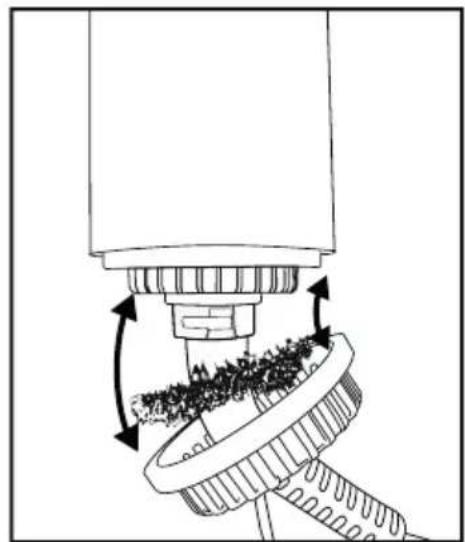

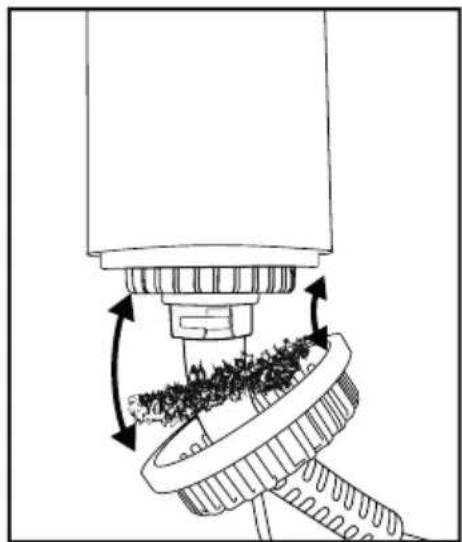

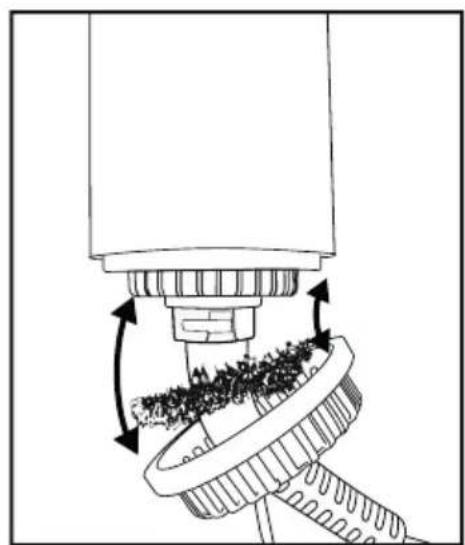

■ Make sure that the air intake grille ④ is free of hair and fluff. Clean it with the help of a dry brush.

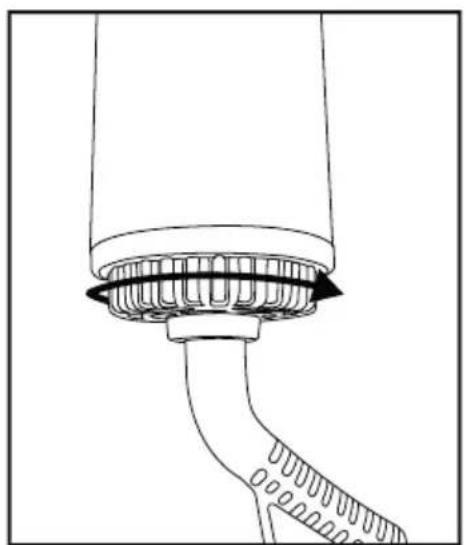

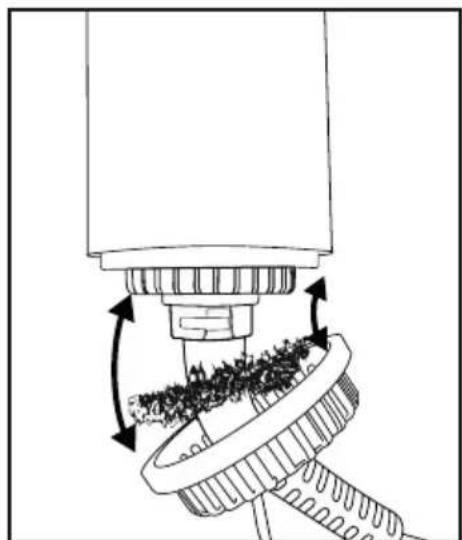

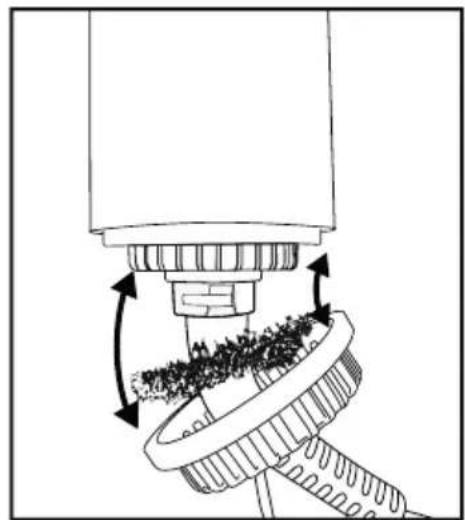

Clean the filter behind the air intake grille ④ at regular intervals, at the latest when dirt is visible. To do this, remove the air intake grille ④ (see figs. 3 and 4) by turning it until it stops moving and then pulling it down (if necessary, turn it slightly back and forth at the same time). Remove lint and dirt from the filter with your fingers and a soft brush if necessary. Press the filter back into the basket of the air intake grille ④ so that you can then put the air intake grille ④ back on. Slide the air intake grille ④ onto the receptacle on the appliance and screw it tight. Note the two small recesses on the base of the power cable ⑥ (see fig. 4), into which the matching counterparts on the inside of the opening in the air intake grille ④ must be pushed.

Line drawing of a hairbrush handle with meshing and serrated texture (no text or symbols)

Fig. 3 Fig. 4

Diagram of a mechanical device with rotating components and directional arrows indicating motion (no text or symbols)

■ Wipe the appliance with a dry cloth if necessary.

Storage

① ATTENTION! Do not pack up the appliance or transport it until it has cooled down. Risk of burns!
- Clean the appliance and the attachments ⑧–⑪ as described in the section "Cleaning".
■ You can store the appliance by hanging it up by the hanger ⑤.
■ Store the appliance in a dust-free and dry location.

Ordering replacement parts

You can order replacement parts for this product on the Internet at www.kompernass.com.

SRWB 1000 B1

Scan the QR code with your smartphone/tablet. You can use this QR code to go directly to our website to view and order the available spare parts.

(i) Note:

If you have problems with your online order, you can contact our service centre by phone or e-mail.

Always quote the article number (IAN) 452786_2310 in your order.

Please note that online ordering of replacement parts is not possible for all countries.

Disposal

Applies only to France:

The product, its packaging and the operating instructions are recyclable. They are subject to an extended manufacturer responsibility and will be collected separately.

Disposal of the appliance

The adjacent symbol of a crossed-out dustbin means that this appliance is subject to Directive 2012/19/EU. This directive states that this appliance may not be disposed of in the normal household waste at the end of its useful life, but must be taken to specially set-up collection locations, recycling depots or disposal companies.

The disposal is free of charge for the user. Protect the environment and dispose of this appliance properly.

If your old appliance has stored any personal data, you are responsible for deleting it yourself before returning it.

Your local community or municipal authorities can provide information on how to dispose of the worn-out product.

Disposal of the packaging

The packaging materials have been selected for their environmental friendliness and ease of disposal and are therefore recyclable. Dispose of packaging materials that are no longer needed in accordance with applicable local regulations.

Dispose of the packaging in an environmentally friendly manner. Note the labelling on the packaging and separate the packaging material components for disposal, if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings: 1-7: plastics, 20-22: paper and cardboard, 80-98: composites.

This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.

Warranty conditions

The warranty period starts on the date of purchase. Please keep your receipt in a safe place. This will be required as proof of purchase.

If any material or manufacturing fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you or refund the purchase price (at our discretion). This warranty service requires that you present the defective appliance and the proof of purchase (receipt) within the three-year warranty period, along with a brief written description of the fault and of when it occurred.

If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.

Warranty period and statutory claims for defects

The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.

Scope of the warranty

This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.

The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or to fragile parts which could be considered as consumable parts such as switches, batteries or parts made of glass.

The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.

This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

■ Please have the till receipt and the item number (IAN) 452786_2310 available as proof of purchase.

■ You will find the item number on the type plate on the product, an engraving on the product, on the front page of the operating instructions (below left) or on the sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

■ You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

You can download these instructions along with many other manuals, product videos and installation software at www.lidl-service.com.

This QR code will take you directly to the Lidl service page (www.lidl-service.com) where you can open your operating instructions by entering the item number (IAN) 452786_2310.

Service

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE ServiceIreland

Tel.: [phone]

E-Mail: [e-mail]

IAN 452786_2310

Importer

Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Inhaltsverzeichnis

Einleitung 16

Side profile illustration of a woman with long hair and a hand holding a device (no text or symbols)

Illustration of a person with long hair and a hairdryer, no text or symbols present

Abb. 1 Abb. 2

Line drawing of a hairdryer with a curved tube inserted, showing internal structure (no text or symbols)

Abb. 3 Abb. 4

Diagram of a mechanical device with rotating components and a gear-like base (no text or symbols)

SRWB 1000 B1

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DEUTSCHLAND

www.kompernass.com

Table des matières

Introduction 32

Side profile illustration of a person with long hair and a robotic arm (no text or symbols)

Illustration of a person with long hair and a hairpin, no text or symbols present

Fig. 1 Fig. 2

Line drawing of a hairbrush handle with meshing and serrated texture (no text or symbols)

Diagram of a mechanical device with rotating components and directional arrows indicating motion (no text or symbols)

Fig. 3 Fig. 4

SRWB 1000 B1

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

ALLEMAGNE

www.kompernass.com

Inhoud

Inleiding....50

Side profile illustration of a person with long hair and a decorative wristband, no text or symbols present

Illustration of a person with long hair and a hairdryer, no text or symbols present

Afb. 1 Afb. 2

Line drawing of a hairbrush handle with meshing and serrated texture (no text or symbols)

Afb. 3 Afb. 4

Diagram of a mechanical device with rotating components and directional arrows indicating motion (no text or symbols)

SRWB 1000 B1

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DUITSLAND

www.kompernass.com

Obsah

Úvod....66

Side profile illustration of a woman with long hair holding a small object, no text or symbols present

Illustration of a person with long hair and a hairdryer, no text or symbols present

Obr. 1 Obr. 2

Line drawing of a hairbrush handle with meshing and serrated texture (no text or symbols)

Obr. 3 Obr. 4

Diagram of a mechanical device with rotating components and directional arrows indicating motion (no text or symbols)

SRWB 10C0 B1

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NĚMECKO

www.kompernass.com

Spis treści

W step 80

Side profile illustration of a person with long hair and a handheld device, no text or symbols present

Illustration of a person with long hair holding a hairdryer (no text or symbols)

Rys. 1 Rys. 2

Line drawing of a hairdryer with mesh insulation and a curved handle (no text or symbols)

Diagram of a mechanical device with rotating components and directional arrows indicating motion (no text or symbols)

QR code image containing encoded data, no visible human-readable text

SRWB 1000 B1

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NIEMCY

www.kompernass.com

Obsah

Úvod....96

Side profile illustration of a woman with long hair and a robotic arm (no text or symbols)

Illustration of a person with long hair and a hairpin, no text or symbols present

Obr. 1 Obr. 2

Line drawing of a hairbrush handle with meshing and serrated texture (no text or symbols)

Obr. 3 Obr. 4

Diagram of a mechanical device with rotating components and directional arrows indicating motion (no text or symbols)

SRWB 1000 B1

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NEMECKO

www.kompernass.com

Índice

Side profile illustration of a woman with long hair and a robotic arm (no text or symbols)

Illustration of a person with long hair and a hairdryer, no text or symbols present

Fig. 1 Fig. 2

Line drawing of a hairbrush handle with meshing and serrated texture (no text or symbols)

Diagram of a mechanical device with rotating components and directional arrows indicating motion (no text or symbols)

Fig. 3 Fig. 4

SRWB 1000 B1

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

ALEMANIA

www.kompernass.com

Indholdsfortegnelse

Indledning....126

Anvendelsesområde 126

Side profile illustration of a woman with long hair and a robotic arm, no text or symbols present

Illustration of a person with long hair and a hairdryer, no text or symbols present

Fig. 1 Fig. 2

Line drawing of a hairbrush handle with meshing and serrated texture (no text or symbols)

Fig. 3 Fig. 4

Diagram of a mechanical device with rotating components and directional arrows indicating motion (no text or symbols)

SRWB 1000 B1

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

TYSKLAND

www.kompernass.com

Indice

Introduzione....140

Uso conforme 140

Side profile illustration of a person with long hair and a robotic arm (no text or symbols)

Illustration of a person with long hair and a hairdryer, no text or symbols present

Fig. 1 Fig. 2

Line drawing of a mechanical component with a curved pipe and threaded end (no text or symbols)

Diagram of a mechanical device with rotating components and a gear mechanism (no text or symbols)

Fig. 3 Fig. 4

SRWB 1000 B1

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANIA

www.kompernass.com

Tartalomjegyzék

Bevezető 156

Side profile illustration of a woman with long hair and a robotic arm (no text or symbols)

Illustration of a person's face with hair and a hairpin, no text or symbols present

1. ábra 2. ábra

Line drawing of a hairbrush handle with meshing and serrated texture (no text or symbols)

Diagram of a mechanical device with rotating components and directional arrows indicating motion (no text or symbols)

1. ábra 4. ábra

SRWB 1000 B1

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NÉMETORSZÁG

www.kompernass.com

FR © ©

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Last Information Update · Stand der Informationen · Version des informations

Stand van de informatie · Stav informací · Stan informacji · Stav informácií

Estado de las informaciones · Tilstand af information · Versione delle informazioni
