USER MANUAL U3HUB445 i-TEC

USB 3.0 CHARGING HUB 4 PORT

+ Power Adapter

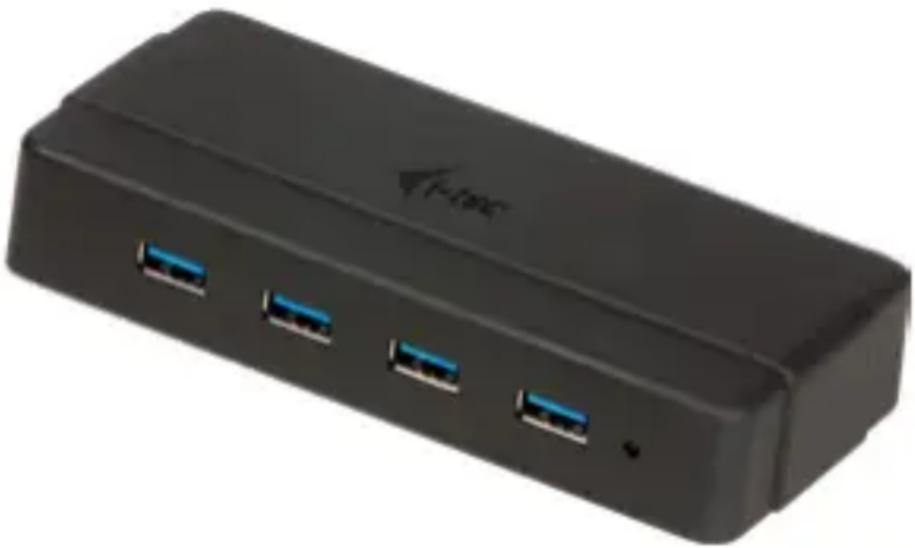

Black rectangular device with four blue USB ports, no visible text or symbols on the body

User guide • Gebrauchsanweisung • Mode d'emploi

EN Please read the entire instruction manual carefully. Detailed manual is available on our website www.i-tec.cz/en/ in the tab „Manuals, drivers“. In case of any issues, please contact our technical support at: [e-mail]

Declaration of Conformity.... 38–39

FCC....40

QR code image containing encoded data, no visible human-readable text

ENGLISH

INTRODUCTION

The HUB is an ideal companion for everybody who does not have enough USB ports in his/her notebook, ultrabook or PC and who has to constantly connect and disconnect his/her favorite USB equipment such as flash disks, mobile phones, tablets, digital cameras, MP3 players, printers, etc.

This HUB offers 4 USB 3.0 ports with the Plug & Play function and standard USB charging – the HUB will automatically detect connected equipment for USB charging. The port placed next to the LED also supports charging according to specification BC 1.2, e.g. for the iPad or Samsung tablet. The USB 3.0 interface is important mainly for data transfers from USB 3.0 memory cards and flash disks which will use its high transfer speed most.

The advantage is included external power adapter which you can use for backing up data on external hard drives or for connecting high power consumption devices which are powered directly from the USB port.

This HUB does not require installation of drivers. You will just connect it by the USB cable to your computer and immediately you can start using it. This HUB has a built in overcurrent protection of your computer in case of short connection on the peripheries. The interface is compatible with USB 2.0 / 1.1.

INSTALLATION IN WINDOWS 7 / 8 / 8.1 / 10 AND HIGHER, MAC OS X AND HIGHER, LINUX

The HUB is installed automatically, no need install drivers. Connect the connector of the power adaptor to the HUB and connect the power adaptor to a socket outlet with 230V. Then plug the HUB via USB cable into available USB port (USB 3.0, 2.0 or 1.1 standard) of your notebook / PC and follow the on-screen instructions. The HUB will be installed and displayed in Device manager as “Generic USB Hub” and “Generic USB SuperSpeed Hub”.

CHARGING

You can use external power adapter, if you connect printer, scanner or other high power consumption devices to USB ports in HUB (power adapter is included). Respect the basic rules while using this power adapter (for ex. do not let in

reach of children, if the adapter is in 230 V circuit, do not put it into the water and so on).

CHARGING

The HUB supports charging of the connected USB mobile equipment such as smartphones (including iPhone and Samsung phones), e-book readers, multi-media players, GPS navigators, and tablets (e.g., Asus, Toshiba, GoClever, Prestigio, Emgeton, Sencor). Using the original cable connect the equipment to be charged to the USB port of the HUB. At the same time the power adaptor needs to be connected to the HUB as well. Charging of iPad or Samsung tablet is possible only through USB port placed next LED.

SYSTEM REQUIREMENTS

Hardware requirements

Notebook / PC with one available USB port

Operating system

Windows 7 32/64bit, Windows 8 32/64bit, Windows 8.1 32/64bit, Windows 10 32/64bit, Mac OS X 10.x or higher, Linux

SPECIFICATION

• 4x USB 3.0 port for connecting USB equipment, of which 1x USB 3.0 port for charging as per the USB-IF specification (BC 1.2)
• 1x USB 3.0 cable for connecting the HUB to a notebook / PC
• Transfer rate up to 5 Gbps
  • USB charging detection mechanism for mobile devices
• Plug & Play function
  • Overload and overcurrent protection
• LED diode
  • Storage temperature -10\~85 °C
  • Working temperature 0-40 °C
• Power adapter: input AC 100-240 V, 50-60 Hz, 0.5 A; output DC 5 V, 2 A
• OS Windows 7 32/64bit, 8 32/64bit, 8.1 32/64bit, 10 32/64bit, Mac OS X 10.x or higher, Linux
  • Product dimensions 133 x 60 x 27 mm
• Product weight 97 g

PACKAGE CONTENTS

• i-tec USB 3.0 HUB 4 Port
• USB 3.0 cable type A/B (90 cm)
• Power adapter (DC cable 115 cm)
- User's Guide

SAFETY INSTRUCTIONS

• Do not expose to extreme temperatures and air humidity.
• Use the device on flat surfaces – you will prevent it from slipping and falling to the ground.
• Save the user manual for a possible use later.

In cooperation with the service department:

• Check functionality after falling to water or to the ground.
• Check functionality when the cover is broken.
• Send the device back if it does not work in accordance with the user manual.

FAQ

available on our website www.i-tec.cz/en/ on the „FAQ“ tab of this product.

DEUTSCH

EINLEITUNG

USB 3.0 Charging Hub 4 Port

INSTRUCTIONS DE SÛRETÉ

USB 3.0 Charging Hub 4 Port

This equipment is marked with the above recycling symbol. It means that at the end of the life of the equipment you must dispose of it separately at an appropriate collection point and not place it in the normal domestic unsorted waste stream. This wil benefit the environment for all. (European Union only)

DEUTSCH

We declare under our sole responsibility that the above named product is in conformity with the following European Union directives:

This equipment has been tested and found to comply within the limits of a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
