USER MANUAL U3CHARGEHUB13 i-TEC

USB 3.0 CHARGING HUB 13 PORT + POWER ADAPTER 60 W

Exterior view of a black RT-AC remote control device (no text or symbols visible on body)

User guide • Gebrauchsanweisung • Mode d'emploi Manual de instrucciones • Manuale • Uživatelská príručka Instrukcje obsługi • Užívatel'ská príručka • Vartotojo vadovas Handleiding

EN Please read the entire instruction manual carefully. Detailed manual is available on our website www.i-tec.cz/en/ in the tab „Manuals, drivers“. In case of any issues, please contact our technical support at: [e-mail]

Declaration of Conformity.... 38–39

FCC....40

QR code image containing encoded data, no visible human-readable text

INTRODUCTION

The HUB is an ideal companion for everybody who does not have enough USB ports in his/her notebook, ultrabook or PC and who has to constantly connect and disconnect his/her favorite USB equipment such as flash disks, mobile phones, tablets, digital cameras, MP3 players, printers, etc.

This HUB offers 13 USB 3.0 ports with the Plug & Play function and standard USB charging – the HUB will automatically detect connected equipment for USB charging. As this HUB is equipped with 13 USB 3.0 ports, it can charge up to 13 devices at a time. The USB 3.0 interface is especially important for data transfers from USB 3.0 memory cards and flash drives, where its high transfer rate is most used. In the packing is included also an external power adapter, which is essential for the HUB. The power adapter guarantees the USB charging stability and HUB performance.

This HUB does not require installation of drivers. You will just connect it by the USB cable to your computer and immediately you can start using it. This HUB has a built in overcurrent protection of your computer in case of short connection on the peripheries. The interface is compatible with USB 2.0 / 1.1.

INSTALLATION IN WINDOWS 7 / 8 / 8.1 / 10, MAC OS X 10.6 AND HIGHER, LINUX, CHROME OS

The HUB is installed automatically, no need install drivers. Connect the connector of the power adaptor to the HUB and connect the power adaptor to a socket outlet with 230V. Then plug the HUB via USB cable into available USB port (USB 3.0, 2.0 or 1.1 standard) of your notebook / PC and follow the on-screen instructions. The HUB will be installed and displayed in Device manager as “Generic USB Hub” and “Generic USB SuperSpeed Hub”.

1 2 3 4 5

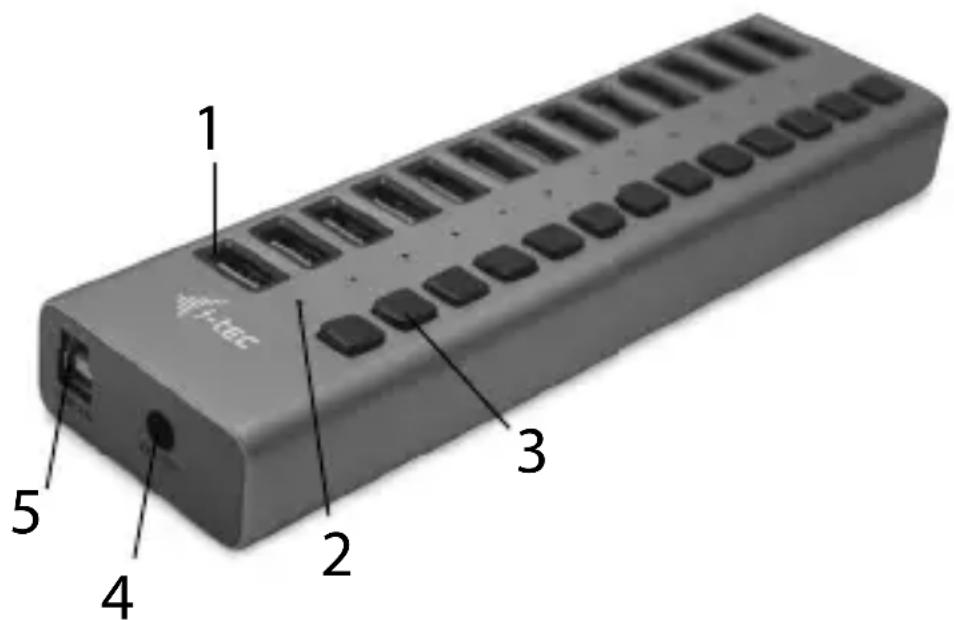

DESCRIPTION

1. 13x output USB 3.0 ports for connecting USB equipment
2. LED diode – Next to each USB 3.0 port is a LED which is illuminated by pressing the switch next to the given port and turns off after pressing the switch again when the HUB is powered.
3. USB port on/off switch - turns the port on/off.
4. Input for power adapter connection
5. USB 3.0 type A/B port

CHARGING

For proper function the HUB needs the power adapter which is included in the package. Observe the basic principles of safety when handling this power adapter (e.g. do not leave it in the reach of children, if the adapter is in the 230V mains, then do not put the plug in the water, etc.).

CHARGING

The HUB supports charging of the connected USB mobile equipment such as smartphones (including iPhone and Samsung phones), e-book readers, multi-media players, GPS navigators, and tablets (e.g., Asus, Toshiba, GoClever, Prestigio, Emgeton, Sencor). Using the original cable connect the equipment to be charged to the USB port of the HUB. At the same time the power adaptor needs to be connected to the HUB as well.

SYSTEM REQUIREMENTS

Windows 7 / 8 / 8.1 / 10, Mac OS X 10.6 or higher, Linux, Chrome OS

SPECIFICATION

• 13x USB 3.0 port for connecting USB equipment
- 1x USB 3.0 cable for connecting the HUB to a notebook / PC
• Transfer rate up to 5 Gbps
• USB charging detection mechanism for mobile devices
- Plug & Play function
• Overload and overcurrent protection
- LED diode
• Storage temperature -10\~85 °C
• Working temperature 0-50 °C
• Power adapter: input AC 100-240 V, 50-60 Hz, 1.5 A; output DC 12 V, 5 A
- OS Windows 7 / 8 / 8.1 / 10, Mac OS X 10.6 or higher, Linux, Chrome OS
• Product dimensions 187 x 53 x 23 mm
• Product weight 200 g

Quick Start / USB 3.0 Charging HUB 13 Port EN

PACKAGE CONTENTS

• i-tec USB 3.0 Charging HUB 13 port

• USB 3.0 data cable from A to B. (100 cm)

• Power adapter (DC cable 150 cm)

- Quick Start

SAFETY INSTRUCTIONS

- Do not expose to extreme temperatures and air humidity.

- Use the device on flat surfaces – you will prevent it from slipping and falling to the ground.

- Save the user manual for a possible use later.

In cooperation with the service department:

- Check functionality after falling to water or to the ground.

- Check functionality when the cover is broken.

- Send the device back if it does not work in accordance with the user manual.

FAQ

Available on our website www.i-tec.cz/en/ on the „FAQ“ tab of this product.

EINLEITUNG

INSTRUCTIONS DE SÛRETÉ

Quick Start / USB 3.0 Charging HUB 13 Port SK

Quick Start / USB 3.0 Charging HUB 13 Port NL

This equipment is marked with the above recycling symbol. It means that at the end of the life of the equipment you must dispose of it separately at an appropriate collection point and not place it in the normal domestic unsorted waste stream. This will benefit the environment for all. (European Union only)

DEUTSCH

i-tec USB 3.0 Charging HUB 13 Port + Power Adapter 60 W

Model, Modell, Modèle, Modelo, Model, Model, Model:

U3CHARGEHUB13

Determination, Bestimmung, la détermination, Determinación, Určení, Určenie, Opcje, Doel:

Product is determined for using in PC as equipment. Das Produkt ist für Austattung und als Zubehör von Computern bestimmt. Le produit est déterminé pour une utilisation sur PC comme équipement. El producto se determina para usar en PC como es Destinato per essere usato come attrezzatura informatica o come accessorio per computer. Výrobek je určen pro prístrojové vybavení a jako príslušenství do počítačů. Výrobok je určený pre prístrojové vybavenie a jako príslušenstvo do počítačov. Produkt jest przeznaczony do współpracy z komputerem jako akcesorium. Gaminys yra skirtas įrangai papildyti ir naudojamas kaip priedas kompiuteriams. Het product is bedoeld als uitrusting voor apparaten en als computeraccessoire.

Meets the essential requirements according to / Es entspricht den Anforderungen der Richtlinien / Répond aux exigences essentielles selon/ Cumple los requisitos esenciales según/ È conforme ai requisiti essenziali previsti dalle seguenti norme / Splňuje tyto požadavky / Splňa tieto požadavky / Spełnia następujace wymagania / Atitinka šiuos reikalavimus / Het voldoet aan de volgende vereisten:

EMC directive 2014/30/EU, RoHS directive 2011/65/EU:

EMI (For Radio parameters, Für Radioparamater, Pro Rádiové parametry, Pre Rádiové parametre, Dla parametrów Radiowych, Para parametros de radio, Radijo parametrams, Per i parametri della radio):

EN 55035:2017

This equipment has been tested and found to comply within the limits of a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
