USER MANUAL U3HUB448 i-TEC

USB 3.0 METAL CHARGING HUB

4X USB-A 3.0 Port

Exterior view of a silver USB hard drive connected to a black cable (no text or symbols visible)

User guide • Gebrauchsanweisung • Mode d'emploi Manual de instrucciones • Manuale • Uživatelská příručka Instrukcje obsługi • Užívatel'ská príručka • Vartotojo vadovas Handleiding • Användarhandbok • Guia do utilizador

EN Please read the entire instruction manual carefully. Detailed manual is available on our website www.i-tec.cz/en/ in the tab „Manuals, drivers“. In case of any issues, please contact our technical support at: [e-mail]

Declaration of Conformity.... 38–39

European Ecodesign Directive....40 -43

FCC....44

QR code image containing encoded data, no visible human-readable text

ENGLISH

INTRODUCTION

i-tec USB 3.0 Metal Charging HUB is an ideal companion for everybody who does not have enough USB ports in his/her notebook, ultrabook or PC and who has to constantly connect and disconnect his/her favorite USB equipment such as flash disks, mobile phones, tablets, digital cameras, MP3 players, printers, etc.

This HUB offers 4 USB 3.0 ports with the Plug & Play function and standard USB charging – the HUB will automatically detect connected equipment for USB charging. The USB 3.0 interface is important mainly for data transfers from USB 3.0 memory cards and flash disks which will use its high transfer speed most.

The advantage is included external power adapter which you can use for backing up data on external hard drives or for connecting high power consumption devices which are powered directly from the USB port.

This HUB does not require installation of drivers. You will just connect it by the USB cable to your computer and immediately you can start using it. This HUB has a built in overcurrent protection of your computer in case of short connection on the peripheries. The interface is compatible with USB 2.0 / 1.1.

Thanks to its compact dimensions and low weight it is an ideal companion to your notebook when traveling.

SPECIFICATION

• 4x USB 3.0 port for connecting USB equipment
• 1x USB 3.0 cable for connecting the HUB to a notebook / PC
• Transfer rate up to 5 Gbps
  • USB charging detection mechanism for mobile devices
• Plug & Play function
  • Overload and overcurrent protection
• LED diode
  • Storage temperature -10\~85 °C
• Working temperature 0–40 °C
• Power adapter: input AC 100–240 V, 50–60 Hz, 0.8 A; output DC 5.0 V, 2.0 A
• OS Windows 7 32/64bit, 8 32/64bit, 8.1 32/64bit, 10 32/64bit, macOS X 10.x or higher
  • Product dimensions 112 x 37 x 18 mm
• Product weight 70 g

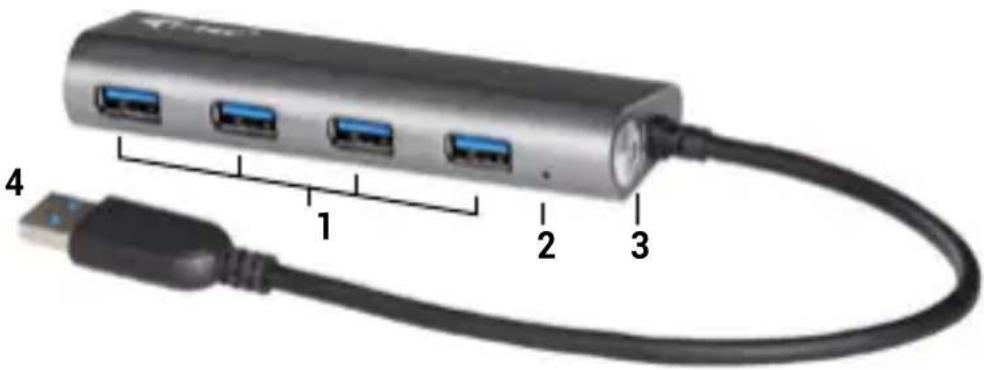

4 1 2 3

DESCRIPTION

1. 4x output USB 3.0 ports for connecting USB equipment
2. LED diode – the diode is ON when the HUB is connected to the power adaptor or to a USB port of a notebook / PC
3. Input for connecting the power adaptor
4. USB 3.0 cable type A for connecting to a notebook / PC

CHARGING

You can use external power adapter, if you connect printer, scanner or other high power consumption devices to USB ports in HUB (power adapter is included). Respect the basic rules while using this power adapter (for ex. do not let in reach of children, if the adapter is in 230 V circuit, do not put it into the water and so on).

CHARGING

The HUB supports charging of the connected USB mobile equipment such as smartphones (including iPhone and Samsung phones), e-book readers, multi-media players, GPS navigators, and tablets (e.g., Asus, Toshiba, GoClever, Prestigio, Emgeton, Sencor). Using the original cable connect the equipment to be charged to the USB port of the HUB. At the same time the power adaptor needs to be connected to the HUB as well.

INSTALLATION IN WINDOWS 7 / 8 / 8.1 / 10 AND HIGHER, MACOS X AND HIGHER

The HUB is installed automatically, no need install drivers. Connect the connector of the power adaptor to the HUB and connect the power adaptor to a socket outlet with 230V. Then plug the HUB via USB cable into available USB port (USB 3.0, 2.0 or 1.1 standard) of your notebook / PC and

follow the on-screen instructions. The HUB will be installed and displayed in Device manager as "Generic USB Hub" and "Generic USB SuperSpeed Hub".

SYSTEM REQUIREMENTS

Windows 7 32/64bit, Windows 8 32/64bit, Windows 8.1 32/64bit, Windows 10 32/64bit, macOS X 10.x or higher

PACKAGE CONTENTS

• i-tec USB 3.0 Metal Charging HUB 4 Port with built-in USB cable (28 cm)
  • Power adapter (DC cable 120 cm)
• Quick Start

SAFETY INSTRUCTIONS

• Do not expose to extreme temperatures and air humidity.
• Use the device on flat surfaces – you will prevent it from slipping and falling to the ground.
• Save the user manual for a possible use later.

In cooperation with the service department:

• Check functionality after falling to water or to the ground.
• Check functionality when the cover is broken.
• Send the device back if it does not work in accordance with the user manual.

External power supply exclusively for use with U3HUB448.

FAQ

available on our website www.i-tec.cz/en/ on the „FAQ“ tab of this product.

DEUTSCH

EINLEITUNG

INSTRUCTIONS DE SÛRETÉ

WITH EU WEEE DIRECTIVE

ENGLISH

This equipment is marked with the above recycling symbol. It means that at the end of the life of the equipment you must dispose of it separately at an appropriate collection point and not place it in the normal domestic unsorted waste stream. This wil benefit the environment for all. (European Union only)

DEUTSCH

We declare under our sole responsibility that the above named product is in conformity with the following European Union directives:

EN Amendment to user manual providing all necessary information required by COMMISSION REGULATION (EU) 2019/1782. (This product meets all the requirements laid down by the above regulation).

This equipment has been tested and found to comply within the limits of a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
