USER MANUAL SS-5045 Sogo

White SOGO blender with clear glass body and handle, no visible text or symbols on the device itself.

Caution: please read and preserve these important instructions

Please read these instructions fully before use and preserve them for future reference.

This manual can also be downloaded from our website www.sogo.es

ATTENTION

• Wrong operation and improper handling can cause problems with the appliance and injury to the user.
• The unit may be used only for the intended purposes. No liability is accepted for damages arising from improper use or faulty handling.
• Before connecting to the mains, please check whether the type of supply and the mains voltage match with the details given on the nameplate on the appliance.
• Do not immerse the appliance and mains plug in water or other fluids. Should the appliance still fall in water some time, pull out the power plug immediately and have the appliance checked by an expert before using it again. There is danger to life from electrical shock!
• Do not try to open the housing yourself! Do not introduce any kind of objects into the housing.
• Do not use the appliance with wet hands, on moist floor or when the ambience is humid.
• Do not hold the mains plug with wet or moist hands.
• Check the mains plug and mains adapter regularly for damages. In case of damages, have the power cord and mains plug changed by the manufacturer, or a qualified expert, in order to avoid danger.
• Do not operate the appliance, if power cable or

the mains plug shows damage or the unit falls to the floor or has been damaged otherwise. In such cases, bring the unit to the workshop for checking and repairs, if necessary.

- Do not ever try to repair the unit yourselves. There is danger from electrical shock!

- Do not let the power cord hang over sharp edges and keep it away from hot objects and open flames. Pull the plug itself to remove it from the plug socket.

- Installation of a spike protector will offer additional protection with a nominal trigger current of not more than 30 Ma in the house installation. Please consult your installing electrician.

- The cable as well any extension cable required should be laid such that there will not be any risk of anyone pulling it inadvertently or tripping over it.

- If a long extension cable is used, it must be suitable for the power supply in question. Otherwise it causes overheating of the cable and/or plug.

- Set the unit on a rigid, flat and heat-proof surface, not near open flames (such as gas oven) and operate it out of reach of children.

- This appliance is suitable neither for commercial use nor for use outdoors.

• Children cannot sense the dangers caused by improper handling of electrical devices.

- Do not, therefore, let children use household devices, except under supervision.

- Pull out the plug out of the socket, when the appliance is not in use and also before cleaning.

- Caution! The appliance is on power so long as it is connected to the power circuit.

• Switch off the unit before pulling out the mains plug.
• Use only spare parts from the manufacturer or his local dealer.
• Never carry the unit by its power cord.
• Do not remove individual housing components.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Cleaning and user maintenance shall not be made by children without supervision.
• Children should be supervised to ensure that they do not play with the appliance.
• If the supply cord is damaged, it must be replaced by manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Do not use this appliance with a programmer, counter, remote control or another device which can automatically turn it on because if the appliance is covered or incorrectly positioned there is a danger of fire or serious injury.
• The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
• Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.

• Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
- This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
• Children shall not play with the appliance.

CAUTION

Switch off the unit before clean it to avoid creepage and other dangers. When the plug or power cord have damage, do not use the unit, even not to disassembly by yourself, must be inform the after-service center to handle.

SPECIAL SECURITY PRECAUTIONS

• Caution: The blades of the jug are very sharp. There is a danger of injury! While the blades are turning, never touch the jug from the inside and never put any objects inside.
• Only use equipment endorsed by the manufacturer.
• Only use the unit with tightly closed cover and inserted closure.
• The unit is equipped with a security function. The unit can only be switched on if the jug is put on the engine base properly. If the unit cannot be switched on, pull the power cable and check the connection between jug and engine base.

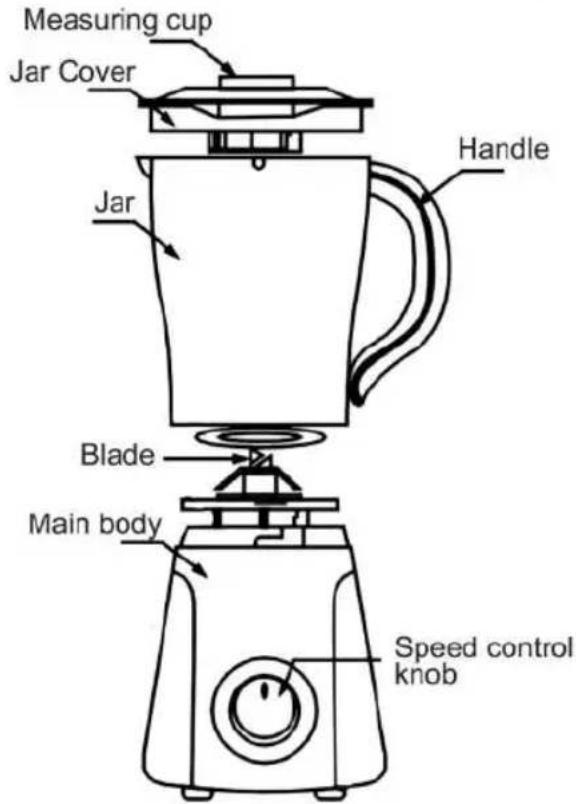

PARTS ITEM

Measuring cup Jar Cover Handle Jar Blade Main body Speed control knob

order to make sure the unit is turned off.
4. Fill the jug with the desired foods
5. Put the cover
Place the measuring cup on the center of cover, anticlockwise rock the measuring cup slightly.
6. Turning the knob to required speed(P—pluse,1—low speed,2—high speed)

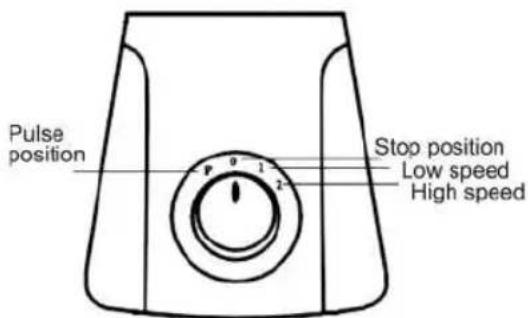

SPEED ADJUST

P—pulse -Stainless steel blade operate with transitorily highest speed, suitable for ice.

1—low speed - Stainless steel blade operate with low speed, suitable for elementary blending.

2—high speed - Stainless steel blade operate with high speed, suitable for symmetrical blending.

0—turn off the unit.

Pulse position Stop position Low speed High speed

CAUTION

1. Over-filled can block the operation, please turn off the unit and do not connect the plug, take out some of material, then operating.

2. Do not use unit continuous more than 2 minute

INSTALLATION

1. Clean the measuring cup, cover and jar(except main body)and so on before first using.

2. To make sure the unit is turned off and not to connect before installation.

3. First ring the jar sealed ring into blade base, then enclose the blade base into jar, last rock the jar slightly causing it to lock into place.

4. Put the jar base on the top of motor mainbody, please pay attention to match the position of jar and the bulge of the motor main body. Fill the jug with the desired foods. please ensure the water not spill over from cup.(Maximal water capacity can not exceed 1500 ml)DO NOT USE THE UNIT WITHOUT ANY MATERIAL INSIDE.

5. Put the cover on top of the jar and push it down. Insert the closure into the cover and turn till it locks into place.

6. Place the measuring cup on the center of cover, anticlockwise rock the measuring cup slightly.

OPERATION

1. Connect the power.

2. This unit have safety design, it do not working if the jar is not install on motor main body properly.

3. turn the turning knob */0/1/2 to position 0 in

CLEANING AND STORAGE

- In addition to this, you must refer to the security precautions.

- Do not clean Motor main body, power cord and plug with water.

- Clean the engine base with a soft, wet piece of cloth and some mild cleaning agent.

- Fill the jug half-full with hot water and a little cleaning agent. Let the unit run on speed 2 until the jug is clean.

- The base with the blades can be taken apart. Screw of the base counterclockwise. Take out the blades together with sealing ring facing upwards.

- Now clean jug, cover, closure, base and blades with sealing ring with hot water and some cleaning agent. Dry well before re-using. Caution! The blades inside of the jug are very sharp.

• Never use aggressive cleaning agents.

CAUTION

Do not to touch the sharp blade. When clean, please wipe by dishcloth, to avoid accidentally injure.

SPECIFICATION

Model: SS-5045

Voltage / Fregency: 220-240V\~ 50/60Hz

Power Consumption: 500W

Capacity: 1.5L

Continuous Operating Time: 2 Mins. Máx

NOTE

1. Unit suitable for household.
2. Do not use for commerce. Otherwise the maintain service will invalid.

WARRANTY

SOGO provides a 2 Year Warranty for this product from the date of purchase against defects due to defective materials or workmanship. Motor/element burn-outs due to voltage fluctuations are not covered under warranty. If the product should become defective within the warranty period, SOGO will repair or (at SOGO's discretion) replace it free of charge.

The warranty provisions do not cover failure due to accident, misuse, abuse, negligence or non observation of local regulations on the part of the user. Equally, the warranty provisions do not apply where the appliance has been serviced by a person not authorized by SOGO or serviced with non-approved parts and this has contributed to the fault of the product. Superseded models without a replacement equivalent will either be repaired or (at SOGO's discretion) replaced with another product of similar retail value.

UPON PURCHASE

Fill in the Warranty Registration Card with the original Authorised Dealer's stamp (indicating date of purchase) and attach your purchase receipt to it. Retain in case of claims in the future.

MAKING A CLAIM

Take your defective product together with the Warranty Registration Card & purchase receipt to your local service Centre. You can either do this in person or send it freight prepaid. If mailing or shipping your appliance, ensure and remove all the water and pack it carefully in a sturdy carton with enough packing material to prevent damage. Include a note describing the problem to the service Centre and be sure to give you return address

DECLARATION OF CONFORMITY

This device complies with Low Voltage Directive 2014/35/EC, Electromagnetic Compatibility Directive 2014/30/EU, Directive 2015/863/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

DÉCLARATION DE CONFORMITÉ

This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of waste electrical and electronic equipment (WEEE).

Imported by:

Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2 46002 Valencia, Spain Product made in P.R.C. – Designed by SOGO based on the European Quality Standards Customer Service: www.sogosat.com / [e-mail] / 0034 902 222 161
