USER MANUAL SS-5520 Sogo

NUTRI LIFE blender with visible fruit and chocolate, labeled SOGO (no text or symbols on the device itself)

BATIDORA - NUTRI LIFE BLENDER - NUTRI LIFE MÉLANGEUR - NUTRI LIFE LIQUIDIFICADOR - NUTRI LIFE MIXER - NUTRI LIFE MISCELATORE - NUTRI LIFE

1. Important Note P. 12

2. Symbol definition P. 12

3. Safety instructions for the user P. 12

I. General precautions during the use of electrical equipment P. 12
II. Restrictions on use to avoid personal injury P. 14
III. Product use restrictions due to poor condition or breakdown P. 14
IV. Restrictions on use when used with children and elders P. 15
V. IMPORTANT WARNING P. 16
VI. Instructions to follow when using the device P. 16

1. Technical specification P. 19
2. Parts description P. 19
3. Instructions for use P. 19
4. Cleaning and maintenance P. 20
5. Declaration of conformity P. 58
6. Responsibility for disposal, details of the manufacturer and after-sales service P. 59

ÍNDICE

Diagram of a mechanical component with numbered parts, likely a valve or pump assembly

Technical line drawing of a circular mechanical component with labeled section A (no text or symbols beyond label)

IMPORTANTE

• Always read the instruction book carefully before using.
- This manual can be downloaded from our web page www.sogo.es
- Keep these instructions for future reference.

1- Important information and useful hinds on use
2- Warning against dangerous situations in terms of life and property
3- Cautions while using electrical and electronic equipment.

3. Safety instructions for the user

1.

GENERAL PRECAUTIONS

General precautions during the use of electrical equipment

• Do not use the appliance for any other purpose than described in this manual.
• Do not use or store the appliance outdoors.
  • Always place the appliance on to the flat an even surface.
• This product is intended for indoor, non-industrial, non-commercial and only for household use. Do not use the item outdoors or for any other purpose. Misuse or improper handling may cause problems in the appliance and cause injury to the

user.

• The unit must be used only for the intended purposes. No liability is accepted for damages arising from improper use or wrong handling.
• Ensure that the voltage indicated on the name-plate matches the mains voltage before plugging in the appliance.
  • Always remove the plug from the power socket when the appliance is not in use. Do not leave the appliance unattended when switched on.
• Close supervision is necessary when any appliance is being used by or near children.
• Before cleaning or storing your appliance, always unplug the appliance from the power supply and let it cool down.
• The device is not completely disconnected from the power source, even after it has been turned off. To disconnect it completely, disconnect it from the mains plug.
• The appliances are not intended to be operated by means of an external timer or separate remote-control system.
• This appliance is intended to be used in household and similar applications such as
• Staff kitchen areas in shops, offices and other working environments;
• Farm houses and by clients in hotels, motels and other residential type environments;
• Bed and breakfast type environments;
• Catering and similar non-retail applications.

II. Restrictions on use to avoid personal injury

• Do not let the appliance operate unattended.
• Do not place or operate this appliance near water sources.
• Do not place or operate the appliance and its power cord on or near hot surfaces (e.g., stove plates) or open flames
• Do not leave the power cord hanging from sharp edges and keep away from hot objects and flames. Do not wind the cord around the appliance and do not bend it.
• Never use accessories that are not recommended by the manufacturer.
• The use of accessories not recommended or sold by the appliance manufacturer may result in fire, electric shock or injury to persons
• When you want to remove the plug from the wall contact, please do this at the plug itself and not by pulling on the cable or the appliance itself.
• To avoid electric shock, make sure your hands are dry before plugging or unplugging.
• Do not use the device with wet hands, on damp floors or when the atmosphere is humid, there i a risk of electric shock.
• While using the appliance, make sure that the power cord must not be caught or crushed.
• Do not let the motor unit, cord or plug get wet to protect against risk of electric shock.

III. ⚠️ Product use restrictions due to poor condition or breakdown

- Never immerse the appliance or the plug-

in water or any other liquid. In the event of the appliance falling in water, disconnect immediately from the mains supply and take it to an authorized service agent for repair before reusing.

• Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.
• Do not use the appliance if the cable or plug is damaged. In case of the cord be damaged, it must be replaced only by the manufacturer, its service agent or similarly qualified persons i order to avoid Hazard.
• In case of appliance malfunction, or if it has been damaged in any manner, return the appliance to the nearest authorized service facility for examination, repair or adjustment.
• In case of hardware problèmes, do not attempt to repair the product yourself. Repairs should only be carried out by qualified technicians

IV. ⚠️! Restrictions on use when used with children and elders

• The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
  • Children should be supervised to ensure that they do not play with the appliance.
• Keep the appliance and its cord out of the reach of the children.
• Appliances can be used by persons with reduced physical, sensory or mental capabilities or

lack of experience and knowledge if they have been given supervision or instructions concerning use of the appliance in a safe way and understand the hazards.

• Children shall not play with the appliance.
- Cleaning and user maintenance shall not be made by children without supervision.
- Do not allow the children to use the appliance.

V. IMPORTANT WARNING

• To avoid a circuit overload when using this product, do not operate another high-wattage product on the same electrical circuit.
• A short power supply cord is provided with this product. An extension cord is not recommended for use with this product, but if one must be used:
• The marked electrical rating of the cord must be at least as great as that of the product.
• Arrange the extension cord so that it does not hang where it can be tripped over or pulled unintentionally.
• Installation of a spike protector will offer additional protection with a nominal trigger current of not more than 30 Ma in the house installation. Please consult your installing electrician.

VI. ⚠️! Instructions to follow when using the appliance

• The appliance cannot be used for blending hard and dry substance, otherwise the blades might get blunt.
• The use of attachment, including Jar, lid, or

any another accessory not recommended or sold by manufacture may cause fire, electric shock or injury.

• Always disconnect the blender from the mains when it is left unattended and before assembling, disassembling or cleaning.
- Be careful if hot liquid is poured into the food processor or blender, as it can be ejected out of the appliance due to the sudden steaming.

- ⚠️ WARNING: The blades are very sharp!

- Avoid contacting moving parts of the appliance while in function.

- Turn off the appliance and disconnect from the mains supply before changing accessories or approaching movable parts in use.

- Care must be taken when handling the sharp blades, emptying the bowl and during cleaning.

- Do not connect the appliance to the mains until it is completely assembled and always disconnect the appliance before disassembling or handling the blade.

- Keep hands and utensils out of container while blending to reduce the risk of severe injury to persons or damage to the blender. A scraper may be used but must be used only when the blender is not running.

- To reduce the risk of injury, never place cutting blade on base without mounting with the jar properly.

- The unit is equipped with a security function. The unit can only be switched on if the jug

is put on the motor base properly. If the unit cannot be switched on, pull the power cable and check the connection between jug and engine base.

- Only use the unit with tightly closed cover and inserted closure.

CAUTION: Do not operate the unit when empty.

CAUTION: Do not put hot ingredients into the jar. Before food preparation, allow food to cool down for a few minutes.

CAUTION: Before you eat or serve blended food, please always check for ingredients that might have not been blended adequately.

CAUTION: Maximum time of food processing should not exceed 0.5 Minute of continuous use. All the functions and the Pulse function finish their working under 0.5 minute. In case your food which needs to be blended further to achieve the required smoothness, use the appliance with any present function or with intermediate speed with 10 second pauses to avoid permanent damage to the motor.

Caution! The device must always be set to 0 when connected to the mains.

CLEANING AND MAINTENANCE

Kindly refer to the cleaning and maintenance section for details on how to clean surfaces which comes in the contact of food.

4. TECHNICAL SPECIFICATIONS

Voltage Power Frequency		Continuous Operating Time
220-240V 1200W 50 – 60Hz		0.5 minute

5. PARTS DESCRIPTION

1. Blending cup
2. Cross blade
3. Blade base
4. Motor base
5. Grinding cup
6. Flat blade
7. Blade base
8. Flip-top lid
9. Storage lid
10. Touch-Pad control Panel
11. Fo ot

1 2 3 4 10 11

5 6 7 8 9

NOTE: Before using your appliance for the first me, clean all of the accessories (except for the motor base) in warm soapy water. Rinse and dry thoroughly.

USE

Caution: Make sure the motor base is unplugged from the power source.

6. INSTRUCTIONS FOR USE

INSTALLATION

1. Place the motor base on a firm, flat, level surface.
2. Fill the blending cup with your ingredients and connect with the cross blade for blending purpose. Alternatively, fill the grinding cup with your ingredients and connect with the flat blade for grinding purpose. Rotate the blade base on to the cup tightly in clockwise direction. Do not exceed the "MAX" level on the cup.
3. Rotate the cup into the motor base in clockwise direction. Make sure the cup is locked firmly.
4. Plug in the appliance.
5. Press "ON/OFF" button to turn on the unit. Press "LOW-HIGH" button once, the appliance starts working at low speed. Press it again, the appliance will work at high speed. If you want to use pulse function during operation, press "PULSE" button once to let the appliance stop first, and then press "PULSE" button again to run the appliance with full speed for 2 seconds. Repeat if needed.
6. After use, press "ON/OFF" button to turn off the appliance and then unplug it.

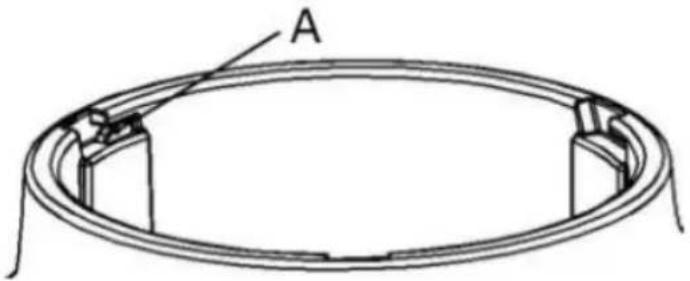

NOTE: This product is equipped with 1 safety switch (A) on the motor base. If the blade base is not assembled correctly, the safety switch will not be activated and the machine will not work when switched on. Do not use any tools to press the safety switch to avoid any damage.

Technical line drawing of a circular mechanical component with labeled section A (no text or symbols beyond label)

Important!

1. For blending purpose, please cut ingredients into pieces if the food is solid. Assemble the blade base with the cup tightly, otherwise it will leak.
2. Please make sure never to put any hard objects in the blender as they could damage the blade or the cup. Please remove all hard kernels from the fruit before blending.
3. The maximum weight of ingredients in the grinding cup cannot exceed 120g.
   After 0.5 minute continuously operation of the appliance for grinding, it is required to be stopped for 5 minutes to prevent overheating. After 5 cycles, let the appliance have a rest to cool down.
4. Pulse function can be used for ice crushing and for cleaning purpose. When crushing ice cubes, please remember to add some water into the cup.

CAUTION

1. Over-filled can block the operation, please turn off the unit and do not connect the plug, take out some of material, then operating.

2. Do not use unit continuous more than 0.5 minute.

7. CLEANING AND MAINTENANCE

1. In addition to this, you must refer to the security precautions.
2. Do not clean Motor main body, power cord and plug with water.
3. Clean the engine base with a soft, wet piece of cloth and some mild cleaning agent.
4. Fill the jug half-full with hot water and a little cleaning agent.
5. The base with the blades can be taken apart. Screw of the base counterclockwise. Take out the blades together with sealing ring facing upwards.
6. Now clean jug, cover, closure, base and blades with sealing ring with hot water and some cleaning agent. Dry well before re-using. Caution! The blades inside of the jug are very sharp.
7. Never use aggressive cleaning agents.

CAUTION

Do not to touch the sharp blade. When clean, please wipe by dishcloth, to avoid accidentally injure.

RECIPES

1. Green healthy smoothie

100 gr. Spinach

1 Avocado

2 bananas

300ml yoghurt

1. Add all the ingredients to the tall mixing cup and twist on the extractor blade.
2. Lock on and mix until smooth.

2. Strawberry Daiquiri

Ice

4oz daiquiri mix

2oz light rum

Handful of fresh or frozen strawberries

1. Fill the tall mixing cup and twist on the extractor blade.
2. Pour all the ingredients and blend until smooth.

3. Margarita

Ice

1 ½ oz tequila

1oz fresh lime juice

12 oz triple sec or Cointreau

1 tsp sugar

1. Fill the tall mixing cup and twist on the extractor blade.
2. Pour all the ingredients and blend until smooth.

4. Classic Milkshake

Splash of milk

Few scoops of vanilla ice cream

1. Add all the ingredients into the tall mixing cup and twist on the extractor blade.
2. Blend until smooth.
3. Add more milk if you want the milk shake to be thinner.
4. 6 create different flavors, add different ingredients to the classic recipe, for example chocolate syrup, blueberry, strawberry, banana, peanut butter into the appliance and blend until smooth.

1. IMPORTANT:

Technical line drawing of a circular mechanical component with labeled section A (no text or symbols beyond label)

Important!

Diagram of a mechanical component with numbered parts, likely for assembly or labeling purposes.

Technical line drawing of a circular mechanical component with labeled section A (no text or symbols beyond label)

Importante!

Technical line drawing of a circular mechanical component with labeled section A (no text or symbols beyond label)

Wichtig!

Technical line drawing of a circular mechanical component with labeled section A (no text or symbols beyond label)

Importante!

DECLARATION OF CONFORMITY

This device complies with EU Low Voltage Directive 2014/35/EC.

Electromagnetic Compatibility Directive 2014/30/EU. Directive 2015/863/EU on the restriction of the use of certain hazardous substances in electrical.

Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

This symbol on the product or on the packaging indicates that this product can't be disposed as normal rubbish or household waste. All the electrical, electronic equipment's and battery-operated units must recycle in proper manner and according to the local municipal laws. You can recycle them by taking them to government authorized disposal centres or specialized bins which you can find in any nearby big super markets, electronics or electro domestics products stores or malls who have these types of facilities available.

Designed by: SOGO based on European quality standards Imported by: Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2, 46002 Valencia, Spain Product manufactured in China, After-sales service: www.sogosat.com [e-mail] / 0034 902 222 161
