USER MANUAL SS-5150 Sogo

ES Instructions for use

FR Mode d'emploi

Red SOGO blender with black handle and transparent lid, no visible text or symbols on body

Descarga tu manual

Download your manual

Declaration of conformity, Responsibility of Electronic products disposal, Importers Details and After-sales service on the last pages.

Labeled diagram of a blender with numbered parts for identification

5. INSTRUCCIONES DE USO

• Always read the instruction book carefully before using.
- This manual can be downloaded from our web page www.sogo.es
- Keep these instructions for future reference.

2. Safety instructions for the user

General precautions during the use of electrical equipment

• Do not use the appliance for any other purpose than described in this manual.
• Do not use or store the appliance outdoors.
  • Always place the appliance on to the flat and even surface.
• The unit must be used only for the intended purposes. No liability is accepted for damages arising from improper use or wrong handling. Misuse or improper handling may cause problems in the appliance and cause injury to the user.
• This appliance is intended to be use used in household and similar applications.
• Ensure that the voltage indicated on the name-plate matches the mains voltage before plugging in the appliance.
  • Always remove the plug from the power socket when the appliance is not in use. Do not leave the appliance unattended when switched on.
• Close supervision is necessary when any appliance is being used by or near children.
• Before cleaning or storing your appliance, always unplug the appliance from the power supply and let it cool down.
• The device is not completely disconnected from the power source, even after it has been turned off. To disconnect it completely, disconnect it from the mains plug.
• The appliances are not intended to be operated by means of an external timer or separate remo-te-control system.

Restrictions on use to avoid personal injury

• Do not place or operate this appliance near water sources.
• Do not place or operate the appliance and its power cord on or near hot surfaces (e.g., stove plates) or open flames.
• Do not leave the power cord hanging from sharp edges and keep away from hot objects and flames. Do not wind the cord around the appliance and do not bend it.
• Never use accessories that are not recommended by the manufacturer.
• The use of accessories not recommended or sold by the appliance

manufacturer may result in fire, electric shock or injury to persons.
- When you want to remove the plug from the wall contact, please do this at the plug itself and not by pulling on the cable or the appliance itself.
- To avoid electric shock, make sure your hands are dry before plugging or unplugging.
- Do not use the device with wet hands, on damp floors or when the atmosphere is humid, there is a risk of electric shock.
- Never immerse the appliance or the plug-in water or any other liquid. In the event of the appliance falling in water, disconnect immediately from the mains supply and take it to an authorized service agent for repair before reusing.
- Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.
- Do not use the appliance if the cable or plug is damaged. In case of the cord be damaged, it must be replaced only by the manufacturer, its service agent or similarly qualified persons in order to avoid Hazard.
- In case of appliance malfunction, or if it has been damaged in any manner, return the appliance to the nearest authorized service facility for examination, repair or adjustment.

Restrictions on use when used with children and elders

• Children should be supervised to ensure that they do not play with the appliance.
• Keep the appliance and its cord out of the reach of the children.
  • Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• Do not allow the children to use the appliance.
• Appliances can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instructions concerning use of the appliance in a safe way and understand the hazards involved.

Instructions to follow when using the appliance

• The appliance cannot be used for blending hard and dry substance, otherwise the blades might get blunt.
  • Always disconnect the blender from the mains when it is left unattended and before assembling, disassembling or cleaning.
• Be careful if hot liquid is poured into the food processor or blender, as it can be ejected out of the appliance due to the sudden steaming.
• ⚠️ WARNING: The blades are very sharp!

• Avoid contacting moving parts of the appliance while in function.

• Turn off the appliance and disconnect from the mains supply before changing accessories or approaching movable parts in use.

• Care must be taken when handling the sharp blades, emptying the bowl and during cleaning.
• Do not connect the appliance to the mains until it is completely assembled and always disconnect the appliance before disassembling or handling the blade.
• Keep hands and utensils out of container while blending to reduce the risk of severe injury to persons or damage to the blender. A scraper may be used but must be used only when the blender is not running.
• To reduce the risk of injury, never place cutting blade on base without mounting with the jar properly.
• The unit is equipped with a security function. The unit can only be switched on if the jug is put on the motor base properly. If the unit cannot be switched on, pull the power cable and check the connection between jug and engine base.

CAUTION: Do not operate the unit when empty.

CAUTION: Do not put hot ingredients into the jar. Before food preparation, allow food to cool down for a few minutes.

CAUTION: Before you eat or serve blended food, please always check for ingredients that might have not been blended adequately.

CAUTION: Maximum time of food processing should not exceed 1 Minute of continuous use. The three Pre-set functions and the Pulse functions finish their working under 1 minute. In case your food which needs to be blended further to achieve the required smoothness, use the appliance with any present function or with intermediate speed with 10 second pauses to avoid permanent damage to the motor.

- To avoid a circuit overload when using this product, do not operate another high-wattage product on the same electrical circuit.

- A short power supply cord is provided with this product. An extension cord is not recommended for use with this product, but if one must be used:

- The marked electrical rating of the cord must be at least as great as that of the product.

- Arrange the extension cord so that it does not hang where it can be tripped over or pulled unintentionally.

- Installation of a spike protector will offer additional protection with a nominal trigger current of not more than 30 Ma in the house installation. Please consult your installing electrician.

CLEANING AND MAINTENANCE: Kindly refer to the cleaning and maintenance section for details on how to clean surfaces which comes in the contact of food.

3. TECHNICAL SPECIFICATIONS

Voltage Frequency Power
220-240V	50-60Hz	1800W

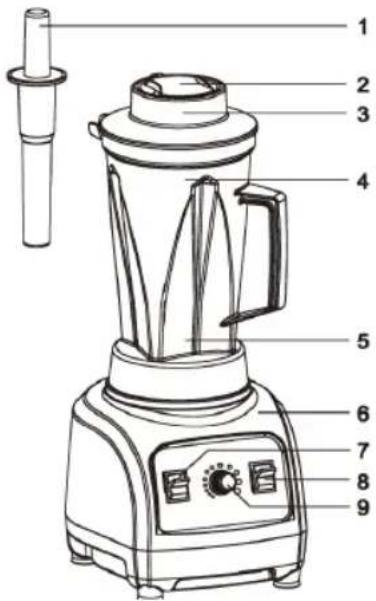

4. PARTS DESCRIPTION

1. Stirring bar
2. Measuring cup
3. Jar Lid
4. Jar
5. Blades
6. Body
7. On/Off switch
8. Pulse function button
9. Variable speed knob

Labeled diagram of a blender with numbered parts for identification

5. INSTRUCTIONS FOR USE

On/Off switch: With this button we can turn on and off the blender at any time.

Pulse switch: The pulse switch helps the blender to work at Max. power, while moving this switch to off position blender stop working.

Variable speed knob: This blender works with various speeds, so with the help of this knob, we can adjust the speed.

Before first use

1. Place the unit on to flat and stable surface, connect the power plug into the wall outlet.
2. Ensure that the appliance is in off position.
3. Clean the Jar, Measurement cup, lid and stirring bar.
4. Place the food into the jar. The food can be place in the following order. First soft food substances, followed by hard and finally liquid substances. Do not add the food more than Max, marking, always try to keep it below.
5. Place the lid on its position with measurement cup in its proper position. If need to stir the food during processing the food, remove the measurement cup and stir it with stirring bar.
6. Ensure to place the jar properly in its correct position, otherwise unit will not work.
7. Turn on the unit with the help of on / Off button, the speed can be adjusted with the help of speed knob. if the substances are hard and need to use max, power, then Pulse button can be use.
8. Make sure to turn off all the buttons and when the unit stops completely and blades stop moving then you can remove the lid and vacant the blending food with the help of some spatula.

Note:

1. Processing of normal food item can be done in 45 sec., but if needed to process the food more, its working time can be extended to 2 minutes.

2. Do not fill the jar more than Max. marking. In case if need to add anything in between processing period, do it by removing measurement cup.

3. While removing the jar from the appliance, make sure to hold the lid with other hand, to avoid food getting spilled.

4. When the unit is blocked or the food is hard to stir, then firstly use the Pulse button and blend if for 2-3 time and then you can use the stirring bar to stir the food.

Tips and Recommendations

1. Use the minimum speed while processing liquid food, other wise the liquid will spill out.
2. When the unit get blocked with the food, use Pulse speed button and then use the stirring bar, to stir the food.
3. Make sure to keep the food well below then Max. marking, while preparing Smoothies and Juices and add the liquid substance accordingly.

6. CLEANING AND MAINTENANCE

1. Unplug the appliance before cleaning.
2. Clean the appliance and accessories after every use.
3. Do not clean Motor main body, power cord and plug with water. Always clean with the help of soft and wet cloth.
4. Fill the jug half-full with hot water and a little cleaning agent. Let the unit run on low speed until the jug is clean.
5. If you find some food has been sticked to the blades, then it is recommended to disassemble the blade part and clean it cautiously.
6. Never use aggressive cleaning agents.

PORTANT:

Labeled diagram of a blender with numbered parts for identification

5. MODE D'EMPLOI

Labeled diagram of a blender with numbered parts for identification

Labeled diagram of a blender with numbered parts for identification

Labeled diagram of a blender with numbered parts for identification

5. ISTRUZIONI PER L'USO

Labeled diagram of a blender with numbered parts for identification

5. NÁVOD K POUŽITÍ

Labeled diagram of a blender with numbered parts for identification

5. INSTRUKTIONER TIL BRUG

Labeled diagram of a blender with numbered parts for identification

5. NAVODILA ZA UPORABO

Labeled diagram of a blender with numbered parts for identification

5. UPUTE ZA UPORABU

Labeled diagram of a blender with numbered parts for identification

5. INSTRUKCJA OBSŁUGI

Labeled diagram of a blender with numbered parts for identification

5. INSTRUCTIUNI DE UTILIZARE

Labeled diagram of a blender with numbered parts for identification

Labeled diagram of a blender with numbered parts for identification

5. INSTRUCCIONS D'ÚS

DÉCLARATION DE CONFORMITÉ

DECLARATION OF CONFORMITY

This device complies with EU Low Voltage Directive 2014/35/EC.

Electromagnetic Compatibility Directive 2014/30/EU. Directive 2015/863/EU on the restriction of the use of certain hazardous substances in electrical.

Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

This symbol on the product or on the packaging indicates that this product can't be disposed as normal rubbish or household waste. All the electrical, electronic equipment's and battery-operated units must recycle in proper manner and according to the local municipal laws. You can recycle them by taking them to government authorized disposal centres or specialized bins which you can find in any nearby big super markets, electronics or electro domestics products stores or malls who have these types of facilities available.

Designed by: SOGO based on European quality standards Imported by: Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2, 46002 Valencia, Spain Product manufactured in CHINA. After-sales service: www.sogosat.com [e-mail] / 0034 902 222 161
