USER MANUAL SS-8240 Sogo

EN Instructions for use

FR Mode d'emploi

QR code image containing encoded data, no visible human-readable text

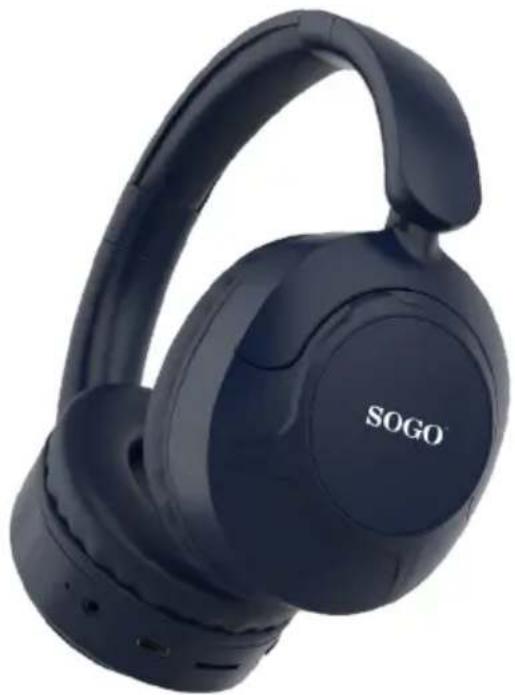

Blue SOGO headphones with black headband and logo (no visible text or symbols on device body)

QR code image containing encoded data, no visible human-readable text

Descarga tu manual

Download your manual

Declaration of conformity, Responsibility of Electronic products disposal, Importers Details and After-sales service on the last pages.

• Always read the instruction book carefully before using.
- This manual can be downloaded from our web page www.sogo.es
- Keep these instructions for future reference.

2. SAFETY INSTRUCTIONS FOR THE USER

I. Restrictions

• Never immerse the device or the charging cable-in water or any other liquid. In the event of the speaker falling in water take it to an authorized service agent for repair before reusing.
• Do not place or operate the device on or near hot surfaces (e.g., stove plates) or open flames.
• In case of hardware problems, do not attempt to repair the product yourself. Repairs should only be carried out by qualified technicians.
• Never use accessories that are not recommended by the manufacturer.
• The use of accessories not recommended or sold by the appliance manufacturer may result in fire, electric shock or irreparable damage to the product.
• Do not use the device for any other purpose than described in this manual.
• Do not leave the device charging longer than recommended by the manufacturer, as this may damage the battery or the device itself.
• Do not use the device while in charge, otherwise it may also damage the device.
• Do not drop, disassemble, deform, modify or insert any objects into this product as operating damage may result.
• Do not attempt to repair, modify or disassemble the product yourself. This product does not contain any user-serviceable components and may void the warranty.
• Do not clean the product with alcohol, ammonia-based cleaners and abrasive cleaners.
• Do not place this product in to contact with any sharp objects as this may cause scratches and operating damage.
• Do not attempt to replace the product battery, it is built-in and is not user changeable.
• Children should be supervised to ensure that they do not play with the appliance.
  • Cleaning and user maintenance shall not be made by children.

II. Precautions while using this device

• Headphones should be stored in a dry and ventilated environment to avoid contact with oil, steam, moisture, dust, etc to avoid affecting the product performance.
• Avoid using irritating organic solvents or items containing these ingredients to clean Headphones.
• Headphones should be used correctly and in a standardized manner as required and attention to the impact of the use, to the surrounding environment as well.
• To ensure smooth connection, the distance between the phone and Headphones should not be more than 10mts.
• If Headphones have other problems such as poor connection or communication, please do not disassemble its body and accessories without permission, otherwise the warranty will not be granted.
• Please choose a standard charger to charge the headphones.
• To ensure your normal use of headphones, please ensure that they are sufficient charged.
• Avoid exposure to extreme temperature, direct sunlight, moisture, sand, dust, or mechanical shock; never leave the products directly into the sun.
  • In case of lightning, immediately take off the headphones.
• You may not hear some warning sounds while wearing these headphones.
• Prolonged exposure to high sound levels may permanently damage your hearing.
  • Do not dispose of batteries in fire.
• CAUTION: To avoid possible hearing damage, do not listen at high volume for long periods of time. Please set the volume to a safe level and understand that the louder the volume is, the shorter safe listening time is.
• Do not turn up the volume so high that you cannot hear the ambient sound.
• You should temporarily renounce to use it in potentially hazardous situations (such as lightning, rain, extremely heat).
• Do not use headphones, while driving, or riding a bike.

Package Contents: The product contains the following contents. If any of the following items are missing, please contact us immediately.

Headphone unit: 1 pair, Type C charging cable, Instruction Manual and Warranty card.

3. TECHNICAL SPECIFICATIONS

Wireless connection 5.3
Wireless connection name SOGO SS-8240
Support Voice prompt Yes
Charging time 2-3 hrs
Use time 8-10 hrs
Standby time 300 hrs
Frequency 20Hz – 20KHz
BT connection range 10 Mtrs
Charging Port Type C
Charging cable type c included Yes
Sensitivity 110 +-3 dB
Battery capacity	400 mAh
Battery	Rechargeable lithium
Impedance	4 ohm
Rated power	5W*2
Input	Auxiliary cable
Function	ANC
Noise reduction effect	28 dB

This product complies with EU regulation 2023/826 under directive 2009/125/EC on the Eco design requirements.

Power consumption in off mode: 0.0W

Power consumption in standby mode: <0.5W

Time after which the product enters into off mode: 3 min.

4. INSTRUCTIONS FOR USE

BEFORE FIRST USE:

In order to have a good experience, please charge headphones fully before using them.

Note:

You must select a qualified charger from a regular manufacturer. (Charging Voltage: 5V Charging Current: 500mAh to 1A). A fully charged headphone will lose its power automatically if left unused. It is recommended to charge the headset every three months. Do no leave the headset in a too hot or too cold condition (best between - 10°C and 55°C) which may affect the headset's operations although it is fully charged. Do not dispose of the headphone into fire or water.

Note:

I. Please note, that these headphones are not waterproof, so pay more attention while using in moist atmosphere.
II. Support computer USB charging or you can charge it with the help of charging adaptor. Make sure that charging adaptor is good quality

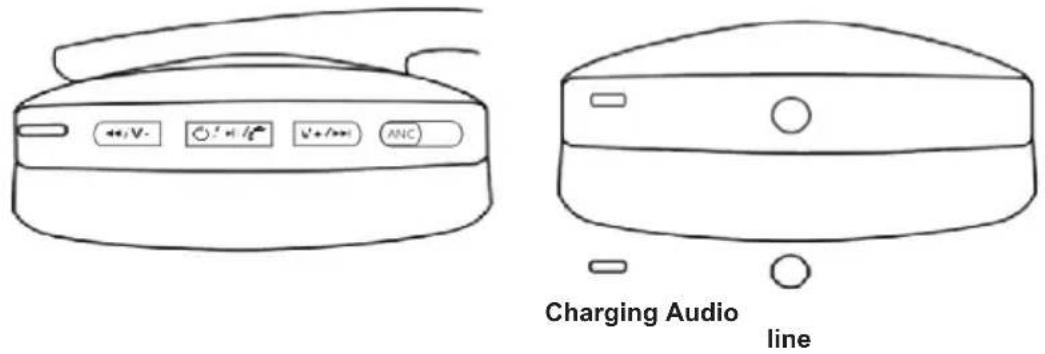

CONTROL PANEL

ANC Charging Audio line

/▶: Long press to turn on and off.

1. Short press to play and pause the music
2. In case of incoming calls short press to answer the call and long press to reject. To call back press this button.

V+ / ▶ Short press to move on the next song and long press to increase the volume.

V- / | Short press to move on the previous song and long press to decrease the volume.

ANC mode: Move ANC button to right hand to enter into ANC mode and move left to remove ANC mode. Green light remains on in the ANC mode and it goes off when remove this mode.

HOW TO CONNECT BLUETOOTH HEADPHONE TO DEVICE

Long press power button to turn on headphone. Headphone automatically enters into Bluetooth mode and indicator light flashes with green and red colour. Open the Bluetooth setting in your device and turn it on and look for Bluetooth name "SOGO SS-8240" in the list of Bluetooth devises available in your phone. Touch the Bluetooth name and wait for a while and your mobile device will be connected to the headphone and your headphone is ready to use.

Since your device is connected with headphone, so every time when you turn on the Bluetooth connection of headphone, your device will be connected automatically.

AUXILIARY CABLE INPUT

Insert the Auxiliary cable and long press VOL – Button and unit enters into Audio in mode and to exit the audio mode simply remove the auxiliary cable.

CHARGING INSTRUCIONS

Turn off the headphone and insert the type C charging cable in charging slot of the headphone. Connect another end into the UCB slot of computer and headphone will start charging. You can charge it with the help of charging adaptor (5V) as well. In order to charge it with charging adaptor connect other hand to the USB slot of adaptor and insert the adaptor to the wall outlet and your headphone will start charging. While in charge LED indicator light turns on, when the device charged fully, RED indicator light goes away.

Note: This headphone battery is provided with capacity detection and overload protection, which protect the battery and unit from over charging.

VIS IMPORTANT

←/V- ←/I- ←/I+ ANC Ricarica Linea audio

DÉCLARATION DE CONFORMITÉ

DECLARATION OF CONFORMITY

This device complies with EU RED Directive 2014/53/EU related to Health and Safety from usage of Radio spectrum in household electronic equipment.

Low Voltage Directive 2014/35/EC.

Electromagnetic Compatibility Directive 2014/30/EU. Directive 2015/863/EU on the restriction of the use of certain hazardous substances in electrical.

Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

This symbol on the product or on the packaging indicates that this product can't be disposed as normal rubbish or household waste. All the electrical, electronic equipment's and battery-operated units must recycle in proper manner and according to the local municipal laws. You can recycle them by taking them to government authorized disposal centres or specialized bins which you can find in any nearby big super markets, electronics or electro domestics products stores or malls who have these types of facilities available.

Designed by: SOGO based on European quality standards Imported by: Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2, 46002 Valencia, Spain Product manufactured in CHINA. After-sales service: www.sogosat.com [e-mail] / 0034 902 222 161
