USER MANUAL SS-3640 Sogo

White SOGO hair dryer with attached cable, no visible text or symbols on the device itself

QR code with a prohibition symbol below it, indicating no restrictions on water surface.

SECADOR DE PELO DE PARED WALL MOUNT HAIR DRYER SÈCHE-CHEVEUX MURAL SECADOR DE CABELO DE PAREDE WAND HAARTROCKNER ASCIUGACAPELLI A MURO

Prohibition sign showing a showerhead spraying over water, enclosed in a circle (no text or symbols)

PELIGRO

Technical diagram showing exploded and assembled views of a handheld device with numbered parts labeled 1 through 9.

Technical diagram illustrating a mechanical assembly with labeled parts and dimensions, including a 6mm diameter and a hammer-shaped tool.

Technical diagram showing two mechanical assembly steps: one with a tool inserted into a wall, the other with a curved component and directional arrow indicating motion (no text or symbols)

Technical illustration of a mechanical device with internal components and a close-up view showing a tool interacting with a component (no text or symbols present)

CÓMO UTILIZAR

This instruction manual can also be downloaded from our web page www.sogo.es

When using electrical appliance, especially when children are present, basic safety precautions should always be followed, including the following:

Safety Instructions:

1. This appliance is not intended for use by person (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of appliance by a person responsible for their safety.
2. Children should be supervised to ensure that they do not play with the appliance.
3. If the supply cord is damaged, it must be replaced by manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
4. WARNING: Do not use this appliance near water. Do not use this appliance near bathtubs, showers, basins or other vessels containing water.
5. When the hairdryer is used in a bathroom, unplug it after use since the proximity of water

presents a hazard even when the hairdryer is switched off:

For additional protection, the installation of a residual current device (RCD) having a rated residual operation current not exceeding 30mA is advisable in the electrical circuit supplying the bathroom. Ask your installer for advice.

1. This hair dryer if it can be fitted on the wall then it should be fitted away and out of reach of persons who are taking a bath or washing themselves

READ ALL INSTRUCTIONS BEFORE USING KEEP AWAY FROM WATER

Prohibition sign showing a showerhead spraying over water, enclosed in a circle (no text or symbols)

DANGER

As with most electrical appliances, electrical parts are electrically live even when the switch is off:

To reduce the risk of death by electrical shock:

1. Always "unplug it" immediately after using.
2. Do not use while bathing.
3. Do not place or store appliance where it can fall or be pulled into a tub or sink.
4. Do not place in or drop into water or other liquid.
5. If an appliance falls into water, “unplug it” immediately. Do not reach into the water.

WARNING

To reduce the risk of burns, electrocution, fire, or injury to persons:

1. This appliance should never be left unattended when plugged in.
2. Close supervision is necessary when this appliance is used by , on., or near children or invalids.
3. Use this appliance only for its intended use as described in this manual. Do not use attachments not recommended by the manufacturer.
4. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
5. Never operate this appliance if it has a damaged cord or plug, if it is not working property, or if it has been dropped, damaged, or dropped into water. Return the appliance to a service center for examination and repair.
6. Keep the cord away from heated surfaces. Do not wrap the cord around the appliance.
7. Never block the air openings of the appliance or place it on a soft surface, such as a bed or couch, where the air openings may be blocked. Keep the air openings free of lint, hair, and the like.
8. Never use while sleeping.
9. Never drop or insert any object into any opening or hose.
10. Do not use outdoors or operate where

aerosol (spray) products are being used or where oxygen is being administered.

1. Do not use an extension cord with this appliance.
2. Do not direct hot air toward eyes or other heat sensitive areas.
3. Attachments may be hot during use. Allow them to cool before handling.
4. Do not place appliance on any surface while it is operating.
5. While using the appliance, keep your hair away from the air inlets.
6. For additional protection the installation of a residual current device (RCD) with a rated residual operating current not exceeding 30 mA is advisable in the electrical circuit supplying the bathroom. Ask your installer for advice.
7. This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.
8. Keep the appliance and its cord out of reach of children aged less than 8 years.
9. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard

INSTRUCTIONS FOR USE

CAUTION

Please read these instructions fully before use and preserve them for future reference.

RATED PARAMETERS

Voltage/Frequency: 220-240V\~50/60 Hz

Power: 1400W

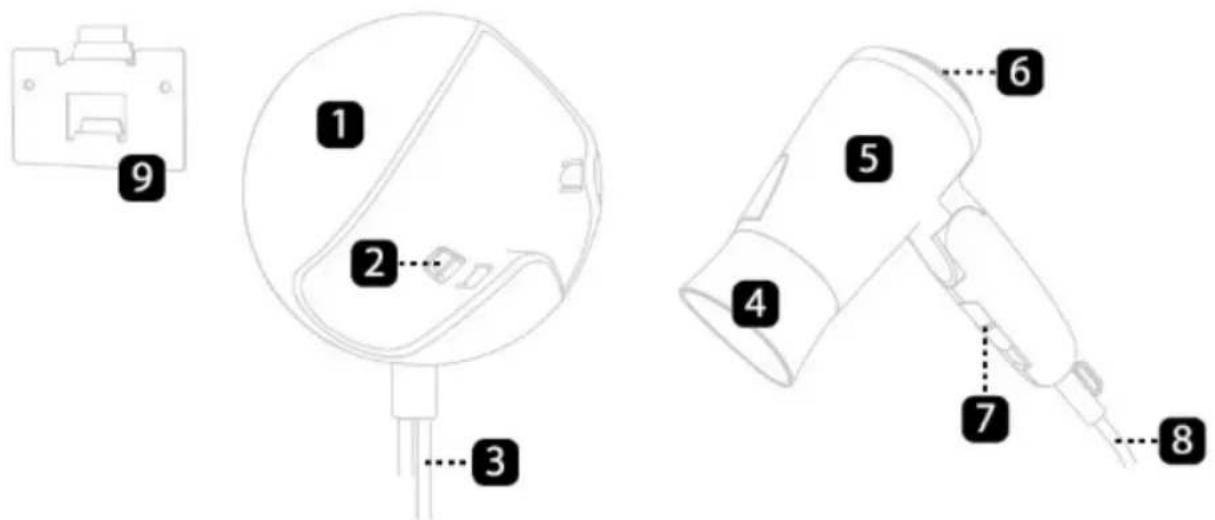

UNIT DESCRIPTION:

Technical diagram showing exploded and assembled views of a handheld device with numbered parts labeled 1 through 9.

1 Hair dryer stand
2 Power cutoff safety switch
3 Power cord
4 Concentrator
5 Plastic body
6 Air inlet
7 Power switch
8 Power cord
9 Bracket

HOW TO MOUNT ON THE WALL:

There are two ways of mounting it on the wall.

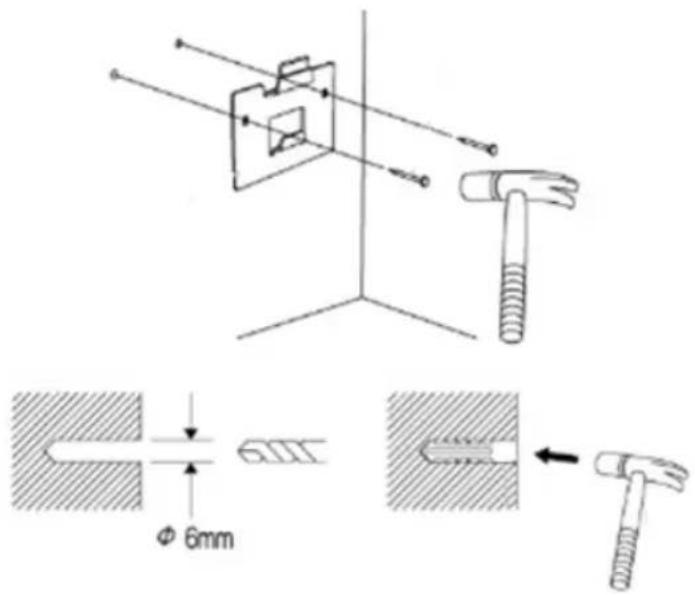

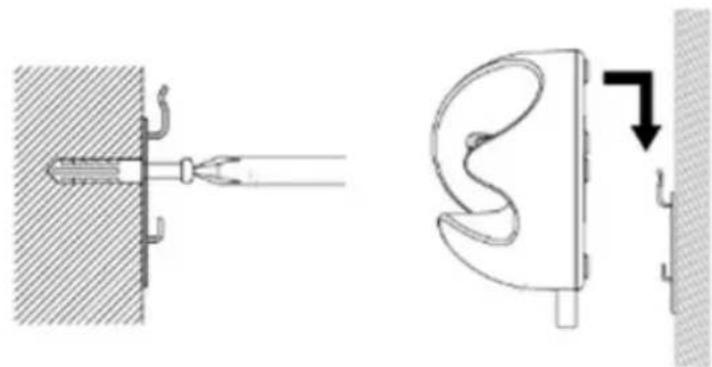

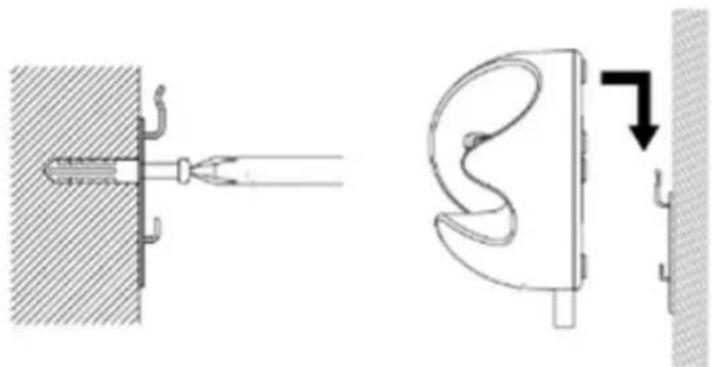

1) Use the bracket, fix it on the wall with the screw and hang the hair dryer unit on it.

Technical diagram illustrating a mechanical assembly with labeled parts and dimensions, including a 6mm diameter and a hammer-shaped tool.

Technical diagram showing two mechanical assembly steps: one with a tool inserted into a wall, the other with a curved component and directional arrow indicating motion (no text or symbols)

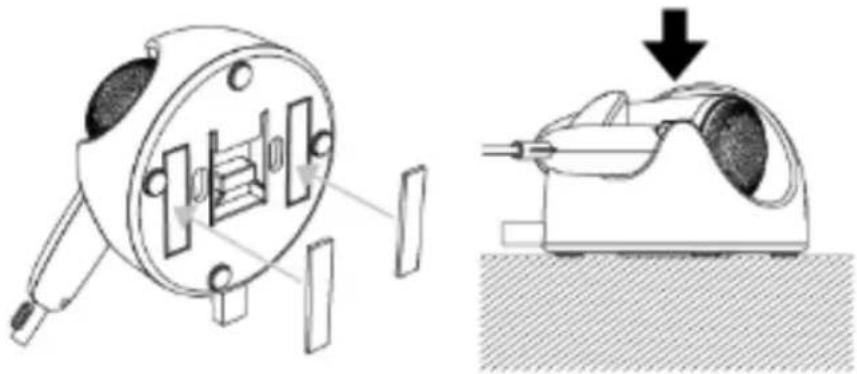

2) Use the double-sided tape to fix it on the wall.

Technical illustration of a mechanical device with internal components and a close-up view showing a tool interacting with a component (no text or symbols present)

HOW TO USE

• There is a single switch with three settings: 1) Cool: Blows cool air with full power 2) Low: Blows hot air with medium power 3) High: Blows hot air with full power
• It can also be folded if required.
• Spiral cable length 2m and Flat cable length 1.3m

USING FOR THE FIRST TIME

- Important: During the first minutes of using for the first time, you may note fumes and a slight smell. This is normal and need not cause concern.

OPERATION

1. Fully unwind the mains cable.
2. If required fit on a nozzle.
3. Adjust to the desired heat setting and blowing strength.
4. COOL-SHOT: by pressing this button it is possible to interrupt the heating process so that the air can be mixed according to individual requirements.

USER MAINTENANCE INSTRUCTIONS

This hair dryer maintenance is free, no consumption or lubrication is needed. Keep this appliance clean for proper operating. Never block or clog air intakes, otherwise overheated will be happen. The appliance has no user serviceable parts, any other servicing should be performed by an authorized service representative or a professional center. Never allow the supply cord to be twisted, pulled, bent, or wrapped around the dryer. If the cord is twisted, to untwist the cord before use. When not in use, this appliance should be stored in a safe, dry location, out of reach of children.

PRÉCAUTIONS DE SÉCURITÉ UTILISATEUR

Prohibition sign showing a showerhead spraying over water, enclosed in a circle (no text or symbols)

Diagram showing exploded view and exploded view of a hair dryer with numbered parts labeled 1 through 9.

Technical diagram illustrating a mechanical assembly with labeled parts and dimensions, including a 6mm diameter and a hammer-shaped tool.

Technical diagram showing two mechanical assembly steps: one with a tool inserted into a wall, the other with a curved component and directional arrow (no text or symbols)

Technical illustration of a mechanical device with internal components and a close-up view showing a magnified view (no text or symbols)

COMMENT UTILISER

Prohibition sign showing a showerhead falling over water with no text or symbols

1 2 3 4 5 6 7 8 9 10. On the head, on the head is left. 11. On the head, on the head is right.

Technical diagram illustrating a mechanical assembly with labeled parts and dimensions, including a 6mm diameter and a hammer-shaped tool.

Technical diagram showing two mechanical assembly steps: one with a tool inserted into a wall, the other with a curved component and directional arrow indicating motion (no text or symbols)

Technical illustration of a mechanical device with internal components and a close-up view showing a tool interacting with a component (no text or symbols present)

COMO USAR

Prohibition sign showing a showerhead falling over water with no text or symbols

Diagram showing exploded view and exploded view of a hair dryer with numbered parts labeled 1 through 9.

Technical diagram illustrating a mechanical assembly with labeled parts and dimensions, including a 6mm diameter and a hammer.

Technical diagram showing two mechanical assembly steps: one with a tool inserted into a wall, the other with a curved component and directional arrow indicating motion (no text or symbols)

Technical illustration of a mechanical device with internal components and a close-up view showing a tool interacting with a component (no text or symbols present)

WIE BENUTZT MAN

Prohibition sign showing a showerhead spraying over water, enclosed in a circle (no text or symbols)

Technical diagram illustrating a mechanical assembly with labeled parts and dimensions, including a 6mm diameter and a hammer-shaped tool.

Technical diagram showing two mechanical assembly steps: one with a tool inserted into a wall, the other with a curved component and directional arrow indicating motion (no text or symbols)

Technical illustration of a mechanical device with internal components and a close-up view showing a tool interacting with a component (no text or symbols present)

COME USARE

DECLARATION OF CONFORMITY

This device complies with Low Voltage Directive 2014/35/EC, Electromagnetic Compatibility Directive 2014/30/EU, Directive 2011/65/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

DÉCLARATION DE CONFORMITÉ

This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of waste electrical and electronic equipment (WEEE).

Imported by:

Sanysan Appliances S.L, NIF: B98753056,

C/ Barcas 2, 2

46002 Valencia, Spain

Product made in P.R.C. – Designed by

SOGO based on the European Quality

Standards

Customer Service: www.sogosat.com /

[e-mail] / 0034 902 222 161
