Product type	Hair clipper
Brand	Sogo
Model	SS-3480
Power supply	Rechargeable and corded (dual use)
Input voltage	100-240 V, 50-60 Hz
Battery voltage	3.7 V
Battery capacity	2000 mAh
Charging time	3 hours
Runtime	2.5 hours (150 minutes)
Charging connection	USB (5V/1A adapter not included)
Charging power	5 W
Blades	Metal blades, removable set
Combs included	4 combs (3, 6, 9, 13 mm) + hair comb
Adjustment lever	Yes, for variable close cut
Included accessories	Cleaning brush, oil bottle, blade guard, USB cable
Cordless use	Yes, after full charge
Corded use	Yes, while charging directly
Cleaning	Brush provided, do not immerse in water
Blade maintenance	Oil regularly with the provided oil
Standards	CE compliant, EMC directive 2014/30/EU, RoHS 2015/863/EU
Manufacturer	Sanysan Appliances S.L., Valencia, Spain
Origin	Made in China
After-sales service	www.sogosat.com / 0034 902 222 161

Frequently Asked Questions - SS-3480 Sogo

How to charge the SS-3480 clipper?

Before first use, charge the clipper for 3 to 5 hours. Plug the USB cable into the device and into a 5V/1A mains adapter (not included). Make sure the clipper is turned off during charging. The indicator light turns on, flashes when charging is almost complete, then turns off when fully charged.

Can I use the clipper while plugged into the mains?

Yes, the clipper is dual-use. If the battery is low, plug in the charging cable and use it in corded mode. Let the battery recharge for at least 1 minute before turning on the device if it is completely discharged.

How to change the blades of the clipper?

Turn off and unplug the device. Set the lever to the shortest cut. Remove the screws with a screwdriver, then take off the blades. To reassemble, align the lower blade with a gap of 0.5 to 1.0 mm between the front edges of the blades. Tighten the screws and oil the blades.

How to maintain the clipper?

Clean the blades with the provided brush after each use. Oil the metal blades regularly with the included oil. Never wash the clipper under running water and do not use harsh products.

What combs are provided with the clipper?

Four cutting combs (3 mm, 6 mm, 9 mm, 13 mm), a hair comb, as well as a brush, an oil bottle, a blade guard, and a USB cable.

How to adjust the cutting length?

Use the adjustment lever on the clipper to change the cutting closeness. In the high position, the cut is closest. For longer lengths, attach a comb of the desired size (3, 6, 9, or 13 mm).

Can the clipper be used in the shower or on wet hair?

No, the clipper is not waterproof. Do not use it in the shower, on wet hair, or with water. Risk of electric shock and damage to the device.

What to do if the clipper does not charge or does not work?

Check that the wall outlet works. Make sure the charging contacts and the USB cable are clean and free of hair. Check that the blades are mounted correctly and move freely. If the problem persists, contact after-sales service.

What is the battery runtime?

The runtime is approximately 2.5 hours (150 minutes) of continuous use after a full charge of 3 hours.

Can I use the clipper to cut animal hair?

No, this product is not suitable for animal hair. It is designed only for cutting human hair.

USER MANUAL SS-3480 Sogo

PROFESSIONAL HAIR CLIPPER

Caution: please read and preserve these important instructions. This manual can be downloaded from our website, www.sogo.es in the following languages: SPANISH, CATALAN, ENGLISH, FRENCH, PORTUGUESE, GERMAN, ITALIAN

INDEX

1. Important Note P. 13
2. Symbol definitions P. 13
3. Safety instructions for the user P. 13

I. General precautions during the use of electrical equipment P. 13 II. Restrictions on use to avoid personal injury P. 14 III. Product use restrictions due to poor condition or breakdown P. 15 IV. Restrictions on use when used with children and elders P. 16 V. IMPORTANT WARNING P. 17 VI. Instructions to follow while using the device P. 18

1. Technical specifications P. 19
2. Parts description P. 19
3. Instructions for use P. 19
4. Cleaning and maintenance P. 21
5. Declaration of conformity P. 62
6. Responsibility of disposal, details of the manufacturer and after-sales service P. 63

INDEX

• Always read the instruction book carefully before using. - This manual can be downloaded from our web page www.sogo.es - Keep these instructions for future reference.

2. Symbol definitions

1

2

3

GENERAL PRECAUTIONS

1- Important information and useful hints on use 2- Warning against dangerous situations in terms of life and property 3- Cautions while using electrical and electronic equipment.

3. Safety instructions for the user

GENERAL PRECAUTIONS General precautions during the use of electrical equipment

• Do not use the appliance for any other purpose than described in this manual.
• Do not use or store the appliance outdoors.
• Misuse or improper handling may cause problems in the appliance and cause injury to the user.
• The unit must be used only for the intended purposes. No liability is accepted for damages arising from improper use or wrong handling.
• Ensure that the voltage indicated on the nameplate matches the mains voltage before plugging in the appliance.
• Always remove the plug from the power socket when the appliance is not in use. Do not leave the appliance unattended when switched on.
• Close supervision is necessary when any appliance is being used by or near children.
• Before cleaning or storing your appliance, always unplug the appliance from the power supply.
• The device is not completely disconnected from the power source, even after it has been turned off. To disconnect it completely, disconnect it from the mains plug.
• Avoid spillage on the connector.

II. Restrictions on use to avoid personal injury

• Do not let the appliance operate unattended.
• Do not place or operate this appliance near water sources.
• Do not place or operate the appliance and its power cord on or near hot surfaces (e.g., stove plates).

or open flames.

• Do not leave the power cord hanging from sharp edges and keep away from hot objects and flames. Do not wind the cord around the appliance and do not bend it.
• Never use accessories that are not recommended by the manufacturer.
• The use of accessories not recommended or sold by the appliance manufacturer may result in fire, electric shock or injury to persons.
• When you want to remove the plug from the wall contact, please do this at the plug itself and not by pulling on the cable or the appliance itself.
• To avoid electric shock, make sure your hands are dry before plugging or unplugging.
• Do not use the device with wet hands, on damp floors or when the atmosphere is humid, there is a risk of electric shock.
• While using the appliance, make sure that the power cord must not be caught or crushed.
• Do not let the motor unit, cord or plug get wet to protect against risk of electric shock.

III. ▲Product use restrictions due to poor condition or breakdown

- Never immerse the appliance or the

plug-in water or any other liquid. In the event of the appliance falling in water, disconnect immediately from the mains supply and take it to an authorized service agent for repair before reusing.

• Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.
• Do not use the appliance if the cable or plug is damaged. In case of the cord be damaged, it must be replaced only by the manufacturer, its service agent or similarly qualified persons in order to avoid Hazard.
• In case of appliance malfunction, or if it has been damaged in any manner, return the appliance to the nearest authorized service facility for examination, repair or adjustment.
• In case of hardware problems, do not attempt to repair the product yourself. Repairs should only be carried out by qualified technicians.

IV. Restrictions on use when used with children and elders

• Children should be supervised to ensure that they do not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. • Children shall not play with the

appliance.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Keep the appliance and its cord out of reach of children.
• The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.

V. IMPORTANT WARNING

• To avoid a circuit overload when using this product, do not operate another high-wattage product on the same electrical circuit.
• A short power supply cord is provided with this product. An extension cord is not recommended for use with this product, but if one must be used:
• The marked electrical rating of the cord must be at least as great as that of the product.
• Arrange the extension cord so that it does not hang where it can be tripped over or pulled unintentionally.

VI. Instructions to follow while using the device

• If the blade is deformed or damaged, please do not use it again, or it may cause skin irritation.
• The blade has fixed life. In order to obtain best result, we recommend you to replace the blade regularly.
• Please do not charge at a place with a temperature lower than 0°C (32°F), in direct sunlight, or near a heat or humid source.
• Please use the matching power line.
• Please dry the hair trimmer before charging.
• Store in a dry place to avoid damage.
• Do not pull, twist, or bend the power cable.
• Do not trim in the shower.
• The hair trimmer cannot be cleaned with water or other liquids; this product is not waterproof. • This product is not suitable for animal hair or other purposes.

CLEANING AND MAINTENANCE

Kindly refer to the cleaning and maintenance section for details on how to clean surfaces that come into contact with food.

4. Technical specifications

Battery voltage: 3.7V

Battery capacity: 2000 mAh

Battery charging time: 3 h

Operating time: 2.5 h

USB connection with adapter: 5V - 1000mA

Charging power: 5 W

Voltage: 100-240V

Frequency: 50-60Hz

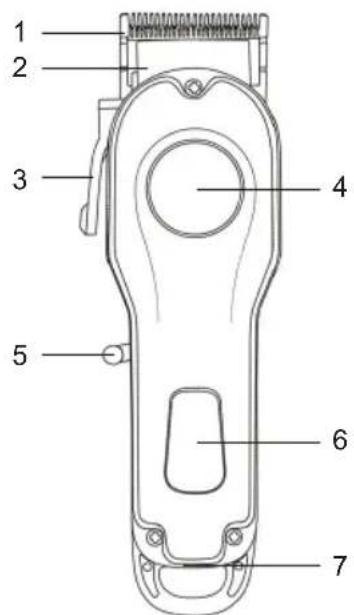

5. PARTS DESCRIPTION

1. Metal hair clipper blade
2. Blade protector
3. Adjusting lever
4. Brand indicator light
5. On/Off button
6. Charging indicator light
7. Charging point
8. Charging cable
9. Cleaning brush
10. Hair comb
11. Oil bottle
12. Comb 3mm
13. Comb 6mm
14. Comb 9mm
15. Comb 13mm

6. INSTRUCTIONS FOR USE

BEFORE FIRST USE

Before using the hair clipper for the first time, it should be charged for 3-5 hours. Insert the charging cord into the unit. Make sure that the clipper is switched OFF when charging. During charging, the charging indicator screen illuminates. When the hair clipper is almost charged, the charging indicator starts to blink, and once fully charged, the screen turns off.

ATTACHMENTS

This hair clipper has been provided with 4 size clipper combs, 1 hair comb, 1 oil bottle to grease, 1 cleaning brush, 1 protector, and charging cable. To attach the combs, hold the comb with teeth upside and push the bottom side of the comb to the bottom of the clipper blade. (Fig. 3) For uniform and swift cutting, allow the clipper to cut hairs in the hair's growing direction. Do not try to do it in the opposite direction as it can hurt and cause injuries.

ADJUSTMENT LEVER

This hair clipper model is equipped with an adjustment lever. This lever helps to change the blade setting according to the need. With the help of this lever, we can change the closeness of the haircut. When the lever is in the uppermost position, it gives the closest cuts.

DUAL USE

This unit can be used as a corded hair clipper and also as a cordless clipper.

When the unit is fully charged, it can be used as a cordless clipper. If the battery power is low, you can use it by connecting the charging cord.

Note: When the battery is fully charged, the hair clipper can be used for up to 150 minutes of continuous running time. It takes 3 hours to reach a full charge with a discharged battery.

Recommendation: The hair clipper should only be recharged when the performance of the equipment has deteriorated noticeably.

Remember while charging, make sure:

• Plug the power cord into a wall outlet with the same voltage as the product voltage.
• Connect the power cord directly into the unit and make sure the clipper is switched OFF when charging.
• Keep the hair clipper charging while leaving the power cord attached.

NOTE: Do not use adapters higher than 5V. Otherwise, the adapter will be damaged (adapter is not included) and the circuit board inside it will be damaged!

For corded operation

1. Connect the charging cord to the receptacle on the bottom of the unit. If the battery has been drained out completely, allow the unit to charge for 1 minute (in the switched OFF position) before using as a corded unit.
2. Once the hair clipper gets charged for at least 1-2 minutes, turn on the appliance with the help of the On/Off button and use it as a corded hair clipper.

For cordless operation

1. Make sure the battery is fully charged.
2. Do the adjustment with the help of the adjustment lever as per requirement and need.
3. Turn it on with the help of the On/Off button and use it freely.

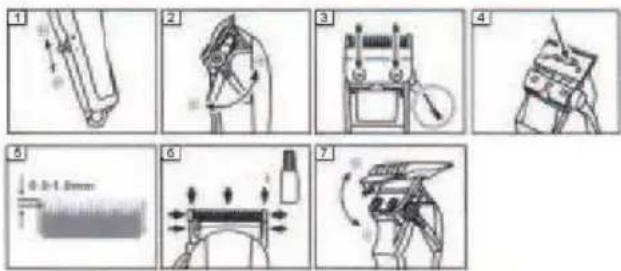

HOW TO CHANGE THE BLADE SET

Warning! Injuries and material damage due to incorrect handling.

Switch the appliance off and disconnect it from the power supply before changing the blade set. The blades can be removed for cleaning or replacement purposes.

1. Switch the appliance off using the on/off switch (Fig. 1) and disconnect from the power supply.
2. Set the adjustment lever to the shortest cutting length (Fig. 2).
3. Remove the screws on the blade set with the help of a screwdriver; remove the bottom blade and the top blade (Fig. 3).
4. When assembling, the bottom blade and the top blade should be aligned as shown in the picture below. Place the top blade on the plastic cam, position the bottom blade, and reinsert the two screws. (Fig. 4)
5. Before tightening the screws, align the bottom blade (A) so that there is a gap of 0.5 mm to 1.0 mm between the front edge of the bottom blade and the front edge of the top blade (Fig. 5).
6. Tighten up the screws.
7. Once the blades have been mounted, grease the blades with oil from the oil bottle provided with this hair clipper. (Fig. 6)
8. Place the cutting comb on the metal blade and your hair clipper is ready for use. (Fig. 7)

Note: Do not remove the cutter head unless you are a technician. Note: WARNING! INJURIES DUE TO INCORRECT HANDLING

Do not use the appliance if the teeth are damaged or missing from the blade, and if blades are misaligned, it can cause injuries to the user.

7. CLEANING AND MAINTENANCE

Cutter Cleaning and Maintenance

Taper Blade Cleaning

To make full use of your hair clipper, keep the blades always clean from the hairs.

Clear up the blade with a cleaning brush and remove all the hair and other dust particles.

Taper Blade Maintenance

Before or after use, maintain the blade by lubricating some oil on the metal blades.

Do not wash it directly under running water; it can damage the hair clipper.

Do not clean it by using harsh and abrasive cleaning agents.

TROUBLESHOOTING

If your cordless clipper does not seem to be operating or charging properly, please check the following:

• Check that the wall outlet is working properly by plugging another appliance into the outlet.
• Make sure the unit is not connected to a power source that turns itself off when lights are turned off or has a timer.
• Make sure the clipper and charging cable contacts are clean and free of hair particles.
• Verify that the blade assembly is mounted properly and moves freely.

Disposal of electronic goods

DISPOSAL OF BATTERY-OPERATED UNITS

Do not dispose of battery-operated units as normal rubbish; always recycle them in a proper manner and according to local municipal laws. You can recycle them by taking them to government-authorized disposal centers or specialized bins, which you can find in any nearby large supermarkets, electronics or electro-domestic products stores, or malls that have these types of facilities available.

1. IMPORTANT:

DECLARATION OF CONFORMITY

This device complies with Electromagnetic Compatibility Directive 2014/30/EU and Directive 2015/863/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

DECLARATION OF CONFORMITY

This symbol on the product or on the packaging indicates that this product cannot be disposed of as normal rubbish or household waste. All electrical and electronic equipment and battery-operated units must be recycled in a proper manner and according to local municipal laws. You can recycle them by taking them to government-authorized disposal centers or specialized bins, which you can find in any nearby large supermarkets, electronics or electro-domestic products stores, or malls that have these types of facilities available.

Designed by: SOGO based on European quality standards Imported by: Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2, 46002 Valencia, Spain Product manufactured in CHINA. After-sales service: www.sogosat.com [e-mail] / 0034 902 222 161
