SS-3656 - Tumble dryer Sogo - Free user manual and instructions

Product Type	Hair Dryer
Brand	Sogo
Model	SS-3656
Power Supply	220-240 V~, 50-60 Hz
Power	1800-2200 W
Airflow Settings	2 levels: low and high
Temperature Settings	3 levels: low, medium, high
Cool Air Function	Cool Air Shot (cold air blast)
Ionic Technology	Yes, emits negative ions
Coating	Tourmaline and nano-silver ceramic
Included Accessories	Concentrator nozzle, diffuser, hanging hook
Safety System	Automatic safety shut-off in case of overheating
Maintenance	Regular cleaning of removable filter; no lubrication
Main Material	Plastic with tourmaline coating

Frequently Asked Questions - SS-3656 Sogo

How to use the Sogo SS-3656 hair dryer?

Plug in the device, use switch B (part E) to adjust airflow (low or high) and switch A (part D) to select temperature (low, medium, high). Press the Cool Air Shot button for cold air.

What to do if the hair dryer stops suddenly?

This is normal: the safety shut-off system has activated due to overheating. Unplug the device, let it cool down for a few minutes, then plug it back in.

How to clean the hair dryer filter?

Remove the removable air intake cover (part B) and clean it regularly to prevent overheating. No lubricant or cleaning liquid is necessary.

Can I use the hair dryer in the bathroom?

The device should not be used near a bathtub, shower, or water source. Unplug it after use if used in a bathroom. A 30 mA RCD device is recommended.

What accessories are included with this model?

The hair dryer comes with a concentrator nozzle (A), a diffuser (G), and a hanging hook (F).

How does the ionic technology work?

The hair dryer emits negative ions that break down water molecules for faster, gentler drying, reducing frizz and adding shine and softness.

How to use the diffuser for curls?

Attach the diffuser, use low airflow and medium temperature. Direct air to the roots for volume and to the ends to define curls. The diffuser can get hot, let it cool down before touching.

What does the tourmaline coating mean?

Tourmaline is a mineral that emits negative ions to smooth hair, seal in moisture, and reduce frizz. It helps achieve shiny, healthy hair.

Can I use an extension cord with this hair dryer?

It is not recommended to use an extension cord. If necessary, use one with a power rating at least equal to the device (1800-2200 W) and arrange it to avoid any risk of tripping.

How to use the Cool Air Shot button?

Press the Cool Air Shot button (C) during drying to release cold air. Use it after drying a section of hair to set curls or style.

USER MANUAL SS-3656 Sogo

HAIR DRYER

HAIR DRYER

HAIR DRYER

HAIR DRYER

HAIR DRYER

HAIR DRYER

Caution: please read and preserve these important instructions

INDEX

1. Important Note P. 13
2. Symbol definitions P. 13
3. Safety instructions for the user P. 13 I. General precautions during the use of electrical equipment P. 13-14 II. Restrictions on use to avoid personal injury P. 14-15 III. Product use restrictions due to poor condition or breakdown P. 15 IV. Restrictions on use when used with children and elders P. 16 V. IMPORTANT WARNING P. 16-17 VI. Instructions to follow when using the device P. 17-18
4. Technical specifications P. 19
5. Parts description P. 19
6. Instructions for use P. 19-20
7. Cleaning and maintenance P. 20
8. Declaration of conformity P. 58
9. Responsibility for disposal, details of the manufacturer and after-sales service P. 60

INDEX

• Cool shot function button, to give your hair more shine and smoothness, and to keep it in style for a longer period of time.
• Works with the best hair drying technology including Ionic technology, which is best for thicker, dry and frizzy hair. On the other hand, Tourmaline coating helps to soften dry and thick hair by sealing in moisture from the air.
• Works with Nano Silver Tourmaline Ceramic technology, which unites micro particles of ceramic and silver with a unique combination of benefits, to give you smooth, shiny and healthy hair.
• Included concentrator and diffuser, to dry different kinds of hair with ease and just by changing the accessories.
• Detachable filter cover to clean regularly and make full use of the hair dryer.
• Hanging up hook, to hang anywhere, to save space and keep away from children's reach.
• This hair dryer has inbuilt heat sensors responsible for safety cut-off function to avoid appliance damage and ensure user security.

FRA:

6. INSTRUCTIONS FOR USE

• Always read the instruction book carefully before using. - This manual can be downloaded from our web page www.sogo.es - Keep these instructions for future reference.

2. Symbol definitions

1

GENERAL PRECAUTIONS

1. Important information and useful hints on use. 2. Warning against dangerous situations in terms of life and property. 3. Cautions while using electrical and electronic equipment.

3. Safety instructions for the user

1.

GENERAL PRECAUTIONS

General precautions during the use of electrical equipment

• Do not use the appliance for any other purpose than described in this manual.
• Do not use or store the appliance outdoors.
• Misuse or improper handling may cause problems in the appliance and cause injury to the user.
• The unit must be used only for the intended purposes. No liability is accepted for damages arising from improper use or wrong handling.
• Ensure that the voltage indicated on the nameplate matches the mains voltage before

plugging in the appliance.

• Always remove the plug from the power socket when the appliance is not in use. Do not leave the appliance unattended when switched on. - Close supervision is necessary when any appliance is being used by or near children. - Before cleaning or storing your appliance, always unplug the appliance from the power supply. - The device is not completely disconnected from the power source, even after it has been turned off. To disconnect it completely, disconnect it from the mains plug.

Restrictions on use to avoid personal injury

- Do not let the appliance operate unattended.

- Do not place or operate this appliance near water sources.

- Do not place or operate the appliance and its power cord on or near hot surfaces (e.g., stove plates) or open flames.

- Do not leave the power cord hanging from sharp edges and keep away from hot objects and flames. Do not wind the cord around the appliance and do not bend it.

- Never use accessories that are not recommended by the manufacturer.

- The use of accessories not recommended or sold by the appliance manufacturer may result in fire, electric shock or injury to persons.

- When you want to remove the plug from the wall contact, please do this at the plug itself and not by pulling on the cable or the appliance itself.

• To avoid electric shock, make sure your hands are dry before plugging or unplugging. - Do not use the device with wet hands, on damp floors or when the atmosphere is humid, there is a risk of electric shock. - While using the appliance, make sure that the power cord must not be caught or crushed. - Do not let the motor unit, cord or plug get wet to protect against risk of electric shock.

Product use restrictions due to poor condition or breakdown

• Never immerse the appliance or the plug in water or any other liquid. In the event of the appliance falling in water, disconnect immediately from the mains supply and take it to an authorized service agent for repair before reusing.
• Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.
• Do not use the appliance if the cable or plug is damaged. In case of the cord being damaged, it must be replaced only by the manufacturer, its service agent or similarly qualified persons in order to avoid hazard.
• In case of appliance malfunction, or if it has been damaged in any manner, return the appliance to the nearest authorized service facility for examination, repair or adjustment.
• In case of hardware problems, do not attempt to repair the product yourself. Repairs should only be carried out by qualified technicians.

IV. Restrictions on use when used with children and elders

• Children should be supervised to ensure that they do not play with the appliance. - Cleaning and user maintenance shall not be made by children without supervision. - Children shall not play with the appliance. - This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. - Keep the appliance and its cord out of reach of children less than 8 years. - The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.

V. ⚠️ IMPORTANT WARNING

• To avoid a circuit overload when using this product, do not operate another high-wattage product on the same electrical circuit.
• A short power supply cord is provided with this product. An extension cord is not recommended for use with this product, but if one must be used:
• The marked electrical rating of the cord must be at least as great as that of the product.
• Arrange the extension cord so that it does

not hang where it can be tripped over or pulled unintentionally.

VI. ⚠️! Instructions to follow when using the device

• This appliance works with high temperature, therefore during the use always hold it by the handle and use extreme caution.
• Do not use the dryer inside a bathroom, shower, sauna, etc.
• Never use hairspray with the dryer on ionization.
• Keep away the small objects or mini particles away from the dryer, to prevent to be sucked in through the protection grid.
• Do not leave the device exposed to the weather (rain, sun, frost...)
• Do not use while bathing.
• Do not place or store appliance where it can fall or be pulled into a tub or sink.
• Do not place in or drop into water or other liquid.
• If an appliance falls into water, unplug it immediately. Do not reach into the water.
• Never block the air openings of the appliance or place it on a soft surface, such as a bed or couch, where the air openings may be blocked. Keep the air openings free of lint, hair, and the like.
• Never use while sleeping.
• Never drop or insert any object into any opening or hose.
• Do not use outdoors or operate where aerosol (spray) products are being used or where oxygen is being administered.
• Do not direct hot air toward eyes or other heat sensitive areas.
• Attachments may be hot during use. Allow them to cool before handling.
• Do not place appliance on any surface while it is operating.
• While using the appliance, keep your hair away from the air inlets.
• This hair dryer, if it can be fitted on the wall, should be fitted away and out of reach of persons who are taking a bath or washing themselves.
• When the hairdryer is used in a bathroom, unplug it after use since the proximity of water presents a hazard even when the hairdryer is switched off. For additional protection, the installation of a residual current device (RCD) having a rated residual operation current not exceeding 30mA is advisable in the electrical circuit supplying the bathroom. Ask your installer for advice.
• Danger! Risk of electrocution! Make sure that no objects such as hair clips or hair pins are inserted into the appliance. These can cause a short circuit.
• WARNING: Do not use this appliance near water. Do not use this appliance near bathtubs, showers, basins or other vessels containing water.

READ ALL INSTRUCTIONS BEFORE USING

KEEP AWAY FROM WATER

4. TECHNICAL SPECIFICATIONS

Voltage Power Frequency
220-240V~ 1800-2200 50 – 60Hz

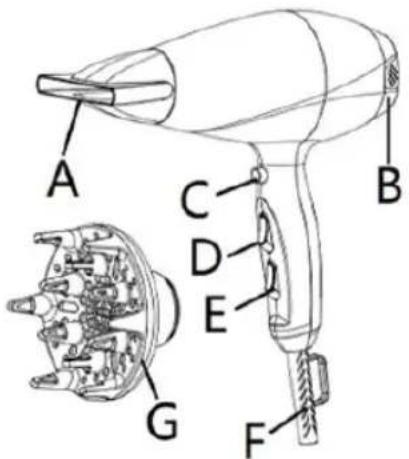

5. PARTS DESCRIPTION

A. Concentrator Nozzle B. Detachable Air Inlet Cover C. Cool Air Shot D. Switch (A) E. Switch (B) F. Hanging loop G. Diffuser

6. INSTRUCTIONS FOR USE

This air dryer has 2 buttons, which helps you to manage the air flow and temperature setting.

Air flow settings:

As this hair dryer has 2 different air flow settings, low and high, so with the help of these settings, you can choose the most appropriate setting as per your need and requirement. With part E (switch B) you can manage air flow setting from low to high and the same button helps you to switch off the hair dryer.

Temperature setting:

With the help of the temperature setting button, you can change the temperature according to your need. The temperature setting changes from low to high, including medium temperature setting. With part D (switch A) temperature can be managed.

Also, this hair dryer has been provided with 2 types of accessories:

Concentrator Nozzle

This concentrator nozzle concentrates the air flow and throws it directly as we need.

Diffuser

A diffuser gives you more control over your hair. It is kinder and gentler to your hair than conventional blow drying. Diffused heat is perfect for enhancing natural curls and waves or creating some extra volume. Always be careful while using the diffuser as it might become hot during use.

Cool Air Shot Button:

This hair dryer model has been provided with a cool air shot button. As its name suggests, it releases cool air instead of hot air. It is one of the essential tools for hair styling, and this function helps to quickly cool down the hair and keep it in style for a long period of time.

• When this button is pressed while the hair dryer is working, the hot air cools down.
• Once the button is released, the appliance returns to a hot air flow at the selected level.

How and When to Use:

You can use this button while curling your hair. To give your hair curls and make them long-lasting, firstly blow dry your hair with a round brush in sections. Every time a section gets dry, use this button as the final step to set your curls and keep it pressed until your hair is set. This process will keep the style for a long period of time.

Ionic Function Technology

This hair dryer also has ionic technology. This technology helps you to dry your hair faster than a normal hair dryer, even at a lower temperature.

This ionic technology helps you to:

• Nourish your hair through the ionization process, in which the hair dryer emits multiple negative ions and breaks down water, allowing more coverage in less time with no damage.
• Fortifies and beautifies the hair from the inside out. Healthy, shiny, and more manageable hair.
• Charged ions delivered with warm air break down water molecules, which are then easily absorbed by your hair.

Tourmaline Coating Technology

By adding tourmaline coating technology to this hair dryer model, we have brought a professional hair care expert to your home.

By using tourmaline technology of this hair dryer model, not only you get smooth and shiny hair but also it helps to seal the moisture into the hair. Keep your hairs healthy and protect your hair against high level of heat.

Off function.

You can turn off the hair dryer at any time just by pressing speed button to off position.

Automatic safety cut off system

This hair dryer has built in automatic safety cut off system. In case of overheating of the appliance this system helps to shut down it and prevent from damaging of appliance and any user personal injury.

Once the appliance automatically shuts off, unplug the appliance from the mains of wall outlet and let it cool and once get cools you can use it again.

7. CLEANING AND MAINTENANCE

This hair dryer model is maintenance free.

There is not any need of lubrication or any cleaning liquids.

Always make sure to keep the appliance clean for proper operation.

To avoid overheating make sure to keep the hair intakes unblocked and unclogged.

This appliance should be stored in a safe, cool and dry place.

Keep it out of reach of children.

In case the dryer stops working, cause of any reason turn it off and let it cool for few minutes, before turning it on again.

1. IMPORTANT:

4. TECHNICAL SPECIFICATIONS

6. INSTRUCTIONS FOR USE

4. TECHNICAL SPECIFICATIONS

6. INSTRUCTIONS FOR USE

4. TECHNICAL SPECIFICATIONS

6. INSTRUCTIONS FOR USE

DECLARATION OF CONFORMITY

This device complies with EU Low Voltage Directive 2014/35/EC.

Electromagnetic Compatibility Directive 2014/30/EU. Directive 2015/863/EU on the restriction of the use of certain hazardous substances in electrical.

Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

This symbol on the product or on the packaging indicates that this product can't be disposed as normal rubbish or household waste. All the electrical, electronic equipment's and battery-operated units must recycle in proper manner and according to the local municipal laws. You can recycle them by taking them to government authorized disposal centres or specialized bins which you can find in any nearby big super markets, electronics or electro domestics products stores or malls who have these types of facilities available.

Designed by: SOGO based on European quality standards Imported by: Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2, 46002 Valencia, Spain Product manufactured in CHINA. After-sales service: www.sogosat.com [e-mail] / 0034 902 222 161
