Product Type	Electric Slicer
Brand	Sogo
Model	SS-926
Power Supply	220-240 V, 50/60 Hz
Cutting Thickness Adjustment	Yes, via rotary knob
Number of Speeds	3 (low, medium, high)
Maximum Continuous Use Time	3 minutes
Required Pause Before Next Cycle	At least 3 minutes
Safety	Double on/off button and safety lock
Recommended Use	Cheese, meat, bread, preparations (do not cut frozen food)
Included Accessories	Food pusher, thickness guide, parts holder
Type of Use	Household use only
Cleaning of Removable Parts	With soapy water (do not put in dishwasher)
Cleaning of Motor Unit	Wipe with a slightly damp cloth, do not immerse
Storage	In a cool, dry place, out of reach of children
After-Sales Service	www.sogosat.com / 0034 902 222 161
Country of Manufacture	People's Republic of China
Compliance Standards	EU Directives (2014/35/EU, 2014/30/EU, 2015/863/EU, 2009/125/EC)

Frequently Asked Questions - SS-926 Sogo

How to assemble the slicer before first use?

Before first use, clean all parts. Mount the thumb guard and sliding feed table vertically, then add the parts holder.

Can I cut frozen food with this appliance?

No, never cut frozen food. Use the slicer only for foods like cheese, meat, bread, and non-frozen preparations.

How to adjust the cutting thickness?

Turn the adjustment knob on the side of the appliance to select the desired slice thickness.

What to do if the blade does not turn?

Check that the appliance is plugged in and that you are pressing both the on/off button and the safety lock. If the problem persists, contact after-sales service.

How to clean the blade?

Unplug the appliance. Turn the blade locking knob to remove it (caution, it is very sharp). Wash it with soapy water, dry it thoroughly, then replace it by turning the knob counterclockwise to lock it.

What is the maximum continuous use time?

The maximum continuous use time is 3 minutes. After each cycle, let the appliance cool for at least 3 minutes before using it again.

Can I use the slicer without the food pusher?

For your safety, always use the food pusher (parts holder) to guide the food, unless the size or shape of the food prevents it.

Is the appliance under warranty?

The manual does not explicitly mention the warranty, but the manufacturer offers after-sales service. Visit www.sogosat.com or call 0034 902 222 161.

Where can I get spare parts?

Use only spare parts from the manufacturer or its local dealer. Contact after-sales service via www.sogosat.com.

How to store the slicer?

Clean and dry all parts thoroughly. Keep the appliance in a cool, dry place, out of reach of children.

USER MANUAL SS-926 Sogo

Please read these instructions fully before use and preserve them for future reference.

A copy of this manual can also be downloaded from our website: www.sogo.es

KEEP THIS MANUAL IN A SAFE PLACE FOR FUTURE USE

• Please read the instructions carefully and completely before using the appliance.

• Before plugging into a socket, check whether your voltage corresponds to the rating label of the appliance.

• Only connect the mains plug to a properly installed and easily accessible wall socket whose voltage corresponds to the specifications on the rating plate. The wall socket must continue to be easily accessible after the device is plugged in.

• This appliance is not to be used by children or persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

• Close supervision is necessary when any appliance is used by or near children. Keep children away from the appliance.

• This appliance shall not be used by children.

• Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning;
• Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.
• Care shall be taken when handling the sharp cutting blades, when dismantling the parts and during cleaning.
• Don't plug the appliance into the power supply until it is fully assembled and always unplug before disassembling the appliance or handle the blade.
• Don't let the motor unit, cord, or plug get wet to protect against risk of electrical shock.
• Do not operate the appliance with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner. Return the appliance to the nearest authorized service facility for examination, repair or electrical or mechanical adjustment.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Don't let excess cord hang over the edge of the table or worktop or touch hot surface.
• The blades are very sharp!
• For Domestic Use Only.
• The appliance is constructed to process

normal household quantities.

• If you want to operate the unit for more than one cycle, you should wait at least 3 minutes before the next working.
• Do not operate the food slicer with wet hands.
• The motor block, the power cable and the mains plug must not be immersed in water or any other liquids.
• Protect the motor block against moisture, drips and splashes.
• If liquid gets into the motor block, remove the mains plug immediately. Have the device checked before reusing.
• If the device falls into water, disconnect the mains plug immediately. Only then is it safe to retrieve the device.
• The device is not fully disconnected from the power supply, even after it is switched off. In order to fully disconnect it, pull out the mains plug.
• When using the device, ensure that the power cable cannot be trapped or crushed.
• When removing the mains plug, always pull the plug and never the cable.
• Use only spare parts from the manufacturer or his local dealer.
• Never carry the unit by its power cord.
• Do not remove individual housing components.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience

and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Cleaning and user maintenance shall not be made by children without supervision.
• Children should be supervised to ensure that they do not play with the appliance.
• Do not use this appliance with a programmer, counter, remote control or another device which can automatically turn it on because if the appliance is covered or incorrectly

positioned there is a danger of fire or serious injury.

ADDITIONAL IMPORTANT SAFEGUARDS

• Any other servicing should be performed by an authorized service representative or a qualified technician.
• This appliance is not for professional use. You should follow the requested breaks. Failure to follow this instruction carefully may result in damage to the motor. Please refer to the rating label for the maximum continuous usage timer (KB/MAX. 3 Minutes where 3 MIN is maximum usage time). The breaks should last at least

3 minutes.

• Only use this slicer for cooking applications. Only cut articles such as cheese, meat, bread and preparations. Never cut frozen

food with this slicer.
- Make sure the appliance is set on a flat surface.
- Never cut food only by using your hands, always use the slide and its food guide unless it is impossible because of the size of the article. Make sure never to touch the knife.
- This kind of appliance cannot function continuously, it is not a professional type of appliance. It is necessary to make temporary stops.
- It is absolutely necessary to keep this appliance clean at all times as it comes into direct contact with food.
- Make sure the appliance is unplugged when disassembling it before cleaning.
- Never touch the blade when the appliance is in use. Furthermore, never try to stop the movement of the blade in any way whatsoever.

SPECIFICATION

Model Rated	Input Rated Power	Speeds Rest Time
SS-926	220-240V~, 50/60Hz	150W 1 ~ 3 KB:3min

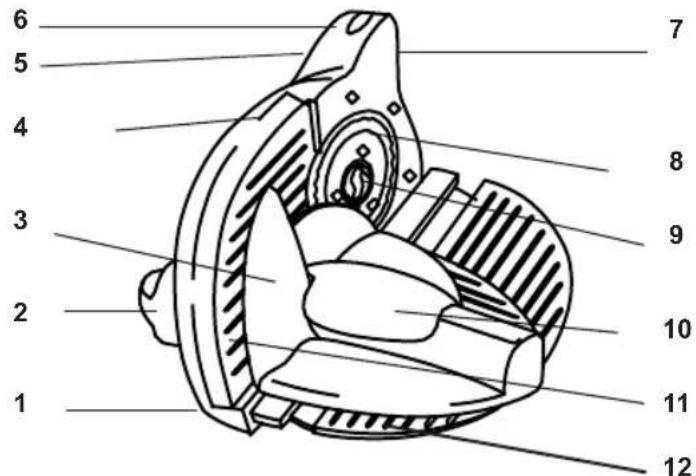

PARTS DESCRIPTION

1. Main Body
2. Adjusting Knob
3. Food Tray
4. Slice Thickness Gauge
5. Speed Control
6. On/Off Button
7. Safety Button
8. Blade Assembly
9. Blade-locking Knob
10. Food Pusher
11. Thickness Guide
12. Platform

Clean all parts of the appliance before the first uses.
- Assemble the thumb guard and the sliding feed table.
- Put the sliding feed table in a vertical position in order to mount it correctly on the support.
- Add the piece holder.
- Select the slicing thickness by turning the adjusting knob.
- Plug in the appliance. The slicer is now ready for use.
- Lay the food to be sliced between the blade and the piece holder.
- Push simultaneously the on/off button and the safety lock with your left hand. The blade will start rotating. For safety reasons, the appliance only works if both buttons are pushed.
- Push the sliding feed table with your right hand to bring the food to the blade.
- To avoid food sticking to the appliance, you can moisten the blade with a wet towel beforehand. This also allows you to slice more easily.
Always use the piece holder when slicing small parts.
- Do not slice meat with bones, food with large seeds, rolled roast without removing the string, wrappers(i.e. aluminum foil), frozen food or any hard, inedible food parts.
- Connect the mains lead to a properly installed 220-240V, 50 / 60Hz safety power socket.
- When operating in levels 1 or 2 snap the selector into the desired position:
Level 1 = low speed
Level 2 = medium speed
- Level 3 = high speed
- For 1~3 Speed, continuously operate time must be less than 3 minutes.
In order to switch off the machine, please affranchise the Safety button.
- All loose parts can be cleaned in soapy water.
- Please wipe the motor block only with a slightly damp cloth. Please do not use caustic detergents or abrasives.
- Please reassemble the parts again in reverse order.
- Before use, all parts must be screwed together tightly and securely.
This appliance must be used with the sliding feed table and the piece holder in position unless this is not possible due to the size or shape of the food.

CLEANING & STORAGE

• Before cleaning, always unplug the appliance.
  The blade of the appliance is extremely sharp, always be careful when cleaning the appliance.
• Wipe the inside and outside of the appliance with a paper towel or a soft cloth. It should not be washed in a dishwasher.
• Do not clean the inside or outside with any abrasive scouring pad or steel wool as this will damage the finish.
• Do not immerse in water or any other liquid.
  The blade can be taken off by turning the blade-locking knob. Caution: the blade is very sharp. After having cleaned the blade, turn the knob anti-clockwise to lock the blade.
  Dry all parts well before storage.
• Store in a cool and dry place and away from children.

AVERTISSEMENTS IMPORTANTS SUR LA SECURITE DE L'UTILISATEUR

Model Rated	Input Rated Power	Speeds Rest Time
SS-926	220-240V~, 50/60Hz	150W 1 ~ 3 KB:3min

DESCRIPTIONS DES PIECES

DECLARATION OF CONFORMITY

This device complies with Low Voltage Directive 2014/35/EC, Electromagnetic Compatibility Directive 2014/30/EU, Directive 2015/863/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of waste electrical and electronic equipment (WEEE).

Imported by:

Sanysan Appliances S.L., NIF: B98753056, C/ Barcas 2, 2

46002 Valencia, Spain

Product made in P.R.C. - Designed by SOGO based on the European Quality Standards

Customer Service: www.sogosat.com / [e-mail]/0034902222161
